DEFINITY™
Communications
System Generic 2
ISDN 7505, 7506, and 7507 Terminals
User's Guide

NOTICE
While reasonable efforts were made to ensure that the information in this document
was complete and accurate at the time of printing, AT&T can assume no responsibility
for any errors. Changes or corrections to the information contained in this document
may be incorporated into future issues.
TO ORDER COPIES OF THIS DOCUMENT
Contact:
Order
AT&T Customer Information Center
2855 North Franklin Road
P.O. Box 19901
Indianapolis, IN 46219
1-800-432-6600,
In Canada: 1-800-255-1242
Document No. 555-104-719
Issue 1, October 1989
For more information about AT&T documents, see Business Communications Systems
Publications Catalog (555-000-010).
HEARING AID COMPATIBILITY
This equipment is compatible with the inductively coupled hearing aids prescribed by
the Federal Communications Commission (FCC).
Prepared by © 1989 AT&T
The AT&T Documentation Management Organization All Rights Reserved
Winston-Salem, NC 27106 Printed in USA

Contents
Your ISDN Terminal
What the Features Do
How to Use the Features
Abbreviated Dialing
Automatic Callback
Bridging
1
Call Coverage
Call Forwarding—Busy/Don't Answer
Call Forwarding—Follow Me
Call Park
Call Pickup
Call Waiting
Conference
Drop
Hold
Intercom (Automatic Dial)
Last Number Dialed
Leave Word Calling (LWC)
Message
Mute
3
5
7
8
8
9
10
11
11
12
12
13
14
14
15
15
16
17
17

Priority Calling
Select Ring
Self-Test
Send All Calls
Speakerphone
Transfer
Voice Message Retrieval
Tones and Their Meanings
Key Words to Know
Quick Reference Lists
18
18
19
20
20
21
22
23
24
27

Your ISDN Terminal
Your ISDN terminal is designed so that you can conveniently use the many features of
the AT&T DEFINITY™ Communications System Generic 2. Familiarize yourself with
your terminal shown in Figure 1 and explained on the following page.
7505
7506

7507

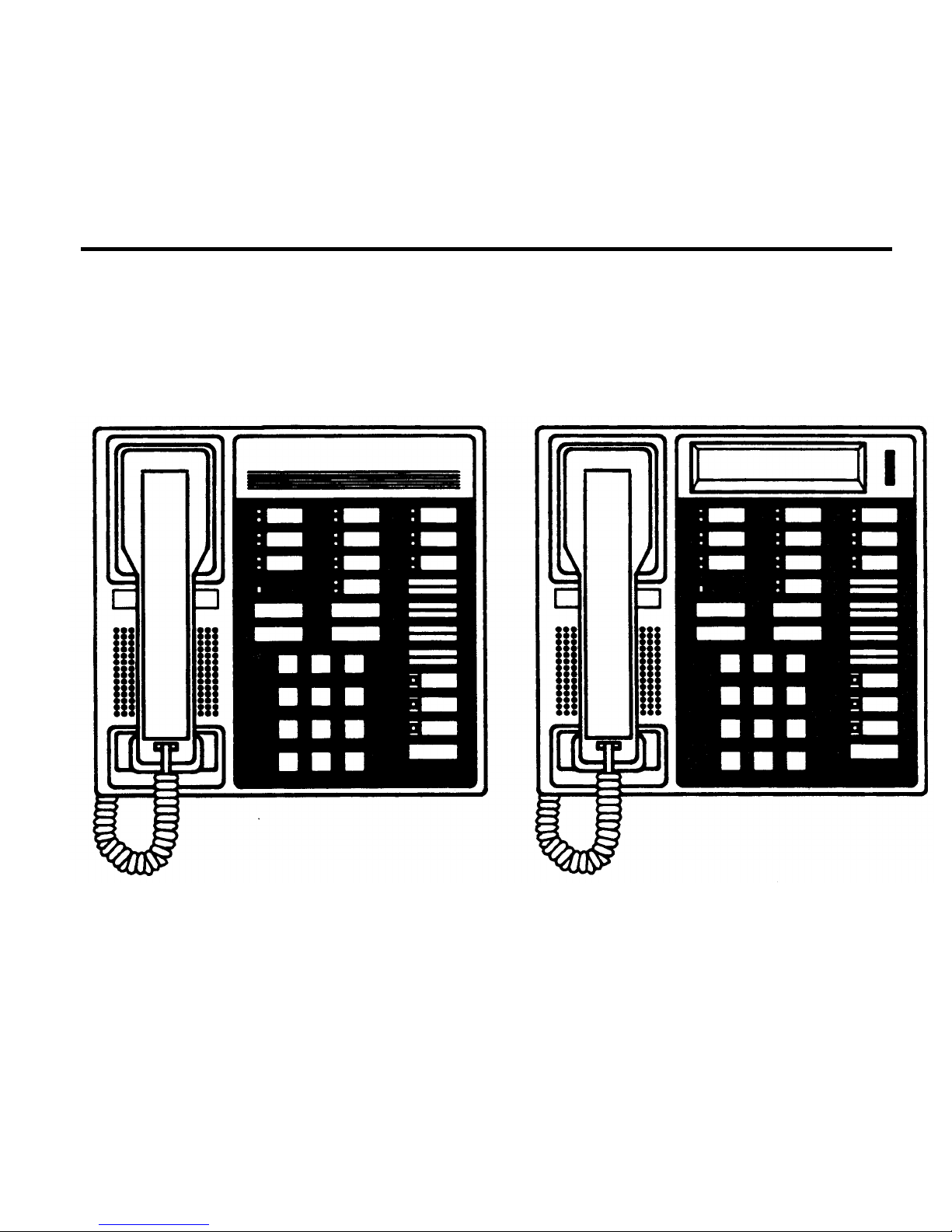

Figure 1. ISDN Terminals
1

Call appearance/feature
buttons
Redial button
Select button
Mute button
Speaker button
Volume button
Transfer button
At least 2 of these buttons are devoted to handling
incoming and outgoing calls (call appearances) and are
labeled with an extension number; the remainder are
call appearances or access features (feature buttons)
and are labeled with a feature name. Each button has a
red light and a green light.
For redialing the last voice number dialed.
Used to access a second level of features on the
 Redial ,  Drop Test ,  Transfer Clock , and  Conference Ring  and
secondary feature buttons.
Press to have a conversation at your end without the
person at the far end hearing. Mute works with both
the handset and the Speakerphone.
If your terminal is programmed with a Speakerphone
or SPOKESMAN® loudspeaker, this button is used to
turn the speaker on or off.
When on a call, used to decrease or increase the
volume of the handset speaker, Speakerphone
loudspeaker, or the SPOKESMAN loudspeaker. When
not on a call, used to decrease or increase the ringer
volume.
For transferring a call to another voice terminal.

Hold Button
Conference button
Drop button
Message light
Dial pad
Handset
Adjunct jack
Line jack
For putting a call on hold.
For setting up conference calls.
For disconnecting from a call or dropping the last party
added to a conference call.
A green light that comes on steadily when a message
has been left for you.
The standard 12-button touch-tone pad for dialing the
telephone numbers and accessing features.
For placing and answering calls (also known as the
receiver). In most cases you must lift the handset (go
off-hook) before you can use a feature.
Located on the bottom of your terminal near the front
edge. This jack is used for connecting a speakerphone
or a headset adapter and headset to your terminal. A
Speakerphone symbol ( ) appears beneath the jack.
Located on the back of your terminal. This jack is used
for connecting a line cord to your terminal. The jack is
labeled “LINE.”
2

What the Features Do
Here are brief descriptions of 23 voice features, including what each one does and how
you might want to use it. You will have the Conference, Drop, Hold, Message, Mute,
Redial, Select Ring, Self-Test, and Transfer features. In addition, you may have many of
the other features listed here; your System Manager can advise you.
Abbreviated Dialing Allows you to store selected telephone numbers as 3 digits or
less for quick and easy dialing. Each number can be a complete or partial telephone
number, an extension number, or a trunk or feature code. There are 3 possible types of
lists—personal, group, and system —and you can have a total of 3 lists. Numbers on a
personal list are programmable by you; numbers on all other lists are programmable
only by the System Manager. Use as a timesaver for dialing frequently called, lengthy,
or emergency numbers. Note: Check with your System Manager concerning what
types of lists you have and how many of each.
Automatic Callback Sends you a special 3-burst ring tone indicating that a
previously busy extension is now available. Use to avoid constant redialing when you
wish to speak to someone who is frequently busy on the telephone. Note: Can be
used only for extensions, not outside numbers.

Bridging Permits you to answer or join in calls to someone else’s extension by
pressing a bridged appearance button on your terminal. This button can be any call
appearance button labeled with another user’s primary extension number, as assigned
to you by your System Manager. Use to assist in handling calls for a designated
co-worker.
Call Coverage Provides automatic redirection of certain calls to your terminal for
answering. (Your System Manager determines which calls will be sent to you.) Use to
answer calls for other extensions for whom you provide coverage.
Call Forwarding All Calls Temporarily forwards all your calls to another extension
or to an outside number, depending on your system. Use when you will be away from
your voice terminal and you want your calls to be forwarded to a telephone number of
your choice.
Call Park Puts a call on hold at your voice terminal, for retrieval at any extension.
Use when you need to go elsewhere to get information during a call, or whenever you
wish to continue a call from a different location. Also, if the call received is for
someone else, use it to hold the call until the called party can answer it from the
nearest available telephone.
Call Pickup Lets you answer a call at your voice terminal for another extension in
your pickup group. Use when you wish to handle a call for a group member who is
absent or otherwise unable to answer. Note: You can only use this feature if you and
the called party have been assigned to the same pickup group by your System
Manager.
3
