ATD Tools ATD-3305 User manual

Made in China to ATD Tools, Inc. Specications
Visit us at www.atdtools.com
ATD3305_rev_0921
ATD-3305
10 Pc. Cooling System Pressure Test
Adapter Update Kit
Owner’s Manual
FEATURES:
$GDSWHUXSGDWHNLWWREHXVHGZLWK$7'
4XLFNO\UHYHDOVH[WHUQDOFRROLQJV\VWHPOHDNV
'HWHFWVLQWHUQDOHQJLQHOHDNVFDXVHGE\EORZQKHDGJDVNHWVDQGRUFUDFNHGEORFNRUKHDGV
(DVLO\WHVWHQWLUHFRROLQJV\VWHPLQFOXGLQJUDGLDWRUKHDWHUFRUHDQGUDGLDWRUFDS
,QFOXGHVEOXHDQGEODFNUDGLDWRUFDSWHVWFRQQHFWRUV
,QFOXGHVDGDSWHUVWRILWPRVWSRSXODUGRPHVWLFDQGLPSRUWFDUVDQGWUXFNV

FEATURES:
SAFETY WARNING AND PRECAUTIONS:
WARNING: The instructions and warnings contained in this manual should be read and understood before using or
operating this tool. Do not allow anyone to use or operate this tool until they have read this manual and have developed
a thorough understanding of how this tool works. Failure to observe any of the following instructions could result in
severe personal injury to tool user and bystanders, or cause damage to the tool and property. Keep this manual for future
reference.
1
10
234
5
67
8
9
11

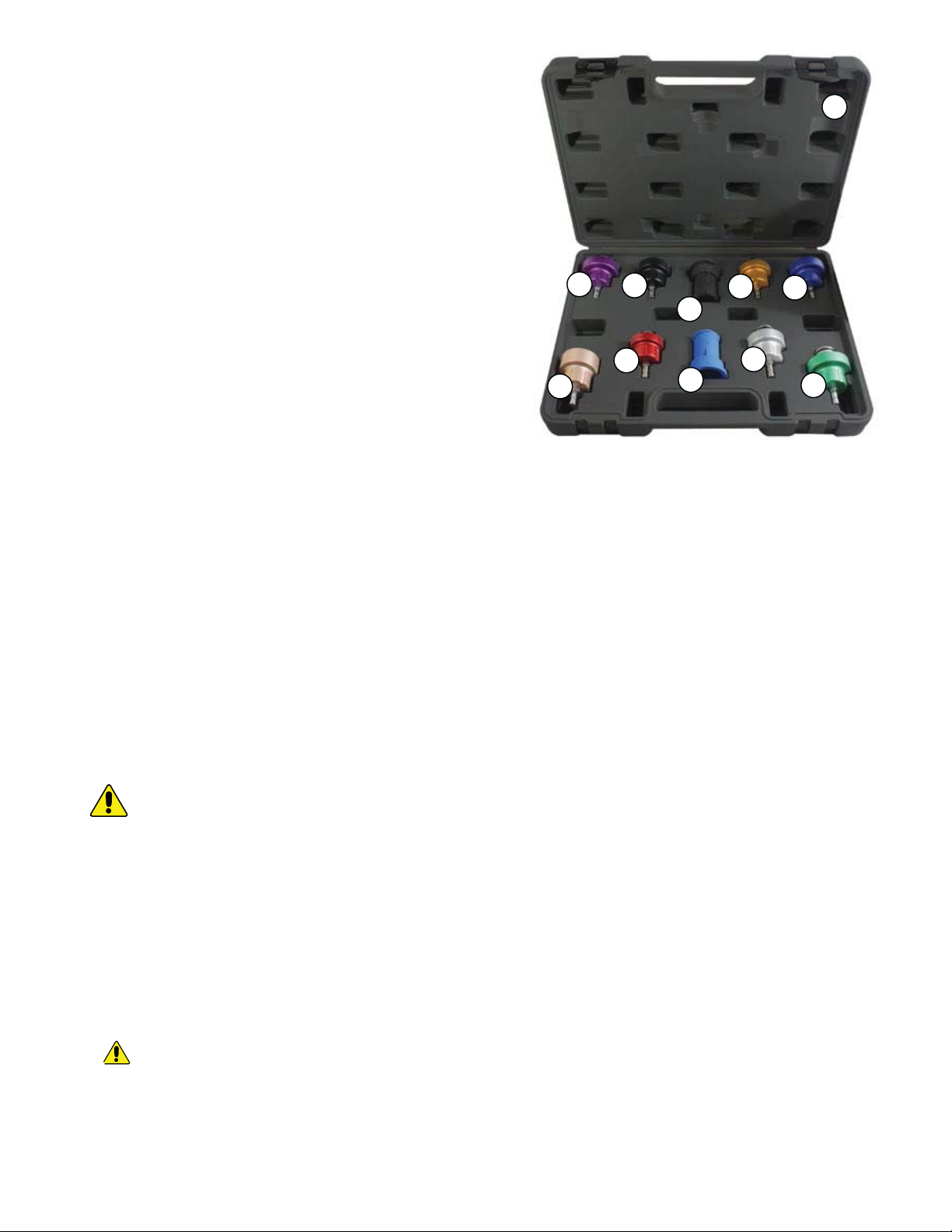

ITEM# PART# DESCRIPTION
1 43302-14 Aluminum #14 Adapter (purple)
2 43302-15 Aluminum #15 Adapter (black)
3 43302-16 Aluminum #16 Adapter (dark gold)
4 43302-17 Aluminum #17 Adapter (royal blue)
5 43302-18
Aluminum #18 Adapter (champagne)
6 43302-19 Aluminum #19 Adapter (red)
7 43302-20
Aluminum #20 Adapter (light silver)
8 43302-21 Aluminum #21 Adapter (light green)
9 43302-5A Radiator Cap Test Connector #2 & #3 (Black)
10 43302-5B Radiator Cap Test Connector #2 & #4 (Blue)
11 43305-PB Blow Molded Case
REPLACEMENT PARTS:
43302-14G Gasket for #14 Aluminum Adapter
43302-15G Gasket for #15 Aluminum Adapter
43302-16G Gasket for #16 Aluminum Adapter
43302-17G Gasket for #17 Aluminum Adapter
43302-18G Gasket for #18 Aluminum Adapter
43302-19G Gasket for #19 Aluminum Adapter
43302-20G Gasket for #20 Aluminum Adapter
43302-21G Gasket for #21 Aluminum Adapter
NOTE:The warnings and cautions discussed in this instruction manual cannot cover all possible conditions and situations
that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
WARNING: Use safety equipment. User and bystanders should use safety goggles or safety glasses with side shields
which comply with current national standards, or when needed, a face shield. Use an ANSI approved dust mask or respi-
rator when working around metal, wood, and chemical dusts and mists. This applies to all persons in the work area. Also
use non-skid safety shoes, hardhat, gloves, dust collection systems, and hearing protection when appropriate.
$GDSWHUXSGDWHNLWWREHXVHGZLWK$7'
4XLFNO\UHYHDOVH[WHUQDOFRROLQJV\VWHPOHDNV
'HWHFWVLQWHUQDOHQJLQHOHDNVFDXVHGE\EORZQKHDGJDVNHWVDQGRUFUDFNHGEORFNRUKHDGV
(DVLO\WHVWHQWLUHFRROLQJV\VWHPLQFOXGLQJUDGLDWRUKHDWHUFRUHDQGUDGLDWRUFDS
,QFOXGHVEOXHDQGEODFNUDGLDWRUFDSWHVWFRQQHFWRUV
,QFOXGHVDGDSWHUVWRILWPRVWSRSXODUGRPHVWLFDQGLPSRUWFDUVDQGWUXFNV

WARNING: Keep bystanders and children out of the work area while operating this tool.
WARNING:Always keep your work area clean, uncluttered, and well lit. Cluttered or dark areas invite accidents and
injuries. DO NOT work on poor surfaces that are slippery.
WARNING: Do not operate this tool if you are tired or under the influence of alcohol, drugs, or medications that could
aect your ability to use the tool properly.
WARNING: Dress properly. Do not wear loose clothing or jewelery as they can be caught in moving parts. Wear restrictive
hair covering to contain long hair.
WARNING: Do not reach over or across running machines. Keep proper footing and balance at all times. Non-skid foot -
wear is recommended when working.
OPERATING INSTRUCTIONS
tThe pump is not included with this set, but is in your ATD-3300 set. This set is an update set consiting of the adapters only.
Before performing the test on your cooling system, test the pump first by pumping few times to ensure the pump is
working correctly. When testing, DO NOT PUMP OVER 20 psi.
t
During your inspection and during the test of your cooling system, when pumping the pump handle, always make sure
that the force is applied straight into the pump rather than at an angle, or else it may cause the pump to leak. (See
Figure 1)
TO TEST FOR LEAKS IN COOLING SYSTEM:
1. Refer to the vehicle’s service manual for any specifc
radiator pressure testing instructions.
2. Loosen the vehicle’s radiator cap slowly to relieve
any excess pressure before removing the cap
completely. NEVER OPEN THE SYSTEM WHILE HOT,
as this may cause personal injury.
3. Select the proper adapter and configuration of the
stationary seat accessories. Securely attach the
adapter to the filler neck of the radiator or expansion
tank.
4. Attach the quick connector of the hand pump onto
the adapter.
5. Rapidly pump the hand pump handle using straight
force (as shown in figure 1) while watching the pres-
sure gauge. Pressurize the radiator up to the optimal
pressure only - DO NOT OVER PRESSURIZE THE
RADIATOR. Ideal readings should range between
15-20 psi (1.03-1.37 BAR).
tNeedle holds steady – If gauge hand holds at the
same pressure number for 2 minutes, there are no
serious leaks in the system.
tNeedle drops slowly – Indicates the presence of
FIG. 1
STRAIGHT FORCE
;:
COOLING SYSTEM PUMP (FIG. 2)
3UHVVXUH
*DXJH
$LU+ROH
4XLFN5HOHDVH
-RLQW
3UHVVXUH
5HOLHIVDOYH
FDVW-RLQW
6\VWHPTHVWLQJ
$GDSWHU
CAUTION: MAX PRESSURE CAN NOT EXCEED 20 psi
(1.37 BAR), OTHERWISE IT WILL DAMAGE THE RADIATOR
small leaks or seepage.
tNeedle drops quickly – Indicates serious leakage is present.

6. Once the test is complete, release the air pressure by depressing the pressure release valve on the hand pump hose,
then disconnect the quick coupler and adapter assembly.
7. Maintenance – After testing process in Radiator Test:
tKeep the adapter connected to the pump as you had set up while performing the actual test. Operate the pump
several times to dissipate moisture and/or coolant that may have remained in the adapter and pump.
tOil the hand pump in order to lubricate the piston and prevent corrosion and internal damage.
8. Store the radiator pressure tester kit in its carrying case and keep the kit in a clean, dry, safe location out of reach of
children and other unauthorized persons.
TO TEST FOR LEAKS IN ORIGINAL RADIATOR CAP:
1. Choose the correct radiator cap connector (43302-5A or 43302-5B) and
correct steel radiator cap (43300-2, 43300-3, or 43300-4) for the correct
vehicle being tested from the test kit. Fasten the original radiator cap to the
radiator cap connector (43302-5A or 43302-5B) and then fasten the steel
radiator cap (43300-2, 43300-3, or 43300-4) from the test kit to the other end
of the radiator cap connector (43302-5A or 43302-5B).
2. Remove the hand pump assembly (43300-1) from the test kit and fasten the
quick coupler at the end of the hose to the radiator cap (43300-2, 43300-3,
or 43300-4) securely. Operate the hand pump until reaching the pressure
recommended by the vehicle manufacturer. - DO NOT OVER PRESSURIZE.
3. Check the pressure reading on the gauge immediately after reaching the
vehicle manufacturer’s recommended pressure. If the pressure drops, there
is a leak in the radiator cap. After pressure testing is completed, press the
release button on the quick coupler until the reading on the gauge reads 0.
Remove quick coupler from radiator cap and then remove the original radiator
cap from the original radiator cap connector.
Fig. 3

BMW 3 Series 1998-2013 21
BMW 3 Series M 2007-2013 17
BMW 3 Series M3
Convertible
2007-2013 17
BMW 3 Series M3 Sedan 2007-2011 17
BMW 5 Series Gran
Turismo 535i
2009-2017 17
BMW 5 Series Gran
Turismo 550i
2009-2016 17
BMW 520i 2007-2010 17
BMW 523i 2007-2010 17
BMW 525i 2003-2010 17
BMW 530i 2003-2010 17
BMW 535i Sedan 2009-2017 17
BMW 535i Wagon 2010-2017 17
BMW 550i 2010-2017 17
BMW 640i Convertible 2011-2017 17
BMW 640i Coupe 2010-2017 17
BMW 645Ci 2004-2005 17
BMW 650i 2011-2017 17
BMW 740i 2008-2015 17
BMW 750i 2008-2015 17
BMW 760i 2009-2015 17
BMW Active Hybrid 2011-2017 17
BMW ActiveHybrid X6 2010 17
BMW M3 2014-2017 17
BMW M4 2014-2017 17
BMW X5 2000-2011 17
BMW X5 3.0si 2006-2008 17
BMW X5 4.8i xDrive 2007-2008 17
BMW X5 M 2009-2012 17
BMW X5 xDrive 30i 2008-2010 17
BMW X5 xDrive 48i 17
BMW X5 xDrive 50i 2010-2012 17
BMW X6 2008-2012 17
BMW X6 M 2009 17
BMW X6 xDrive 35i 2008-2014 17
BMW X6 xDrive 50i 2007-2014 17
BMW X6M 2008-2014 17
BMW Z3 1996-2002 17
BMW Z4 2003-2008 17
BMW Z8 2000-2003 17
Buick LaCrosse 2005 21
Buick Rainier 2005-2007 21
Cadillac BLS 2007 21
Cadillac CTS 2006 21
Cadillac Escalade 2004-2007 21
Cadillac SRX 2004-2007 21
Cadillac STS 2005-2006 21
Chevrolet Avalanche 2007 21
Chevrolet Avalanche 1500 2002-2006 21
Chevrolet Cavalier 1999-2005 21
Chevrolet Classic 2004 21
Chevrolet Cobalt 2007 21
Chevrolet Colorado 2004-2007 21
Chevrolet Equinox 2005-2007 21
Chevrolet Express 1500 2004-2007 21
Chevrolet Express 2500 2003-2007 21
Chevrolet Express 3500 2003-2007 21
Chevrolet HHR 2007 21
Chevrolet Malibu 2001-2007 21
Chevrolet Silverado 1500 1999-2007 21
Chevrolet Silverado 1500 HD 2002-2007 21
Chevrolet Silverado 2500 1999-2004 21
Chevrolet Silverado 2500 HD 2001-2007 21
Chevrolet Silverado 3500 2001-2007 21
Chevrolet Silverado 3500 HD 2007 21
Chevrolet SSR 2006 21
Chevrolet Suburban 1500 2001-2007 21
Chevrolet Suburban 2500 2001-2007 21
Chevrolet Tahoe 2000-2007 21
Chevrolet Trailblazer 2002-2007 21
Chevrolet Viva 2003-2008 21
Daewoo Aranos 1995-1997 21
Daewoo Cielo 1995-1997 21
Daewoo Espero 1991-1999 21
Daewoo Kalos 2002-2016 21
Daewoo Nexia 1995-2008 21
Daewoo Nubira 1997-2016 21
Fiat Croma 2005-2013 21
Ford B-Max 2012-2017 15
Ford C-MAX 14
Ford C-Max DM2 2007-2010 15
Ford C-Max MKII 2010-2016 15
Ford Contour 1995-2000 14
Ford Courier 1996-2003 21
Ford Crown Victoria 1993-2011 21
Ford E-150 2003-2012 21
Ford E-150 Club Wagon 2003-2005 21
Ford E-150 Econoline 1992-2002 21
Ford E-150 Econoline
Club Wagon
1992-2012 21
Ford E-250 Econoline 1992-2002 21
Ford E-250 Super Duty 2004-2005 21
Ford E-350 2003 21
Ford E-350 Club Wagon 2003-2005 21
Ford E-350 Econoline 1992-2002 21
Ford E-350 Econoline
Club Wagon
1992-2002 21
Ford E-350 Super Duty 2004-2012 21
Ford Ecosport 2012-2017 15
Ford Edge 2007-2012 21
Ford Escort 1985-2000 21
Ford Escort Express 1990-1994 21
Ford Excursion 2000-2005 21
Ford Expedition 1997-2008 21
Ford Explorer 2002-2012 21
Ford F-150 1997-2012 21
Ford F-250 Super Duty 1999-2012 21
Ford F-350 Super Duty 2005-2012 21
Ford F-450 Super Duty 2005-2012 21
Ford F-550 Super Duty 2005-2012 21
Ford Fiesta 2008-2016 15
Ford Fiesta 1989-1997 21
Ford Fiesta MK VI 2008-2017 15
Ford Fiesta V 2001-2010 15
Ford Fiesta V 2001-2010 21
Ford Five Hundred 2005-2007 21
Ford Flex 2009-2012 21
Ford Focus 2000-2005 14
Ford Focus 2004-2016 21
Ford Focus C-Max 2003-2007 15
Ford Focus Turnier 2010-2016 15
Ford Freestar 2004-2007 21
Ford Fusion 2002-2012 21
Ford Galaxy 2006-2015 15
Ford Granada 1985-1994 21
Ford Grand C-Max 2010-2016 15
MAKE MODEL YEARS NO. MAKE MODEL YEARS NO.
VEHICLE COMPATIBILITY CHART

Ford KA 1996-2009 21
Ford Kuga 2013-2017 15
Ford Kuga I 2008-2016 15
Ford Mondeo 2000-2007 14
Ford Mondeo 2007-2014 15
Ford Mondeo Turnier 2007-2014 15
Ford Mondeo V 2013-2017 15
Ford Mustang 1996-2012 21
Ford Orion 1985-1990 21
Ford Ranger 1990-2017 15
Ford Ranger 1998-2011 21
Ford Sierra 1982-1987 21
Ford S-Max 2006-2014 15
Ford Taurus 1996-2012 21
Ford Thunderbird 2002-2005 21
Ford
Tourneo Connect 2002-2013 21
Ford Tourneo Courier 2014-2017 15
Ford Transit 2006-2016 15
Ford Transit Connect 2013-2017 15
Ford Transit Custom 2012-2017 15
Ford Transit Tourneo 1994-2014 15
Ford Windstar 1999-2003 21
Ford Asia &
Oceanic
Fiesta 2002-2013 15
Ford Asia &
Oceanic
Focus 2004-2011 15
Ford Asia &
Oceanic
Focus Estate
Wagon
2011 15
Ford Asia &
Oceanic
Mondeo 2007 15
Ford Asia &
Oceanic
Ranger 2011 15
Ford Australia
Fiesta Hatchback WT 2010 15
Ford Australia Fiesta Saloon WT 2010 15
Ford Australia Fiesta WS 2008 15
Ford Australia
Focus Hatchback LT 2005 15
Ford Australia
Focus Hatchback LV 2009-2011 15
Ford Australia Focus Saloon
LS, LT
2005 15
Ford Australia Focus Saloon LV 2009-2011 15
Ford Australia
Mondeo Hatchback
MA, MB
2007 15
Ford Europe B-Max 2012 15
Ford Europe C-Max 2007-2012 15
Ford Europe Fiesta 2001-2013 15
Ford Europe Fiesta Van 2008-2010 15
Ford Europe Focus 2004-2013 15
Ford Europe Focus CC 2006-2011 15
Ford Europe Focus C-Max 2003-2007 15
Ford Europe
Focus Estate Wagon 2004-2013 15
Ford Europe Focus Van 2005-2013 15
Ford Europe Galaxy 2006-2011 15
Ford Europe Galaxy Van 2006-2010 15
Ford Europe Grand C-Max 2010-2012 15
Ford Europe Kuga 2008-2012 15
Ford Europe Mondeo 2007-2012 15
Ford Europe Mondeo Estate
Wagon
2007-2011 15
Ford Europe S-Max 2006-2011 15
Ford Europe Transit 250 2011 15
Ford Europe Transit 260 2006 15
Ford Europe Transit 280 2006 15
Ford Europe Transit 300 2006 15
Ford Europe Transit 330 2006-2013 15
Ford Europe Transit 350 2006-2013 15
Ford Europe Transit 370 2006 15
Ford Europe Transit 410 2006 15
Ford Europe Transit 430 2006-2013 15
Ford Europe Transit 460 2006 15
Ford Europe
Transit Custom 250 2012 15
Ford Europe
Transit Custom 270 2012 15
Ford Europe
Transit Custom 290 2012 15
Ford Europe
Transit Custom 300 2012 15
Ford Europe
Transit Custom 310 2012 15
Ford Europe
Transit Custom 330 2012 15
Ford Europe Transit Tourneo 2012 15
Ford Europe Transit Tourneo
Custom
2012 15
Ford Intl C-Max 2007-2012 15
Ford Intl C-Max 11 2010 15
Ford Intl Fiesta V JH, J0 2001 15
Ford Intl Fiesta V1 2008-2009 15
Ford Intl Fiesta Van 2009 15
Ford Intl Focus 11 0A 2004 15
Ford Intl
Focus 11 Convertible 2006 15
Ford Intl
Focus 11 Estate 0AW 2004 15
Ford Intl Focus 11 Station
Wagon 0AW
2004 15
Ford Intl Focus 111 2011 15
Ford Intl
Focus 111 Saloon 2011 15
Ford Intl
Focus 111 Turnier 2011 15
Ford Intl Focus C-Max 2003-2007 15
Ford Intl Focus Saloon 0A 2005 15
Ford Intl Galaxy 2006 15
Ford Intl Grand C-Max 2010 15
Ford Intl Kuga 2008 15
Ford Intl Modeo 1V 2007 15
Ford Intl Mondeo 1V Saloon 2007 15
Ford Intl Mondeo 1V Turnier 2007 15
Ford Intl Ranger 2011 15
Ford Intl S-Max 2006 15
Ford Intl Transit Bus 2006 15
Ford Intl Transit Flatbed
Chassis
2006 15
Ford Intl Transit Tourneo 2006 15
Ford USA Ranger 2011 15
GMC Canyon 2004-2007 21
GMC Envoy 2003-2007 21
GMC K2500 Suburban 1999 21
GMC Savana 1500 2003-2007 21
GMC Savana 2500 2003-2007 21
GMC Savana 3500 2004-2007 21
GMC Sierra 1500 1999-2007 21
GMC Sierra 1500 HD 2001-2007 21
GMC Sierra 2500 1999-2004 21
GMC Sierra 2500 HD 2001-2007 21
GMC Sierra 3500 2001-2007 21
GMC Sierra 3500 HD 2007 21
GMC Sierra C3 2001 21
GMC Yukon 2000-2006 21
GMC Yukon XL 1500 2000-2007 21
GMC Yukon XL 2500 2001-2007 21
Hummer H2 2004-2006 21
Hummer H3 2006 21
Isuzu Ascender 2003-2006 21
Isuzu i-280 2006 21
Isuzu i-290 2007 21
Land Rover Freelander 2006-2013 15
Land Rover Freelander 2 FA 2006 15
MAKE MODEL YEARS NO. MAKE MODEL YEARS NO.

Land Rover Freelander2 2006-2014 15
Land Rover LR2 2006 15
Land Rover
Range Rover Evoque 2011-2017 15
Lexus 1S F 2008-2013 19
Lexus GS460 2008-2011 19
Lexus HS 250h 2010 19
Lexus HS250h 2010-2011 19
Lexus IS F 2008-2014 19
Lexus LS 600h 2008-2012 19
Lexus LS460 2007-2013 19
Lexus LS600h 2008-2012 19
Lincoln Continental 1995-2002 21
Lincoln Mark VIII 1993-1998 21
Lincoln MKS 2009-2012 21
Lincoln MKT 2010-2012 21
Lincoln MKX 2007-2012 21
Lincoln MKZ 2007-2012 21
Lincoln Town Car 1993-2011 21
Lincoln Zephyr 2006 21
Mazda 2 2007 15
Mazda 3 2003-2017 15
Mazda 5 2010 15
Mazda 2 0E 2007 15
Mazda 2 Series 2007-2015 15
Mazda 3 BK 2003 15
Mazda 3 BL 2009 15
Mazda 3 Saloon BK 2000-2009 15
Mazda 3 Saloon BL 2009 15
Mazda 3 Series 2003-2009 15
Mazda 5 CW 2010 15
Mazda 5 Series 2010-2017 15
Mazda Axela 2003 15
Mazda BT50 2011 15
Mazda Mazda 6 2006 21
Mazda Mazda3 2004-2009 15
Mercedes Benz A 140 1997-2004 16
Mercedes Benz A 150 2004-2012 16
Mercedes Benz A 160 1997-2004 16
Mercedes Benz A 160 CDi 2004-2012 16
Mercedes Benz A 170 2004-2012 16
Mercedes Benz A 170 CDi 1997-2004 16
Mercedes Benz A 180 2004-2012 16
Mercedes Benz A 180 CDi 2004-2012 16
Mercedes Benz A 190 1997-2004 16
Mercedes Benz A 200 2004-2012 16
Mercedes Benz A 200 CDi 2004-2012 16
Mercedes Benz A 210 1997-2004 16
Mercedes Benz A140 1997-2004 16
Mercedes Benz A150 2004-2012 16
Mercedes Benz A160 1997-2012 16
Mercedes Benz A170 1998-2012 16
Mercedes Benz A180 2004-2012 16
Mercedes Benz A190 1999-2004 16
Mercedes Benz A2 00 Turbo 2004-2012 16
Mercedes Benz A200 2004-2012 16
Mercedes Benz A21 AMG 2002-2004 16
Mercedes Benz A210 2002-2004 16
Mercedes Benz B 150 2005-2011 16
Mercedes Benz B 160 2005-2011 16
Mercedes Benz B 170 2005-2011 16
Mercedes Benz B 170 NGT 2005-2011 16
Mercedes Benz B 180 2005-2011 16
Mercedes Benz B 180 CDi 2005-2011 16
Mercedes Benz B 180 NGT 2005-2011 16
Mercedes Benz B 200 2005-2011 16
Mercedes Benz B 200 CDi 2005-2011 16
Mercedes Benz B 200 Turbo 2005-2011 16
Mercedes Benz B150 2009-2011 16
Mercedes Benz B160 2009-2011 16
Mercedes Benz B170 2005-2011 16
Mercedes Benz B180 2000-2011 16
Mercedes Benz B200 2005-2011 16
Mercedes Benz E-CELL 2004-2012 16
Mercedes Benz F-CELL 2005-2011 16
Mercedes Benz Vaneo 2001-2005 16
Mercedes Benz Vaneo 1.6 2002 16
Mercedes Benz Vaneo 1.7 2002 16
Mercedes Benz Vaneo 1.9 2002 16
Mercedes Benz W168 1997-2004 16
Mercury Cougar 1999-2002 14
Mercury Cougar 1993-1997 21
Mercury Grand Marquis 1993-2011 21
Mercury Milan 2006-2011 21
Mercury Monterey 2004-2007 21
Mercury Mystique 1995-2000 14
Mercury Sable 1996-2009 21
Oldsmobile Alero 1999-2004 21
Oldsmobile Cutlass 1999 21
Oldsmobile Intrigue 2002 21
Opel Agila 2000-2007 21
Opel Ascona C 1981-1988 21
Opel Astra 1991-2013 21
Opel Astra Cabrio 2003-2006 21
Opel Astra Classic 2006-2009 21
Opel Astra Coupe 2003-2005 21
Opel Astra GTC 2005-2011 21
Opel Astra H 2004-2014 20
Opel Astra H 2004-2016 21
Opel Astra H Caravan 2004-2016 21
Opel Astra H GTC 2005-2016 21
Opel
Astra H Sport Hatch 2005-2010 20
Opel
Astra H Stufenheck 2007-2016 21
Opel Astra H Twintop 2005-2010 20
Opel Astra H Twintop 2005-2016 21
Opel Astra H Van 2004-2016 21
Opel Astra Van 2004-2010 21
Opel Combo 1994-2001 21
Opel Combo Tour 2001-2011 21
Opel Corsa 2006-2017 20
Opel Corsa 2006-2013 21
Opel Corsa B 1993-2016 21
Opel Corsa C 2000-2016 21
Opel Corsa D 2007-2011 21
Opel Corsa Van 2006-2010 21
Opel Frontera 1992-1998 21
Opel Kadett E 1984-1993 21
Opel Meriva 2006-2010 21
Opel Meriva 2003-2010 21
Opel Omega A 1986-1994 21
Opel Omega B 1994-2003 21
Opel Senator 1987-1993 21
Opel Signum 2003-2008 20
Opel Signum 2003-2008 21
Opel Vectra 2002-2008 21
Opel Vectra 1988-1995 21
Opel Vectra C 2002-2009 20
Opel Vectra C GTS 2002-2016 20
Opel Zafira 2005 21
MAKE MODEL YEARS NO. MAKE MODEL YEARS NO.

Opel Zafira A 1999-2005 21
Opel Zafira B 2005-2016 20
Opel Zafira B 2005-2011 21
Opel Zafira Van 2005 21
Pontiac G5 2007 21
Pontiac G6 2006 21
Pontiac Grand Am 1999-2005 21
Pontiac Grand Prix 2005-2006 21
Pontiac Pursuit 2005-2006 21
Pontiac Solstice 2006-2007 21
Pontiac Sunfire 2005 21
Saab 9-3 2002-2015 20
Saab 9-3 2003-2012 21
Saab 9-3 Sport 2002-2012 21
Saab 9-3 X 2009-2012 21
Saab 9-3X 2010-2011 20
Saab 9-7 X 2007 21
Saturn Aura 2007 21
Saturn Ion 2 2003-2007 21
Saturn Ion 3 2003-2007 21
Saturn Ion I 2003-2005 21
Saturn Outlook 20078 21
Saturn Sky 2007 21
Saturn Vue 2005-2007 21
Scion tC 2011-2012 19
Scion xB 2008-2012 19
Suzuki XL-7 2007 21
Toyota Avalon 2013-2015 19
Toyota Camry 2013-2015 19
Toyota Celica 2000-2005 19
Toyota Hiace 2006-2014 19
Toyota MR2 Spyder 2000-2005 19
Toyota MR2Spyder 2000-2005 19
Toyota Prius 2010-2012 19
Toyota Prius C 2013-2013 19
Toyota Prius V 2012-2012 19
Toyota RAV4 2006-2012 19
Vauxhall Astra 2004-2010 20
Vauxhall Astra 2004-2011 21
Vauxhall Astra Cabrio 2006-2011 21
Vauxhall Astra Coupe 2005-2008 21
Vauxhall Astra GTC 2004-2011 21
Vauxhall Astra Twintop 2005-2010 21
Vauxhall Astravan 1998-2016 20
Vauxhall Astravan 2005-2017 21
Vauxhall Combo 2005-2011 21
Vauxhall Corsa 2006-2014 20
Vauxhall Corsa 2006-2012 21
Vauxhall Meriva 2006-2010 21
Vauxhall Signum 2003-2008 20
Vauxhall Signum 2003-2008 21
Vauxhall Vectra 2002-2008 20
Vauxhall Vectra 2002-2008 21
Vauxhall Zafira 2005-2014 20
Vauxhall Zafira 2005-2013 21
Volvo C30 2006-2012 15
Volvo C70 2005-2013 15
Volvo
C70 11 Convertible 2006 15
Volvo S40 2004-2012 15
Volvo S40 11 MS 2004 15
Volvo S60 2010-2017 15
Volvo S60 11 2010 15
Volvo S80 2006-2017 15
Volvo S80 11 AS 2006 15
Volvo V40 2012-2017 15
Volvo
V40 Cross Country 2012 15
Volvo V40 Hatchback 2012 15
Volvo V50 2003-2012 15
Volvo V50 NW 2004 15
Volvo V60 2010-2017 15
Volvo V70 2007-2017 15
Volvo V70 III Estate 2007 15
Volvo XC60 2008-2017 15
Volvo XC70 2007-2017 15
Volvo XC70 Cross
Country
2007-2011 15
Volvo XC70 II 2007 15
MAKE MODEL YEARS NO. MAKE MODEL YEARS NO.

WARRANTY
1 YEAR LIMITED WARRANTY
THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
385&+$6(')520BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
'$7(385&+$6('BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
,192,&(5(&(,37180%(5BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
<RXU$7'LVZDUUDQWHGIRUDSHULRGRIPRQWKVIURPWKHRULJLQDOSXUFKDVHGDWH

)RUDSHULRGRIRQH\HDUIURP\RXUSXUFKDVHGDWH$7'7RROV,QFZLOOUHSDLURUUHSODFHDWLWVRSWLRQZLWKRXWFKDUJH\RXU
$7'SURGXFWLILWZDVSXUFKDVHGQHZDQGWKHSURGXFWKDVIDLOHGGXHWRDGHIHFWLQPDWHULDORUZRUNPDQVKLSZKLFK\RXH[SHULHQFHG
GXULQJQRUPDOXVHRIWKHSURGXFW7KLVOLPLWHGZDUUDQW\LV\RXUH[FOXVLYHUHPHG\
7RDFFHVVWKHEHQHILWVRIWKLVZDUUDQW\FRQWDFW\RXUVXSSOLHURUSRLQWRIVDOHGLUHFWO\<RXPD\EHDGYLVHGWRUHWXUQWKHSURGXFW
XQGHUZDUUDQW\IUHLJKWSUHSDLGWR\RXUVXSSOLHUIRUZDUUDQW\GHWHUPLQDWLRQ
,IWKLV$7'SURGXFWLVDOWHUHGDEXVHGPLVXVHGPRGLILHGRUXQGHUJRHVVHUYLFHE\DQXQDXWKRUL]HGWHFKQLFLDQ\RXUZDUUDQW\ZLOO
EHYRLG:HDUHQRWUHVSRQVLEOHIRUGDPDJHWRRUQDPHQWDOGHVLJQV\RXSODFHRQWKLV$7'SURGXFWDQGVXFKRUQDPHQWDWLRQVKRXOG
QRWFRYHUDQ\ZDUQLQJVRULQVWUXFWLRQVRUWKH\PD\YRLGWKHZDUUDQW\7KLVZDUUDQW\GRHVQRWFRYHUVFUDWFKHVVXSHUILFLDOGHQWVDQG
RWKHUDEUDVLRQVWRWKHSDLQWILQLVKWKDWRFFXUXQGHUQRUPDOXVH,WDOVRGRHVQRWFRYHUQRUPDOZHDULWHPVVXFKDVEXWQRWOLPLWHGWR
EUXVKHVEDWWHULHVGULOOELWVGULOOFKXFNVSDGVRUEODGHV
6XEMHFWWRWKHODZLQ\RXUVWDWH
<RXUVROHDQGH[FOXVLYHUHPHG\LVUHSDLURUUHSODFHPHQWRIWKHGHIHFWLYHSURGXFWDVGHVFULEHGDERYH
$7'LVQRWOLDEOHIRUDQ\LQFLGHQWDOGDPDJHVLQFOXGLQJEXWQRWOLPLWHGWRORVWSURILWVDQGXQIRUHVHHDEOHFRQVHTXHQFHV
7KHUHSDLUDQGUHSODFHPHQWRIWKLVSURGXFWXQGHUWKHH[SUHVVOLPLWHGZDUUDQW\GHVFULEHGDERYHLV\RXUH[FOXVLYHUHPHG\DQGLV
SURYLGHGLQOLHXRIDOORWKHUZDUUDQWLHVH[SUHVVRULPSOLHG$OORWKHUZDUUDQWLHVLQFOXGLQJLPSOLHGZDUUDQWLHVDQGZDUUDQWLHVRI
PHUFKDQWDELOLW\RUILWQHVVIRUDSDUWLFXODUSXUSRVHDUHGLVFODLPHGDQGLIGLVFODLPHULVSURKLELWHGWKHVHZDUUDQWLHVDUHOLPLWHGWR
RQH\HDUIURP\RXUGDWHRISXUFKDVHRIWKLVSURGXFW
6RPHVWDWHV¶ODZVGRQRWDOORZOLPLWHGGXUDWLRQVRQFHUWDLQLPSOLHGZDUUDQWLHVDQGVRPHVWDWHV¶ODZVGRQRWDOORZOLPLWDWLRQVRQ
LQFLGHQWDORUFRQVHTXHQWLDOGDPDJHV<RXVKRXOGFRQVXOWWKHODZLQ\RXUVWDWHWRGHWHUPLQHKRZ\RXUULJKWVPD\YDU\
>$IIL[UHFHLSWRULQYRLFHKHUHIRUVDIHNHHSLQJ@
