16-Port Dual Rail LCD KVM Switch
Model Number: KL1116
ATEN International Co., Ltd.
3F, No. 125, Sec. 2, Datung Rd., Sijhih City, Taipei, Taiwan 221
Phone: [phone] Fax: [phone]
http://www.aten.com

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
2
Document Revision History:
Revision Date Revision Details Version
September 4, 2008 KL1116 Marketing Spec Book Write-Up 0.8
November 5, 2008 KL1116 Marketing Spec Book Release 1.0

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
3
[Table of Contents]
1. PRODUCT OVERVIEW:.................................................................................................................................... 4
1.1. INTRODUCTION: ............................................................................................................................................ 4
1.2. FEATURES AND BENEFITS:............................................................................................................................. 5
2. PRODUCT SPECIFICATIONS: ......................................................................................................................... 6
2.1. SPEC TABLE: ................................................................................................................................................ 6
2.2. CERTIFICATIONS: .......................................................................................................................................... 8
2.3. PRODUCT RELIABILITY TEST: ........................................................................................................................11
2.4. CABLES:..................................................................................................................................................... 12
2.5. FRONT AND REAR VIEW:.............................................................................................................................. 13
2.6. CONNECTION DIAGRAM: .............................................................................................................................. 15
2.7. PACKAGE CONTENTS: ................................................................................................................................. 18
3. FUNCTION OVERVIEW:................................................................................................................................. 19
3.1. HOTKEY FUNCTION OVERVIEW: ................................................................................................................... 19
3.2. PUSHBUTTON FUNCTION OVERVIEW: ........................................................................................................... 19
3.3. OSD FUNCTION OVERVIEW:........................................................................................................................ 20
3.4. OSD FACTORY DEFAULT SETTINGS: ............................................................................................................ 21
4. PRODUCT DIMENSIONS: .............................................................................................................................. 22
4.1. KVM SWITCH: ............................................................................................................................................ 22
4.2. RACK MOUNT KIT:....................................................................................................................................... 23
4.3. LABEL: ....................................................................................................................................................... 28
4.4. PACKAGING: ............................................................................................................................................... 29
4.5. CABLES:..................................................................................................................................................... 30
5. POWER SUPPLY: ........................................................................................................................................... 31
5.1. POWER CORDS:.......................................................................................................................................... 31

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
4
1. Product Overview:
1.1. Introduction:
The KL1116 is an integrated KVM switch featuring a built-in keyboard, touchpad, and LCD monitor in a
retractable sliding housing, which enables access to 16 computers. As many as 31 additional KVM switches
can be daisy chained to each other, so that up to 512 computers can all be controlled from a single KL1116 unit.
To access the computers on your installation, simply use the conveniently-located pushbuttons, enter Hotkey
combinations from the keyboard, or take advantage of the powerful, mouse-driven OSD (On Screen Display)
menu system. Furthermore, you can use an external console to access the unit. The KL1116 takes up only 1U
of rack space, and setup consists of just plugging cables into their appropriate ports; no software is needed. For
your convenience, the optional Easy Installation Rack Mount Kit lets you install your KL1116 unit quickly and
easily.

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
5
1.2. Features and Benefits:
FEATURES BENEFITS
■Daisy chain up to 31 additional KVM switches
and control up to 512 servers from a single
console
Eliminate the expense of having a separate keyboard,
monitor, and mouse for each server, save space, save
on energy costs, and eliminate the inconvenience and
wasted effort in moving from one server to another.
■Integrated Hideaway™ console The keyboard, touchpad, and LCD monitor are all built
into one easy-to-use unit. An added advantage is that
the LCD Module and Keyboard Module slide out
separately, thus allowing you to see the video display
while the keyboard and touchpad are tucked away.
■Computer selection via pushbuttons, Hotkey
Mode, and OSD (On Screen Display)
Easily access any of your connected servers with the
press of a button, key, or the intuitive On Screen Display.
■Dedicated Hotkey Mode and OSD invocation
keys
Access Hotkey Mode and the OSD with a single
keystroke.
■External Console support Allows another person to control the KVM switch from a
console connected to the KL1116.
■Upgradeable firmware Stay current with the latest functionality improvements
and updates.
■Two-level password security Prevent unauthorized users from accessing your
servers, and keep your valuable data secure.
■Auto Scan feature Scan and monitor the activities of all computers on the
installation, one by one.
■Takes up only 1U of rack space Save precious rack space.
■Broadcast Mode function Seamlessly perform operations simultaneously on all
selected computers, such as software installation and
upgrades, system-wide shutdown, and more.
■Superior video quality – 1280 x 1024 Get an excellent, crisp image on your screen every time.
■No software required Eliminate incompatibility and installation issues and
eliminate the need to spend time configuring software.
■Optional Easy Installation Rack Mount Kit
available
Safely and quickly install the unit by yourself. No more
having to hold the switch with one hand while trying to
screw it on to the rack.

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
6
2. Product Specifications:
2.1. Spec Table:
Function Specification
Direct 16
Computer Connections
Maximum 512 (via Daisy Chain)
Port Selection OSD (On Screen Display), Hotkeys, Pushbutton Switches
KVM Ports SPHD-15 Female (Yellow) ×16
Daisy Chain DB-25 Male (Black) ×1
FW Upgrade RJ-11 Female (Black) x 1
Power 3-prong AC Socket x 1
Keyboard 6-pin Mini-DIN Female (Purple) x 1
Video HDB-15 Female (Blue) x 1
Connectors
Console
Port
Mouse 6-pin Mini-DIN Female (Green) x 1
Online 16 (Green)
Selected 16 (Orange)
Power 1 (Blue)
LEDs
Lock
Num Lock (Green) x 1
Caps Lock (Green) x 1
Scroll Lock (Green) x 1
Power Rocker x 1
Port Pushbutton x 16
FW Upgrade Slide x 1
LCD Adjust Pushbutton x 4
Switches
Reset Recessed Pushbutton x 1
Emulation Keyboard/Mouse PS/2
Video 1280×1024 @75Hz；DDC2B
Scan Interval User Specified: 1-255 seconds
I/P Rating 100-240 VAC, 50/60 Hz; 1A
Power Consumption 120V / 24W; 230V / 24W
Operating Temperature 0-40℃
Storage Temperature -20-60℃

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
7
Humidity 0-80% RH, Non-condensing
Housing Metal
Weight 17.1 kg
Size （L×W×H）68.0 x 48.2 x 4.4 cm
MTBF 62,523 hours

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
8
2.2. Certifications:
[CE]

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
9
[FCC]

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
10
[CB]

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
11
2.3. Product Reliability Test:
Tes t Details Result
High/Low Temperature Operation Test Temperature: -5°C - 50°C
Time: 26 hours per cycle, for 2 cycles
Pass
High Temperature and Humidity Storage
Tes t
Temperature: 65°C
Humidity: 95%
Time: 24 hours
Pass
Low Temperature Storage Test Temperature: -25°C
Time: 24 hours
Pass
Rail Vibration Test Frequency: 5 - 200Hz
0.3 grams
Pass
Truck Vibration Test Frequency: 5 - 200Hz
0.5 grams
Pass
Air Vibration Test Frequency: 5 - 300Hz
1.0 grams
Pass
Shutter Button Test 30 or 60 times/minute, total of 1,000 times
Press: 1.2 ± 0.5 kgf
Pass
LCD/KM Module Push/Pull Test 4 times/minute, total of 10,000 times Pass
LCD/KM Module Hinge Cycle Test 30 ± 2 times/hour, total of 5,000 times Pass
Master Carton Vibration Test Frequency: 5 - 200Hz
ISTA 2A Profile Reference 1.15 grams
Pass
Master Carton Drop Test Dropped on 6 surfaces, 1 corner and 3 edges.
10 times per unit, from a height of 31 - 97cm, depending
on package weight
Pass
Master Carton Bump Test IEC 68-2-29 Eb Reference; 10 grams, 16ms Pass

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
12
2.4. Cables:
Function Part/Model Number
Daisy Chain Cables
2L-1700 (0.6m)
2L-1701 (1.8m)
2L-1703 (3.0m)
2L-1705 (5.0m)
KVM Cables
2L-5201P (1.2m, PS/2)
2L-5202P (1.8m, PS/2)
2L-5702P (1.8m, PS/2)
2L-5203P (3.0m, PS/2)
2L-5206P (6.0m, PS/2)
Cables and Converters for USB interface support
2L-5202UP (1.8m)
2L-5203UP (3.0m)
2L-5206UP (6.0m)
CV131A (Sun USB compatible)
CV130A (Sun Legacy compatible)
Firmware Upgrade Cables LIN5-04A2-J11G

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
13
2.5. Front and Rear View:
[Front View]
1. Upper Handle 2. LCD Display 3. LCD Controls 4. Port Switches and Port LEDs 5. Keyboard
6. Touchpad 7. Lower Handle 8. Power LED 9. Lock LEDs and Reset Switch 10. Release Catch
11. Firmware Upgrade Section 12. Rack Mounting Brackets

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
14

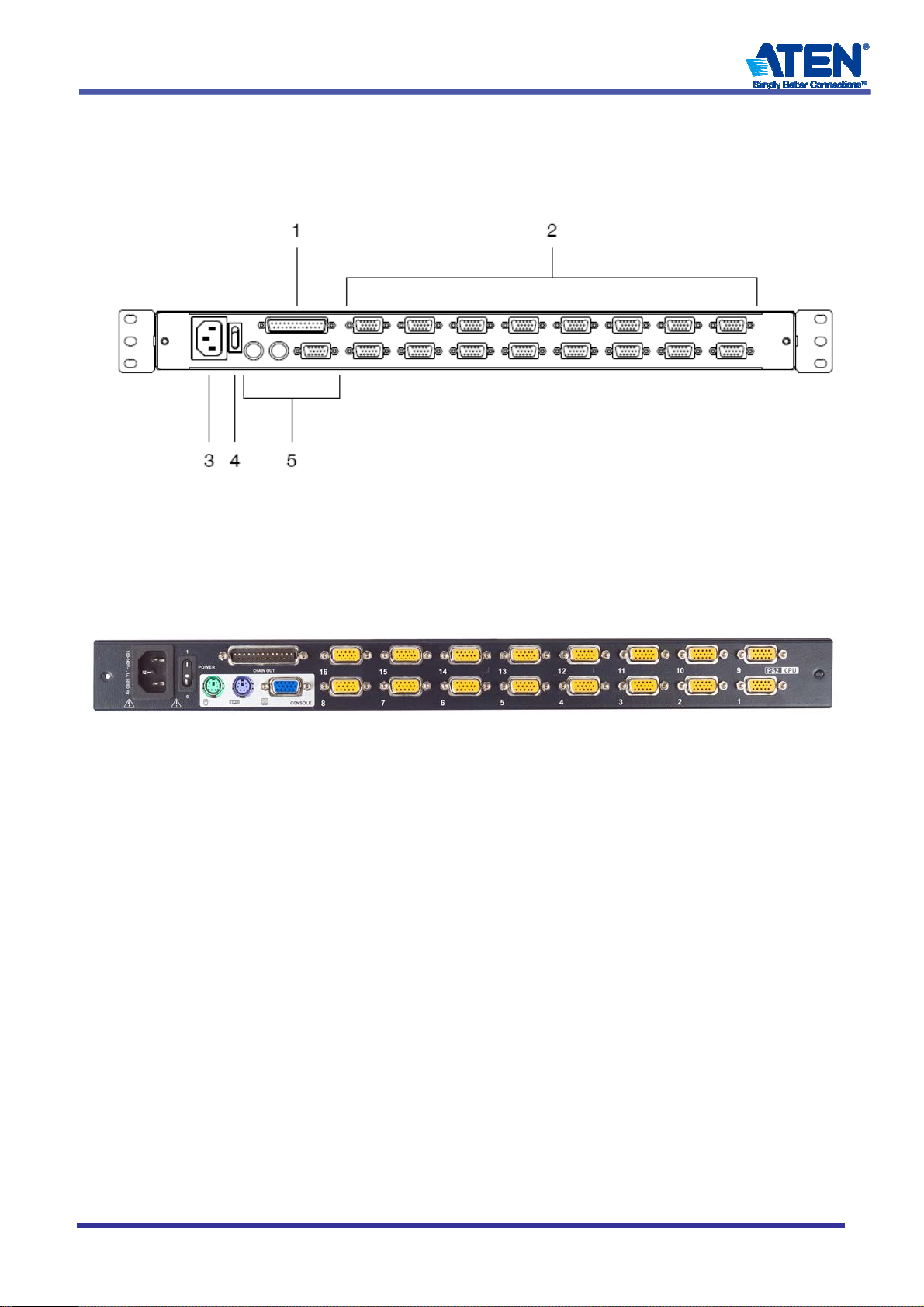

[Rear View]
1. Daisy Chain Port 2. KVM Ports 3. Power Socket 4. Power Switch
5. External Console Section

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
15
2.6. Connection Diagram:
Connection Method: Daisy Chain
Compatible KVM Switches: KH0116

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
16
[Single Stage Installation]

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
17
[Daisy Chained Installation]

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
18
2.7. Package Contents:
No. Item Quantity
1 KL1116 LCD KVM Switch 1
2 Standard Rack Mount Kit (Short) 1
3 Custom KVM Cable Sets 2
4 Firmware Upgrade Cable 1
5 Power Cord 1
6 User Manual 1
7 Quick Start Guide 1
8 Registration Card 1
Optional Equipment:
Item
Standard Rack Mount Kit - Long
Easy Installation Rack Mount Kit – Short
Easy Installation Rack Mount Kit - Long

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
19
3. Function Overview:
3.1. Hotkey Function Overview:
Hotkey Function Overview
Hotkey Overview Invoke by 1.) pressing the dedicated Hotkey key on the keyboard, or 2.)
pressing and holding down Num Lock, then pressing and releasing the Minus
key, and finally releasing Num Lock.
Hotkey Function Port Selection, Auto Scan, Auto Scan Duration, Skip Mode, Beeper ON-OFF
3.2. Pushbutton Function Overview:
Pushbutton Function Overview
Pushbutton Function Port Selection, Auto Scan, KM Reset
Pushbutton LED Function Display Online Status, Display Port Selection

CONFIDENTIAL – Do not distribute without prior written permission from ATEN International Co., Ltd.
20
3.3. OSD Function Overview:
OSD Function Overview
User Interface 【OSD Screen】
Security Two-Level Password Security：Administrator/User OSD
Overview
Functions
Port Selection/Port Listing/OSD Hotkey Assignment/Port ID Display Position,
Duration, and Mode/Auto Scan Duration/Scan-Skip Mode Port Access/Screen
Blanker/Hotkey Mode ON-OFF/Set Username and Password/Set Logout
Timeout/Edit Port Names/Reset to Factory Default Settings/Clear Port
Names/Beeper ON-OFF/Set Quick View Ports/Set Accessible Ports/Reset
Station IDs/Enable Firmware Upgrade Mode/Set PS-2 CLK Mode/Set Console
Mode/Enable Skip Mode/Enable Broadcast Mode/Enable Auto Scan/Logout
