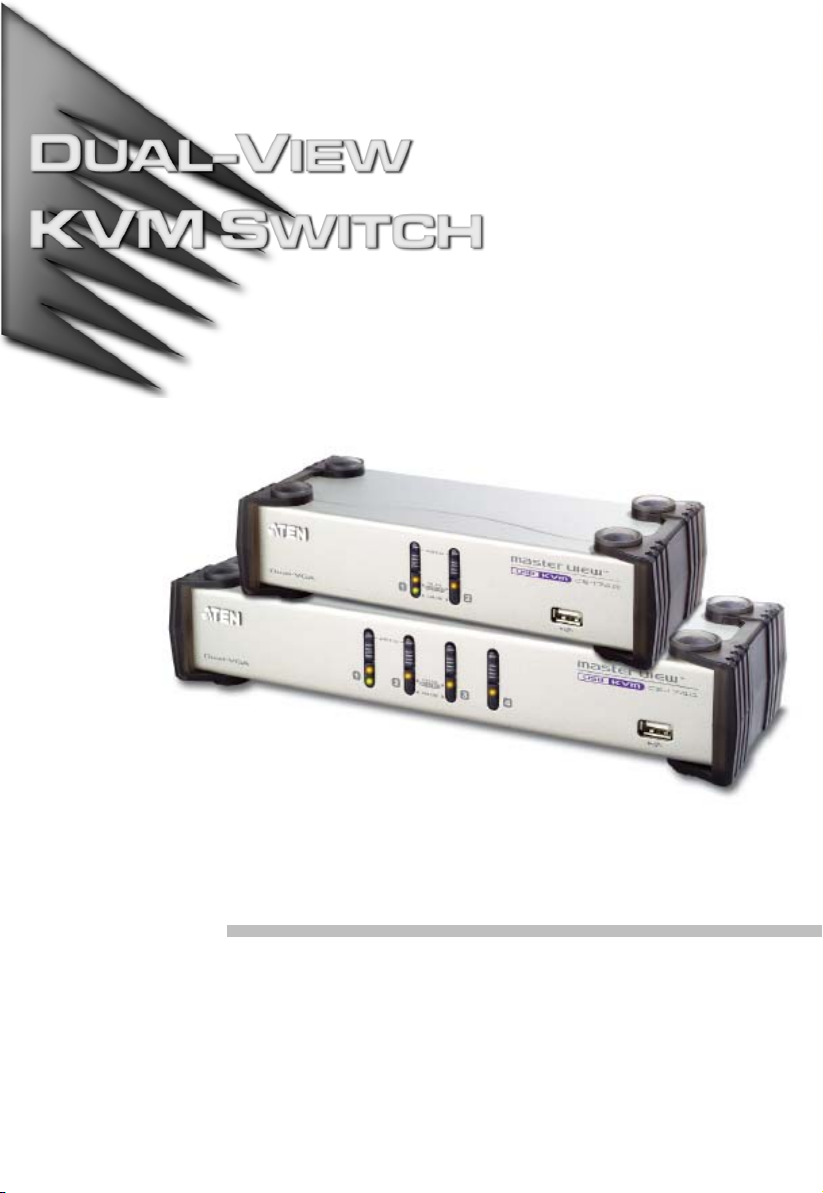

ATEN CS-1742 User manual

User Manual
CS-1742
CS-1744

CS-1742 / CS-1744 User Manual
ii
FCC Information
This is an FCC Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
This product is RoHS compliant.

CS-1742 / CS-1744 User Manual
iii
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed `as is'.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.

CS-1742 / CS-1744 User Manual
iv
Safety Instructions
General
Read all of these instructions. Save them for future reference.
Follow all warnings and instructions marked on the device.
Do not place the device on any unstable surface (cart, stand, table, etc.). If
the device falls, serious damage will result.
Do not use the device near water.
Do not place the device near, or over, radiators or heat registers.
The device cabinet is provided with slots and openings to allow for
adequate ventilation. To ensure reliable operation, and to protect against
overheating, these openings must never be blocked or covered.
The device should never be placed on a soft surface (bed, sofa, rug, etc.) as
this will block its ventilation openings. Likewise, the device should not be
placed in a built in enclosure unless adequate ventilation has been
provided.
Never spill liquid of any kind on the device.
Unplug the device from the wall outlet before cleaning. Do not use liquid
or aerosol cleaners. Use a damp cloth for cleaning.
The device should be operated from the type of power source indicated on
the marking label. If you are not sure of the type of power available,
consult your dealer or local power company.
The device is equipped with a 3-wire grounding type plug. This is a safety
feature. If you are unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not attempt to defeat the
purpose of the grounding-type plug. Always follow your local/national
wiring codes.
Do not allow anything to rest on the power cord or cables. Route the
power cord and cables so that they cannot be stepped on or tripped over.
If an extension cord is used with this device make sure that the total of the
ampere ratings of all products used on this cord does not exceed the
extension cord ampere rating. Make sure that the total of all products
plugged into the wall outlet does not exceed 15 amperes.
To help protect your system from sudden, transient increases and
decreases in electrical power, use a surge suppressor, line conditioner, or
un-interruptible power supply (UPS).
Position system cables and power cables carefully; Be sure that nothing
rests on any cables.

CS-1742 / CS-1744 User Manual
v
When connecting or disconnecting power to hot-pluggable power
supplies, observe the following guidelines:
Install the power supply before connecting the power cable to the
power supply.
Unplug the power cable before removing the power supply.
If the system has multiple sources of power, disconnect power from the
system by unplugging all power cables from the power supplies.
Never push objects of any kind into or through cabinet slots. They may
touch dangerous voltage points or short out parts resulting in a risk of fire
or electrical shock.
Do not attempt to service the device yourself. Refer all servicing to
qualified service personnel.
If the following conditions occur, unplug the device from the wall outlet
and bring it to qualified service personnel for repair.
The power cord or plug has become damaged or frayed.
Liquid has been spilled into the device.
The device has been exposed to rain or water.
The device has been dropped, or the cabinet has been damaged.
The device exhibits a distinct change in performance, indicating a need
for service.
The device does not operate normally when the operating instructions
are followed.
Only adjust those controls that are covered in the operating instructions.
Improper adjustment of other controls may result in damage that will
require extensive work by a qualified technician to repair.

CS-1742 / CS-1744 User Manual
vi
Rack Mounting
Before working on the rack, make sure that the stabilizers are secured to
the rack, extended to the floor, and that the full weight of the rack rests on
the floor. Install front and side stabilizers on a single rack or front
stabilizers for joined multiple racks before working on the rack.
Always load the rack from the bottom up, and load the heaviest item in the
rack first.
Make sure that the rack is level and stable before extending a device from
the rack.
Use caution when pressing the device rail release latches and sliding a
device into or out of a rack; the slide rails can pinch your fingers.
After a device is inserted into the rack, carefully extend the rail into a
locking position, and then slide the device into the rack.
Do not overload the AC supply branch circuit that provides power to the
rack. The total rack load should not exceed 80 percent of the branch circuit
rating.
Ensure that proper airflow is provided to devices in the rack.
Do not step on or stand on any device when servicing other devices in a
rack.

CS-1742 / CS-1744 User Manual
vii
Package Contents
The complete CS-1742 / CS-1744 package consists of:
1 CS-1742 or CS-1744 USB KVM Switch
2 Custom Audio/Video Cable Sets (CS-1742)
2 Custom USB/Video Cable Sets (CS-1742)
4 Custom Audio/Video Cable Sets (CS-1744)
4 Custom USB/Video Cable Sets (CS-1744)
1 Firmware Upgrade Cable
1 User Manual*
1 Quick Start Guide
Check to make sure that all the components are present and that nothing got
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
*Features may have been added to this product since the manual was written.
Visit our website to download the latest version of this manual.
© Copyright 2006 ATEN® International Co., Ltd.
Manual Part No. PAPE-XXXX-XXXX
Printing Date: 05/2006
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved.
All other brand names and trademarks are the registered property of their respective owners.

CS-1742 / CS-1744 User Manual
viii
This Page Intentionally Left Blank

CS-1742 / CS-1744 User Manual
ix
Contents
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
1. Introduction
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
OS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
CS-1742: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
CS-1744: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
CS-1742: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
CS-1744: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2. Hardware Setup
Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3. Basic Operation
Manual Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Hot Plugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Powering Off and Restarting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Port ID Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4. Hotkey Operation
Port Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Cycling Through the Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Going Directly to a Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Auto Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Hotkey Setting Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Invoking HSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Alternate HSM Invocation Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

CS-1742 / CS-1744 User Manual
x
Alternate Port Switching Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Keyboard Operating Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
List Hotkey Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
USB Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Hotkey Beeper Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Disable Port Switching Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Firmware Upgrade Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Restore Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
HSM Summary Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5. Keyboard Emulation
Mac Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Sun Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6. The Firmware Upgrade Utility
Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Starting the Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Upgrade Succeeded . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Upgrade Failed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Upgrade Interrupted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Appendix
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Hotkey Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Index

CS-1742 / CS-1744 User Manual
xi
About this Manual
This User Manual is provided to help you get the most from your c/c system.
It covers all aspects of installation, configuration and operation. An overview
of the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the CS-1742 / CS-1744 system.
Its purpose, features and benefits are presented, and its front and back panel
components are described.
Chapter 2, Hardware Setup, describes how to set up your installation. The
necessary steps – from a basic single stage hookup to a complete 32 switch
daisy chained operation are provided.
Chapter 3, Basic Operation, explains the fundamental concepts involved
in operating the CS-1742 / CS-1744.
Chapter 4, Hotkey Operation, details all of the concepts and procedures
involved in the Hotkey operation of your CS-1742 / CS-1744 installation.
Chapter 5, Keyboard Emulation, provides tables that list the PC to Mac
and PC to Sun keyboard emulation mappings.
Chapter 6, The Firmware Upgrade Utility, explains how to use this
utility to upgrade the CS-1742 / CS-1744's firmware with the latest available
versions.
An Appendix, provides specifications and other technical information
regarding the CS-1742 / CS-1744.

CS-1742 / CS-1744 User Manual
xii
Conventions
This manual uses the following conventions:
Getting Help
If you need to contact ATEN technical support with a problem, visit or website
at www.aten.com.
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
→Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start →Run means to
open the Start menu, and then select Run.
Indicates critical information.

1
Chapter 1
Introduction
Overview
The Master View Dual-View CS-1742 or CS-1744 USB KVM Switch brings
dual head video functionality to ATEN's USB KVM switch technology. Now,
two (CS-1742) or four (CS-1744) dual head computers can be accessed and
controlled from a single console that consists of a USB keyboard, USB mouse,
and two VGA, SVGA, or Multisync monitors.
In addition, the CS-1742 / CS-1744 incorporates a two port USB hub that
allows each of the computers to share any USB peripherals connected to the
hub on a one computer at a time basis. Recognizing the importance of sound,
the switches are also audio enabled. A single microphone can provide audio
input to each of the computers, and you can listen to the audio output of each
computer on a single set of speakers (on a one-at-a-time basis).
The CS-1742 / CS-1744's independent (asynchronous) switching feature
allows independent switching of the KVM, USB hub, and audio focus. If you
wish, you can give one computer the KVM console focus, anotherthe USB hub
focus, while a third has the audio focus.
Setup is fast and easy; simply plug cables into their appropriate ports. There is
no software to configure, no installation routines, and no incompatibility
problems. Since the CS-1742 / CS-1744 intercepts keyboard input directly, it
works on multiple operating platforms (PC compatible, Mac and Sun).
There are two convenient methods to access the computers: push button port
selection switches located on the unit's front panel; and hotkey combinations
entered from the keyboard.
Since a single console manages all of the computers, the CS-1742 / CS-1744
setup: 1) eliminates the expense of having to purchase separate peripheral
components for each computer; 2) saves all the space those extra components
would take up; 3) saves on energy costs; and 4) eliminates the inconvenience
and wasted effort involved in constantly moving from one computer to another.

CS-1742 / CS-1744 User Manual
2
Features
Provides a second video channel to support dual head computers
One console controls 2 (CS-1742) or 4 (CS-1744) dual head computers
Two USB ports for USB device sharing
Audio jacks for speaker and microphone sharing
Independent (asynchronous) switching of the KVM, USB, and audio focus
Fully compliant with the USB 1.1 specification - supports transfer rates of
1.5/12 Mbps
Easy to install - no software required - connecting cables is all it takes
Easy to operate - computer selection via push button switches or hotkeys
Hotkey OS selection
LED display for easy status monitoring
Auto Scan Mode for monitoring all computers
Caps Lock, Num Lock, and Scroll Lock, states are saved and restored
when switching
Keyboard and mouse emulation for error free booting
Supports multimedia USB keyboards; supports Mac & Sun keyboards
Supports Microsoft Intellimouse and the scrolling wheel on most mice;
supports Logitech and Microsoft wireless keyboards and mice
Supports multibutton mice with appropriate drivers installed
Superior video quality - 2048 x 1536; DDC2B
Hot pluggable - add or remove computers for maintenance without
powering down the switch
Upgradeable firmware
Compatible with major operating platforms

1. Introduction
3
Requirements
Console
Monitors capable of the highest resolution that you will be using on any
computer in the installation.
A USB style mouse
A USB style keyboard
Computer
A VGA, SVGA or Multisync port
Type A USB port
Cables
Only Custom cable sets specifically designed to work with this switch may be
used to link to the computers. Two (CS-1742) or four (CS-1744) cable sets are
provided with this package. Additional cable sets can be purchased from your
dealer.
OS
Windows 98SE or higher
Mac OS 8.6 or higher
SUN Blade 2000/100, (Sun Solaris 8 or higher)
Unix
Linux RedHat 7.1 or higher

CS-1742 / CS-1744 User Manual
4
Components
Front View
CS-1742:
CS-1744:
3
1 & 2
3
1 & 2


1. Introduction
5
The front panel components are described in the table below:
No. Component Description
1. Port Selection
Switches Press a switch to access the computer attached to its corresponding port.
Pressing Buttons 1 and 2 simultaneously for 2 seconds
starts Auto Scan Mode. See page 15 for details.
2. Port LEDs The Port LEDs are built into the Port Selection Switches.
The upper ones are the KVM Port LEDs; the lower ones
are the USB LEDs:
KVM:Lights DIM ORANGE to indicate that the computer
attached to the corresponding port is up and running
(On Line).
Changes to BRIGHT ORANGE to indicate that the
computer attached to its corresponding port is the
one that has the KVM focus (Selected).
Flashes to indicate that the computer attached to its
corresponding port is being accessed under Auto
Scan mode.
USB: Lights DIM GREEN to indicate that there is a USB
cable connection to the computer. Does not light if
there is no USB connection to the computer (see
item 2 of the installation diagram on page 10).
Changes to BRIGHT GREEN to indicate that the
computer attached to its corresponding port is the
one that has access to the USB peripherals.
3. USB Port Cables from your USB peripherals (printers, scanners, etc.)
can plug in here, as well as into the USB port on the rear
panel.

CS-1742 / CS-1744 User Manual
6
Rear View
CS-1742:
CS-1744:
123 4
5
1 2 3 4
5

1. Introduction
7
The rear panel components are described in the table below:
*Only cables specifically designed to work with this switch can be used (see
the Cables section on page 3 for details). Do NOT attempt to use ordinary 15
pin VGA connector cables to link these ports to the computers.
No. Component Description
1. Power Jack If you choose to use external power, the power adapter
cable plugs into this jack.
Note: Use of a power adapter (DC 5V) is optional, and
requires a separate purchase. See the note on page 10 for
power adapter details.
2. Firmware
Upgrade Port The Firmware Upgrade Cable that transfers the firmware upgrade data from the administrator's computer to the CS-
1742 / CS-1744 plugs into this RJ-11 connector. See
Chapter 6 for firmware upgrading details.
3. Console Port
Section The cables from your console components (keyboard, mouse, monitors, speakers and microphone), plug in here.
Each port is marked with an icon to indicate itself.
4. KVM (CPU) Port
Section The cables that link the switch to your computers plug in here.*
Each port is comprised of two connectors: The upper
connector carries the audio data (microphone and
speakers) and the video data for monitor B; the lower
connector carries the USB data (keyboard, mouse, and
peripherals) and the video data for monitor A.
5. USB Port Cables from your USB peripherals (printers, scanners, etc.)
can plug in here, as well as into the USB port on the front
panel.

CS-1742 / CS-1744 User Manual
8
This Page Intentionally Left Blank
