ATEN VS-0404 User manual

VS-0404
USER MANUAL
Video Matrix Switch
vs0404.fm Page 1 Friday, November 5, 2010 4:14 PM

FCC Information
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instruction manual, may
cause interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from
that which the receiver is connected;
Consult the dealer or an experienced radio/television technician
for help.
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.
vs0404.fm Page 2 Friday, November 5, 2010 4:14 PM

- 3 -
VS-0404 User Manual
Online Registration
Telephone Support
Technical Support
For international online technical support – including
troubleshooting, documentation, and software updates:
http://support.aten.com
For North American technical support:
International http://support.aten.com
North America http://www.aten-usa.com/product_registration
International 886-2-8692-6959
China 86-10-5255-0110
Japan 81-3-5323-7178
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8448-158923
Email ATEN TECH [email protected]
ATEN NJ [email protected]
Online Technical Support ATEN TECH http://www.aten-usa.com/support
ATEN NJ http://support.aten.com
Troubleshooting
Documentation
Software Updates
ATEN TECH http://www.aten-usa.com
ATEN NJ http://www.aten.com
Telephone ATEN TECH 1-888-999-ATEN
ATEN NJ 1-732-356-1703
vs0404.fm Page 3 Friday, November 5, 2010 4:14 PM

- 4 -
Package Contents
The VS-0404 Video Matrix Switch package contains the
following:
1 VS-0404 Video Matrix Switch
1 VGA/Audio Cable (1.8m)
1 Power Adapter
1 User Manual*
1 Quick Start Guide
Check to make sure that all the components are present and that
nothing got damaged in shipping. If you encounter a problem,
contact your dealer.
Read this manual thoroughly and follow the installation and
operation procedures carefully to preventanydamage tothe unit,
and/or any of the devices connected to it.
*Features may have been added to the VS-0404 since this
manual was printed. Please visit our website to download the
most up-to-date version of the manual.
Copyright © 2006 – 2010 ATEN® International Co., Ltd.
Manual Part No. PAPE-1269-101G
Manual Date: 2010-11-05
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.
vs0404.fm Page 4 Friday, November 5, 2010 4:14 PM

- 5 -
Overview
The VS-0404 Video Matrix Switch combines the capability of a
video switcher and signal splitter. It duplicates and enhances the
video and audio signals from up to four input sources
(computers), and routes them to up to four output devices
(monitors, projectors, etc.).
The VS-0404 provides fast, flexible, reliable solutions for
installations that require audio-visual information from multiple
sources to be delivered to multiple destinations – such as:
Broadcasting information to public locations (news, airline and
train schedule and arrival/departure information)
Sporting events
Theater and lecture overflow rooms
Classroom and company training facilities
Clearly marked front panel switches and LED indicators make it
easytolinksources withdesiredoutputdevices,creatingamatrix
of presentation possibilities.
vs0404.fm Page 5 Friday, November 5, 2010 4:14 PM

- 6 -
Features
Front panel push button switches select the combination of
video input to video output.
Duplicates and enhances video signals up to 65 m (max.)
Cascadable
Audio enabled
Installation Requirements
A VGA, SVGA, XGA or Multisync monitor capable of the
highest resolution that you will be using on any computer in
the installation for each output port you will be using.
Speakers for each output port you will be using.
A video cable with HDB-15 connectors (male on one end and
female on the other end) for each computer you will be
installing.*
An audio cable for each computer you will be installing.
vs0404.fm Page 6 Friday, November 5, 2010 4:14 PM

- 7 -
Components
VS-0404 Front View
No. Component Description
1 Input Select
Switches Each switch corresponds to an output port. Pressing the switch cycles through the input
sources to select which input source’s signal
will be sent to the switch’s corresponding
output port.

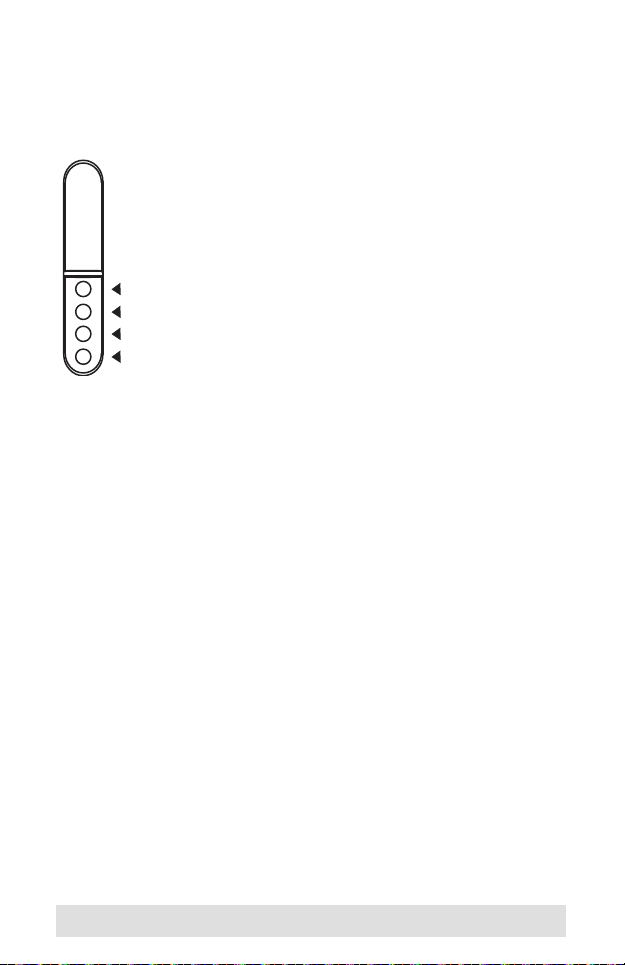

2 Input Port LEDs The input source LEDs are built into the
Selection Switches. Each switch has four
numbered LEDs that correspond to the four
input source ports. A lit LED indicates which
input source is the currently selected one.
3 Source LEDs Each of these LEDs corresponds to an input
port. A lit LED indicates data transmission
from the source connected to its
corresponding input port.
4 Power LED Lights to indicate that the unit is receiving
power.
4
31 & 2
vs0404.fm Page 7 Friday, November 5, 2010 4:14 PM

- 8 -
VS-0404 Rear View
No. Description Function
1 Video / Audio
Output Ports The video and audio cables from the monitor and speakers plug in here (bottom row).
2 Power Jack The Power Adapter cable plugs in here.
3 Video / Audio
Input Ports The video and audio cables from the
computer’s video and audio output ports plug
in here (top row).
2
1
3
vs0404.fm Page 8 Friday, November 5, 2010 4:14 PM

- 9 -
Hardware Setup
Before you Begin
Single Stage
Setting up the VS-0404 is simply a matter of plugging in the
cables. Refer to the installation diagram on the next page (the
numbers in the diagram correspond to the numbered steps) and
do the following:
1. Use a high density HDB-15 male/female VGA cable to con-
nect the computer’s video port to any available video input
source port on the VS-0404.
2. Use a male/male audio cable to connect the computer’s
speaker port to the audio input source port that corresponds
to the video input source port you connected in step 1.
3. Connect the monitor to any available video output port on the
VS-0404.
4. Connect the speakers to the audio output port that
corresponds to the video output port you connected in step 3
Note: 1. Repeat steps 1 - 4 for any other ports you wish to set up.
2. When connecting computers to the switch, we strongly
recommend you use custom VGA/Audio Combination
Cables like the one provided with this package – see
Installation Requirements, page 6, for details.
1. Make sure that the power to all the devices you will
be connecting up has been turned off.
2. Make sure that all devices you will be connecting
up are properly grounded.
vs0404.fm Page 9 Friday, November 5, 2010 4:14 PM

- 10 -
5. Plug the power adapter that came with the VS-0404 into an
AC power source, then plug the power adapter cable into the
switch’s Power Jack.
After you are all cabled up, you can power on the attached
equipment.
5
3
4
1
2
