Athena 850-BL EVO Setup guide

ATHENA 850-BL EVO
Translationoforiginalinstructions
Prior to commissioning the machine read carefully this Use and
Maintenance Manual
Note: table of contents at the end of the manual
Edition
Date
00
23/02/2018

PAGE 2 ALMAC s.r.l.
1GENERAL INFORMATION
1.1 Documents supplied with each machine
•CE Declaration of conformity
•Instruction Manual (this manual)
•Spare Parts Manual
•Wiring diagrams and hydraulic layouts
•Report register
1.2 Details of Manual
•Instruction manual for Elevating work platform
•Version: ATHENA 850-BL EVO
Note: Some of the photos and illustrations may not refer specifically to the
version of the machine in your possession, but provide indications concerning
the purpose for which they have been included.
RECIPIENTS OF THIS MANUAL
•User
•Maintenance technician
Warning: the servicing personnel must be properly trained and experienced.
CAREFULLY READ this manual before performing any operation on the machine.
If in doubt, do not improvise. Call the assistance service.

PAGE 3 ALMAC s.r.l.
1.3 Ownership of the information
This document contains confidential information. All rights reserved.
This manual may be neither partially nor totally duplicated without the prior
written authorization of ALMAC s.r.l.
This document may only be used by the customer to whom the manual has been
supplied along with the machine, and only for the purpose of use and
maintenance of the machine to which the manual refers.
ALMAC s.r.l. hereby declares that the information in this manual was congruent
with the technical and safety specifications of the machine to which the manual
refers. The manufacturer declines all liability for direct or indirect damage to
persons, things or animals deriving from use of the machine in conditions
differing from those envisaged.
ALMAC s.r.l. reserves the right to make changes or improvements, without prior
notice, to the documentary material and to the machines, including marketed
machines of the same model as that to which this manual refers but with a
different serial number.
The information contained in this manual refers in particular to the machines
specified in "Identification data of the M.E.W.P." and related documentation.

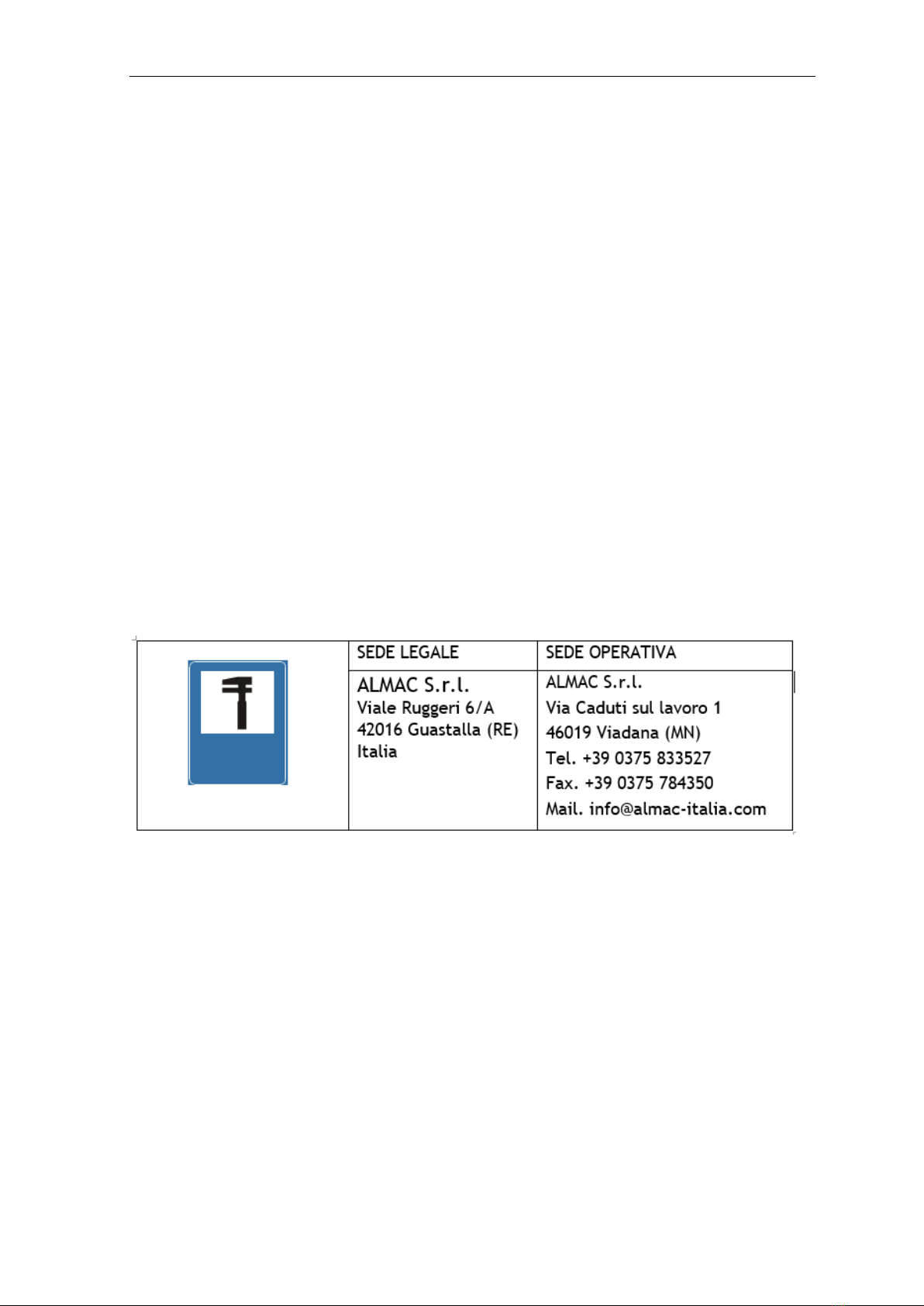

1.4 Manufacturer's identification data

PAGE 4 ALMAC s.r.l.
1.5 MEWP identification data
The machine named ATHENA 850-BL EVO is defined according to the technical
standards in force (ref. UNI EN 280:2015), as:
Mobile Elevating Work Platform (MEWP), belonging to group B, type 3 (point
1.4-EN 280)
Meanings:
GROUP B: All types of mobile elevating work platforms other than "Group-A"
(mobile elevating work platforms where the vertical projection of
the centre of the platform area in all platform configurations at
the maximum frame inclination specified by the manufacturer is
always inside the tipping lines).
TYPE 3: mobile elevating work platforms where travelling with a raised
work platform is controlled from a point of control on the work
platform.
ASPAC GROUP
ELEVATING WORK PLATFORM
MANUFACTURER ALMAC s.r.l.
CAUTION. THIS PLATFORM IS NOT VOLTAGE INSULATED
YEAR OF
MANUFACTURE
DATE OF TEST
RATED LOAD INC. 2 OCCUPANT & TOOLS
MAX ALLOWABLE SIDE FORCE
MAX WIND SPEED
MAX PLATFORM HEIGHT
MAX WORKING HEIGHT
MAX HORIZONTAL WORKING OUTREACH
MAX UPPER GRADIENT IN RUNNING DIRECTION
COUNTRY OF MANUFACTURE
HYDRAULIC PRESSURE (TRAVEL)
HYDRAULIC PRESSURE (ELEVATING)
BATTERY VOLTAGE
MAX ALLOWABLE INCLINATION OF CHASSIS
THIS MACHINE COMPLIES WITH
STATE DESIGN REGISTRATION NUMBERS
NSW: VIC: SA: QLD:
Designed and Manufactured by: Distributed by:
Almac s.r.l. ASPAC GROUP
Via Ruggeri 6/A 3/84 Hallam South Road
42016 Guastalla (RE) Hallam Vic 3803
Italy Australia
12,5 m/s
ITALY
190 bar
1,01 mt
150 bar
12 V
1°
AS 1418.10.2011
250 kg
5,99 mt
7,99 mt
25° (47%)
40 daN
UNLADEN WEIGHT
WITH TRACKS
MODEL SERIAL
NUMBER
Kg
Identification plate
ATHENA 850-BL EVO
2018
ALM-000626
2060

PAGE 5 ALMAC s.r.l.

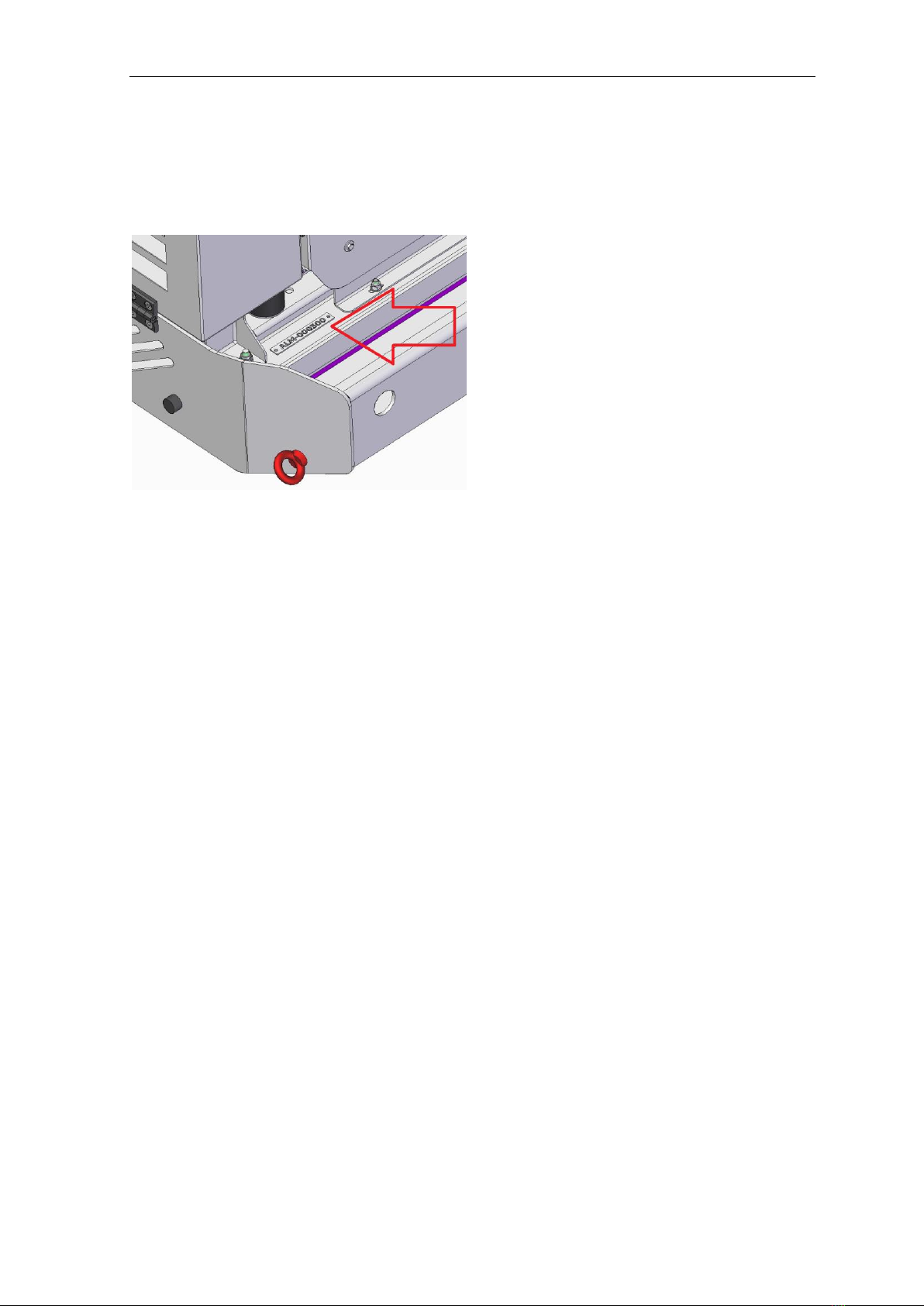

Refer to the data on the identification plate for an exact identification of the
MEWP.

PAGE 6 ALMAC s.r.l.

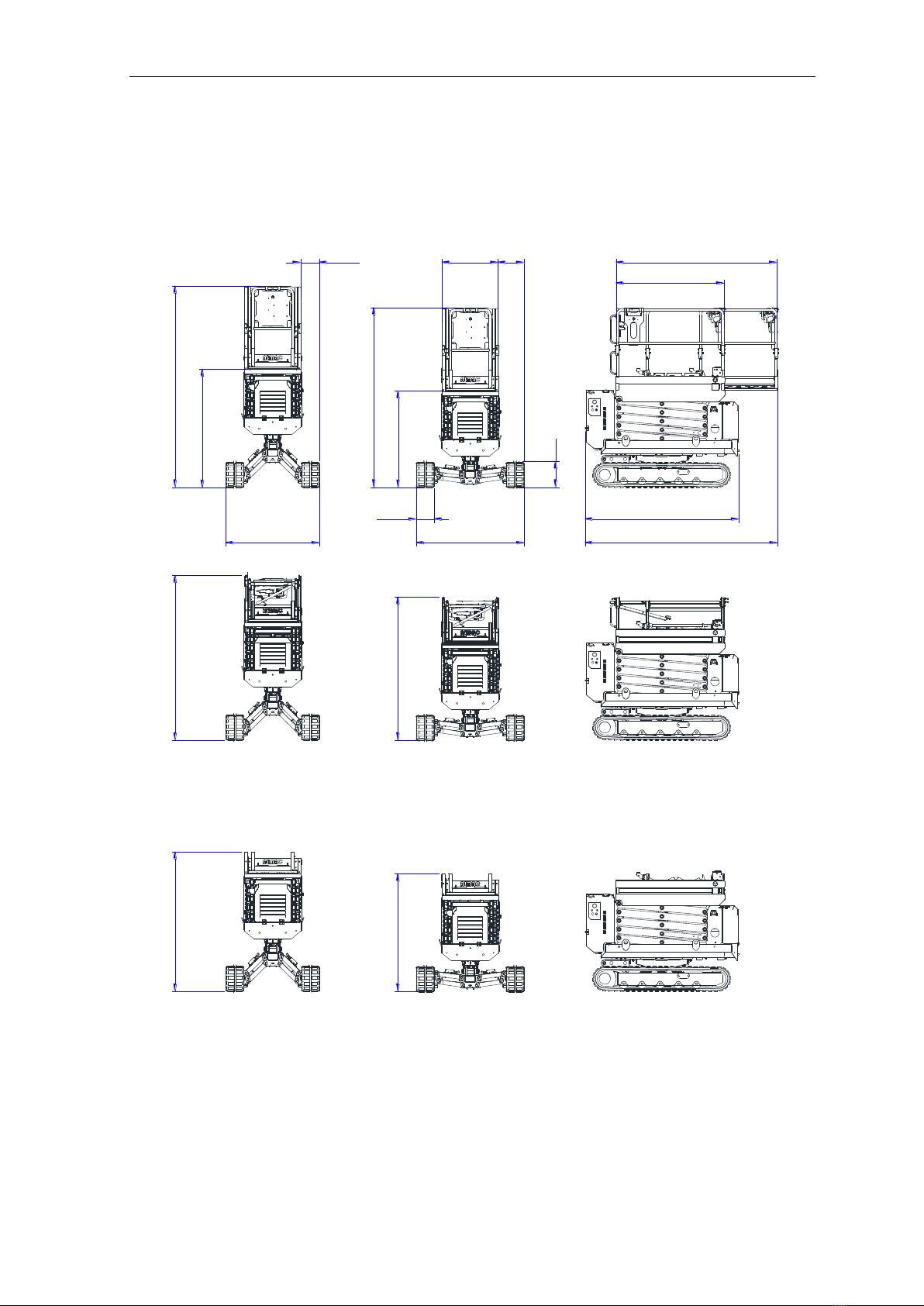

1.6 Performance
Below are the configurations that the mobile elevating work platform can have
during operation and transport.
F2F1 A4
D3
D1
1940
1630
A3
E
D4
D2
C2 C3 C1
B
A1A2
D6
D5
Dismantle only for special transport situations; before commissioning, the
machine must be reconfigured by skilled and authorised personnel,
according to the certified diagram, following the manufacturer's
instructions

PAGE 7 ALMAC s.r.l.
MAXIMUM WORKING HEIGHT, TRAVELLING NOT PERMITTED
H1 H2
G3
H3 H4
G4
G1
L1
G2

PAGE 8 ALMAC s.r.l.
Characteristic dimensions
Machine length
With work platform retracted
A1
mt
2.14
Machine length
With work platform extended
A2
mt
2.68
Length of work platform
With work platform retracted
A3
mt
1.50
Length of work platform
With work platform extended
A4
mt
2.24
Maximum width
Widened track
C1
mt
1.50
Maximum width
Narrow track
C2
mt
1.30
Height of crawler
B
mm
360
Width of crawler
C3
mm
250
Min height of floor surface
Widened track
D1
mt
1.34
Minimum height
Widened track
D2
mt
2.50
Min height of floor surface
Narrow track
D3
mt
1.64
Minimum height
Narrow track
D4
mt
2.80
Minimum height (transport only)
Widened track / railings closed
D5
mt
1.99
Minimum height (transport only)
Narrow track / railings closed
D6
mt
2.29
Width of work platform
E
mt
0.79
Distance between the crawler and the edge of
the work platform in width
Narrow track
F1
mm
260
Distance between the crawler and the edge of
the work platform in width
Widened track
F2
mm
360
Maximum work height
G1
mt
7.88
Min height of floor surface
G2
mt
5.88
Maximum work space in width
G3
mt
1.70
Maximum work space in length
G4
mt
3.25
Useful work distance in width
H1
mm
200
Useful work distance in width
H2
mm
200

PAGE 9 ALMAC s.r.l.
Useful work distance in length
H3
mm
70
Useful work distance in length
H4
mm
1140
Extension of work platform
L1
mt
0.74
Technical data
Capacity of work platform
kg
250
Number of operators on work platform
2
Lifting time (with 250Kg on the platform)
s
31
Lowering time
s
35/40
Hydraulic side-shift pressure
bar
200
Hydraulic lifting pressure
Bar
160
Oil tank capacity
l
20
Climb angle
°
25
Maximum side slope of the terrain
°
15
Maximum longitudinal slope of the terrain
°
20 / 16
Maximum travelling speed
km/h
2.0
Maximum speed with platform lifted
km/h
0.4
Overall weight
kg
2060
Max wind force
m/s
12.5
Starter battery voltage and capacity
V/Ah
12/50
Weight of starter battery
kg
15
Sound power LwA
dBA
104
Sound level at operator position Lp (indoor industrial environment)
dBA
84.5 ± 2.6
Sound level at operator position Lp (outdoor environment on
asphalt)
dBA
79.5 ± 2.6
Max peak level Lppeak
dBC
106.0
Vibrations transmitted to hand / arm system (operator hand
rest)
m/s2
< 2.5
Whole-body vibration (platform-measured on flat terrain)
m/s2
0.52 ± 0.10 *
Vibrations transmitted to hand / arm system (operator hand
rest)
m/s2
0.59 ± 0.12 **
* values referred to raised platform (operating height)
*** values referred to platform at the transport height limit
