Atherton AM.170 User manual

USER MANUAL
AM.170
116.UM.A

WELCOME
Welcome to the Atherton Bikes Family! In 2006 we started Atherton Racing so that we
could push boundaries; from building tracks to producing edits or events it’s all been
about doing things our own way. In 2019, our dream of creating a product range that
pushed bike development as hard as we were pushing our riding became irresistible
and Atherton Bikes was born!
In keeping with this approach, Atherton Bikes are Built Different. All our bikes use
world-beating technology and are handmade in Machynlleth, Wales to bring you
unrivalled fit, strength and performance. Our entire careers we’ve done things
differently so when it comes to building bikes it’s only natural that we wouldn’t settle for
anything less.
We believe that the right bike for you can transform your riding experience and we’re
proud to put our name on every bike that leaves our factory.
Dan, Gee & Rach.
The AM.170
Inspired by Dan Atherton’s riding in the Dyfi. The AM.170 is super-playful and
designed to excel on the steeps.
This hard-hitting, big-mountain enduro bike has a mixed-wheel configuration, DW6
suspension platform with 170mm of rear travel and a straight-through seat-tube all of
which combine to create an awesome all-rounder that is a big hitter in the bike park
and a beast out on the trails.
2USER MANUAL AM.170

3USER MANUAL AM.170
CONTENTS
4FRAME SPECIFICATION
5FRAME GEOMETRY
9FRAME HARDWARE
15 ASSEMBLY INSTRUCTIONS
16 FROM BOX TO BIKE
17 SUSPENSION SETUP
18 SERVICE & MAINTENANCE
19 PART COMPATIBILITY
20 TESTING AND STANDARDS
21 ADDITIONAL INFORMATION
22 WARRANTY

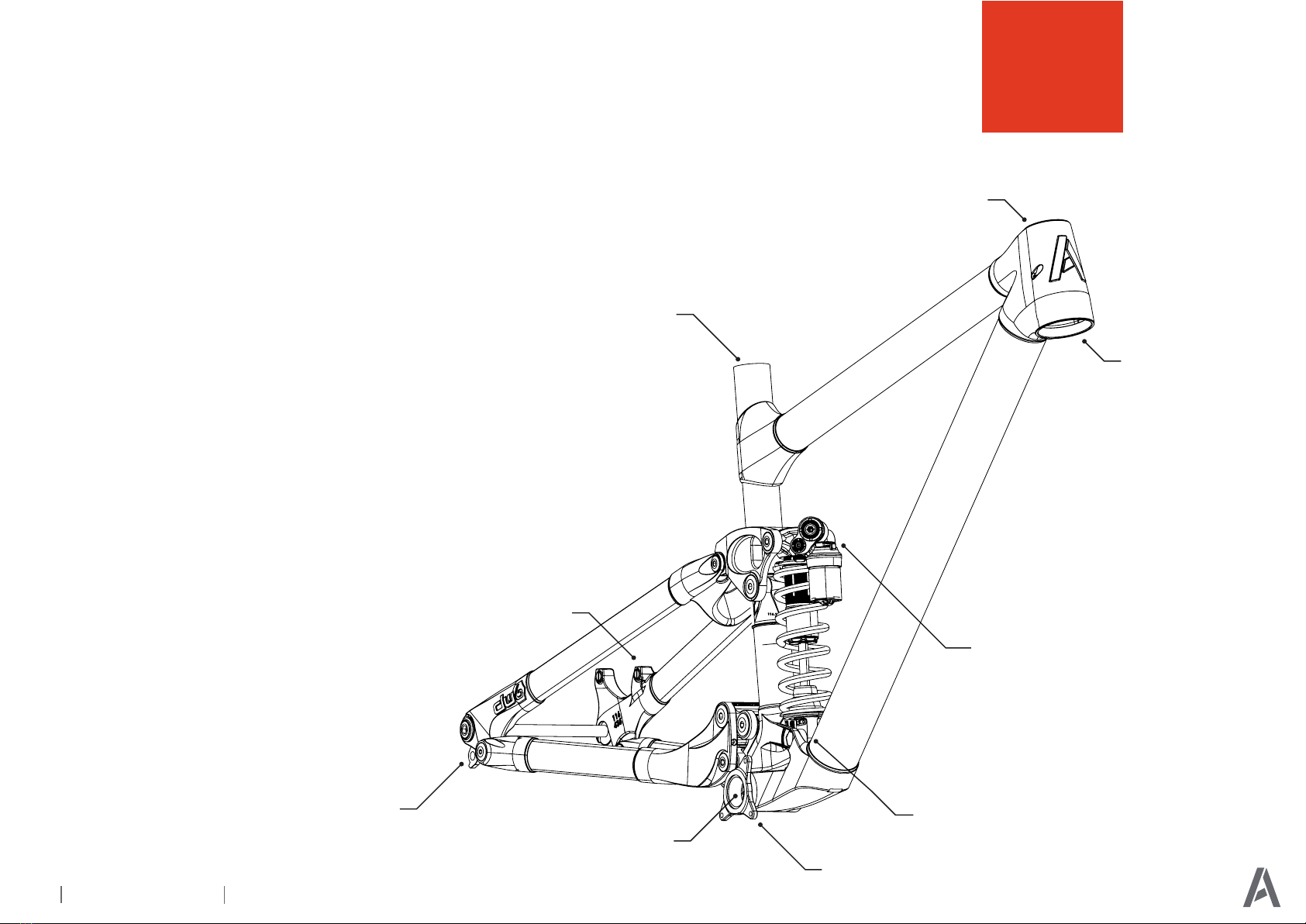

FRAME SPECIFICATION
4USER MANUAL AM.170
Frame Construction: Bonded Titanium / Carbon Fibre
Rear Travel: 170mm
Front Travel: Standard - 170mm, 170X - 180mm
Wheel Size: 29” Front, 27.5” Rear
Rear Axle Spacing: 148mm X 12mm
Cable Routing: Internal
Bottle Mounts: Optional
Tapered
Head Tube
31.6mm
Seat Post
180mm Post
Brake Mount
SRAM UDH
3 Tab, Removable
ISCG 05 Mount
(*2)
8x30mm Bushing
Hardware
205mm x 65mm
Trunnion Mount
44/56 Zero
Stack Headset
73mm BSA
Threaded BB

Size
A
Reach
(mm)
B
Seattu e
Length
(mm)
C
Headtu e
(mm)
D
Stack
(mm)
E
Wheel ase
(mm)
F
Head
Angle
(°)
G
Effective
Seattu e
Angle (°)
H
Actual
Seattu e
Angle (°)
I
Chainstay
(mm)
J
BB Offset
(mm)
K
BB Height
(mm)
L
Effective
Toptu e
Length(mm)
1 (410 Low)
410 395 90 622 1176 64 77 73.3 430 15 340 554
2 (420 Low)
420 395 90 622 1186 64 77 73.3 430 15 340 564
3 (430 Low)
430 395 90 622 1196 64 77 73.3 430 15 340 574
4 (440 Low)
440 395 100 631 1210 64 77 73.4 430 15 340 586
5 (450 Low)
450 395 100 631 1225 64 77.75 74.5 435 15 340 587
6 (450 Reg)
450 420 110 640 1230 64 77.75 74.5 435 15 340 589
7 (460 Low)
460 395 100 631 1235 64 77.75 74.5 435 15 340 597
8 (460 Reg)
460 420 110 640 1240 64 77.75 74.5 435 15 340 599
9 (470 Low)
470 395 100 631 1245 64 77.75 74.5 435 15 340 607
10 (470 Reg)
470 440 110 640 1250 64 77.75 74.5 435 15 340 609
11 (480 Reg)
480 420 100 631 1255 64 77.75 74.5 435 15 340 617
FRAME GEOMETRY
5USER MANUAL AM.170
LC
D
F
HG
I
J
B
K
E
A
170
*Geometry based on 583.7mm AC*

Size
A
Reach
(mm)
B
Seattu e
Length
(mm)
C
Headtu e
(mm)
D
Stack
(mm)
E
Wheel ase
(mm)
F
Head
Angle
(°)
G
Effective
Seattu e
Angle (°)
H
Actual
Seattu e
Angle (°)
I
Chainstay
(mm)
J
BB Offset
(mm)
K
BB Height
(mm)
L
Effective
Toptu e
Length(mm)
12 (480 Tall)
480 440 110 640 1260 64 77.75 74.5 435 15 340 619
13 (490 Reg)
490 420 110 640 1275 64 78.5 75.4 440 15 340 620
14 (490 Tall)
490 440 120 649 1280 64 78.5 75.5 440 15 340 622
15 (500 Reg)
500 420 110 640 1285 64 78.5 75.4 440 15 340 630
16 (500 X-Tall)
500 460 120 649 1290 64 78.5 75.5 440 15 340 632
17 (510 Tall)
510 440 120 649 1300 64 78.5 75.5 440 15 340 642
18 (510 X-Tall)
510 460 135 662 1306 64 78.5 75.6 440 15 340 645
19 (520 Tall)
520 440 120 649 1309 64 78.5 75.5 440 15 340 652
20 (520 XX-Tall)
520 480 135 662 1316 64 78.5 75.6 440 15 340 655
21 (530 Tall)
530 440 120 649 1319 64 78.5 75.5 440 15 340 662
22 (530 XX-Tall)
530 480 135 662 1326 64 78.5 75.6 440 15 340 665
FRAME GEOMETRY
6USER MANUAL AM.170
LC
D
F
HG
I
J
B
K
E
A
170 CONT.
*Geometry based on 583.7mm AC*

Size
A
Reach
(mm)
B
Seattu e
Length
(mm)
C
Headtu e
(mm)
D
Stack
(mm)
E
Wheel ase
(mm)
F
Head
Angle
(°)
G
Effective
Seattu e
Angle (°)
H
Actual
Seattu e
Angle (°)
I
Chainstay
(mm)
J
BB Offset
(mm)
K
BB Height
(mm)
L
Effective
Toptu e
Length(mm)
1 (410 Low)
405 395 90 625 1180 63.6 76.5 72.9 430 12 343 555
2 (420 Low)
415 395 90 625 1190 63.6 76.5 72.9 430 12 343 565
3 (430 Low)
425 395 90 625 1200 63.6 76.5 72.9 430 12 343 575
4 (440 Low)
435 395 100 634 1215 63.6 76.6 73.0 430 12 343 587
5 (450 Low)
445 395 100 634 1230 63.6 77.3 74.0 435 12 343 588
6 (450 Reg)
445 420 110 643 1234 63.6 77.3 74.1 435 12 343 590
7 (460 Low)
455 395 100 634 1240 63.6 77.3 74.0 435 12 343 598
8 (460 Reg)
455 420 110 643 1244 63.6 77.3 74.1 435 12 343 600
9 (470 Low)
465 395 100 634 1250 63.6 77.3 74.0 435 12 343 608
10 (470 Reg)
465 440 110 643 1254 63.6 77.3 74.1 435 12 343 610
11 (480 Reg)
475 420 100 634 1260 63.6 77.3 74.0 435 12 343 618
FRAME GEOMETRY
7USER MANUAL AM.170
LC
D
F
HG
I
J
B
K
E
A

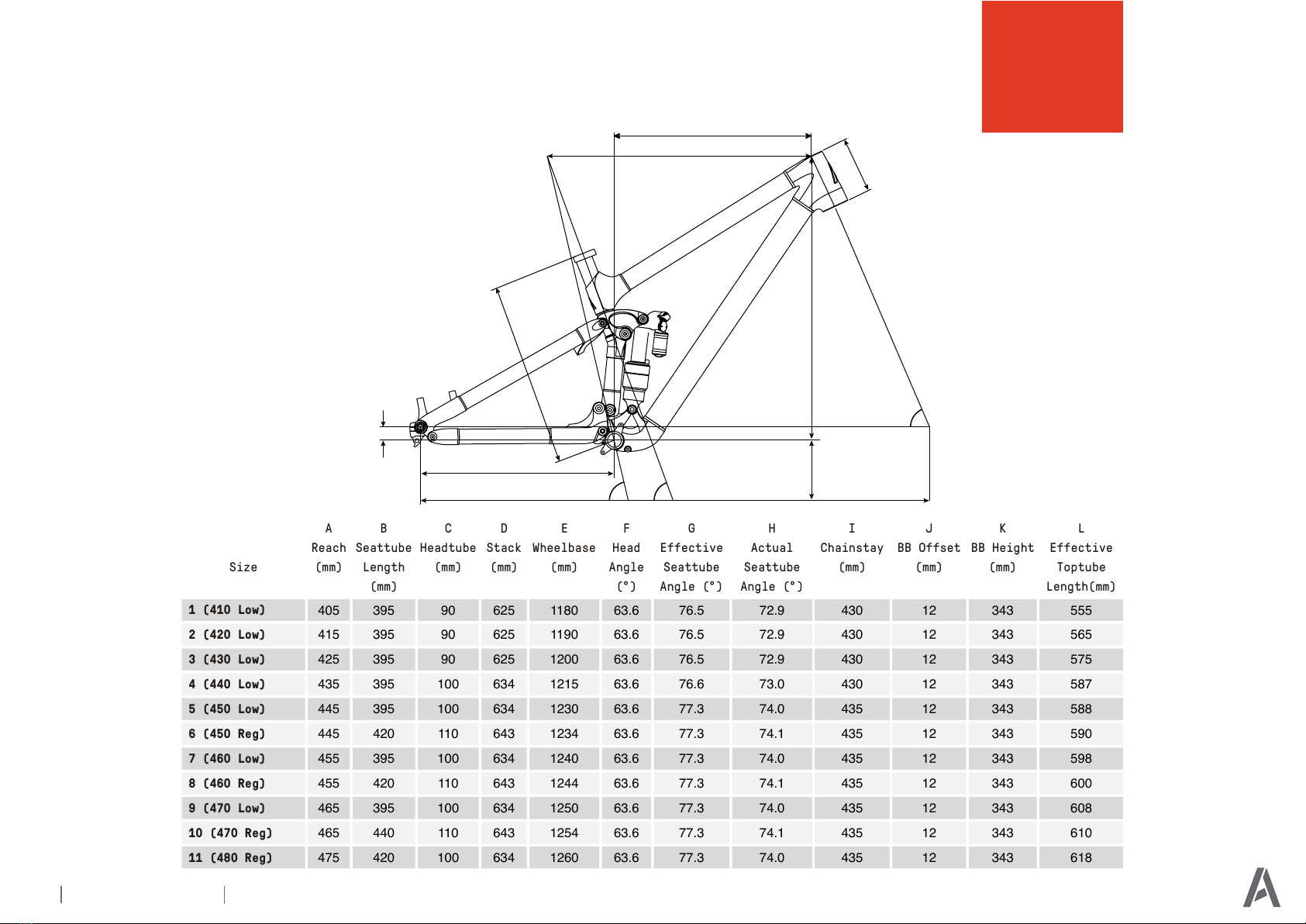

170X
*Geometry based on 593.7mm AC*

Size
A
Reach
(mm)
B
Seattu e
Length
(mm)
C
Headtu e
(mm)
D
Stack
(mm)
E
Wheel ase
(mm)
F
Head
Angle
(°)
G
Effective
Seattu e
Angle (°)
H
Actual
Seattu e
Angle (°)
I
Chainstay
(mm)
J
BB Offset
(mm)
K
BB Height
(mm)
L
Effective
Toptu e
Length(mm)
12 (480 Tall)
475 440 110 643 1264 63.6 77.3 74.1 435 12 343 620
13 (490 Reg)
485 420 110 643 1279 63.6 78.1 75.0 440 12 343 621
14 (490 Tall)
485 440 120 652 1283 63.6 78.1 75.1 440 12 343 623
15 (500 Reg)
496 420 110 643 1289 63.6 78.1 75.0 440 12 343 631
16 (500 X-Tall)
495 460 120 652 1293 63.6 78.1 75.1 440 12 343 633
17 (510 - Tall)
505 440 120 652 1303 63.6 78.1 75.1 440 12 343 643
18 (510 X-Tall)
505 460 135 666 1310 63.6 78.1 75.2 440 12 343 646
19 (520 Tall)
516 440 120 652 1313 63.6 78.1 75.1 440 12 343 653
20 (520 XX-Tall)
515 480 135 666 1320 63.6 78.1 75.2 440 12 343 656
21 (530 Tall)
526 440 120 652 1323 63.6 78.1 75.1 440 12 343 663
22 (530 XX-Tall)
525 480 135 666 1330 63.6 78.1 75.2 440 12 343 666
FRAME GEOMETRY
8USER MANUAL AM.170
LC
D
F
HG
I
J
B
K
E
A
170X CONT.
*Geometry based on 593.7mm AC*

FRAME HARDWARE
9USER MANUAL AM.170
Additional Information:
• Loctite 241 thread lock to be applied to threaded
sections of all bolts (excluding seat clamp, BB shell and
wheel axle).
• Multi-purpose grease to be applied to all pivot shafts,
the rear axle shaft and the bearing housings.
• Torque values are location specific (see exploded
diagrams). If using the bottle cage mounting threads,
bolts should be torqued to 3Nm.
Ref. Part No. Description Qty.
22 011.1007 M6 BARREL NUT 2
23 00.4318.050.001 SRAM AM AX MAXLE STLTH AXLE 1
24
00.7918.093.000
UDH FRAME WASHER 1
25 UDH BOLT 1
26 UDH REAR DERAILLEUR HANGER 1
27 011.1005 SOCKET HEAD CAP SCREW M5 X 14 1
28 011.1006 M5 BARREL NUT 1
29 001.1007 SEAT POST CLAMP 1
30 002.2043 REMOVABLE ISCG 05 MOUNT 1
31 011.1004 SOCKET HEAD CAP SCREW M6 X 45 1
Ref. Part No. Description Qty.
1 002.2008 SHOCK LOWER MOUNT PIVOT 1
2 002.1004 SPACER (15 x 18 x 2.5) 8
3 011.1001 SOCKET HEAD CAP SCREW M6 X 40 1
4 002.2011 SEAT TUBE PIVOT MALE 3
5 011.1050 BEARING 3802
8
6 101.5003 LOWER LINK 1
7 101.5002 UPPER LINK 1
8 002.2010 PIVOT HEX BOLT 3
9 002.2002 SEAT STAY PIVOT 2
10 011.1051 BEARING 11197-2RS 6
11 002.1002 SPACER (11 x 14 x 2.5) 6
12 002.2012 SEAT TUBE PIVOT FEMALE 3
13 002.2009 SHOCK UPPER MOUNT 4
14 101.5001 ROCKER 1
15 101.0005 SEAT STAY ASSEMBLY 1
16 011.1002 SOCKET HEAD CAP SCREW M6 X 50 1
17 002.2007 YOKE PIVOT UPPER 2
18 002.2001 DROPOUT PIVOT 2
19 011.1052 BEARING 698 LLU MAX-E 4
20 002.2003 REAR END SCREW CAP 2
21 011.1004 M5 X 10 T25 PAN HEAD TORX 2

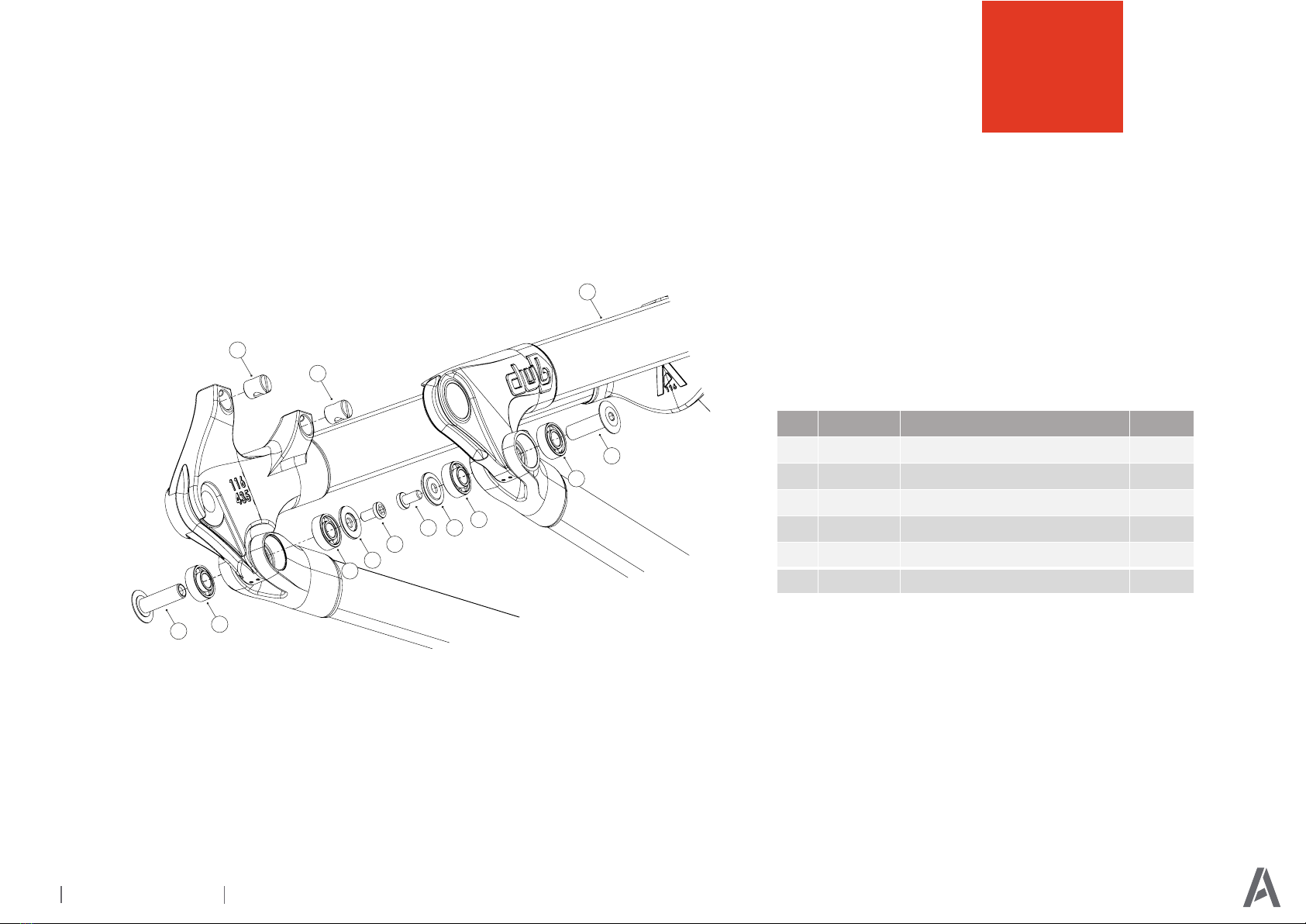

LOWER LINKAGE
ASSEMBLY
10 USER MANUAL AM.170
12
30
12
5
5
6
4
4
7
31
3
8
1
2
2
2
2
10Nm
8Nm
12Nm
Ref. Part No. Description Qty.
1 002.2008 SHOCK LOWER MOUNT PIVOT 1
2 002.1004 SPACER (15 x 18 x 2.5) 4
3 011.1001 SOCKET HEAD CAP SCREW M6 X 40 1
4 002.2011 SEAT TUBE PIVOT MALE 2
5 011.1050 BEARING 3802 4
6 112.5003 LOWER LINK 1
7 116.5002 UPPER LINK 1
8 002.2010 PIVOT HEX BOLT 1
12 002.2012 SEAT TUBE PIVOT FEMALE 2
30 002.2043 REMOVABLE ISCG 05 MOUNT 1
31 011.1004 SOCKET HEAD CAP SCREW M6 X 45 1
5
5

ROCKER LINKAGE
ASSEMBLY
11 USER MANUAL AM.170
2
11
13
12
5
4
16
10
10
5
13
11
14
2
8
10
15
8
11
11
10
9
8Nm
9
8Nm
12Nm
10Nm
10Nm
Ref. Part No. Description Qty.
2 002.1004 SPACER (15 x 18 x 2.5) 2
4 002.2011 SEAT TUBE PIVOT MALE 1
5 011.1050 BEARING 3802 2
8 002.2010 PIVOT HEX BOLT 2
9 002.2002 SEAT STAY PIVOT 2
10 011.1051 BEARING 11197-2RS 4
11 002.1002 SPACER (11 x 14 x 2.5) 4
12 002.2012 SEAT TUBE PIVOT FEMALE 1
13 002.2009 SHOCK UPPER MOUNT 2
14 116.5001 ROCKER 1
15 116.0005 SEAT STAY ASSEMBLY 1
16 011.1002 SOCKET HEAD CAP SCREW M6 X 60 1

SWINGARM LINKAGE
ASSEMBLY
12 USER MANUAL AM.170
10
11
10
13
13
17
2
5
5
17
2
7
11
10Nm
10Nm
14Nm
14Nm
Ref. Part No. Description Qty.
2 002.1004 SPACER (15 x 18 x 2.5) 2
5 011.1050 BEARING 3802 2
7 116.5002 UPPER LINK 1
10 011.1051 BEARING 11197-2RS 2
11 002.1002 SPACER (11 x 14 x 2.5) 2
13 002.2009 SHOCK MOUNT UPPER 2
17 002.2007 YOKE PIVOT UPPER 2

REAR ASSEMBLY
13 USER MANUAL AM.170
20
19
19
19
19
20
21
21
15
22
22
18
6Nm
18
6Nm
Ref. Part No. Description Qty.
15 116.0005 SEAT STAY ASSEMBLY 1
18 002.2001 DROPOUT PIVOT 2
19 011.1052 BEARING 698 LLU MAX-E 4
20 002.2003 REAR END SCREW CAP 2
21 011.1004 M5 X 10 T25 PAN HEAD TORX 2
22 011.1007 M6 BARREL NUT 2

REAR AXLE/HANGER & SEAT
CLAMP ASSEMBLY
14 USER MANUAL AM.170
23
12Nm
26
24
27
25
25Nm 28
29
6Nm
Ref. Part No. Description Qty.
23 00.4318.050.001 SRAM AM AX MAXLE STLTH AXLE 1
24
00.7918.093.000
UDH FRAME WASHER 1
25 UDH BOLT 1
26 UDH REAR DERAILLEUR HANGER 1
27 011.1005 SOCKET HEAD CAP SCREW M5 X 14 1
28 011.1006 M5 BARREL NUT 1
29 001.1007 SEAT POST CLAMP 1

ASSEMBLY INSTRUCTIONS
When you receive your new Atherton Bike there are just a few simple
steps to getting your bike out of its box and out on to the trails.
To make sure all your components are working perfectly, every
Atherton Bike is assembled and checked by our team of expert
mechanics before being sent to you.
To make sure that your new ride is secure in transit, we then remove
some components, the wheels, handlebar, and forks and pack them
securely in the box.
Assembling your bike couldn’t be easier with our step-by-step
assembly instruction guide. If you need any extra assistance, please
don’t hesitate to get in touch with one of the team, we’d be more than
happy to help.
Grab your tools, make a brew, and get building!
15 USER MANUAL AM.170

FROM BOX TO BIKE
16 USER MANUAL AM.170
Install the forks into the headset, attaching the
stem to the steerer tube. Preload the top cap
and tighten the clamp bolts (ensuring that the
stem is aligned correctly).
Inflate the tyres (as per manufacturer
recommendations) and install the wheels onto
the bike. Ensure the axles are torqued as per
the provided values.
Fit the pedals of your choosing.The non-
driveside pedal has a left-hand thread, so take
care to install these correctly.
Set the saddle height, feeding the dropper post
cable through the headtube port. Ensure that
the minimum insertion mark is no longer visible
whilst maintaining 25mm (min) clearance to the
tyre at bottom out.
Fasten the controls to the handle bars,
positioning as desired. Using a T25 torx key,
attach the brake rotors to the hubs.
Progressively tighten the bolts in a star
sequence until torqued to 6.2Nm.
Fasten the dérailleur to the hanger, ensuring
that the B-tension is seated correctly.
Reconnect the chain using the provided power
link. The chain is already cut to size and gears
indexed.
Step 1: Fork and handlebars
Step 4: Wheels
Step 2: Brakes and Controls
Step 5: Pedals
Step 3: Derailleur & Chain
Step 6: Saddle Height

SUSPENSION SETUP
Fork and rear shock suspension set up is essential to getting the most
out of your Atherton Bikes DW6 suspension system.
Learn how to set sag, air spring pressure, compression adjustments,
rebound adjust, additional tuning options and more in the tuning guides
below.
The recommended settings in the tuning guides attached are designed
to be a starting point so that you can get out on your first ride as soon
as possible! If you would like further assistance tuning your suspension
to get the most out of your bike, please drop us an email, we’d love to
help.
Fox Rear Shock Setup Guide:
https://www.ridefox.com/dl/bike/my22/605-00-254-DHX2-Tuning-Guide-
revA.pdf
Fox Fork Setup Guide:
https://www.ridefox.com/dl/bike/my21/605-00-217_RevA-38-Tuning-Guide.pdf
Rockshox Suspension Setup Guide:
https://www.sram.com/globalassets/document-hierarchy/tuning-manuals/
suspension-setup-and-tuning-guide-english.pdf
17 USER MANUAL AM.170

SERVICE & MAINTENANCE
18 USER MANUAL AM.170
Item. Task After Every Ride After 500miles / 1month After 2000miles / 6months After 4000 miles / 1year
Chain Clean and lubricate X
Brakes Check function X
Tyres Inspect sidewalls and tread, check air pressure X
General Fully clean bike X
Frame Pivots Check torque settings X
Brakes Check brake pads, replace as necessary X
Headset Check adjustment X
Spokes Check tension, inspect X
Shock & Fork Inspect and check air pressure X
Gear Cables Inspect and lubricate X
Seat post Remove, clean and re-grease X
Frame Pivots Remove pivot bolts and check bearings for wear X
Headset Disassemble stem, headset and fork, check bearings for wear X
Hubs Remove wheels and check bearings for wear X
Bottom Bracket Remove cranks and check bearings for wear X
Chain Check for stretch, inspect for damage X
General Full service X
Shock & Fork Full service As per manufacturers recommendations

PART COMPATIBILITY
PARTS WE RECOMMEND
We work closely with a range of brands to design and spec’ our builds. We love
these products and guarantee that they will work flawlessly on your Atherton bike.
Whilst our bikes are designed to work alongside the majority of components, some
parts may not fit, for example those that occupy a larger envelop than most (see
the below limitations). Regarless of the parts in question, test fits must be carried
out prior to use, to ensure sufficient clearnace and proper function is achieved.
19 USER MANUAL AM.170
COMPONENT LIMITATIONS
Cranks - Max length = 170mm
Tyres - Max width = *2.5” (*measured width, dictated by tyre & rim combination)
Chainring - Max 36T
Brake Rotor (Rear) - Max diameter = 203mm
- Max thickness including rivets = 2.3mm
Bottom Bracket - Max bottom bracket outer diameter = 49mm, allowing clearance for standard SRAM, Shimano, FSA and Hope models (among
others). Some larger models are compatible, however, this is dependant on the specific form of the part.
Chain Guide - Compatible chain guides include: MRP 1x and Amg, E-thirteen TRS Range, One-Up & Hope (full range) and similar models from
other brands.
Transmission - SRAM UDH: T-Type compatible.
STILL UNSURE?
If you would like more information on part compatibility, we are only an email away ([email protected]), we’d be more
than happy to answer any questions that you might have.

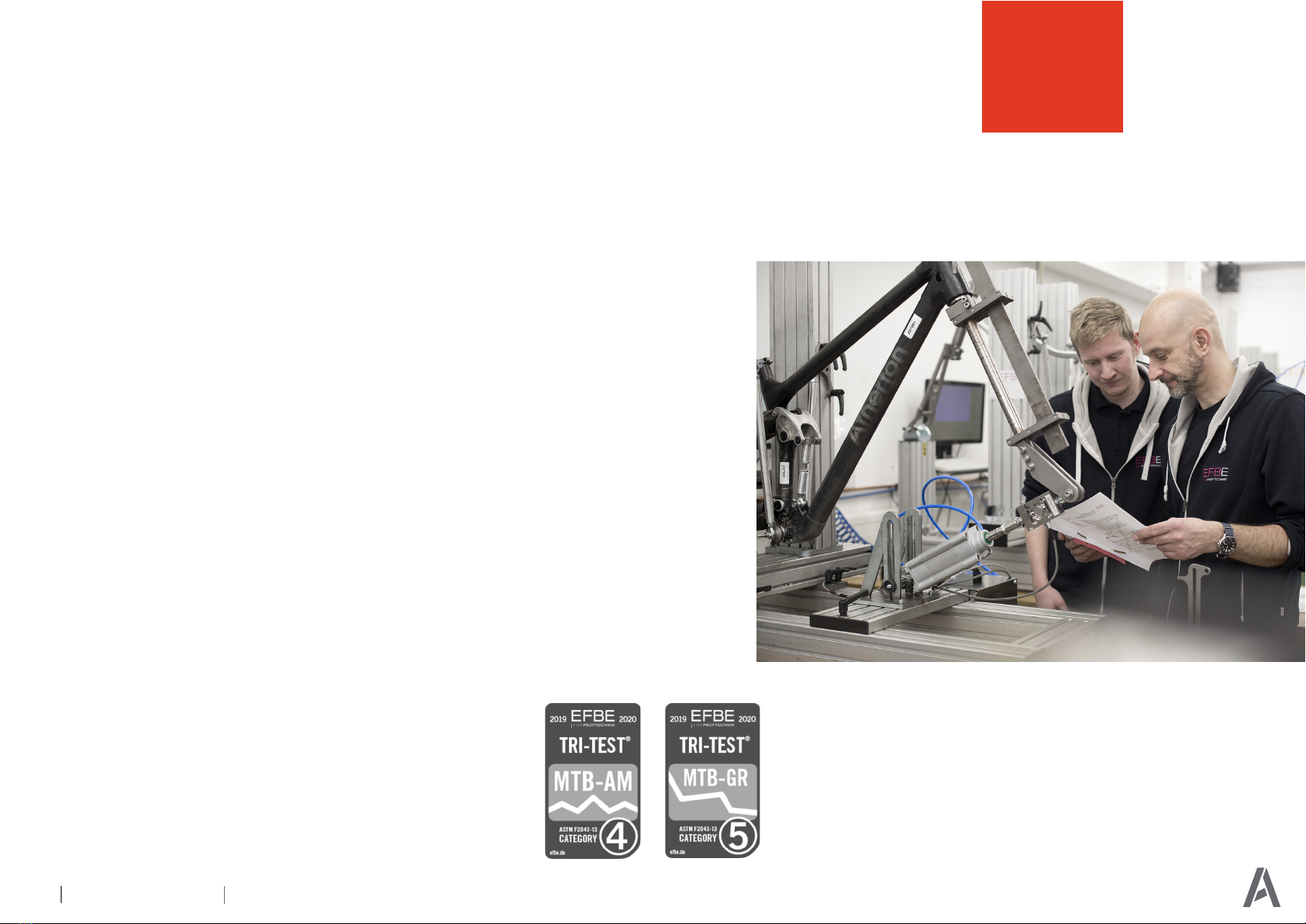

TESTING AND STANDARDS
Before we launch any new bike to the public we subject it to the
most rigorous testing imaginable at EFBE in Germany, the world’s
leading laboratory for mechanical tests on bikes. Now that were a
little further on our journey we tend to send a new frame but we think
that there is an extra measure of reassurance in the fact that we sent
our first bike to be tested (the AM.200) not as a new frame but after it
had been thrashed by Dan Atherton in the Dyfi for six long months! It
passed with flying colours.
EFBE’s TRI-TEST® goes way beyond established international
standards and reflects the specific challenges faced by modern
bikes. All of our bikes, from the AM.130 upwards have passed the
most rigorous tests of both category 4 and category 5, which means
that even our trail bike is tough enough for downhill rides with
extreme jumps and drops at speeds exceeding 40 km/h
The TRI-TEST® includes fatigue tests, maximum load tests and
overload tests to provide a simulation of the stresses experienced
throughout a bike’s entire life.
20 USER MANUAL AM.170
