O & M Manual
Model Q46
Ethernet-IP Communications Manual
Home Office European Office
Analytical Technology, Inc. ATI (UK) Limited
6 Iron Bridge Drive Unit 1 & 2 Gatehead Business Park
Collegeville, PA 19426 Delph New Road, Delph
Phone: [phone] Saddleworth OL3 5DE
610-917-0991 Phone: [phone]
Fax: [phone] Fax: + 44 (0)1457-874-468
Email: [email protected] Email: [email protected]

ATI Q46 Ethernet/IP Communications Manual
2
Table of Contents
1.1 General.............................................................................................................3
1.2 Ethernet/IP Communication..............................................................................3
1.3 Ethernet/IP Transmission Details......................................................................4
1.4 Ethernet/IP Card Installation Instructions..........................................................4
1.5 Cable Connection .............................................................................................6
1.6 Interface Operation...........................................................................................7
1.7 PLC Settings.....................................................................................................9
1.8 Configuring fixed IP with BOOTP......................................................................9
1.9 Ethernet/IP Data Files.....................................................................................15
Table of Figures
Figure 1 –Ethernet/IP Card Installation ..........................................................................5
Figure 2 - RJ45 Crimp Tool.............................................................................................6
Figure 3 - Molex Ethernet/IP Explicit Message Tool Example.........................................7
Figure 4 –Force PC to Specific Network Subnet Prior to Running BOOTP..................10
Figure 5 –Launching BOOTP server............................................................................11
Figure 6 –Setting IP/mask Assignment in BOOTP Server............................................12
Figure 7 –Successful Detection of MAC ID and IP Address.........................................12
Figure 8 –PING and ARP Command Tests for IP Address Setting..............................13
Figure 9 - Q46 Ethernet/IP Register Data Format.........................................................15
Figure 10 –Base Status Register Bitfield Flags............................................................15
Figure 11 –Parameter Specific Data Formats..............................................................16

3
Part 1 – Ethernet/IP Description
1.1 General
Q46 Analyzers are available with four digital communication options. Profibus-
DP, Modbus-RTU, Modbus-TCP/IP, or Ethernet/IP.This manual applies only to
instruments supplied with the Ethernet/IP communication option. It is critical to
note that Ethernet/IP devices only communicate with other systems running the
Industrial Protocol of Ethernet. You cannot plug a Q46 into your office Ethernet
and expect to have the Q46 talk to your computer.
The discussion of standard Ethernet and Ethernet/IP is vast, and well
beyond the ability to discuss here in great detail. The documentation for
this option assumes working network knowledge by the user.
1.2 Ethernet/IP Communication
Ethernet/IP was first introduced in 2001, and is a highly developed and complete
protocol for an industrial Ethernet network solution. Intended for automation
applications, EtherNet/IP is a member of a family of networks that implement the
Common Industrial Protocol (CIP) at its upper layers of the standard ISO/OSI 7-
layer model. CIP defines the object structure, specifies the message transfer,
provides users with a unified communication architecture, and encompasses a
comprehensive suite of services for a variety of manufacturing automation
applications which include data, control, safety, and configuration.
In the CIP Protocol, every network device represents itself as a series of objects.
Each object is simply a grouping of the related data values in a device. The
identity object contains related identity data values called attributes. Attributes for
the identity object include the vendor ID, date of manufacture, device serial
number and other identity data.
The Q46 utilizes a gateway device inside the analyzer that maps an internal
Modbus data structure into the required Ethernet/IP data object. This is done to
maintain plug-and-play compatibility to all Q46 digital communication options.
Any communication option can be plugged into any Q46 for immediate
conversion to a new protocol.
Because this gateway device is part of the Q46 interface, the ID and device type
show up on the interface as the gateway device. However, the Q46 variation
type is mapped into the application data object as the last byte.

ATI Q46 Ethernet/IP Communications Manual
4
1.3 Ethernet/IP Transmission Details
It should be understood that Ethernet/IP is simply an application layer protocol
that is transferred over an Ethernet hardware link. The word "Ethernet" simply
refers to the common physical cable, perhaps running to an office PC.
In the OSI model, “Ethernet” is the lower part of the model, the physical transfer
method or the hardware. It says nothing about the way information is
transferred, which is specified near the top of the OSI model. In the common
office network, many different standard communication protocols are operating
during normal office use, like IP, TCP, etc. None of these are designed to handle
the CIP industrial format, so that interface must be handled by a specific program
that recognizes the format. Because of this, an Ethernet/IP device cannot be
directly connected to your office network for transferring information.
The data for the protocol is constructed into a specific structure inside a standard
TCP/IP Packet. A user application program simply decodes the structure inside
the received TCP or UDP packet. The data structure consists of a grouping of
data values called Attributes inside other sets of containment data called Objects.
There are Ethernet/IP required Objects and application Objects. Required
objects are typically - Identity, TCP, and Router. Application objects consist of
some defined data types, like a Motor Object, and some user specific data
types.
1.4 Ethernet/IP Card Installation Instructions
Use the following instructions to install the Ethernet/IP Communications Option
into an existing Q46 Analyzer. Monitors ordered with the Ethernet option will be
supplied with the board already installed.
1. Disconnect power to the Q46 prior to installation of the board.
2. Remove the connector cover on the power supply circuit board located next to
the fuse.
3. Carefully plug the Ethernet/IP circuit board into the connector on the power
supply board.
4. Align the cover board holes with the holes in the circuit board and use the screws
supplied to secure the assembly. Refer to Figure 1 on the next page for the
proper assembly.

ATI Q46 Ethernet/IP Communications Manual
5
Figure 1 –Ethernet/IP Card Installation

ATI Q46 Ethernet/IP Communications Manual
6
1.5 Cable Connection
The cable used for Ethernet/IP communication should meet the CAT5 standard
defined by the Electronic Industries Association and Telecommunications
Industry Association. It is readily available in lengths up to 100 ft. (30 m) with
plugs on each end.
To install an Ethernet cable in the Q46, pass the unterminated cable through the
cable gland nearest the location of the RJ45 connector on the Ethernet/IP option
board. Termination of Cat5/5e/6 cables is very easy and can be completed
quickly with the commonly available RJ45 crimp tool.
Figure 2 - RJ45 Crimp Tool
While professional results are optimized with the use of the termination tool and
custom cable lengths, patch cord style connection can be completed in some
cases by passing the finished RJ45 connectors through the Q46 cable gland.
The connector will fit through the plastic part of the cable gland, and the rubber
grommet can be slit (some RJ45s may be too big for this.) Once the connector is
inside the enclosure, simply plug it into the jack provided on the Ethernet/IP
communication board. Be sure to adjust the rubber insert in the cable gland so
that the slit is on the bottom and then tighten the gland to seal around the wire.

ATI Q46 Ethernet/IP Communications Manual
7
1.6 Interface Operation
Once the proper power is applied to the Q46 monitor, select “Ethr” in the ^Host
Comms listing of the OPTIONS menu on the Q46 to enable Ethernet/IP
functionality.
On power-up, the Q46 looks for a BOOTP server to assign an IP address.
Standard PLC networks (like Rockwell-RSLinx) include this server as part of the
system. If no response from BOOTP occurs after about 60 seconds, the Q46
system defaults to an IP address at 192.168.0.254. The data is stored in an
object with the attributes shown below, and can be acquired with an Ethernet/IP
PC test program using the explicit message format as follows –
Service: 14 (0x0E hex, Get_Attribute_Single)
Class: 4 (0x04 hex, Assembly Object)
Instance: 101 (0x65 hex, Input Instance)
Attribute: 3 (0x03 hex, Data Attributes)
As an example, this call is shown in the Molex Ethernet/IP software tool screen
shot below, run on the default IP address of a Q46D. This free Molex PC tool
can be used to test explicit messages on the Q46 interface. To run this on a PC
for check-out, the user must first be sure to set the IP address of the PC Ethernet
port to the 192.168.0 subnet range, like 192.168.0.20 (or, manually run a BOOTP
server.) This tool cannot be used to set a fixed IP, and is primarily useful as
a quick verification tool.

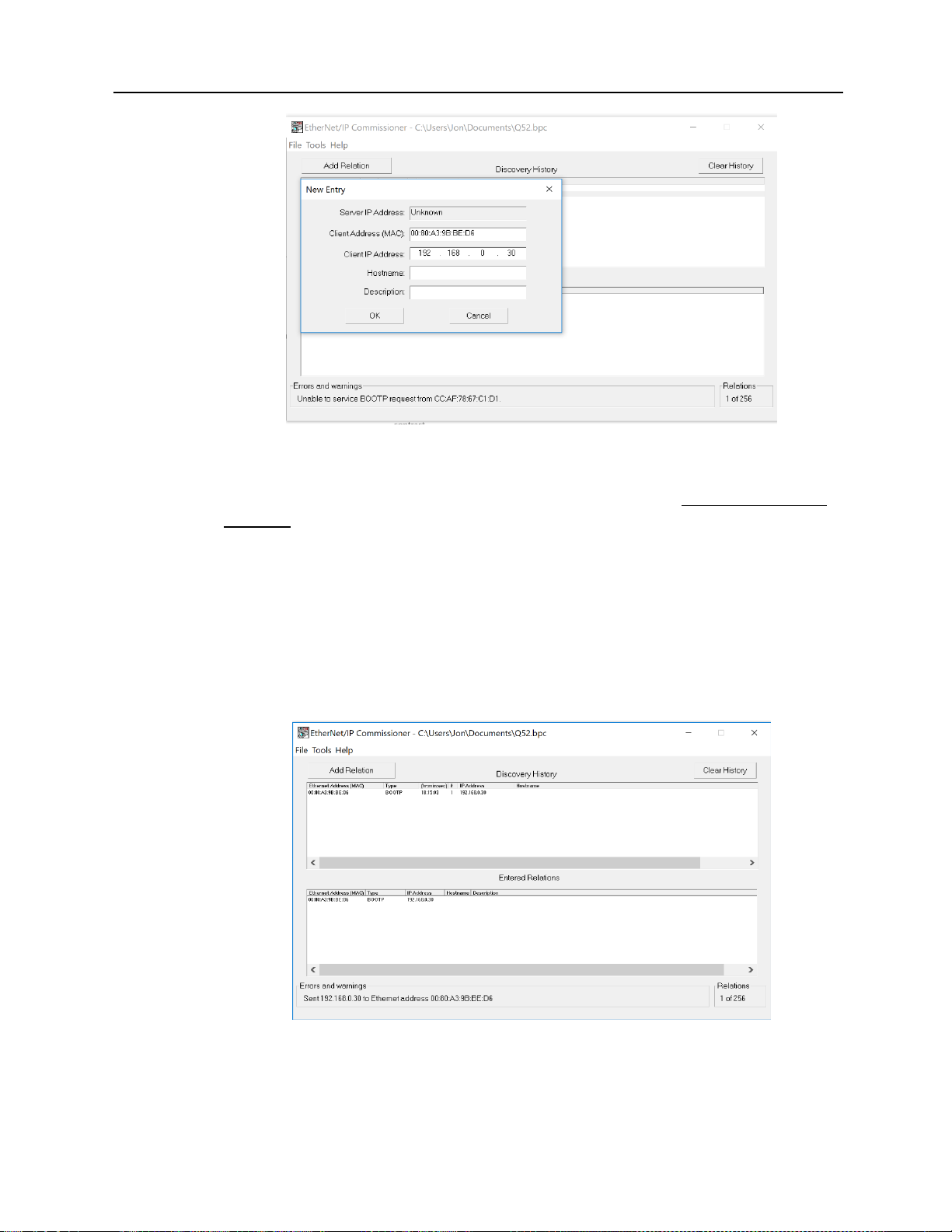

Figure 3 - Molex Ethernet/IP Explicit Message Tool Example

ATI Q46 Ethernet/IP Communications Manual
8
In the Molex example, the explicit message sent to the Q46D is (all hex) –
14, 03, 20, 04, 24, 65, 30, 03
This “Get Attribute Single” call requests the EIP data object at
Class = 4
Instance = 101
Attribute = 3
The raw response shown above from the Q46 is shown below -
8E, 00, 00, 00, 00, 00, 00, 00, 07, 01,
00, 00, BC, 09, 00, 00, 3E, 01, 00, 00,
00, 00, 00, 00, 31, 00
Since Ethernet/IP is a Little Endian protocol, the raw response format above is
byte-swapped. To more easily see the data, flip every odd byte to Big Endian
fomat. Then, underline our Q46 defined data sets –
00, 8E, 00, 00, 00, 00, 00, 00, 01, 07
00, 00, 09, BC, 00, 00, 01, 3E, 00, 00,
00, 00, 00, 00, 00, 31
Breaking up the groups, here is how the response corresponds to the Q46D
instrument data set. The first 4 bytes are header info for the interface. Two
bytes for status will appear in the data object and then 20 data bytes start after
those status bytes -
0x008E0000 = 4 bytes (32 bits) of header (not visible to PLC)
Data object next…
0x0000 = 2 bytes (16 bits) of internal status info (ignore)
0x00000107 = 32-bit value = 263 = 2.63 ppm Dissolved Ox
0x000009BC = 32-bit value = 2492 = 24.92 C Temperature
0x0000013E = 32-bit value = 318 = 31.8 % Saturation
0x00000000 = 32-bit value = 0 PID
0x00 = 8-bit binary value = 0x00000000 Status 1 flags
0x00 = 8-bit binary value = 0x00000000 Status 2 flags
0x00 = 8-bit binary value = 0x00000000 Alarm flags
0x31 = 8-bit value = 49 ID
In most PLC’s, the 4-byte header will not show in the data object, but the 2-byte
internal status header will. You can just ignore that status register when parsing
data that starts at the 7th byte.
Note that in the section 1.9 Data File tables below, we count the first table byte
as the first data byte –starting after the 6 byte header/status info So, the first 32-
bit data value is listed as bytes 1-4, the second data value is at bytes 5-8, and so
on.

ATI Q46 Ethernet/IP Communications Manual
9
1.7 PLC Settings
PLCs handle this exchange in a wide variety of configurations, and the
configuration of a class 1 connection in every PLCs software is different, but
there should be a place to enter the following information. If this doesn't seem to
make sense, follow the explicit info above.
Data Type: "INT" or "16-Bit"
Input T->O Assembly Instance: 0x65 or 101 decimal
Input T->O Size: 11 words (16-bit)
Output O->T Assembly Instance: 0x66 or 102 decimal
Output O->T Size: 1 word (16-bit)
Configuration Assembly Instance: 0x80 or 128 decimal
Configuration Size: 0
*Note that there may be a byte swap occurring on each set of registers as
Ethernet/IP is Little Endian (see parse above in section 1.6). So you may have to
byte swap each 16-bit register to recombine the data.
**Note that section 1.6 shows that first raw 4 header bytes as being ignored, as
the raw bytes are all shown with a Molex PC tool. The 2 raw bytes will show on
the PLC, and are simply an internal status register. So, actual data shows right
after those 6 bytes.
Note that some Ethernet/IP Master simulators such as EIP Scan do not have
data type settings, everything is in bytes. In that case, the input above would be
22 instead of 11.Make sure to double check whether entry values are in hex or
decimal.
1.8 Configuring fixed IP with BOOTP
The Q46 acquires a dynamic network IP address from the network client/master
through the BOOTP service, which is enabled by default for ODVA EIP-CIP
conformance. However, a fixed IP can be set using BOOTP on a PC.
BOOTP is a very simple software server application that waits for a specific MAC
address to appear on the network, and then assigns it a pre-determined IP
address that has been set-up by the user. In the most actual applications,
BOOTP runs right on the PLC alongside tools like Rockwell’s Studio 5000. For
manual fixed settings, this same BOOTP server tool can be easily run on a PC.
The current Rockwell version of this tool (recommended) is –
“BootP-DHCP Ethernet/IP Commissioning Tool Version 3.03.00”

ATI Q46 Ethernet/IP Communications Manual
10
This BOOTP tool is available from the Rockwell Automation website for free. For
optimum security, only download this tool directly from Rockwell Automation.
https://compatibility.rockwellautomation.com/Pages/MultiProductDownload.aspx?
crumb=112
While this tool is normally used for dynamic assignment, the Q46 will remember
the last successful assignment made by BOOTP, and it will retain that
assignment after cycling instrument power. Therefore, the tool can be used to
lock in a fixed IP address assignment, and then the BOOTP service will not
actually be required after that first assignment.
In order to use BOOTP properly on a PC, some careful NIC adjustment settings
must be made to the PC Ethernet port prior to running the BOOTP service. The
PC can only reach IP addresses at the predetermined IP/subnet level, so we
must force the PC to a subnet that can reach the existing Q46.
1) Turn off Q46. Connect Q46 to laptop with direct cable. Set laptop NIC port
on a locked IP and subnet to stop DHCP service. This is critical. In IPV4
properties on your PC’s Ethernet connection port, select "Use the
following IP Address" and set the PC to -
IP Address = 192.168.0.10
Subnet Mask = 255.255.255.0
See below –
Figure 4 –Force PC to Specific Network Subnet Prior to Running BOOTP
2) Once this IP/subnet is set, click OK to save and then close it all out. Turn

ATI Q46 Ethernet/IP Communications Manual
11
PC off then back on to place it on the new IP address set in step 1. The
PC will now be able to access any network device on 192.168.0.X, as the
subnet mask 255.255.255 locks in the first three variables. The default
value for the Q46 is 192.168.0.254, so it can now be reached by the PC.
3) Find the Rockwell BOOTP PC application and launch it. Select your
Ethernet Adapter as the network interface.
Figure 5 –Launching BOOTP server
4) On next screen, you must create an assignment relationship to match a
known MAC ID with a desired IP address. The MAC ID for your Q46 is
written on a label inside the enclosure, and always starts with 00:80.
For this example, we will use the MAC ID - 00:80:A3:9B:BE:B6 and
assign it a fixed IP of 192.168.0.30. Hit OK after this information is filled
in, and you will see this entry appear in the bottom half of the window
under “Entered Relations.”
Once the MAC assignment has been entered, it is ready for a BOOTP IP
request to come in for assignment. Requests for assignment will appear
in the upper window as they come in.

ATI Q46 Ethernet/IP Communications Manual
12
Figure 6 –Setting IP/mask Assignment in BOOTP Server
5) Now, plug the cable from Q46 into the PC Ethernet port, turn on power to
the Q46, and wait for BOOTP to detect the request from the Q46 for an IP
address.
The upper “Discovery History Window” will show new IP requests coming
in on the Ethernet port, and when the specific MAC ID in our relation
shows up, the IP will be automatically assigned per our relation entry and
sent to the Q46. Note that you may see requests from other devices as
they come in, but only the specific MAC ID from the assignment will be
acknowledged.
Figure 7 –Successful Detection of MAC ID and IP Address
Assignment in BOOTP Server

ATI Q46 Ethernet/IP Communications Manual
13
Once the assignment has been made and the IP has been sent to the
Q46, disconnect power to the Q46 and that IP will be stored in the
instrument. The Q46 stores the very last successful IP address
assignment. Then close out all BOOTP server windows.
6) Now, to check that the IP address has been properly saved, apply power
to Q46 again and make sure it is connected to PC Ethernet port. Do not
launch BOOTP server this time, as you don’t need it.
Wait 1 minute, as Q46 will search for a BOOTP server for about 30
seconds on power up and won’t find the service because you are not
using it here. It will then revert to the stored default –the last successful
BOOTP assignment. You can check the IP connection to the Q46 at that
address by entering a ping command at the Windows OS command
prompt, for example “>ping 192.168.0.30.” You should see a response
as shown below. In addition, you can try and “>arp -a” command to show
all current connections and associated MAC addresses. You should see
the new IP address of 192.168.0.30 showing up.
Figure 8 –PING and ARP Command Tests for IP Address Setting.
Note that the “arp -a” listing still shows this IP as a “dynamic” assignment,

ATI Q46 Ethernet/IP Communications Manual
14
as this is the fall-back IP that has been stored in the Q46. On power up,
the Q46 will still try and find a BOOTP server for 30 seconds, and then
default to this stored value as the fallback. If you do not see your new
connection, two troubleshooting notes –
1-You must always be careful to place the new IP address on the proper
subnet level so the PC can still reach it with the settings made in step 1. If
the PC is on 192.168.0.X, then any assigned IP must be on the X level –
and don’t place the Q46 on the same IP as the PC. During BOOTP server
assignment, if you place the Q46 on a vastly different IP like
10.20.120.100, you must repeat step 1 before step 6 above to place the
PC at something like 10.20.120.10. This can get tricky, as you can make
assignments anywhere, but then the PC must be re-established on that
new net to find the new assignment.
2-Remember to wait a minute before the ping test if you verify a
connection. The Q46 runs BOOTP by default on power-up, so it will be
searching for that server for about 30 seconds on power up, and then will
default to the stored IP.

ATI Q46 Ethernet/IP Communications Manual
15
1.9 Ethernet/IP Data Files
The data organization shown in section 1.6 corresponds to the same mapping as
all the other communication interfaces on the Q46. All Q46 instruments provide
20 bytes of input data to the master, and the meaning of the bytes changes
slightly depending on which Q46 instrument is used.
Byte
Data Type
Sensor
Description
Data Format
1 to 4
long(32)
Main
Measured Main
See Figure 11
5 to 8
long(32)
Main
Measured
Temperature
25.00° C = 2500
9 to 12
long(32)
Aux1
Measured Aux1
See Figure 11
13 to 16
long(32)
Aux2
Measured Aux2
See Figure 11
17
Char(8)
NA
System Status 1
(binary) 00000000
18
Char(8)
NA
System Status 2
(binary) 00000000
19
Char(8)
NA
Alarm Status
(binary) 00000000
20
Char(8)
NA
Instrument ID
See Figure 11
Figure 9 - Q46 Ethernet/IP Register Data Format
Figure 10 –Base Status Register Bitfield Flags
Byte
Bitfield
Description
17
0 (lsb)
Raw Hi1
17
1
Raw Lo1
17
2
Main Hi
17
3
Main Lo
17
4
Temp Hi
17
5
Temp Lo
17
6
Aux1 Hi2
17
7
Aux1 Lo
18
0
NU
18
1
NU
18
2
LCD Controller Fail
18
3
Cal Main Fail
18
4
PID Controller Fail
18
5
Cal TC Fail
18
6
TC Error
18
7
Acknowledge Fail (global)
19
0
Alarm 1, Relay A
19
1
Alarm 2, Relay B
19
2
Alarm 3, Relay C
19
3
Alarm 4, Relay D (optional)
19
4
Alarm 5, Relay E (optional)
19
5
Alarm 6, Relay F (optional)
19
6
NU
19
7
NU

ATI Q46 Ethernet/IP Communications Manual
16
Figure 11 –Parameter Specific Data Formats
1Raw Hi/Lo is an internal sensor flag signal that indicates the raw signal is measuring too high or low,
and can indicate sensor service is required or it may simply mean the sensor is presently out of the
process liquid. This signal does not apply to the Q46T/C2/C4/CT.
2 This bit flag is the glass break diagnostic for pH.
3For Conductivity units, concentration data shows for concentration instruments, and TDS shows for
standard conductivity units (not both.)
Instrument
Main
Aux1
Aux2
Main Data
Format
Aux1 Data
Format
Aux2 Data
Format
Q46H/62/63
/79PR
ID=41
Chlorine
pH
PID
14920=
1.4920 ppm
700=
7.00pH
475=
47.5%
Q46S/66
ID=81
Sulfite
None
PID
14920=
1.4920 ppm
None
475=
47.5%
Q46S/81
ID=81
Sulfide
None
PID
14920=
1.4920 ppm
None
475=
47.5%
Q46H/64
ID=41
Ozone
pH
PID
14920=
1.4920 ppm
700=
7.00pH
475=
47.5%
Q46H/65
ID=41
Chlor Diox
pH
PID
14920=
1.4920 ppm
700=
7.00pH
475=
47.5%
Q46D
ID=49
D.O.
Sat
PID
840=
8.40 ppm
980=
98.0% sat
475=
47.5%
Q46P
ID=53
pH
None
PID
700=
7.00 pH
None
475=
47.5%
Q46R
ID=57
ORP
None
PID
-137=
-137 mV
None
475=
47.5%
Q46N
ID=45
Total Amm
Mono
Chloramine
Free
Amm
100=
1.00 ppm
51=
0.51 ppm
321=
3.21 ppm
Q46C2
ID=69
Conductivity
3Concentration
3 TDS
100123=
100.123 uS
13=
1.3%
2235=
223.5 mg/L
Q46C4
ID=65
Conductivity
3Concentration
3TDS
2238=
2.238 mS
13=
1.3%
2235=
223.5 mg/L
Q46CT
ID=61
Conductivity
3Concentration
3 TDS
2238=
2.238 mS
13=
1.3%
2235=
223.5 mg/L
Q46F
ID=73
Fluoride
None
PID
1000=
1.000 ppm
None
475=
47.5%
Q46T
ID=85
Turbidity
None
PID
16=
0.16 NTU
None
475=
47.5%

17
PRODUCT WARRANTY
Analytical Technology, Inc. (Manufacturer) warrants to the Customer that if any part(s)
of the Manufacturer's equipment proves to be defective in materials or workmanship
within the earlier of 18 months of the date of shipment or 12 months of the date of start-
up, such defective parts will be repaired or replaced free of charge. Inspection and
repairs to products thought to be defective within the warranty period will be completed
at the Manufacturer's facilities in Collegeville, PA. Products on which warranty repairs
are required shall be shipped freight prepaid to the Manufacturer. The product(s) will be
returned freight prepaid and allowed if it is determined by the manufacturer that the
part(s) failed due to defective materials or workmanship.
This warranty does not cover consumable items, batteries, or wear items subject
to periodic replacement including lamps and fuses.
Gas sensors carry a 12 months from date of shipment warranty and are subject
to inspection for evidence of misuse, abuse, alteration, improper storage, or extended
exposure to excessive gas concentrations. Should inspection indicate that sensors
have failed due to any of the above, the warranty shall not apply.
The Manufacturer assumes no liability for consequential damages of any kind,
and the buyer by acceptance of this equipment will assume all liability for the
consequences of its use or misuse by the Customer, his employees, or others. A defect
within the meaning of this warranty is any part of any piece of a Manufacturer's product
which shall, when such part is capable of being renewed, repaired, or replaced, operate
to condemn such piece of equipment.
This warranty is in lieu of all other warranties (including without limiting the
generality of the foregoing warranties of merchantability and fitness for a particular
purpose), guarantees, obligations or liabilities expressed or implied by the Manufacturer
or its representatives and by statute or rule of law.
This warranty is void if the Manufacturer's product(s) has been subject to misuse
or abuse, or has not been operated or stored in accordance with instructions, or if the
serial number has been removed.
Analytical Technology, Inc. makes no other warranty expressed or implied except
as stated above.

18
WATER QUALITY MONITORS
Dissolved Oxygen
Free Chlorine
Combined Chlorine
Total Chlorine
Residual Chlorine Dioxide
Potassium Permanganate
Dissolved Ozone
pH/ORP
Conductivity
Hydrogen Peroxide
Peracetic Acid
Dissolved Sulfide
Residual Sulfite
Fluoride
Dissolved Ammonia
Turbidity
Suspended Solids
Sludge Blanket Level
MetriNet Distribution Monitor
GAS DETECTION PRODUCTS
NH3Ammonia
CO Carbon Monoxide
H2Hydrogen
NO Nitric Oxide
O2Oxygen
CO Cl2 Phosgene
Br2Bromine
Cl2 Chlorine
ClO2Chlorine Dioxide
F2Fluorine
I2 Iodine
HXAcid Gases
C2H4O Ethylene Oxide
C2H6O Alcohol
O3Ozone
CH4Methane
(Combustible Gas)
H2O2Hydrogen Peroxide
HCl Hydrogen Chloride
HCN Hydrogen Cyanide
HF Hydrogen Fluoride
H2S Hydrogen Sulfide
NO2Nitrogen Dioxide
NOxOxides of Nitrogen
SO2Sulfur Dioxide
H2Se Hydrogen Selenide
B2H6Diborane
GeH4Germane
AsH3Arsine
PH3Phosphine
SiH4Silane
HCHO Formaldehyde
C2H4O3 Peracetic Acid
DMA Dimethylamine
