CHAPTER 1:
CrossFire™ FAQ
The following is a listing of frequently-asked questions about CrossFire™.
For the latest information, please consult the CrossFire™ Web site at:
ati.com/crossfire
1What combination of products are required to build a working
CrossFire™ system?
Three components are required:
• a CrossFire™ Edition graphics card that works as the Master
graphics card.
• a CrossFire™ Ready graphics card from the same brand-family
that works as the Slave graphics card.
• a CrossFire™ Ready motherboard (which contains two PCIe™
X16 slots).
More information on the requirements for each of these components can
be found within this FAQ.
2What graphics cards work with CrossFire™?
A CrossFire™ graphics card works with all members of the same brand-
family. Thus a Radeon® X850 CrossFire™ Edition can be used as the
Master graphics card with any Radeon® X850 product.
3What motherboards support CrossFire™?
The optimal configuration for a CrossFire™ system is one based on a
Radeon® Xpress 200 CrossFire™ Edition motherboard. Motherboards
from other manufactures will be certified as CrossFire™ Ready when
they become available.
4Are there specific CMOS motherboard settings for CrossFire™?

2
On some motherboards, the CMOS may be set by default to support only
a single PCI Express® X16 slot. Ensure that both PCIe™ X16 slots are
enabled in the CMOS.
5Which slot does the CrossFire™ Master card go into on the
motherboard?
The CrossFire™ Master card must go into the primary PCI Express®
slot (slot zero) on the motherboard.
Note: To determine which PCIe™ slot is the primary slot, consult your
motherboard manual.
Alternately, to determine whether or not a CrossFire™ Edition card is in
the correct slot, connect your display directly to the DVI-I connection on
the Master graphics card instead of using the CrossFire™ DMS-59™
connector, with both graphics cards seated in their respective slots on the
motherboard. If an image appears on the screen upon boot-up, the card
has been placed in the correct slot on the motherboard.
6Are there any software settings required for CrossFire™ to work?
Yes, there is a setting in the Catalyst™ Control Center that needs to be
enabled for CrossFire™ to operate. When all of the hardware and
software has been properly set up and installed, the following

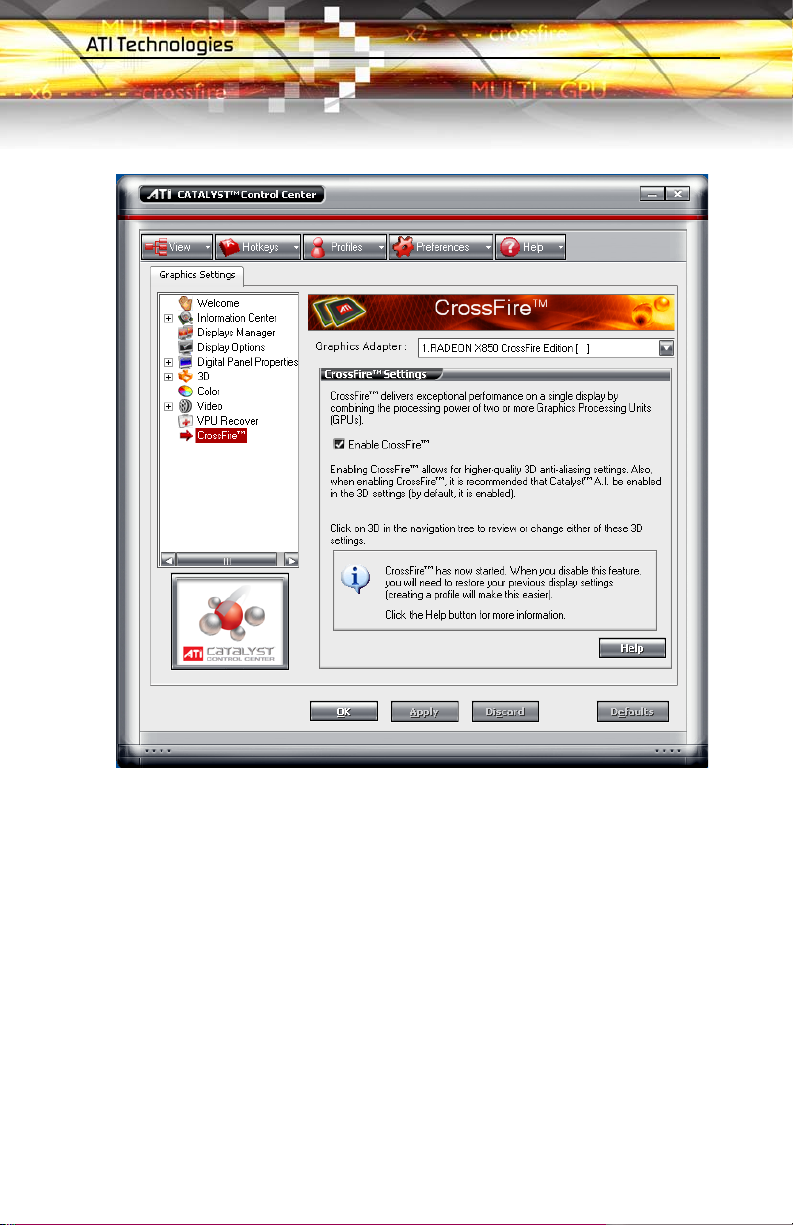

CrossFire™ aspect appears in Catalyst™ Control Center:

3
To access and enable CrossFire™ in Catalyst™ Control Center, do the
following:
•ClickCrossFire™ in Advanced View. Then, select Enable
CrossFire™.
When CrossFire™ is successfully enabled, all display devices except the
one used by CrossFire™ will be disabled. Multiple monitors/displays
that are disabled when CrossFire™ is enabled reappear after
CrossFire™ is disabled.
7What is the difference between a CrossFire™ Edition graphics card
and a standard graphics card from the same family?
CrossFire™ Edition graphics cards include a “compositing engine,” a
chip that takes the partially rendered image from the Slave graphics card

4
and merges it with the partially rendered image from the Master graphics
card. The result is a complete frame rendered at up to twice the
performance of a single graphics card.
8How are the graphics cards connected on a CrossFire™ system?
The two cards are connection by an external cable. The cable is attached
from the Slave graphics card’s DVI-I connection to the CrossFire™
Edition’s DMS-59™ connection, which is used to convey information
from the Slave graphics card to the Master graphics card and transmit
the combined signal to a display device.
9Which games/applications work with CrossFire™?
CrossFire™ works with all 3D games and applications. If Catalyst™
A.I. is enabled in the Catalyst™ Control Center software, the optimal
rendering mode available for the application is automatically selected.
10 Is a driver profile required to make CrossFire™ work?
No. CrossFire™ is enabled by default for all 3D games and applications.
11 What happens if you pair a 12-pipeline CrossFire™ Edition
graphics card with a CrossFire™ Ready 16-pipeline graphics card?
In this scenario both graphics cards will operate as 12-pipeline graphics
cards while in CrossFire™ mode.
12 What happens if the CrossFire™ Edition graphics card and the
CrossFire™ Ready graphics card have different clock speeds?
Both cards will continue to operate at their individual clock speeds;
neither card is “stepped down.” The compositing engine on the
CrossFire™ Edition card merges the resulting images independent of the
clock speed on either graphics card.
13 What are the rendering modes, and what are their specific
advantages?
The following dynamic rendering modes are available:
• SuperTiling - CrossFire™ renders alternate 32x32 pixel squares in a
fine-grained checkerboard pattern. This configuration increases
image-rendering quality, as each card processes half of the complex
3D objects in the pixel squares.

5
• Scissor Mode - each graphics card renders up to half of the display,
either vertically or horizontally depending on the game or application.
• Alternate Frame Rendering - the two graphics cards are used to render
alternate frames of the display. This configuration increases the detail
of the 3D objects each card can render, as each card handles half of
the total number of frames.
• Super Anti-aliasing - improves image quality by combining the
results of full-screen anti-aliasing across two graphics cards in a
CrossFire™ configuration. The two graphics cards work on different
anti-aliasing patterns within each frame.
The first three features are performance features settings automatically
selected by ATI's Catalyst™ Control Center. Super Anti-aliasing is a
display quality mode selectable using Catalyst™ Control Center.
14 On what basis are different rendering modes chosen?
When Catalyst™ A.I. is enabled in Catalyst™ Control Center, it
determines the optimal rendering mode to use, based on the application
or game being used. The default rendering mode is dependant on both
the hardware configuration and the application being run; typically it
will be either Scissor or SuperTiling mode. If Catalyst™ A.I. is not
enabled, any Direct 3D® applications that are running on a system based
on graphics cards with 16-pipeline graphics processors will use
SuperTiling Mode.
15 What type of performance improvement is expected?
Performance enhancements experienced on a CrossFire™ system
depend on the application or game being used. Performance
improvements can be increased up to 100%, and the latest graphics-
intensive programs will generally see over 80% performance
improvement at high resolutions and image-quality modes.
16 How many independent displays can be connected to a CrossFire™
system?
While CrossFire™ is designed for optimal use on a single display, it is
possible to drive multiple monitors using a CrossFire™ system when
CrossFire™ is not enabled. On a standard CrossFire™ system, it is
possible to drive three separate sets of monitors and still have one of
those displays as a dedicated CrossFire™ display. If the motherboard

6
contains an integrated video connection and SurroundView™ is enabled,
more displays can be added.
Additional issues are covered in the “Troubleshooting” chapter in the User’s
Guide.

CrossFire™ Overview 7
CHAPTER 2:
Welcome to CrossFire™
ATI's CrossFire™ propels gaming PCs with the ultimate multi-GPU
consumer graphics solution.
CrossFire™ Overview
This section provides an overview of the main features and configurations for
CrossFire™. These topics will be covered in more detail in other chapters of
this manual.
Allowable CrossFire™ System Components
The basic requirements of a CrossFire™ system are:
• a CrossFire™ Edition graphics card that works as the Master
graphics card.
• a CrossFire™ Ready graphics card from the same brand-family
that works as the Slave graphics card.
• a CrossFire™ Ready motherboard.
For an up-to-date listing of CrossFire™ certified motherboards see:
ati.com/crossfire.
CrossFire™ Rendering Modes
A CrossFire™ system has four possible display modes:
• SuperTiling
• Scissor Mode
• Alternate Frame Rendering
• Super Anti-aliasing.

8
The first three are performance-oriented modes, and Super Anti-aliasing is a
quality-oriented mode. Each mode uses a different method for dividing the
workload required to render a 3D image across multiple GPUs. Only one
mode can be in operation at any given time.
The ATI Catalyst™ display driver will automatically select the best of the
three performance modes when a 3D application is started, without requiring
user intervention. The user can also choose to improve image quality by
selecting the new Super Anti-aliasing modes in the Catalyst™ Control Center.

9
CHAPTER 3:
Getting Started
Congratulations on the purchase of your CrossFire™ Edition card. We hope
that you will enjoy countless hours of trouble-free computing.
System Requirements
Hardware • Intel® Pentium® 4 or AMD Athlon®.
• 512MB of system memory; 1GB or more for best
performance.
• A CrossFire™ certified motherboard with two (2) PCI
Express® X16 slots and correct PCIe™ chipset driver.
Note: The CrossFire™ Edition is a dual-slot solution
that may obscure the adjacent slot. (See ati.com/
crossfire for a list of CrossFire™ certified
motherboards.)
• Optical drive for installation software (CD-ROM or
DVD-ROM drive).
• Specialized PCI Express® 500 watt or greater power
supply recommended. Consult your computer system
manual to ensure the power supply is designed to
accommodate a high-end graphics card with a peak
dissipation above 75 watts.
Operating
System
• Windows® XP with Service Pack 2 (SP2).
• Windows® XP Professional x64 Edition.
Monitor • High-resolution MultiSync or multi-frequency monitors
or any other type of VGA monitor.
• Digital flat-panel (DFP) displays or digital CRT display.

10 Before You Begin
External Connections
The following connection types are available on the baseplate of your
CrossFire™ Edition:
• DVI-I
•DMS-59™
Before You Begin
Before you begin installing your new graphics card, please do the following.
Record Your Serial and Part Numbers
The serial number and 102 part number printed on the graphics card are
required for registration. They are located on a sticker on the back of the card.
Write these numbers down before installing your new ATI product.
Uninstall Previous Graphics Card Drivers
To ensure the successful installation of your new CrossFire™ Edition card,
you must uninstall the drivers for the existing graphics card before removing
it from your computer.
XSerial number (S/N)
Y102 part number (P/N)

Before You Begin 11
To uninstall previous drivers
With your current graphics card still in your computer:
1Close all applications that are currently running.
2Navigate to the Control Panel and select Add/Remove Programs.
3Select your current graphics card drivers and select Add/Remove. The
wizard will help you remove your current display drivers.
Note: If the previously installed graphics card has any additional
software installed, it should also be removed at this point.
4Restart your system after the drivers have been removed.

12 Before You Begin

Installing Master Graphics Cards 13
CHAPTER 4:
Installing the CrossFire™ Edition Master
Graphics Card
This chapter will guide you through the physical installation of your
CrossFire™ Edition graphics card.
The CrossFire™ Edition will always be the Master graphics card due to its on-
board compositing engine and the associated DMS-59™ connector. For
supported Slave graphics cards, see Allowable CrossFire™ Display
Configurations.
Installing Master Graphics Cards
The following set of instructions assumes that the PCI Express® Slave
graphics card has already been successfully installed in the secondary slot
(slot one), and that the primary slot (slot zero) is empty. If you have not
already done so, see the user’s guide that came with the graphics card for
installation instructions.
LConsult your system builder or OEM to ensure that your system has an
adequate power supply. A 500 watt or greater power supply is
recommended. PCI Express® compatible system comes with specialized
12V graphics card power connector. Consult your computer system
manual to verify that the power supply is designed to accommodate a
high-end graphics card with a peak dissipation above 75 watts.

14 Installing Master Graphics Cards
1Turn off the computer, monitor, and other peripheral devices.
2Unplug the computer’s power cord and disconnect all cables from the
back of your computer.
3Remove the computer cover.

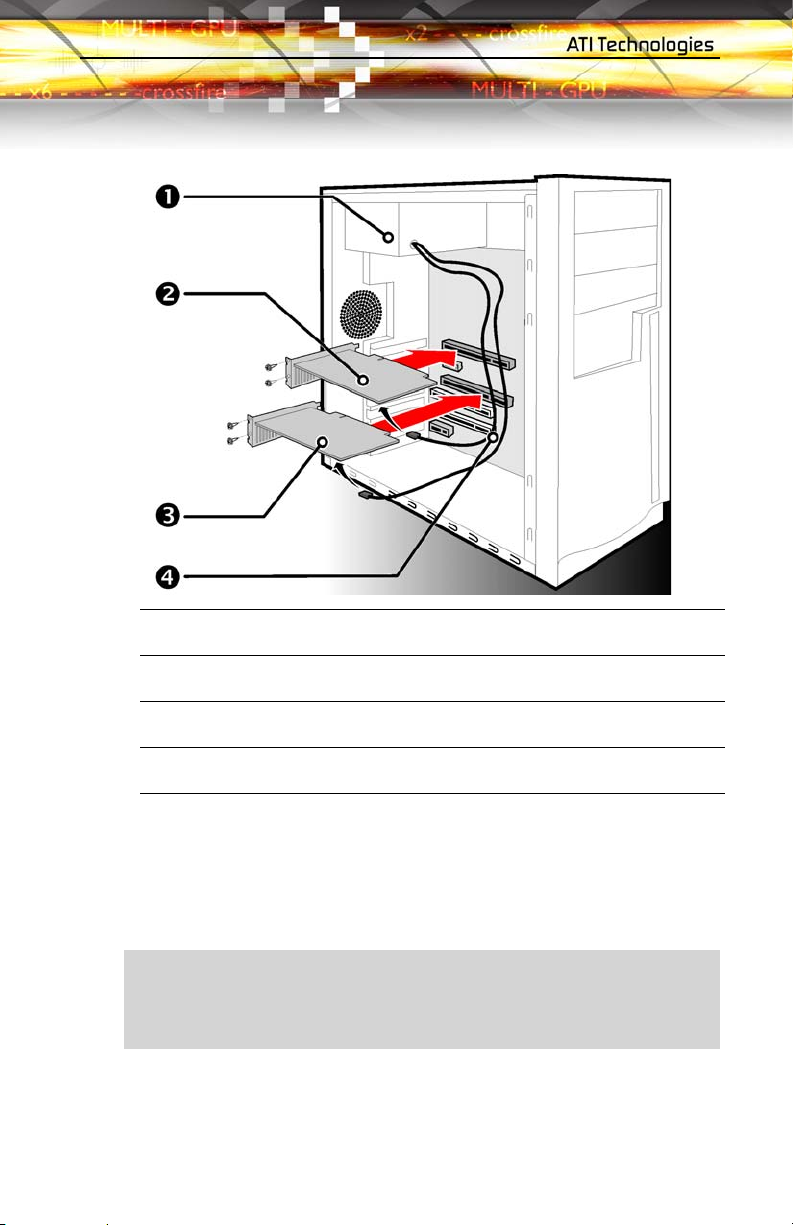

1Power Supply
2CrossFire™ Edition Graphics Card (Master)
3CrossFire™-Compatible Graphics Card (Slave)
4Power Cables.
LWARNING - Wait approximately 20 seconds after unplugging the
power cord before disconnecting a peripheral or removing a
component from the motherboard to avoid possible damage to the
motherboard.

Installing Master Graphics Cards 15
If necessary, consult your computer’s manual for help in removing the
cover.
4Unscrew or unfasten and remove any non-CrossFire™ supported
graphics card from your computer.
5Locate the primary (slot 0) PCI Express® slot on the motherboard. If
necessary, remove the metal backplate cover from the case housing.
Note: To determine the lowest PCI Express® slot consult your
motherboard’s manual. For the latest information on the best
configuration, consult:
ati.com/crossfire
6Align your CrossFire™ Master card in the slot and press firmly until the
card is fully seated.
7Connect the power cable to the 6-pin Molex power connection on the
graphics card.
8Screw in or fasten the graphics card securely. Make sure the cables are
not interfering with anything inside the computer (for example, a
cooling fan) and replace the computer cover.
9Reconnect any cables you have disconnected and plug in the computer’s
power cord.
LWARNING - Discharge your body’s static electricity by touching the
power supply or the metal surface of the computer chassis. Otherwise,
you may damage your system.
LImportant - To ensure proper ventilation for your CrossFire™ Edition
graphics card, also remove the metal backplate cover to the adjacent
PCI Express® slot.
LImportant - Ensure that both cards are properly seated and are not
in direct contact with each other to prevent either card from
overheating.

16 Connecting devices for CrossFire™
10 Turn on the monitor, and then your computer.
Connecting devices for CrossFire™
Your CrossFire™ Edition provides hardware support for one DVI-I monitor
or one VGA monitor using the supplied DVI-I-to-VGA adapter. It also has a
DMS-59™ connector for connection to a supported PCI Express® graphics
card for CrossFire™ support. For supported Slave graphics cards see
Allowable CrossFire™ System Components.
The following illustration shows how to connect your ATI CrossFire™
Edition Master graphics card to your PCI Express® Slave graphics card:
LYour computer will beep, possibly show a warning message on your
display, and the boot process will stop if the graphics card is not correctly
connected to the power supply.
