Ativa KS02 2GB User manual

MP3 Player
KS02
User’s Manual

i
TABLE OF CONTENTS
Introduction.............................................................................................................................................................................................1
Regulatory Information: FCC Part 15 ...................................................................................................................................................2
Important Safety Precautions................................................................................................................................................................4
Main Features .........................................................................................................................................................................................6
Overview..................................................................................................................................................................................................7
Connecting with the Computer .............................................................................................................................................................8
System requirements ...........................................................................................................................................................................8
Copy Files from computer ....................................................................................................................................................................8
Charging the battery.............................................................................................................................................................................9
Using the MP3 Player...........................................................................................................................................................................10
Turning on ..........................................................................................................................................................................................10
Adjusting the volume ..........................................................................................................................................................................10
Pausing and playing music tracks......................................................................................................................................................10
Skipping to the next/previous music track..........................................................................................................................................11
Fast rewind/forward within a track...................................................................................................................................................... 11
Setting equalizer................................................................................................................................................................................. 11
Shuffle or Repeat all songs ................................................................................................................................................................11
Locking all buttons..............................................................................................................................................................................12
Turning off ..........................................................................................................................................................................................12
Resetting the player ...........................................................................................................................................................................12

ii
Troubleshooting ...................................................................................................................................................................................13
Specification .........................................................................................................................................................................................14
Product Warranty .................................................................................................................................................................................15

1
Introduction
Thank you for purchasing this MP3 Player.
This manual contains important safety information and operation instructions, so please read all the instructions carefully
before using the player and keep it for future reference.
This manual will help you use all of the exciting features to make your player more enjoyable.
We have done our best to produce a complete and accurate manual; however, we cannot ensure
there are no errors or omissions. We also have no responsibility for damages or loss of data caused
by improper operation.
The instruction manual is subject to change for improvement without notice.
Trademarks and trade names used in this user’s manual are owned by their respective companies
or organizations.

2
Regulatory Information: FCC Part 15
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
yReorient or relocate the receiving antenna.
yIncrease the separation between the equipment and receiver.
yConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
yConsult the dealer or an experienced radio/TV technician for help.

3
WARNING: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THE DEVICE. ANY SUCH MODIFICATIONS COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.

4
Important Safety Precautions
Always follow these basic safety precautions when using your player. This will reduce the risk of product damage and
personal injury.
yDo not disassemble, repair or modify the player by yourself. Refer servicing to qualified personnel.
yDo not dispose of the player in fire to avoid explosion because the player has built-in battery.
yDo not touch the player with bare hands if the built-in battery is leaking. In this case, contact service center for help
since the liquid may remain in the player. If your body or clothes has contacted with the battery liquid, wash it off
thoroughly with water. Also, if some of liquid gets into your eyes, do not rub your eyes but immediately wash them with
clean water, and consult a doctor.
yKeep the player away from direct sunlight and heat source.
yDo not expose the unit to rain or moisture to avoid any malfunction.
yDo not use the player in rather dry environment to avoid static.
yNever apply heavy impact on the player like dropping it or placing it on the magnet.
yRoute USB cable so that people and pets are not likely to trip over or accidentally pull on them as they move around
or walk through the area.
yDisconnect the USB cable from the computer when you do not use the player for a long time.
yClean only with dry cloth. Make sure the player is turned off before cleaning. Do not use liquid cleanser.
yBe sure to back up your files. We will not be liable for the loss of data due to improper operation, repair or other
causes.

5
Precautions in using the earphone
yDo not use the earphone while driving an automobile or riding a bicycle. It is not only dangerous, but also against the
law. To avoid an accident, do not turn up the volume of the earphones too high while walking.
yIt’s not recommended that you use the earphones at a high volume for an extended time as this may cause hearing
damage.

6
Main Features
yClip design, good quality
yBuilt-in rechargeable Li-polymer battery
yUSB 2.0 high speed transmission
ySupports playback of MP3, WMA music files
y6 preset equalizers (Normal, Jazz, Rock, Classic, Pop, Bass) and SRS sound effect to suit the type of audio output
yLock up function

7

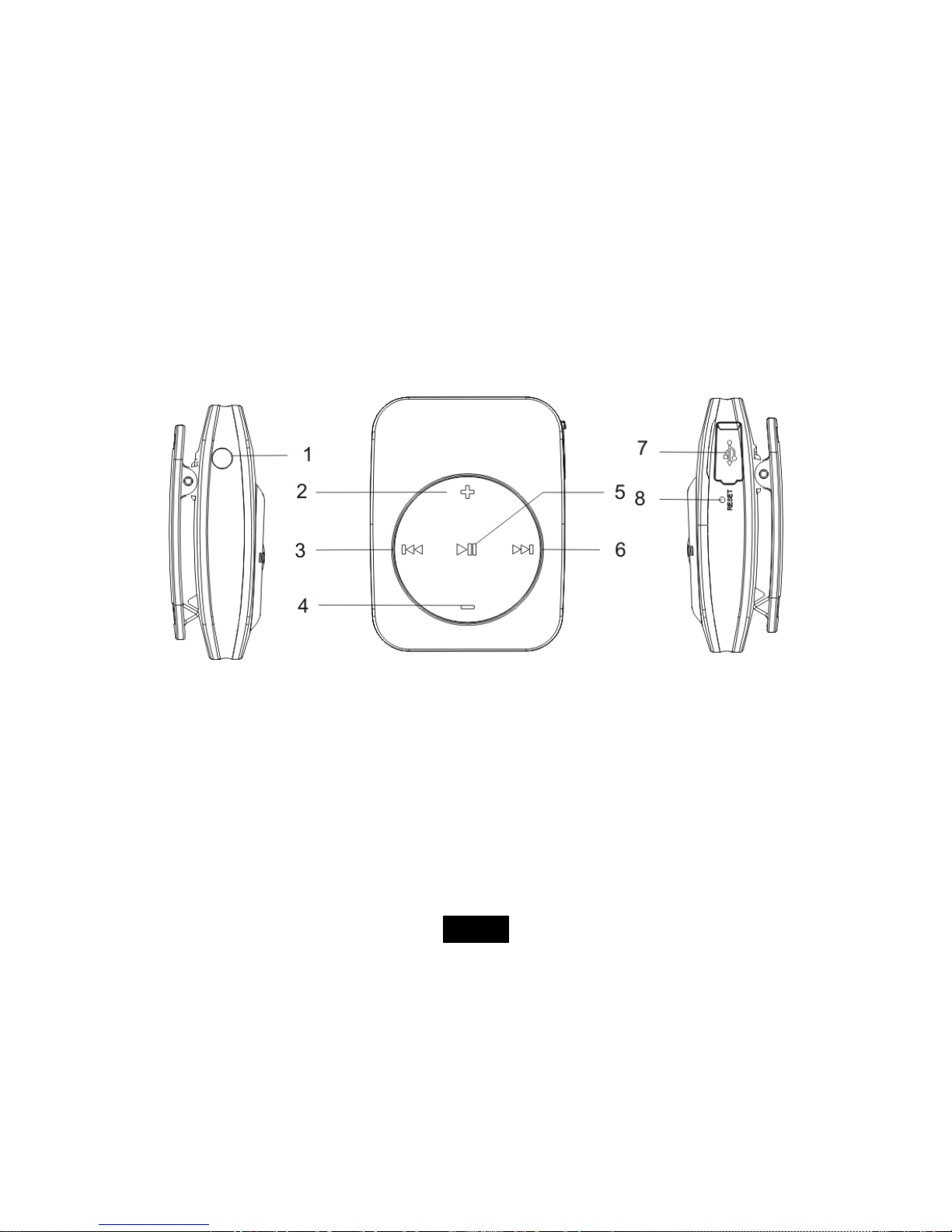

Overview
1. Earphone Jack
2. [+] Volume up; press and hold to switch
between EQ modes
3. [] Previous button; press and hold to fast
rewind
4. [-] Volume down; press and hold to Lock/Unlock
buttons
5. []Play/Pause button; pres and hold to Power
On/Off
6. [] Next button; press and hold to fast forward
7. Mini-USB connection
8. RESET hole

8
Connecting with the Computer
System requirements
Your computer system must meet the following requirements:
yPentium 200MHz or above
yMicrosoft Windows 2000/ME/XP/Vista and up to Mac 10.5
y120MB of available hard disk space
yUSB port supported
Copy Files from computer
Files can be transferred directly into the player by using the USB data cable.
1. Make sure that your computer has been started before you start.
2. Connect the mini plug of the USB cable to the mini USB port on the player, and push the other end into a free USB port
on your computer.
3. The computer system detects “New hardware” and starts to install the driver automatically. Wait for the system to finish
the installation. When it has finished, a new “Removable Disk” will be created in “My Computer”.
4. Drag and drop the files on your computer to the “Removable Disk”.
5. To disconnect the USB cable from the computer, double click the Safely Remove Hardware icon on the task bar. Click
the USB Mass Storage Device, and then click OK. Then you can unplug the player safely.

9
Note:
yPlease do not disconnect the USB cable during loading. It may cause malfunction of the player and the files.
yThere is a folder named “Manual” in the “Removable Disk”. You can find manual for the player in the folder. If you
delete the folder accidentally in the future, you also can download it at www.ativaproducts.com.
Charging the battery
yThe battery of the player is charging automatically when the player is connected to the computer. Make sure the
computer has been started.
yThe battery of the player is 80-percent charged in about three hours and fully charged in about five hours. If you
charge the player while loading files to the player, it might take longer.
yDuring charging, the indicator flashes slowly. When the player is fully charged, the indicator will stop flashing and light,
and go out after about 2 hours.
Important:
yRecommended temperature for battery charging is 0
℃ to 35 ℃ .
yFully charge it before you use the player for the first time or when you haven’t used it for a long time.
yDo not over charge or discharge the player. Over charging or discharging will shorten the battery life.
yThe battery could be over discharged if the player is not used for a long time (over three months). To avoid over
discharge, fully charge the player every three months and always keep the voltage of the battery above 50%.
yIf the player is not used for a long time, keep it under the temperature of 23
± 5 ℃ and the moisture of 65 ± 20% RH to
maintain the performance of the battery
.

10
Using the MP3 Player
Turning on
1. Make sure the battery is charged enough and connect the earphone supplied.
2. To turn on the player, press and hold the [] button. The indicator will illuminate and then flash. After a short pause
the first music track on the MP3 Player starts playing automatically (File stored in the root directory are played first
followed by alphabetic order). The indicator will flash slowly during playback.
Adjusting the volume
yTo increase the volume, press the [+] button while music playing.
yTo decrease the volume, press the [-] button while music playing.
Pausing and playing music tracks
1. To pause playback, press the [] button once. The indicator will stop flashing and illuminate permanently.
2. To resume playback, press the [] button again. The indicator will flash slowly during playback.

11
Skipping to the next/previous music track
1. To skip to the next music track, press the [] button once. Repeat this until the desired music track is found.
2. To skip to the previous music track, press the [] button once. Repeat this until the desired music track is found.
Fast rewind/forward within a track
1. To fast forward with a track, press and hold the [] button. Once you release the pressed button, it will play from the
searched point.
2. To fast rewind with a track, press and hold the [] button. Once you release the pressed button, it will play from the
searched point.
Setting equalizer
There are six preset equalizers (Normal, Jazz, Rock, Classic, Pop, Bass) and SRS sound effect on the player. You can select the
desired equalizer to suit the type of audio output.
yTo select an equalizer, press and hold the [+] button while music playing. Once you release the button, the equalizer
can be heard.
Shuffle or Repeat all songs
You can set the play mode for the player. While music playing is paused, you can:
yPress the [+] button, then press the [] button to resume playing. The player will repeat all songs.
yPress the [-] button, then press the [] button to resume playing. The player will shuffle all songs.

12
Locking all buttons
This prevents you from accidental pressing the buttons when using the MP3 player on the move.
1. To enable the lock function, press and hold the [-] button.
2. To disable the lock function, press and hold [-] button again.
Turning off
To turn off the MP3 player at any time, press and hold the [] button for 2 seconds. Once the pressed button is released,
the indicator and MP3 player will turn off.
Note:
yWhen the MP3 player is turned on again, it will continue playing the track that was playing when the MP3 player was
turned off.
yThe MP3 player will turn off automatically if the battery is exhausted.
Resetting the player
If a malfunction of the player occurs, take a metal pin, e.g. the end of a paper clip, and press it into the RESET hole to re-initialize
the player.

13
Troubleshooting
If you have problems in operating your player, please check the points below before sending it to service center.
Cannot power on
yThe battery may be exhausted. Please recharge the battery.
Files cannot be downloaded
yCheck if the driver is installed correctly in the computer.
yCheck the connection between the player and PC.
No sound from the earphone
yPlease ensure the volume is not 0, and the connection of earphone is no problem.
yCheck if the format of music file is supported by the player.
The buttons do not work
yThe key may be locked. Press and hold the [-] button to disable the lock function.
yPress the reset hole with metal pin to re-initialize the player.

14
Specification
Audio Format MP3/WMA Size 45x34.4x16.8mm (include
clip)
MP3 bit Rate 8Kbps–320Kbps weight Around 25
WMA bit rate 32Kbps–384Kbps Frequency response 20Hz~20KHz
S/N rate >91dB (without A-weight) Dynamic current <18mA
Dynamic range >80db(1KHZ) Power off current <0.3mA
Distortion <0.05% Storage condition Humidity <90%, Normal
temperature
Battery MP3/WMA playback around 8hrs Working condition Humidity <85%,-10~40℃
EQ Normal/Jazz/Rock/Classic/Pop/Bass Power out 2*5mW

15
Product Warranty
Swinton Avenue Trading, Inc.
Limited One Year Product Warranty
This limited warranty covers the original purchase of new product used for normal commercial, personal or household use.
Swinton Avenue Trading, Inc. (SAT) warrants its products will be free from defects in materials and workmanship (normal
wear and tear excepted), for one (1) year from the date of purchase, except as provided below. SAT, at its option, will replace
with a comparable product, free of charge, any product which fails under normal use as a result of such defect. This warranty
does not apply to damage caused by fire, accident, negligence, misuse, improper cleaning or other circumstances not
directly attributable to manufacturing defects.
Proof of purchase is required in the form of a receipt (copy or original) to validate warranty. If you do not have a copy of your
store receipt and paid using a check or a major credit card, a copy can be obtained from Office Depot’s receipt retrieval
department at 1-800-721-6592.
If SAT chooses to provide a refund for such product, it will be fulfilled in the form of an Office Depot Merchandise card.
Claims fulfilled in this manner take approximately 90 days to process.
SAT PROVIDES THIS LIMITED WARRANTY IN LIEU OF ALL OTHER WARRANTIES EITHER EXPRESS OR IMPLIED.
EXPRESSLY EXCLUDED ARE ALL WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR

16
MERCHANTABILITY. SAT’S SOLE OBLIGATION AND THE USER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY
SHALL BE LIMITED TO THE REPAIR OR REPLACEMENT AT SAT’S SOLE DISCRETION AND COST, OF PRODUCT OR
COMPONENTS.
IN NO EVENT SHALL SAT, ITS AFFILIATES, SUBSIDIARIES OR PARENT COMPANIES BE RESPONSIBLE FOR
CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES ARISING OUT OF A CLAIM OF
DEFECTIVE PRODUCT EVEN IF SAT HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
SOME STATES OR PROVINCES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTIAL OR
CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH MAY VARY BY STATE OR PROVINCE.
THIS WARRANTY APPLIES ONLY TO THE U.S. AND CANADA.
Return Instructions
Please call 1-877-777-HELP (1-877-777-4357) for warranty service or product support.)
