1x6 3G/HD/SD-SDI Splitter with Reclocking
AT-3GSDI-16
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515

2www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
1. INTRODUCTION ....................... 2
2. PACKAGE CONTENTS ....................... 2
3. FEATURES ....................... 2
4. SPECIFICATIONS ....................... 3
5. PANEL DESCRIPTIONS ....................... 4
5.1. Transmitting Module ....................... 4
5.1.1. Front Panel ....................... 4
5.1.2. Rear Panel ....................... 4
6. CONNECTION DIAGRAM ....................... 5
7. INSTALLATION ....................... 5
8. SAFETY INFORMATION ....................... 6
9. WARRANTY ....................... 7
10. ATLONA PRODUCT REGISTRATION
....................... 7
11. SIGNAL MEASUREMENT ....................... 8
INTRODUCTION:
The AT-3GSDI-16 1x6 3G/HD/SD-SDI Splitter with Reclocking receives one SDI input, perfectly duplicates it, and re-
transmits six SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI, HD-SDI, or 3G-SDI
video source to six SDI compliant displays at the same time.
PACKAGE CONTENTS:
● 1x AT-3GSDI-16
● 1x 5V power supply unit
● 1x User's manual
FEATURES:
● 3G/HD/SD triple-rate distribution
● Four separately buffered and reclocked outputs
● Cable equalization (Beldon 1694A) and signal retiming
● Dual color LED indication of input lock and rate
● Passes all ancillary data
● Provides automatic input cable equalization up to 300m (1000ft)@SD, 150m (500ft)@HD and 90m (300ft)
● Reclocking SDI signals for cascading and thus longer transmission
● Inter-locked power supply for better xedness
TABLE OF CONTENTS

3
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
SPECIFICATIONS:
Technical
Role of usage 1 X 6 Distribution Amplier (Splitter)
SDI standards SD-SDI, HD-SDI, 3G-SDI
Auto 3G/HD/SD detection Yes
Supported protocols SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 425M
Video bandwidth [2.97Gpbs & 2.97/1.001Gbps]
Data rates 270 / 1483 / 1485 / 2967/ 2970 Mbps
Output impedance 75Ω
Reclocking function Yes
Cable equalization [3G] up to 90m (300ft) [HD] up to 150m (500ft) [SD] up to 300m (1000ft)
Audio support Yes
RP-198 pathological patterns Immune
PCB stack-up 4-layer board [impedance control X differential 100Ω; single 50Ω]
Input 1x BNC [SDI]
Output 6x BNC [SDI]
BNC connector 75Ω inter-locked socket
Eye pattern characteristics
Amplitude: Within 800mV 3% (<10%) Long time jitter: 0.195g (<1.0g)
Rise overshoot: Less than 2% (<10%) Timing jitter: 0.195g (<1.0g)
Fall overshoot: Less than 2% (<10%) Alignment jitter: 0.127g (<0.2g)
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H]
Model 5.7” x 3.2” x 1” (145 x 80 x 25mm)
Package 10.6” x 6.9” x 3.2” (270 x 175 x 80mm)
Carton 15.7” x 12.6” x 11.8” (450 x 370 x 300mm)
Weight Model 10.9oz (310g)
Package 1.7lbs (785g)
Fixedness Inter-locked power supply
Power supply 5V 4A DC
Power consumption 10 Watt (max)
Operation temperature 32~104°F (0~40°C)
Storage temperature -4~140°F (-20~60°C)
Relative humidity 20~90% RH (no condensation)

4www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515

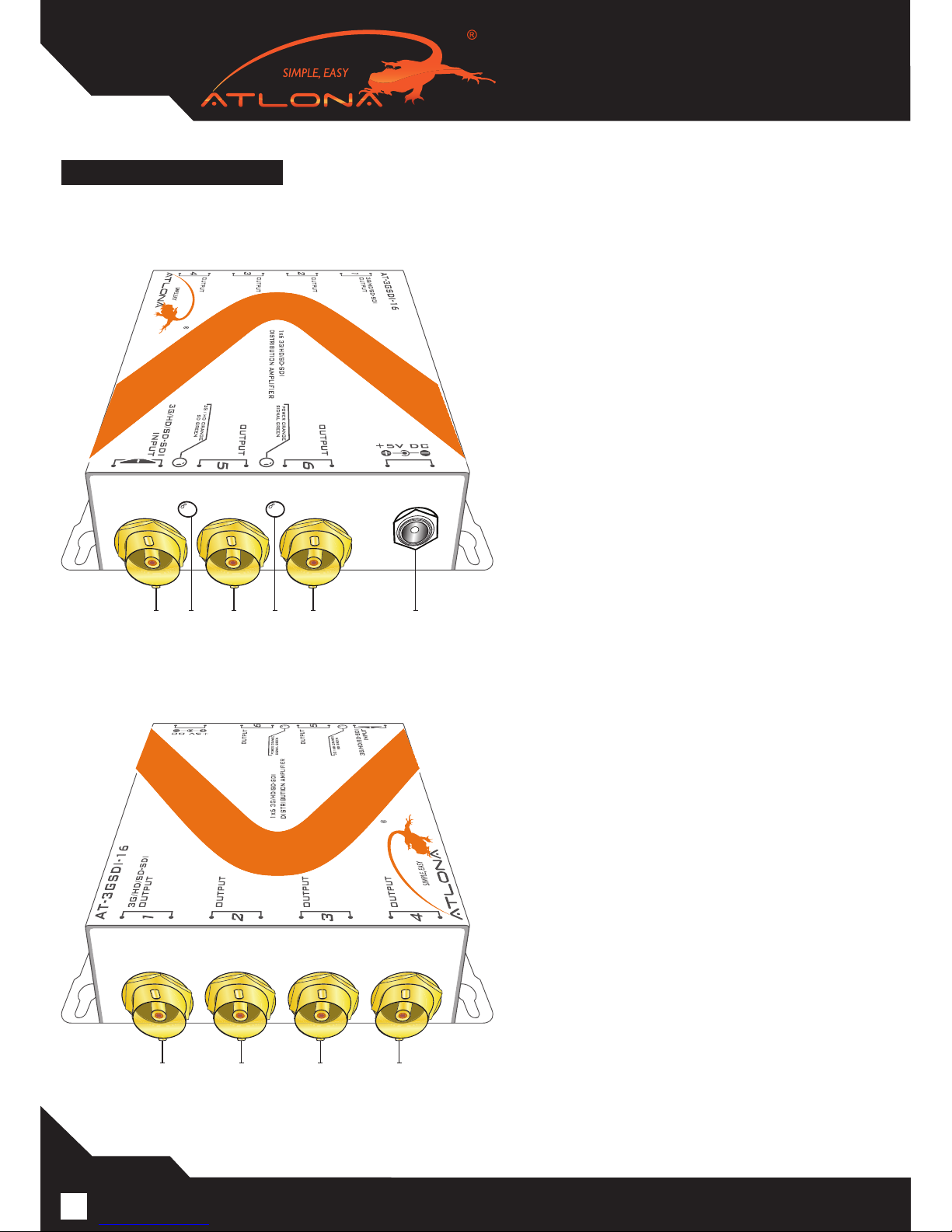

PANEL DESCRIPTIONS:
5.1. Transmitting Module
5.1.1. Front Panel
1 2 3 4 5 6
1. 3G/HD/SD-SDI input
2. LED — Orange: 3G/HD-SDI
Green: SD-SDI
3. 3G/HD/SD-SDI output 5
4. LED — Orange: Power status
Green: Signal status
5. 3G/HD/SD-SDI output 6
6. 5V DC power jack
5.1.2. Rear Panel
1 2 3 4
1. 3G/HD/SD-SDI output 1
2. 3G/HD/SD-SDI output 2
3. 3G/HD/SD-SDI output 3
4. 3G/HD/SD-SDI output 4

5
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515

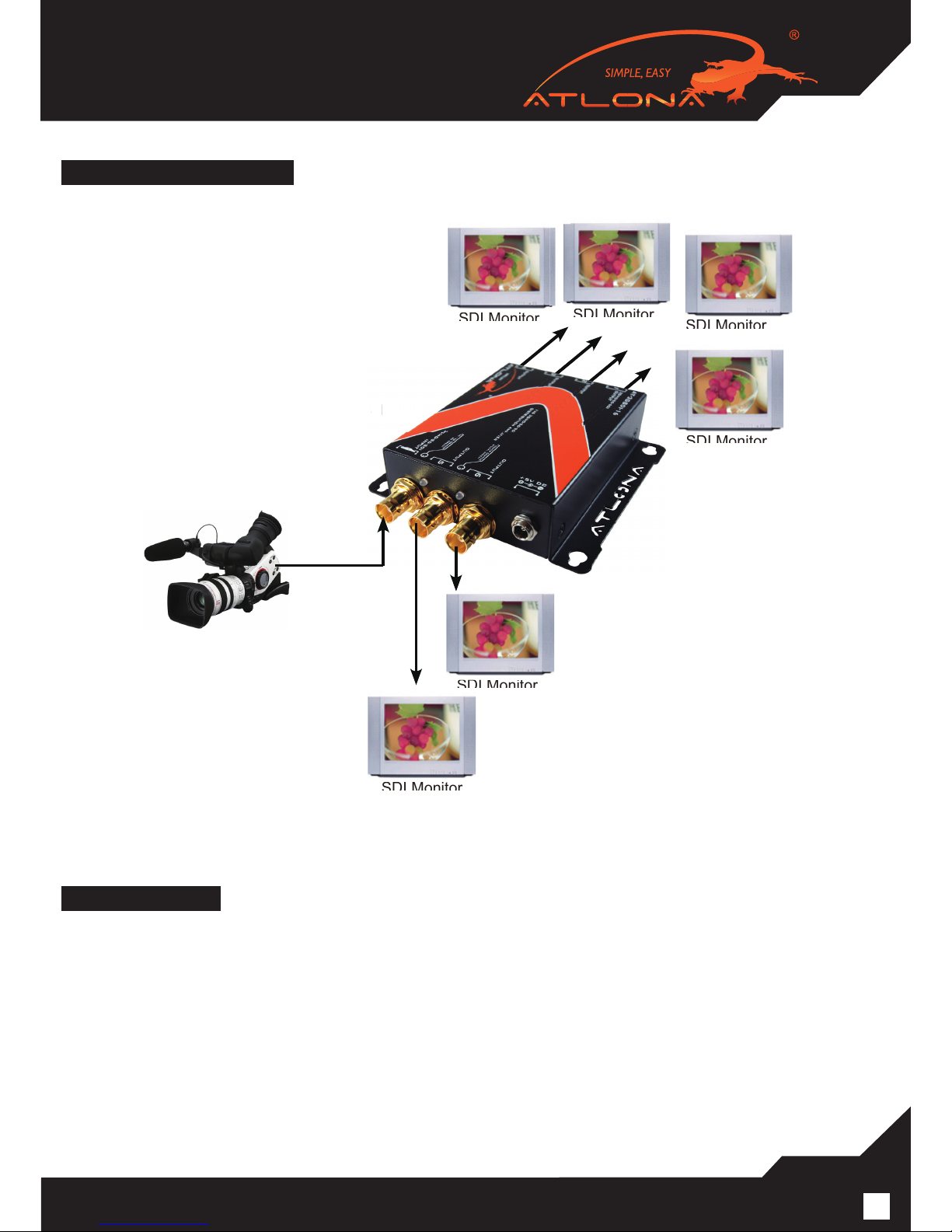

CONNECTION DIAGRAM:
AT-3GSDI-16
G
S
D
I-1
6
SDI camera
SDI Monitor
SDI Monitor
SDI Monitor
SDI
M
SDI Monitor
SDI
M
SDI Monitor
SDI Monitor
SDI Monitor
SDI Monitor
SDI Monitor
SDI
Mo
nit
or
SDI Monitor
SDI Monitor
INSTALLATION:
1. Connect a camera or other SDI devices to 3G/HD/SD-SDI input.
2. Connect SDI displays or devices to 3G/HD/SD-SDI outputs.
3. Screw the 5V power supply unit to the locking power jack.

6www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
SAFETY INFORMATION:
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local power
socket, hire an electrician to replace your
obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near the
socket outlet and the device should be easily
accessible in case it requires disconnection.
Precautions
FCC Regulations state that any unauthorized
changes or modifications to this equipment
not expressly approved by the manufacturer
could void the user's authority to operate this
equipment.
Operate this product using only the included
external power supply. Use of other power
supplies could impair performance, damage the
product or cause res.
In the event of an electrostatic discharge, this
device may automatically turn off. If this occurs,
unplug the device, and plug it back in.
Protect and route power cords so they will not
be stepped on or pinched by anything placed on
or against them. Be especially careful of plug-
ins, or cord exit points from this product.
Avoid excessive humidity, sudden temperature
changes or temperature extremes.
Keep this product away from wet locations such
as bathtubs, sinks, laundries, wet basements
and swimming pools.
Use only accessories recommended by ATLONA
to avoid re, shock or other hazards.
Unplug the product before cleaning. Use a
damp cloth for cleaning. Do not use cleaning
uid or aerosols, which could enter the unit and
cause damage, fire or electrical shock. Some
substances may also mar the finish of the
product.
Never open or remove unit panels or make
any adjustments not described in this manual.
Attempting to do so could expose you to dan-
gerous electrical shock or other hazards. It
may also cause damage to your AT-3GSDI-16.
Opening the product will void the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA directly.

7
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
WARRANTY:
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the "Product") will perform substantially in accordance with the
accompanying written materials for a period of 3 years from the date of receipt and (b) that the Product will be free from
defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law
imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions
do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' option,
either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty
and which is returned to Atlona Technologies with a copy of Customer's receipt. This Limited Warranty is void if failure of the
Product has resulted from accident, abuse, or misapplication. Any replacement Product will be warranted for the remainder of
the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS
DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE
PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPECIFIC LEGAL
RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES
OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL,
INCIDENTAL, CONSEQUEN-TIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT
OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES' AND ITS SUPPLIERS' ENTIRE
LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY
YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ATLONA PRODUCT REGISTRATION:
Thank you for purchasing this Atlona product — we hope you'll enjoy it.
We also hope that you'll take a few moments to register your new purchase. Registration creates an ownership record if your
product is lost or stolen and helps ensure you'll receive notication of performance issues and rmware updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of
course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
To register go to www.atlona.com/registration

8www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515

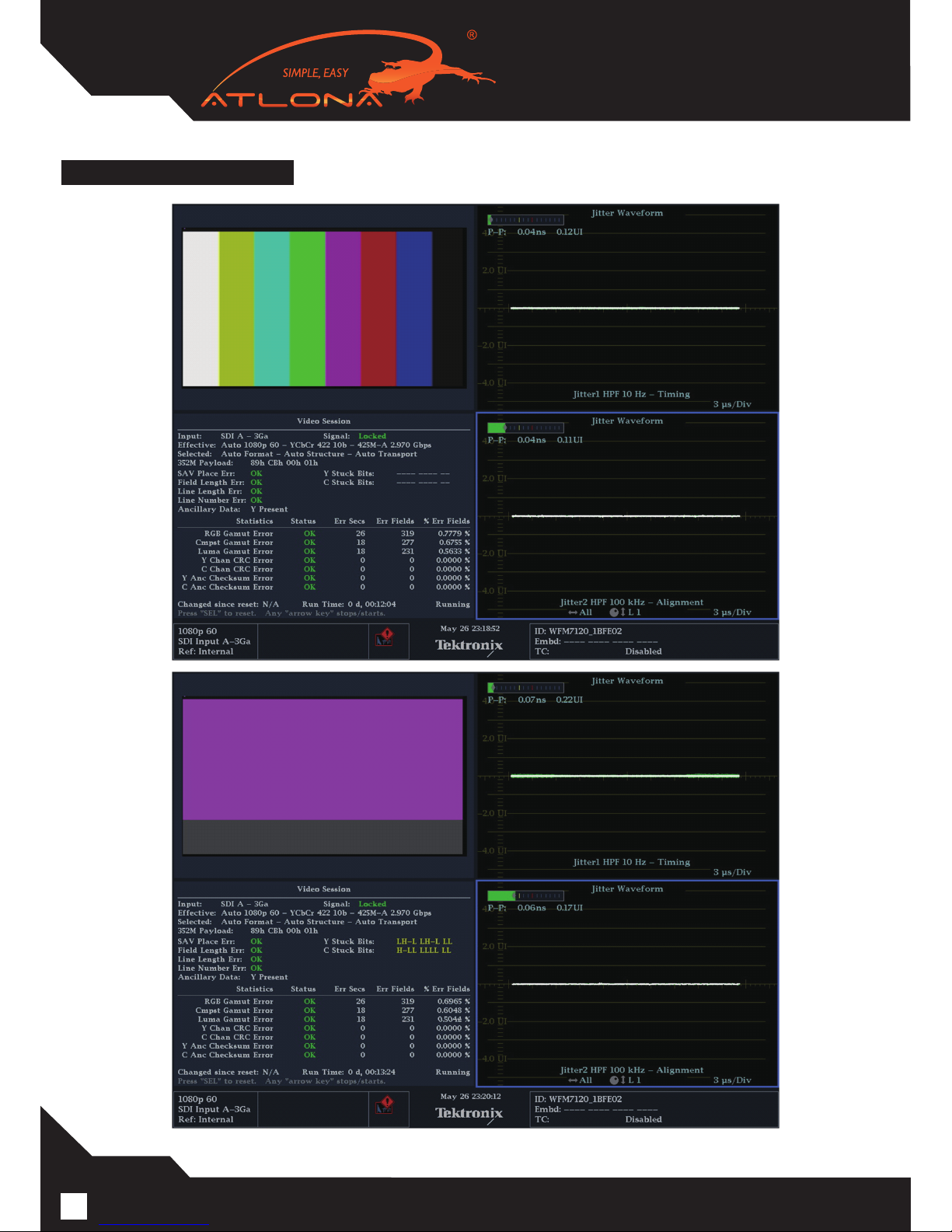

SIGNAL MEASUREMENT :
