Atlona AT-AV0808N User manual

Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com

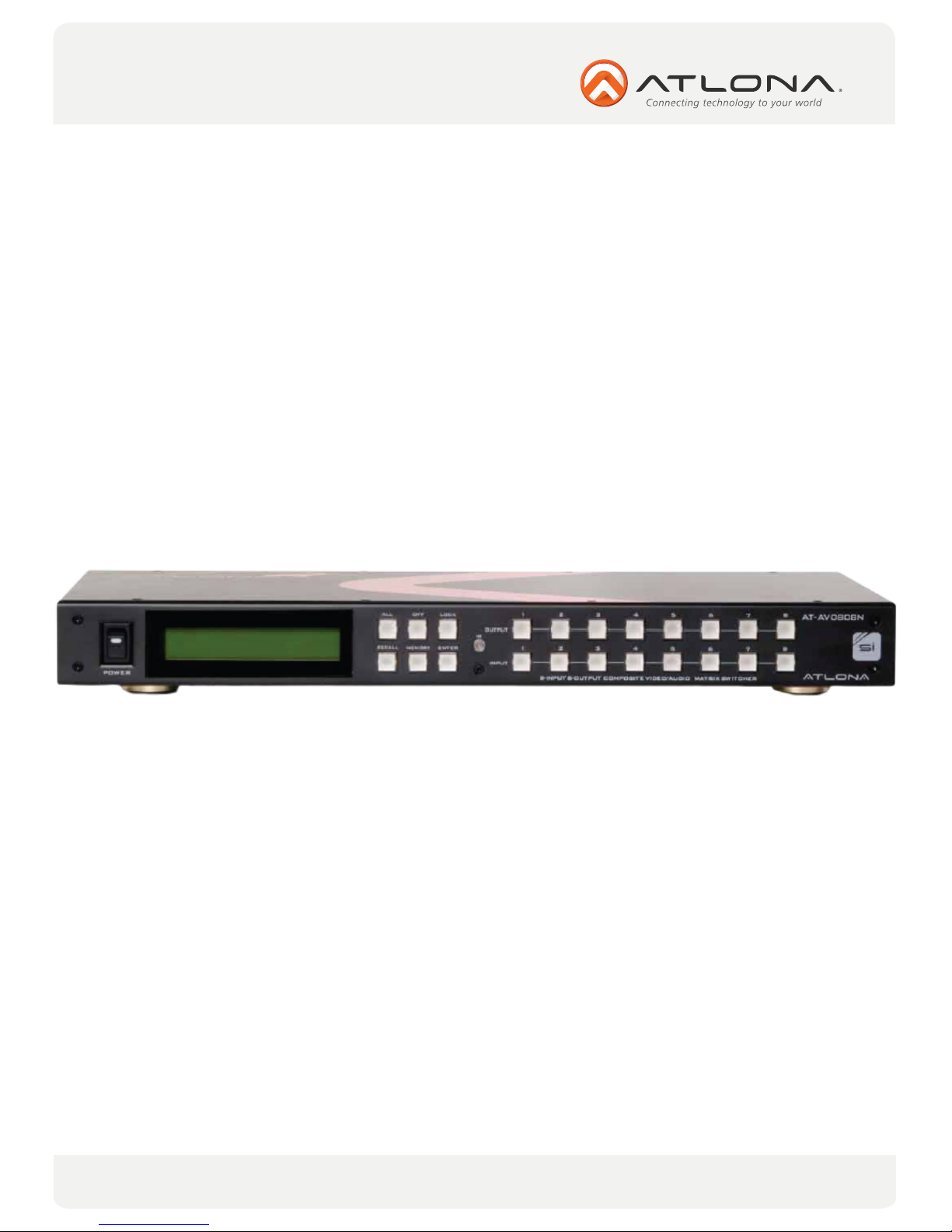

Atlona 8 by 8 Composite Video and
Stereo Audio Matrix Switch
AT-AV0808N
User Manual

1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
.................................................. 3
5. Panel Descriptions .................................................. 4
5.1 Front Panel .................................................. 4
5.2 Rear Panel .................................................. 5
.................................................. 5
.................................................. 6
.................................................. 7
.................................................. 8
.................................................. 9
6. Connection and Installation
9. Safety Information
10. Warranty
11. Atlona Product Registration .................................................. 10
7. IR Extender & Remote Control
8. RS232 Control
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
Table of Contents
4. Specications

Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
INTRODUCTION
PACKAGE CONTENTS
FEATURES
The Atlona AT-AV0808N is a true matrix switcher with 8 composite video and stereo audio
inputs and outputs. Because it is a matrix switch you can associate any of the 8 A/V inputs
AT-AV0808N can be used with up to 8 sources such as a VCR or DVD and connected to up
to 8 displays. There are several remote control options such as the supplied hand held IR remote,
RS-232 for computer or touch panel control and an IR extender solution for control from another
zone. Operation can be achieved from the front face panel or remotely.
• 1 X Atlona AT-AV0808N (8 X 8 composite video + stereo audio matrix switcher)
• 1 X 12VDC power supply with detachable power cord
• 1 X instruction manual
• 1 X RS-232 cable
• 1 X control software package
• Rack-Ears (pair)
• 1 X IR remote control
• 1 X IR extender kit
• Composite video + stereo audio 8 x 8 matrix switcher
• Able to independently select up to 8 sources and associate them to any or all of
up to 8 connected displays
• Compatible with all composite video devices such as VCR or DVD
• Remote solutions include hand held IR remote control (included), IR extender
(included) and RS-232 (cable included) for computer or touch panel operation
• Control software package for RS-232 operation
• Manual control via front panel buttons
• LCD read out provides live visual status for all inputs and outputs
• Supports NTSC or PAL video systems
• Inputs: 8 X A/V ( composite video + stereo audio), 1 x IR EXT, 1 x RS-232
• Outputs: 8 X A/V ( composite video + stereo audio), 1 x RS-232
• Power Supply: 12VDC (universal 110/220v)
•Dimensions (W X D X H): 17.50” X 8.25” X 2” (444.5 X 209.55 X 50.8mm)
• Weight: 5.41LB (3.25Kgs)
SPECIFICATIONS
3

1. Front Panel
1. Power switch: Press top of power switch to turn on. LED will illuminate red to indicate
the switcher is receiving power. Press bottom of power switch to turn power o .
2. LCD display:Con rmation and status of each key selection is displayed on the LCD
readout.
3. 2 X 1-8 Keypads (bottom input/top output):
Used to select individual output/input
channels or to save/recall preset commands.
Example: Select output channel from the top row of 1-8 keys followed by the input channel
from the bottom row of 1-8 keys to associate the two channels.
4. ALL Key:
channels.
Example: To transfer an input to all outputs: Select the ALL key, then select an input followed by the
the ENTER key.
ENTER key.
1 2 4 6 5 3
5. LOCK Key: Press and hold the LOCK key for 3 seconds to lockout all keypad functionality.
6. Memory/Recall Keys: Used to store or recall presets for inputs and outputs.
Example: Select the desired output and input combination for each audio/video
zone you wish to store as a preset. Select the MEMORY key followed by
a preset location from the bottom row of numbered keys. Selecting
the ENTER key will save the preset memory position.
Example: To recall a preset select the RECALL key, then the number of the
memory preset followed by the ENTER key.
Pressing the LOCK key again will restore keypad functionality.
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
PANEL DESCRIPTIONS
4

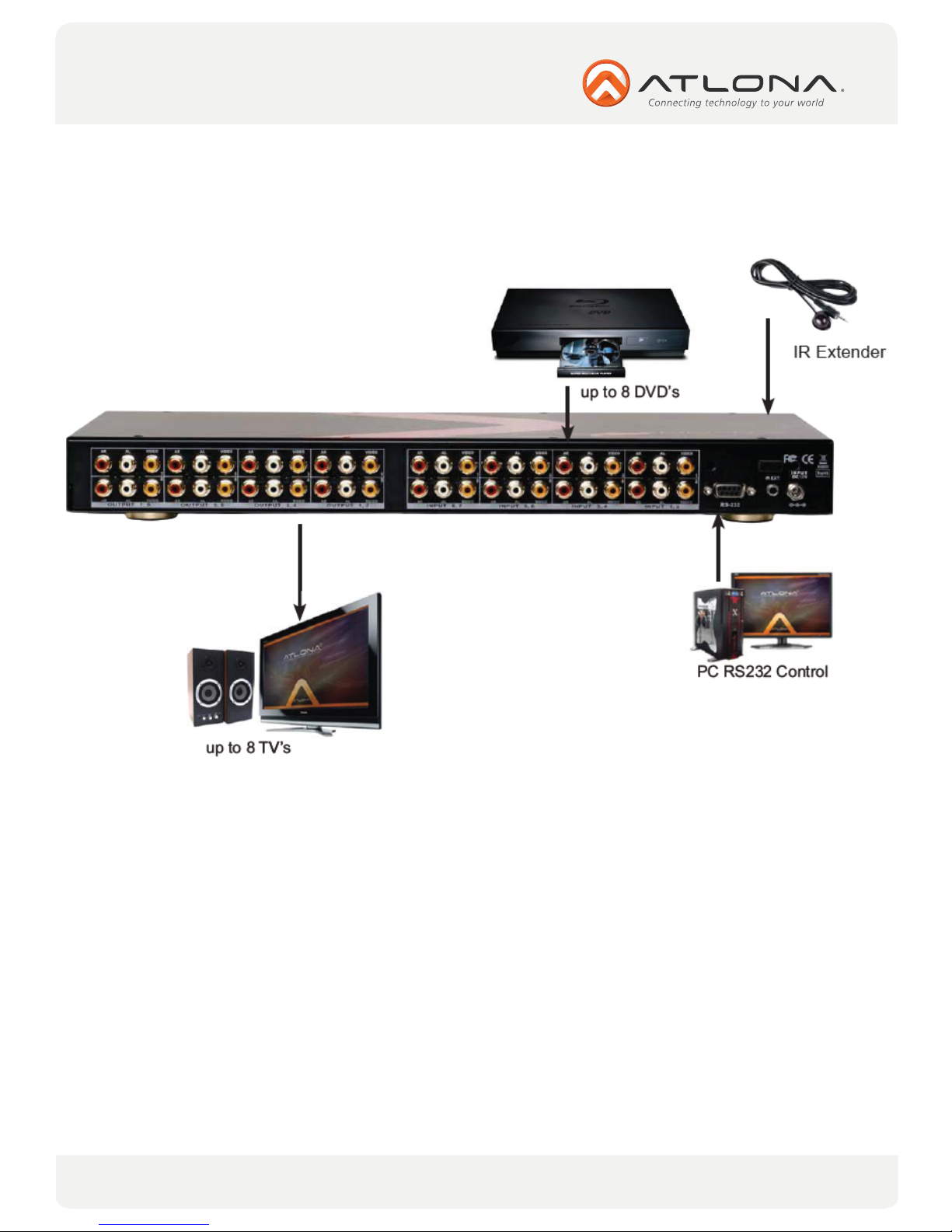

1. Connect the output of a composite video source such as a VCR or DVD to the
composite video and L/R audio inputs of the AT-AV0808N.
2. Connect the composite video output to the composite input of your display.
3. Connect the audio L/R stereo outputs to your display or ampliers input.
4. If utilizing RS-232 for control, hook up the supplied RS-232 cable from the AT-
AV0808N to your computer or touch panel display.
5. If utilizing an IR Extender, connect the supplied extender kit from the IR EXT port
on the back of the AT-AV0808N to the receiver.
2. Back Panel
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
CONNECTION AND OPERATION
5

Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com

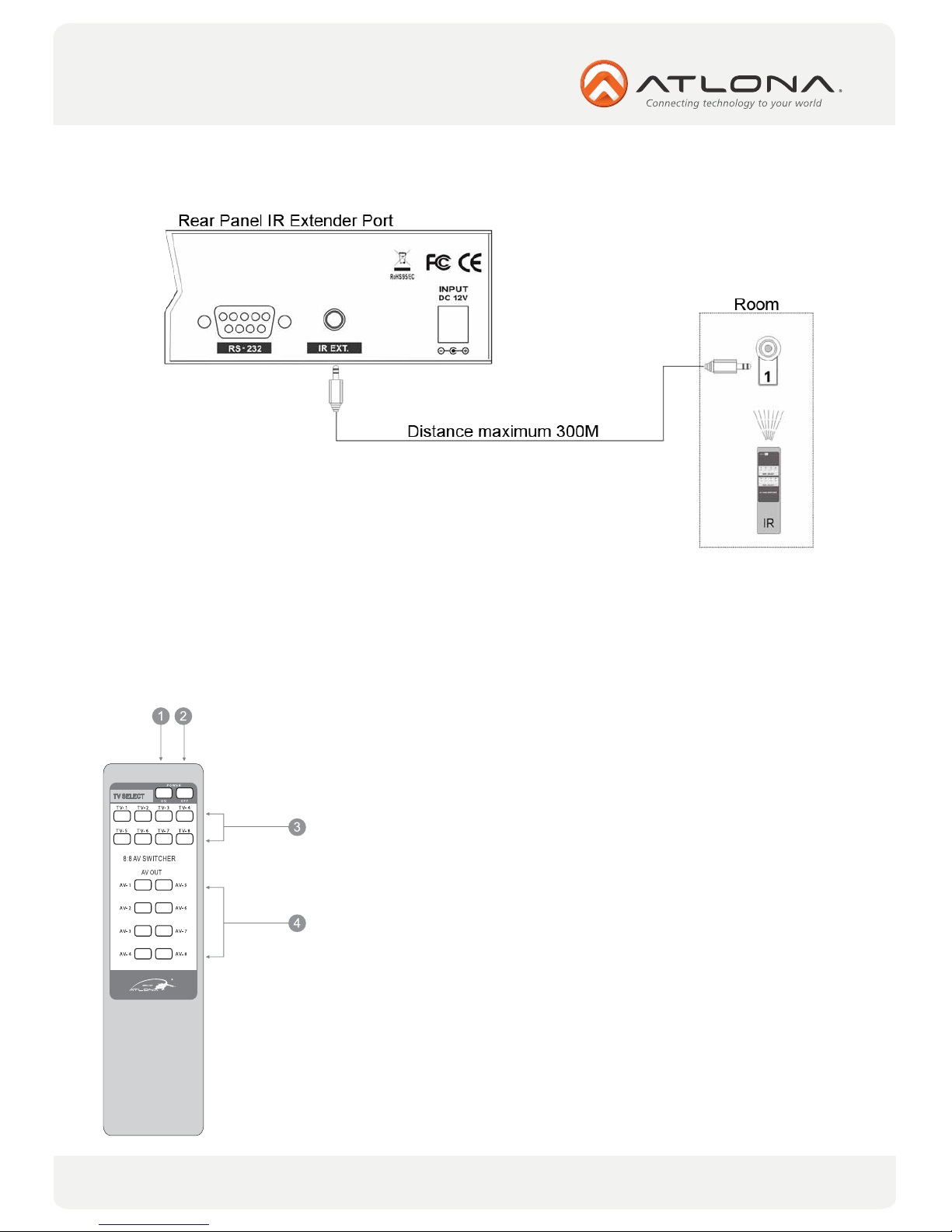

IR EXTENDER
1. IR Extender Connection
REMOTE CONTROL
The supplied remote control provides IR selection for 1-8 display output and 1-8 source
input, plus power ON/OFF. IR HEX codes available from www.Atlona.com website.
1. Power On
2. Power O
3. Output Select
4. Input Select
6

TION
Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
7
RS-232
Connection
RS-232 is connected through a 9-pin female D connector. The pins will have functions associated
with them, some will be unassigned.
No. Pin Function
1 ---- Not used
2 Tx Transmit
3 Rx Receive
4 ---- Not used
5 Gnd Ground
6 ---- Not used
7 ---- Not used
8 ---- Not used
9 ---- Not used
Baud Rate: 9600bps Data Bit: 8bits Parity: None Stop Bit: 1bit
Command
The command codes are very sensitive, do not change capitalization, spacing, or lettering.
Command Feedback Description
PWON PWON Power on
PWOFF PWOFF Power off
All# All# Resets all inputs to corresponding outputs (in3 to out3)
x1$ x1$ Turns off output channel (to turn off output 3 = x3$)
x1AVx2 x1AVx2 Switch input to output (input 3 to output 5 = x3AVx5)
x1AVx2,x3,x4 x1AVx2,x3,x4 Switch input to multiple outputs (input 3 = x3AVx1,x2)
Statusx1 x7AVx1 Shows what input is connected to selected output
Status x1AVx1, x2AVx2,
x3AVx4, ....
Displays which inputs are currently connected to which outputs
Save[Y] Save2 Saves settings for future use, saves vary from 0 to 9
Recall[Y] Recall2 Pulls up saved settings for the number you selected
Clear[Y] Clear2 Erases the save for the number you selected
Mreset Mreset Sets matrix back to the default settings
Each command or feedback is terminated with a carriage return.
Note: If the command fails or is incorrect the feedback should be “Command FAILED”
12345
9 8 7 6

Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
Safety Information
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture
-
cal power socket, hire an electrician to
replace your obsolete socket.
Do not modify the wall plug. Doing so
will void the warranty and safety features.
This equipment should be installed near
the socket outlet and the device should be
easily accessible in the case it requires
disconnection.
Precautions
not expressly approved by the manufacturer, could void the user’s authority to operate this
equipment.
Operate this product using only the included external power supply. Use of other power supplies
In the event of an electrostatic discharge this device may automatically turn off. If this occurs,
unplug the device and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed on
or against them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements,
Unplug the product before cleaning. Use a damp cloth for cleaning and not
Never open, remove unit panels, or make any adjustments not described in this manual.
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may
also cause damage to your AT-AV0808N.Opening the product will void the warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona
reseller or contact Atlona directly.
8

Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com

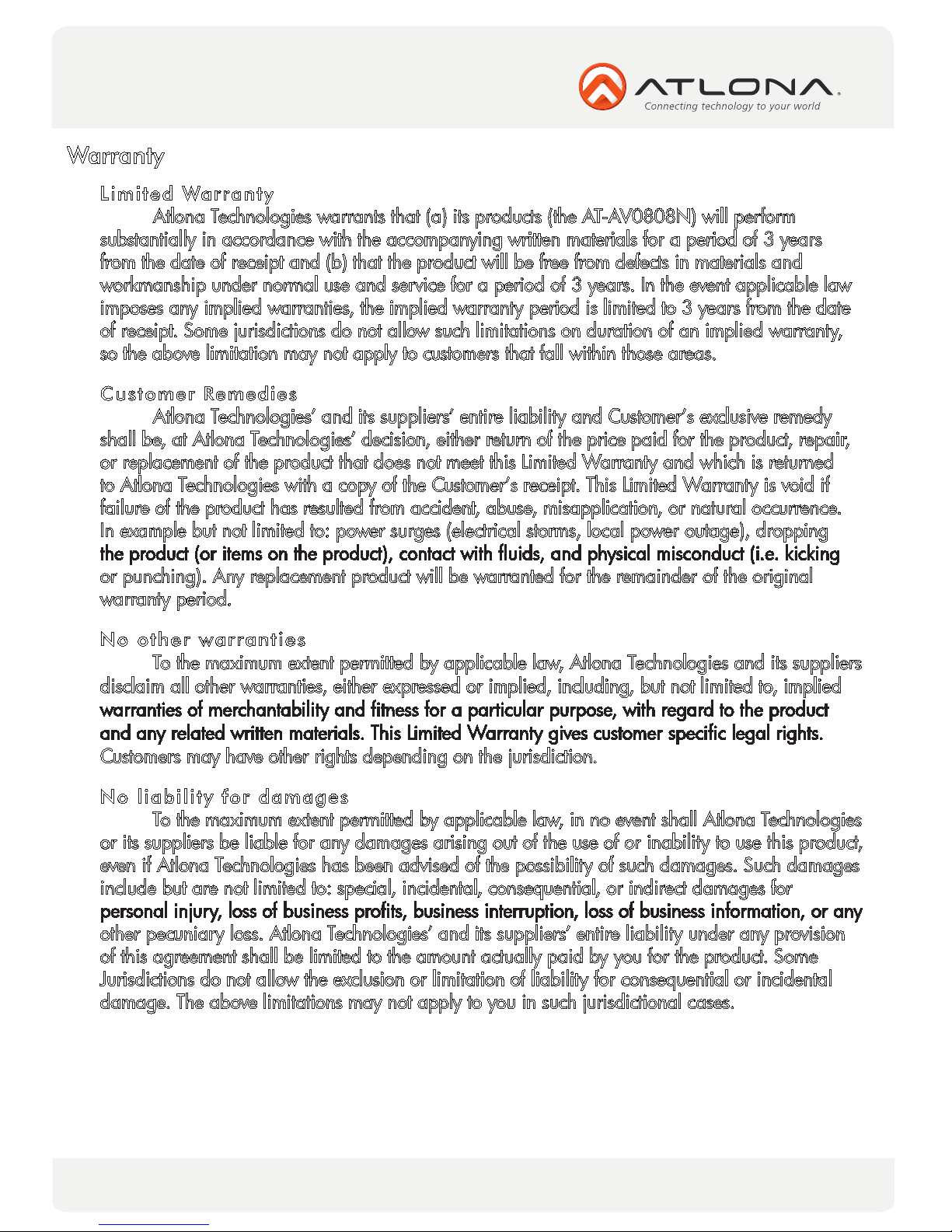

Warranty
9
Limited Warranty
Atlona Technologies warrants that (a) its products (the AT-AV0808N) will perform
substantially in accordance with the accompanying written materials for a period of 3 years
from the date of receipt and (b) that the product will be free from defects in materials and
workmanship under normal use and service for a period of 3 years. In the event applicable law
imposes any implied warranties, the implied warranty period is limited to 3 years from the date
of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty,
so the above limitation may not apply to customers that fall within those areas.
Customer Remedies
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy
shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair,
or replacement of the product that does not meet this Limited Warranty and which is returned
to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if
failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.
In example but not limited to: power surges (electrical storms, local power outage), dropping
or punching). Any replacement product will be warranted for the remainder of the original
warranty period.
No other warranties
To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers
disclaim all other warranties, either expressed or implied, including, but not limited to, implied
Customers may have other rights depending on the jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies
or its suppliers be liable for any damages arising out of the use of or inability to use this product,
even if Atlona Technologies has been advised of the possibility of such damages. Such damages
include but are not limited to: special, incidental, consequential, or indirect damages for
other pecuniary loss. Atlona Technologies’ and its suppliers’ entire liability under any provision
of this agreement shall be limited to the amount actually paid by you for the product. Some
Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental
damage. The above limitations may not apply to you in such jurisdictional cases.

Toll free: 1-877-536-3976
Local: 1-408-962-0515 atlona.com
Atlona Product Registration
Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an
extra few moments to register your new purchase.
Registration creates an ownership record if your product is lost or stolen and helps ensure
At Atlona, we respect and protect your privacy, assuring you that your registration
information is completely secure. Atlona product registration is completely voluntary and
failure to register will not diminish your limited warranty rights.
To register go to: http://www.atlona.com/registration
10
