AV SWITCHER USER GUIDE
AT-AV0404 to AV128128
1

Atlona Technologies www.atlona.com 2
Contents
1.0 Safety Operation Guide......................................................................3
1.1 Notice.................................................................................................3
2.0 Introduction........................................................................................4
2.1 Installation..........................................................................................5
3.0 Connector Types...............................................................................14
3.1 Connecting the AV Switcher.............................................................15
4.0 Operation Controls for AV0404.......................................................16
4.1 Operation Controls for AV1616.......................................................17
4.2 Additional Controls for AV32, AV48, AV64, AV96, AV128.............19
4.3 Remote Control Operation................................................................21
5.0 Operation of Application Software...................................................21
5.1 Keyboard Tab...................................................................................23
5.2 Auto Tab...........................................................................................23
5.3 Custom Code Tab.............................................................................24
5.4 Code Group Tab...............................................................................25
5.5 Send / Recieve Code List Tab..........................................................26
6.0 RS-232 Operation.............................................................................26
7.0 Technical Specications....................................................................28
8.0 Troubleshooting................................................................................31

Atlona Technologies www.atlona.com 3
1.0 Safety Operation Guide
***************************************************************
In order to ensure the credibility and the user’s safety, please comply with the fol-
lowing items during installation, maintenance and operation of the switch.
1) The switch must be in stable position. Use only the power supply that
comes with unit. Do not use an alternate as it may damage it.
2) Do not place the switcher near hot or cold surfaces or sources.
3) To avoid any damage by over heating, please keep the environment in good
ventilation to radiate the heat when running the switcher.
4) The switcher should be turned off when it is not used.
5) Please do not attempt to take cover off the switcher for there is a high-volt
age component inside that could cause electric shock.
6) Do not splash any liquid or chemical on or near the equipment.
7) Please make sure all the wiring are in working condition and are not cut or
damaged.
1.1 Notice
*******************************************************************
This VGASwitchers User Manual can be used for other VGA matrix switcher
models. This manual is only an instruction for operators, not for any maintenance
usage. Any changes of functions and parameters since then will be informed sepa-
rately. This manual is copyright Atlona Technologies. All rights reserved. No part
of this publication may be copied or reproduced without the prior written consent of
Atlona Technologies.
Please check Atlona website updates.
http://www.Atlona.com

Atlona Technologies www.atlona.com 4
2.0 Introduction
The AV series switcher is a high-performance professional computer and audio signal switcher that
can be used for cross switching multiple computer and audio signals. The AV series switcher mostly ap-
ply in broadcasting TV engineering, multi-media meeting room, big screen display engineering, television
education, command control center or for other like applications. It provides power-fail locale protection
function, LCD displaying, shortcut selecting and saving function. With RS232 interface, it can be controlled
with PC, remote control system and any other 3rd party control systems. This user manual takes VGA0808
as the example; other models can take reference from it too.
Specications
Models A/V Input A/V Output RS232 Interface LCD Display
MATRIX AV0404 4 4 √×
MATRIX AV0802 8 2 √ √
MATRIX AV0804 8 4 √ √
MATRIX AV0808 8 8 √ √
MATRIX AV1604 16 4 √ √
MATRIX AV1608 16 8 √ √
MATRIX AV1616 16 16 √ √
MATRIX AV2408 24 8 √ √
MATRIX AV2416 24 16 √ √
MATRIX AV2424 24 24 √ √
MATRIX AV3208 32 8 √ √
MATRIX AV3216 32 16 √ √
MATRIX AV3224 32 24 √ √
MATRIX AV3232 32 32 √ √
MATRIX AV4832 48 32 √ √
MATRIX AV4848 48 48 √ √
MATRIX AV6432 64 32 √ √
MATRIX AV6448 64 48 √ √
MATRIX AV6464 64 64 √ √
MATRIX AV9664 96 64 √ √
MATRIX AV9696 96 96 √ √
MATRIX AV12864 128 64 √ √
MATRIX AV12896 128 96 √ √
MATRIX AV128128 128 128 √ √

Atlona Technologies www.atlona.com 5
2.1 Installation
The VGASwitchers can be easily rack mounted using the rack mount ears located in the front of the unit.
Secure the Switch with standard rack-hole screws. It is recommended to leave a 1U space between the units
to have easy access for installation of the cables. When connecting the cables make sure all cables are con-
nected correctly if not it could cause color loss or will not output a display signal.
Packaging Includes
• VGA Matrix Switcher
• RS-232 Communication Cord
• Power Supply Cord
• CD with Application SWITCHER 2.0
• User Manual and Quality Guarantee
• Remote Control

Atlona Technologies www.atlona.com 6

Atlona Technologies www.atlona.com 7

Atlona Technologies www.atlona.com 8

Atlona Technologies www.atlona.com 9

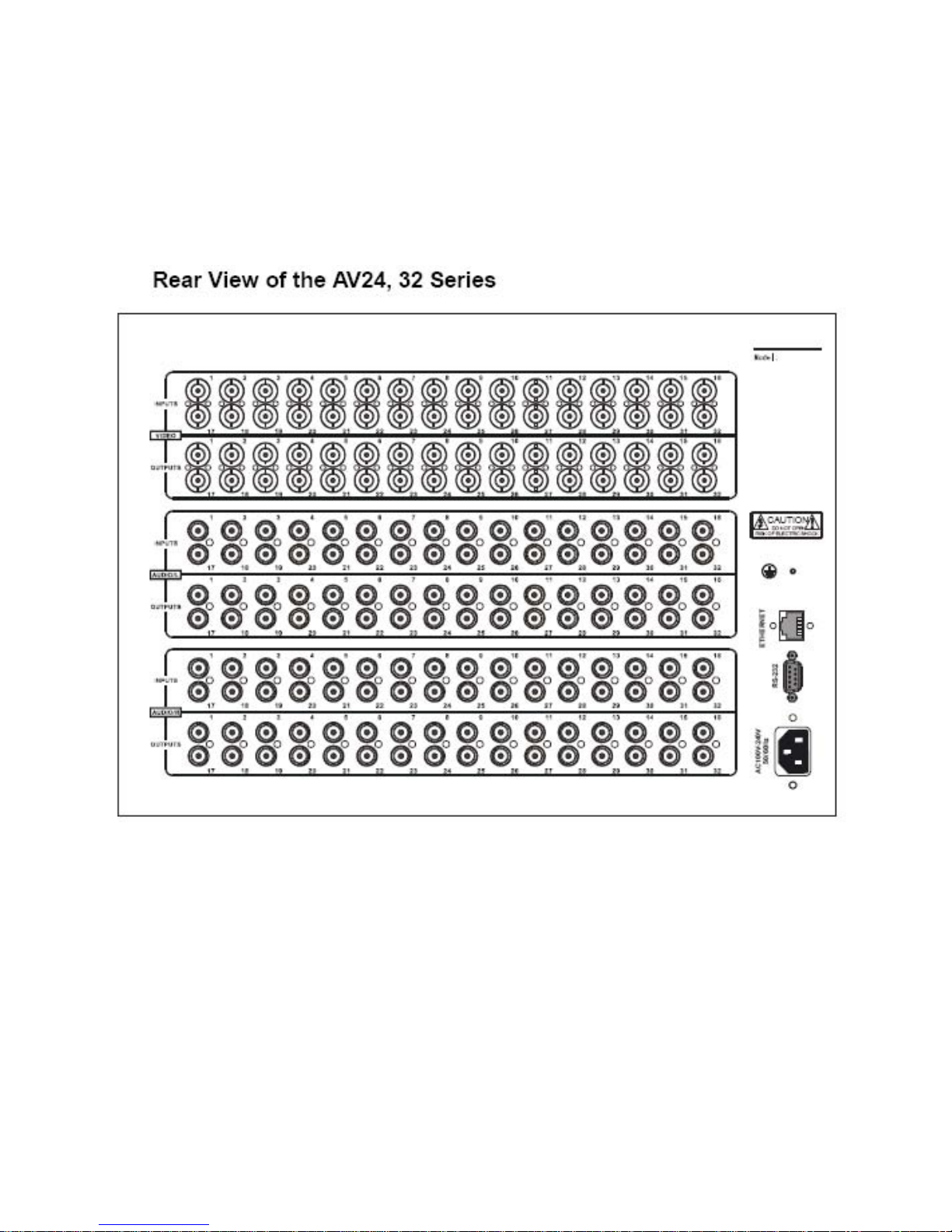

Atlona Technologies www.atlona.com 10

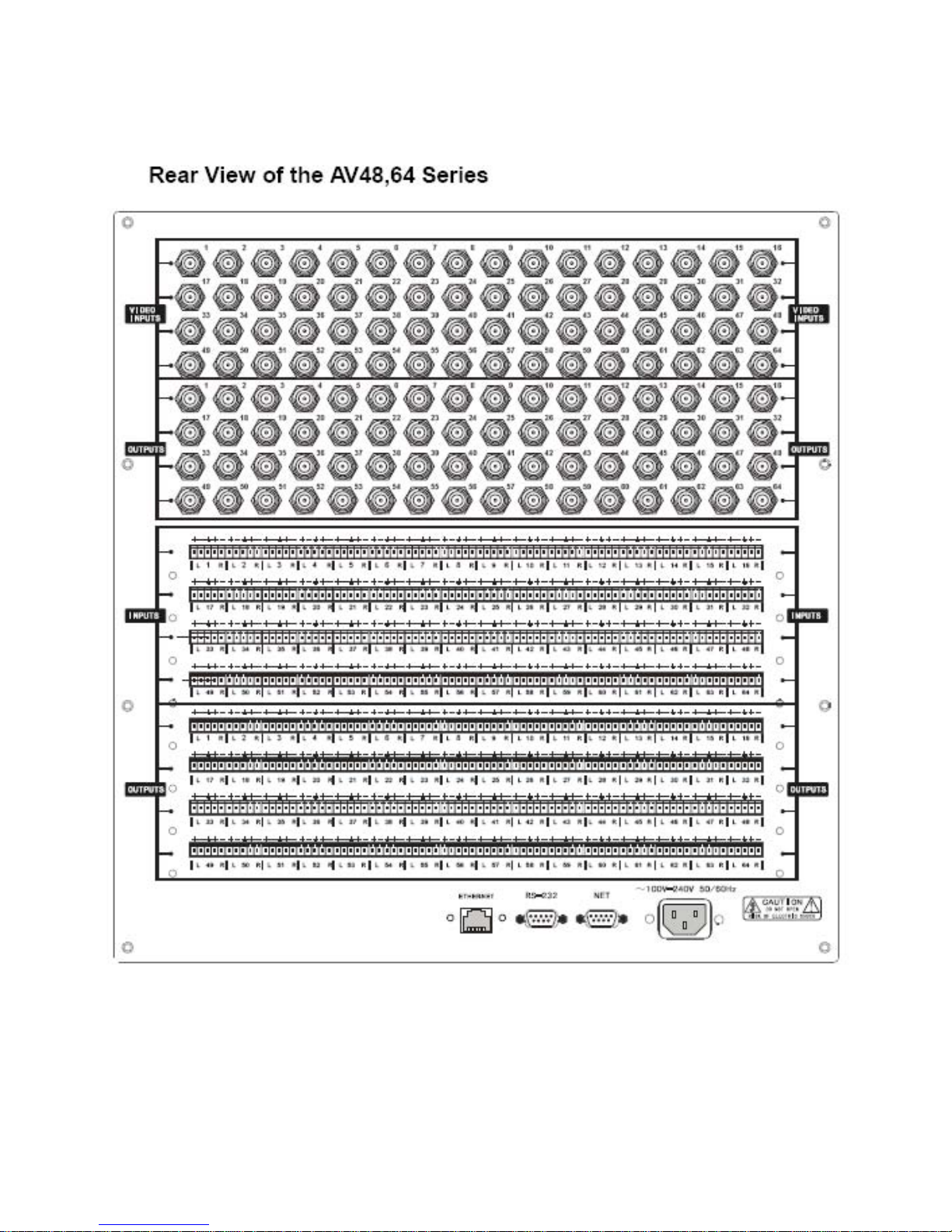

Atlona Technologies www.atlona.com 10

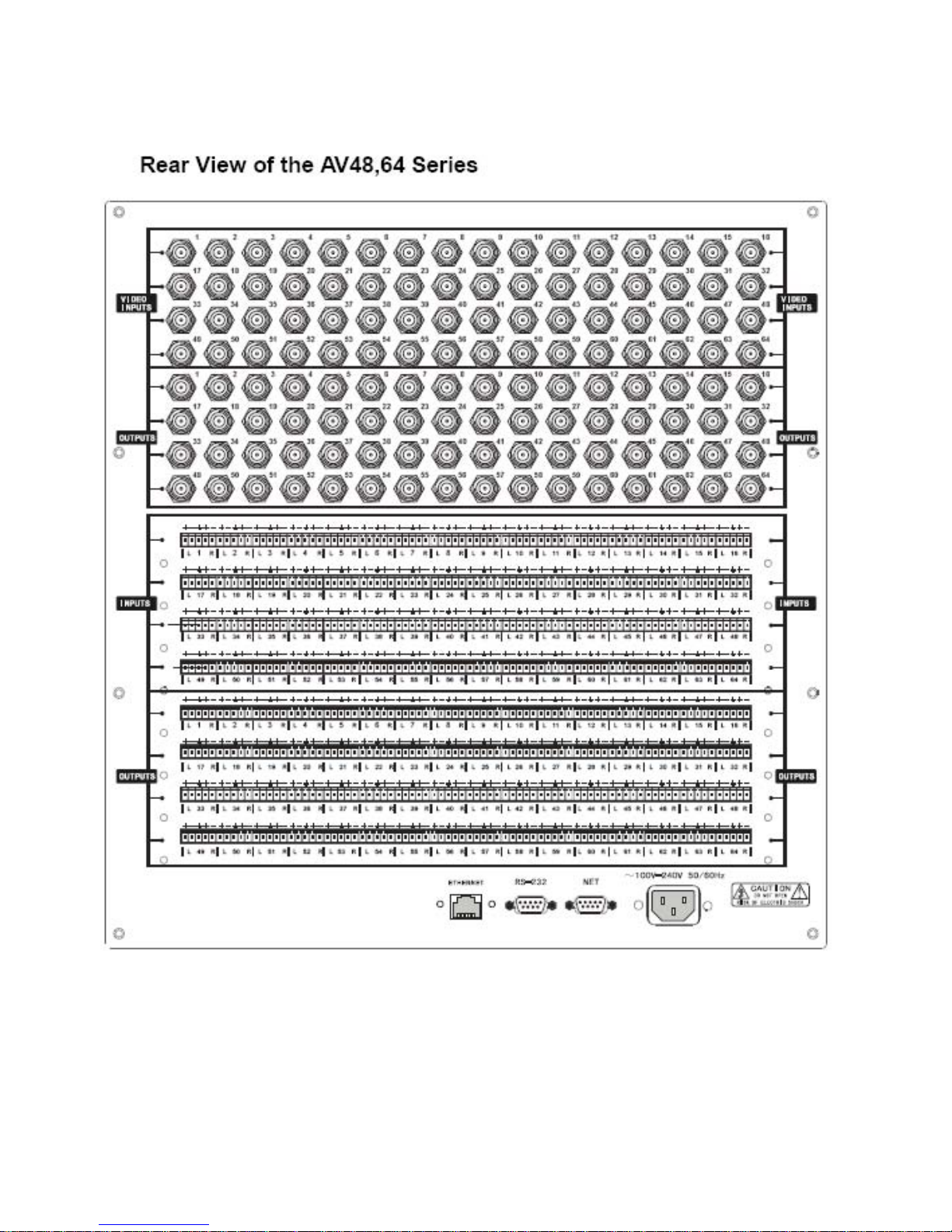

Atlona Technologies www.atlona.com 12

Atlona Technologies www.atlona.com 13

Atlona Technologies www.atlona.com 14
3.0 Connector Types
The AV matrix swticher uses 2 types of Video Connectors for 4 Channel and 8 Channel RCA terminals are
used. For 16 Channel, 24 Channel, 32 Channel, 48 Channel, 64 Channel, 96 Channel, 128 Channel BNC fe-
male terminals are use. Audio signal I/O terminals make up of 2 Channel, 4 Channel, 8 Channel, 16 Chan-
nel, 24 Channel, 32 Channel, 48 Channel, 64 Channel, 96 Channel 128 Channel with 3.8mm captive screw
connectors(or RCA terminals). The AV1616 switcher signal I/O terminals are form Channel 1 to Channel
8 and Channel 9 to Channel 16 (form left to right, display in two rows), The interfaces are video terminals
(BNC), audio left state terminals (white RCA), audio right state terminals (red RCA). The AV switcher can
also be controlled via the RS-232 communication port. This RS-232 communication port is a female 9-pin

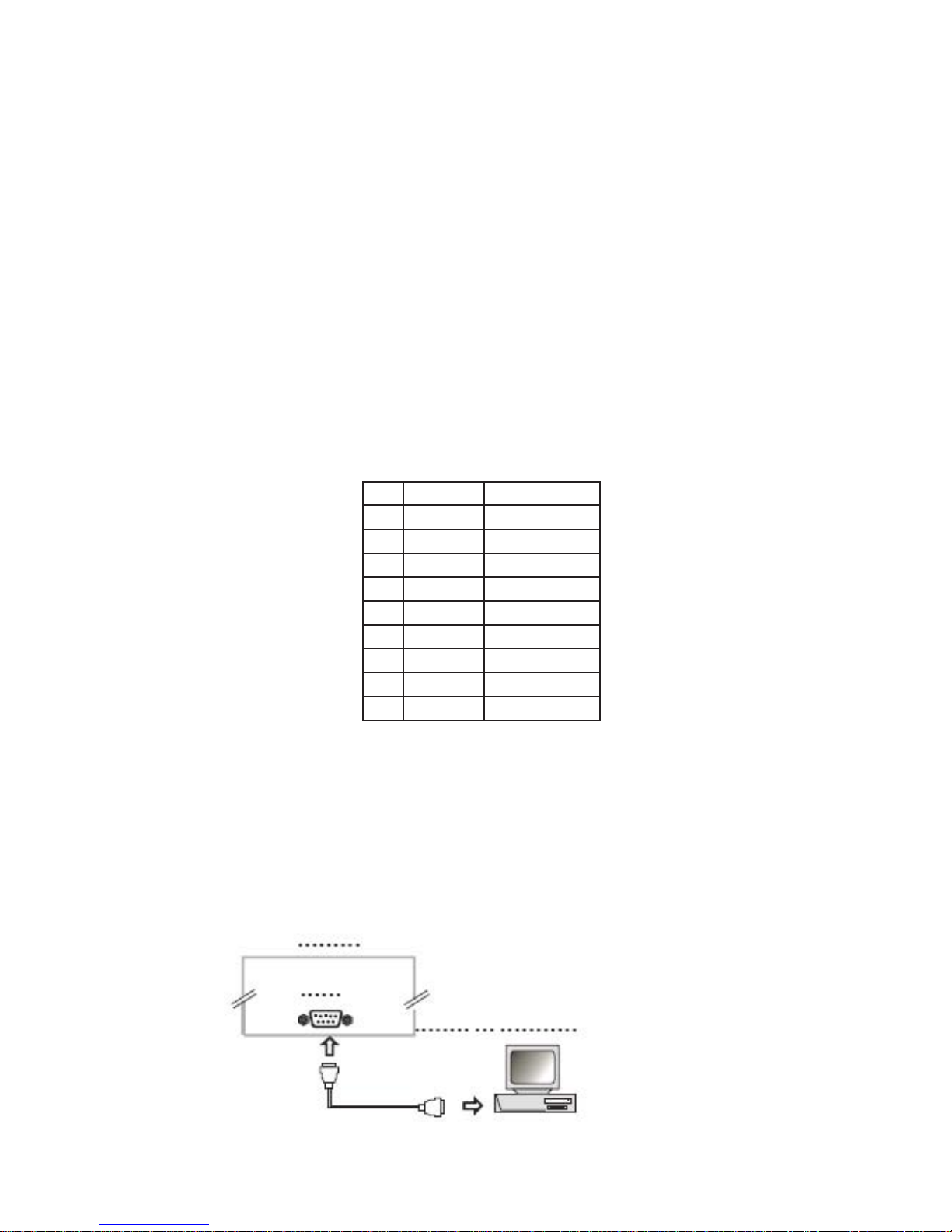

D connector. The denition of its pins is shown in the table below.
The switcher can also be controlled through COM1 or COM2 ports on the computer, To control the switch-
er, users may use the application SWITCHER 2.0 in the supplied CD or develop their own control software
with the protocol and control codes.
Pin RS-232 Description
1 N/u Not used
2 Tx Transmit data
3 Rx Receive data
4 N/u Not used
5 Gnd Signal ground
6 N/u Not used
7 N/u Not used
8 N/u Not used
9 N/u Not used

Atlona Technologies www.atlona.com 15
3.1 Connecting the AV Switcher
The VGAmatrix switchers may take laptops, DVD players, video tape recorders, camcorders, cable TV
and video their input signal source. Projectors, RP TVs, displayers and ampliers can be connected on the
output signal .

Atlona Technologies www.atlona.com 16
3.2 Audio signal connection:
“AUDIO INPUTS”, “AUDIO OUTPUTS” audio network interface in RGB matrix switchers can be con-
nected to the audio signal and amplify sources. Audio connection is little more complicated than video. It
has two types of connection: balanced and unbalanced. The balanced connection transmits a pair of bal-
anced signals with two cables. Because Interferences will have the same intensity and the opposite phases on
the two cables; it will be counteracted in the end. For the low frequency extent of the audio signal, it would
be easily interfered under long distance transmission. Therefore as an anti-interference connection, it is
mostly used in Audio connection of special high end devices.
Connection of captive screw audio connectors (unbalanced/balanced)
4.0 Operation Controls for AV0404
“AV” AV Synchronal button: To transfer video and audio signal synchronously by the switcher
Example: To transfer both the video and the audio signals from input channel No.3 to
output channel No.4.
Operation: Press buttons in this order “3”, “AV”, “4””.
“VIDEO” Video button: To transfer only video signals from input channel to output channel
Example: To transfer video signals from input channel No.3 to output channel No.4.
Operation: Press buttons in this order “3”, “VIDEO”, “4”.
“AUDIO” Audio button: To transfer only audio signals from input channel to output channel
Example: To transfer audio signals from input channel No.2 to output channel No.3.
Operation: Press buttons in this order ““2”, “AUDIO”, “3””.
“1,2,3,4” I/O Keypads: Keys to select I/O channels.

Atlona Technologies www.atlona.com 17
Example: To transfer input channel No.3 to output channel No.1
Operation: Press buttons in this order : “3” in IN PUT area, “1” in OUT PUT area.
4.1 Operation Controls for AV1616
“1,2,3,4” Keypad: Keys to select I/O channels and save/recall preset commands
“AV” AV Synchronal button: To transfer video and audio signal synchronously by the switcher
Example: To transfer both the video and the audio signals from input channel No.3 to
output channel No.6.
Operation: Press buttons in this order “3”, “AV”, “6”, “END”, “ENTER”
“VIDEO” Video button: To transfer only video signals from input channel to output channel
Example: To transfer video signals from input channel No.3 to output channel No.10.
Operation: Press buttons in this order “3”, “VIDEO”, “1”, “0”, “END”,“ENTER”
“AUDIO” Audio button: To transfer only audio signals from input channel to output channel
Example: To transfer audio signals from input channel No.12 to output channel No.6.
Operation: Press buttons in this order “1”, “2”, “AUDIO”, “6”, “END”,“ENTER”

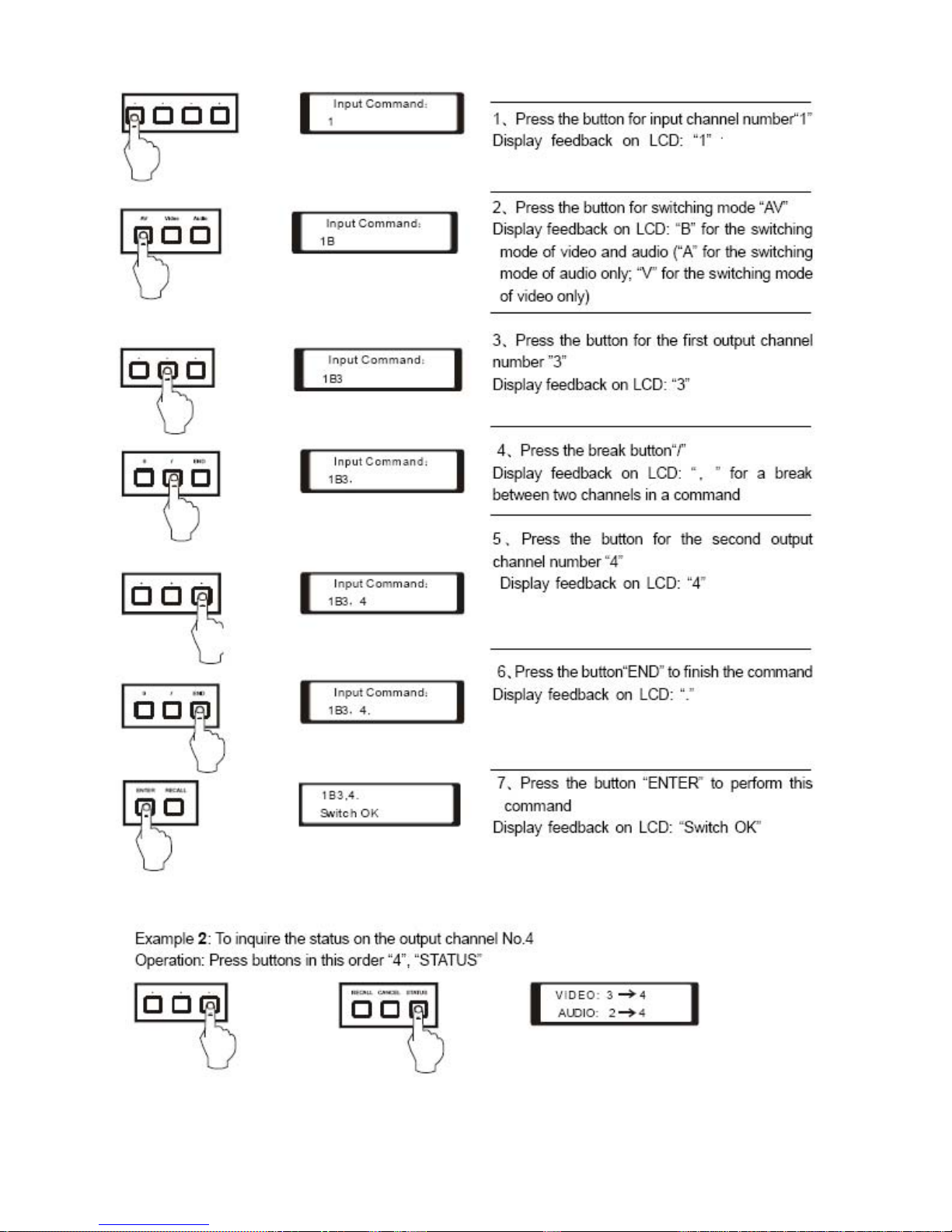

“ / ” Break button: To break different channels in a command
Example: To transfer video and audio signals from input channel No.1 to output
channel No.2,13,6 at the same time
Operation: Press buttons in this order “1”, “AV”, “2”, “/”, “1”,“3”, “/”, “6”, “END”, “ENTER”
“END” Ending command button: To nish inputting a command
“ENTER” Performance button: To perform a command after inputting it
“ALL” All button: To transfer an input channel to all output channels or switch off all the output

Atlona Technologies www.atlona.com 18
Example1: To transfer video and audio signals from input channel No.7 to all output
channels
Operation: Press buttons in this order “7”, “ALL”
Note: This command need not follow by “END” & “ENTER”
Example2: To transfer all input signals to the corresponding output channels
respectively. In another word, to switch to this status: 1->1, 2->2, 3->3, 4->4……16->16.
Operation: Press buttons in this order “ALL”, “1”
Example3: To switch off all the output channels
Operation: Press buttons in this order “ALL”, “2”
“SAVE” Save button: To save the present operation to a preset command
Example: To save the present operation to the preset command No.2
Operation: Press buttons in this order “SAVE”, “2”
Note: There are altogether 10 preset commands ranged from No.0 to No.10.
“RECALL” Recall button: To recall the preset command
Example: To recall the preset command No.2
Operation: Press buttons in this order “RECALL”, “2”
“CANCEL” Cancel button: To return to the standby status without performing any command
Example: To cancel the input instructions “1”, “AV”, “2”, “END”
Operation: Just press button“CANCEL” after the above inputs
“STATUS” Inquiring status button: To inquire the present status
Example1: To inquire the status of output channel No.7
Operation: Press buttons in this order “7”, “STATUS”
Example2: To inquire the status of all the output channels one by one
Operation: Press only the button “STATUS”

Atlona Technologies www.atlona.com 19
4.2 Additional Controls for AV32, AV48, AV64, AV96, AV128
“UNDO” Undo button: To resume to the status before the command just performed
“PROGRAM” Group programming button: To dene, recall and clear a group of output channel
Example1: To group the output channels No.1,2,3,4,5 under the Group1
Operation: Press buttons in this order “1”, “Program”, “Program”, “1”, “2”, “3”, “4”, “5”
Example2: To transfer signals from input channel No.1 to Group2
Operation: Press buttons in this order “1”, “Program”, “2”
Example3: To clear the output channels under Group1
Operation: Press buttons in this order “1”, “Program”, “0”
Note: Please clear the group to be set before grouping it.
“ ← ” Backspace button: To backspace the latest input button
“THROUGH” Through button: To transfer the signals directly to the corresponding output
channels
Example: To transfer the signals from input channels No.1,2,3 to their corresponding
output channels
Operation: Press buttons in this order “1”, “/”, “2”, “/”, “3”, “THROUGH”
“CLOSE” Close button: To switch off the output channels
Example: To switch off the output channels No.1,2
Operation: Press buttons in this order “1”, “END”, “2”, “END”, “CLOSE”
“LOCK” Lock button: To lock buttons on the front control panel by pressing it for 3 seconds
Note: When the control panel is being locked, the switcher still can be control via the
RS232 port. To unlock it, a password is needed.
“DEMO” Demo button: To demonstrate the commands one by one every 3 seconds.

Atlona Technologies www.atlona.com 20
Display feedback on LCD: The video signal of output channel No.4 is transferred from the input channel
No.3 and the audio signal is from the input channel No.2
