Atlona AT-UHD-H2H-88M User manual

atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
8x8 4K/UHD HDMI to HDMI
Matrix Switcher
User Manual
AT-UHD-H2H-88M
Please check http://www.atlona.
com/UHD-H2H-88M.html
for the most recent firmware
update or manual.

2
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction ................................................................................. 3
2. Package Contents ................................................................................. 3
3. Features ................................................................................. 3
4. Before You Start ................................................................................. 3
5. Panel Descriptions
• Front Panel ................................................................................. 4
• Back Panel ................................................................................. 4
6. Rack Mounting ................................................................................. 5
7. Connection Diagram ................................................................................. 6
8. Button Set Up ................................................................................. 7-10
9. WebGUI ................................................................................. 11-17
10. RS-232 ................................................................................. 18-21
11. IR Remote Control ................................................................................. 21
12. Captive Screw ................................................................................. 22
13. Specifications ................................................................................. 23
14. Safety Information ................................................................................. 24
15. Warranty ................................................................................. 24-25
16. Atlona Product Registration ................................................................................. 25
Table of Contents

3
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
The Atlona 8x8 4K/UHD HDMI to HDMI Matrix Switcher is designed for the best audio, video, and
control experience. Pass through of video up to 4K/UHD or 2560x2048, audio up to Dolby TrueHD,
DTS-HD Master Audio, or Dolby Atmos, and multiple control options (such as TCP/IP, RS-232, IR,
front panel, and WebGUI) enables the UHD-H2H-88M to provide the highest quality experience no
matter if playing a movie, giving a presentation, and more.
Package Contents
Features
• 1 x AT-UHD-H2H-88M
• 1 x 5 pin captive screw female connector - IR (2 pin), RS-232 (3 pin)
• 1 x 12V DC power supply
• 1 x IEC C13 power cable
• 1 x IR Remote control
• 1 x Pair of rack mount ears
• 1 x User Manual
• Supports resolutions up to 4K/UHD 60Hz @ chroma sub-sampling 4:2:0 8-bit
• HDCP 2.2 compliant
• EDID learning for up to 8 display EDIDs
• Built in internal EDID mode provides 14 unique EDIDs to ensure compatibility
• Multiple control options such as RS-232, IR, TCP/IP, WebGUI, and front panel
• Multi-channel audio pass through up to Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio,
and Dolby Atmos
• Supports digital audio up to 24-bit, 192 kHz
Before You Start
Use a component surge suppressor with line conditioning for best results.
Note: Atlona’s warranty does not cover damage due to electrical disturbances. A component surge
suppressor with line conditioning is highly suggested, especially in areas with electrical
storms.

4
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
AT-UHD-H2H-88M EDID
POWER ENTER
FNC CANCEL INFO
1 2 3 4
56 8 7
HDMI IN HDMI OUT
FW
1 2 34 5 6 781 2 34 5 6 78
DC 12V
LAN
RS-232 IR IN
RX TX S
Panel Description
Front Panel
1. IR Receiver Window - Receives the signal from the included IR Hand Held Remote Control or 3rd
party controller
2. Function (FNC) Button - Select for command options. (blue backlight when selected)
a. EDID Button: Save/Load EDIDs to individual inputs
b. INFO Button: Displays the firmware, IP, and MAC address
c. 1 Button: Save a single input to all the outputs with this function
d. 2 Button: View additional matrix RS-232 baud information
3. Cancel Button - Within the function menu use this button to go back one screen or to return to
the home screen
Note: You cannot power off or change functions unless you return to the home screen
4. Power Button - Cycles the power between On (blue backlight) or Standby (red backlight) mode
5. Enter Button - Use to view current status for inputs and outputs or to confirm a command
6. Number buttons - Use these buttons to select input and output paths or use with the function
button to change matrix settings
1
6
2
5 c d
ab
4
3
AT-UHD-H2H-88M EDID
POWER ENTER
FNC CANCEL INFO
1 2 3 4
56 8 7
HDMI IN HDMI OUT
FW
1 2 34 5 6 781 2 34 5 6 78
DC 12V
LAN
RS-232 IR IN
RX TX S
Back Panel
1. LAN port - Connect to a network for TCP/IP, WebGUI and firmware updates
2. FW port - USB not enabled at this time for future functionality
3. Main control - Connect IR or RS-232 control system to the matrix
4. HDMI Input - Connect HDMI sources to these ports
Ex. DVD players, Blu-ray players, computers, game consoles, etc
5. HDMI outputs - Connect to HDMI displays or HDBaseT extender sets (for extended range zone support)
Ex. AT-UHD-EX-100CE-KIT, AT-UHD-EX-70C-KIT, or AT-UHD-EX-70-KIT
6. Internal power supply - Connect included 12V power supply from here to a power outlet.
123
456

5
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
To rack mount the UHD-H2H-88M unit: use the rack mount ears, the 4 screws from the sides of the
UHD-H2H-88M, and 4 rack screws.
To affix the rack mount ears, remove the two screws on each side of the UHD-H2H-88M and affix
the rack ears to the UHD-H2H-88M (as shown in the picture above).
Place the UHD-H2H-88M in the rack, lining the holes in the rack ears with the holes in the rack. Once
placed, use the rack screws to keep the unit in place. (as shown in the picture to the left).
Note: Increase the air flow as needed to maintain the recommended temperature inside the rack.
Note: Do not exceed maximum weight loads for the rack. Install heavier equipment in the lower part of the rack for
stability.
POWER ENTER
CANCEL INFO
EDID
FNC
123 4
5678
POWER ENTER
CANCEL
INFO
EDID
FNC
12 3 4
56 7 8
Rack Mounting

6
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
AT-UHD-H2H-88M EDID
POWER ENTER
FNC CANCEL INFO
1 2 3 4
56 8 7
HDMI IN HDMI OUT
FW
1 2 34 5 6 781 2 34 5 6 78
DC 12V
LAN
RS-232 IR IN
RX TX S
AT-UHD-H2H-88M EDID
POWER ENTER
FNC CANCEL INFO
1 2 3 4
56 8 7
HDMI IN HDMI OUT
FW
1 2 34 5 6 781 2 34 5 6 78
DC 12V
LAN
RS-232 IR IN
RX TX S
Connection Diagram Video
HDBaseT
Ethernet
Control
TCP/IP
AT-UHD-EX-70C-KIT
FW LINK
POWER
AT-UHD-EX-70C-RX
RS-232
RX TX
IR IN
PS
IR OUT
S
HDBaseT IN HDMI OUT
FW LINK
POWER
AT-UHD-EX-100CE-RX
RS-232
RXTX
IR IN
PS
IR OUT
S
HDBaseT IN
ETHERNET
HDMI OUT
Game Console
Game Console
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
GND
SIG
+12V
GND
SIG
+12V
GND
SIG
+12V
GND
SIG
+12V
1 2 3 4
RELAYS
WIFI2
ZIGBEE 12VDC
IROUT
IDFACTORY
RESTORE
SERIAL1
SERIAL2
HDMI COMPONENT
VIDEOOUT ETHERNET CONTACTS
AUDIOOUT
AUDIOIN
WIFI1 eSATADIGITAL
COAXOUT
1
2
3
4
5
6
L
R
Blu-ray player
Blu-ray player
Set top box
Set top box
Game Console
Game Console
Control System
Control System
Router AT-UHD-EX-100CE-KIT
RS-232
RX TX
IR IN
S
IR OUT
S
HDBaseT OUT
ETHERNET
HDMI IN
FW
DC 48V
LINK
POWER
AT-UHD-EX-100CE-TX
-+
ROUTER
2.4 5 1234
i
RS-232
RXTX
IR IN
S
IR OUT
S
-+
HDBaseT OUT HDMI IN
FW
DC 48V
LINK
POWER
AT-UHD-EX-70C-TX
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
GND
SIG
+12V
GND
SIG
+12V
GND
SIG
+12V
GND
SIG
+12V
1 2 3 4
RELAYS
WIFI2
ZIGBEE 12VDC
IROUT
IDFACTORY
RESTORE
SERIAL1
SERIAL2
HDMI COMPONENT
VIDEOOUT ETHERNET CONTACTS
AUDIOOUT
AUDIOIN
WIFI1 eSATADIGITAL
COAXOUT
1
2
3
4
5
6
L
R

7
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
I/O Control
The AT-UHD-H2H-88M’s front panel has 3 functions: I/O control, EDID, and matrix settings. The
following sections go over step by step setup & control.
I.E. Input 1 to output 2
I.E. Input 1 to output 1 through 8
To route an input to an output
To route one input to all outputs
Feedback =”Input # routed to
Output #”
Matrix Front Panel Functions
--->
--->
---> ---> --->
---> --->
--->
--->
---> --->
---> --->
AT-UHD-H2H-88M
Select Input Number
AT-UHD-H2H-88M
Select Input Number
Select Function Select Input to
route to all Outputs
Select input
Enter to confirm
home screen input selection
input selection
output selection
home screen
through
through
through
Select output
Press enter to confirm
Feedback = ”Input # saved to
all outputs”

8
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
When the matrix is completely connected and turned on it will load the default EDID, which is the
highest common native resolution of the connected devices. (i.e. In the diagram below the default would
be 1080p with 2ch audio. Multi-channel audio and 3D are not enabled on default mode, unless all devices
support these features.)

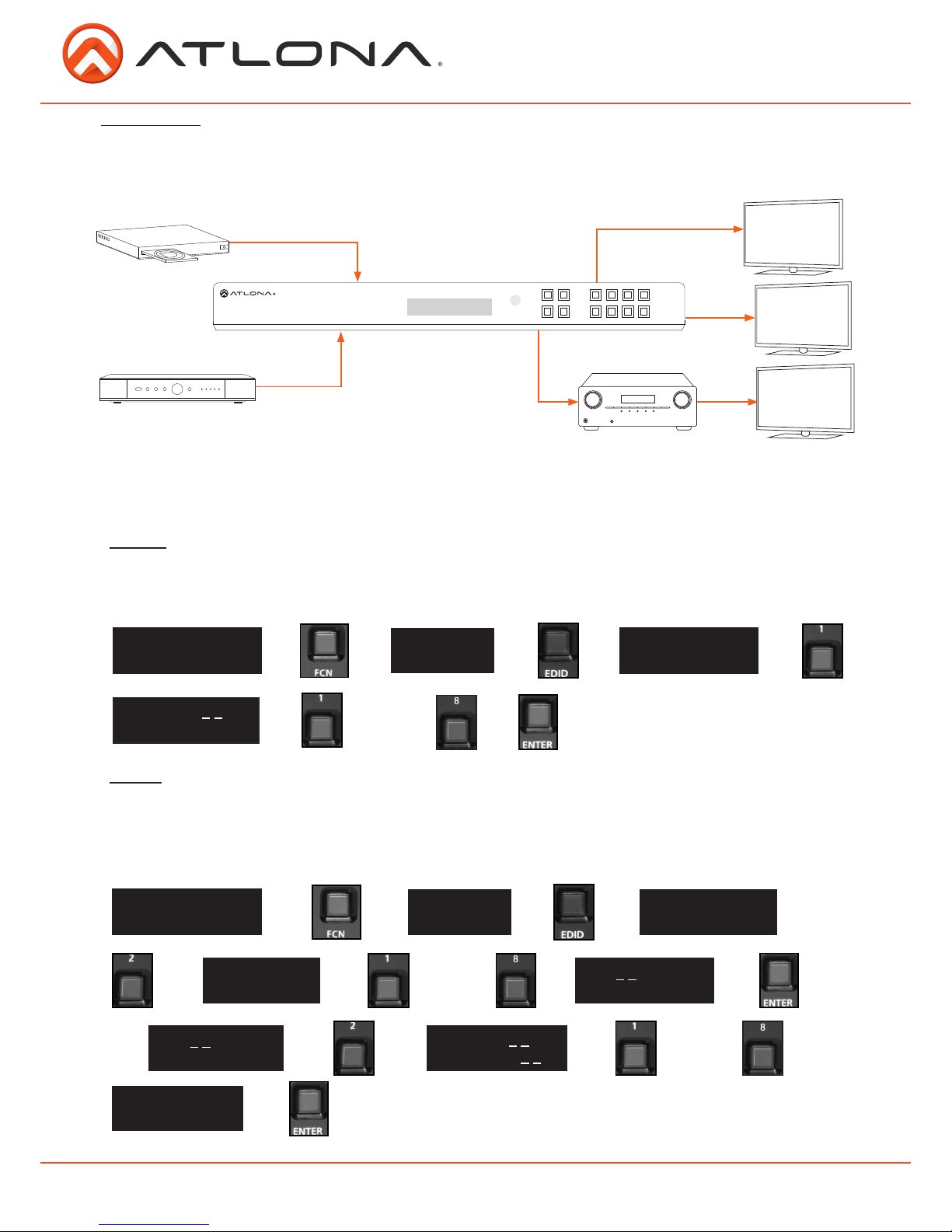

EDID Set Up
Output 2
Output 3
Input 2
4K/UHD-Dolby TrueHD
Input 1
Output 1
1080p-2ch
1080p-2ch
4K/UHD-2ch
4K/UHD - Dolby TrueHD
4K/UHD
AT-UHD-H2H-88M EDID
POWER ENTER
FNC CANCEL INFO
1 2 3 4
56 8 7
HDMI IN HDMI OUT
FW
1 2 34 5 6 781 2 34 5 6 78
DC 12V
LAN
RS-232 IR IN
RX TX S
On default, all devices in the diagram will work at 1080p. If a device is not syncing or a different
resolution is required, internal EDID or EDID copy and load should resolve these issues. The UHD-
H2H-88M can copy and store up to 8 EDIDs to memory.
Step 1: copy an EDID
---> ---> ---> --->
AT-UHD-H2H-88M
Select Input Number
Select Function
home screen
1 Copy Output EDID
2 Choose Input EDID --->
--->
Copy output EDID
Enter to confirm ---> --->
Before an EDID can be loaded to an input, it must first be copied to the matrix’s memory. Each
display’s EDID can be saved individually to one of the matrix’s eight preset EDID memories.
output selection
Step 2: load a copied EDID to an input
---> ---> ---> --->
AT-UHD-H2H-88M
Select Input Number
Select Function
home screen
1 Copy Output EDID
2 Choose Input EDID
Select input EDID Input: Press Enter
Current:Default
Input: Mode:
1:Dflt 2:Saved 3:Int
Select Input EDID
Memory (1-8)
Load EDID Memory
#? Press Enter
--->
--->
Feedback = ”EDID # loaded
to Input #”
--->
--->
--->
--->--->
--->
---> --->
--->
--->
Once EDIDs have been copied to memory they can be loaded to a specific input.
Note: (refer to the diagram above) Using the EDID of output 3 with input 1 will enable 4K/UHD and Dolby TrueHD to
pass. With these settings, output 2 will receive no audio or video and output 1 will receive no audio.
memory selection
input selection
through
through
through
Blu-ray player
AVR
Set top box
Feedback=
”Output EDID # to
Memory [Failed/Passed]”

9
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
Step 3: Load an internal EDID to an input
---> ---> ---> --->
AT-UHD-H2H-88M
Select Input Number
Select Function
home screen
Internal EDID options Front panel display readout
1 Copy Output EDID
2 Choose Input EDID
Select input EDID Input: Press Enter
Current:Default
Input: Mode:
1:Dflt 2:Saved 3:Int
Int EDID + enter
ATL _____ ____
--->
--->
Feedback = ”Int EDID # saved
to input #”
1- Cycles through
EDIDs in ascending
order
2- Cycles through
EDIDs in descending
order
--->
--->
--->
--->--->
---> --->
--->
--->
If the first two steps don’t produce the correct resolution or audio configuration, the fourteen
internal EDIDs should resolve the issue.
*Recommended EDID for AVR use
** Recommended EDID for DVI projectors use
EDID 1: 1080P 2CH audio ATL 1080P 2CH
EDID 2: 1080P HD multi-channel audio 7.1*ATL 1080P Multi CH
EDID 3: 1080P Dolby Digital/DTS 5.1 ATL 1080P DD
EDID 4: 1080P 3D 2CH audio ATL 1080P 3D 2CH
EDID 5: 1080P 3D HD multi-channel audio 7.1*ATL 1080P 3D MultiCH
EDID 6: 1080P 3D Dolby Digital/DTS 5.1 ATL 1080P 3D DD
EDID 7: 720P 2CH audio ATL 720P 2CH
EDID 8: 720P Dolby Digital/DTS 5.1 ATL 720P DD
EDID 9: 1280x800 RGB 2CH audio ATL 1280x800 RGB 2CH
EDID 10: 1366x768 RGB 2CH audio ATL 1366x768 RGB 2CH
EDID 11: 1080P DVI** ATL 1080P DVI
EDID 12: 1280x800 DVI** ATL 1280x800 RGB DVI
EDID 13: 3840x2160 2CH audio ATL UHD 2CH
EDID 14: 3840x2160 multi-channel audio 7.1* ATL UHD MultiCH
Internal EDID selection
input selection
RS-232 and TCP/IP commands:
To access different EDIDs through RS-232 or TCP/IP, the following commands must be used.
Command Feedback Description
EDIDMSetX default EDIDMSetX default Sets the EDID of an input to the default EDID
Ex. EDIDMset2 default - sets input 2 to default
EDIDMSetX saveY EDIDMSetX saveY Sets the EDID of an input to the previously saved EDID memory
Ex. EDIDMset1 save3 - sets input 1 to EDID memory 3
EDIDMSetX intZ EDIDMSetX intZ Sets the EDID of an input to one of the internal EDIDs
Ex. EDIDMset3 int6 - sets input 3 to the internal EDID - 1080p 3D Dolby
Digital 5.1
through

10
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
Matrix Status
When installing or troubleshooting it’s important to verify settings, or be able to come back to a
project and see how it was set up. The AT-UHD-H2H-88M matrix settings are viewable through the
front panel display. View current I/O settings, firmware version, IP, and the RS-232 baud rates of the
matrix.
---> ---> --->
AT-UHD-H2H-88M
Select Input Number
AT-UHD-H2H-88M
FW Ver: 0.X.XX
AT-UHD-H2H-88M
Select Input Number
O 1 2 3 4 5 6 7 8
I x x x x x x x x
Select Function
home screen
home screen
View Firmware/Baud Rate settings
View current I/O settings
TX Baud Rate
115200
IP Address:
XXX.XXX.XXX.XXX
---> --->
--->
-----
-----
Matrix Baud Rate
--->
--->
-------------------------------
115200, 9600, etc
Press INFO to cycle
through the IP Address
and Firmware
EX.

11
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
LAN
For convenience, the matrix comes with DHCP default on. This ensures the matrix IP will not
override another device.
Browser WebGUI
To find the matrix IP:
Atlona has created an easy to use WebGUI for changing settings and controlling the matrix.
To begin, plug a LAN cable into the matrix and your network router, then type the IP address of the
matrix into a web browser (as seen below).
Important: If any stability issues are experienced, disable any anti-virus or firewall that may be
interfering with network communication to the Matrix. Once set up is done and the
matrix GUI is no longer being used, the firewall and anti-virus can be re-enabled.
---> ---> --->
AT-UHD-H2H-88M
Select Input Number
AT-UHD-H2H-88M
FW Ver: 0.3.XX
Select Function
home screen
--->
IP Address:
X.X.X.X
--->
IP Address
---> 192.168.000.200
EX.
A login screen will appear (this is the same log in for admin and general users). For the first log in (and future
admin changes) the username is “root” and password is “Atlona”.
Note: Admin username and password can be changed within the WebGUI (see page 14).

12
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515

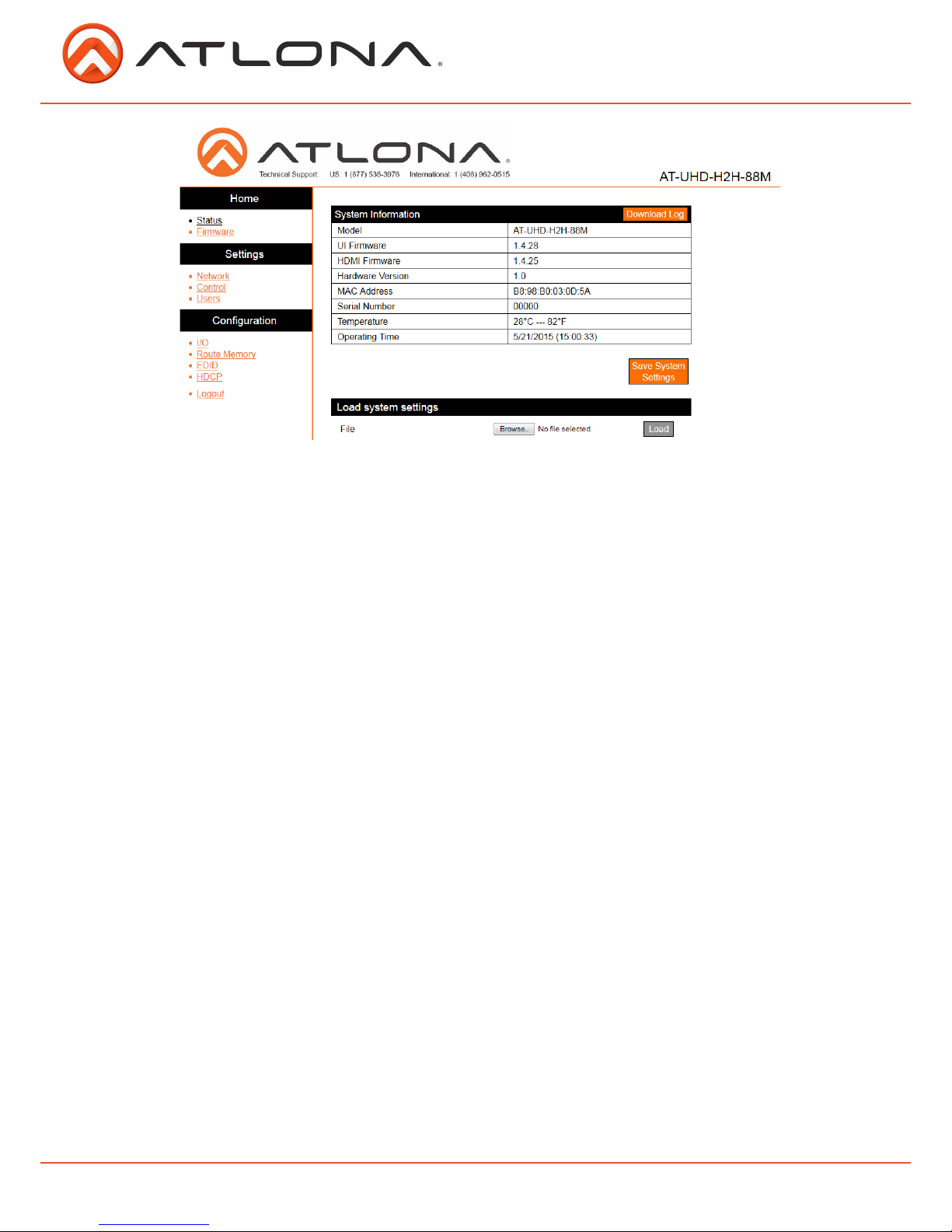

The home page will allow the user to see the general system information, download the matrix log,
and save/load system settings. The information displayed will help figure out if the matrix is up to
date, how long it has been running, and other key information.
The Download Log button is for Atlona Tech Support Team only. Tech Support may request the log
be sent to them for more in depth troubleshooting.
Note: To save the log, press the “Download Log” button. The file will automatically save to the
“download” folder.
Save System Settings will backup the current settings of: network, users, I/O labels, and the current
I/O settings of the matrix. If the matrix requires a factory reset, the backed up settings can be
loaded onto the matrix.
Note: To save the system settings, press the “Save System settings” button. The file will automatically save to
the download folder. The file can be renamed (using a project name may make the file easier to find
later) but the file extension should not be altered (altering the extension may corrupt or make the file
unusable).
Note: To load the system settings, click the browse button on the WebGUI. Once the search folder displays,
select the file and press the load button. A progress bar will display to make it easier to know when
the upload is complete. If a restart is required, a prompt will display.

13
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
The network page enables the matrix IP settings to be altered. If a static IP is required, then DHCP
needs to be turned off. Once off, the settings will be available to change.
Login mode, when on, will request a password whenever a control device is connected to the
matrix.
The firmware page displays the matrix and HDMI chipset firmware version and provides an easy way
to update.
Download the most current firmware from http://atlona.com/UHD-H2H-88M.html. Once the
firmware is on the computer use the browse button to select the correct file. Press the update
button and a progress bar will display. If a restart is required, the WebGUI will display a prompt.

14
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515

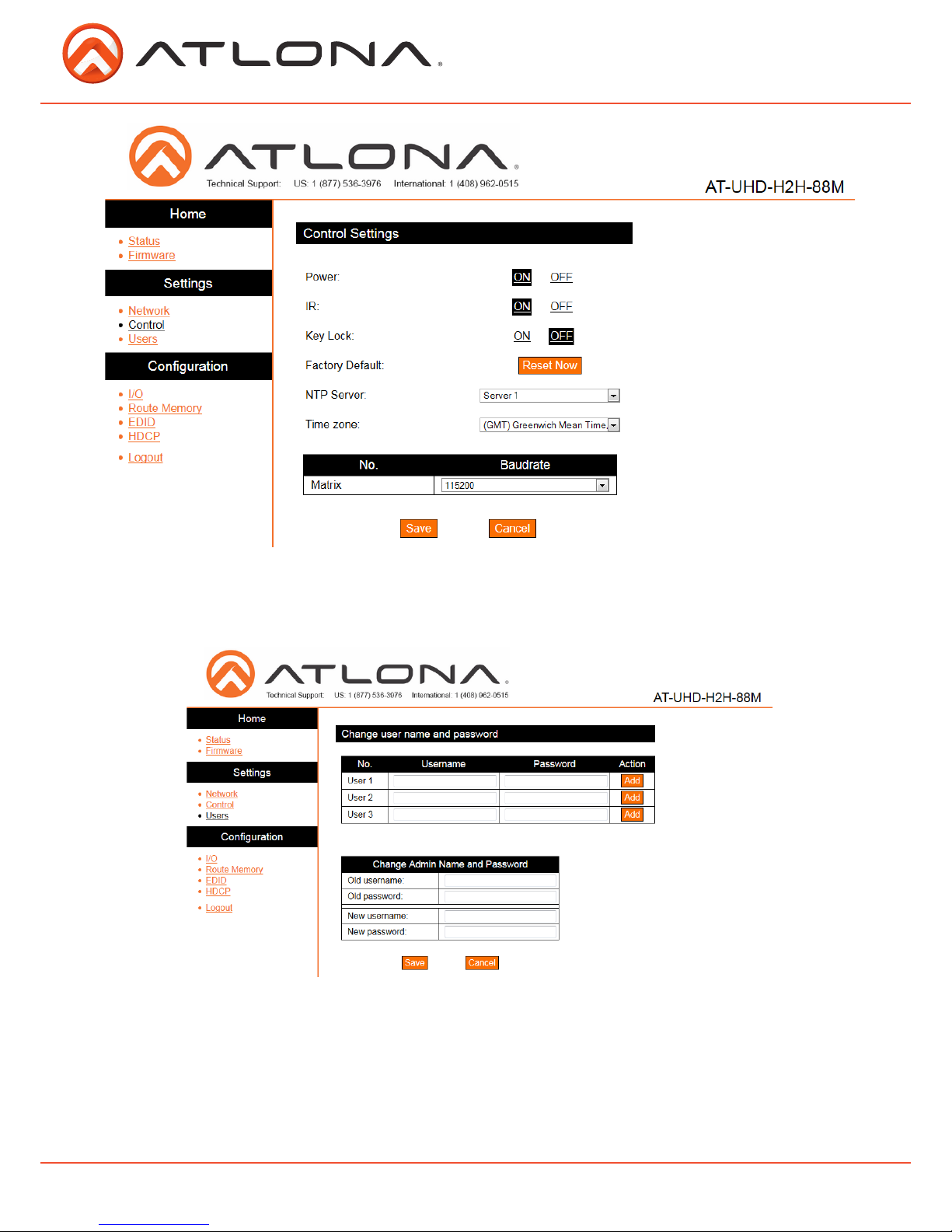

The Users page allows non-admin users to be added or the admin username and password to be
changed.
Only 3 non-admin users can be added. Type in the username and password to the fields and press
add. Users will not have the ability to access this page.
Admin username and password (default username=”root” and password=”Atlona”) can also be changed.
Be sure to write this information down as admin is the only profile allowed to add/remove users.
The control page will allow simple functions to be changed. Turn the matrix on/off, IR front panel
receiver window on/off, and front panel key lock on/off. The time zone and baud rates (for matrix and
zone outputs) can be altered as well.

15
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
The I/O page makes an easy way to set up input and output routing and labeling.
The inputs and outputs have the option for labeling to help make routing and switching simpler.
Label each input and output individually. Select what source or zone that is to be labeled, type the
name in the box, and press change.
Note: Labels are limited to 16 characters and no spaces
Note: Default label is Input_X or
Output_X.
Labels will follow corresponding
ports.
Ex. Input 6 will default to label
Input_6

16
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
The Route Memory page provides set up, labeling, and configuration of multiple preset memories
for fast and easy control.
Set Up
- Select Route Memory # from the ‘Preset Select’ drop down menu
- Set the input/output routes
- Save to memory
- Label the route memory preset
- Repeat as needed until all route memories are saved
Note: Switching does not occur during the set up and labeling of route memory.
To apply route memory to the matrix: Select the route memory # from the memory selection drop
down menu and press the ‘Select’ button.

17
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
The HDCP page provides a quick way to see whether a display is HDCP compliant or not and the
version supported. This page will give multiple status readouts: No Connection, Compliant 1.X,
Compliant 2.X, and Non-Compliant.
The EDID page is used for saving EDIDs, loading EDIDs, or using internal EDIDs on the input ports.
Each output will have an individual EDID that can be saved to memory. The matrix has 8 available
EDID memory presets. Each display EDID can be saved to the corresponding memory number.
Ex. Output 2 to EDID memory 2. Once saved, the EDIDs can be loaded to the input to ensure compatibility.
Internal EDIDs can also be loaded to inputs. There are 14 internal EDIDs. The list can be found on
page 9.

18
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
RS-232
Connection
Set Up
To set up the RS-232 hyperterminal (if not using 3rd party software) use the following steps:
1. Connect the UHD-H2H-88M to a PC using a DB9 (Stripped and connected to 3pin captive screw) to USB cable
2. Go to the Device Manager folder (see picture A)
3. Find the UHD-H2H-88M COM port and right click with a mouse and select properties (see picture B)
NOTE: If unsure which COM port is the UHD-H2H-88M, unplug the cable and plug it back in. It will disappear
and reappear on the COM port list.
4. Under the properties menu select the port settings tab and update the menu to the UHD-H2H-88M
default settings of: Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow
Control: None. (see picture C)
Set up is done and any hyperterminal program may be used to control the UHD-H2H-88M now.
ABC
RS-232 is often connected through a DB 9-pin to captive screw
connector. The pins will have functions associated with them,
some will be unassigned.
Note: Typical DB9 connectors use pin 2 for TX, pin 3 for RX, and pin 5
for ground. On some devices functions of pins 2 and 3 are
reversed.
54 3 2
9 8 7 6
1
RS-232 pin out will be determined by the RS-232
cable and will connect as Rx (receiver), Tx (transmitter),
and (ground). (See picture 1)
Wire color will
differ by cable
manufacturer.
1
RS-232
RX TX

19
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
Each command or feedback is terminated with a carriage return.
Note: If the command fails or is incorrect the feedback should be “Command FAILED”
To help with zone troubleshooting the matrix will broadcast “#*PORTXX_[feedback]” when
receiving any feedback from any zone.
RS-232 & TCP/IP Control Commands
The command codes are case sensitive, do not change capitalization, spacing, or lettering.
Command Feedback Description
PWON PWON Power on
PWOFF PWOFF Power off
PWSTA PWx Will display the power status of the matrix
Ex. Power is on, feedback will be PWON
Version Firmware # Brings up the current firmware version
Type Model # Brings up the model information
Lock Lock Locks the front panel of the matrix so no buttons are active
Unlock Unlock Unlocks the front panel of the matrix, enabling the buttons again
All# x1AVx1,x2AVx2,... Resets all inputs to corresponding outputs
Ex. input 1 to output 1, input 2 to output 2, input 3 to output 3, etc
x1$ x1$ Turns off output channel
Ex. to turn off output 3 = x3$
x1All x1All Sets selected input to all outputs
Ex. x3All would set input 3 to all
x1AVx2
Ex. x3AVx7
x1AVx2
Ex. x3AVx7
Switch input to output
Ex. input 3 to output 7
x1AVx2,x3,x4
Ex. x3AVx1,x4
x1AVx2,x3,x4
Ex. x3AVx1,x4
Switch input to multiple outputs
Ex. Switch input 3 to output 1 and 4
IROFF IROFF Disables the front panel IR receiver window
IRON IRON Enables the front panel IR receiver window
Statusx1 x7AVx1 Shows what input is connected to selected output
Status x1AVx1,x2AVx2,
x3AVx4, ....
Displays which inputs are currently connected to which outputs
SaveY
Ex. Save2
SaveY
Ex. Save2
Saves I/O route settings for future use, preset options 0 to 8
RecallY
Ex. Recall2
RecallY
Ex. Recall2
Recalls saved I/O route settings for the chosen preset number
ClearY
Ex. Clear2
ClearY
Ex. Clear2
Erases the saved I/O route settings for the chosen preset number
Mreset Mreset Sets matrix back to the default settings

20
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
On
Power
Input
Output
Volume
123 4
5678
910 11 12
13 14 15 16
123 4
5678
910 11 12
13
AT-MRC
+-
14 15 16
Off
IR Remote Control
Output selection. Numbers correspond with the outputs (1-8) on
the matrix.
Input selection. Numbers correspond with the HDMI inputs (1-8)
on the matrix.
Not used for this matrix
Turn the Matrix on or off (standby).
Command Feedback Description
IPCFG IP Addr : x.x.x.x
Netmask : x.x.x.x
Gateway : x.x.x.x
IP Port: x.x.x
Displays IP address configuration
IPTimeout XX IPTimeout XX
(Ex. IPTimout120)
Determines amount of seconds of inactivity before TCP/IP
disconnects
IPQuit IPQuit Logs out of TCP/IP
IPAddUser TCP/IP username & password list:
- user password
- user password
- user password
Will display a list of users
IPAddUser X Y TCP/IP user was added Add a user for TCP/IP control. X=User Y=Password
Ex. IPAddUser Atlona 1234 (User=Atlona 1234=Password)
IPDelUser X TCP/IP user was deleted Delete a user from TCP/IP X=User (Ex. IPDelUser Atlona)
IPDHCP sta IPDHCP sta
Ex. IPDHCP on
Displays the status of DHCP
IPDHCP on IPDHCP on Turns DHCP on
IPDHCP off IPDHCP off Turns DHCP off
IPStatic X Y Z IPStatic address netmask gateway Sets a static IP address
Ex. IPStatic 192.168.1.1 255.255.255.0 192.168.1.200
IPPort IPPort Y Set the TCP/IP port (ex. IPPort 230)
IPLogin sta IPLogin sta
Ex. IPLogin on
Displays IPLogin status
Ex. IPLogin is on
IPLogin on IPLogin on Enables IPLogin
IPLogin off IPLogin off Disables IPLogin
Broadcast sta Broadcast sta Displays broadcast mode status
Broadcast on Broadcast on Enables broadcast mode
Broadcast off Broadcast off Disables broadcast mode
Note: Do not use any other battery than what is provided by Atlona. If the
battery does not work, please contact Atlona for a replacement.
