Atlona AT-PROHD85M-SR User manual

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515
AT-PROHD85M-R
AT-PROHD85M-S
User Manual
AtlonA
8 X 5 HDMI MATRIX SWITCH WITH
5 X CAT5 RECEIVERS INCLUDED
AT-PROHD85M-SR

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
4. Specication .................................................. 4
5. Panel Description .................................................. 4
5.1 Main Unit .................................................. 4
5.1.1. Front Panel .................................................. 4
5.1.2. Rear Panel .................................................. 5
5.2 HDMI Receiver .................................................. 5
6. Connection and Operation .................................................. 6
7. IR Remote Control .................................................. 9
8. TCP/IP Control .................................................. 10
9. RS-232 .................................................. 11
9.1. RS232 Control .................................................. 11
9.2. RS232 Cable Wiring .................................................. 12
9.3. RS232 Commands .................................................. 12
10. Safety Information .................................................. 14
11. Warranty .................................................. 15
12. Atlona Product Registration .................................................. 16

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 3
INTRODUCTION
PACKAGE CONTENTS:
The Atlona AT-PROHD85M-SR is an HDMI 8X5 matrix switch which allows up to eight HDMI sources to be in-
dependently switched to ve HDMI displays. It extends sources such as Blu-Ray, X-Box or a Satellite receiver
up to 165ft @ 1080p and 1920x1200 resolutions to each remote video display. It offers full pass through for all
Digital audio formats such as Dolby True HD, DTS-HD Master Audio. You can control the
AT-PROHD85M-SR matrix by IR, RS-232, RS485, TCP/IP or from the front panel. Additionally an IR signal can
be extended through each remote location CAT5 receiver to the AT-PROHD85M-SR to control a source device.
• 1 x AT-PROHD85M-SR (main switch)
• 5 x AT-PROHD85M-R (receiver)
• 1 x IR handheld remote control
• 1 x 12V 5A DC power supply (110/220V universal) for main switch
• 5 x 5V 1A DC power supply (110/220V universal) for receivers
• 5 x receiver mounting brackets including screws
• 5 x IR RX (IR receiver cable)
• 8 x IR TX (IR emitter cable)
• 1 x USB to RS-232 (DB-9) cable (PC to matrix control cable)
• 1 x RS-485 to RS-232 adaptor (extends an RS-232 connection over CAT5 from the matrix switches RS-485
port)
• 1 pair Rack mounting ears including screws
• 1 x instructional manual
• 1 x CD with Manual, RS232 codes, IR codes, TCP/IP Control program
FEATURES:
• Allows up to eight HDMI sources to be independently switched to 5 HDMI video displays.
• Each RJ45 CAT5 zone output supports either dual or single CAT5.
• HDMI source to HDMI video display extension up to 165ft @ 1080p and 1920 x 1200 through CAT5.
• IR signal extension from supplied receivers to AT-PROHD85M-SR for local equipment rack source control.
• AT-PROHD85M-SR matrix switch can be controlled by IR, RS-232, RS485, TCP/IP or from the front panel.
• Supports HD resolutions up to 1080p or 1920 x 1200
• Pass through Digital Audio for all formats up to and including Dolby True HD and DTS-HD Master Audio
• Supports 3D
• HDCP and EDID compatible

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 4

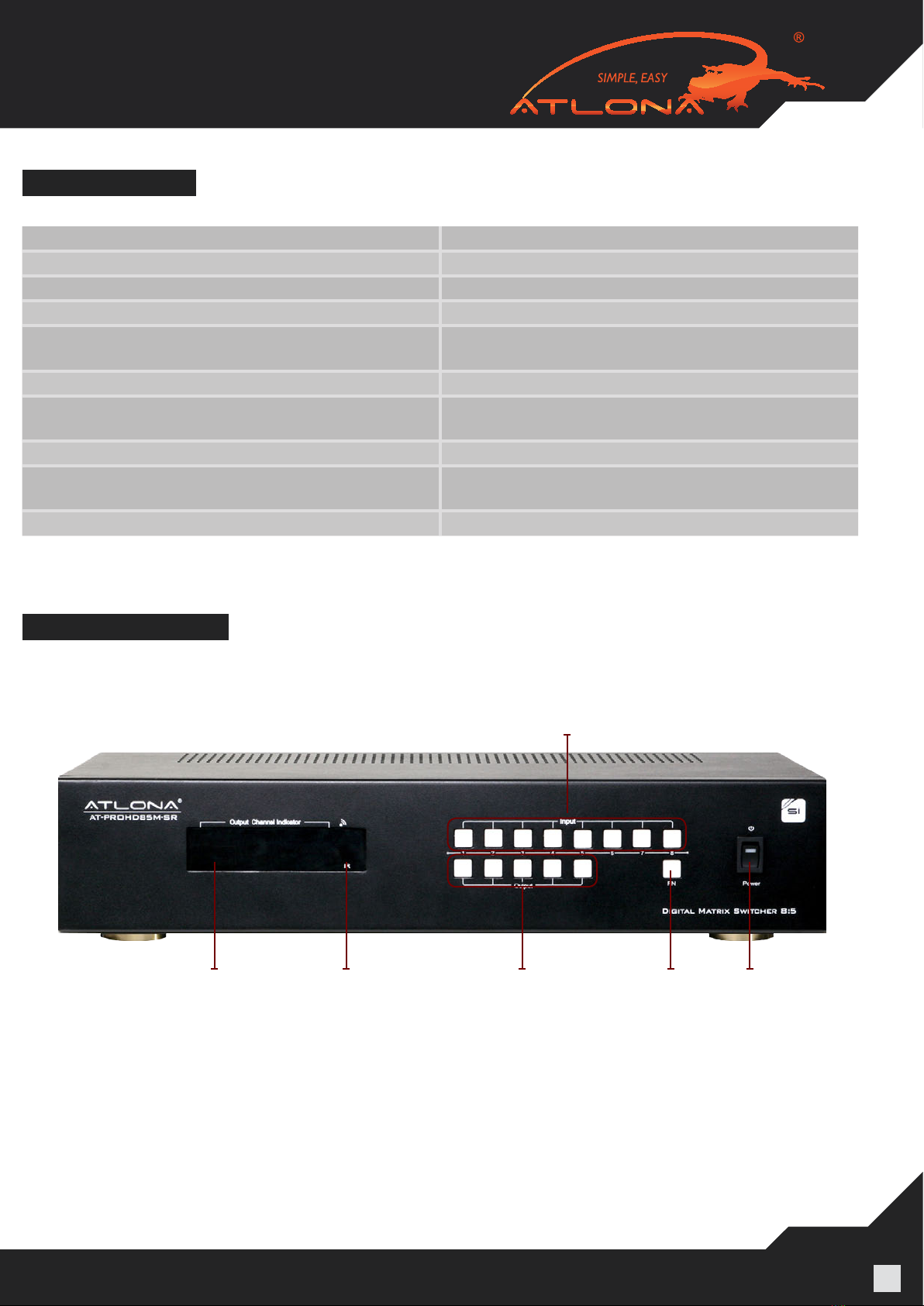

PANEL DESCRIPTION
1. LED display: Output channel indicator displays input association.
2. IR window: IR Receiver for supplied handheld remote.
3. Output selection buttons: used to select preferred output channel.
4. Input selection buttons: used to select preferred input channel.
5. F/N button: used to execute a command.
6. Power: On/off switch
Main Unit
1. Front Panel
SPECIFICATIONS:
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90% RH (no condensation)
Input DDC Signal 12V (matrix) and 5V (receivers)
Video Format Supported HDTV up to 1080p and computer up to 1920 x 1200
Audio Format Supported Pass through for all digital audio formats up to and
including Dolby True HD and DTS-HD Master Audio
Output Video HDMI + HDCP 1.3
Maximum distance for RJ45 outputs 165ft (50m) through CAT5/6 cables and up to 250ft
(80m) @ 1080p on CAT7 cable
Power Consumption 35 watts (max)
Dimensions 17.3”L x 11”W x 3.5”H (440mmL x 280mmW x
88mmH)
Weight (main unit) 44.1LB/0.3LB (20kg)/(0.1kg)
1 2 3
4
5 6

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 5

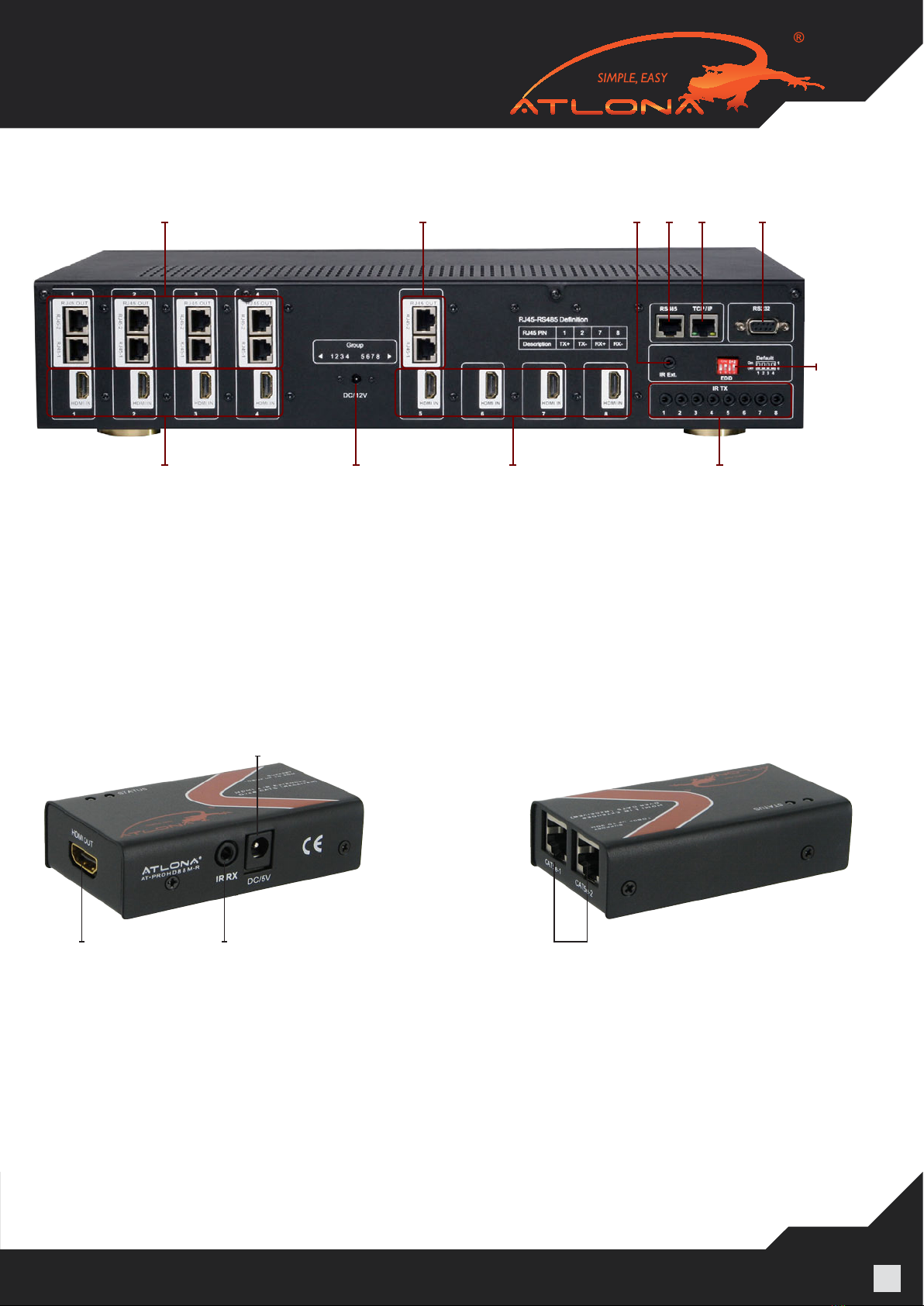

1. HDMI inputs 1-4 7. IR Ext port (extension)
2. RJ45 CAT5 outputs 1-4 8. Internal EDID dip switch
3. HDMI inputs 5-8 9. RS485 port
4. RJ45 CAT5 output 5 10. TCP/IP port
5. 12V power input 11. RS-232 port
6. IR TX emitter ports 1-8
HDMI Receiver (5 x Receivers included)
Note: Please make sure when connecting Cat5e-1 and -2 receiver ports that they are matched to the corre-
sponding RJ45 Ports on the AT-PROHD85M-SR. Receiver Cat5e-1 should be plugged into Matrix RJ45-1
and Receiver Cat5e-2 should be plugged into Matrix RJ45-2.
The red status indicator will stay lit on the receiver if the HDMI cable connection senses sync from the display.
If it doesn’t receive sync from the display the light will be off.
RJ45 Inputs
IR Input RX
Power Input
HDMI Out
2. Rear Panel
1
2
3
4 9 10 11
5 6
7
8

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 6

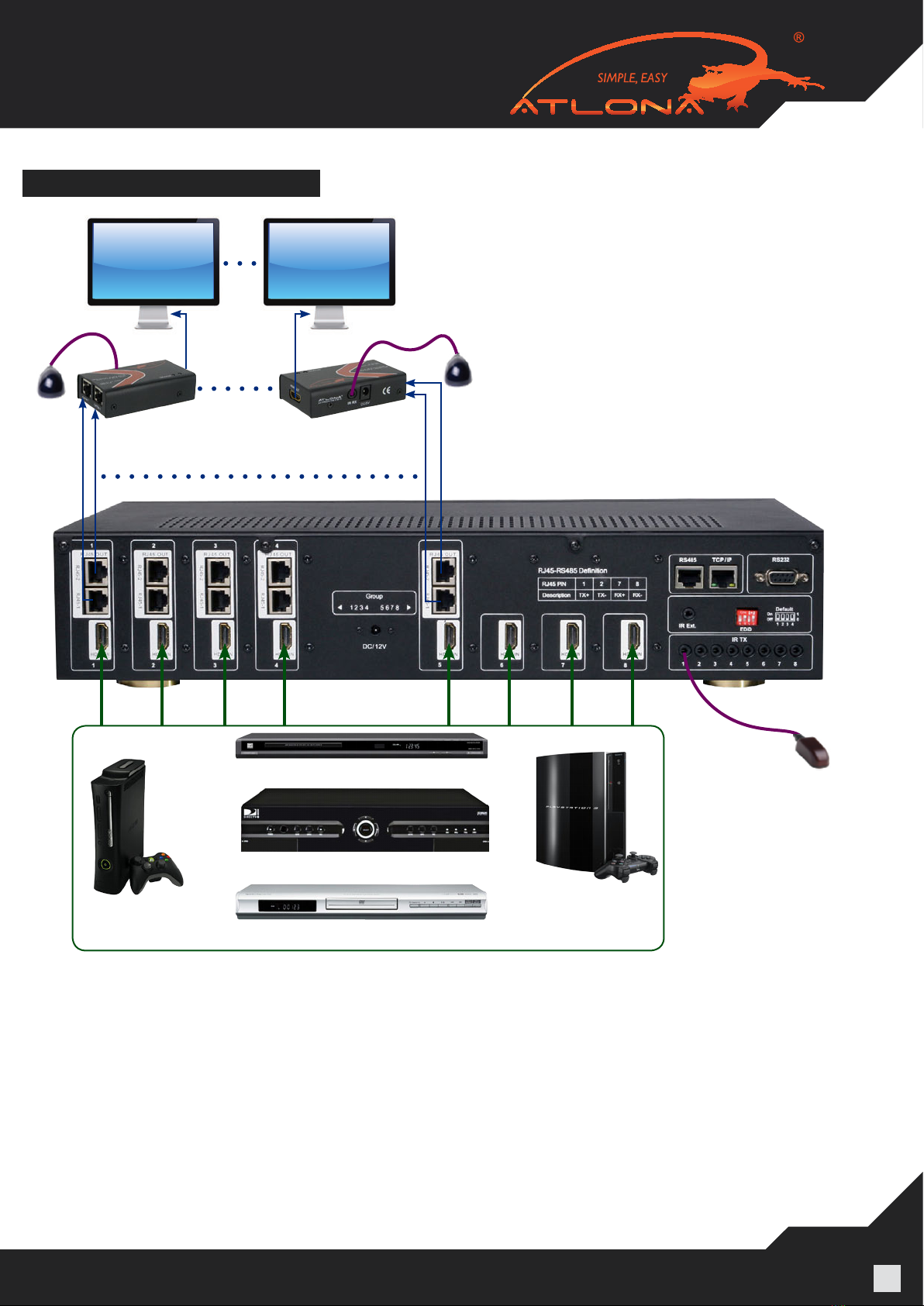

CONNECTION AND OPERATION
Blu-Ray player
PS 3
X-Box
DirecTV
DVD player
up to 8
HDMI Sources
2xCAT5e
cable
2xCAT5e
cable
HDTVHDTV
AT-PROHD85M-RAT-PROHD85M-R
1. Connect HDMI sources such as Blu-Ray, DirecTV or Apply TV to the inputs on the AT-PROHD85M-SR.
2. Connect 2 RJ45 CAT5 cables from each output on the AT-PROHD85-SR to the matching numbered inputs
on the supplied receivers. It is important that that each end of the CAT5 cable matches the corresponding num-
bered RJ45/CAT5 port on the matrix & receiver. For EDID set up you must use a dual CAT5 cable connection.
IMPORTANT: It is imperative that the RJ45 CAT5 cable has a 568B termination.
TX
RX
RX

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 7
568B
Note: A single CAT5 connection can be used in systems not requiring IR extension through the supplied receiv-
ers. If a single CAT5 connection is utilized the embedded EDID setting choice from the dip switch will be the
default for all connected devices. For a single CAT5 connection please use the RJ45-2 ports only.
-
A). Auto EDID: Please set the dip switch to “0000” (off). Power cycle the AT-PROHD85M-SR by turning power
off then back on. All connected output displays EDID’s will be copied and forwarded to all connected sources
and the lowest common denominator will be locked in.
Example: If there is a mix of video resolutions and audio formats such as Dolby Digital, Stereo, 1080p, 720p,
the AT-PROHD85M-SR will default to 720p/Stereo as it is the lowest common denominator, thus all connected
devices will be functionally compatible with each other.
B). Embedded EDID within AT-PROHD85M-SR: Select the appropriate setting from the rear panel dip switch.
Power cycle the AT-PROHD85M-SR by turning the power off, then back on. All connected inputs and outputs
Example: If you select the combination 1-0-0-0 from the dip switch the AT-PROHD85M-SR will default to dual
CAT5, 1080p/2ch for all connected devices.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 8
Dip Switch Settings
DS1 DS2 DS3 DS4 CAT5 Output Connection and EDID
0 0 0 0 Auto EDID and Copy EDID
1 0 0 0 Dual CAT5, 1080p, 2ch audio
1 0 0 1 Single CAT5, 1080p, 2ch audio
1 0 1 0 Dual CAT5, 1080p, 5.1ch audio
1 0 1 1 Single CAT5, 1080p, 5.1ch audio
1 1 0 0 Dual CAT5, 1080p, 7.1ch audio
1 1 0 1 Single CAT5, 1080p, 7.1ch audio
1 1 1 0 Dual CAT5, 1080i, 2ch audio
1 1 1 1 Single CAT5, 1080i, 2ch audio
C). Copy EDID: Please set the dip switch to “0000” (off). Make sure to power cycle the AT-PROHD85M-SR
after making this setting change on the dip switch. Turn off power and then back on to complete a power cycle.
-
play that you want to copy and then the source input. Next press and hold the previously selected output and
F/N button simultaneously for a couple of seconds then release. Characters on the LED display will rotate in
a circular pattern until process is complete. If EDID successfully copied the LED will display “M OK”. If unsuc-
cessful it will display “M FL”. Repeat process for all desired input/output associations.
Note: If you wish to return the copied EDID back to the auto EDID functionality use the following steps.
Step 1: Set the dip switch to 1-1-1-1(on), next power cycle the AT-PROHD85M-SR.
Step 2: Set the dip switch to 0-0-0-0(off), next power cycle the AT-PROHD85M-SR. All connected devices will
be reset to the lowest common denominator.
4. Connect supplied IR receiver and emitter cables to the AT-PROHD85M-SR
and supplied matrix receivers for IR functionality. Trans mitters need to be placed over IR window on device to
ensure successful functionality. IR receiver modules should be placed in line of sight for handheld controller to
successfully extend IR commands.
Note: When connecting IR receivers and IR emitters be extremely careful to insert them into the correct port.
Failure to do so will cause damage to the switch, receiver or burn out the IR eye.
5. If you wish to control the AT-PROHD85M-SR from a 3rd party control system connect an RS-232 cable
between the matrix and the control system. Please use a straight RS-232 Cable for this connection .
(View RS232 codes on page 12)
7. For computer control connect a RJ45 cable to the TCP/IP port of the AT-PROHD85M-SR.
Note: If the TCP/IP port is connected directly to a computer you must use a crossover CAT5 cable. If connect-
ed to a router use a straight wire CAT5 cable.
RX TX

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 9
8. RS485 port: protocol utilized by compatible control devices to achieve longer distance cable
runs over CAT5
9. Connect the supplied IR receiver cable to the AT-PROHD85M-SR to con-
trol the matrix switch from the supplied handheld remote control. Used when the
AT-PROHD85M-SR is in an enclosure and the front panel IR window isn’t visible.
10. To manually select an input and output from the front panel follow these steps.
Step 2: Press the desired input button. The output LED will change to the input selec-

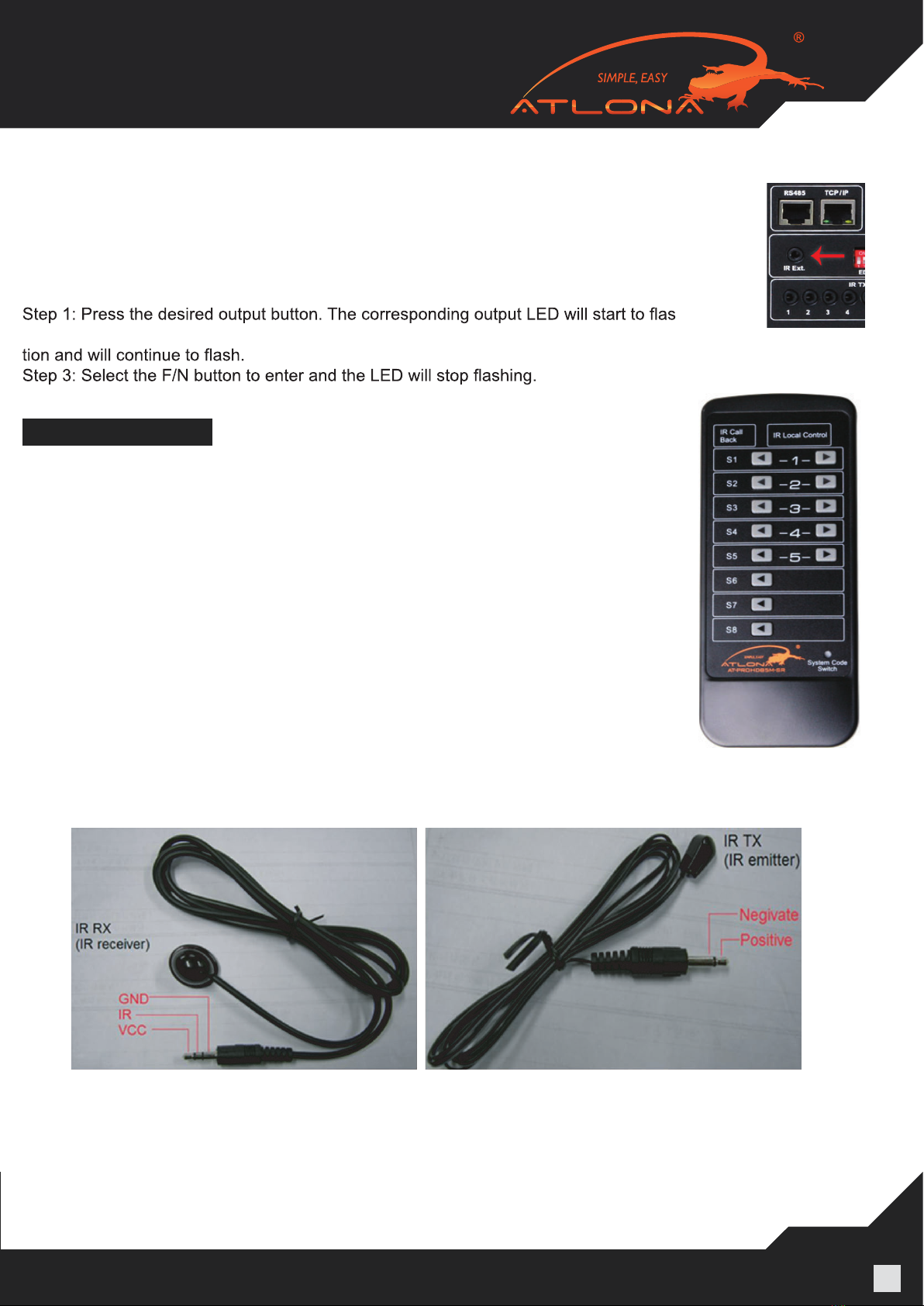

IR REMOTE CONTROL
The AT-PROHD85M-SR remote can control the matrix
either through the front face panel IR receiver window or
the supplied IR receiver cable module. If you use a third
party IR remote control you can learn the IR codes off of
the matrix remote. If you use a third party IR remote sys-
tem controller you can copy and paste the IR HEX code
into the remote control software package. IR HEX
codes can be found on the supplied CD.
.
There are 2 scenarios for code use:
• 1: Learn all 40 x codes in order to control each setup from the matrix location.
• 2: Learn 8 x codes for local zone control only.
VERY IMPORTANT:
When connecting IR receivers and IR emitters, be very careful as if they are reversed the IR Eye will
burn-out and also may damage the IR module inside of the switch and Receiver.
TX – Connects to the Switch
RX – Connects to the HDMI Receivers

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 10
2. Double Click on the device name or right-click and select OPEN. A web browser window will open with the
log-in page. The default password is “0000000000”. Enter the password then select the “Login” button to log
on to the control page.

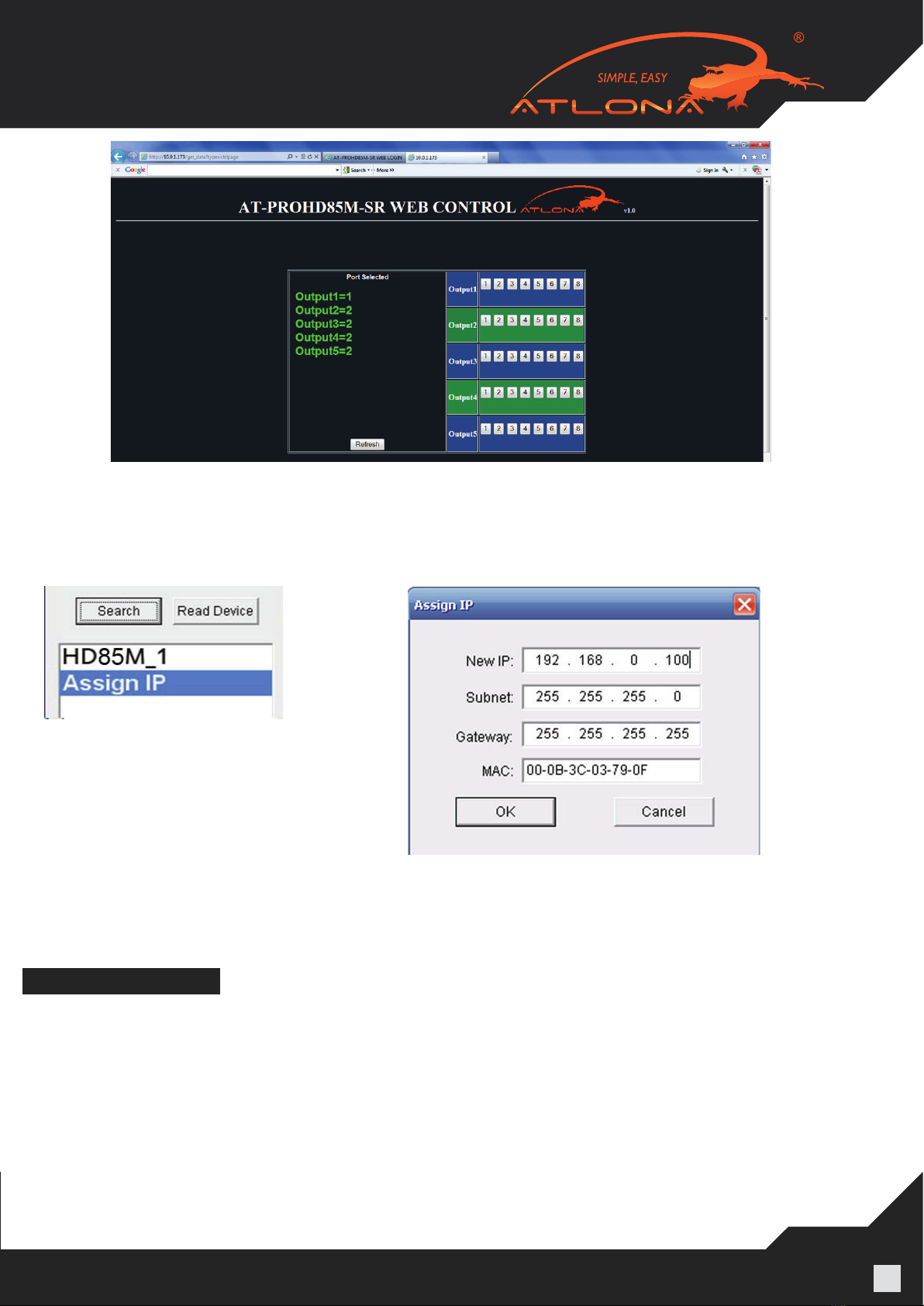

TCP/IP CONTROL
Note: If the TCP/IP port is connected directly to a computer you must use a crossover CAT5 cable. If con-
nected to a router use a straight wire CAT5 cable.
information for the matrix switch such as MAC, Subnet, Gateway and IP address.
1. Open the NETCTL application. It will automatically search for any connected devices and display the IP ad-
dress. Next select the “Read Device” button. The IP address will change to the matrix name.
To re-name the matrix click on the device name
and select “Rename”.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 11
9.1. RS232 Control
Baud Rate: 9600 bps
Data bits: 8 bits
Parity: None
Stop bits: 1 bit
Flow control: None
RS232
Select one of the 1~8 square buttons to select an input for each 1~5 output. The left side pane shows the input
status for each output.
3. If “Assign IP” is displayed the device was not assigned an IP address automatically. Double click on “Assign
IP” to manually assign an IP address for the matrix.
Select “OK” to assign the new IP address.
Next select “Search” and then “Read Device” to display the matrix name.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 12
9.2. RS232 Cable Wiring
AT-PROHD85M-SR Remote c ontrol device
Pin Pin
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
9.3. RS232 Commands:
Note: ‘ ’ is carriage return.
OUTPUT COMMAND ACTION
Output 1
cir 00 Output 1 select Input1
cir 01 Output 1 select Input2
cir 02 Output 1 select Input3
cir 03 Output 1 select Input4
cir 04 Output 1 select Input5
cir 05 Output 1 select Input6
cir 06 Output 1 select Input7
cir 07 Output 1 select Input8
Output 2
cir 10 Output 2 select Input1
cir 11 Output 2 select Input2
cir 12 Output 2 select Input3
cir 13 Output 2 select Input4
cir 14 Output 2 select Input5
cir 15 Output 2 select Input6
cir 16 Output 2 select Input7
cir 17 Output 2 select Input8
Output 3
cir 20 Output 3 select Input1
cir 21 Output 3 select Input2
cir 22 Output 3 select Input3
cir 23 Output 3 select Input4

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 13
Output 3
cir 24 Output 3 select Input5
cir 25 Output 3 select Input6
cir 26 Output 3 select Input7
cir 27 Output 3 select Input8
Output 4
cir 30 Output 4 select Input1
cir 31 Output 4 select Input2
cir 32 Output 4 select Input3
cir 33 Output 4 select Input4
cir 34 Output 4 select Input5
cir 35 Output 4 select Input6
cir 36 Output 4 select Input7
cir 37 Output 4 select Input8
Output 5
cir 40 Output 5 select Input1
cir 41 Output 5 select Input2
cir 42 Output 5 select Input3
cir 43 Output 5 select Input4
cir 44 Output 5 select Input5
cir 45 Output 5 select Input6
cir 46 Output 5 select Input7
cir 47 Output 5 select Input8
cir 20 Output 3 select Input1
cir 21 Output 3 select Input2
cir 22 Output 3 select Input3
cir 23 Output 3 select Input4

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 14
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-PROHD85M-SR. Opening the product
will void the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 15
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the ac-
companying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be free from
defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law
imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdic-
tions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’
option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this
Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty
is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be war-
ranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS
DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IM-
PLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO
THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPE-
CIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES OR
ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, IN-
CIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING
OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN AD-
VISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES’ AND ITS SUPPLIERS’
ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTU-
ALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 16
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product — we hope you’ll enjoy it.
We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership
record if your product is lost or stolen and helps ensure you’ll receive notication of performance issues and rmware
updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely
secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war-
ranty rights.
To register go to www.atlona.com/registration
