Installation Guide
AT-OME-ST31
Omega™ 4K / UHD Three-Input Switcher
for HDMI and USB-C with HDBaseT and HDMI Outputs
AT-OME-ST31
The Atlona AT-OME-ST31 is a 3×1 switcher and HDBaseT transmitter with HDMI and USB-C
inputs. It features mirrored HDMI and HDBaseT outputs and is HDCP 2.2 compliant.
The USB-C input is ideal for AV interfacing for newer Mac®, Chromebook™, and Windows®
PCs, as well as smartphones and tablets. Video signals up to 4K/60 4:2:0 can be transmitted
over HDBaseT up to 330 feet (100 meters). All inputs and the local HDMI output support 4K HDR
and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p is
available for the HDMI output when connected to an HD sink. The OME-ST31 is designed for use
with Omega™ Series receivers and switchers, select HDVS Series receivers, the AT-UHD-EX-
100CE-RX receiver, and other Atlona switchers with HDBaseT inputs.
This switching transmitter can serve as an integral component of a fully automated AV system,
with the convenience of automatic input selection and display control. It can be remotely
powered by Atlona HDBaseT-equipped devices through Power over Ethernet (PoE). With the
optional power supply (Part no. AT-PS-245-D4), the OME-ST31 can provide PoE-powering to a
compatible receiver, and also charge laptops and mobile devices through the USB-C port. For
additional integration convenience, the OME-ST31 features analog audio embedding (to replace
the HDMI or USB-C input audio), control via TCP/IP and RS-232, RS-232 insertion over HDBaseT
and remote management with AMS (Atlona Management System).
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-ST31 for the latest rmware
updates and Installation Guide.
Package Contents
1 x AT-OME-ST31
1 x USB-C cable
2 x Mounting brackets
4 x Mounting screws
1 x Installation Guide

2
Installation Guide
AT-OME-ST31
Panel Descriptions
1 PWR
This LED indicator glows solid green when
the unit is powered.
2 LINK
This LED indicator glows solid yellow
when an HDBaseT link is established,
between the AT-OME-ST31 and the
receiver.
3 FW
Connect a mini-USB cable from this port
to update the rmware.
4 INPUT
Press and release this button to cycle
through each of the inputs. The LED
indicators will display the currently active
input, and correspond to each of the
numbered inputs on the rear panel of the
unit.
5 DISPLAY
Press this button to power-on or power-
o the connected display.
6 AUDIO
Connect a 3.5 mm mini-stereo jack from
an analog audio source to this port.
This port provides the option of replacing
the HDMI source audio, and embedding
analog audio on the outputs, using the
web GUI.
7 INPUT ports
Connect a USB-C cable from a video
source to INPUT 1. Connect HDMI cables
to INPUT 2 and INPUT 3 from HD/UHD
sources.
8 OUTPUT
Connect an HDMI from the HDMI port to a
display or other sink device. Connect an
Ethernet cable (CAT-5e or better), from the
HDBaseT port to a compatible HDBaseT
receiver. These ports are mirrored.
9 IP MODE
Press and release this button to set the IP
mode or display the current IP address.
Refer to IP Conguration (page 5) for
more information.
10 RESET
Press and release this button to reset the
unit to factory-default settings. Refer to
Resetting to Factory-Defaults (page 6)
for more information.
11 RS-232
Connect the included 3-pin captive
screw block to this port. Refer to RS-
232 Connector (page 3) for wiring
information.
12 LAN
Connect an Ethernet cable to this port
from the network.
13 DC 24V
Connect the optional locking 24 V DC
power supply to this power receptacle.
Rear
OMEGATM
PWR
LINK
FW
1
2
3
INPUT DISPLAY
AT-OME-ST31
AUDIO
INPUT
1 2 3
AT-OME-ST31
OUTPUT RESET
IP MODE RX TX
RS-232 LAN DC 24V
OMEGATM
PWR
LINK
FW
1
2
3
INPUT DISPLAY
AT-OME-ST31
AUDIO
INPUT
1 2 3
AT-OME-ST31
OUTPUT RESET
IP MODE RX TX
RS-232 LAN DC 24V
Front
1
96 87
3 4 5
2
10 11 12 13

3
Installation Guide
AT-OME-ST31
The AT-OME-ST31 provides an RS-232 port which can be used to control the unit or allow
command to pass through to a downstream device. Additionally, RS-232 commands can be
transmitted over HDBaseT to a PoE-compatible receiver unit.
NOTE: Typical DB9 connectors use pin 2 for TX, pin 3 for RX, and pin 5 for
ground. On some devices functions of pins 2 and 3 are reversed.
RS-232 Connector
GND
RX
TX
1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires.
3. Insert the TX, RX, and GND wires into correct terminal using the included 3-pin captive
screw connector.
1. Connect HDMI cables from HD/UHD sources to INPUT 2 and INPUT 3.
2. Connect a USB-C cable from a source to INPUT 1 on the switcher.
3. Connect an Ethernet cable, from the HDBaseT port to a compatible HDBaseT receiver.
4. Connect an HDMI cable from the HDMI output port to a display or other sink device.
5. Connect an Ethernet cable from the LAN port to the Local Area Network.
6. OPTIONAL: Connect an RS-232 cable from the control device to the RS-232 port on the
AT-OME-ST31. Refer to RS-232 Connector (page 3) for wiring information using the
included captive screw terminal block.
Installation
NOTE: The AT-OME-ST31 is powered over HDBaseT, by a PoE receiver unit.
If a PoE HDBaseT receiver is not used, then the AT-OME-ST31 must be powered
using the external 24 V DC power supply* (not included). When used with the
external power supply, the AT-OME-ST31 can provide power to the connected
USB-C device. This power supply can be purchased from Atlona.
* Optional power supply is available from Atlona. Part no. AT-PS-245-D4.

4
Installation Guide
AT-OME-ST31

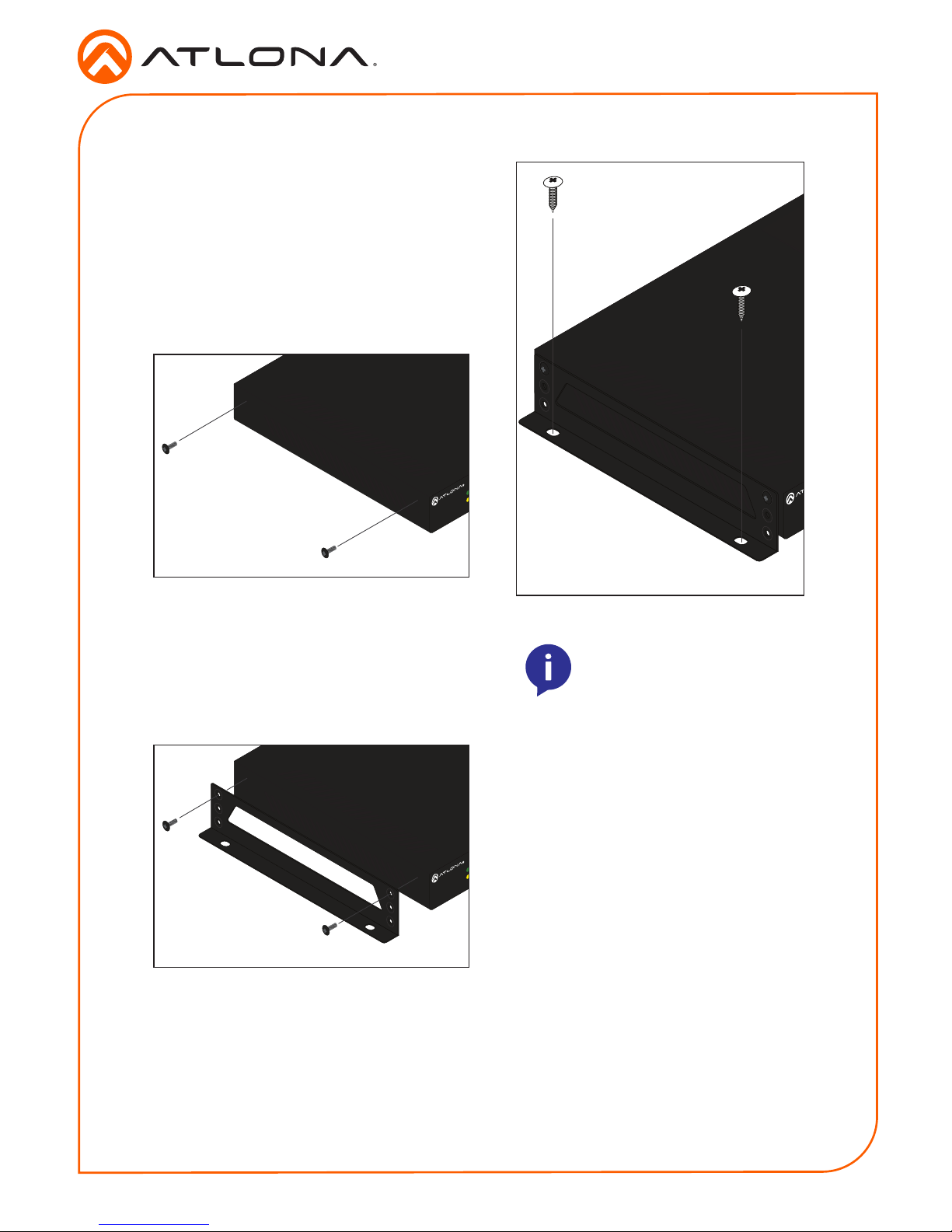

The AT-OME-ST31 includes two mounting
brackets, which can be used to attach the unit
to any at surface. Use the two enclosure
screws, on the sides of the unit to attach the
mounting brackets.
1. Using a small Phillips screwdriver, remove
the two screws from the left side of the
enclosure.
2. Position one of the mounting brackets, as
shown below, aligning the holes on the
side of the enclosure with one set of holes
on the mounting bracket.
3. Use the screws from Step 1 to attach the
mounting bracket.
4. Repeat steps 1 and 2 to attach the
second mounting bracket to the opposite
side of the unit.
5. Mount the unit to a at surface using the
oval-shaped holes, on each mounting
bracket. If using a drywall surface, a #6
drywall screw is recommended.
OMEGA
TM
PWR
LINK
FW
1
2
3
INPUT TEST
AT-OME-ST31
OMEGA
TM
PWR
LINK
FW
1
2
3
INPUT TEST
AT-OME-ST31
OMEGA
TM
PWR
LINK
FW
1
2
3
INPUT TEST
AT-OME-ST31
NOTE: Mounting brackets can
also be inverted to mount the
unit under a table or other at
surface.
Mounting Instructions

5
Installation Guide
AT-OME-ST31
Refer to the tables below for recommended cabling when using Altona products with HDBaseT.
The green bars indicate the signal quality when using each type of cable. Higher-quality signals
are represented by more bars.
Cable Recommendation Guidelines
Core Shielding CAT5e CAT6 CAT6a CAT7
Solid UTP (unshielded) N/A
STP (shielded)
*Atlona recommends TIA/EIA 568-B termination for optimal performance.
Cable* Max. Distance @ 4K Max. Distance @ 1080p
CAT5e 295 feet (90 meters) 330 feet (100 meters)
CAT6 / CAT6a / CAT7 330 feet (100 meters) 330 feet (100 meters)
IMPORTANT: Stranded or patch cables are not recommended due to
performance issues.
IP Conguration
1. Make sure the AT-OME-ST31 is powered, by connecting an Ethernet cable between a PoE-
compatible receiver, such as the AT-HDVS-200-RX or AT-HDVS-SC-RX, and the HDBaseT
port on the back of the unit.
2. Press and hold the IP MODE button, on the rear of the unit, for approximately ve seconds.
Release the button once the LED indicator, next to the IP MODE button, begins to ash
green. The number of ashes will indicate the currently selected IP mode.
The AT-OME-ST31 is shipped with DHCP enabled. Once connected to a network, the DHCP
server (if available), will automatically assign an IP address to the unit. If the AT-OME-ST31
is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP
address within the range of 169.254.xxx.xxx.
Use an IP scanner, along with the MAC address on the bottom of the unit, to identify the unit on
the network. If a static IP address is desired, the unit can be switched to static IP mode.
The default static IP address is 192.168.1.254.
Switching the IP mode
IP MODE LED ashes Description
Two DHCP mode
Three Factory Static IP mode (IP address set to 192.168.1.254)

6
Installation Guide
AT-OME-ST31
Auto IP mode
If the AT-OME-ST31 is unable to detect a DHCP server within 15 seconds, then the unit will use
a self-assigned IP address within the range of 169.254.xxx.xxx. If this occurs, connect the AT-
OME-ST31 to a computer running Microsoft Windows® and follow the procedure below.
1. Click Start > Settings > Control Panel > Network and Sharing Center.
2. Click Change adapter settings.
3. Right-click on the adapter that is used to establish a wired connection to the network, and
select Properties from the context menu.
4. Under the Ethernet Properties dialog box, select Internet Protocol Version 4 and then
click the Properties button.
5. Click the Use the following IP address radio button.
6. Enter the desired static IP address or the IP address provided by the network administrator.
If the PC does not require Internet access or if a statically-assigned IP address is being
used, then an IP address of 169.254.xxx.xxx can be entered.
7. Set the subnet mask to 255.255.0.0.
8. Click the OK button then close all Control Panel windows.
IMPORTANT: Before continuing, write down the current IP settings in order to
restore them, later. If Obtain an IP address automatically and Obtain DNS
server automatically are selected, then this step is not required.
Resetting to Factory-Defaults
To reset the AT-OME-ST31 to factory-default settings, press and hold the RESET button for
approximately 5 seconds. Release the button once the RESET LED indicator begins to ash.
The LED indicator will ash three times to indicate that the reset procedure has completed.
To display the IP address of the AT-OME-ST31, on the connected display, press and release the
IP RESET button.
For easy conguration of Atlona devices, AMS 2.0 is available from https://atlona.com/ams for
free. Two options can be used for installation: The free Linux-based software download or the
easy-to-install server hardware (AT-AMS-HW).
Once AMS has been set up:
1. Open a browser on the same network as AMS 2.0 and go to the IP address of AMS 2.0.
View the AMS 2.0 installation instructions on how to nd the IP address of the software, if
necessary.
2. Enter the login information on the AMS 2.0 web page, then click the Login button.
3. View the AT-OME-ST31 manual for more information.
AMS 2.0
Displaying the IP Address

7
Installation Guide
AT-OME-ST31
Web GUI
The AT-OME-ST31 includes a built-in web GUI, which allows easy management and control of all
features. Follow the instructions below to access the web GUI.
1. Set the IP mode of the AT-OME-ST31. Refer to IP Conguration (page 5) for more
information.
2. Connect an Ethernet cable from the LAN port on the AT-OME-ST31 to the Local Area
Network (LAN).
3. Use an IP scanner to determine the IP address of the AT-OME-ST31.
4. Launch a web browser and enter the IP address of the unit.
5. The AT-OME-ST31 Login page will be displayed.
6. Enter the following information on the Login page. Login credentials are case-sensitive.
Login: admin
Password: Atlona
7. Click the Login button.

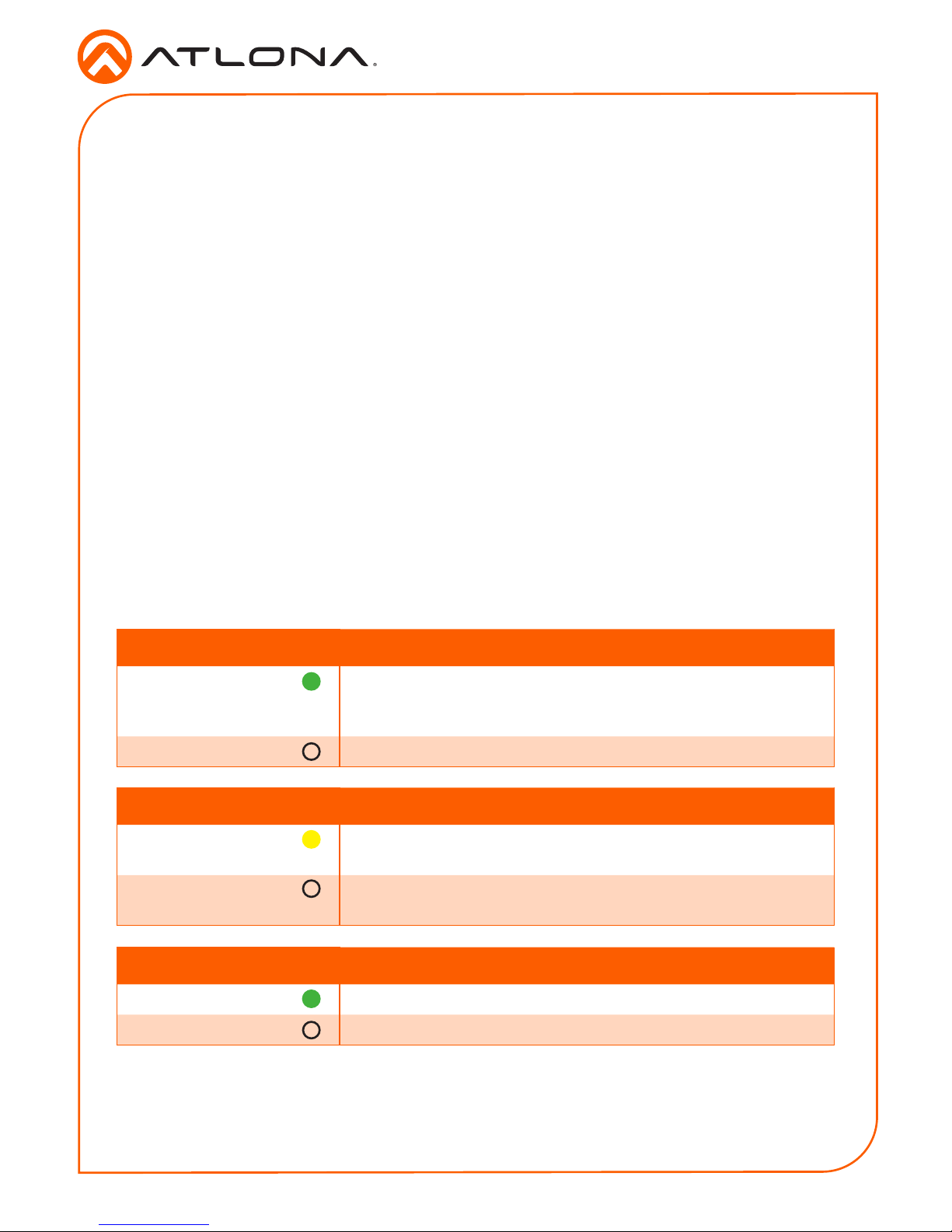

Front Panel LED Indicators
The LED indicators on both the front and rear of the unit provide basic information on the current
status of the unit.
PWR Description
Solid green Unit is receiving power using the optional 24 V DC power supply
(not included) or the Ethernet cable connected between the
HDBaseT OUTPUT port and a PoE-compatible receiver.
O Unit is not powered.
LINK Description
Solid yellow An HDBaseT link is established between the transmitter and the
receiver.
O The link integrity between the AT-OME-ST31 and the PoE-
compatible receiver is compromised.
1, 2, 3 Description
Solid green The input is the currently selected input.
O The input is not selected.
Toggling Display Power
Press and release the DISPLAY button to toggle power of the connected display. Conguration
is performed using the built-in web GUI.

8
Installation Guide
AT-OME-ST31
© 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered
trademarks are the property of their respective owners. Pricing, specications and availability subject to change without notice. Actual products, product images, and
online product images may vary from images shown here.
Version 1
atlona.com •408.962.0515 •877.536.3976
