ATM Lighting EXL400LED-24VDC Manual

1Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
Carefully read the instructions before
mounting the light fitting.
INSTALLATION AND MAINTENANCE MANUAL FOR
EXPLOSIONPROOF LIGHT FITTING
EXL400LED-24VDC

2Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
1. GENERAL INFORMATION.............................................................................................................. 3
2. TECHNICAL INFORMATION .......................................................................................................... 5
3. PHOTOMETRICAL DATA................................................................................................................ 6
4. CONSTRUCTION DESCRIPTION .................................................................................................. 6
5. PRELIMINAIRES............................................................................................................................. 7
6. LIGHT FITTING MOUNTING .......................................................................................................... 8
7. ELECTRICAL CONNECTION ......................................................................................................... 8
8. CONDITIONS OF SAFETY USE..................................................................................................... 9
9. LIGHT FITTING MAINTENANCE AND SERVICING ...................................................................... 9
10. CLEANING ................................................................................................................................ 10
11. REPAIRING AND EXCHANGE PARTS..................................................................................... 10
12. LIGHT SOURCE EXCHANGE .................................................................................................. 10
13. TRANSPORT AND CONDITIOINS OF STORAGE................................................................... 10
14. DISPOSAL OF WASTE EQUIPMENT........................................................................................11
15. WARRANTY ...............................................................................................................................11
TABLE OF CONTENTS

3Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
1. GENERAL INFORMATION
EXL400LED light fittings are designed to light indoor and outdoor areas in zone 2 of explosion hazard
of gas, vapors, or clouds of flammable liquids mixed with air which belongs to IIA, IIB or IIC explosion
group, T1-T6 temperature class. EXL400LED light fittings are also suitable to light areas in zone 22 of
explosion hazard of dust and flammable fibers mixed with air.

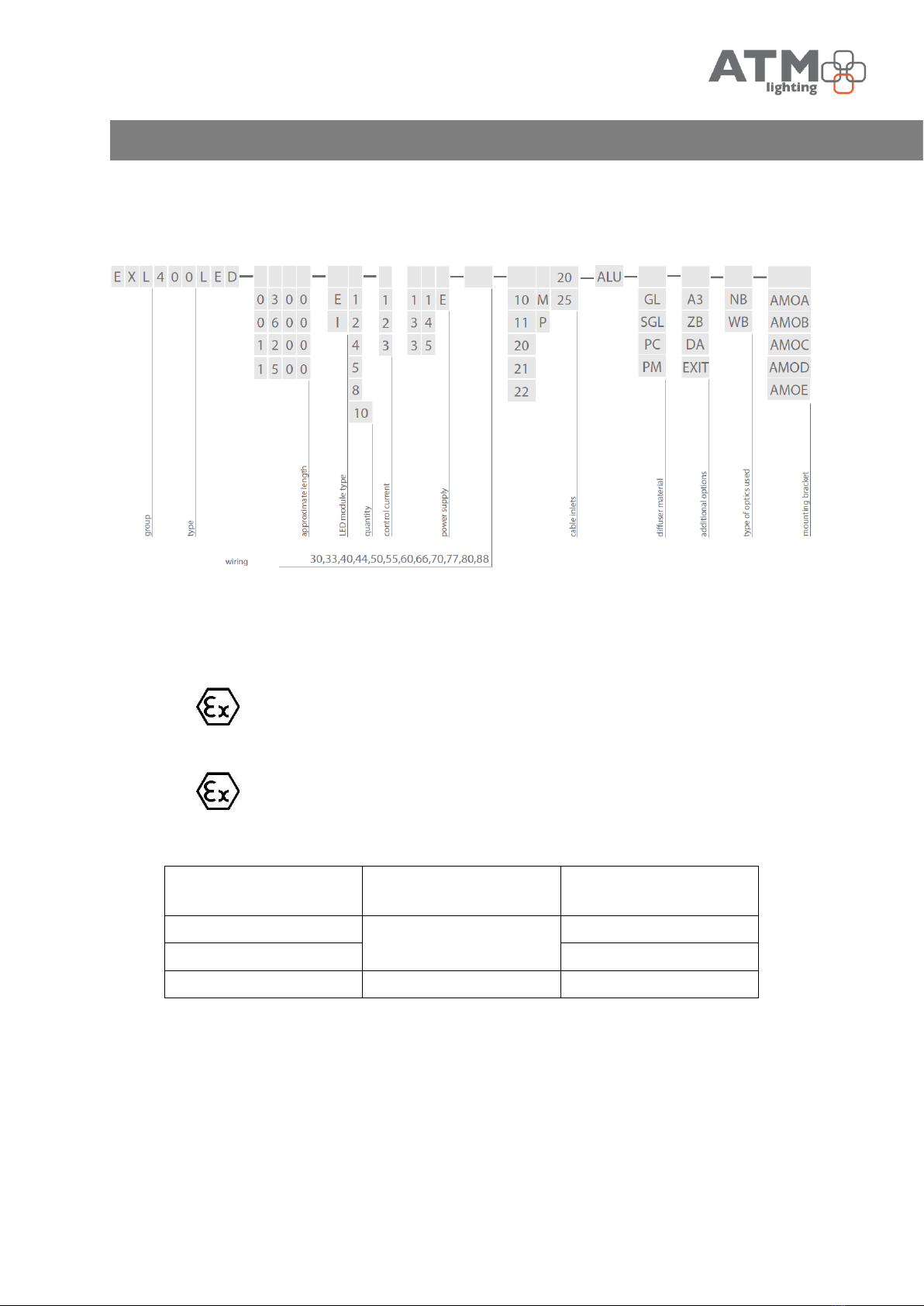

TECHNICAL INFORMATION
Ex marking:
•For version EXL400LED - **** - ** - *** - ** - ***** - ALU - ** - ** - ****
II 3G Ex ec IIC T6/T5 Gc
II 2D Ex tb IIIC T75°C/ T100°C Db
or
II 3G Ex ec IIC T6/T5 Gc
II 3D Ex tc IIIC T75°C/ T100°C Dc
•Marking in relation to ambient temperature:
Ambient temperature
Type and level of
protection
Temperature class /
max. surface temperature
-25°C ≤ Tamb ≤ +45°C
„ec” ; „tb”
T6 ; T75°C
-25°C ≤ Tamb ≤ +50°C
T5 ; T100°C
-25°C ≤ Tamb ≤ +60°C
„ec” ; „tc”
T5 ; T100°C

4Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
Interpretation of the use restrictions of the device by means of the symbols in the above
marking and on the label of the device:
Name
Symbol
Description
Special explosionproof
protection marking
Symbol of device intended for use in potentially explosive
atmospheres.
Device group
II
Device intended for use in explosive atmospheres other than
underground mine.
Device category
3G
Device can safely operate in zone 2 of the explosion hazard of
gases, vapors and mists of flammable liquids with air.
2D
Device can safely operate in zone 21 or 22 dust explosion hazard.
3D
Device can safely operate in zone 22 dust explosion hazard.
Type of execution
Ex ec
Device secured with increased safety construction type "e”.
Ex tb
Device secured from dust ignition with the housing type „t” in zones
21 or 22.
Ex tc
Device secured from dust ignition with the housing type „t” in zone
22.
Group
IIC
Device can be used in the presence of explosion hazard gases,
vapors and mists of flammable liquids with air classified as explosive
groups IIA, IIB, IIC.
IIIC
Device can be used in the presence of explosion hazard of
combustible dusts and filaments belonging to explosion groups IIIA,
IIIB, IIIC (all types of dusts).
Temperature class
T5
Device intended for use in potentially explosive atmospheres of
gases with self-ignition temperature > 100C
T6
Device intended for use in potentially explosive atmospheres of
gases with self-ignition temperature > 85C
Temperature
T75°C
T100°C
Maximum surface temperature
Explosion protection
level
Gc
Device intended for installation in zone 2 of gas explosion hazard,
providing a „normal safety” and which will not become a source of
ignition under normal conditions of use and during expected
damage.
Db
Device intended for installation in zones 21, 22 dust explosion
hazard, providing a „high level of safety” and which will not become

5Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
a source of ignition under normal conditions of use and during
expected damage.
Dc
Device intended for installation in zones 22 dust explosion hazard,
providing a „normal level of safety” and which will not become a
source of ignition under normal conditions of use and during
expected damage.
Protection degree: IP66/IP67
Admission wires diameter: 1-2.5mm2
Admission cable diameter: Ø 7-13mm
Voltage: 24VDC
Protection class: III
Ambient temperature Ta: According to the table "Marking in relation to ambient temperature”
LED module risk group RG=1
2. TECHNICAL INFORMATION
Type
Power
Electrical
unit
IP
Protection
class
Power factor
Ambient
temp.
EXL400LED-0300-I1
13,2 W
24VDC
66/67
III
≥0,95
depending on
execution
According to
the table
"Marking in
relation to
ambient
temperature”
EXL400LED-0300-I2
26,4 W
EXL400LED-0600-I2
26,4 W
EXL400LED-0600-I4
52,8 W
EXL400LED-1200-I4
52,8 W
EXL400LED-1200-I8
105,6 W
EXL400LED-1500-I5
66,0 W
EXL400LED-1500-I10
132,0 W

6Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]

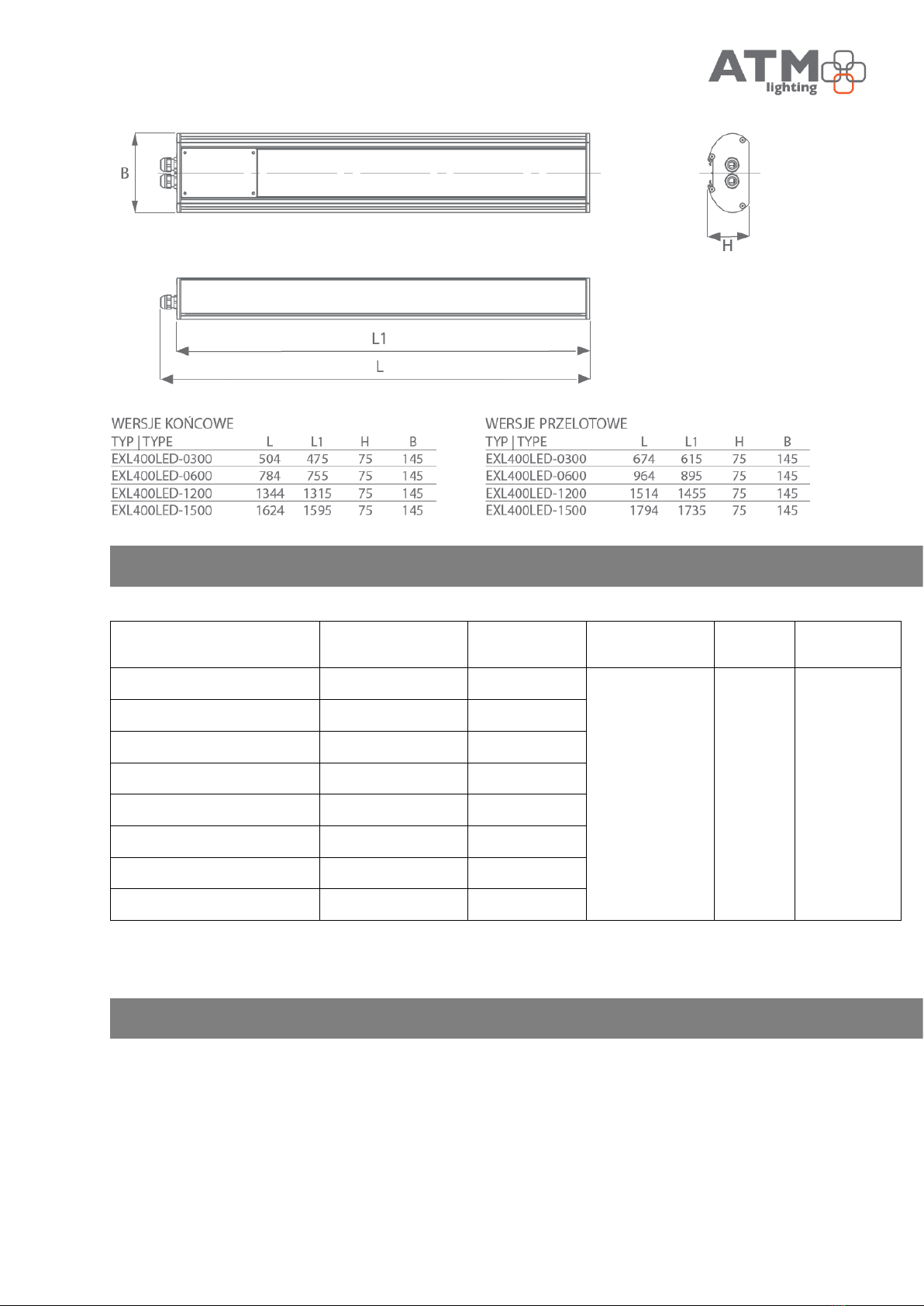

3. PHOTOMETRICAL DATA
Type
Luminous flux
- WB
Efficiency
Temperature
Color
CRI
Lifetime
EXL400LED-0300-I1
1591 lm
121 lm/W
4000K
5000K
6500K
>80
>50000 h
EXL400LED-0300-I2
3182 lm
121 lm/W
EXL400LED-0600-I2
3204 lm
121 lm/W
EXL400LED-0600-I4
6408 lm
121 lm/W
EXL400LED-1200-I4
6090 lm
115 lm/W
EXL400LED-1200-I8
12180 lm
115 lm/W
EXL400LED-1500-I5
7613 lm
115 lm/W
EXL400LED-1500-I10
15225 lm
115 lmW
Lifetime of a LED modules: L80B10
NB versions are ~5lm/W less efficient.
4. CONSTRUCTION DESCRIPTION
Light fittings are built according to common electrical engineering rules. The product meets the essential
requirements of the Directives and the harmonized standards listed in the EU Declaration of Conformity.
Used solutions and materials, electrical equipment and proper insulating spaces makes that during
normal exploitation there is no possibility any sparks, electrostatic charge, dangerous heating or light
fitting destruction caused by environment factors occurrence.

7Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
Light fittings are built as a one chamber equipment. Housing, endcaps and mounting tray are made of
aluminum. Sealing is made of silicone.
Used terminals ensures safe and non-sparking connection of inner wires and admission cables. The
diffuser is made of UV resistant polycarbonate (PC), PMMA or tempered glass.
5. PRELIMINAIRES
SAFETY RULES
•Carefully read all the information included in the manual before mounting the light fitting.
•General safety rules must be followed.
•Failure to comply with rules of the installation and use can lead to personal injury or property
loses. ATM Lighting sp. z o.o. company takes no responsibility in such cases.
•Failure to comply with rules included in manual results with void of the manufacturer warranty.
•Manufacturer takes no responsibility for any damages resulting from improper installation,
maintenance or improper use.
•It is the responsibility of the user to perform the installation in accordance with this manual and
the safety regulations and standards applicable to the type of installation
•In case of malfunction, the device must be turned off and returned for repair to the manufacturer
or his authorized entity.
Before performing any installation work, including opening the enclosure, be absolutely
sure to disconnect the unit from the power source
NECESSARY TOOLS

8Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]

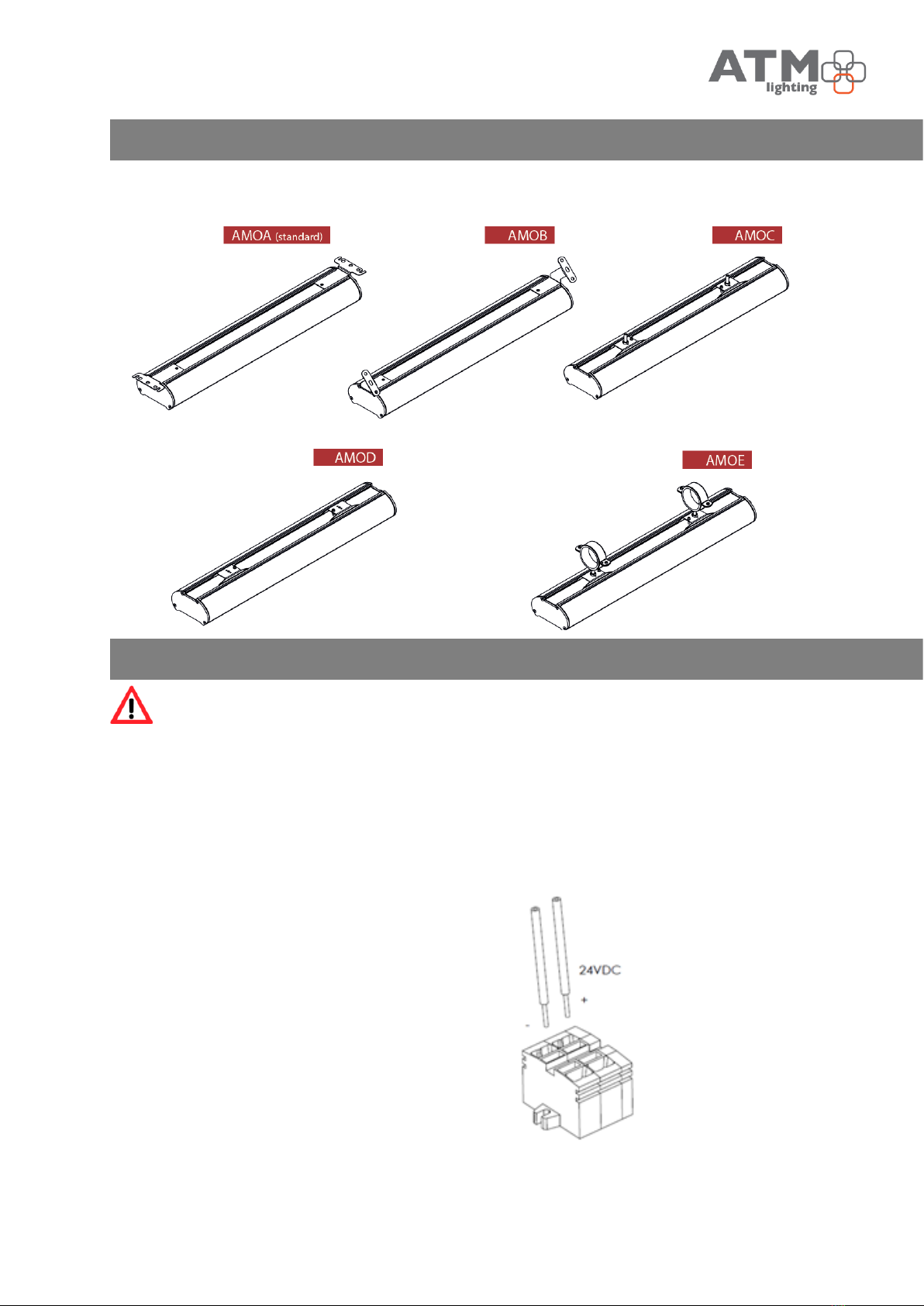

6. LIGHT FITTING MOUNTING
The EXL400LED luminaire should be fixed directly to the ceiling with screws. The size of the mounting
holes is Ø6mm. The spacing is adjustable by positioning the brackets.
7. ELECTRICAL CONNECTION
Installation and electrical connection should be in accordance with the requirements of PN-EN
60079-14.
To connect power supply:
•enter the power cable to the housing through the cable entry (gland),
•carefully unisolate the wires (8-10mm), and put it into the connector according to a label inside
the light fitting,
•precisely tighten power cable in the gland with two wrench,
•check the effectiveness of grounding.
Schemat podłączenia
zasilania:

9Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
Remark:
•Use one wrench to tighten the sealing nut, while using the second wrench to block gland body
against rotation, otherwise damage of the sealing can be caused and therefore sealing level
will be decreased.
8. CONDITIONS OF SAFETY USE
•Every light fitting must have label with rating data on it. Each light fitting is equipped with this
„Installation and maintenance manual”, which must be kept by user until the end of exploitation.
•Light fittings are designed for fixed installations only.
•Using light fitting outside the designated operating temperature range is unacceptable and will
decrease a lifetime of light fitting and/or damage it. It will also cause a loss of warranty.
Remark: Using light fitting beyond the designated operating temperature range may result in
the loss of explosion protection measures, such as exceed temperature class and explosion.
•Each light fitting must have a warning sign: „DO NOT OPEN UNDER VOLTAGE” on it.
•Admission cables must have 2-wires (without PE wire) and diameter 7-13mm
•Use power wires with cross section 1-2,5mm2.
•Maximum cross current I=16A.
•Depending on the version, the diffuser is made of tempered glass, PMMA or PC. Versions with
PC or PMMA diffusers should not be exposed to chemicals that can damage them, in particular:
oil, acetone, chlorine, ethyl, ether, solvents. If there is uncertainty about the substances present
in the luminaire's work area that could lead to damage to any of the components, then
determination measures should be taken. Luminaires fitted with a PC or PMMA diffuser shall
carry the warning label "Caution! Risk of electrostatic charge" (see point 11).
•Do not stare into working light source.
•Risk of electrical shock.
9. LIGHT FITTING MAINTENANCE AND SERVICING
REMARK: during the servicing and maintenance touching the LED are prohibited, because it will
decrease the lifetime of light fitting and cause the loss of manufacturer’s warranty.
It is recommended to carry out inspections of electrical equipment in accordance with the
requirements of PN-EN 60079-17.
INSPECTION: at least once a month. Inspection is made without opening the light fitting. User must
check admission cables condition (insulation damage, cracks, burns etc.). Cables must not have any
acute bends. Outside parts of the light fitting must be checked. No cracks or corrosion signs may occur.
Bolts used to mount light fitting should be properly tightened, washers mustn’t be cracked. Cleanliness
of outer surfaces and light fittings surroundings must be checked. Light fittings may not be soiled by

10 Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
paint or grease. Do not allow for dust (dirt) deposition on the light fitting. The readability of rating and
warning plates must be checked. Abnormalities found must be fixed.
SERVICE AND MAINTENANCE: at least once a year. Service and maintenance must be made with
power supply turned off. User must make inspection steps first. After opening: metal parts painting,
condition of inner wiring and its mounting, insulating materials, cable glands gaskets, terminals.
Abnormalities found must be fixed. Rating and warning plates must be cleaned. Surfaces of insulating
materials and covers must be clean.
VERIFICATION OF TECHNICAL CONDITION: at least once for 2 years. Power supply must be
switched off. Verification of technical condition must be proceeded outside of Ex zone. Light fitting must
be uninstalled. Besides all the examination from inspection, service and maintenance paragraphs
electrical examination from the inspection, service and maintenance paragraphs electrical examination
must be also made: light fitting current consumption, insulation examination, protective earthing
condition. Special attention must be paid to insulating parts condition. No crack or burns may occur.
Besides all the examination during inspection, service and maintenance paragraphs electrical
examination must be also made: light fitting current consumption, insulation examination, protective
earthing condition. Special attention must be paid to insulating parts condition. No crack or burns may
occur.
10. CLEANING
Do not allow dust to accumulate on the light fitting. Cleaning have to be carried out using
vacuum cleaners or a soft cloth with antistatic agent suitable to working conditions. Do not use
chemicals that can damage any part of the light fitting.
11. REPAIRING AND EXCHANGE PARTS
All parts considered as a spare parts must be ordered at manufacturer of light fitting. Additionally, the
replacement of the light source may be performed by ATM Lighting Sp. z o.o and specially trained
personnel, using original components supplied by ATM Lighting Sp. z o.o.
All repairs may be made only by manufacturer or authorized repair workshops according to PN-
EN 60079-19.
12. LIGHT SOURCE EXCHANGE
The light source used in this luminaire should be replaced only by the manufacturer or its service
representative, or a similarly qualified person, using original components supplied by ATM Lighting sp.z
o.o.
13. TRANSPORT AND CONDITIOINS OF STORAGE
During transport light fittings shouldn’t be exposed to precipitation or mechanical shock.
Light fittings may be storage only in sheltered warehouses, within +50C to +350C temperature range,
and relative humidity lower than 75%. No corrosion causing vapors or gases should be present

11 Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
14. DISPOSAL OF WASTE EQUIPMENT
User must obey relevant rules and regulations about disposal of wasted equipment valid in their
country.
15. WARRANTY
•It is forbidden to use a damaged or malfunctioning luminaire. Installation checks must be carried
out to detect any anomalies.
•It is required to disconnect power supply from the light fitting before any maintenance work.
•It is forbidden to make any changes to the light fitting construction. Any unauthorized
interference may result in reduced functionality or damage to the device and may in some cases
endanger life or health. At the same time it relives the manufacturer of all warranty liability.
•All specific information can be found in document „General terms and conditions warranty ATM
Lighting sp. z o.o.” available at the website www.atmlighting.pl/en/

12 Manual No.: I.EXL400LED.01 ATM Lighting sp. z o.o.,
Release date: 22.04.2021 ul. Budowlanych 31,80-298 Gdańsk,
Edition: 1.0 tel: [phone], fax: [phone]
ADDRESS:
ATM Lighting sp. z o.o. 
ul. Budowlanych 31 80-298 Gdańsk
tel: [phone]fax: [phone]
[email protected]l
