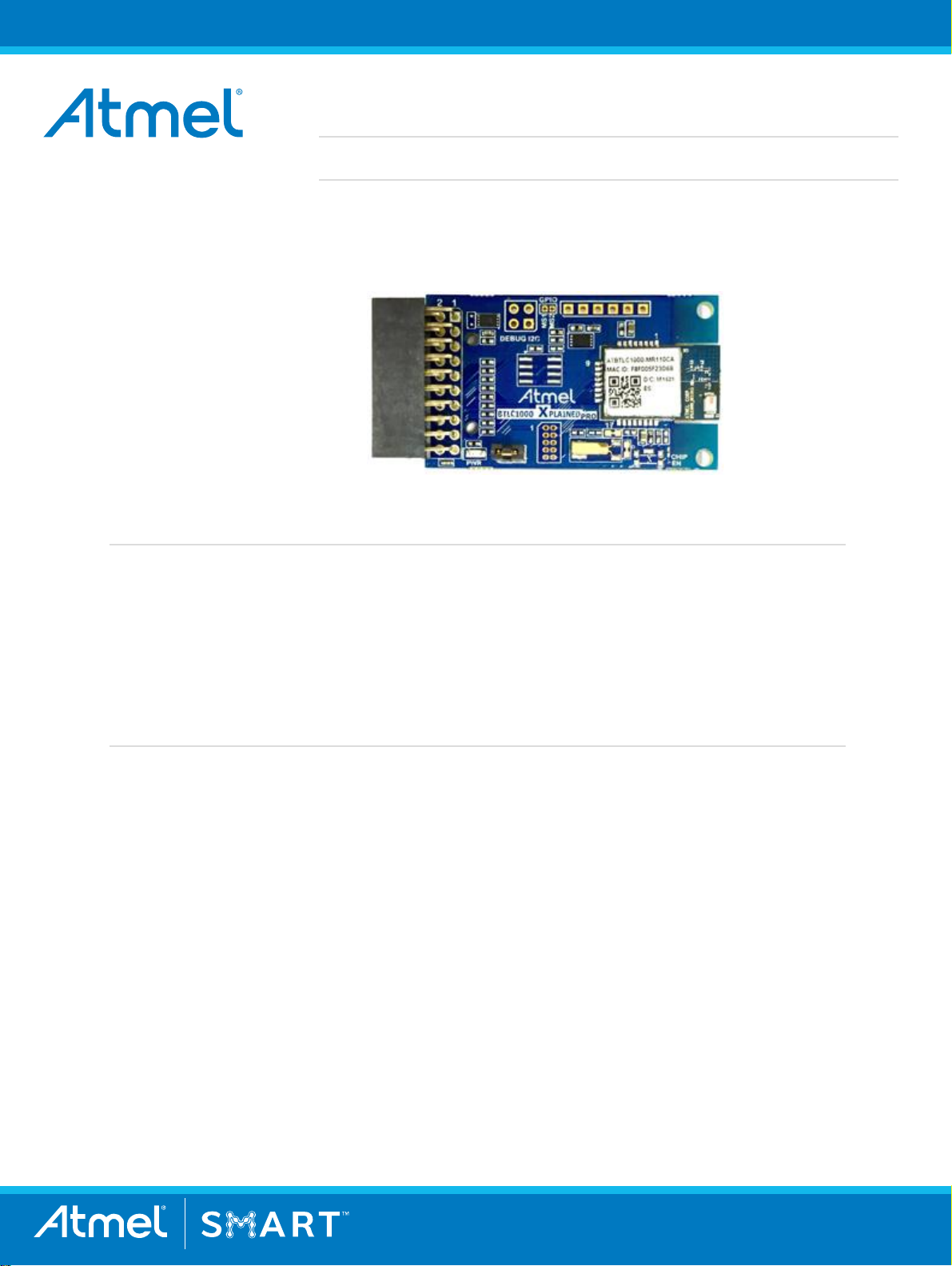

Atmel ATBTLC1000 BluSDK User manual

ATBTLC1000 BluSDK
Time Information Profile –Getting Started Guide
USER GUIDE
Introduction
This getting started guide describes the setup of Atmel ATBTLC1000 with a supported platform
bringing-up an example profile supplied as part of BluSDK release. The Bluetooth Time Information
Profile is an example profile application implementing BLE Time Service. The Bluetooth device when
connected with a compatible iPhone device supporting Time service reads the current time, date and day
information from the iPhone and displays it on the console. This example application also works with BLE
compatible Android devices running Atmel Smart Connect mobile application.
Features
Device Discovery and Disconnection
Pairing / Bonding
BLE Time Client
Console Logging
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
2
2
Table of Contents
1Description...................................................................................................................3
2Demo Setup .................................................................................................................4
3Supported Hardware Platforms and IDEs..................................................................4
4Hardware Setup...........................................................................................................5
5Software Setup ............................................................................................................7
5.1 Installation Steps...................................................................................................................................7
5.2 Build Procedure.....................................................................................................................................8
6Console Logging....................................................................................................... 12
7Running the Demo for iOS Devices.......................................................................... 13
8Running the Demo for Android devices...................................................................16

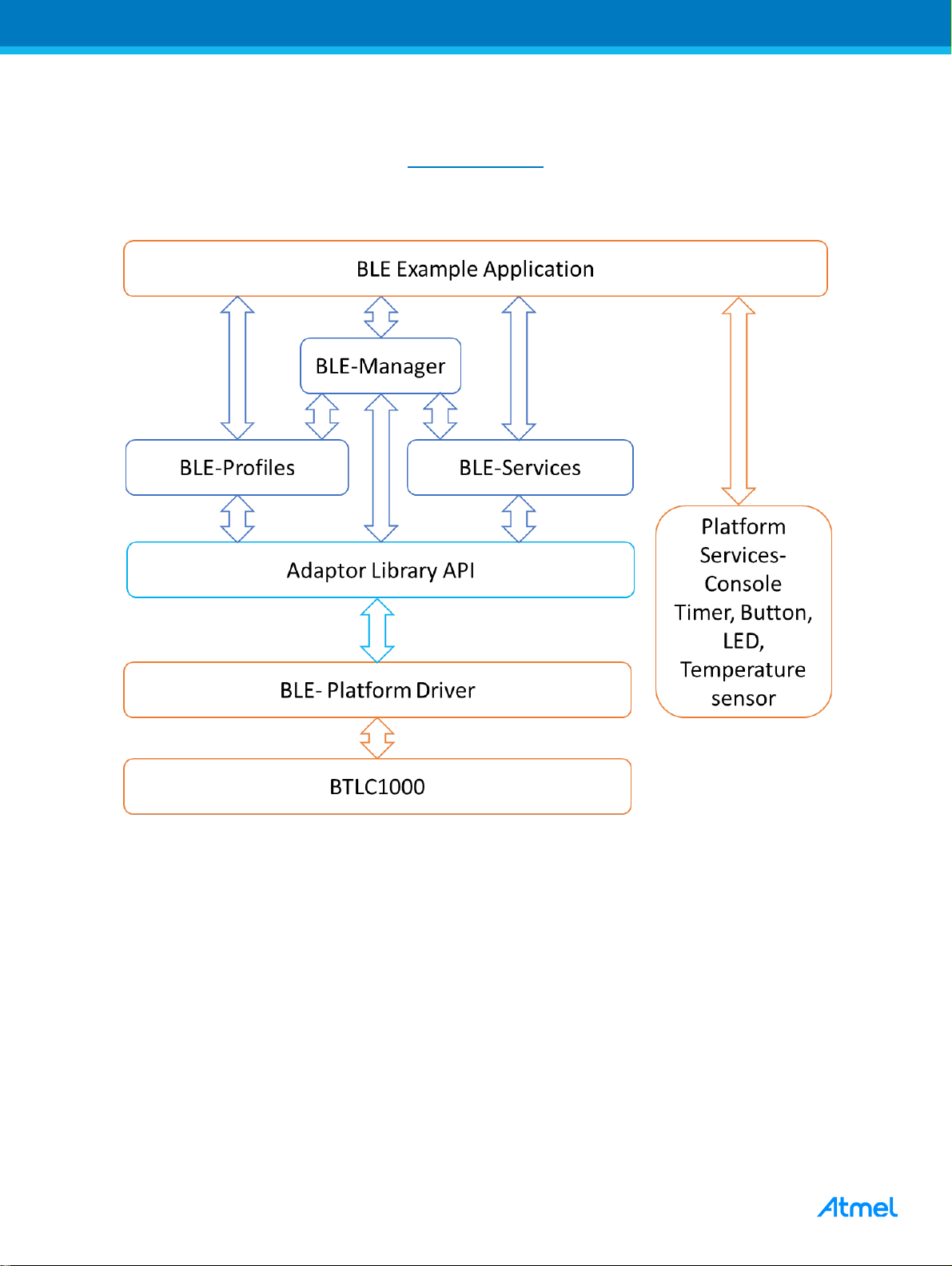

9BluSDK Software Architecture ................................................................................. 20
10 ATMEL EVALUATION BOARD/KIT IMPORTANT NOTICE AND DISCLAIMER........ 21
11 Revision History........................................................................................................22

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
3
3
1 Description
The Time Information Profile implements Time Service that is used to read the current time, date and day
information from an iPhone.
The profile defines two roles:
Time Client:
The Time Client is the device in peripheral role that reads the time, date and day information. This
is implemented in supported platform example application.
Time Server:
The Time Server is the device that provides the time related information.
The Time Service is supported natively in iOS 7.0 and above. For BLE compatible Android
devices, Atmel Smart Connect mobile application implements the Time Server.
This document explains the details about:
1. Getting started with the setup of supported platform.
2. Getting the Time Information Profile Application working on the above mentioned setup.
To test this profile example, an iPhone supporting iOS 7.0 (or above) or a BLE compatible Android phone
running Atmel Smart Connect mobile application.

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
4
4
2 Demo Setup
BLE LINK
3 Supported Hardware Platforms and IDEs
Table 3-1. BluSDK –Supported Hardware and IDEs
Platform
MCU
Supported
BLE device
Supported evaluation kits
Supported IDEs
SAM L21 (MCU)
ATSAML21J18B
ATBTLC1000
ATBTLC1000-XSTK
(ATSAML21-XPRO-B + ATBTLC1000
XPRO)
Atmel Studio v7.0
SAM L21 (MCU)
ATSAML21J18A
ATBTLC1000
ATSAML21 XPRO + ATBTLC1000
XPRO
Atmel Studio v7.0
SAM D21 (MCU)
ATSAMD21J18A
ATBTLC1000
ATSAMD21-XPRO + ATBTLC1000
XPRO
Atmel Studio v7.0
SAM G55 (MCU)
ATSAMG55J19
ATBTLC1000
ATSAMG55-XPRO + ATBTLC1000
XPRO
Atmel Studio v7.0
SAM 4S (MCU)
ATSAM4SD32C
ATBTLC1000
ATSAM4S-XPRO + ATBTLC1000
XPRO
Atmel Studio v7.0
iPhone
or
Android phone +
Smart Connect app
(Time Server)
BTLC1000+
Supported Atmel MCU
(Time Client)

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
5
5
4 Hardware Setup
SAM L21 Xplained Pro Time Information Setup
Figure 4-1. ATBTLC1000 Xplained Pro Extension Connected to a SAM L21 Xplained Pro
SAM D21 Xplained Pro Time Information Setup
Figure 4-2. ATBTLC1000 Xplained Pro Extension Connected to a SAM D21 Xplained Pro

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
6
6

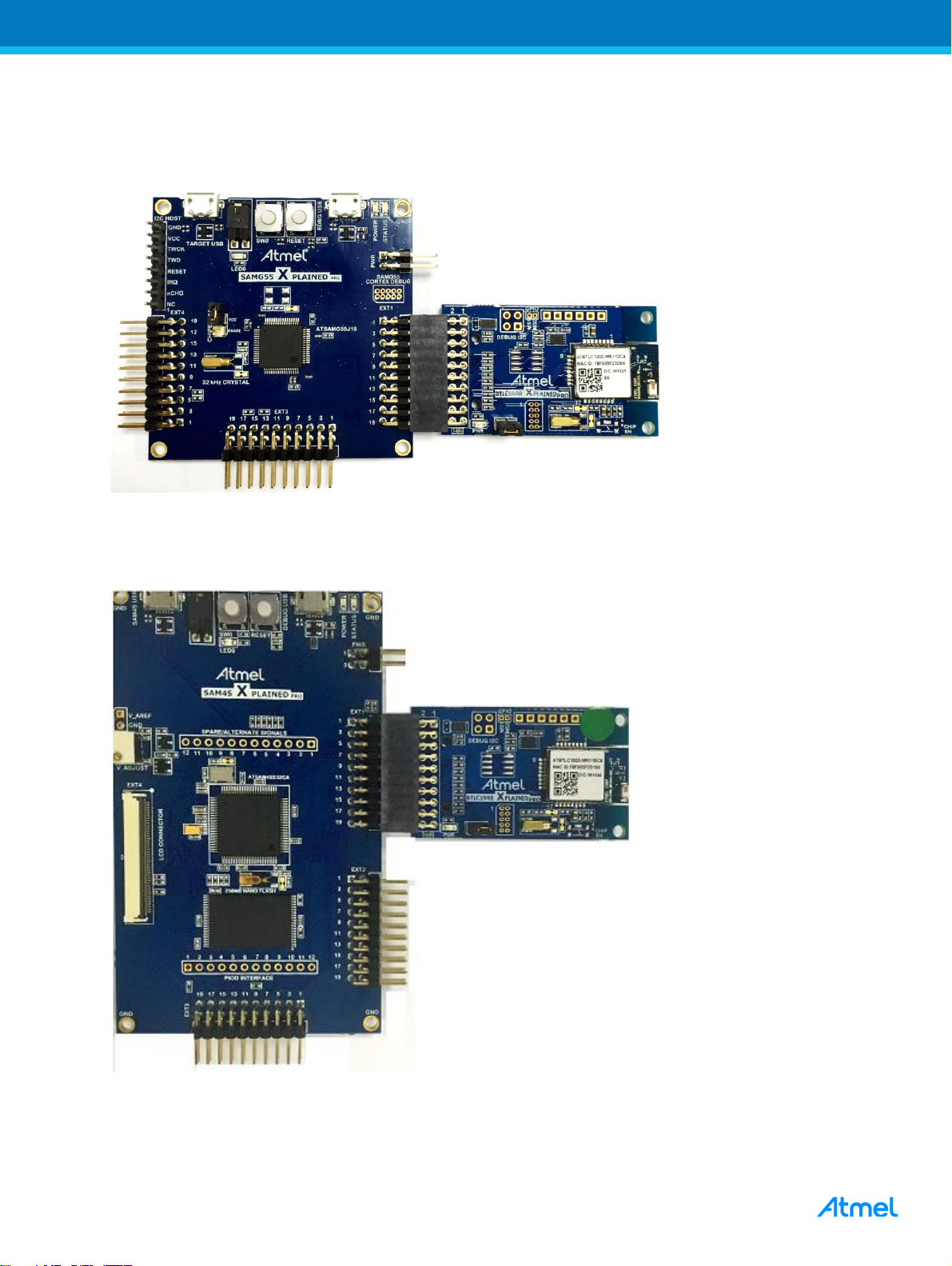

SAMG55 Xplained Pro Time Information Setup
Figure 4-3. ATBTLC1000 Xplained Pro Extension Connected to a SAM G55 Xplained Pro
SAM 4S Xplained Pro Time Information Setup
Figure 4-4. ATBTLC1000 Xplained Pro Extension Connected to a SAM 4S Xplained Pro

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
7
7
5 Software Setup
5.1 Installation Steps
1. Atmel Studio installation [Atmel Studio 7.0 (build 594) Installer –with .NET]
http://www.atmel.com/tools/atmelstudio.aspx
(Note: SAM L21 Rev B/SAM D21/SAM G55/SAM 4S part pack is built-in as part of Atmel Studio 7.0)
2. Atmel USB Driver Installer from http://www.atmel.com/tools/atmelstudio.aspx.
3. Install the standalone ASF package from
http://www.atmel.com/tools/AVRSOFTWAREFRAMEWORK.aspx.
Note: Refer to the BluSDK release notes for updates to version numbers of the components mentioned
above.
This package will install the following examples within the Atmel Studio environment.
1. Time Information Application for SAM L21.
2. Time Information Application for SAM D21.
3. Time Information Application for SAM G55.
4. Time Information Application for SAM 4S.

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
8
8
5.2 Build Procedure
The following procedure is explained for SAML21 application example. The same procedure is valid for
the case of all the other supported platform as well.
Select New Example Project
Figure 5-1. Creating a New Project

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
9
9
1. Enter “Time Information” in search window and expand Atmel Corp Projects. The location and the
name of the project can be selected in the respective fields. Click OK
Figure 5-2. Selecting TIP Application from Example Projects
2. Accept the license Agreement. The studio will generate the Time Information Profile project for
SAM L21.

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
0
10
3. Before building the solution, if the user is working with android devices user should make sure that
there shall be a compiler symbol ” TP_ANDROID” and if user is working with iOS devices the same
complier symbol should be renamed as “NTP_ANDROID” as shown below.

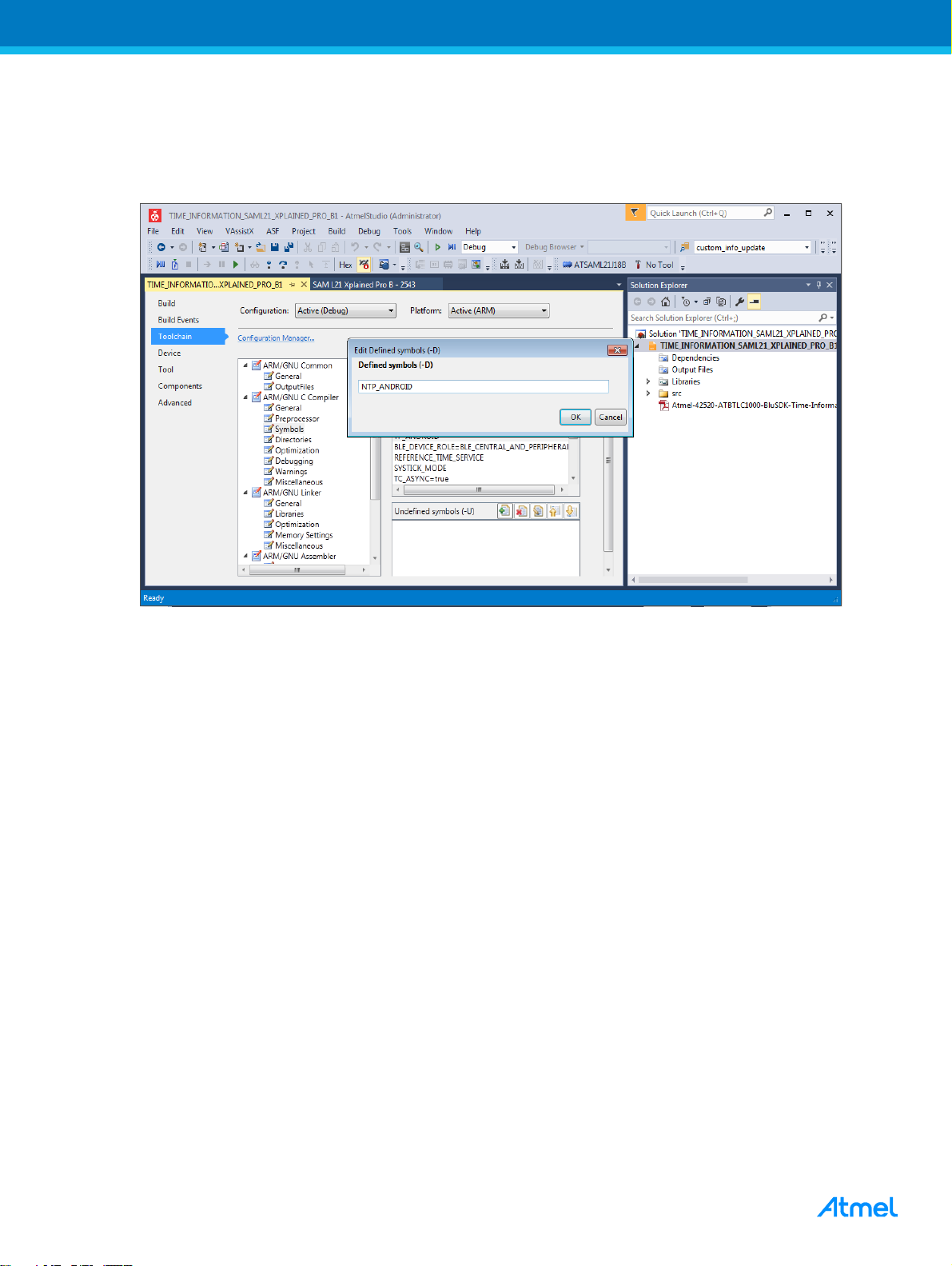

Figure 5-3. Editing Compiler Symbols
Note: iOS requires the device supporting Time Profile to include service solicitation advertisement type
in the advertisement data. The above setting provides configurability to build the Time Profile for
iOS or for Android. iOS natively supports Time Server and does not require a specific mobile
application. To enable devices to be displayed in the iOS BLE devices page, the service
solicitation advertisement data type configuration is necessary.
4. Build the solution.

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
1
11
Figure 5-4. Building the TIP Application
5. Download the application via the USB to the SAML21 board using Device Programming option
available in Tools as mentioned below.
Figure 5-5. Select Device Programming

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
2
12
6. In the device programming tab, the user has to select the correct configuration for device and finally
program the device using program button.
Figure 5-6. Flash Programming
7. Once the application is flashed, the Time Information client is ready for usage.
6 Console Logging
For the purpose of debugging, a logging interface had been implemented in the Time Information
Application.
The logging interface utilizes the same EDBG port that connects to supported platform. A serial port
monitor application (for example TeraTerm) shall be opened and attached to the corresponding COM
port enumerated on the PC by the device.

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
3
13
7 Running the Demo for iOS Devices
1. The device must be flashed with the Time information client image built with the compiler symbol
“NTP_Android” to be compatible with iOS devices.
2. Power on the SAM L21+ATBTLC1000 setup by connecting the USB Cable as indicated in Figure 1
3. Open the console using TeraTerm or any serial port monitor application and connect to the
corresponding COM port enumerated by the device on the PC. (Settings: Baudrate 115200, None
Parity, 1 Stop bit, 1 Start bit, No Hardware Handshake)
4. Press the Reset button on the SAML21 or supported platform board.
5. The device is now in advertising mode.
Figure 7-1. Display for Advertising Mode
6. On the iPhone, enable Bluetooth in the Settings page. The phone will start to scan for devices.
ATMEL-TIP will be appear amongst the devices scanned. Click on ATMEL-TIP to connect to the
SAM L21 or supported platform +ATBTLC1000 device.
Figure 7-2. Atmel TIP Device Discovery on iPhone
7. Once connected, on the client side will request for pairing procedure with iPhone. The console log
provides guidance to the user to enter the pass-key on iPhone.
Figure 7-3. Display for Connection and Pairing Info

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
4
14
8. On iPhone side, a pop-up screen prompting the user to enter the pass-key will appear. Enter
‘123456’ in the text box and click on ‘Pair’.
Figure 7-4. Pairing Request Pop-up on iPhone
9. Once the device is connected. ATMEL-TIP will appear in the MY DEVICES section on the iPhone.
Figure 7-5. Pairing Request Pop-up on iPhone

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
5
15
10. Press the SW0 button on SAML21 or supported platform to read the internally supported
characteristic values from iPhone.
Figure 7-6. Button for Reading Time Information
11. The console log on ATBTLC1000+SAML21 or supported platform will display the values for all
characteristics supports by Iphone internally.
Figure 7-7. Console Display –Date, Time, and Day Information

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
6
16
8 Running the Demo for Android devices
1. The device must be flashed with the Time information client image built with the compiler symbol
“TP_Android” to be compatible with BLE compatible Android devices running Atmel Smart Connect
application.
2. Power on the SAM L21+ATBTLC1000 setup by connecting the USB Cable as indicated in Figure 1
3. Open the console using Teraterm or any serial port monitor application and connect to the
corresponding COM port enumerated by the device on the PC. (Settings: Baudrate 115200, None
Parity, 1 Stop bit, 1 Start bit, No Hardware Handshake)
4. Press the Reset button on the SAML21 or supported platform board.
5. The device is now in advertising mode.

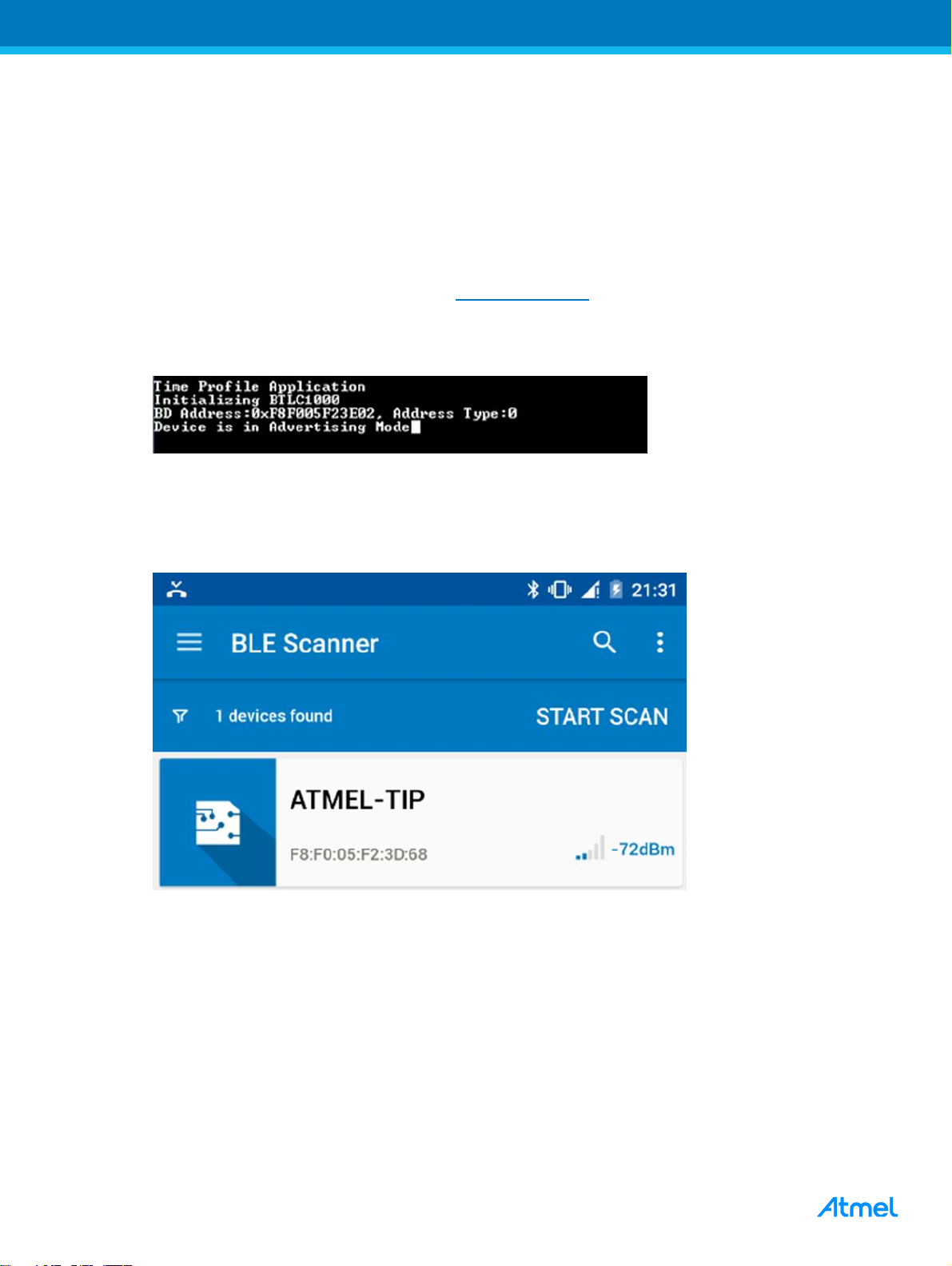

Figure 8-1. Display for Advertising Mode
6. On the Android device, enable Bluetooth in the Settings page. Use the Atmel Smart Connect
application to scan for peripheral devices. A device with name ‘ATMEL-TIP’ will appear amongst
the list of scanned devices
Figure 8-2. ATMEL-TIP Device Discovered by Atmel SMART Application

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
7
17
7. Once connected, on the client side will request for pairing procedure with Android device. The
console log provides guidance to the user to enter the pass-key on device.
Figure 8-3. Display for Connection and Pairing Info
8. On device side, a pop-up screen prompting the user to enter the pass-key will appear. Enter
‘123456’ in the text box and click on ‘OK’
Figure 8-4. Pairing Request Pop-up on Android Phone

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
8
18
9. Once the device is connected. User can see the services as shown below.

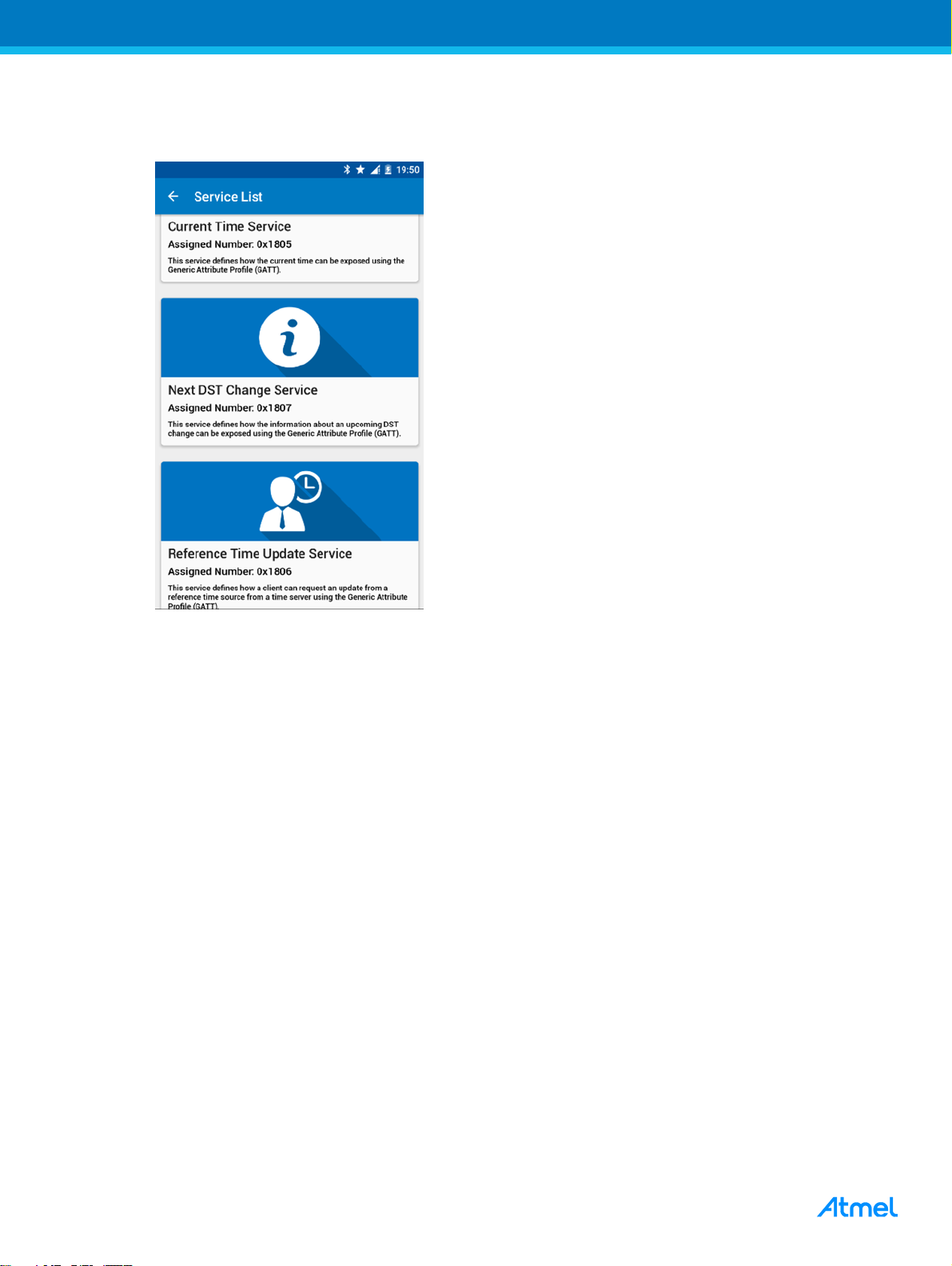

Figure 8-5. Services of Time Information Profile
10. User has to click on the services to read the characteristic values.

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
1
9
19
11. Press the SW0 button on SAML21 or supported platform to read the internally supported
characteristic values from device as shown in figure below.
Figure 8-6. Button for Reading Time Information
12. The console log on ATBTLC1000+SAML21 or supported platform will display the values for all
characteristics supports by the device.
Figure 8-7. Console Display - All Supported Characteristic Values

Time Information Profile –Getting Started Guide [USER GUIDE]
Atmel-42520C-ATBTLC1000-BluSDK-Time-Information-Profile-Getting-Started-Guide_USERGUIDE_022016
2
0
20
9 BluSDK Software Architecture
The following diagram illustrates the various layers in the BLE subsystem for the ATBTLC1000
configuration. The External host can be supported platform. The application in this example is Time
Information Application.
Figure 9-1. BluSDK Software Architecture
