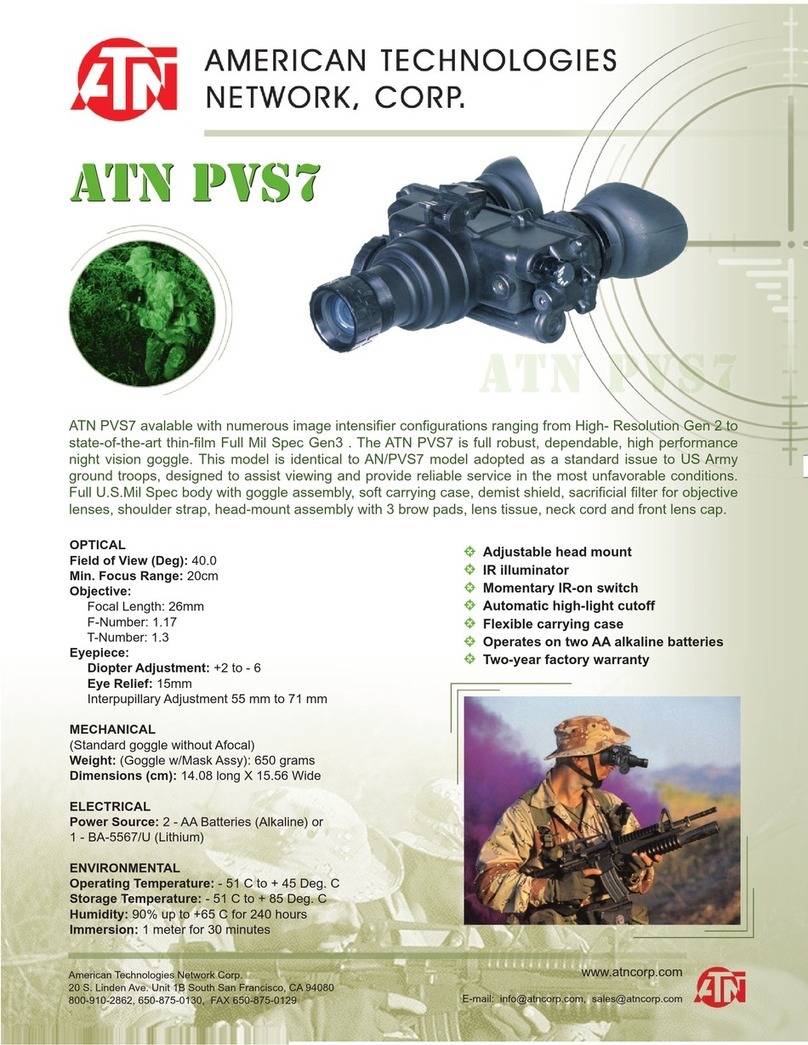

ATN PVS-7 User manual

NIGHT VISION GOGGLES
operator’s manual
Important Export Restrictions! Commodities,
products, technologies and services contained in
this manual are subject to one or more of the export
control laws and regulations of the U.S. Government
and they fall under the control jurisdiction of either the
US Department of State or the US BIS-Department
of Commerce. It is unlawful and strictly prohibited
to export, or attempt to export or otherwise transfer
or sell any hardware or technical data or furnish any
service to any foreign person, whether abroad or
in the United States, for which a license or written
approval of the U.S. Government is required, without
first obtaining the required license or written approval
from the Department of the U.S. Government having
jurisdiction. Diversion contrary to U.S. law is prohibited.
ATN PVS-7
OPERATOR’S MANUAL (PVS-7) REVISION 3 - APRIL 2009

The information in this manual furnished for information use only, is subject to
change without notice, is not to be construed as a commitment by ATN Corp.
ATN Corp. assumes no responsibility or liability for any errors or
inaccuracies that may appear in this book.
© 2009 ATN Corp. All right reserved.
Register your product warranty online at
www.atncorp.com/warranty

a
SAFETY SUMMARY
CAUTIONS
• The ATN PVS-7 is a precision optical instrument and should be
handled carefully to prevent its damage.
• Do not scratch the external lens surfaces or touch them with your
fingers.
• To protect the image intensifier, keep the lens cap on the objec-
tive lens on when the device is not in use or when it is checked out
in daylight conditions.
• The IR illuminator produces a light that is invisible to a naked
eye for use in conditions of extreme darkness. However, this IR
light can be detected by somebody else who use a night vision
device.
• If you use the rubber eyecups for a long time period, you may
suffer from skin inflammation. If you find any symptoms, consult a
doctor immediately.
This producT conTains naTur al rubber laTex which
may cause allergic reacTions.
CAUTION:

b
NOTES
• Do not test the device in daylight conditions even with the day-
light filter/lens cap on for more than ten (10) minutes.
• To protect the device from damage do not direct it to the bright
light sources (a fire, headlights of the automobile, lanterns, etc.).
• The purpose of the built-in IR illuminator is to view at close dis-
tances up to 3 meters when additional illumination is needed.
• The unit is equipped with the Automatic Shut-off System. This
system tracks when the unit is not used (the controls are not
touched for 60 minutes continuous) and shuts the unit off auto-
matically.
To turn the unit on after automatic shut off, you need to rotate the
operation knob to the OFF position first and then to the ON posi-
tion.

c
EQUIPMENT LIMITATIONS
To avoid physical and equipment damage when using the
ATN PVS-7, carefully read and understand the following equip-
ment limitations.
• The equipment requires some night light (moonlight, starlight,
etc.) to operate. The level of equipment performance depends
upon the level of light.
• Night light reduces by passing through the clouds, while operat-
ing under trees, at building shadows, etc.
• The equipment is less effective when viewing into shadows and
other darkened areas.
• The equipment is less effective when viewing through the rain,
fog, sleet, snow or smoke.
• The equipment will not “see” through the dense smoke.

i
TABLE OF CONTENTS
pg.
SAFETY SUMMARY a
CHAPTER 1: Introduction 1-1
Section I: General Information 1-2
1-1 Scope 1-2
1-2 Reporting Equipment Improvement
Recommendations (EIR) 1-2
1-3 Glossary 1-2
1-4 Administrative Stowage 1-4
Section II: Equipment Description 1-5
1-5 Equipment Characteristics, Capabilities
and Features 1-5
1-6 Equipment Capabilities 1-8
1-7 Specifications 1-8
Section III: Operation principles 1-11
1-8 Mechanical Functions 1-11
1-9 Optical and Electrical Functions 1-12
1-10 Consumable Items 1-13
CHAPTER 2: Operating Instructions 2-1
Section I: Operating Procedures 2-2
2-1 General 2-2
2-2 Controls and Indicators 2-2
Section II: Preventive Maintenance Checks
and Services (PMCS) 2-5
2-3 Purpose of PMCS 2-5
2-4 Frequency of Performing PMCS 2-5
2-5 Performance of PMCS 2-5
Section III: Assembly and Preparation 2-10
2-6 Preparation of Use 2-10
2-7 Installation of the Quick Disconnect
Helmet Mount Assembly 2-20
2-8 Operating Procedures 2-22
2-9 Preparation for Stowage 2-29

ii
CHAPTER 3: Maintenance Instructions 3-1
Section I: Troubleshooting Procedures 3-2
3-1 Troubleshooting 3-2
Section II: Maintenance Procedures 3-6
3-2 Cleaning the PVS-7 3-6
3-3 Head Mount Maintenance 3-6
APPENDIX A: System Optional Equipment A-1
FOR TECHNICAL INFORMATION INFO-1

iii

1-1
CHAPTER 1
INTRODUCTION

1-2
SECTION I: GENERAL INFORMATION
1-1 SCOPE
This manual provides operation and maintenance instructions for
the PVS-7 Night Vision Goggle (which shall be designated a gog-
gle or PVS-7 throughout this manual). The PVS-7 is a self-con-
tained night vision device that enables improved night vision us-
ing ambient light from the night sky (moon, stars, sky glow, etc.).
1-2 REPORTING EQUIPMENT IMPROVEMENT
RECOMMENDATIONS (EIR)
Reports from the user on recommendations for improvements are
encouraged. Send reports to the address below:
American Technologies Network Corp.
1341 San Mateo Avenue
South San Francisco, CA 94080
[phone]
[phone]
[phone] fax
www.atncorp.com
[e-mail]
1-3 GLOSSARY
BLACK SPOTS. These arc cosmetic blemishes in the image in-
tensifier of the PVS-7 or dirt or debris between the lenses.
BRIGHT SPOTS. These can be defects in the image area pro-
duced by the PVS-7 . This condition is caused by a flaw in the film
on the micro-channel plate. A bright spot is a small, non-uniform,
bright area that may flicker or appear constant. Bright spots usu-
ally go away when the light is blocked out and arc cosmetic blem-
ishes that are signal induced.
BROWPADS. Three hook-and-pile browpads are provided to ad-
just the head mount to fit different head sizes. The thin brow pad
(fits on a large head) comes attached to the head mount and the
thick or medium (fits on a smaller head) brow pads are stored in
the carrying case.
