ATN PIAF 10E 2018 Guide

1NO0055UK-00 Rev 03/2018
Lieu –Dit Bacqué, rue André Thevet
47400 FAUILLET - FRANCE
Tél: [phone]
Fax: [phone]
Email: [email protected]
www.atnplatforms.com
Safety
and
Maintenance Manual
Translation of the original manual

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
2
DISTRIBUTOR STAMP

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
3
DANGER
DO NOT USE THIS MACHINE IF YOU
HAVE NOT BEEN PROPERLY TRAINED
TO ITS SAFE OPERATION. TRAINING
INCLUDES KNOWLEDGE OF YOUR
EMPLOYER’S WORK REGULATIONS,
THE INSTRUCTIONS IN THIS MANUAL
AND THE REGULATION IN FORCE FOR
THIS TYPE OF MACHINE.
AN UNTRAINED OPERATOR PUTS
HIMSELF AND OTHERS AT RISK OF
DEATH OR SERIOUS INJURIES.
DANGER
IN WORK MODE, THE PLATFORM CAN
ONLY BE DRIVEN ON HARD AND
HORIZONTAL GROUNDS FREE FROM
ANY OBSTACLE.
ALL 4 WHEELS MUST BE IN
PERMANENT CONTACT WITH THE
GROUND. THE LOAD MUST BE
DISTRIBUTED IN THE PLATFORM AND
NOT EXCEED THE RATED LOAD
INDICATED BY THE MANUFACTURER
WHATEVER THE POSITION OF THE
MAST OR JIB.
THE MAXIMUM RATED LOAD IS
INDICATED ON THE MANUFACTURER
PLATE OF THE MACHINE.

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
4
FOREWORD
This manual has been compiled to assist to properly use and maintain your self-propelled work
platform.
Take the time to carefully read and familiarise yourself with its content. Once you have read and
understood all sections, keep this manual in the manual storage box provided to this effect in the
PIAF platform.
This work platform has been designed to offer maximum performance with minimum maintenance.
Respect of these maintenance operations will give you years of trouble-free operation.
The maintenance procedures are supplied in this manual in the MAINTENANCE Chapter.
The information in this manual does not, in any case, replace community, state, local regulations
or safety instructions or insurance policy requirements.
This manual contains the following main parts:
Chapter I: Operation and Safety
It covers:
- The starting and operating conditions for the machine.
- The operating instructions of the machine.
Chapter II: General Maintenance and Service
This part is to help you respect maintenance rules, to maintain your machine and detect potential
breakdowns.

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
5
This manual includes the main safety rules as well as important information relating to the
operation of ATN aerial work platforms, model PIAF 10E .
DESCRIPTION OF THE AERIAL WORK PLATFORM
This aerial work platform consists of a self-propelled all-welded steel frame. Two electric motors
ensure the drive function. Steering is accomplished by a hydraulic cylinder. A mini power unit
provides the power to supply the elevation functions. The electric energy is provided by 4 6V-
batteries with a total voltage of 24 volts.
In working mode, the work platform can only be driven on compact horizontal grounds free from
any obstacles. All four wheels must be in permanent contact with the ground. The load must be
distributed in the platform, and cannot exceed the rated load determined by the manufacturer,
whatever the position of the mast or jib. The rated load is indicated on the machine’s manufacturer
plate.
ON DELIVERY...
You must immediately carry out an overall check and note everything that might appear suspect or
abnormal.
In particular, check the following:
- Enable pedal
- Emergency stop(s)
- Drive / steer control joystick
- Jib elevation / lowering and structure rotation
- Mast elevation lowering control switch
Should you find a non-conformity…
Write immediately a claim and send a copy to ATN and to the transport company.
You have 48 hours after the delivery to file your claim.
WARNING
DO NOT REPAIR, MODIFY OR ADJUST
ANY PART OF THE MACHINE
WITHOUT PRIOR WRITTEN
AGREEMENT FROM ATN
. THIS
WOULD INVALIDATE THE WARRANTY.

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
6
DANGER
DO NOT USE THIS MACHINE IF YOU
HAVE NOT BEEN TRAINED TO ITS
SAFE OPERATION.
DANGER
READ THE OPERATOR’S AND SAFETY
MANUAL BEFORE OPERATING THE
MACHINE.

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
7
GUARANTEE
FOR ANY NEW EQUIPMENT, THERE IS NO GUARANTEE, EXPLICIT OR IMPLICIT, OTHER
THAN THAT OF THE SELLER COVERING FAULTY MATERIAL OR THE DEFECTS OF
FABRICATION DRAWN UP IN THE FOLLOWING TERMS:
GUARANTEE OF NEW EQUIPMENT
“The Manufacturer guarantees each new product against any faulty material or defect of
fabrication, as his obligation and responsibility are limited under this guarantee to the repair or
replacement free of charge in his factory of any part recognized as defective in normal use and
upkeep, and the reasonable cost of repair and/or replacement of the said parts within twenty four
(24) months from the initial date of sale (5 years for steel structure) or rental with possible
purchase option, with the proviso that the start-up of the equipment by the Distributor has been
recorded by the Manufacturer.
In the case of absence of record at the Manufacturer, the date retained as the initial date of sale
or rental with possible purchase option is that on which the equipment was delivered from the
factory. This guarantee replaces any other explicit or implicit guarantee and the obligation and
the responsibility of the Manufacturer in the terms of this guarantee exclude the transport
charges or others, or any responsibility for damage whether direct, indirect or consecutive as
well as any delay due to the possible defect. This fact does not extend, for all that, the duration
of the guarantee of both the machine and the parts replaced. The guarantee is thus cancelled in
the case of use beyond its capacities or in conditions unintended by the Manufacturer, or in the
case of use of parts which have not received the approval of the said Manufacturer
THIS GUARANTEE EXPRESSLY REPLACES ANY OTHER GUARANTEE EXPLICIT OR
IMPLICIT, INCLUDING ANY IMPLICIT GUARANTEE OF MARKETING OR APPROPRIATE
ADAPTATION TO A GIVEN APPLICATION AND ANY OTHER OBLIGATION OR
RESPONSIBILITY ON BEHALF OF THE SELLER.
FOR THE ATTENTION OF THE CLIENT / OPERATOR
Should this work platform be involved in an accident, please contact your distributor immediately
and indicate all the details of the accident. If you do not have a distributor or should he be not
available, please contact:
Tel: [phone]
Fax: [phone]
Adresse: LD Bacqué, rue André Thevet, 47400 Fauillet, France

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
8

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
9
A.T.N. - S.A.
Head office: Lieu Dit Bacqué –Rue André Thevet, 47400 Fauillet, France
Administrative and accounting: Lieu Dit Bacqué –Rue André Thevet, 47400 Fauillet, France
RCS Agen 429 807 597 –Code APE/ 2822Z –SIRET 429 807 597 00068 - Capital 57900 €
EC CONFORMITY DECLARATION
The manufacturer: A.T.N. declares that the machine designated below:
Denomination .................................................................. PEMP (Mobile Elevating Work Platform)
Function ............................................................................. Elevation of people for work at heights
Type......................................... Electric vertical mast Elevating Work Platform (Group B –Type 3)
Model and commercial designation …………………………………………................ PIAF 10E
Serial number...........................................................................................................P10xx- - -
meets all of the relevant provisions in the appendix at the end of the 1st chapter in book III of the
fourth section of the employment code (Machine Directive 2006/42/CE of 17th May 2006),
also meets other relevant provisions such as EMC directive 2014/30/UE of 26th February 2014
and the noise emission directive 2000/14/CE of 8th May 2000.
This machine also conforms to standard NF EN280.
The EC type certificate has been issued by:
APAVE
13 à 17 rue Salneuve
75854 PARIS CEDEX 17
Under the reference:
0060/5253/760/02/17/0012
The technical file has been compiled by:
Jean-François DUCLOS
(for ATN)
ZI Guillaume Mon Amy
47400 FAUILLET (France)
Fauillet, 02/01/2019
Note : any modification to the material designated above voids this declaration.
1DQ0099UK-00

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
10

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
11
TABLE OF CONTENTS
Chapter I.............................................................................................................................................. 13
OPERATION AND SAFETY .................................................................................................................. 13
SECTION 1. GENERAL DESCRIPTION .......................................................................................15
1.1. MACHINE DESCRIPTION, DIMENSIONS..................................................................................... 15

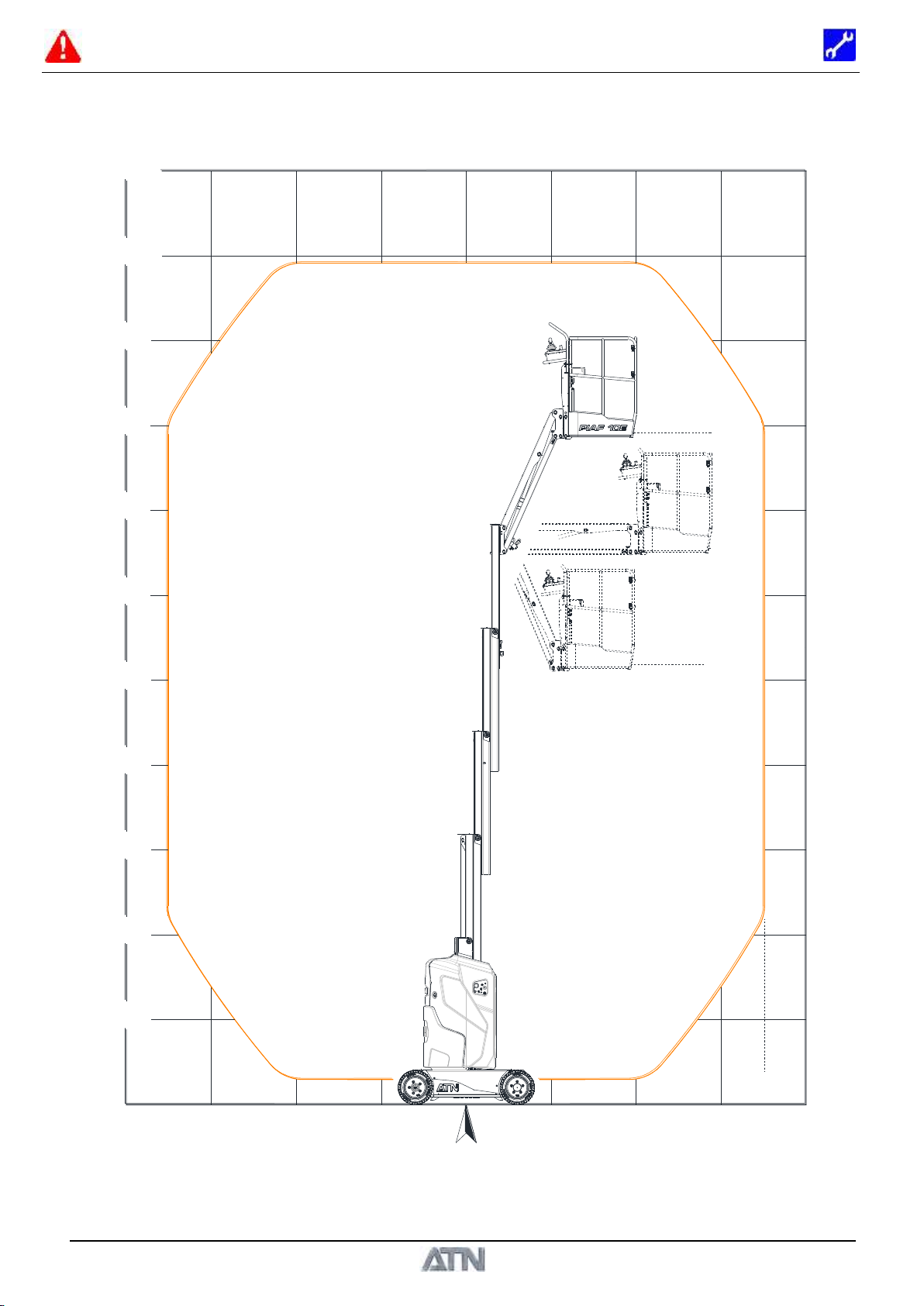

1.2. RANGE DIAGRAMMES................................................................................................................... 15
1.3. TECHNICAL CHARACTERISTICS.................................................................................................. 17
SECTION 2. SAFETY INSTRUCTIONS........................................................................................19
2.1. THE OPERATOR.............................................................................................................................. 20
2.2. INSPECTION OF THE WORK PLACE........................................................................................... 20
2.3. MACHINE STABILITY..................................................................................................................... 21
2.4. FALLING HAZARD.......................................................................................................................... 22
2.5. CRUSHING HAZARD...................................................................................................................... 22
2.6. ELECTROCUTION HAZARD.......................................................................................................... 22
2.7. OPERATING LIMITATIONS............................................................................................................ 23
2.8. MAINTENANCE............................................................................................................................... 23
SECTION 3. PREPARATION AND INSPECTION.........................................................................25
3.1 INSPECTION BEFORE START UP.................................................................................................. 25
3.2 INSPECTION TOUR ......................................................................................................................... 25
SECTION 4. OPERATION.............................................................................................................27
4.1. CONTROL STATIONS...................................................................................................................... 27
4.2. BREAKDOWN CONTROLS............................................................................................................. 32
4.3. SAFETY DEVICES AND ALARMS .................................................................................................. 35
4.4. STARTING........................................................................................................................................ 36
4.5. TRANSPORTATION OF THE PLATFORM..................................................................................... 39
SECTION 5. REGULATIONS........................................................................................................41
5.1. VERIFICATION DURING COMMISSIONNING............................................................................. 41
5.2. PERIODIC VERIFICATIONS IN FRANCE..................................................................................... 41
5.3. ADEQUATION................................................................................................................................. 41

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
12
Chapter II............................................................................................................................................ 43
MAINTENANCE................................................................................................................................... 43
SECTION 1. MECHANICS ............................................................................................................45
1.1. CHASSIS ON WHEELS.....................................................................................................................45
1.2. MAST SECTIONS..............................................................................................................................50
1.3. JIB AND CYLINDER.........................................................................................................................54
1.4. PLATFORM AND PLATFORM SUPPORT......................................................................................55
1.5. STRUCTURE.....................................................................................................................................57
1.6. TORQUE VALUES............................................................................................................................59
SECTION 2. HYDRAULICS...........................................................................................................60
2.1. HYDRAULIC POWER UNIT ............................................................................................................60
2.2. LUBRICATION..................................................................................................................................64
2.3. HYDRAULIC SCHEMATIC..............................................................................................................66
SECTION 3. ELECTRICS..............................................................................................................67
3.1. BATTERIES.......................................................................................................................................67
3.2. CHARGER.........................................................................................................................................70
3.3. BATTERY DISCHARGE INDICATOR AND HOURMETER............................................................73
3.4. ELECTRIC MOTOR..........................................................................................................................74
3.5. CONTACTOR....................................................................................................................................74
3.6. TILT INDICATOR.............................................................................................................................75
3.7. CHAIN SLACK SENSORS................................................................................................................75
3.8. OVERLOAD DETECTION................................................................................................................76
3.9. GENERAL INSPECTION CHECKLIST............................................................................................77
3.10. ELECTRIC SCHEMATIC................................................................................................................78

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
13
Chapter I
OPERATION AND SAFETY

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
14

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
15

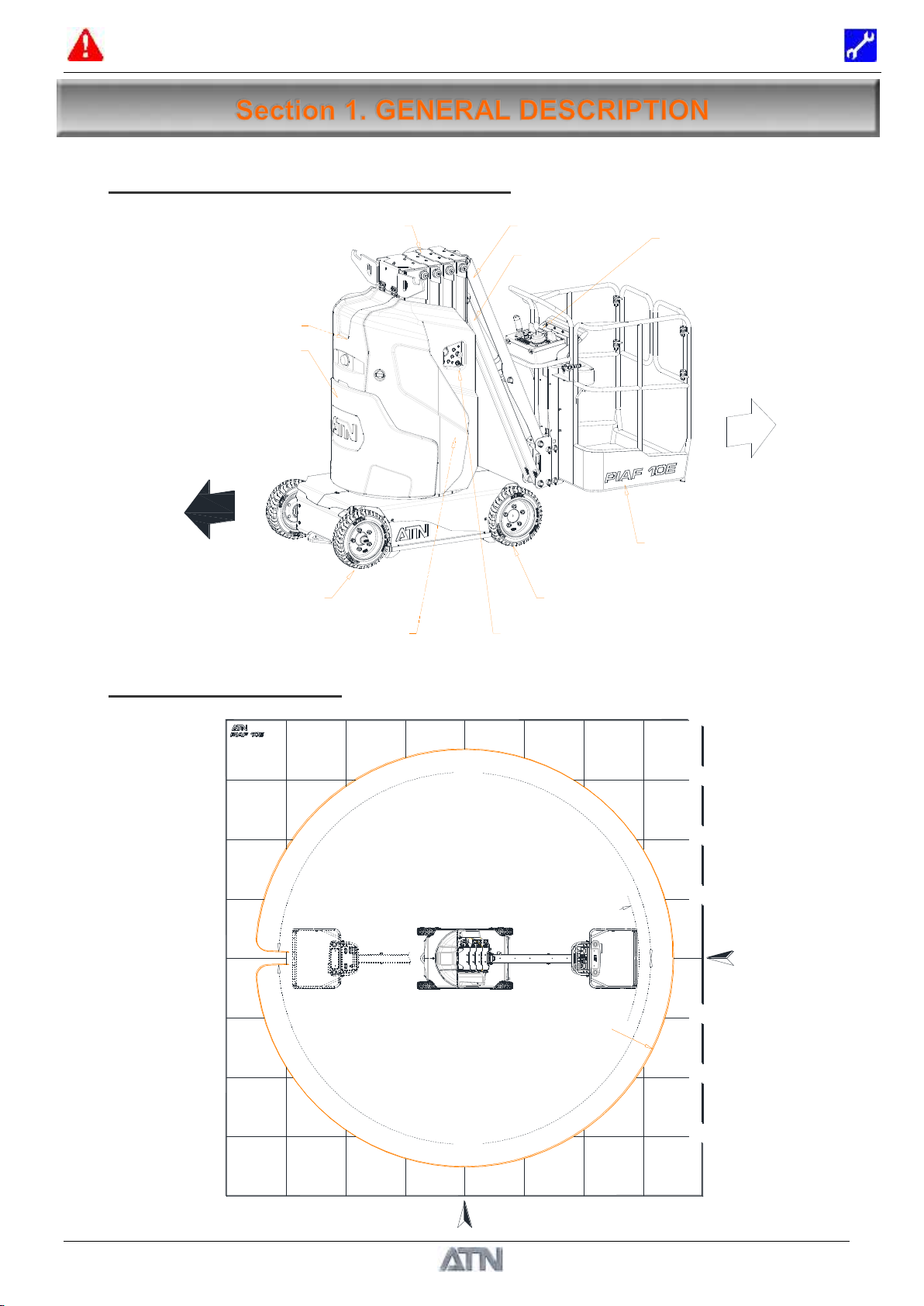

1.1. MACHINE DESCRIPTION, DIMENSIONS
1.2. RANGE DIAGRAMMES
Jib
Lower Jib
Batteries
Counterweight
Telescopic mast Upper control
station
Steering wheels Braked driving wheels
Hydraulic power unit Lower control station
Basket
(work platform)
FRONT
REAR
9,92
1 m-3 m -2 m -1 m 2 m 3 m 4 m-4 m 3,51
1 m
3 m
2 m
4 m
10 m
6 m
5 m
7 m
8 m
9 m
11 m
6,55
5,18
7,92
178°
178°
RE = 2,93
RT = 3,51
1 m
-2 m
-3 m -1 m 4 m2 m 3 m
-4 m
3 m
2 m
4 m
1 m
1 m
2 m
3 m

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
16
9,92
1 m-3 m -2 m -1 m 2 m 3 m 4 m-4 m 3,51
1 m
3 m
2 m
4 m
10 m
6 m
5 m
7 m
8 m
9 m
11 m
6,55
5,18
7,92
178°
178°
RE = 2,93
RT = 3,51
1 m
-2 m
-3 m -1 m 4 m2 m 3 m
-4 m
3 m
2 m
4 m
1 m
1 m
2 m
3 m

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
17
1.3. TECHNICAL CHARACTERISTICS
The total value of vibrations to which the system hand-arm is subjected does not exceed 2.5m/s².
The average root mean square value of weighted acceleration to which the whole body is
subjected does not exceed 0.5m/s².
Due to our constant improvement policy, Atn reserves the right to make any modifications
without prior notice.
DESCRIPTION PIAF 10E
CHARACTERISTICS PIAF 10E
Weight empty
2850 Kg
Max rated load
200 Kg (1 person + 120 Kg material or 2 persons + 40 Kgmaterial)
Occupant(s)
2
Max manual force
400 N + wind 0 ou 200 N wind 45
Gradeability (machine lowered)
25%
Max. tilt
2°
Max. wind
0 Km/h for 2 persons - 45 Km/h for 1 person
Sound level
below 70 dB
Power
Power unit 24Vcc
Energy
Electric
Wheels
16x5x10,0 (non marking)
Inner turning radius
0,52 m
Outer turning radius
2,00 m
Electric system
24 volts
Batteries
215 Amp/H, C5 - 24 volts
Charger (standard)
220 volts, 30 Amp / Voltage 220/230V-16A
Max working height
10,00 m
Max floor height
8,00 m
Max outreach
3,51
Structure rotation
2 x 178°
Tailswing
0
Platform dimensions
0,9 m x 0,8 m
Height lowered
1,96 m
Max speed in working position
> à 0,9 Km/H
Max speed (machine lowered)
5,5 Km/H
Length x Width
2,78 x 1,03 m
Wheel base
1,2 m
Ground clearance
8,2 cm
935
1989
782
1036 127
1200
16061179 2785
269 1170
802

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
18

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
19
The definitions of DANGER, WARNING, and NOTE in this manual are used as follows:
- NOTE-
These are generally remarks concerning a procedure or important operating condition.
DECALS
All the decals with these symbols invite you to consult the Operator and Safety manual for more
details.
WARNING
INDICATES A PROCEDURE OR
OPERATION TO BE FOLLOWED TO
THE LETTER TO AVOID ANY RISK OF
DAMAGING THE MACHINE.
DANGER
INDICATES A DANGEROUS SITUATION
WHICH MAY LEAD TO SERIOUS OR
LETHAL INJURIES IF SAFETY
INSTRUCTIONS ARE NOT STRICTLY
FOLLOWED.

SAFETY AND MAINTENANCE MANUAL
1NO0055UK-00 PIAF 10E
20
DANGER
DO NOT USE THIS MACHINE IF YOU
HAVE NOT BEEN PROPERLY TRAINED
TO ITS SAFE OPERATION. TRAINING
INCLUDES THE KNOWLEDGE OF
YOUR EMPLOYER’S WORK
REGULATIONS, THE INSTRUCTIONS IN
THIS MANUAL AND THE REGULATION
IN FORCE FOR THIS TYPE OF
MACHINE.
DANGER
AN UNTRAINED OPERATOR PUTS
HIMSELF AND OTHERS AT RISK OF
SERIOUS INJURY OR DEATH.
DANGER
FAILURE TO RESPECT A SAFETY
INSTRUCTION MAY RESULT IN AN
ACCIDENT AND PERSONNEL
INJURIES. YOU ARE RESPONSIBLE
FOR YOUR SAFETY AND THAT OF
OTHERS AROUND YOU.
2.1. THE OPERATOR
You, as the operator, are the only thinking part of the machine; your responsibility is not lessened
by the addition of alarms or operating aids. In fact, you must not get a false sense of safety when
operating the machine. Control devices and alarms are there to help you, NOT TO steer the
machine.
You, the operator, are the only one responsible for your safety and that of others around you. Act
as a PROFESSIONAL and respect the safety RULES.
2.1.1 OPERATOR TRAINING
It is essential that the operator is trained by
competent and authorised personnel.
The following conditions must be met:
- Be appointed.
- Be over 18.
- Pass a medical examination.
- Be trained to the safe operation of this
machine:
- Please check the local regulations
concerning training for the operation of this
type of machine.
2.2. INSPECTION OF THE WORK PLACE
On each site, it is necessary to check that the
machine is suitable for the work site.
Each site may have specific instructions or rules
established by the contractor, company using the
equipment...
Before any operation, please read the instructions
located on the machine (coloured decals).
