ATN ThOR-HD 384 2 - 8x User manual

ThOR-HD Series
THERMAL SMART HD RIFLESCOPE
MANUAL
THOR-HD USER’S GUIDE (REV. 4, AUGUST, 2017)
AMERICAN
TECHNOLOGIES
NETWORK
CORP.

2
THIS PRODUCT CONTAINS NATURAL RUBBER LATEX, WHICH MAY CAUSE ALLERGIC REACTIONS
CAUTION!
The instructions in this manual are for informational use only and subject to change without notice,
this manual is not to be construed as a commitment by ATN Corp.
ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
©2017 ATN Corp. All rights reserved.
PICATINNY RAIL
DIOPTER
ADJUSTMENT RING
MOUNTING SYSTEM
POWER BUTTON
FOCUS
ADJUSTMENT RING
BATTERY
HOUSING CAP
START/STOP
VIDEO RECORDING
ENTER BUTTON
TAKE A PICTURE
ZOOM IN
ZOOM OUT
MICROSD,
MICRO HDMI
& MICRO USB

3
TABLE OF CONTENTS
FEATURES ....................................4
APPLICATION .................................4
SPECIFICATIONS ..............................5
PREPARING THE DEVICE .......................7
Unpacking .................................7
Installation of batteries........................7
MicroSD, USB and HDMI ports .................7
Firmware update ............................8
ON/OFF...................................9
Using keypad...............................9
Focusing ..................................9
Mounting your scope ........................10
Compass calibration ........................10
INTERFACE ..................................11
Homescreen ..............................11
Main operations ............................12
Shortcut carousel ..........................13
Using System Settings.......................14
FUNCTIONS..................................16
Photo modes ..............................16
Recoil Activated video .......................17
Rangefinder...............................19
Zeroing ..................................21
Ballistic Calculator ..........................22
How to perform a NUC.......................26
Pixel Correction Procedure ...................26
Reticle style adjustment......................27
SYSTEM SETTINGS .......................... 28
Thermal ..................................28
Photo/Video...............................28
Display...................................29
Profiles/Zero ..............................29
Settings ..................................30
SERVICING ..................................31
Warnings and cautions ......................31
MOBILE APPLICATIONS .......................31

4
FEATURES
RECORD HD VIDEO BALLISTIC CALCULATOR
WiFi OBSIDIAN USER INTERFACE
SMOOTH ZOOM BLUETOOTH
E-COMPASS 3D GYROSCOPE
SMART RANGE FINDER RECOIL ACTIVATED VIDEO (RAV)
APPLICATION
The most technologically advanced line of thermal rifle scopes on the
market, bar none! The all new Obsidian “T” II Thermal Core is at the heart of
all ATN systems. This technology helped ATN to continue to make bigger and
better updates to its award winning thermal product line.
Record videos and photos onto a microSD card. Never again forget to
record that perfect shot with ATN’s patented RAV (Recoil Activated Video).
Use ATN’s Smart Range Finder to quickly range in on your target and allow
the ballistic calculator to make instantaneous corrections to your POI (Point
of Interest) on the fly. Plus, take advantage of the additional features and
sensors packed into these incredible systems, such as; Smooth Zoom, built
in Wi-Fi, Bluetooth, 3D Gyroscope, 3D Accelerometer and 3D Magnetometer.

5
SPECIFICATIONS
ThOR-HD 384
1.25 - 5x
ThOR-HD 384
2 - 8x
ThOR-HD 384
4.5 - 18x
ThOR-HD 384
9 - 36x
ThOR-HD 640
1 - 10x
ThOR-HD 640
1.5 - 15x
ThOR-HD 640
2.5 - 25x
ThOR-HD 640
5 - 50x
Item # TIWSTH381A TIWSTH382A TIWSTH384A TIWSTH389A TIWSTH641A TIWSTH642A TIWSTH643A TIWSTH645A
Sensor 384×288 640×480
Magnification 1.25 - 5x 2 – 8× 4.5 – 18× 9 – 36× 1 – 10× 1.5 – 15× 2.5 – 25× 5 – 50×
Angle of view 16×12.5 12×9.5 6×4.7 3×2.4 32×25 24×19 12.5×9.7 6×4.7
Objective lens focal length 19 mm 25 mm 50 mm 100 mm 19 mm 25 mm 50 mm 100 mm
Micro Display HD Display Core ATN Obsidian “T” II Eye relief 65 mm Waterproof rating / IP rating Weather resistant Video Record Resolution 1280×960 @ 30 fps Microphone Yes MicroSD card Up to 64 GB Micro USB Yes Micro HDMI Yes WiFi (Streaming, Gallery, & Controls) iOS & Android Bluetooth 4.1
GPS (Geotagging, Elevation, etc.)
Yes

6
ThOR-HD 384
1.25 - 5x
ThOR-HD 384
2 - 8x
ThOR-HD 384
4.5 - 18x
ThOR-HD 384
9 - 36x
ThOR-HD 640
1 - 10x
ThOR-HD 640
1.5 - 15x
ThOR-HD 640
2.5 - 25x
ThOR-HD 640
5 - 50x
3D Gyroscope Yes, GS7 3D Accelerometer Yes 3D Magnetometer Yes Range Finder Yes Ballistic Calculator Yes RAV (Recoil Activated Video) Yes Electronic Compass Yes Smooth Zoom Yes Reticles Multiple Patterns & Color Options Mount Two fixing
screws mount Picatinny Quick Release Mount, Interchangeable
Compatible mounts A.R.M.S.® #17® (single lever), A.R.M.S.® #35® (double lever), LaRue LT270, American Defense (AD-170) Battery life (Li-ion) 8 hr Battery type (4) AA (Lithium Recommended) Dimensions
6.85”×3.16”×3.14”
174×80.26×80 mm
8.81”×3.16”×3.14”
224×80.26×80 mm
10.67”×3.97”×3.47”
271×101×88 mm
6.85”×3.16”×3.14”
174×80.26×80 mm
8.81” x 3.16” x 3.14”
224×80.26×80 mm
10.67”×3.97”×3.47”
271×101×88 mm
Weight 1.55 lb / 0.68 kg 1.85 lb / 0.84 kg 2.75 lb / 1.24 kg 1.55 lb / 0.68 kg 1.85 lb / 0.84 kg 2.75 lb / 1.24 kg
Warranty 3 years Human Detection Range 625 800 1500 2500 625 800 1500 2500
Human Recognition Range 280 400 600 1100 280 400 600 1100
Human Identification Range 170 250 360 600 170 250 360 600
* ATN reserves the right to change the above specifications at any time without notice

7
PREPARING THE DEVICE
UNPACKING
The following steps must be performed prior to use:
1. Open packaging box, remove ThOR-HD and check the contents.
• ATN Help Card
• ATN Thor-HD
• Battery Lifetime Information and Power Kit Card
• FB Group and ATN Forum Card
• Firmware Update and Review Card
• Black Nylon Case
• Thor HD Manual
• Thor HD Quick Start Guide Card
2. Make sure that nothing is missing.
3. Inspect the device for damage to optical surfaces, body, eyecups, opera-
tion buttons, etc.
4. Ensure that all optical surfaces are clean and ready for use.
NOTE
If any accessories are missing or broken contact ATN’s Customer Ser-
vice.
INSTALLATION OF BATTERIES
The Thor-HD will operate on four AA-type Lithium batteries.
NOTE
We highly recommend using lithium AA
batteries. They will provide much longer bat-
tery life. Use only 1.5 V batteries.
Install batteries as follows:
1. Remove the battery cap by unscrewing it
counter clockwise.
2. Insert batteries as shown.
3. Return the battery cap into the housing
socket (screw clockwise until finger tight). Make
sure that the Red O-Ring is not visible to pre-
vent shut off issues due to recoil, but also Do not over-tighten! You want to
ensure you can unscrew the cap next time you replace batteries.
NOTE
Make sure that the device is turned off before changing source of
energy (batteries or USB in power supply mode).
MicroSD, USB
AND HDMI PORTS
The device is equipped with microSD, micro
USB and micro HDMI ports and can be found
under the cap near the battery block (marked
with appropriate icons on the cap).
NOTE
Make sure the device is turned off before
inserting the microSD card into the slot.

8
To Use:
1. USB cap cover should be unscrewed
counterclockwise.
2. Format new cards before use.
3. Insert microSD card as shown.
4. To lock, insert card in the slot and
push it with a thin object (a small coin,
paperclip, toothpick, etc.).
5. Return the cap to the USB cap cover
(screw clockwise until finger tight).
NOTE
There is only one correct direction to
insert the microSD Card. Do not force
the card into the slot, as it may damage
both the scope and the card itself.
To remove the microSD Card from the
slot:
1. Push it in using the same thin object.
2. When it pops up a few millimeters, it
can be pulled with your fingers or tweezers.
NOTE
If you are going to record video, the microSD card should be a Class 10 (10
Mb/s) or faster and have capacity from 4 to 64 Gb.
FIRMWARE UPDATE
Before operating your device, update the firmware to the latest version.
To receive a notification of new firmware updates, please register your
device on our website (you’ll receive an email letting you know when the new
firmware becomes available).
To update the new firmware you will need a microSD card and batteries that
are fully charged.
NOTE
In the event of a power failure during an update. The device may crash,
corrupting its system files. It will need to be sent back to the ATN factory for
service. DO NOT USE an additional source of power during firmware update!
Update the new firmware as follows:
1. Download the ***.bin file from
https://www.atncorp.com/firmware (You
may need to create an account, if you
didn’t create it earlier) and copy to your
microSD Card — root directory.
2. Insert the card into the device.
3. Turn ON the device.
4. In the “Firmware Update” dialog
box select “Yes” to start the update.
5. When the update counter reaches
“100%” the device will automatically restart.
6. Once the device is powered up it will enter self configuration mode.
7. After completing it will automatically restart and will be ready for use.
8. Motion Sensing platform will be configured when first turned on.
9. Once the Firmware update completes, please do a factory reset before using
the product.
10. Please remember to delete the Firmware File off of the microSD card after
all steps are completed.

9
NOTE
If the device does not restart within 30 seconds, remove and re-insert
the batteries, and again power-up the device. Once the device has been
updated you will need to either format the card or delete the update file
manually. In the event you do not perform the previous actions, the system
will ask you if you wish to update the device every time you turn it on.
ON/OFF
To TURN ON the device,
press and hold the POWER
Button until you see the ATN
splash screen.
To TURN OFF the device,
press and hold the POWER
Button until the “Shut down
the device?” appears in the
dialog box. Choose “Yes” to turn off the unit.
NOTE
Upon startup you must perform a NUC. Please refer to page 26 to learn
how to perform the NUC process correctly.
USING KEYPAD
The KEYPAD is programmed to be used
in two different ways:
• Short and Quick Taps — used for most
functions and to get around the menu;
• Press and Hold — designed to be
used in the following situations — ON/
OFF, ZOOM and SHORTCUT MENU.
NOTE
Using LEFT or RIGHT buttons in the
Menu will allow you to quickly choose
Exit Shortcut from any position.
FOCUSING
DIOPTER ADJUSTMENT
Look through the eyepiece, focusing on
the reticle on the screen, and rotate the
Diopter Adjustment Ring until optimal
sharpness is achieved. Do not take the
rubber cap off the objective lens.
NOTE
You should not have to re-adjust the
Diopter Adjustment unless another
user, with different vision needs, uses
the scope.
FOCUS ADJUSTMENT
Remove the cap from the objective lens
and rotate the focus adjustment ring, as
necessary, to achieve the proper focus at
various distances.
DIOPTER
ADJUSTMENT RING
FOCUS
ADJUSTMENT
RING

10

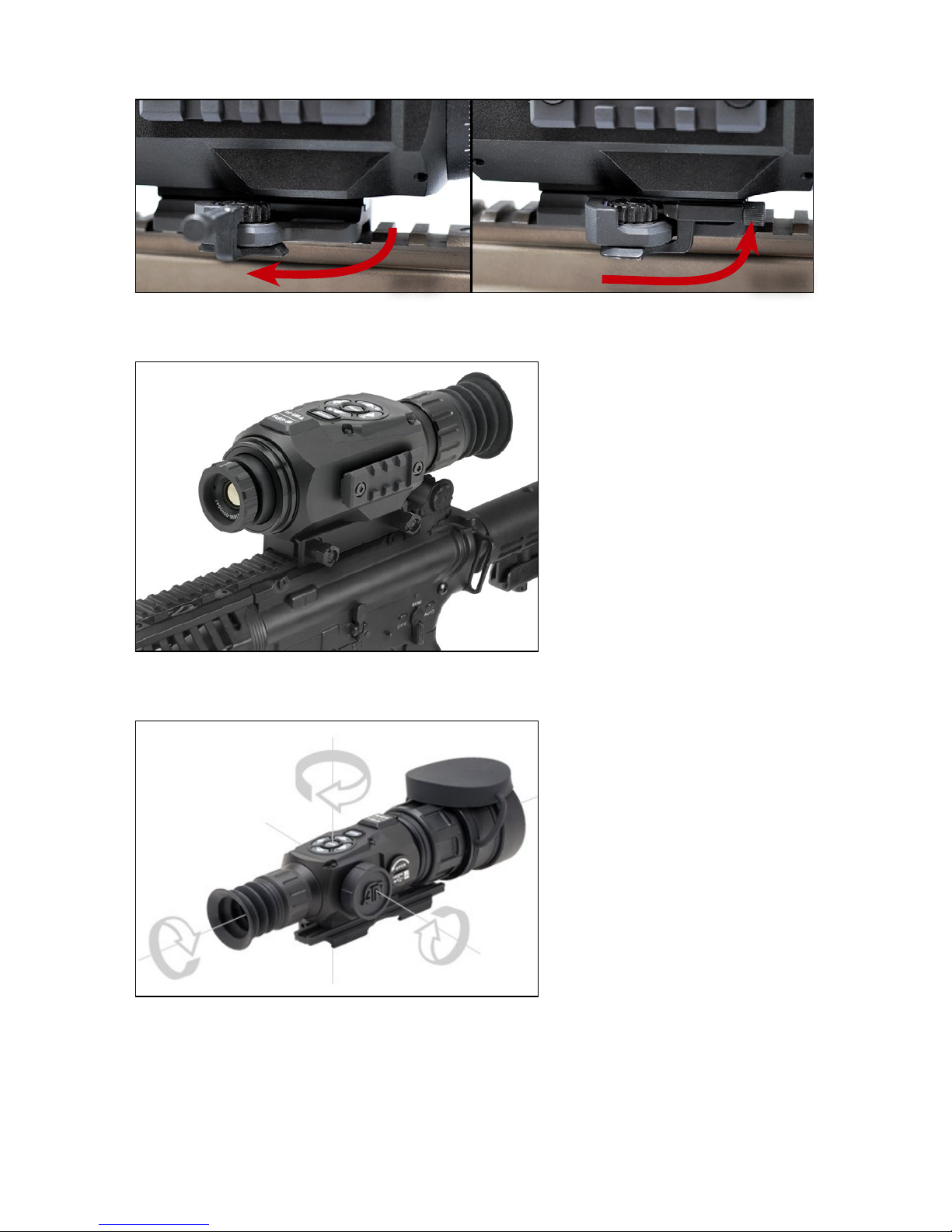

MOUNTING YOUR SCOPE
OPEN CLOSE
Secure the ThOR-HD to your Picatinny Rail using the Quick Release Mount
as shown above. However, the ThOR-HD 384 1.25-5x has a different mount —
with two fixing screws.
1. Slightly loosen the fixing
screws on the 7/8˝ weaver
mount built into the scope.
2. Place the scope on the
weaver rail of the firearm.
3. Tighten the fixing screws.
NOTE
Fixing screws may need
to be tightened after con-
tinuous shooting. ATN rec-
ommends using “Loctite”
to ensure screws do not
loosen up during shooting.
COMPASS CALIBRATION
When the compass needs
to be calibrated, the word
“CAL” appears instead of
the Compass Scale. To cal-
ibrate, rotate the three axis
points as pictured on the left,
on the device.
NOTE
After calibrating the de-
vice, please remember that
the compass will work best
when holding the ThOR-HD
parallel to the ground.
Other possible abbreviations:
• ERR — an error was detected, you may need to restart the device or reca-
librate the compass;
• SMF — your device is under a strong magnetic field, move away from the
source;
• UPD — your firmware needs to be updated.

11
INTERFACE
HOMESCREEN
The Homescreen will first appear when you switch on the device. It consists
of Scales, Status Bar icons and different Information Widgets.
SCALES
• The E-Compass Scale shows yaw angle based on e-Magnetometer data.
• Roll Scale shows the rifles cant based on internal 3D Gyroscope.
• Pitch Scale shows rifle inclination based on internal 3D Gyroscope.
STATUS BAR
Information displayed will only be about the current state of system.
Inactive icons become invisible, only the important information will show at
the moment:
• Battery — appears when energy level is low;
• SD Card — shows the presence of memory card;
• Ballistic Calculator, Bluetooth, GPS and WiFi — shows when a function
is enabled.
WIDGETS
There are interface elements that provide quick access to useful informa-
tion. There are several types of widgets:
• icons without value are used for mode display (Photo and Video Modes).
• only numerical value (Detailed Roll and Pitch Values).
• icons with a numerical value: Zoom, Time, Reticle Correction, Distance,
Video Recording.
• Photo Preview appears in the bottom of the Homescreen, after the photo
was taken.

12
Display widgets can be
viewed in the System Set-
tings.
To enter System Settings,
click on the ENTER button
from Homescreen and
access the Shortcut Carou-
sel.
Select the wrench icon
with RIGHT or LEFT buttons
and push ENTER button
to enter the menu.
Select Display tab with
RIGHT button and choo-
se subcategory Display Wid-
gets with DOWN button .
Press the ENTER button
to select the Display Wid-
gets. Use the UP or DOWN
buttons to change from
Extended to Minimal.
MAIN OPERATIONS
ZOOM LEVEL
1. Zoom IN and OUT by pressing and holding the UP or DOWN button
on the keypad.
2. Current Zoom Level is displayed in the Zoom widget on the Homescreen.
NOTE
You will need to configure the lens option in the pop-up window before
zooming when the device is activated for the first time.
Your reticle can be offset from the center point of the screen while using Bal-
listic Calculator. During the Zoom In Action, it will move to the center.
TAKING PHOTOS
Press the LEFT button to TAKE A PHOTO.
Depending on the selected mode, you will take one or several photos. You
can choose from various photo modes in the System Settings.
VIDEO RECORDING
By pressing the RIGHT button , you will be able to RECORD VIDEO (if
you use Normal Mode) or START RAV (if Recoil Activated Video mode is on).
You can switch the video recording modes in the System Settings.

13
NOTE
Your recording will automatically stop when the memory card is full or
the battery is out of power.
SHORTCUT CAROUSEL
The ENTER button opens the menu and closes it down when pressed
again.
SHORTCUT CAROUSEL
The Carousel will allow
you to access a number of
Shortcuts for quick access
to your scope’s features.
1. Just click on the EN-
TER button from Ho-
mescreen to access the
Carousel.
2. Buttons highlighted in
Red are the only ones that
activate a particular short-
cut.
3. Use the LEFT and RIGHT buttons to move between items, except the
grouping of ON/OFF switches (WiFi, GPS, Bluetooth, Ballistic Calculator, RAV).
4. You should use the UP and DOWN buttons between switches.
5. To turn a switch ON or OFF, you should click the ENTER button while
having the switch selected. Example — WiFi. Press the UP or DOWN buttons
to activate the switch. Press the ENTER button once again to keep the
setting.
EXIT
Exit Carousel.
NUC
Allows you to make a non-uniformity compensation (NUC).
RANGEFINDER
Activates the Smart Rangefinder feature. If the Ballistic Calculator is ON,
then the range that is found using the Rangefinder will be automatically
used to adjust your point of impact (shift reticle to adjust for drop).
DISTANCE ENTRY
Manually input or adjust the distance to the target to be used by the
Ballistic Calculator.
GALLERY
Gives you access to the library of Images and Videos that are stored
on your scope’s SD Card.
CONTRAST
The difference in luminance and color that makes an object more
distinguishable.

14
ENVIRONMENT
Allows for input of various environmental data to improve ballistic cor-
rection, such as wind speed and direction.
SYSTEM SETTINGS
Allows access to various system options and adjustments.
Grouped switches consist of the following:
WiFi module GPS module Bluetooth
module
Ballistic
Calculator
RAV (Recoil
Activated
Video)
USING SYSTEM SETTINGS
To enter the System Set-
tings:
1. Open the Shortcut
Carousel with ENTER
button and select the
wrench icon with RIGHT or
LEFT buttons .
2. Push the ENTER but-
ton to enter the menu.
The System Settings consists of Tab Bar at the top of the screen and a list
of subcategories in the center. Help Information can be found at the bottom.
TAB BAR WITH
CATEGORIES
SUBCATEGORY
VALUE
SUB-
CATEGORIES
HELP INFORMATION
EXIT BUTTON

15
On the left side of the Tab Bar you will find the Exit drop-down (select with
arrow icon). Pressing the ENTER button will bring you back to the Home-
screen.
Movement between the tabs is carried out using the LEFT and RIGHT buttons
.
Each tab includes subcategories. To select a particular subcategory you
should use the UP and DOWN buttons and press ENTER button to
select it.
FIRST LEVEL SECOND LEVEL THIRD LEVEL
To change a particular
value:
1. Select the subcate-
gory you need by moving
the UP or DOWN buttons
.
2. Press the ENTER but-
ton to select a particu-
lar value, once selected it
will turn red.
3. Change the value with
the UP and DOWN buttons
.
4. To select a new value,
press the ENTER button
to confirm the change.

16
FUNCTIONS
PHOTO MODES
From the Homescreen: press the LEFT button to TAKE A PHOTO.
Depending on the selected mode you will make one or several photos. You
can choose from the various photo modes in the System Settings.
NOTE
You must have a microSD card inserted in the device for these features
to work, and all files will be stored on the microSD card.
To enter the System Set-
tings:
1. Open Shortcut Car-
ousel with ENTER button
and select the wrench
icon with RIGHT or LEFT
buttons .
2. Push ENTER button
to enter the menu. Use
the Right button till you
select Photo/Video tab.
NOTE
There are three photo modes to choose from. Switching between
modes is done in the System Settings from Photo/Video tab, subcategory
Photo Mode.
3. Use UP or DOWN buttons to switch between modes.
4. Press the ENTER button to select a particular value (once selected it
will turn red).
NORMAL
This default mode allows you to take one photo at a time.
TIME LAPSE
A sequence of
images with an
interval of time between
each image. The interval
and the number of photos
taken can be changed in
the System Settings.

17
To make changes:
1. Choose a Photo/Vi-
deo Tab in System Set-
tings.
2. Use the UP or DOWN
buttons to select Time
Lapse Settings.
3. Press the ENTER but-
ton to enter the mode
settings.
While you are in this
mode, the Time Lapse wid-
get appears.
BURST
Burst mode cap-
tures a series of
photos. You can select the
best image of the group
or arrange them in a se-
quence to study the transi-
tions in detail.
The number of photos
taken can be changed in
the System Settings. While
you are in this mode, the
Burst widget appears.
Regardless of the mode
you are using, picture pre-
view appears after a pho-
tograph is taken. It will
appear on the bottom of
the screen for several sec-
onds.
RECOIL ACTIVATED VIDEO
Recoil Activated Video (patent pending), offers a unique approach to taking
videos with your Smart Sight. RAV offers you the ability to take a video before,
during and after your shot has been fired.
Perfect for those hunting moments when one must concentrate on hitting
your target, and not remembering to press the record on your video.
Simply set your RAV to ON, set your parameters and anytime you pull the
trigger (RAV is activated from the recoil of your weapon), the sight will record a
number of seconds before your shot and a number of seconds after. All conve-
niently organized as one continuous video.

18
1. Press the RIGHT button to Activate RAV from the Homescreen in
order to Start Video recording.
2. Press RIGHT button again to stop Video recording.
NOTE
It may be best to turn OFF the Microphone in conditions of extreme
wind.
3. Turn on the microphone and switch the quality of the video in the System
Settings (Photo/Video tab).
To enter the System Set-
tings:
1. Open Shortcut Carou-
sel with ENTER button
and select the wrench icon
with RIGHT or LEFT but-
tons .
2. Push ENTER button
to enter the menu.
NOTE
You must have a mic-
roSD card inserted in the device for these features to work.
3. All files will be stored on the microSD card. Recorded videos can be found
in the Gallery of the device.
The scope allows you to record videos in two modes.
NORMAL
This is the default
mode, and the
Counter widget
and Time Stamp appears
when recording.
RECOIL ACTI-
VATED VIDEO
(RAV)
When you set
your video record to RAV
mode (from Shortcut
Menu), the system buffers
everything your scope
sees.

19
While you are in this
mode, the RAV widget
appears and then after
starting record the Time
Counter appears.
After activating the RAV
function in the Shortcut
Carousel, return to the
Homescreen. Continue
the activation process by
pressing the Right button
to activate the Video. Also,
make sure you see the
RAV icon on the Homes-
creens upper left corner.
When a shot is fired,
your scope experiences
recoil (some airguns may
not provide enough recoil
for RAV to be activated).
The scope will record
video prior to the shot be-
ing taken, the moment of,
and some time after. Exact
settings may be adjusted in
the System Settings.
RANGEFINDER
Using the Smart Range-
finder, you will quickly be
able to estimate the dis-
tance to your target, as
long as you have reason-
able knowledge of the size
of your target.
NOTE
Once the distance is
measured, the value will
be automatically inte-
grated into your Ballistic
Calculator.
RANGEFINDER
To use select the Flag
Icon from the Shortcut Car-
ousel, press the ENTER
button to take you to
the Main Screen of Range-
finder feature.
To measure the distance,
follow the next steps:
1. put the arrow-mark on
the top of the target and press the ENTER button , wait for the scope to

20
take the readings (it will take a number of readings so try to keep your weapon
steady);
2. put the arrow-mark under the target and press the ENTER button ;
3. if satisfied with the value, press the LEFT button to go back to the
Homescreen, or repeat steps 1 and 2 if necessary.
NOTE
During the measure-
ment process, you can
zoom in and out using
standard buttons (UP
and DOWN).
If the Target Height is in-
correct you can change it:
• press the RIGHT but-
ton to enter the Menu;
• choose one of the pre-
sets or input the height manually;
• accept the height with ENTER button and go back to the Main Screen.
DISTANCE ENTRY
Allows you to input or
correct the distance manu-
ally. To launch, select from
the Shortcuts.
Change distance value
using UP and DOWN but-
tons . To accept the
new distance, press EN-
TER button .
