Attero Tech unAX4I AES67 User manual

Attero Tech LLC 2018
11/14/2017
614-00042 Rev 01
4x2 AES67
Networked Audio Wall Plate
User Manual

Page 1
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com
IMPORTANT SAFETY INSTRUCTIONS
The symbols below are internationally accepted symbols that
warn of potential hazards with electrical products.
This symbol, wherever it appears, alerts you to the
presence of un-insulated dangerous voltage inside the
enclosure -- voltage that may be sufficient to constitute
a risk of shock.
This symbol, wherever it appears, alerts you to
important operating and maintenance instructions in the
accompanying literature. Please read the manual.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and third
grounding prong. The wider blade or the third prong is
provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by Attero
Tech
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
13. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
14. Unplug this apparatus during lightning storms or when
unused for long periods of time.
15. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
16. If rack mounting, provide adequate ventilation.
Equipment may be located above or below this apparatus but
some equipment (like large power amplifiers) may cause an
unacceptable amount of hum or may generate too much heat
and degrade the performance of this apparatus,
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
LIMITED FIVE YEAR WARRANTY
The equipment is warranted for five years from date of purchase
from Attero Tech, LLC against defects in materials or
workmanship. This warranty does not cover equipment which has
been abused or damaged by careless handling or shipping. This
warranty does not apply to used or demonstrator equipment.
Should any defect develop, Attero Tech, LLC will, at our option,
repair or replace any defective parts without charge for either
parts or labor. If Attero Tech, LLC cannot correct the defect in the
equipment, it will be replaced at no charge with a similar new
item. Attero Tech, LLC will pay for the cost of returning your
equipment to you. This warranty applies only to items returned
to Attero Tech, LLC, shipping costs prepaid, within five years from
the date of purchase. This Limited Warranty is governed by the
laws of the State of Indiana. It states the entire liability of Attero
Tech, LLC and the entire remedy of the purchaser for any breach
of warranty as outlined above. NEITHER ATTERO TECH, LLC NOR
ANYONE INVOLVED IN THE PRODUCTION OR DELIVERY OF THE
EQUIPMENT SHALL BE LIABLE FOR ANY INDIRECT, SPECIAL,
PUNITIVE, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE THIS EQUIPMENT EVEN IF
ATTERO TECH, LLC HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF ATTERO
TECH, LLC EXCEED THE PURCHASE PRICE OF ANY DEFECTIVE
EQUIPMENT.
This warranty gives you specific legal rights. You may have
additional legal rights which vary from state to state.
Note: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules and EN55022. These limits are designed
to provide reasonable protection against harmful interference
when the equipment is operated in a commercial
environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct
the interference at their own expense.

Page 2
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com
1 –Overview
Figure 1 - unAX4I Front Panel
The unAX4I AES67 audio interface is a cost effective XLR IO wall
plate solution. The unAX4I features four balanced mic/line XLR
inputs and two balanced line outputs do de-pluggable connectors
on the side of the unit. All inputs and outputs can be used
simultaneously and all audio channels are available separately on
the audio network. The unAX4I is designed to fit into all dual gang
US junction boxes, mud rings, and old work brackets. The unAX4I
is PoE enabled, so all connectivity (power, control and data) is
provided by a single CAT-5/6 cable. The unAX4I’s size and I/O
density make it easy to put AES67 connectivity whenever it’s
needed.
Attero Tech unIFY Control Panel application can be used to
configure the device-specific features. It is also used to configure
its AES67 transmit and receive streams as well.
The unAX4I also supports control by third party systems allowing
external configuration of its settings such as phantom power and
input gain in real time. Further information on 3rd party control
can be found later in this document in section 3.
1.1 –What’s in the Box
The unAX4I comes supplied with the following
ounAX4I device
oMounting kit
oDecora plate
o6-position depluggable terminal block
1.2 –Optional Extras
The following are available as options for the unAX4I and that
may be ordered separately:
ounXP2O - Passive Dual XLR-M single gang Decora wall
plate - P/N: 900-00187 –xx
(Available in white (-01) or black (-02). Supplied with
appropriately colored 3-gang Decora cover plate).

Page 3
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com
2 –Device Installation
#
Feature
1
4 x Mic/Lin Balanced audio inputs on XLR
2
Power / Status / ID LED
3
2 x Balanced Line outputs on De-pluggable terminal block
4
AES67 / Control / PoE Port
*Note: The unAX4I has a label on the front of the metal housing
at the top that shows the devices MAC address. This is important
for initial device identification as these digits make up part of the
devices default network name. The MAC address is also given on
the back of the unit.
2.1 –Mounting
A typical installation will involve mounting the wall plate into a
pre mounted wall box or mounting bracket. Before installation,
make sure the wall box where the unAX4I is to be installed is pre-
wired with a suitable cable back to a PoE-enabled network switch
or mid-span injector. If a mid-span injector is being used, the
cable should be connected to the port that supplies both Ethernet
and power (refer to the devices manual if unsure which port is
which).
Attach the network cable from the switch/mid-span injector to the
Ethernet port of the unAX4I. If the switch or mid-span injector is
already running and PoE is enabled, the unit should power up and
the green ID LED on the front of the device should turn on.
With the cable attached, carefully place the unAX4I into the wall
box taking care to not trap the cabling. Once full in place, secure
it with the screws provided. Once the unit is secured in the wall
box, fit the Decora plate and secure it with the screws provided
with it.
The figure below shows the installation of the companion passive
unXP2O XLR audio output plate and the unAX4I.
Figure 2 –unAX4I Installed with unXP2O
(Rear View)

Page 4
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com

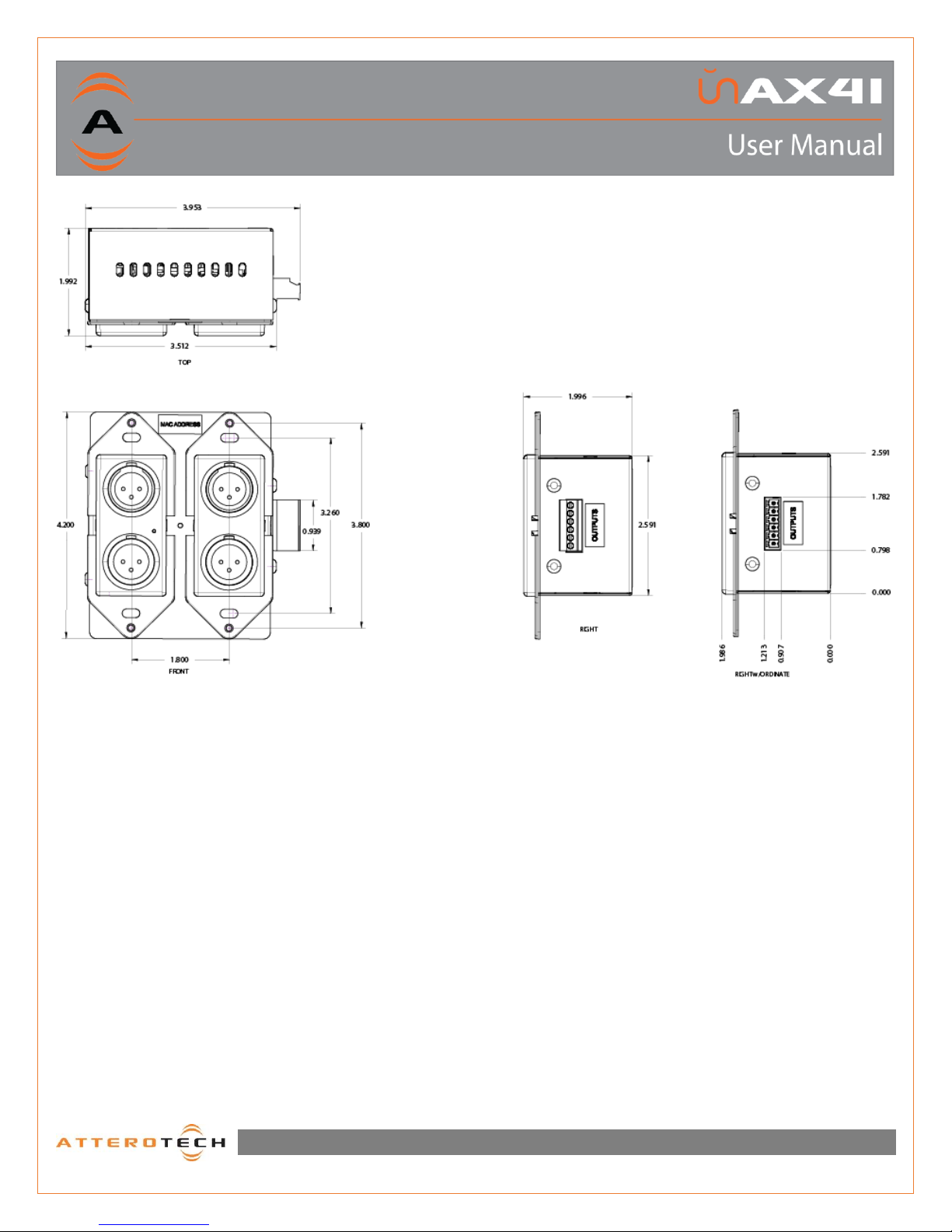

Figure 3 - Dimensioned Drawing
*Note: 2D and 3D CAD models can be downloaded from the Attero Tech customer portal. Please contact Attero Tech for any further product
related information that is not accessible on the website.

Page 1
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com
2.2 –Error Reporting
The unAX4I is equipped with error reporting features. Upon
power up, the front panel power LED will briefly light red and then
change to green if the device boots successfully. If the LED
remains on solid red, this indicates a device failure. If power
cycling the unit does not correct this problem, contact Attero
Tech technical support.
2.3 –Hardware Connections
The unAX4I provides balanced inputs and outputs to external
analog audio equipment. Refer to the following diagrams for
connecting different types of audio devices to the inputs and
outputs of the unAX4I. Professional grade audio cabling is
recommended to achieve the best audio performance
throughout the system.
+
Balanced
Source +
-
Shield
Balanced
Input
-
Figure 4 - Balanced Source Connection
Balanced
Input
+
Unbalanced
Source +
-
Shield
Figure 5 - 3-Wire Unbalanced Source Connection
++
-
Shield
Unbalanced
Source Balanced
Input
Figure 6 - 2-Wire Unbalanced Source Connection
+
-
Shield
+
Balanced
Source
-
Unbalanced
Input
Figure 7 - Balanced Source to Unbalanced Input

Page 2
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com
3 –Device Configuration
There are two parts of the device that require software to setup.
First the audio routing, and second the configurable features of
the device itself.
Configuration of the unAX4I specific features is carried out using
the Attero Tech unIFY Control Panel application. This application
is available from the Attero Tech website (www.atterotech.com).
It should be used to examine and modify the device specific
features such as mic/line gain settings, and phantom power.
The audio routing is also done using Attero Tech’s unIFY Control
Panel. There is a tab on the devices configuration for each unit
specifically for setting up receive and transmit streams.
*Note: When using unIFY Control Panel, the unAX4I will be shown
using a default device name of unAX4I-###### where ‘######’ is
the last six characters of the devices MAC address.
3.1 –IP Address Setup
*************************IMPORTANT****************************
Failure to correctly configure IP addresses will not allow a unAX4I
device to correctly authenticate in the unIFY Control Panel
software, the devices parameters will not be available, the input
and output channels also won’t be visible and routing of audio to
and from the device will not be possible.
*******************************************************************
In order to configure a unAX4I, both to set up internal parameters
and also setup audio routing, the PC/Mac will need to be able to
communicate with the devices over the network. While all AES67
devices will be discovered regardless of the IP address setup on
the PC or Mac, communication can only occur if the PC/Mac and
the device have compatible IP addresses.
By default, the unAX4I is set to get a dynamic IP address. Like
almost all network devices, if the unAX4I does not find a DHCP
server to retrieve an IP address from, it will give itself an local link
address sometimes also known as an automatic private IP address
(APIPA) instead. A local link IP address is always in the range
169.254.x.y.
To ensure communication, the PC/Mac can either be set to get a
dynamic IP address, or be given a static IP address in the range
169.254.x.y. The PC may require a restart if its IP address is
changed for the change to take effect.
In some applications, IP addresses of devices may need to be set
to something specific and that can be done once initial
communication has been established. Bear in mind however that
if a static IP address is assigned to a device and that static IP
address is in a different range to the IP it was previously using to
communicate with the PC/Mac, the PC/Mac will lose
communication with the device until such time as the PC/Mac IP
address is also changed to an IP in range of the devices new IP
address.
3.2 –Factory Reset
**************************IMPORTANT****************************
The factory reset returns the entire device to its factory defaults.
Using this feature will mean all custom AES67 settings and all
audio power-on default settings will be cleared.
*******************************************************************
*NOTE: The factory reset is a useful way of quickly restoring
communications with a device which has an unknown static IP
address as a factory reset returns the device’s network settings
to getting a dynamic IP. Having successfully completed a factory
reset of the device, setting the PC’s IP address to also obtain a
dynamic IP address should then allow the PC to communicate fully
with that device.
Access to the factory reset button is through a small circular hole
on the underside of the unit, next to the ventilation cutouts.
To use the factory reset, insert a small screwdriver or paperclip
into the hole to activate the factory reset switch. There should be
a noticeable “click” when it’s activated. Hold the switch in for 5 to
10 seconds then release. If the factory reset was successful, the
unit will reset and is indicated by the power LED will turning red.
3.3 –Firmware Updates
The unAX4I has the ability to be updated in the field. Updates are
applied via the network using Attero Tech unIFY Control Panel’s
Smart Firmware update facility. The latest unAX4I SFU file is
available from the Attero Tech customer portal.

Page 3
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com
3.4 –3rd Party Control
The unAX4I supports 3rd party control allowing external system to
manage the unAX4I’s settings such as phantom power, mic/line
gain options and control of presets. The interface which is
available to anyone to use with any device capable of sending and
receiving UDP messages.
Information on the commands the unAX4I supports as well as
details of how to use the 3rd party UDP interface can be found in
the unIFY 3rd party Software API document, available from the
registered users section of the Attero Tech website (Go to
www.atterotech.com and click on the log-in option).
3.5 –Using the Command interface
In order to make use of the control interface the unAX4I and the
controlling device need to be on the same physical subnet and
need to have IP addresses in the same range. The control devices
should then be able to converse with the unAX4I without any
further configuration necessary.

Page 4
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com
4 –ARCHITECTS & ENGINEERS
SPECIFICATION
The AES67 Break Out Interface shall have four balanced mic/line
analog XLR inputs and two side mounted balanced line 3-pin
depluggable outputs. Each analog input shall be capable of being
included in an AES67 multicast audio transmit stream, and each
analog output shall be capable of being driven from a channel
within an AES67 multicast audio stream.
Each XLR input channel shall have +48V phantom power,
selectable via software on a per channel basis. They also have
four gain levels: –15dB (pad active), 0dB, +25dB and +40dB,
selectable via software on a per channel basis. Each side-mounted
balanced line input shall have software selectable input sensitivity
for pro (+4dBu) or consumer (-10dBV) nominal signal levels.
All parameter changes will be non-volatile and self-restoring in
the event of PoE power interruption.
The unit shall accept IEEE 802.3af standard PoE as power input.
The unit shall be compliant with FCC 47CFR Parts 15B and 18
(Class A), EN 55011, ICES-003, CE (EN55022 Class A and EN55024
Class A) and RoHS requirements.
The unit shall be the Attero Tech unAX4I I/O Interface.
4.1–Device Specifications
Power Specifications
PoE Power
802.3af Class 0
Power Consumption
< 6W Max
Physical Dimensions
Width
3.54"
Height
4.2"
Depth
2"
Weight
0.6 lbs.
Regulatory Compliance
Certifications
FCC CFR 47 Parts 15B Class A, EN55011
ICES-003
CE (EN55022 / EN55024)
RoHS
REACH
Environmental Operating Specifications
Operating Temperature
0 to 40° C
Analog Audio Inputs
Input Type
4 Balanced and RF filtered 3-pin XLR-F (Front)
Input Impedance
>1.8 kΩ@ any input gain
Maximum Input Levels
+20 dBu, -15 dB Pad Active
+5 dBu, 0dB Pad Inactive
-22 dBu, +25 dB Gain
-38 dBu, +40 dB Gain
THD+N
< 0.05 % @ any input gain (20 -22 kHz)
EIN
-115 dB (20 -22 kHz)
Dynamic Range
> 95 dB (20 -22 kHz)
Frequency Response
20-20kHz, +/- 0.5dB
Analog Audio Outputs
Output Type
2 Balanced and RF filtered Terminal Block (Side)
Maximum output level
+20 dBu , with SW volume control
THD+N
< 0.05 % (20 -22 kHz)
AES67 Network
Physical Layer
Ethernet
Connector (s)
RJ-45
Cable Quality
CAT-5e or better, UTP
Transmission Speed
100 Mbps
Supported Sample Rates
48kHz
Minimum Audio Latency
1ms
AES67 Support
AES67, SAP based stream discovery

Page i
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com
Document Information
Document title:
unAX4I
Document file name:
614-00042 unAX4I User Manual.docx
Revision number:
<01>
Issued by:
Attero Tech
Issue Date:
11/14/2017
Status:
Released
Revision History
Revision
Date
Author
Description of change
00_a
08/28/17
AJB
Initial Draft
00_b
09/27/17
CNL
Updates and changes after review
00_c
11/13/17
CNL
Minor changes and corrections after change by Alex
00_d
11/14/17
CNL
Updated hardware wiring diagrams
01
11/14/17
CNL
Release Version

Page ii
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞ www.atterotech.com
Document Information
Document title:
unAX4I
Document file name:
614-00042 unAX4I User Manual.docx
Revision number:
<01>
Issued by:
Attero Tech
Issue Date:
11/14/2017
Status:
Released
Revision History
Revision
Date
Author
Description of change
01
11/14/17
Release
01_a
03/15/18
SGG
Warranty Updated
