ATZ HDMI-EN101 User manual

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 1
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 2
Notes
: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Features:
 Support H.264 encoding.
 Support UDP, HTTP, RTSP, RTMP, ONVIF protocol.
 Support MPEG1 Audio Layer 2.
 CBR/VBR rate: 16Kbps~16Mbps.
 1000M network interface uses full duplex mode.
 Support up to 720p, 1080p@60HZ HD video input.
 Support image parameter settings.
 WEB interface management authority.
 Support remote management in WAN (WEB).
 Support resolution customized settings.
 Support one key to restore the factory configuration.
 Dimension: 105x79x29mm(LxWxD)
 Weight: 275g

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 3
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ

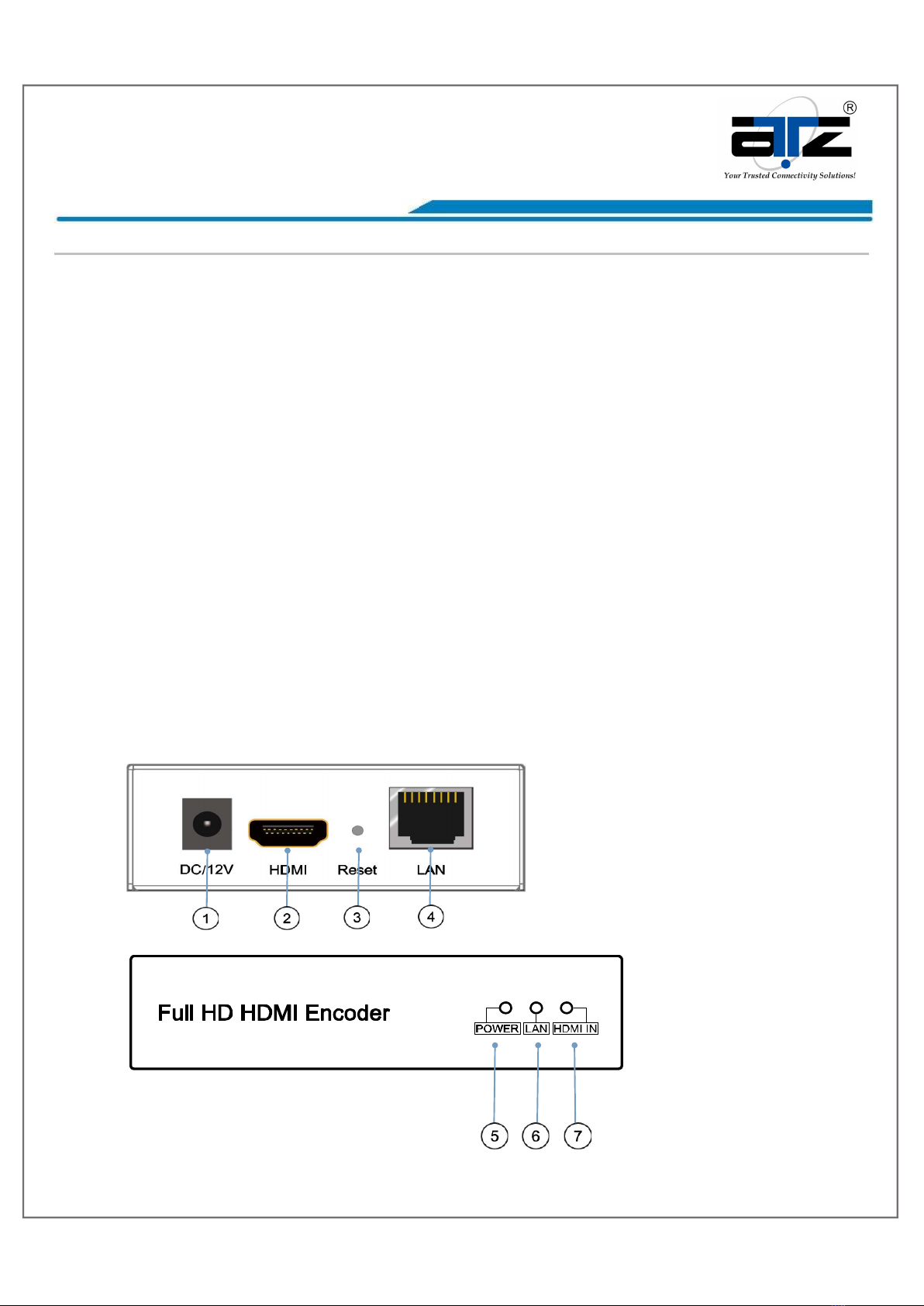

① Power input port ② HDMI input
③ Reset button ④ LAN output
⑤ Indicator of power input ⑥ Indicator of LAN output
⑦ Indicator of HDMI input
Note: . Reset to the factory default setting: press “Reset” for 10 seconds till all three
indicators go out.
. LAN: default IP is 192.168.1.168 for the unit.

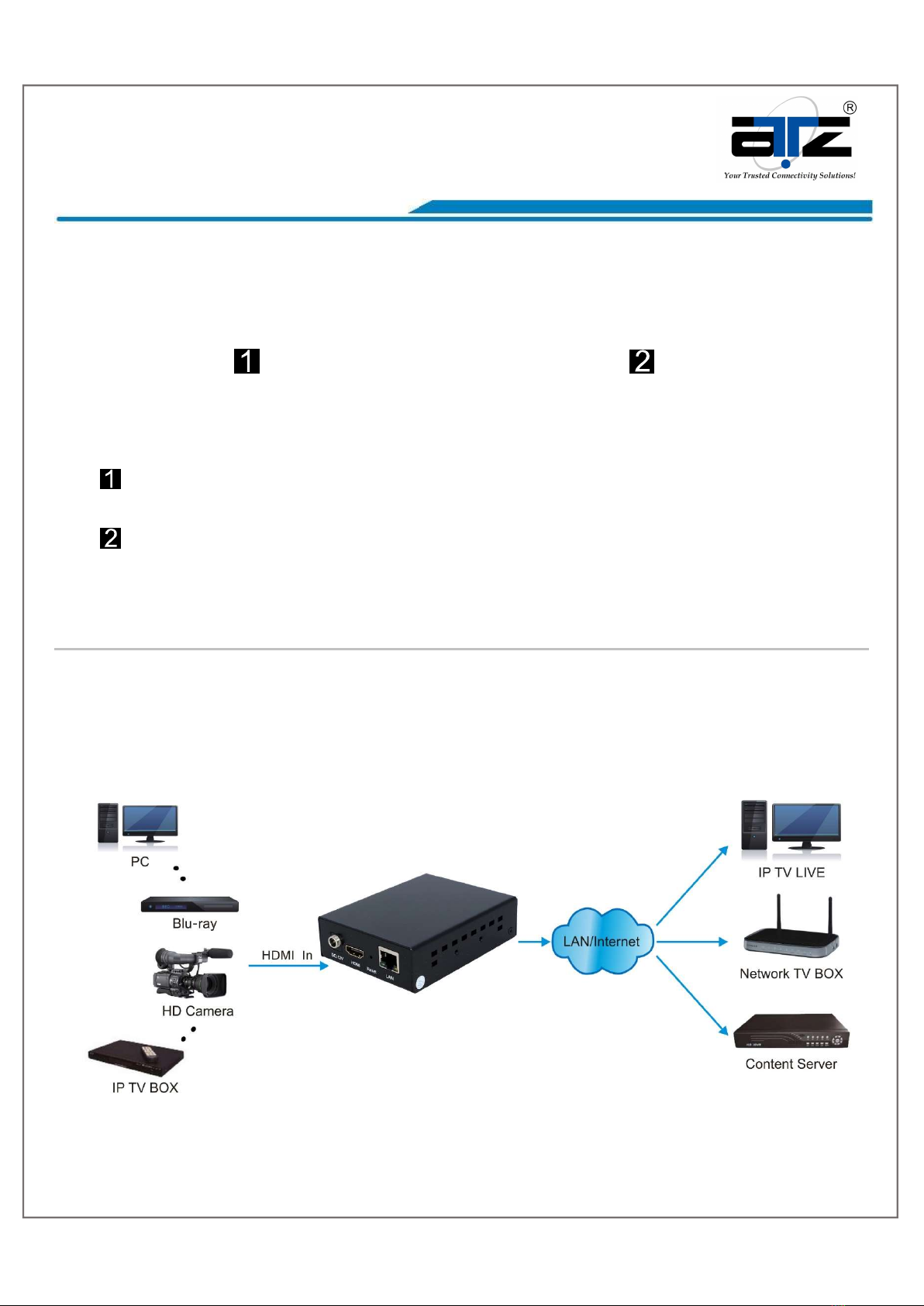

Product Diagram:

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 4
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Environment Configuration:
Software
Change the IP Address of PC
Assign the PC (or laptop) IP address on the computer: “Control Panel”→ “Network Connections”→ “Local Area
Connections Status”→ “Properties”→ “Internet Protocol (TCP/IP)”→Type the IP address with 192.168.1.XX (0-
255) and Subnet mask with 255.255.255.0. After that press OK to save the configuration.
Login for configuration:
Enter the unit IP 192.168.1.168 on browser, to open the web GUI. Login with default user name and pass word
as admin. Like below, into the home page.

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 5
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ

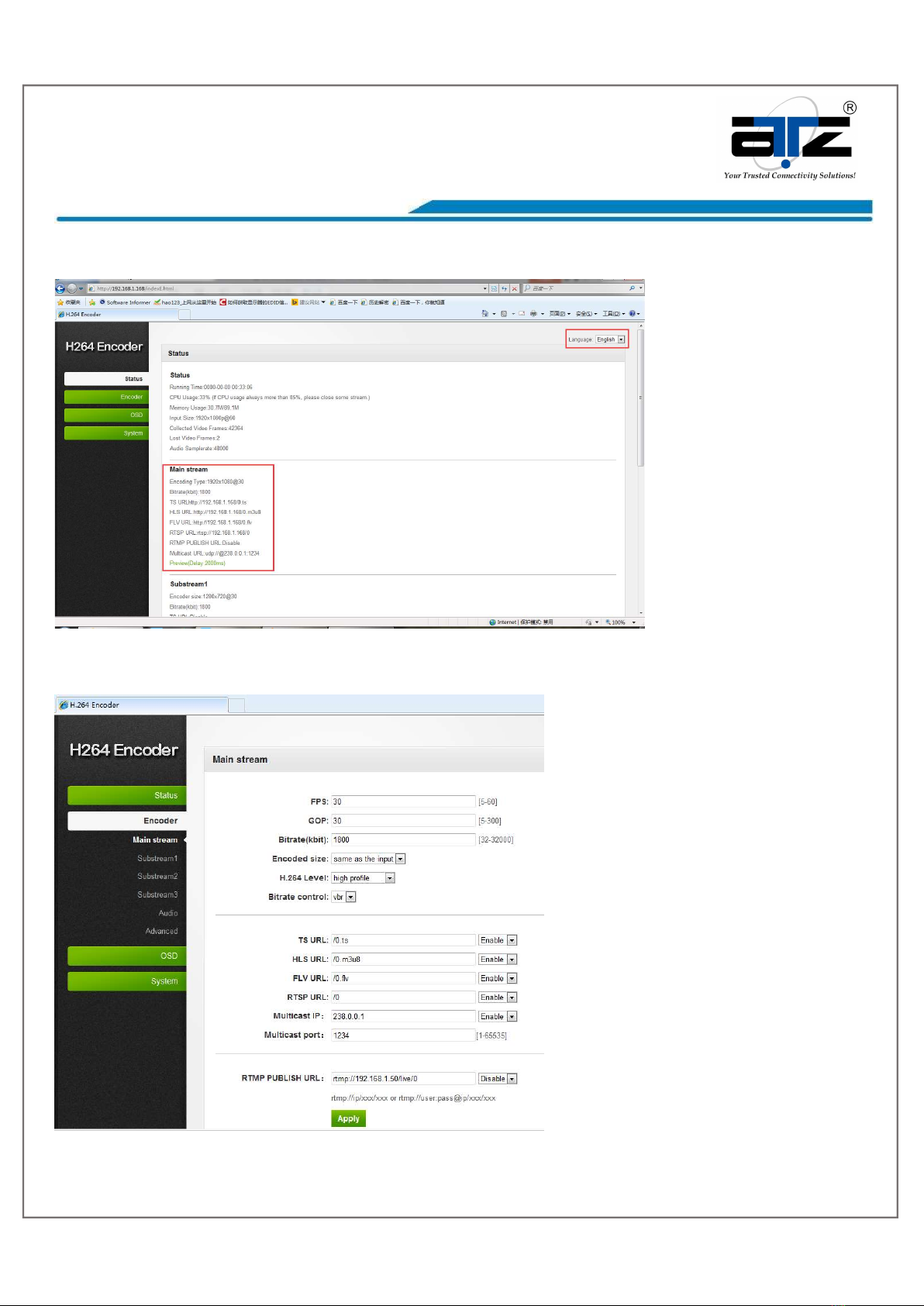

Check the stream address:
As below, the stream address is in the red frame.
Encode Setting:
Encode Setting:
Click Encode setting→Main stream→Setting the parameters→Click Apply

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 6
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Audio setting:
Click encode→Audio→Setting the parameters→Click apply
Advanced:Click Encoder→Advanced→Setting all the parameter→Click apply.

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 7
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
OSD Setting:
Streaming OSD Setting:
Click OSD→Network→Setting all the Parameter→Click apply, as below picture show
LOGO uploading:
Click logo upload→provide the logo picture as the requirements→Click Apply
※Note: The screenshots might have some difference with actual operation interface due
to software upgrade, all the screenshots are for reference only, please follow up the real
operation interface.

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 8
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ

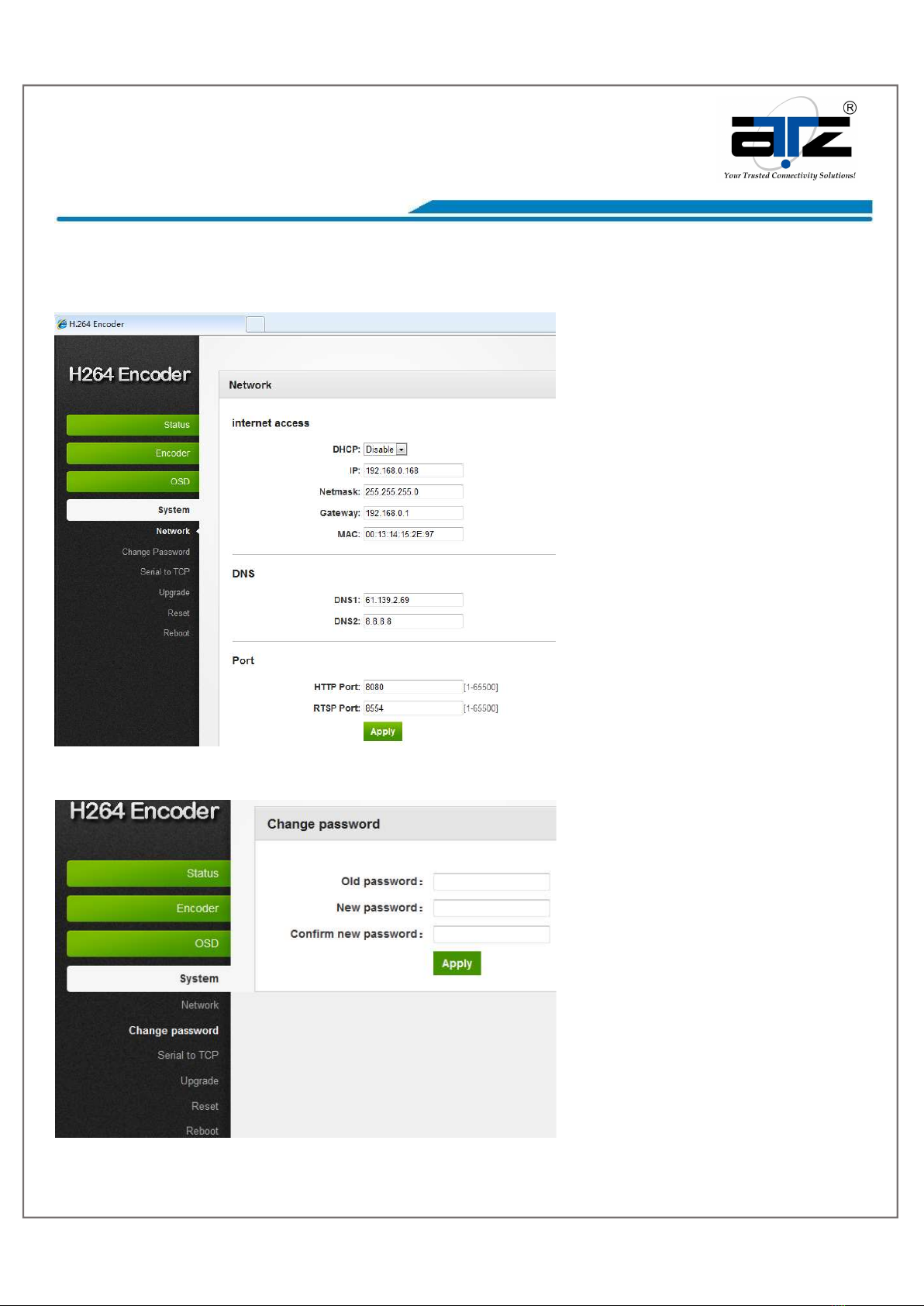

System:
Network:
Click system→Network→Setting all the parameter→Click apply.
Change password:
System→Change password→Set your password→Apply

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 9
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Reset:
System→Reset→Reset
Reboot:
System→Reboot→Reboot (please refresh the web after 1 minute)

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 10
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Application:
User Application Example
Web Video Preview
Status→Main stream→Preview
Belowing picture is the preview effect:

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 11
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ

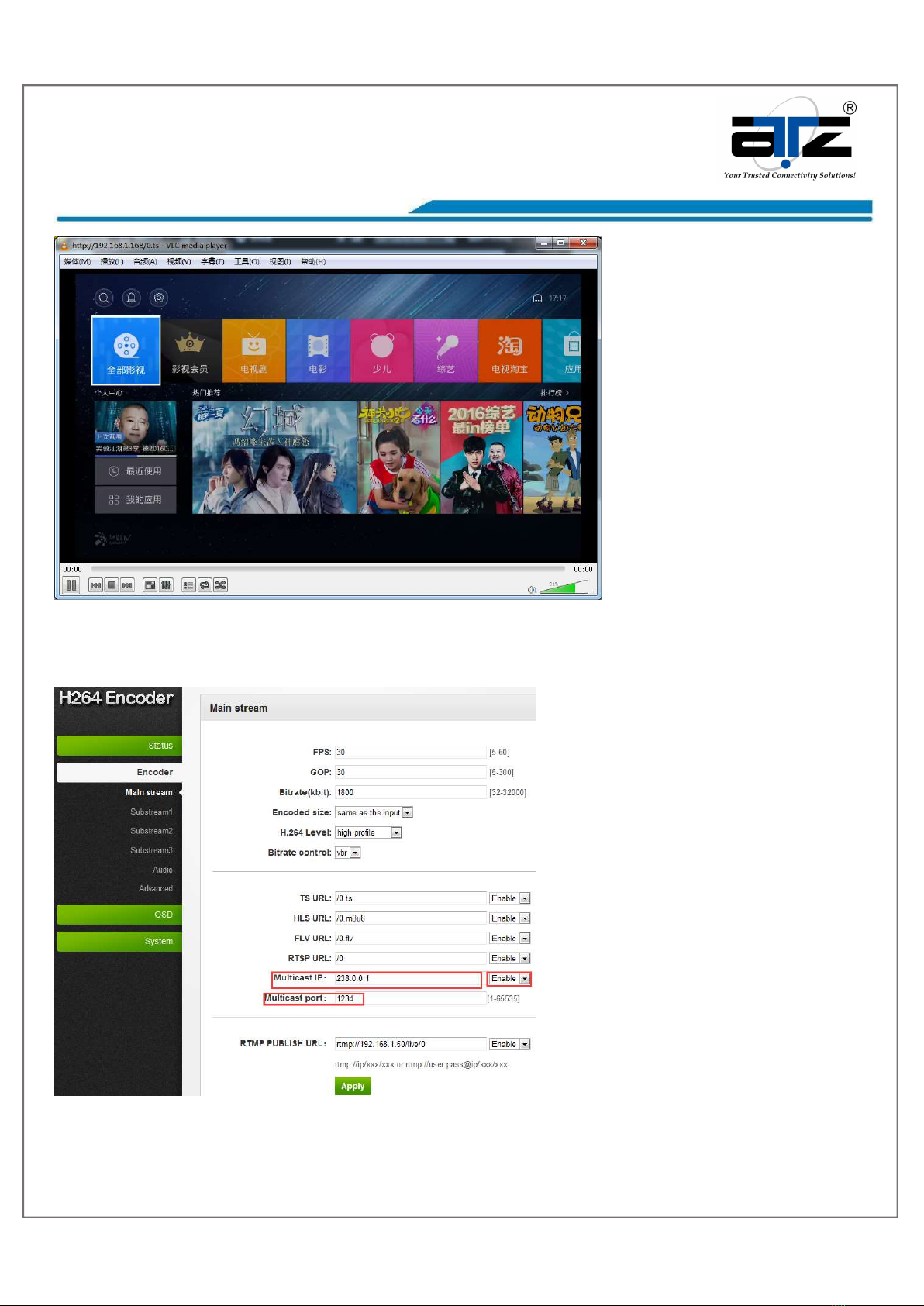

VLC Play
Connect HDMI source to the HD encoder, open VLC media player (Download website：
http://www.videolan.org/），Click “Media”, then click“Open Network Stream”.
Enter Stream URL which showed from the page of Main stream. Click “play”, You can successfully play the
video stream encoded from this device.

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 12
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Multi Local User Application Multicast Way
If many local users need watch the video of same HD encoder at the same time, we suggest using multicast.
Enable the multicast IP, then re-power the HD encoder.

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 13
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
There is a multicast URL in the Status page, copy it into the VLC Player.
This address can be visited by many visitors at the same time
Local Surveillance System Application NVR Connection
Confirm if NVR support H.264 decoder. Since using ONVIF, you need enable the
"RTSP" function as below picture.

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 14
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ

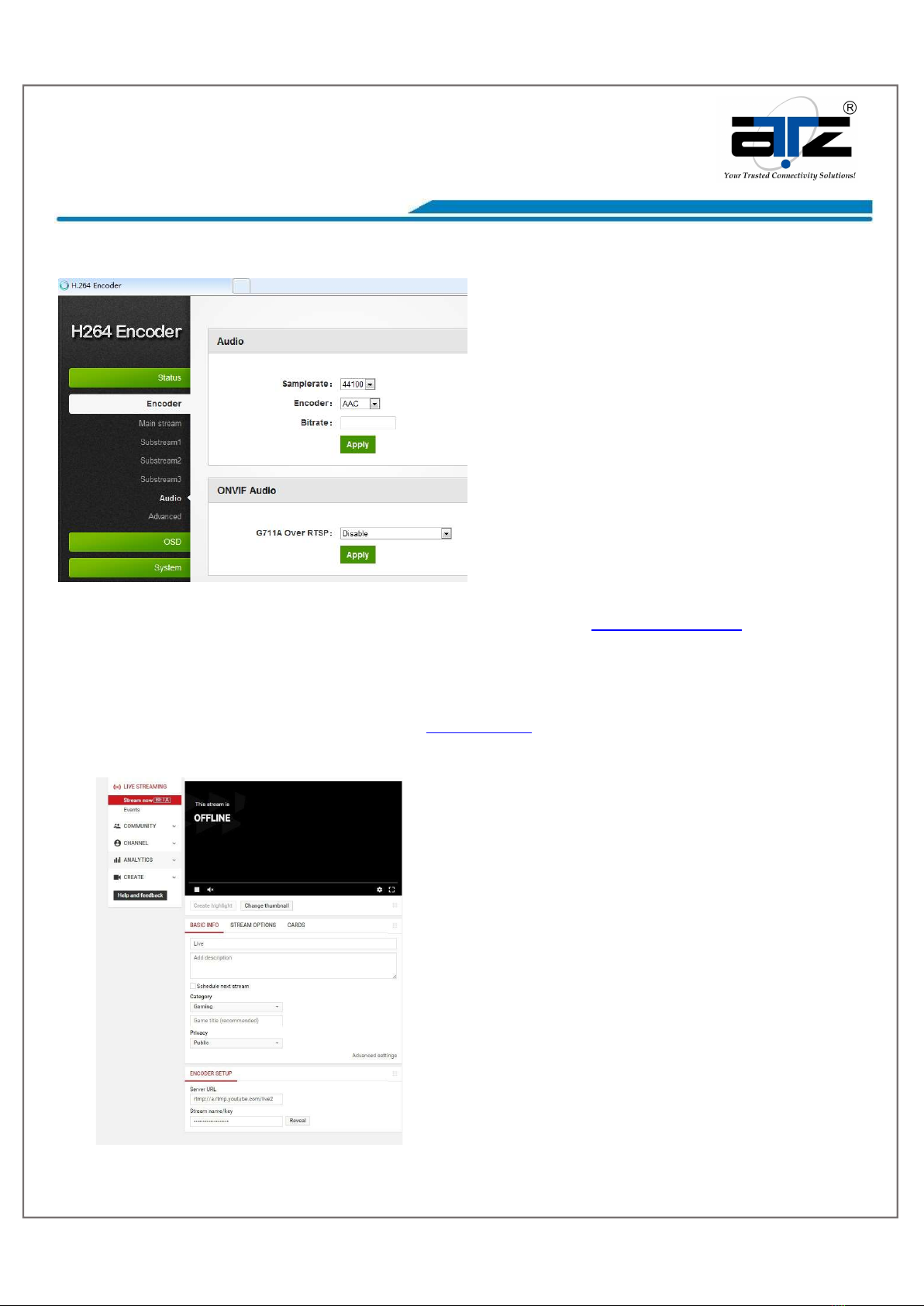

If you need the NVR recognize the Audio of HD Encoder, you still need enable the
Audio as below picture:
Note: If you've finished above setting and still can't open the video , we suggest you download the standard te
sting tool to test the ONVIF function of HD Encoder ( Down load address http://url.cn/2ESQRcn)
Remote Multi User Application RTMP Connection
If many users from different location need watch the source of the same HD Encoder, we
suggest you use RTMP.
Our product support below Free platform: NGINX, RED5 MEDIA SERVER etc.
Charged platform: ADOBE MEDIA SERVER5 and http://mudu.tv/ etc.
Since the current RTMP protocol only support H.264 function, you need set the HD Encoder as H.264, set the
RTMP Address and enable it as below picture. Re-Start the HD encoder after finishing the setting.

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 15
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
Note: If you have finished above setting and still can't open the video, please check as below:
1. Check the collected data of HD Encoder, if it shows 0, then the HD Encoder connection is failed; you need c
heck if the hardware connection is correct.
2. Check the RTMP connection status, if it shows unconnected, you need check if the Network setting is correc
t (You need set the IP Address to have access to the internet)

Model : ATZ HDMI-EN101
Description : H.264 HD HDMI Encoder for IP TV
pg. 16
Notes: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour,
shape from the actual item delivered from time to time.
All specifications are subject to change without prior notice.
© Copyright ATZ
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean
this unit.
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service
personnel if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in
these operating instructions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses parts
specified by the manufacturer or parts that have the same characteristics as the original
parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety checks to
confirm that the unit is in proper working condition.
Package contents:
1x Main Unit. H.264 HD HDMI Encoder
1x Power adapter DC 12V
1x Operating Instruction manual
Warranty: 2 Years
Warranty is effective from the date of original delivery.
This warranty shall be void if a serial number has been removed from the product.
