AUTOOL TW 500
Tire Pressure Monitoring System
User Manual


Trademark
AUTOOL Technology Co, Ltd. has registered its trademarks in several
countries including China, the trademark is . With regard
to the other trademark, service logo, domain name, icon and company
name mentioned in this manual, they shall all belong to AUTOOL and
its other affiliated company, in other countries without the registration
yet of these trademark, service logo, domain name, icon and company
name of AUTOOL, here we announce they are owned by AUTOOL. Any
company or person shall not use the trademark, service logo, domain
name, icon and company name of AUTOOL before getting approved by
AUTOOL with written certificates. Please visit our website
www.autooltech.com or email to aftersale@autooltech.com to contact
us.
Welcome
Dear customer,
Thanks for buying our product. It is our great honor to provide our best
service to you. Your satisfaction is our goal and your support will be highly
appreciated and it is the driving force of our progress!
We’re specialized in TPMS products and won good reputations from our
customers because of our good quality and service. Since our company
established, we’re subjected to the " Credit comes first.and the client is the
God. " business philosophy, to fulfill the "Grasp the opportunity to blaze
new trails, developed strong competitive products" as the principle of
service. Regard “People-oriented, Reputation fist" as our corporate
culture.
Please read this manual carefully before using our product. With full
pictures and their accompanying essay in detailed we introduce you the
operation of our product Intuitively. By the way, due to product production
date, different batches, indicating that the actual use of the product may be
different, specifications are subject to the phisycal product.
Thank you again for your choose and support. Meanwhile we hope that

you guys may send us feedback during the course of you use it. Your
suggestion and support are the driving force of our progress! "Happy to go
out, peacefully come back" is our hope, and finally we sincerely wish you
family all happy, everything goes well.
I I . The safety significance of the tire pressure monitoring
system
1. Tires are the most important part of the car, which means significant to
the safety of driving, dues to too much terrible traffic accidents caused by
its problem. As a matter of fact, to keep standard tire pressure and timely
detection of tire leaks is the key to safe driving. For the time being, fix
direct tire pressure monitoring system is the major mature way monitor the
tire pressure.
2. This product is a direct tire pressure monitoring system, it can be
real-time monitoring of tire pressure and temperature status, in time give
out alarm once abnormal situation happen. You needn’t check by eyesight
or percussion tires or other unscientific methods to determine whether the
tire is leak. Don’t worry about the pressure or temperature is too high to be
nervous.
Remark:
Always keep the standard tire pressure, safe driving, not only can prevent
puncture, but also reduce fuel consumption and extend tire life.
III. The working principle of tire pressure monitoring
system
The Tire Pressure Monitoring System (TPMS) is designed to monitor the
internal pressure and temperature of the tire by means of a sensor
mounted on the tire and to transmit the collected data to the driver in the
cab Of the receiver. TPMS can monitor the vehicle tire pressure and
temperature information in real time. Alarm give out as long as low

pressure, high pressure, air leakage, high temperature and other abnormal
situation, to remind the driver who need to take corresponding effective
measures to play a role in safety assistance to achieve car travel more
Safe, reliable, comfortable, and economical.
IV.Product profile:
The TPMS/HUD intelligent integrated machine extends the concept of
combining the HUD car head-up display function with the two functions of
the car slope meter, greatly improving the safety escort level of the product
to the user.
The TPMS/HUD intelligent integrated machine acquires data from the
satellite through the GPS/Beidou dual-channel module. The dual-channel
module has the advantages of strong star search capability and stable
signal. The TPMS/HUD intelligent integrated machine is used in all models
on the market.
With TPMS/HUD intelligent all-in-one machine, you can drive without
bowing, pay attention to the vehicle dynamics at any time, and you can
also see the status of the vehicle tires. The TPMS/HUD intelligent
all-in-one machine uses LCD color display. The effect is dazzling and clear,
and the vision is clear at a glance. TPMS/ HUD intelligent all-in-one
features include (tire pressure, tire temperature, speed, altitude, time, etc.)
V.Product characteristics:
Applicable to domestic cars, Asian cars, American cars,
European cars.
It is equipped with a high-precision dual-channel satellite GPS
signal module.
Fully automatic monitoring of vehicle driving conditions.
Metric (KM/H) and Imperial (MPH) units switch freely.
Tire pressure mode and HUD mode switch.
It adopts color HD LCD display with high resolution.
Solar charging function.

Start with the car, stop automatic sleep function.
Cool mini body design.
VI.Product functions:
Tire pressure display.
Tire temperature display.
Speed display.
Clock display.
Altitude display.
In-vehicle temperature display.
VII.Alarm:
Tire leak alarm.
Tire low pressure alarm.
Tire high pressure alarm.
Tire high temperature alarm.
Tire low temperature alarm.
Tire sensor low battery alarm.
Mainframe low battery alarm.
VIII.Mainframe

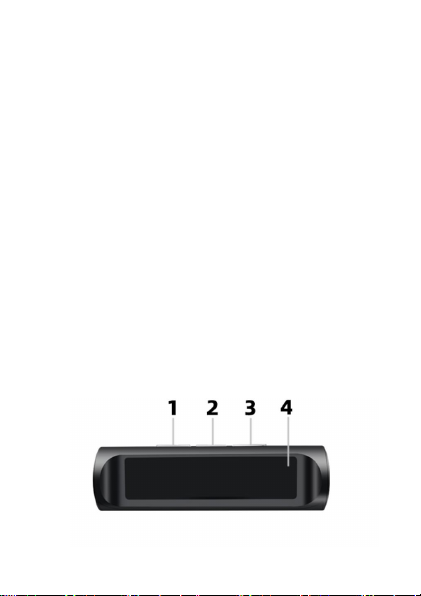

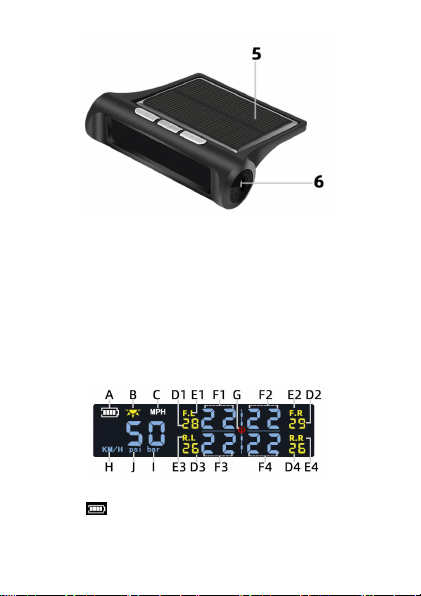

1, back key 2, M key 3. Forward key 4. Display
5. Solar charging board 6. USB charging port
IX.Introduction of TPMS fetal pressure monitoring and
display interface
Take the mainframe out and start the TPMS tire pressure monitoring
interface (as shown in the figure below, taking the English unit as an
example), (Note: the product speed, tire pressure display, tire temperature
is synchronous display)
A. This " " picture is to receive the mainframe battery icon. When the
solar energy and USB are supplying current, the icon scroll bar flashes to
indicate that the charging mode is in progress.

B. When the sun light reaches the charging condition, the “ ” icon will
be lit on the display to indicate that the solar panel has entered the working
state. At this time, the mainframe battery icon scroll bar is blinking,
indicating that the Perform charging mode.
C. This " " picture is the speed English unit icon.
D1, D2, D3, and D4 are tire temperature displays. A total of four groups
represent four tires. When the sensor is normally in the working state, the
temperature will be updated continually.
E1, E2, E3, E4 are tire position icons representing the four tire positions of
the car.
F1, F2, F3, and F4 are tire pressure display icons. The four groups
represent four tires. When the sensor is normally launched, this icon will
display constantly updated data of pressure.
G. This “ ” picture is the sensor alarm icon. When the air pressure
increases or decreases, this icon will flash, and the mainframe will also
send a “drop, drop,” alarm signal.
H. This " " is the speed metric unit icon.
F. This “ ” speed display icon shows the speed of the car when the
car is driving.
I. This " " picture is the air pressure unit icon, " " is the unit of
use in China.
J. This " " picture is the air pressure unit icon, and " " is a unit of
use in foreign countries.

Tire pressure mode metric (KM/H) unit interface display

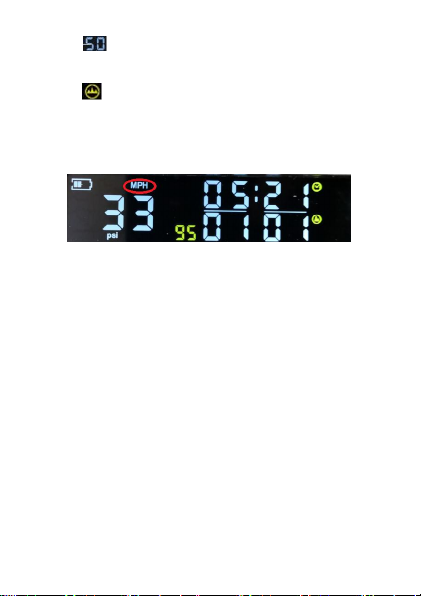

X.Introduction of HUD display interface
1. Take the mainframe out and turn it on. Press and hold the “forward key”
for 5 seconds to switch to the HUD mode interface (as shown in the figure
below, take the English unit as an example) and press the “forward key” for
5 seconds to return to the tire pressure. interface.
A. This " " picture shows the mainframe battery icon. When the solar
energy and USB are supplying current, the icon scroll bar flashes to
indicate that the charging mode is in progress.
B. When the sun light reaches the charging condition, the “ ” icon will
be lit on the display to indicate that the solar panel has entered the working
state. At this time, the flash of the mainframe battery icon scroll bar is
received. Indicates that charging mode is in progress.
C. This " " is the speed metric unit icon.
D. GPS satellite time display area
E. This " " is a clock display icon. When the HUD mode is displayed,
the icon lights up and the GPS satellite time is displayed.

F. This “ ” speed display icon shows the speed of the car when the car
is driving.
I. The current altitude display area.
J. This " " picture shows the altitude icon. When it is in HUD mode, the
icon lights up and the real-time altitude is displayed.
H. In-vehicle temperature display (units Celsius °C)
HUD mode metric (MPH) unit interface display
XI.The installation steps
1.Receive mainframe installation
* Take out the mainframe, and then place the mainframe with a non-slip
mat or 3M glue on the instrument panel to avoid falling.
* The first time you use this product, first check if there is power. If there is
no power or no power on, you must take out the USB cable and connect it
to the USB port of the car. After charging, you can charge yourself by solar
energy without connecting USB.

2. External sensor installation(as shown in the following figure)

3.Internal sensor installation (as shown in the following figure)
* Please repeat the above steps to complete the installation of the

III. The working principle of tire pressure monitoring
system
The Tire Pressure Monitoring System (TPMS) is designed to monitor the
internal pressure and
whole sensor step by step.
XII. Receive mainframe on/off and function introduction of
keys
1.On / off key
* In the case of the shutdown state, you can choose to press the "back
key" of the mainframe to start the system;
* In the case of power on, if you want to shut down, you can only choose to
press and hold the "back key" to shut down.

2.M key
*mainframe interface In tire pressure mode, long press "M key" to enter
"menu and settings".
* Also in the settings is the "Select and Confirm".
3. Forward key
* Long press 5 seconds "forward key" to switch between HUD mode
and TPMS tire pressure monitoring mode
* In the settings, think of "increasing"
* Press the "forward key" in the boot state to increase the display
brightness.
4. Back key
*mainframe interface in tire pressure mode, long press "back key" 5S
to close mainframe
* In the settings, it is considered "reduced".
* Press the "forward key" in the boot state to reduce the brightness of
the display
XIII. Receiving mainframe and sensor pairing
1.Sensor pairing
* Take the mainframe out and press the boot to keep working. The
mainframe interface is in the tire pressure mode. Press and hold the “M”
key to enter the setting interface (as shown in the following figure).

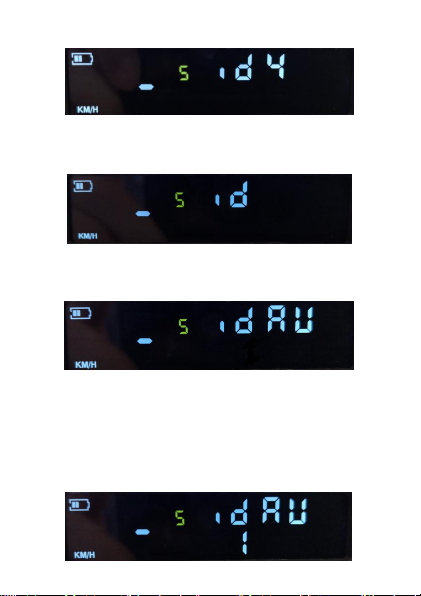

* Press "back key" 3 times(as shown in the following figure)

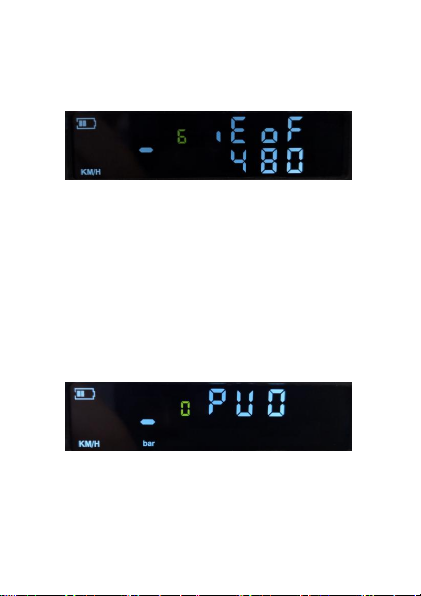

* Press the “M” key once again, and the display interface 4 is flashing.(as
shown in the following figure)

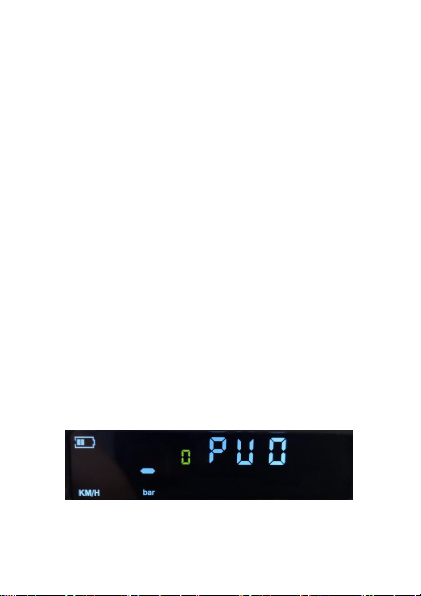

* Then press "back key" and "forward key" simultaneously for 5 seconds to
enter the tire matching interface.(as shown in the following figure)
* Then twist the tire valve cap that is installed with the sensor, keep the air
pressure between 0.7-2.5Bar, and inflate or deflate the tire. The number in
the lower row of the display will show that the pair has been paired
(corresponding The number represents: 0 for FL, 1 for FR, 2 for RL, and 3
for RR) (as shown in the figure below, it means that the pair is on the FR
right front wheel, long press "M" key to save)

XIV. Introduction to the function of mainframe
(Note: Only press the “M” button in the tire pressure mode to enter the
setting interface.)
1.Clock setting
*Mainframe interface In the tire pressure mode, long press the "M" key to
enter the setting mode, press the left key twice to enter the interface (as
shown in the following figure). The default time of the system is GMT
(Greenwich Mean Time, 0 time zone). If there is a time difference in local
time, please follow the steps below:
* The time unit of this interface is min. Press the “M” key for the first time,
the ones flash, use the left and right keys to adjust the ones; the second
press the “M” key, the ten digits flash, and the left and right keys adjust Ten
digits; the third time press the "M" key, the hundred digits flash, and the left
and right keys are used to adjust the hundred digits;
*Setting is completed, long press "M" key to save and exit. The display
time in HUD mode is GMT plus the current setting value.
For example, Beijing is the East Eight District (one hour in a time zone), 8

hours (480 minutes) faster than Greenwich Mean Time (GMT), and should
be set to 480. US Eastern Time is West 5th District, 5 hours slower than
Greenwich Mean Time (GMT), (300 minutes), should be set to -300.
2.Unit switching setting
*The mainframe interface in the tire pressure mode, long press the "M" key
directly into the MPH / KMH unit switching interface (as shown in the
following figure), and then press the "M" key once, at this time set the
interface PSI or BAR To flash, press “Forward or Back” to select the unit to
be set, and press “M” key to save the setting (Explanation: In PSI unit
mode, the speed unit defaults to MPH inch, the temperature unit defaults
to °F Fahrenheit. In the BAR unit mode, the vehicle speed unit defaults to
KM/H metric, and the temperature unit defaults to °C degrees Celsius.)
3.Low pressure setting of tire
*Mainframe interface In the tire pressure mode, long press the “M” key to
enter the air pressure setting interface, press the second “forward key” to
enter the tire low pressure alarm setting interface, as shown in the
following figure and press “forward key or backward” The key "sets the tire

low pressure to "1.8 Bar", the normal tire normal pressure is "2.0-2.8 Bar"
and the low air pressure cannot be lower than "1.8 Bar".
4. High air pressure setting of the tire
Mainframe interface In the tire pressure mode, long press the "M" key,
press the "forward key" once to enter the tire high pressure alarm setting
interface, (as shown in the following figure) and press the "forward key or
back key" to the tire high pressure Set to "3.0 Bar", the normal tire
pressure is "2.0-2.8Bar" and the high pressure cannot exceed "3.0 Bar".
5. High-temperature alarm setting of tire
Mainframe interface In the tire pressure mode, long press the “M” key to
enter the air pressure setting interface, press the “forward key” three times
to enter the tire temperature alarm setting interface, (as shown in the
following figure) and press the “forward or back key” "Set the tire high
pressure to "75 ° C", the normal tire normal temperature is "negative 5 ° C -
positive 75 ° C" temperature value can not exceed "75 ° C".

6. High voltage alarm
When the receiving mainframe detects that a certain tire pressure value
has changed and the tire pressure value exceeds the set "3.00Bar" air
pressure value, the mainframe alarm icon " " will be illuminated,
The tire data value does not flash at the same time, and the alarm of
“di, di, di...” is not issued to indicate that the tire has failed. (as shown in the

following figure)
7. Low voltage alarm and fast air leakage alarm
When the receiving mainframe detects that a certain tire pressure value
has changed, but does not lower the set air pressure value, the receiving
mainframe alarm icon " " will light up, and the tire data value
flashes at the same time. And issue a "di, di..." alarm warning; if the tire
pressure value is lower than the "1.80Bar" air pressure value, the
mainframe alarm icon " " will be illuminated, tire data value does
not flash at the same time, and the alarm of "di, di, di..." is not issued to
indicate that the tire has failed. (as shown in the following figure)
8. High temperature alarm
When the receiving mainframe detects that a certain tire temperature
exceeds the set temperature value, the mainframe alarm icon " " will
be illuminated, and the” ” tire data value will not flash at the same
time, not the segment. An alarm "di, di, di..." is issued to indicate that the
tire is hot. (as shown in the following figure)
9.No signal alarm
During the driving process, when the mainframe is received for 10 minutes
without receiving the signal transmitted by the sensor, the mainframe
Table of contents
Other AU Tool Measuring Instrument manuals

AU Tool
AU Tool X60 User manual

AU Tool
AU Tool X90 User manual

AU Tool
AU Tool BT60 User manual

AU Tool
AU Tool LM120 Plus User manual

AU Tool
AU Tool X90 User manual

AU Tool
AU Tool X91 TPMS User manual

AU Tool
AU Tool LM110 User manual

AU Tool
AU Tool X50 Plus User manual

AU Tool
AU Tool SDT 206 User manual

AU Tool
AU Tool X60 User manual
Popular Measuring Instrument manuals by other brands

X-Rite
X-Rite DensiEye 700 quick start guide

Braun
Braun D521 series product manual

Trico
Trico Grease Meter user manual

Dwyer Instruments
Dwyer Instruments DPG-200 Series Specifications-installation and operating instructions

baxter
baxter ML-132392 Operator's & installation manual

horiba
horiba LAQUAtwin-Na-11 instruction manual
