AU Tool X60 User manual

AUTOOL X60
Car OBD Multi-function Meter
User Manual
www.autooltech.com

Trademar k
AUTOOL Technology Co, Ltd. has registered its
trademarks in several countries including China, the
trademark is . With regard to the other trademark,
service logo, domain name, icon and company name
mentioned in this manual, they shall all belong to AUTOOL
and its other affiliated company, in other countries without
the registration yet of these trademark, service logo,
domain name, icon and company name of AUTOOL, here
we announce they are owned by AUTOOL. Any company
or person shall not use the trademark, service logo,
domain name, icon and company name of AUTOOL before
getting approved by AUTOOL with written certificates.
Please visit our website www.autooltech.com or email to
[email protected] to contact us.
Caution
Please read this manual carefully as part of using the
product.
Please keep this manual in case of product
maintenance.
Please follow the operation instructions and use the
parts recommended by manufacturer.
The product is only used for functions as designed,
112
Warranty not Covered in
Conditions Listed Below
Product is bought through non-official AUTOOL
purchase channel.
Product failure is caused by incorrect use of the
product, use for other wrong purpose or human factors.
Disclaimer: The AUTOOL Technology Co, Ltd. reserves
the right to change product designs and specifications
without prior notice. The physical appearance and color
may differ from those shown in the instruction manual.
Please refer to the actual product. If you have any
questions, please contact the dealer or the Autool service
center. The company have the final explanation right of
product and shall not bear any consequences due to
misunderstanding.

please don’t use it for other purpose.
In term of improper usage or purpose usage of the
product, the manufacturer shall not be responsible for
the results.
2
Product Introduction
Suitable vehicle models
The product is suitable for standard OBD II protocol
compliant petrol and diesel vehicles, especially for
vehicles without a temperature gauge, tachometer
and fuel consumption meter.
Product installation
This product is a car OBD multi-function instrument
with a stylish and compact shape. It is designed for
installation through the plug and play OBD port
without cutting the wire, easy and simply to install.
Features of pr oduct hardware
32-bit ARM CORTEX-M3 CPU, with 72MHz maximum
operating frequency, in support of multiple high speed
automotive communication protocols.
Early Alar m Function
Support multiple early alarm functions: water temperature
11
Size(mm) 60*50*67
Product packing list
host, OBD cable, 3M double-sided tape, user manual,
quality certificate.
Warranty
There are 3 years’ warranty for AUTOOL products and
the accessories since the day the customers have
received the product parcel.
Warranty Access
Repair or replace the equipment will be done according
to the specific fault conditions;
We guarantee that all replacement parts, accessories or
equipment are brand new;
When there is a product breakdown that can not be
solved within 90 days, customer should provide video
and pictures as proof, we will bear the freight cost and
provide customer the accessories in need to replace.
After receiving the product for more than 90 days, the
customer shall bear the freight cost, we will provide the
accessory for free to replace.

3
early alarm, over-speed early alarm, shifting reminding
early alarm and vehicle fault early alarm; bring car owners
great convenience for safe driving.
Clearing Error Codes
Product Description
X60 OBD computer is a smart and powerful auto meter. It
is especially designed for vehicle without speedometer,
engine temperature gauge, oil thermometer, boost gauge
and fuel consumption meter.
X60 can also monitor and display battery voltage, engine
charging voltage, over-speed alarm, engine temperature
warning. It can even read the real-time data stream, scan
and clear trouble code.
Product Appearance
Car owners can scan and clear regular vehicle error
codes at their discretion and reduce repair costs, without
going to the 4S shop.
① Function button
② Display
③ OBD port
④ Ambient light detector
①
②
③④
10
Quick switch to displayed quantity and content.
Set more content.
Set to display instant fuel consumption or RPM bar.
The 10 round icons in the top are shift reminding
display. It is default off.
Product Information
It helps to check software version, vehicle protocol and
solution for protocol compatibility.
About protocol compatibility
When connecting with some vehicles, gauge LED or
trouble alarm LED may be lit. Please follow the
“Matching info” to operate - Please open OBD cable of
product, and cut off the corresponding pins to solve the
problem.
Product Parameter
Work voltage
Sleep mode current
10-18V DC
<15mA
Work current
Work temp.
<80mA
-20~75℃

9
display accurately.
Voltage warning - To remind the driver if the battery is
under charge.
Color of number - 7 colors to choose.
Speed to zero - In idle speed mode, speed will display
zero if it is lower than the scheduled.
Fuel consumption adjustment - Average fuel
consumption is less the actual. If it displays more,
adjust the percentage to be smaller, and vice versa.
Reset - X60 will revert to the initial state.
Display Setting
To set display
In working condition, 4 types of information will display.
They corresponds to the following content:
4
Turn right/left of function button to quick select from main
screen. In setting mode, turn right/left to choose menu.
Press down in the middle to confirm. Long press menu
button in the middle to exit or go back.

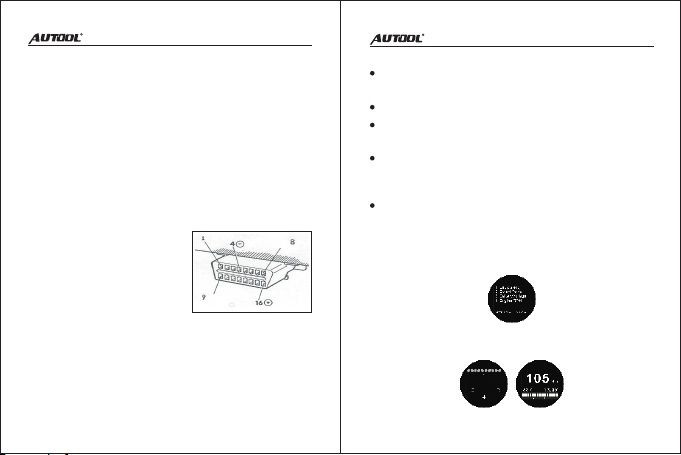

Product Installation and Use
Connect one side of OBD cable with car OBD port, the
other side with X60 OBD port.
After connection with host, start the car and wait X60 to
connect with vehicle. Connecting successfully, the host
ticks, and X60 displays vehicle protocol. Then, it will show
parameter setting for the first use.
International universal OBD
plug protocol stipulated by
SAE:
Note:
The automobile dash-board must be kept clean, if there is
wax on it, the double adhesive panel may not be
pasted on it, please clean it with a hot towel and then
start installation. When you install, heat the instrument
panel by hot blowing air, which can make the best achieve
effect.

5

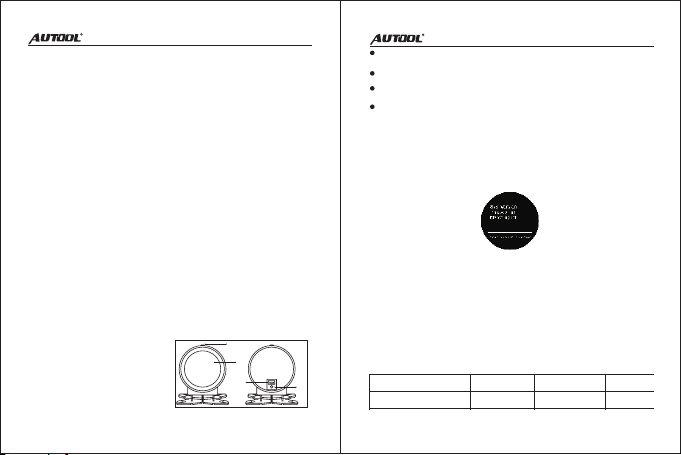

Holder Installation
Tear 3M double-sided tape, and fasten it with holder
base.
Pull up the bottom center to right and left.
Insert the base of holder to the bottom of host.
Insert the bolt from right, and nut from left.
Fasten the screw with screwdriver.
Turn right/left of button in the top of host, the displayed large
character can be switched fast.
Product Operating Setting
If the device does not support current data display, red X will
be displayed. If function data needed cannot be selected,
please check in the data stream of Electronic Control
Diagnosis System.
Current speed Average speed
Water temperature Intake temperate
Outside temperature Battery voltage
8
Product Parameter Setting Including
Engine displacement - To accurately calculate instant
and average fuel consumption.
Fuel type - Choose petrol or other type fuel, fuel
consumption data will be much different.
Over-speed alarm - When it reaches to the scheduled
speed, it will tick to alarm, and the character for speed
will display in red.
Water temperature warning - When it reaches to the
scheduled engine temperature, it will tick to alarm, and
the character for temperature will display in red.
Shift reminding - When it reaches to the scheduled
speed, it will remind to shift, and display shift symbol.
Shift reminding limit - When it reaches to the scheduled
speed, it will turn off shift reminding, in case it exceeds
the scheduled speed, and cannot shift up.
Standby time - After the vehicle shuts down, and it
reaches to the scheduled standby time, X60 will change
to automatic sleep.
Speed error adjustment - when the speed is 100km,
adjust displayed speed of X60 to 100km.
Battery voltage adjustment - Adjust X60 voltage to

6
MAP (manifold absolute pressure) Fuel pressure
TAHCO/RPM (rotate per minute) Engine load
Fuel Level Distance
Average fuel average Clock
Instant Fuel consumption Ignition Turbine
OTL P. (engine oil pressure) Throttle position
OIL T. (engine oil temperature)
Electronic Control Diagnosis System
Press the function button to Electronic Control Diagnosis
System. It includes 3 functions. See the picture below:
Choose the function“Scan DTCs”, it can read trouble code,
and you can decide if clearing the code.
7

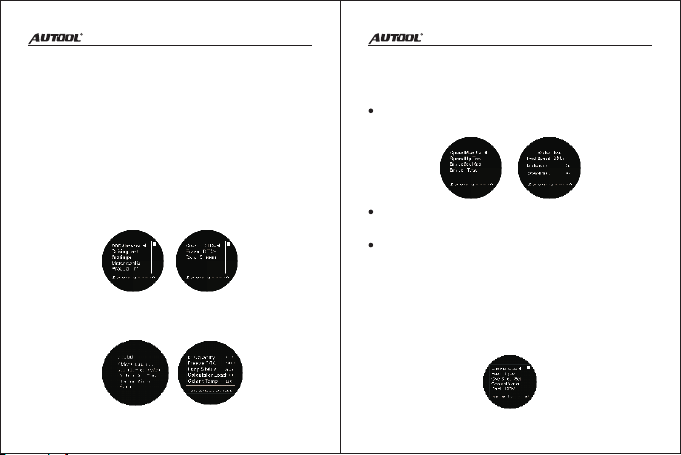

Vehicle Performance Test
Choose “Data Stream”. It will monitor real-time data. Turn
right/left of the button, it will show page up and down.
Vehicle performance test includes: speedup test, brake
test, target speedup, brake initial speed.
Before speedup test, please set target speedup. When
it reaches to the scheduled speed, finish speedup test.
Before brake test, please set brake initial speed. When
it reaches to brake initial speed, calculate the distance
from beginning to the end of acceleration.
Product Parameter Setting
In parameter setting, turn right/left of the button to set the
parameter value. Long press function key back to previous
menu.
