Audio Hungary qualiton MC User manual

Introduction
Thank you for purchasing a qualiton MC transformer!
It is designed to deliver a high standard of musical performance. The
innovation in engineering and manufacturing this product guarantees
amusement for a long time, thanks to the output transformer made by us.
We wish you many pleasant hours of musical experience with your
qualiton MC!

CONTENTS
PREFACE .............................................................................................................................................. 2
CONTENTS OF PACKAGE................................................................................................................. 3
TECHNICAL SPECIFICATION ........................................................................................................... 4
REAR PANEL TERMINALS ................................................................................................................ 5
SAFETY RECOMMENDATIONS - PLACEMENT ............................................................................ 6
SAFETY RECOMMENDATIONS - OPERATION.............................................................................. 7
FIRST INSTALLATION........................................................................................................................ 8
CONNECTING...................................................................................................................................... 9
WASTE MANAGEMENT .................................................................................................................... 10
MARKINGS........................................................................................................................................... 10
WARRANTY ......................................................................................................................................... 11
DECLARATION OF CONFORMITY................................................................................................... 12

- 2 -
Before installing the qualiton MC, please study this
user manual carefully!
Operating your phono stage in a manner it is desig-
ned for ensures you an utmost musical experience
and a reliable operation.
If you have any questions on our products or ser-
vices, please do not hesitate to contact us on our
website www.audiohungary.com
PREFACE

- 3 -
- 1pc qualiton MC
- 1pc user manual
CONTENTS OF PACKAGE

- 4 -
NOMINAL OUTPUT LEVEL
5 mV
INPUT SENSITIVITY
0.325 mV
NUMBER OF INPUT PORTS
1 unbalanced input per channel
NUMBER OF OUTPUT PORTS
1 unbalanced output per channel
TURN RATIO
1:18
TOTAL HARMONIC DISTORTION
< 0.02% (nominal output level)
FREQUENCY RESPONSE
5 Hz - 90 kHz (-3 dB)
NOMINAL SOURCE IMPEDANCE
2 - 10 Ω; 5 - 30 Ω; 15 - 50 Ω
factory tuning based on individual needs
NOMINAL LOAD IMPEDANCE
47 kΩ
INPUT IMPEDANCE
145 Ω
GAIN (WITH NOMINAL LOAD)
+24 dB
WEIGHT
1 kg
TECHNICAL SPECIFICATION

qualiton MC
- 5 -
REAR PANEL TERMINALS
21 543
Left side RCA input (L)
Right side RCA output (R)
Right side RCA input (R)
Grounding screw
Left side RCA output (L)
1
4
2
3
5

!
!
- 6 -
200 mm
200mm 200mm
- Avoid relocating the appliance from cold to warm
surroundings! Sudden temperature changes can
lead to moisture condensation. Please wait until
moisture is evaporated before putting your mc
into operation!
- The aforesaid applies to the very rst installation
of the MC as well. Prior to the rst installation, le-
ave the MC at its place of operation at least for 2
hours. Once this time is over, the MC can be po-
wered up!
- The appliance is designed for indoor use. Do not
operate it in wet, humid surroundings!
- Do not store any electrical device or object in a
perimeter of 200 millimetres around your qualio-
ton MC!
- Do not use the appliace next to heating sources
and radiators! Keep it away from hot or dusty en-
vironment and ame!
SAFETY RECOMMENDATIONS - PLACEMENT

!
qualiton MC
!
- 7 -
- Improper installation may cause breakdown!
- Before powering up your MC, make sure cover,
ports, plugs and cables are checked for intact-
ness!
- You must not start up damaged or faulty applian-
ce. In case of any malfunction, unplug your MC
immediately!
- Components must not be changed or repaired by
the user. In case of a malfunction, the cover must
not be opened or removed!
- In case of an emergency, unplug your MC imme-
diately!
- In case of a faulty operation, contact our service.!
- Improper repair may lead to a loss of warranty!
- The appliance may only be used by qualied
adults or children above 14 years of age if super-
vised by a qualied adult!
- Keep the appliance out of the reach of children!
- Make sure your domestic animal does not lie or
sit on the top of the appliance!
- Irrespective of protection circuits built in in your
MC, always make sure it is connected and opera-
ted in a proper manner!
SAFETY RECOMMENDATIONS - OPERATION

!
!
- 8 -
- If you do not use your MC for a long time, unplug
the appliance carefully!
- Do not block the openings of your MC since this
may lead to re or electric shock!
- The protection rating of this appliance is IP20.
This means the appliance is protected from solid
objects larger than 12 millimetres. However, it is
not protected from moisture!
SAFETY RECOMMENDATIONS - OPERATION

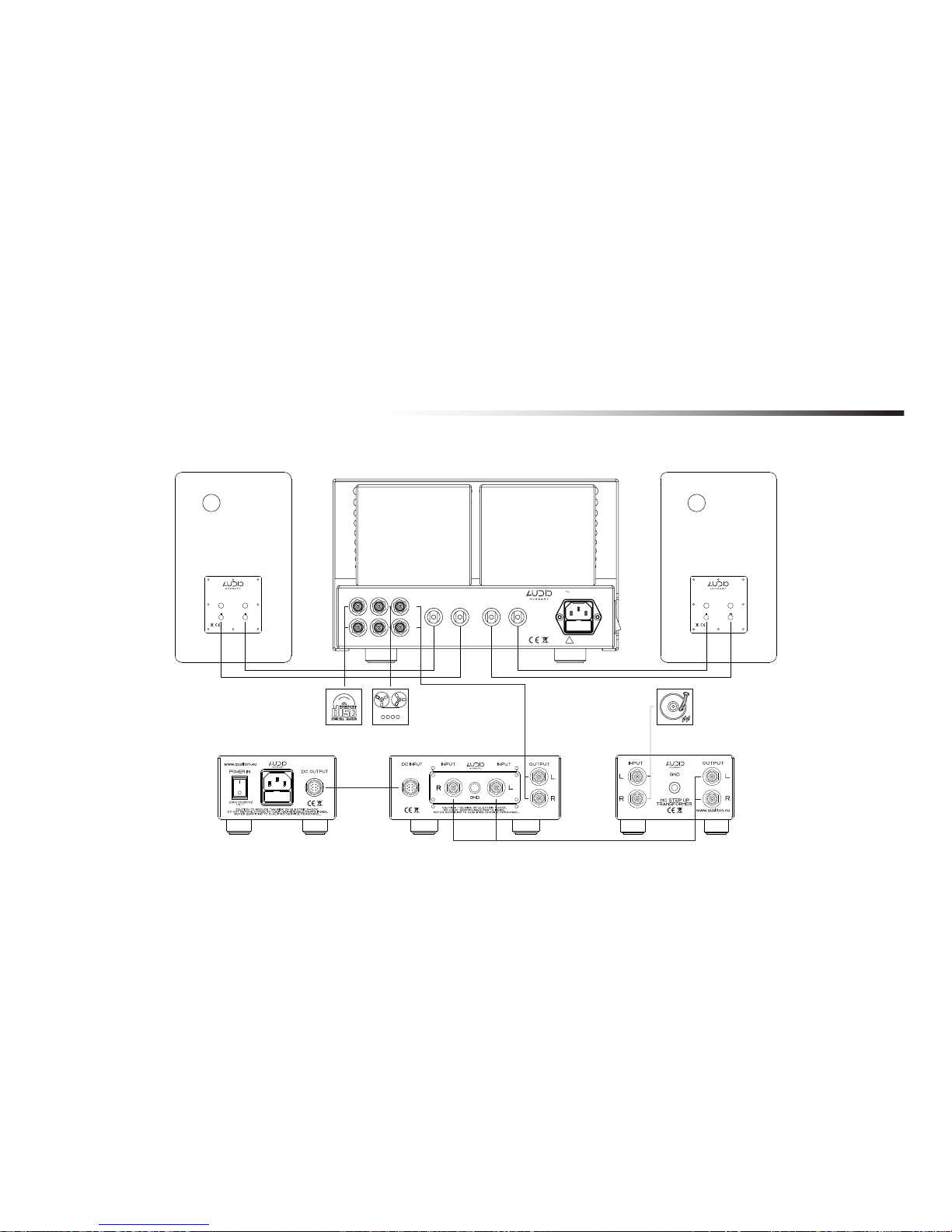

- Connect your MC to the other elements of your
sound system according to the connection diag-
ram!
- Plug in your appliance!
FIRST INSTALLATION

qualiton MC
- 9 -
8Ω / 50W
+-
Made in Hungary
Model: SV40
8Ω / 50W +
-
Made in Hungary
Model: SV40
CD PLAYER
(OPTIONAL)
MAGNETOFON
(OPTIONAL)
TURNTABLE
(OPTIONAL)
MC PICKUP
SV 40 SPEAKER (OPTIONAL)!
qualiton A20i (OPTIONAL)!
POWER SUPPLY (OPTIONAL)! qualiton PHONO RIAA (OPTIONAL)! qualiton MC
SV 40 SPEAKER (OPTIONAL)!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
LINE 1
L
R
8 0 0 8
RIGHT LEFT
LINE 2 LINE 3
!T 2.0 L
qualiton A20i - 2x20W INTEGRATED STEREO AMPLIFIER
INPUT
OUTPUT
230V/50Hz
MAX 150W
CONNECTING

qualiton MC
- 10 -
- The product meets the directives and stan-
dards of the European Union.
- Product requiring waste separation.
MARKINGS
- The appliance and its packaging are made of recyclab-
le materials.
- The appliance contains repairable or recyclable com-
ponents and materials. Waste separation makes their
recycling possible.
- A faulty appliance or an appliance meant to be discar-
ded has to be sent or brought to an adequate waste
collection place or to our company site!
- For further information on waste disposal please con-
tact our company or local authorities.
WASTE MANAGEMENT

- 11 -
WARRANTY
The serial number of your appliance (engraved on a metal plate) is placed on its
bottom. Please refer to this number while contacting our company.
__________________________________________________________
Measurement conducted by:
Date: ________________ P.H.

- 12 -
DECLARATION OF CONFORMITY
We, Audio-Hungary Ltd., declare, taking this declaration under our total responsibility, that MC transformer model Qualiton MC is
in conformity with EN 55013, EN 61000-3-2, EN 61000-3-3, and EN 55020 in accordance with the Directive 2006/95/EC of 12 De-
cember 2006.
This declaration certies compliance with the indicated directives but implies no warranty of properties. The safety instructions of
the accompanying documentation shall be observed. This declaration of conformity is issued under the sole responsibility of the
manufacturer.
Issuer:
Audio-Hungary Ltd.
Nádor Street 28.
4400 Nyíregyháza Hungary
Place, date: Hungary , 21.05.2016
Legally binding signature:
Andras Imre Fabian
Document: 2016/05.
Manufacturer:
Audio-Hungary Ltd.
Nádor Street 28.
4400 Nyíregyháza Hungary
We declare that the designated product(s): Qualiton MC is/are in
conformity with the European Directives:
EN 60065:2015
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2006+A1:2009+A2:2011
