AudioSonic TL-3470K User manual

EN Instruction manual
HR Korisnički priručnik
SR Priručnik za korisnike
Tablet 7 inch
D u a l C o r e - 8 G B TL-3470K

2

3
ENInstruction Manual

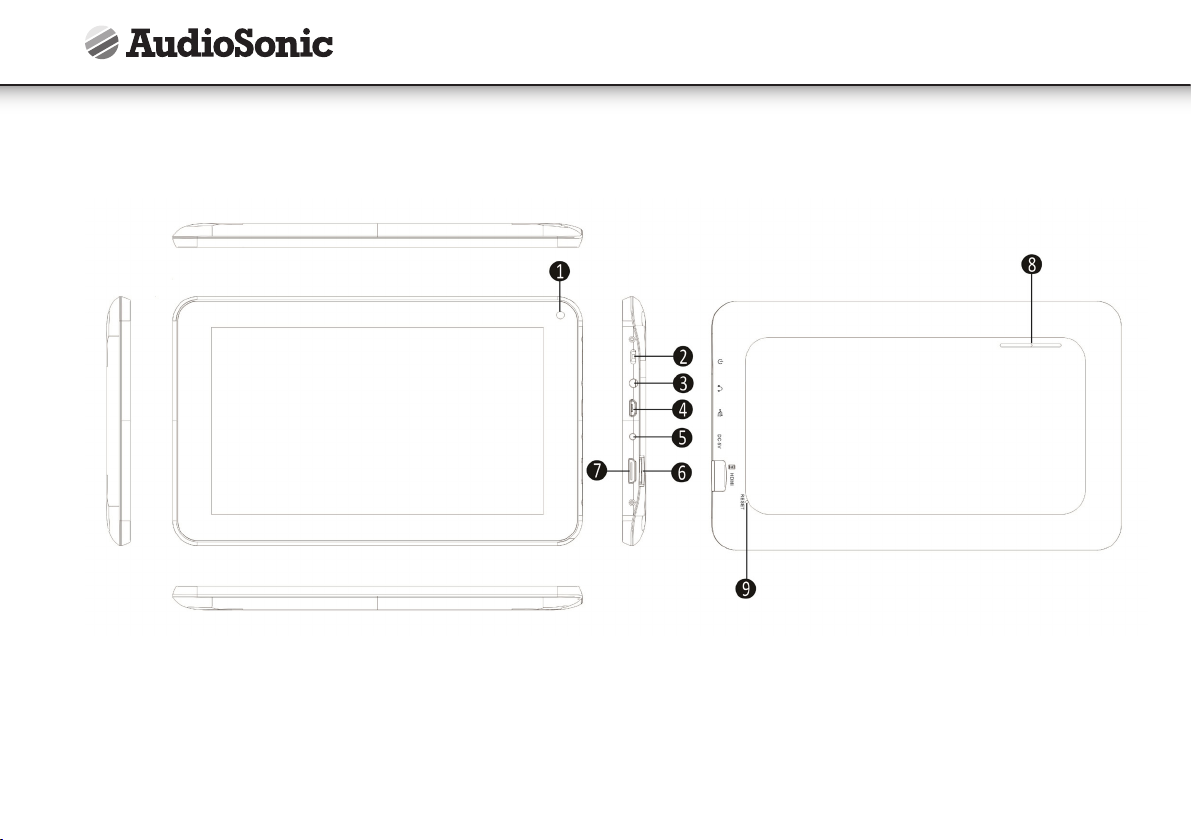

OUTLOOK DESCRIPTION
1. Front-facing Camera
2. Power button
3. Headphone connector
4. Micro USB connector
5. DC connection
6. Micro SD Card slot
7. HDMI connection
8. Speaker
9. Reset button

4
Instruction Manual
POWER BUTTON USAGE
• Turn On: Press the power button and hold for 3 seconds.
• Turn Off: Press the power button and hold for 3 seconds, →tap Power off →tap OK.
• Screen lock and Unlock: Press the power button quickly to lock and try again to
unlock .
• Force Shutdown: If the device does not respond, press and hold the power
button for 7 seconds. (Note: If it is not necessary, we don’t suggest to use Force
Shutdown. You should follow the Turn Off steps to perform the shutdown. Force
shutdown may lead to unpredictable system errors)
TOUCH-SCREEN NAVIGATION
The touch-screen allows for quick, easy and convenient navigation.
You can use the touch-screen refer to the following method through the user guide.
• Tap: Quick tap & release on an item on the screen.
• Finger slide: Touch & slide your finger across the screen and then release.
• Touch & hold: Touch and hold in place approx 2 seconds, and then release to
display an options window.
• To avoid scratching or crushing, do not place objects on the touch screen surface.
USING MICRO SD CARD
The device supports a maximum 32GB micro SD card.
• Insert your card into the micro SD slot until it clicks into place.
• Remove micro SD Card: Close all applications or documents which have been
opened on the card.
Tap → Settings →Storage →Uninstall SD card. Press the card slightly; it is
partially ejected allowing you to pull the card out
• Don’t insert and remove the U-disk repeatedly in a short time, as this may cause
damage to the card.
• We recommend using major brands of memory cards to avoid incompatibility.
GETTING STARTED
Charging the device
• You can charge the battery using the included adapter.
• You can use the device while the battery is charging, although the charging time
is longer when operating and charging at the same time.
• Plug the power adapter into an electrical wall outlet, and then connect it to the
device to charge the battery. ( Fully charged in about 5 hours).
Turn the device on
Press the power button and hold for 3 seconds.
Wi-Fi Network Setup
Since many features require a Wi-Fi connection, we recommend you set up your
Wi-Fi network now.
1. Tap , →Settings, →Wireless & network.
2. Select Wi-Fi to turn on.
The device automatically scans and lists all local Wi-Fi Network found.
A indicates secure networks that require login name/password to connect.
3. Tap the desired network which you want to connect, →enter the Network
Password if applicable, →tap Connect.
4. Tap to return to the Desktop screen.

5
ENInstruction Manual
Ethernet connection settings*:
1 Micro Interface connect to the OTG cable, the other side interface connect to the
Ethernet adapter and connect to the network cable.
2 Tap → Setting →More →Ethernet.
3 Check the ”Use Ethernet”.
4 Click the "Advanced Configure", you can choose to check the "dynamic allocation",
the default network automatically assigns IP addresses, check on and you can
connect Ethernet; you can also uncheck the "dynamic allocation", by manually
entering IP address, subnet mask, default gateway, DNS server, and other
information can also be connected to Ethernet.
5 After the Ethernet connection is successful, it will appear the Ethernet connection
symbol in the lower-right corner.
3G network settings*:
1 Micro Interface connect to the OTG cable, the other side interface connect to the
3G dongle and plug in the effective 3G card.
2 The system automatically senses the 3G network, while 3G network the
connection is successful, will appear in the lower-right corner of the 3G
connection symbol “ ”.
* Only available when the separately available adapter is connected (not included).
DESKTOP
1. Back icon
2. Return to Desktop from other apps
3. Recently used applications
4. Screenshot icon
5. Volume -
6. Volume +
7. Current time
8. Wifi strength indicator
9. Bluetooth connection status
10. Battery charge status
11. Google Search
12. Voice Search
13. Tap to view the applications screen

6
Instruction Manual
Widget
Touch the applications button (13) and then touch the "widgets" tab to get to the
available application widgets. From here you can select icons that can be placed as
shortcut on the home page, so you can quickly start the program.
• Tap on any application or widget icon to launch it.
• Touch, hold and then slide the icon to any position on the desktop to create a
short cut.
• Touch, hold and slide an icon onto “× ” to remove it from the desktop screen.
CLOCK
Tap the Clock application icon. You can see the time, date and set an alarm.
Alarm
• You can use your device as an alarm clock with the possibility to set multiple alarms.
• This clock icon displayed at the bottom of the screen indicates that one or more
alarms have been set and are active.
Add Alarm
1 Tap the Clock application icon.
2 Tap → Add alarm.
3 Set up your alarm as desired.
4 Tap “Turn alarm on” with“√”.
5 Tap "Done".
Delete Alarm
1 Tap the Clock application icon, →
2 Tap on the alarm you want to delete.
3 Tap "Delete alarm".
APP MARKET
The App Market has many applications that you can quickly and easily download and
install onto your tablet.
Download Applications
Follow these steps to add an existing Google Account to your device or create a new
Google Account to add to your device.
From your application screen, touch the Google Play Store app.
• If you haven't added an account to your device, you'll be asked to add a Google Account.
• Follow the instructions on the device, which will walk you through signing in to an
existing Google Account or creating a new Google Account.

7
ENInstruction Manual
• Once logged-in you can select different applications from the various tabs, pre
selected categories or search for apps by name.
• Tap on a application to see more detailed information and if desired touch the
install button after which you can follow the instructions on the device, which will
guide you through the installation process.
• Upon completion a notification will pop up on the bottom right corner and a
short cut to launch the application will be placed on your desktop.
• The installation is now completed and the application is ready for use.
BROWSER
Users can connect to the Internet through an internet browser.
Click the browser icon on the Desktop , and the Web browser will open.
CALENDAR
Tap the Calendar application icon.
When your tablet is not yet connected to a Google account, you need to add an
Exchange account in order to use the calendar. Enter the desired accounts email
address and password. Click Next and follow the prompts to complete the account
configuration. Now you can use the Calendar (Note: we generally recommend to use
a Gmail account. Google’s exchange server address is: m.google.com)
Add Event
1 On the Calendar screen, tap and hold the date on which you want to add an event.
2 Tap on new event, →Fill in the desired fields with event information.
3 Tap Done and the event will be added to your calendar.
CAMERA
Tap the Camera application icon.
1 In Camera →tap to take the picture.
2 The picture will be saved.
3 Tap the picture thumbnail in the top right corner to see an overview of your
photo’s and video’s.
4 Tap and slide from left to right to select different photo’s or video’s.
5 Press to return to the Camera.
6 Tap again to exit the Camera and return to the Desktop.
Take Videos
1 In Camera tap to switch to video mode.
2 Tap icon to start recording and tap icon again to stop recording.
3 The video will be saved automatically.
4 Tap the video thumbnail in the top right corner to see an overview of your photo’s
and video’s.
5 Tap and slide from left to right to select different photo’s or video’s.
6 When a video is selected, tap icon to playback the selected video.

8
Instruction Manual
7 Press to return to the Camera
8 Tap switch back to camera mode.
9 Tap to exit the Camera and return to the Desktop.
RECORDER
1 Tap the recorder icon.
2 Tap the record icon to start recording.
3 Tap the stop icon to stop record.
4 Tap the play button to playback the recording.
E-MAIL
• POP3, SMTP and IMAP e-mail accounts are supported.
• In order to setup your E-mail you need to have access to a network / internet
connection.
• Tap the e-mail application icon to enter the ‘E-mail’ client. The first time it’s
required to configure your e-mail using account information from the e-mail
address you want to setup.
• For your e-mail’s most current server address and settings, we advise you to
contact your e-mail service provider. They can provide you with the necessary
information to setup your email account.
FILE BROWSER
Tap the File Browser icon to enter the file Management Interface, tap【Local
Disk】or【External Storage Card】to open their root directory folders. From here
you can navigate between the different files and folders. Tap a file or folder to
selected it, when selected the following icon will appear on the right side of
the screen. When you’ve selected the desired file(s), you can tap the following icon
to Cut, Copy, Paste, Delete, Share or Rename files or folders.
MUSIC
• Audio file formats supported: mp3, aac, wma, rm, flac, Ogg
• Tap the music player icon to enter the music player. When there are no music
files loaded in the playlist, the system will automatically search for music files from
a micro SD card and then will load them automatically in the playlist.

9
ENInstruction Manual
• You can also load audio files by synchronizing the tablet with a computer or
laptop trough USB. You can also download audio files directly on the tablet from a
local network or the internet.
• Select the desired tab icon, to arrange the music files by "Artist", "album" or
"songs". Tap the desired song to start playback.
VIDEO
• Video file formats supported: MKV, WMV, MPG, MPEG, DAT, AVI, MOV, ISO, MP4,
RM, JPG
• Picture file formats supported: JPG, JPEG, BMP, GIF, PNG
Play Video
• Tap the video player icon to enter the “Video” interface. You will be prompted
to select a folder “Local Disk” or “External Storage Card” from where to play video
files from.
• Browse through the different directories until you reach the folder where you’ve
stored the compatible video files.
• Tap the desired video file to load it in the video player and start playback. You can
choose “Pause”, "Play", "Stop," "fast forward", "rewind", "progress bar" and several
other keys to control the playback progress.

10
Instruction Manual
SETTINGS
Wireless & networks • Wi-Fi
• Bluetooth
• 3G/Ethernet
• Data usage
• more
• Turn On / Off Wi-Fi.
• Turn On / Off Bluetooth.
• Only available when the separately available adapter is connected (not included).
• A current overview of internal memory usage.
• Airplane mode, VPN, Bluetooth tethering, Proxy settings.
Sound • Volumes
• Default notification
• Touch sounds
• Screen lock sounds
• To adjust the Media, Notifications and Alarm volume.
• You can select the default notification of your preference.
• Enable or disable the playback of sounds when touching the screen.
• Enable or disable the playback of sound when locking and unlocking the screen.
Display • Brightness
• Wallpaper
• Gravity calibration utility
• Sleep
• Font size
• Tap & slide the slider to adjust the screen brightness as desired.
• You can choose dynamic wallpaper, wallpaper and super clear player set wallpaper.
• Recalibrate the Gyro sensor.
• Selected the desired time of inactivity before the tablet has to enter sleep mode.
• Choose the font size.
Storage • Total space, Available space
• Unmount SD card
• Erase SD Card
• Gives you an overview of the available space on the internal storage memory and if inserted, the
external SD card.
• When the Micro SD card is inserted, tap it to safety remove it.
• Erase all data on SD card
Battery • (Dis)charging
• On battery
• Shows the actual percentage of battery power.
• Shows how long your battery has lasted and which items are responsible for draining it.
Apps • downloaded
• On SD card
• Running
• All
• Display and manage all the applications that you’ve downloaded and installed on the internal memory.
• Display and manage all the applications that you’ve downloaded and installed on an external SD card.
• Displays all the applications that are currently active.
• Display and manage all the applications that you’ve downloaded and installed.
Location services • Google’s location service
• Location & Google Search
• Allow Google to collect anonymous location data.
• Allow Google to use your location to improve your search results.

11
ENInstruction Manual
Security • Screen lock
• Owner info
• Make password visible
• Device administrators
• Unknown sources
• Trusted credentials
• Install from SD card
• Select if you want the lock screen to use a Pattern lock, PIN code, Face lock or no lock at all.
• Show owner info on lock screen,
• Choose to make your passwords visible or not.
• View or deactivate device administrators.
• Allow installation of apps from unknown sources.
• Display trusted CA certificates.
• Install certificates from SD card.
Language & Input • Language
• Spell checker
• Personal dictionary
• Android keyboard
• Voice Search
• Text-to-speech output
• Pointer speed
• Select your desired language.
• Enable or disable the spelling checker.
• You can add words, that may not be included in the standard dictionary, into a personal dictionary.
• Onscreen keyboard settings
• Set up the desired language for voice searches.
• Select the desired Text to speech engine.
• Adjust the pointer speed.
Back up and reset • Back up my data
• Factory data reset
• Select to automatic or manual back up your data.
• Select to erase ALL DATA and restore the device to its initial factory state.
Google • Accounts • View the current registered Google account.
Add account • Add an account • Add a second or several other accounts to your device.
Date & time • Automatic Date & time
• Set date
• Select time zone
• Set time
• Use 24-hour format
• Select date format
• Use the by the network provided time.
• Set the date.
• Select the time zone.
• Set the time.
• Choose to use between the 24-hour or 12-hour format.
• You can select the date format.

12
Instruction Manual
Accessibility • Date & time
• Large Text
• Auto-rotate screen
• Speak passwords
• Text-to-speech output
• Touch & hold delay
• Enhance web accessibility
• Enable or disable talk back function.
• Enable or disable large text.
• Enable or disable auto rotation of the display.
• Enable or disable spoken passwords.
• Select the desired Text to speech engine.
• Set the desired touch and hold delay.
• Enable or disable apps to install scripts from Google to make their web content more accessible.
Developer Options • On/Off • Only enable development options if you are an experienced user and know what you are doing.
About tablet • System Update
• Status
• Legal information
• Model number
• Android version
• Kernel version
• Build number
• Search for and/or update your device with the latest firmware.
• Shows you the actual device status.
• Shows the open source legal information.
• Displays your devices model number.
• Displays the current Android version.
• Displays the current kernel version.
• Displays the current firmware buildnumber

13
ENInstruction Manual
FREQUENTLY ASKED QUESTIONS
Android
Q: What Android OS version is on my device?
A: 4.1.1
Basic Device Functionary
Q: Do I have to charge the battery before use?
A: You should charge the battery for at least 4 hours, but you can use the device
while it’s charging. Use the include power adapter or an USB cable, that’s
connected to a power supply, to charge
E-mail
Q: Can I use any of my personal e-mail addresses to send/receive e-mail?
A: The device supports POP3, SMTP and IMAP accounts. Some free e-mail accounts
are not supported on mobile devices. Check with your e-mail provider to see if
you account is supported.
Media Cards
Q: Which media cards are compatible with my device?
A: Micro SD cards up to size of 32GB.
Music
Q: How do I add music files to my device?
A: Copy the music files from your computer onto a SD card or USB storage device,
and then use the File Browser application to copy the files onto the device.
Photos
Q: How do I add photo files to my device?
A: Copy the photo files from your computer onto a SD card or USB storage device,
and then use the File Browser application to copy the files onto the device.
Wi-Fi
Q: Do I need a Wi-Fi adapter to connect to the Internet?
A: No. The Wi-Fi adapter is built-in to the device.
BATTERY MANAGEMENT
The battery is not fully charged out of the box, so it is recommended that you charge
the battery for at least 4 hours before you start to use the device for the first time.
The rechargeable battery is designed and manufactured to be recharged frequently.
As with all batteries, the capacity of the battery reduces each time it is charged/
depleted. However, you can try to prolong the battery’s lifetime by following the
suggestions below:
• Use your tablet frequently, at least once a week.
• Charge the battery regularly and fully.
• Never leave the battery fully discharged for a long period of time.
• Always keep the device and the battery away from heat.
• Don’t place the device in a hot environment. The highest operating temperature
is 37°C.
• Only use the product below the altitude of 2000 meters.
• Do not use the product in tropical conditions.
IMPORTANT SAFETY PRECAUTIONS
Always follow these basic safety precautions when using your tablet. This
reduces the risk of fire, electric shock and injury.
• Do not expose this product to rain or moisture.
• Keep the device out of direct sunlight and heat sources.
• Protect the power cord. Route power cords so that they are not likely to be
stepped on or pinched by items placed on or against them. Pay particular
attention to the point where the cord attaches to the device.
• Only use the AC adapter included with the device. Using any other power adapter
voids your warranty.
• Do not remove the cover. There are no user-serviceable parts inside.
Clean your device
Treat the screen gently. To clean fingerprints or dust from the screen, we recommend
using a soft, non-abrasive cloth such as a camera lens cloth.

14
OPIS IZGLEDA
1. Prednja kamera
2. Napajanje
3. Priključak za slušalice
4. Mini OTG priključak
5. DC priključak
6. Utor za TF karticu
7. HDMI priključak
8. Zvučnik
9. Resetiranje
Korisnički priručnik

15
HR
KORIŠTENJE TIPKE NAPAJANJA
• Uključivanje: Pritisnite tipku uključivanja i držite je 3 sekunde.
• Isključivanje: Pritisnite tipku napajanja i držite je 3 sekunde, →dodirnite Isključivanje →
dodirnite OK.
• Zaključavanje i otključavanje zaslona: Brzo pritisnite tipku napajanja za zaključavanje i
ponovno za otključavanje.
• Prisilni prekid rada: Ako uređaj nema odziva, pritisnite i držite tipku napajanja 7 sekundi.
(Napomena: Ako nije neophodno, ne preporučamo korištenje Prisilnog prekida rada.
Za provođenje prekida rada trebate pratiti korake za isključivanje. Prisilni prekida rada
može dovesti do nepredvidivih sistemskih grešaka)
NAVIGACIJA DODIRNIM ZASLONOM
Dodirni zaslon omogućuje brzu, jednostavnu i pogodnu navigaciju.
Dodirni zaslon možete koristiti u skladu s metodama navedenima unutar korisničkog
priručnika.
• Dodir: Brzi dodir i otpuštanje stavke na zaslonu.
• Klizanje prstom: Dodirnite i klizite prstom duž ekrana i zatim pustite.
• Dodir i držanje: Dodirnite i držite na mjestu približno 2 sekunde i zatim pustite za
prikaz prozora opcija.
• Kako biste izbjegli ogrebotine ili lom, ne stavljajte predmete na površinu dodirnog
zaslona.
KORIŠTENJE MIKRO SD KARTICE
• Uređaj podržava mikro SD karticu od maksimalno 32GB.
• Karticu umetnite u utor mikro SD kartice dok ne klikne i učvrsti se.
• Uklanjanje mikro SD kartice: Zatvorite sve aplikacije ili dokumente koji su otvoreni
na kartici.
Dodirnite → Postavke →Pohrana →Ukloni SD karticu. Lagano pritisnite
karticu; djelomično će se izbaciti dozvoljavajući vam da karticu izvučete van
• Nemojte uzastopno uklanjati i umetati U-disk u kratkom vremenu, jer to može
oštetiti karticu.
• Preporučamo korištenje memorijskih kartica poznatih brendova kako biste izbjegli
nekompatibilnost
POČETAK RADA
Punjenje uređaja
• Bateriju možete napuniti koristeći priloženi adapter.
• Uređaj također možete napuniti i pomoću USB kabela, priključenog na izvor
napajanja
• Uređaj možete koristiti dok se baterija puni, iako je vrijeme punjenja dulje kada se
istovremeno koristi i puni.
• Adapter napajanja ukopčajte u zidnu utičnicu i zatim ga priključite na uređaj za
punjenje baterije. (Za potpuno punjenje potrebno je približno 5 sati).
Uključite uređaj
Pritisnite tipku uključivanja i držite je 3 sekunde.
Postavljanje Wi-Fi mreže
S obzirom da mnoge osobine zahtijevaju Wi-Fi vezu, preporučamo da sada postavite
Wi-Fi mrežu.
1. Dodirnite →Postavke →Bežično & mreža.
2. Odaberite Wi-Fi za uključivanje.Uređaj automatski pretražuje i izlistava sve lokalne
Wi-Fi mreže koje je pronašao.
A označava zaštićene mreže koje zahtijevaju korisničko ime/lozinku za
povezivanje.
3. Dodirnite željenu mrežu na koju se želite povezati, →unesite Lozinku mreže ako je
primjenjivo, →Dodirnite Poveži.
4. Dodirnite za povratak na zaslon radne površine.
Postavke Ethernet mreže*:
1 Spojite OTG kabel na mikro priključak, drugi kraj priključite na Ethernet adapter i
priključite se na mrežni kabel.
2 Dodirnite →Postavke → Više →Ethernet.
3 Označite ”Koristi Ethernet”.
4 Označite “Napredna konfiguracija”, možete označiti “dinamičku dodjelu”, osnovna mreža
automatski dodjeljuje IP adrese, označite i možete se povezati na Ethernet, također
možete i isključiti “dinamičko dodjeljivanje”, i ručnim unosom IP adrese, subnet maske,
osnovnog posrednog računala, DNS servera i drugih informacija povezati se na Ethernet.
Korisnički priručnik

16
5 Nakon uspješnog povezivanja na Ethernet, pojavit će se simbol Ethernet veze u
donjem desnom kutu.
Postavke 3G mreže*:
1 Spojite OTG kabel na mikro priključak, drugi kraj priključite na 3G dongle i utaknite
valjanu 3G karticu.
2 Sustav automatski prepoznaje 3G mrežu, dok je povezanost na 3G mrežu uspješna,
u donjem desnom kutu pojavit će se simbol 3G veze “ “ .
* Dostupno samo kada je priključen adapter dostupan zasebno (nije priloženo).
RADNA POVRŠINA
1. Ikona natrag
2. Povratak na radnu površinu iz drugih
aplikacija
3. Nedavno korištene aplikacije
4. Ikona snimke ekrana
5. Glasnoća -
6. Glasnoća +
7. Aktualno vrijeme
8. Indikator jakosti wifi signala
9. Status Bluetooth veze
10. Status napunjenosti baterije
11. Google pretraživanje
12. Glasovno pretraživanje
13. Dodirnite za prikaz zaslona aplikacija
Korisnički priručnik

17
Widget
Dodirnite tipku aplikacija (12) i zatim dodirnite “widget” karticu kako biste dobili
widgete dostupnih aplikacija. Ovdje možete izabrati ikone koje se mogu postaviti kao
prečac na početnoj stranici, tako da možete brzo pokrenuti program.
• Za pokretanje, dodirnite ikonu bilo koje aplikacije ili widget.
• Dodirnite, držite i zatim klizno pomaknite ikonu na bilo koji položaj na radnoj
površini za izradu prečaca.
• Dodirnite, držite i klizno pomaknite ikonu na “× ” za uklanjanje sa zaslona radne
površine.
SAT
Dodirnite ikonu aplikacije Sat. Možete vidjeti vrijeme, datum i postaviti alarm.
Alarm
• Svoj uređaj možete koristiti kao sat s alarmom s mogućnosti postavljanja više
alarma.
• Ova ikona sata prikazana na dnu ekrana označava da je postavljen jedan ili više
alarma i da su aktivni.
Dodaj alarm
1 Dodirnite ikonu aplikacije Sat.
2 Dodirnite → Dodaj alarm.
3 Postavite alarm prema želji.
4 Dodirnite “Uključi alarm” s “√”.
5 Dodirnite Gotovo
Izbriši alarm
1 Dodirnite ikonu aplikacije Sat, →
2 Dodirnite alarm koji želite izbrisati.
3 Dodirnite Izbriši alarm.
TRGOVINA APLIKACIJA
Trgovina aplikacija ima brojne aplikacije koje možete brzo i jednostavno preuzeti na
svoj tablet.
Preuzimanje aplikacija
Za dodavanje postojećeg Google korisničkog računa na vaš uređaj ili za izradu novog
Google korisničkog računa pratite ove korake.
Na vašem zaslonu aplikacija, dodirnite aplikaciju Google Play trgovina.
• Ako na vaš uređaj niste dodali korisnički račun e-pošte, od vas će se tražiti da
dodate Google račun
HRKorisnički priručnik

18
• Pratite upute na uređaju, koje će vas voditi kroz prijavljivanje u postojeći
Googlekorisnički račun ili izradu novog Google korisničkog računa.
• Jednom kada ste prijavljeni, možete odabrati različite aplikacije između raznih
kartica, preodabranih kategorija ili tražiti aplikacije po imenu.
• Dodirnite aplikaciju kako biste vidjeli detaljne informacije i ako želite dodirnite
tipku instalacije nakon čega možete pratiti upute na uređaju, koje će vas voditi
kroz proces instalacije.
• Po završetku će se u donjem desnom kutu pojaviti ikona obavijesti i na vašu radnu
površinu će biti postavljen prečac za pokretanje aplikacije.
• Instalacija je sada završena i aplikacija je spremna za upotrebu.
PREGLEDNIK
Korisnici se mogu povezati na internet pomoću preglednika interneta.
Kliknite na ikonu preglednika interneta na radnoj površini , i preglednik interneta
će se otvoriti.
KALENDAR
Dodirnite ikonu aplikacije Kalendar.
Ukoliko vaš tablet još uvijek nije povezan na Google korisnički račun, trebate dodati
Exchange korisnički račun za korištenje kalendara. Unesite adresu željenog korisničkog
računa i lozinku. Dodirnite Dalje i pratite upute za završetak konfiguracije korisničkog
računa. Tada možete koristiti Kalendar (Napomena: mi općenito preporučamo korištenje
Gmail korisničkog računa. Adresa Googleovog exchange servera je: m.google.com)
Dodaj događaj
1 Na zaslonu Kalendara, dodirnite i držite datum na koji želite dodati događaj.
2 Dodirnite novi događaj, →Upišite informacije o događaju u željena polja.
3 Dodirnite Gotovo i vaš događaj će se dodati u kalendar.
KAMERA
Dodirnite ikonu aplikacije Kamera.
1 U Kameri →dodirnite za snimanje fotografije.
2 Fotografija će se pohraniti.
3 Dodirnite sličicu fotografije u gornjem desnom kutu kako biste vidjeli pregled vaših
fotografija i video isječaka.
4 Dodirnite i klizno se pomaknite slijeva udesno za odabir drugih fotografija ili video
isječaka.
5 Pritisnite za povratak na Kameru.
6 Dodirnite ponovno za izlazak iz Kamere i povratak na Radnu površinu.
Snimanje video isječaka
1 U Kameri → dodirnite za prebacivanje na video režim.
2 Dodirnite ikonu za početak snimanja i ponovno dodirnite ikonu za
prestanak snimanja.
3 Video isječak će se pohraniti automatski.
4 Dodirnite sličicu video isječka u gornjem desnom kutu kako biste vidjeli pregled
vaših fotografija i video isječaka.
Korisnički priručnik

19
5 Dodirnite i klizno se pomaknite slijeva udesno za odabir drugih fotografija ili video
isječaka.
6 Kada je video isječak odabran, dodirnite ikonu za reprodukciju odabranog
video isječka.
7 Pritisnite za povratak na Kameru.
8 Dodirnite za prebacivanje na režim kamere.
9 Dodirnite za izlazak iz Kamere i povratak na Radnu površinu.
SNIMAČ
1 Dodirnite ikonu snimača.
2 Dodirnite ikonu snimača za početak snimanja.
3 Dodirnite ikonu snimača za prekid snimanja.
4 Dodirnite ikonu reprodukcije za reprodukciju snimljenih podataka.
E-POŠTA
• Podržani su POP3, SMTP i IMAP korisnički računi.
• Kako biste postavili svoju E-poštu trebate imati pristup na mrežu / internet vezu.
• Dodirnite ikonu aplikacije pošte za ulazak u klijenta ‘E-pošte’. Prvi put je
potrebno konfigurirati vašu e-poštu koristeći informacije korisničkog računa za
adresu e-pošte koju želite postaviti.
• Za najnovije adrese servera i postavke e-pošte, preporučamo da kontaktirate
vašeg pružatelja usluge e-pošte. Oni vam mogu dati potrebne informacije za
postavljanje vašeg korisničkog računa e-pošte.
PREGLEDNIK DATOTEKA
Dodirnite ikonu preglednika datoteka za ulazak u sučelje upravljanja datotekama,
dodirnite【Lokalni disk】ili【Vanjska kartica za pohranu】za otvaranje mapa u
osnovnom direktoriju. Odavde se možete kretati između različitih datoteka i mapa.
Dodirnite datoteku ili mapu kako biste je odabrali, kada odaberete sljedeća ikona
će se pojaviti na desnoj strani zaslona. Kada ste odabrali željenu datoteku(e), možete
dodirnuti sljedeće ikone za Isijecanje, Kopiranje, Umetanje, Brisanje, Dijeljenje ili
preimenovanje datoteka ili mapa.
GLAZBA
• Podržani formati audio datoteka: mp3, aac, wma, rm, flac, Ogg
• Dodirnite ikonu muzičkog svirača za ulazak u svirač glazbe. Kada na listi za
reprodukciju nema učitanih muzičkih datoteka, sustav će automatski tražiti muzičke
datoteke na mikro SD kartici i zatim će ih automatski učitati na listu za reprodukciju.
HRKorisnički priručnik

20
• Audio datoteke također možete učitati sinkroniziranjem tableta s računalom ili
prijenosnim računalom putem USB-a. Audio datoteke također možete direktno
preuzeti na tablet s lokalne mreže ili interneta.
• Odaberite ikonu željene kartice, za grupiranje muzičkih datoteka prema
“Izvođač(Artist)”, “Album(album)” ili “Pjesme(songs)”. Za početak reprodukcije dodirnite
željenu pjesmu.
VIDEO
• Podržani formati video datoteka: MKV, WMV, MPG, MPEG, DAT, AVI, MOV, ISO, MP4
,RM,JPG
• Podržani formati fotografija: JPG, JPEG, BMP, GIF, PNG
Reproduciraj video isječak
• Dodirnite ikonu video reproduktora za ulazak u “Video” sučelje. Od vas će
se tražiti da odaberete mapu “Lokalni disk(Local Disk)” ili “Vanjska kartica za
pohranu(External Storage Card)” odakle će se vršiti reprodukcija video datoteka.
• Krećite se kroz različite direktorije dok ne dođete do mape u kojoj ste pohranili
kompatibilne video datoteke.
• Dodirnite željenu video datoteku za njeno učitavanje u video reproduktor i
započnite reprodukciju. Možete izabrati “Pauza”, “Reprodukcija”, “Stop”, “Brzo
naprijed”, “Natrag”, “Traka napretka” i nekoliko drugih tipki za kontrolu napretka
reprodukcije.
Korisnički priručnik
