Chapter 1
Getting Started
1.1 Knowing Your Smartphone
1.2 Status Indicators
1.3 Setting Up Your Smartphone
1.4 Accessories
1.5 Navigating
1.6 Entering Text and Numbers
1.7 Securing Your Smartphone

8
9
1.1 Knowing Your Smartphone
This section will help you familiarize yourself with your
Smartphone’s hardware, including a basic introduction to
the buttons and features found on the top, bottom, front,
side and rear of the phone. A brief explanation of the LED
indicator is also provided.
Top View Bottom View
1. Power Button
When your Smartphone is powered off, press and hold
the Power button to turn it on. Press and quickly release
the Power button to display the Quick List, which allows
you to change proles or lock your Smartphone. To power
off your Smartphone, press and hold the power button, or
select power off from the Quick List.
2. Infrared Port
Allows your Smartphone to receive data from another
IR-compatible device through Infrared beaming.
3. Earphone Jack
Plug the earphone jack here to use your Smartphone’s
hands free or listen to sound or multimedia les.
4. Mini USB Port
Plug the mini-USB cable in here to synchronize data in
your phone with desktop or notebook PC. Also, plug the
AC charger in here to charge the battery.
4
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started
123

8
9
Front View Side View
Left Right
1. LED Indicator
The LED Indicator noties you of the battery and network
status of your Smartphone. The indicators are described
on the next page.
12
3
45
67
9
8
10
11
12 13
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

10
11
LED Indicator Status
Solid green Battery is fully charged
Blank Battery case is empty
Solid Amber Battery is charging
Flashing green Network is attached
Flashing red Battery very low (less than 4%)
Flashing blue Bluetooth set to “On” or “Discoverable”
mode
Flashing Amber Battery temperature is hotter or colder than
the functional limits of 0 to 48 degrees Cel-
sius and it has stopped charging
Amber / green LED off Battery fault. The “Battery Fault” icon is
displayed ( ) In this case, the ashing
green LED can be recovered by unplug-
ging the AC adaptor.
Dim Network is disconnected
2. Speaker
3. Display Screen
The status indicators concerning the current mode,
battery strength, the current activity, or active program
are displayed in the Title Bar at the top of the display.
In the center of the screen is the active menu or
program (or incoming live video stream if Camera
mode is active). At the bottom of the screen are the
menus or commands related to the active program.
4. Left Softkey (Softkey 1)
Performs the function shown in the “softkey label”
on the screen immediately above the button. (For
example, when in the Home screen, pressing the Left
Softkey opens the Start Menu.)
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

10
11
5. Right Softkey (Softkey 2)
Performs the function shown in the “softkey label” on
the screen immediately above the button. (In many
cases, pressing the Right Softkey opens a menu
associated with a particular application.)
6. Home Button
Press to return to the Home screen at any time.
7. Back Button
Press to go back to the previous screen, or to
backspace over one character in a text eld. Press
and hold to delete the contents of an editable eld.
8. Talk Button
Press to start a call or answer an incoming call. Press
and hold to turn the speakerphone mode on or off, or
to switch between an active call and a call on hold.
From the Home screen, press to view Call History.
9. End Button
Press to end a call; press to return to the Home screen;
or press and hold to lock the keypad.
10. Navigation Pad / Action Button
Use to scroll selection up, down, left, or right. Press
straight down on the center of the Navigation Pad
(known as the “Action” button) to select. In a text
eld, use the navigation pad to move the cursor right
or left, character by character. (See also Navigation
Pad in Section 1.5).
11. Light Sensor
Dark conditions sensed here will activate a backlight
under the keypad, making it easier to see the buttons
(if enabled in Settings > Power Management).
12. Volume Up/Down Button
This button lets you adjust the volume during the talk
mode. During the standby mode, press and hold the
Volume Down button to launch the Voice Tag feature.
Press and hold the Volume Up button to launch the
Voice Notes recorder.
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

12
13
13. Camera Button
On the right side of your Smartphone, this button switches
to the Camera mode, (if not already in Camera mode).
If already in Camera mode, pressing this button captures
a still image or begins capturing a video clip, depending
on the current capture submode.

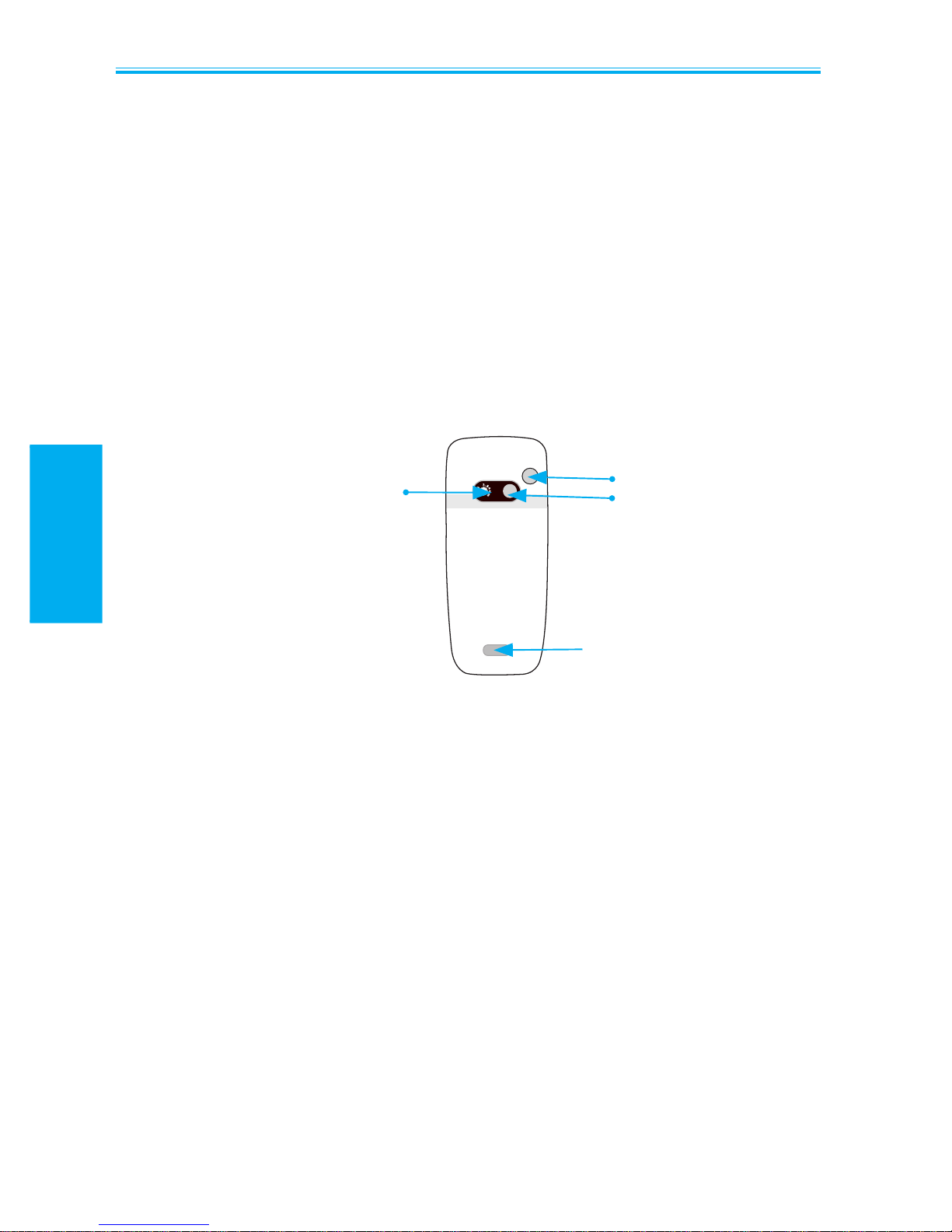

Rear View
1. Car Antenna Connector
Allows you to attach your Smartphone to a car antenna
for better network signal reception, if desired. Simply peel
off the rubber cap and connect the antenna jack. Replug
the rubber cap if unused. You may not want to use this
feature.
2. Camera Lens
Incoming live video stream enters here and is shown on
the display screen when you are in Camera mode.
3. Self-Portrait Mirror
Position the phone until the mirror reects the image you
want to capture.
4. Battery Release Latch
Press to release the latch to access the battery, SIM card,
or Mini-SD card. (More illustrations in Section 1.3).
1
23
4
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

12
13
1.2 Status Indicators

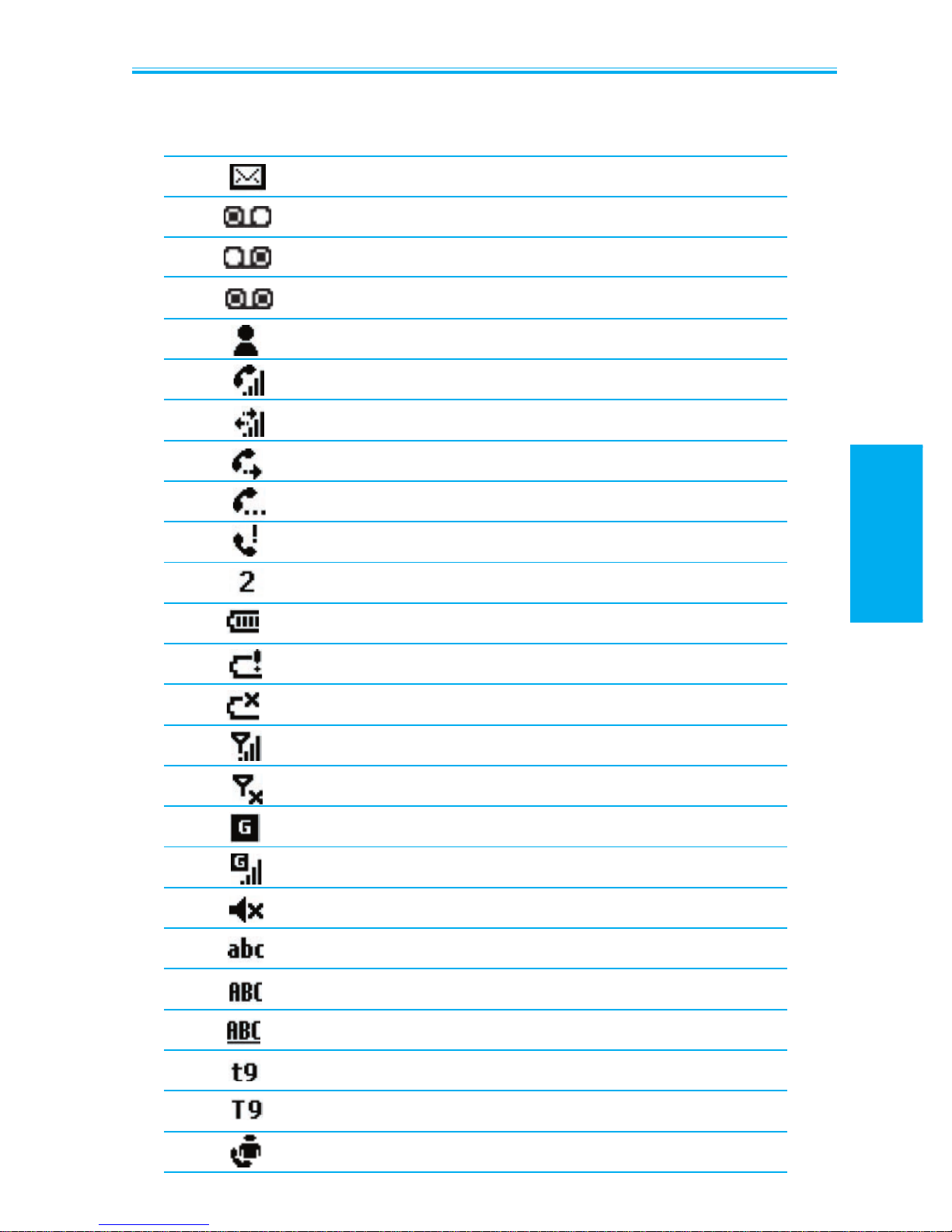

New E-mail
New Voice Mail on line 1
New Voice Mail on line 2
New Voice Mail on both line 1 and line 2
New instant message
Voice call active
Data call active
Call forwarding
Call on hold
Missed call
“1” indicates Line 1; “2” indicates Line 2
Battery full
Battery very low (less than 4%)
Battery fault
Signal strength
Radio off
GPRS available
GPRS in use
Ringer off
Multipress input mode, lowercase
Multipress text input mode, uppercase
Multipress text input mode, caps lock
T9 text input mode, lowercase
T9 text input mode, uppercase
Caller ID monitor is running
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

14
15
1.3 Setting Up Your Smartphone
In this section you will learn how to install a battery, SIM card,
Mini SD card, and how to charge the battery.
Installing the SIM Card
The SIM (Subscriber Identication Module) card contains
a computer chip that stores your personal number, phone
book, and other services provided by your cellular service
provider.

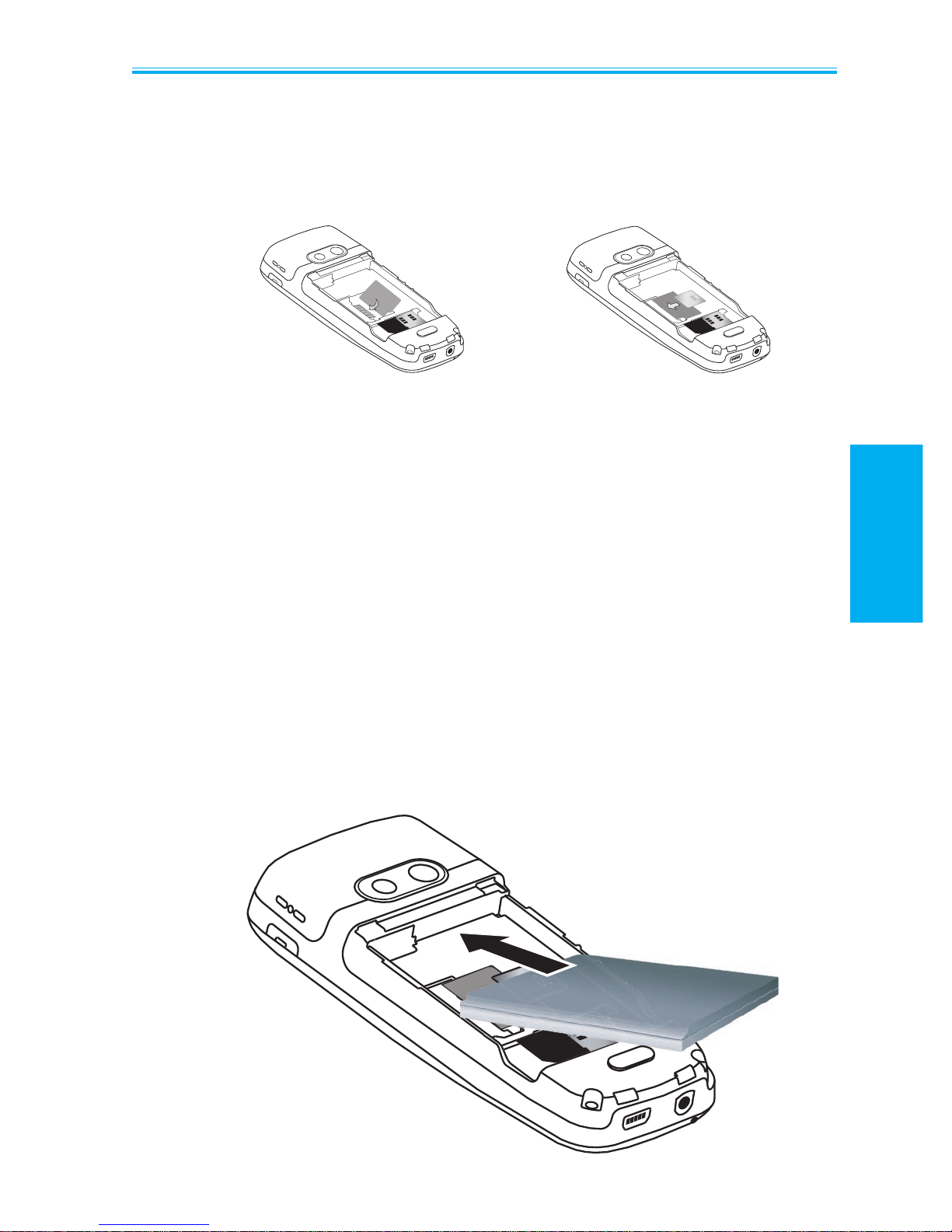

1. 2.
3.
To insert a SIM card:
1. Press on the battery release latch and move the backside
cover downward to open.
2. Remove the battery by lifting it up from both sides of the
bottom end.
3. Lift up the SIM metal socket.
4. Insert the SIM card with the gold-plated contact area on
the card facing down. Push the metal socket down to lock
into place.
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

14
15
Installing the Mini SD Card
Use only the Mini SD (Secure Digital) card in your Smart-
phone. You can install the Mini SD card to store images,
video clips, music and other data on your phone.
To insert a Mini SD Card:
1. Follow the instructions on the previous page for removing
the back cover and battery.
2. Slide the Mini SD card into the holder, with the gold-plated
contact area facing down.
3. Push the card down and slide the metal latch over the
Mini SD card to secure it into place.
Installing the Battery
1. Insert the battery by aligning the exposed copper part of
the battery pack with the protruding copper conductor,
then gently push the bottom of the battery into place.
2. Slide the cover on the phone.
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

16
17
Charging the Battery
Your Smartphone is powered by a rechargeable Lithium-
Ion battery. The battery will eventually wear out after a few
hundred charges or discharges. Replace the battery through
an authorized vendor when the operating time is noticeably
shorter than usual.
NOTE: The time it takes for a battery to fully charge depends
on the environment temperature at the time of charge; a com-
pleted charge normally takes about 3.5-4 hours under 0-10
degree temperatures, and below 3 hours for temperatures
ranging from 20-45 degrees.
Mode Estimated battery life
Talk time 3.5 to 4 hours
GPRS Up to 2 hours
Standby 140 hours
Fully charge the new battery before using your Smartphone
for the rst time. When the low-battery indicator appears,
save any unsaved data you are working on by synchronizing
your phone with your PC or a Microsoft Exchange Server.
Do not restart your Smartphone until you have connected it
to an external power source.
NOTE: Do not leave your Smartphone connected to a
charger for longer than a week because overcharging can
shorten a battery’s lifespan. Your battery will automatically
discharge when the device is not in use. Leaving the battery
in extremely hot or cold places may also reduce its capacity
or shorten its lifespan.
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

16
17
Your Smartphone can be charged while powered on or off.
Charge your battery by plugging the AC adaptor into the
mini USB connector at the base of the phone.
If your Smartphone is turned off, charging is indicated by an
amber light. If it is turned on, charging is indicated by the
solid amber light on the LED indicator and the charging icon.
The completed charge is indicated by either a green light or
a charged icon. You can also charge your phone using the
USB Sync cable while connected to the PC’s USB port.
Battery Capacity Indicator
Full
50%-74% capacity
28%-49% capacity
Less than 27% capacity
Very Low alert (less than 4%)
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

18
19
1.4 Included Accessories
Mini USB Cable
A USB cable is provided to allow you to synchronize infor-
mation between your phone and a desktop or notebook PC
using Microsoft ActiveSync. You can also charge the phone’s
battery by plugging the cable to a PC USB port.
Stereo Earphones
Use the earphones to listen to sound or multimedia les. The
earphones can also function as a hands free device.
Using the earphones
Connect the earphone cable to the earphones jack located
at the base of the phone. Press the “Press To Talk” button
on the earphones to receive an incoming call. Press and
hold that button to end a call. Rotate the Volume buttons
to adjust the sound level.
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

18
19
AC Charger
Your Smartphone can be charged while powered on or off.
Charge your battery by plugging the AC adaptor into the mini
USB connector at the base of the phone. The included AC
adaptor is illustrated below.
Carrying Case
Also furnished with your Smartphone is a handy carrying
pouch.
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started

20
21
1.5 Navigating
This section discusses how to navigate through your
Smartphone’s screens in order to perform tasks quickly
and easily.
Navigation Pad
The Navigation Pad was identied as item #10 in the illustra-
tion on page 9. It provides an easy way to move or scroll
through selections on the screen.
• Press the left side of the Navigation Pad to move left.
• Press the right side of the Navigation Pad to move right.
• Press the top of the Navigation Pad to move up.
• Press the bottom of the Navigation Pad to move down.
Action button:
• Select a highlighted item by pressing straight down on
the center of the Navigation Pad, which is also known as
the Action button. In many cases, scrolling to an item
and pressing the Action button executes a command, or
takes you to a program or setting. When you scroll to a
checkbox, pressing the Action button selects or clears the
box.
Softkeys
There are two softkeys on your Smartphone, located directly
below the display screen (“Left Softkey” and “Right Softkey”).
Each softkey performs the task displayed immediately above
it on the screen (called the “Softkey label”).
Smartphone User Manual
1. Getting
Started
Smartphone User Manual
1. Getting
Started
