Audiovox D2016 User manual

D2016
PORTABLE 10" LCD MONITOR AND DVD PLAYER

2
Notice:
1.This Product incorporates copyright protection technology that is pro-
tected by method claims of certain U.S. Patents and other intellectual
propertyrightsownedbyMacrovisionCorporationandotherrightsown-
ers. Use of this copyright protection technology must be authorized by
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
ing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
2.ApparatusClaimsof U.S.Patent Nos.4,631,603;4,577,216;4,819,098
and 4,907,093 licensed for limited viewing uses only.

3
Content
A.Introduction............................................................................ 4
B. Cautions and Warnings ........................................................ 4
C.Contents...............................................................................6
D. Powering and installation ..................................................... 6
E. Controls, Indicators, and Connectors ................................... 7
F. Loading and Playing a Disc .................................................. 8
G.Basic Operation......................................................................9
H. Menu .................................................................... 10
I.Display...................................................................................10
J.PlayingAudioCDS................................................................13
K. Playing MP3 Discs .......................................................... 14
L. Playing JPEG file ...........................................................16
M. Connecting to a TV or another monitor.......................... 17
N.Setup .................................................................................... 19
O.Specifications...................................................................... 22
P. Rechargeable Battery Installation and Use ......................... 22
Q.Troubleshooting ................................................................. 25

4
A. Introduction
Thank you for choosing the D2016 portable DVD player. The main
features include a 10" Wide Screen (16:9Aspect Ratio) Liquid Crys-
tal Display (LCD) monitor and a DVD player. The unit applies the
latest state of the art electronics and is designed for use in vehicles,
hotels,officesor yourhome.Theunit is constructed to provide years
of reliable, trouble-free service, and is compact so that you can take
it with you anywhere and is designed for quick and easy installation.
Please read the entire instruction manual supplied with this product
prior to using. The documentation will assist you in installing the sys-
tem properly to obtain the best equipment performance. Please save
this manual for later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod,bracketortabletopreventitfromfalling.Keep the unit away
fromstrongmagnets,heat sources, direct sunlight,excessivedust.
If the unit is brought directly from a cold to a warm location, mois-
ture may condense inside the unit. When you move it from a cold
to a warm location, wait for about one hour before operating the
unit, or remove the disc and leave the unit turned on until the mois-
ture evaporates.
2. Installation
Ensure that the D2016 portable DVD player is installed in accor-
dancewiththe instructionsandillustrationsprovided inthismanual.
3. Caution
Do not push objects of any kind into the unit through openings;
do not spill or spray liquid of any kind on or in the system (this
may result in a fire or electric shock). Do not place anything
heavy on the unit. To ensure proper ventilation and proper

5
operation, never cover or block the slots and openings with a cloth
or other material. Keep the unit away from an open flame such as
fire, candle etc. It is hazardous to replace the battery incorrectly.
Replace the battery only with the same or equivalent type, in order
toprotecttheenvironment,pleasedisposethebatteryproperly.Do
not use the unit in temperatures higher than 95 degrees Fahren-
heit or 35 degrees Celsius.
4.Disassembly
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system needs repair.
5. Cleaning Unit
Whencleaning, makesurethe systemisunplugged fromthepower
source. Do not use liquid cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning the exterior of the system
only.
6. Discs
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources. Do not touch the surface of disc. Handle the
disc by its edge. Clean the disc by wiping the disc from the center
out with a cleaning cloth. Remove the disc from the unit and store
it in its case after playing. Some playback operations of discs may
be intentionally fixed by software producers. Since this unit plays
discs according to the disc contents the software producers de-
signed, some playback features may not be available.Also refer to
the instructions supplied with the discs.

6
7.Regional Coding
Both the DVD player and disc are coded by region. These
regional codes must match in order for the disc to play. If the
codes don’t match, the disc won’t play. This unit’s code is region
1. DVDs with other regional codes cannot be played in this unit
C. Contents
1. 1 x 10’’ LCD Monitor & DVD Player Combo
2. 1 x Remote Control with battery (CR2025)
3. 1 x Audio/VideoAdapter Cable
4. 1 x AC to DCAdapter
5. 1 x DC PowerAdapter
6. 1 x Instruction Manual
7. 1 x Rechargeable Battery
D. Powering and installation

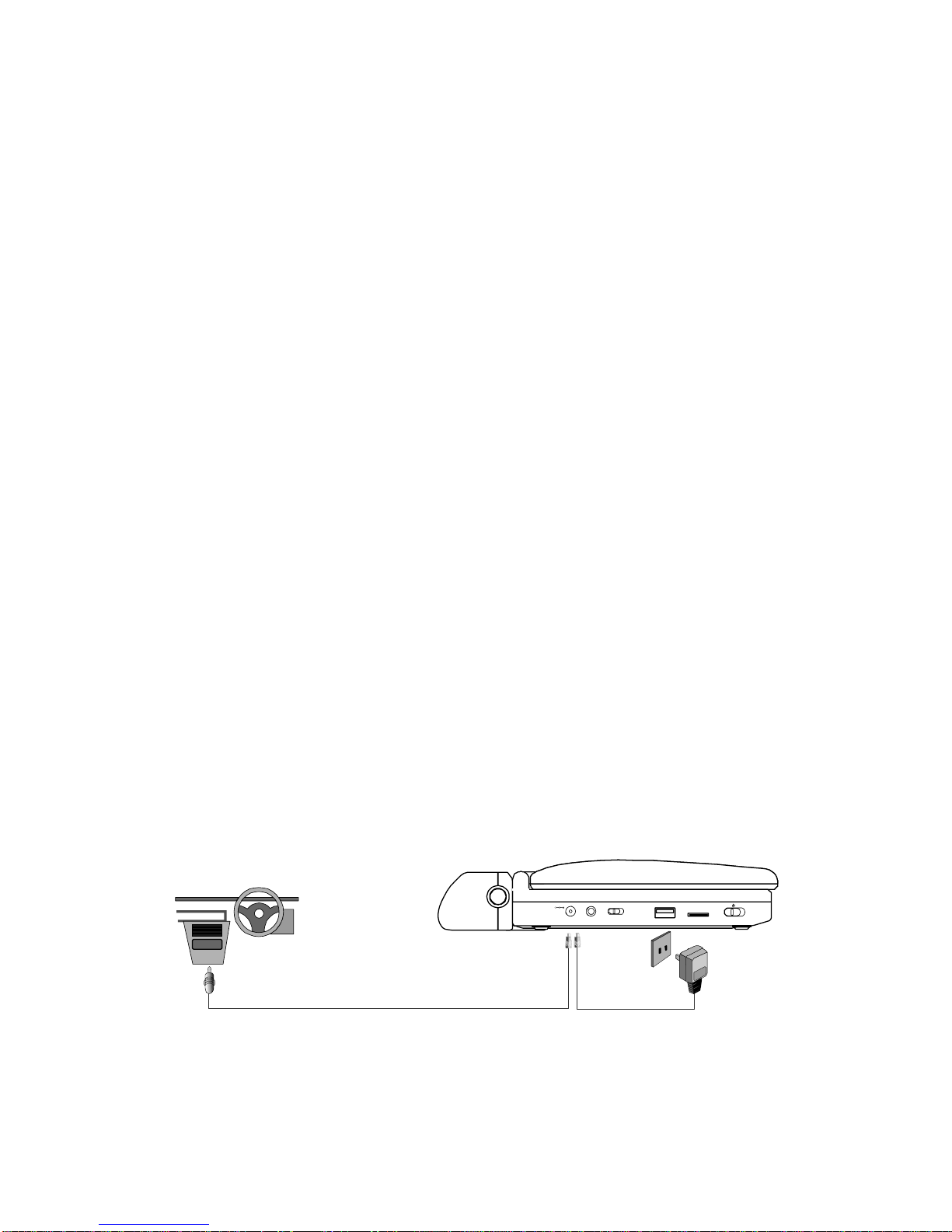

1. Powering the system indoors (Refer to Figure 1)
Plugone end of theAC toDC adapter into theDC input jack onthe
leftsideofthe main unit, then plug theotherendintothe 110~240V
AC power receptacle.
2. Powering the system in a car
Plug one end of the DC Power adapter into the DC input jack on
the unit, then plug the other end into the vehicle power outlet.
Figure 1
Note: Unplug the D2016 when not in use.
DC 9V
ON OFF
OUT I N
A
/V TV PORT
USB

7
11) Cover OpenActuator
12) Charge Indicator

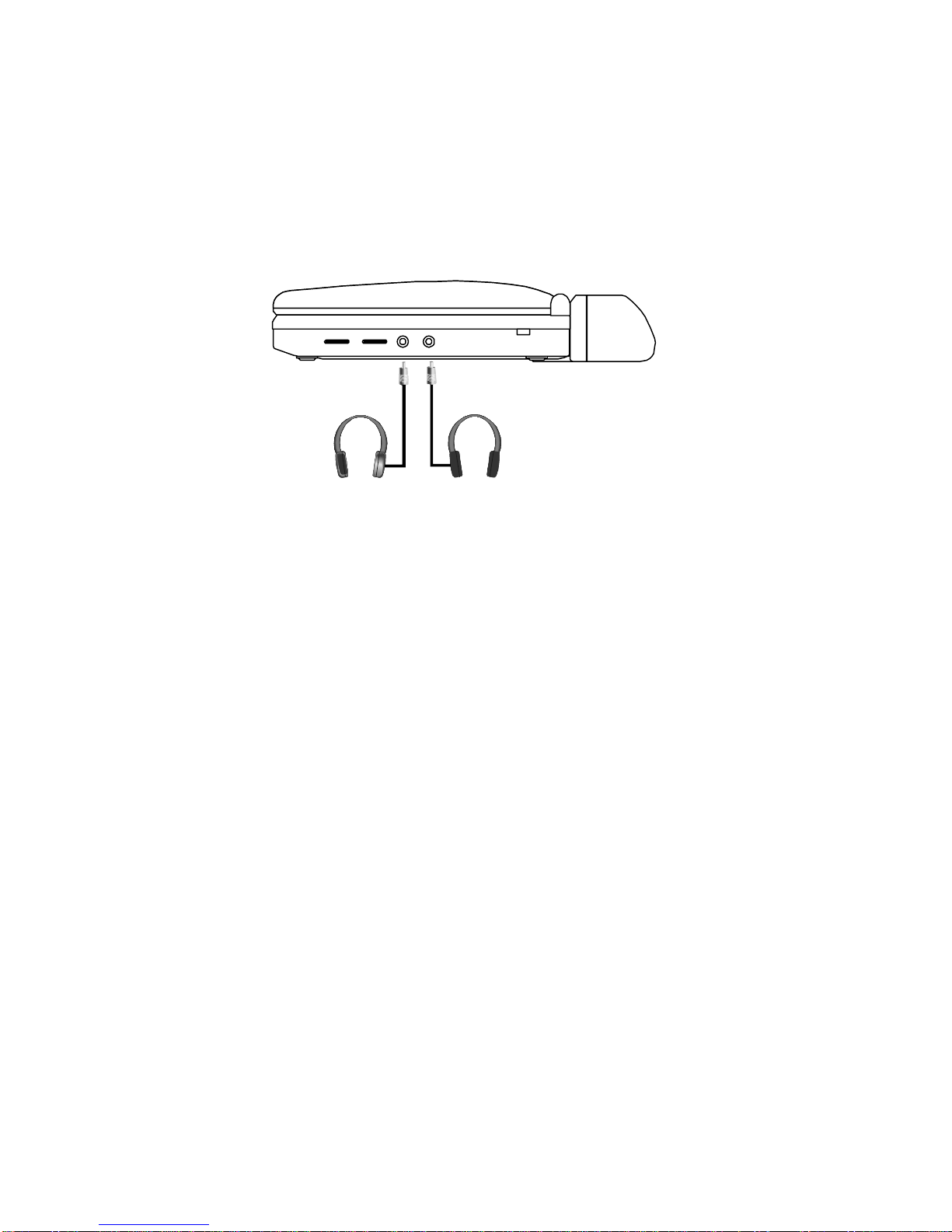

13) Headphone Jack 1*
14) Headphone Jack 2
15) Volume Control
16) Brightness Control
17) LCD Panel Shut Off Switch
18) Wide Button
19)Previous/Next/Pause/Stop/Play
20) Menu Button
21) Up/Down/Left/Right/OK Button
E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 2)
Figure 2
1) Battery Release Button
2) DC 9-12V Input Jack
3) AV Jack
4) AV In/Out Switch
5) USB Port
6) Game Port
7) Power On/Off Switch
8) SD Card Slot
9) Power Indicator
10) Remote Control Sensor
1
2
3
4
5
7
8910 11
12
13
14
15
16
17
18
19
20
6
21
* Connecting to headphone jack number 1 will disable the
internal speakers

8

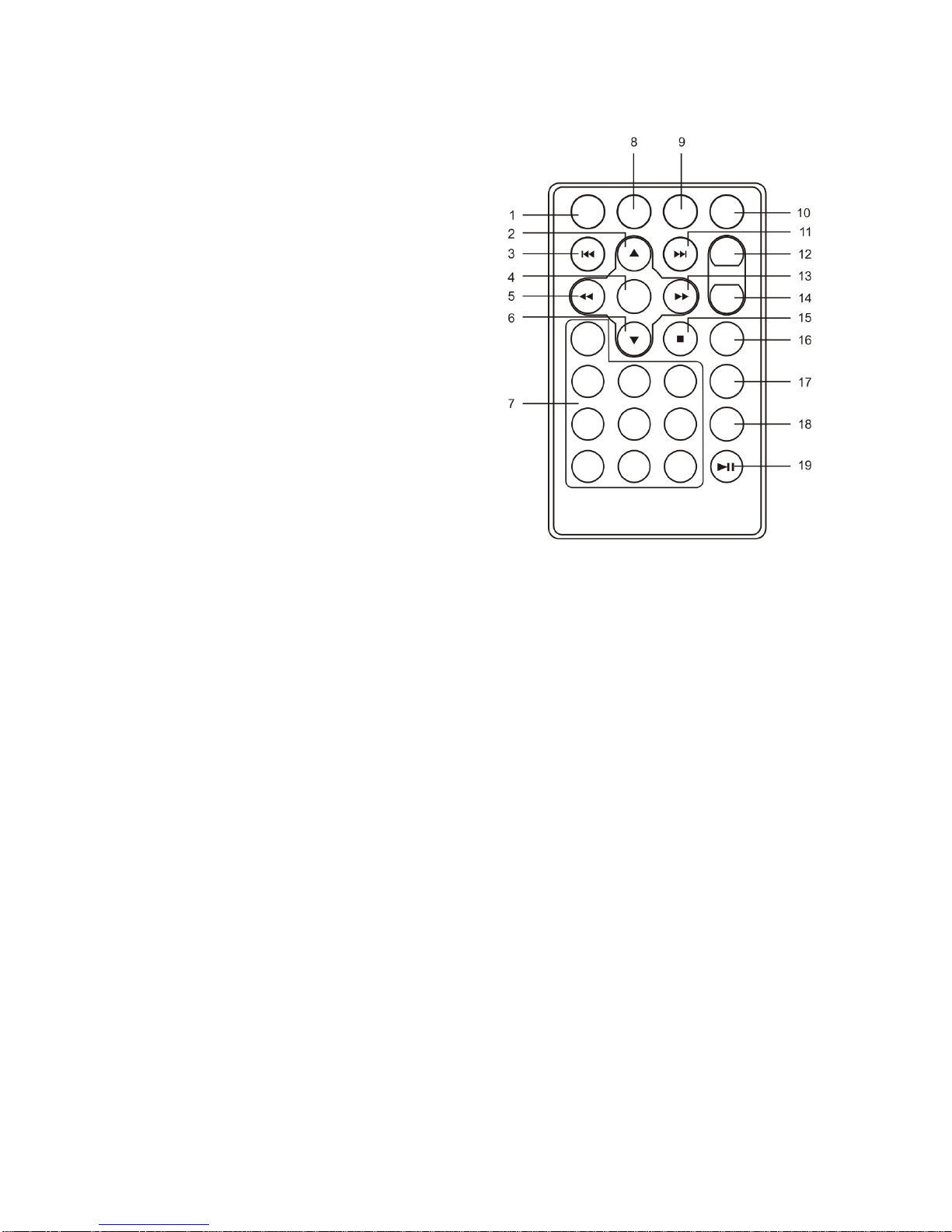

2. Remote Control (Refer to figure 3)
1) Setup Button
2) Up Button
3) Skip- Button
4) Enter Button
5) Reverse/Left Keypad
6) DOWN Button
7) Numeric Button
8) Display Button
9) Zoom Button
10) SD/USB/DVD Button
11) Skip+ Button
12) A-B Repeat Button
13) Forward/Right Keypad
14) 1/All Repeat Button
15) Stop Button
16) Menu Button
17) Subtitle Button
18) Audio Button
19) Play/Pause Button
F. Loading and Playing a Disc
a. After connecting power to the unit, power on “DVD player” with the
power switch. The power indicator will light.
b. Open the disc tray by sliding the OPEN switch in the direction of
the arrow. Place a disc in the tray with label side facing up.
c. Close the tray by pressing the area marked “PRESS” .The unit will
load the disc and start playing.
d. Rotate BRIGHTNESS and VOLUME to adjust the LCD’s bright-
ness and the DVD player’s volume.
e. To stop playing a disc, press STOP.
Figure 3

9
G. Basic Operation
POWER
OPEN
PLAY /PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
MENU
REPEAT
A-B
DISPLAY
SUBTITLE
AUDIO
ZOOM
SETUP
Turn the unit on/off
Remove/load the disc
Start Play/Execute item or setting
Still Picture
(1 time) Stop at the present playing point /
(2 times) Stop playing
Go to the next chapter, track or scene
during play back
Go back to the previous chapter, track
or scene during play back
Scan forward at 2, 4, 8,16 or
32 times speed
Scan backward at 2, 4, 8, 16 or
32 times speed
UsedforMenu Navigation
Execute item or confirm setting
Select item or setting
Display the main menu of the disc

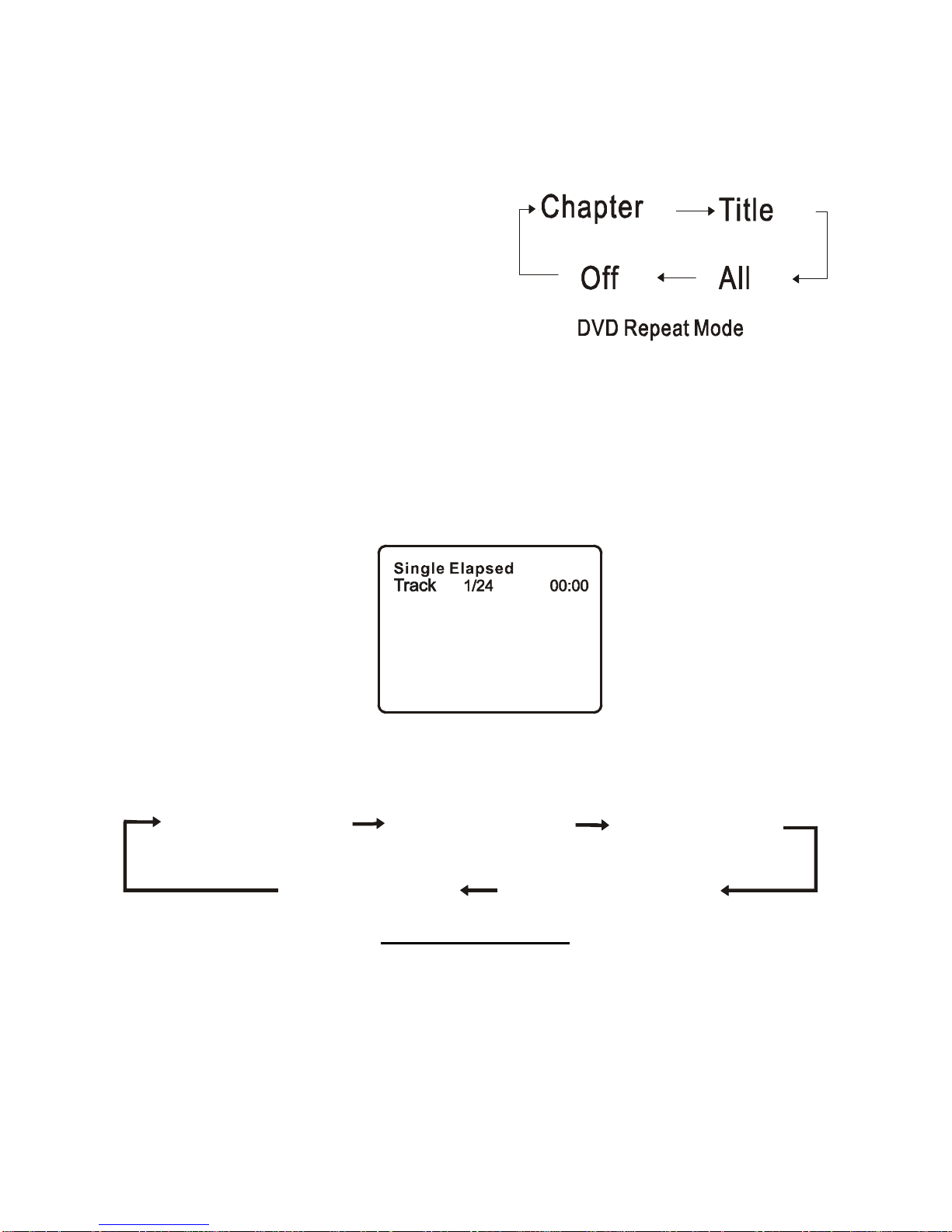

Repeat playing title, chapter, or track
Repeat a specific portion from
pointA to point B of the disc
Display information (title, chapter,
track, time, etc.).
Select the subtitle language and turn it
on/off
Select the audio language
Enlarge an image to 2, 3, or 4 times the
original size.1/2 1/3 1/4
Display the setup menu to select and
set items, and exit the setup menu.

10
H. Menu
A DVD is divided into sections called titles and chapters. When you
play a DVD’s root menu of the disc will appear on the screen of your
TV or Monitor. The contents of the menu vary from disc to disc. Press
MENU during playback to display the menu. Some DVDs only allow
you to select disc playback options using the DVD root menu.
I. Display
1. PLAYING TIME AND REMAINING TIME

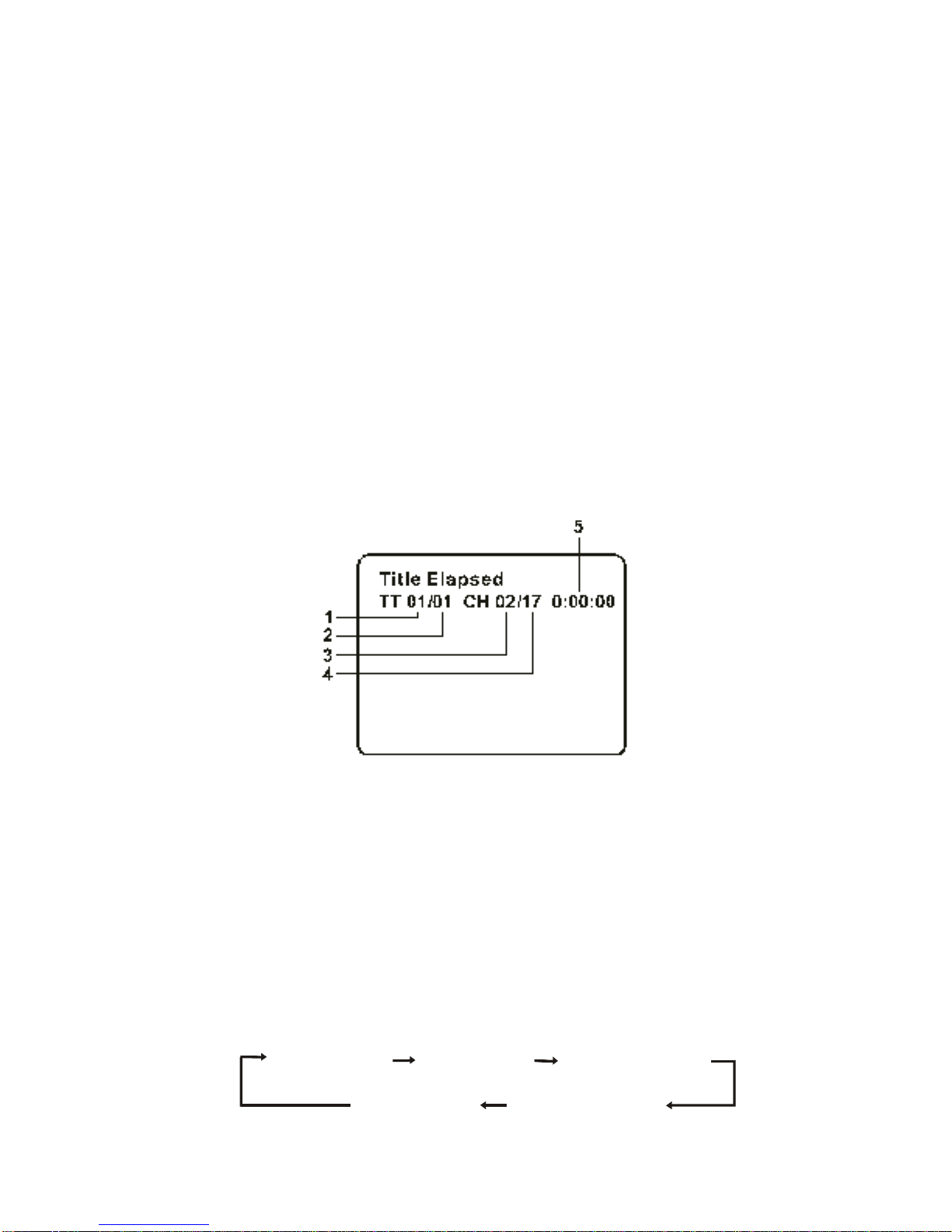

a. During playback press the ‘DISPLAY’ button to display the cur-
rent Title Number (1), the total Number of Titles (2), the current
Chapter Number (3), the total Number of Chapters (4), and the
Playing elapsed Time for the title (5). The heading will disappear
automatically after 3 seconds if DISPLAY button is not pressed.
Title, Chapter Number, and Time Screen Display
b. Press ‘DISPLAY’ constantly to choose the options below in se-
quence.
Title Elapsed: The elapsed time of the title
Title Remain: The remaining time of the title
Chapter Elapsed: The elapsed time of the chapter
Chapter Remain: The remaining time of the chapter
Display Off: The DVD’s time Information will not be displayed.
Title Elapsed Title Remain Chapter Elapsed
Chapter Remain
Display Off

11
Audio Language
2. SUBTITLE

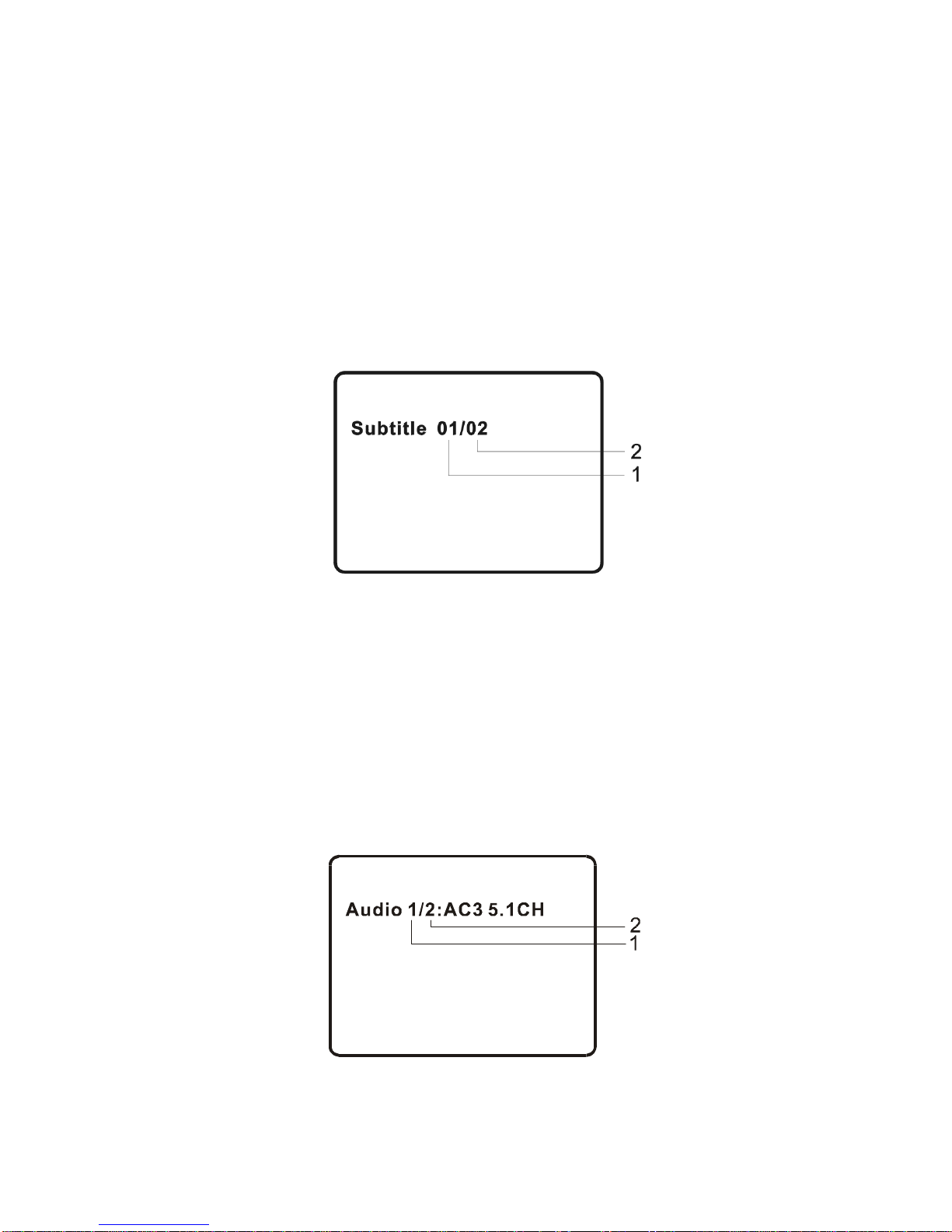

During disc playback press ‘SUBTITLE’ to select the subtitle language
you desire*, with the current Subtitle Language Number (1) and the
total Number of Subtitle Languages (2) displayed. If there are mul-
tiple languages press ‘SUBTITLE’ again to select another subtitle lan-
guage. To turn subtitles OFF, press the ‘SUBTITLE’ button until ‘Sub-
title Off’ is displayed. The Subtitle display will disappear automatically
if the ‘SUBTITLE’ button is not pressed again within 3 seconds.
* Some DVDs only allow access to this function through the DVD menu
3. AUDIO
During playback press ‘AUDIO’ to select the audio language you de-
sire*, with the current Audio Channel Number (1) and the total num-
ber of Audio Channels (2) displayed. Press AUDIO again to select
another audio language. The audio display will disappear automati-
cally if the ‘AUDIO’ button is not pressed within for 3 seconds.
* Some DVDs only allow access to this function through the DVD menu.
Subtitle

12
4. ZOOM
During playback press ‘ZOOM’ mutiple times to enlarge the picture
by 2X, 3X or 4X or reduce the picture by 1/2,1/3,1/4.
.
Zoom
5. A-B REPEAT
a. During playback press the ‘A-B’ button once to set the Starting
Point A.
b. Press ‘A-B’ a second time to set the Ending Point B and the
playerwill repeatedlyplay thepartbetweenPointAandPoint B.
c. PressA-B a third time to cancelA-B repeat and resume
normalplayback.
A-B Repeat Starting Point A-B Repeat Ending Point A-B Repeat Cancelled

13
6. REPEAT
a. During playback press ‘REPEAT’ repeatedly to cycle through the
repeat modes.
Chapter: Repeat the current chapter
Title: Repeat the current title
All: Repeat all chapters and titles
Repeat Off: Resume normal playback
J. PlayingAudio CDs
When playing an audio CD press the DISPLAY button constantly on
the remote to view time information. The options below appear on
screendisplayinsequence to show you whatinformationisavailable
using this function.
CD Display Mode
Single Elapsed: The current track playing and the elapsed time of that
track will be displayed on the screen.
Single Remain: The current track playing and the amount of time
remaining.
Single Elapsed Single Remain Total Elapsed
Total Remain
Display Off
Single Elapsed When Playing Audio CDs

14
Total Elapsed: The current track playing and the total time that the
CD has been playing.
Total Remain: The current track playing and the amount of time
remaining on the CD.
Display Off: The CD time Information will not be displayed.
USING THE1/ALL REPEAT FEATURE
The default mode for the Repeat feature is OFF. Pressing REPEAT
consecutively changes the repeat options:
•Track- repeats the track that is playing.
•All- repeats the disc that is playing.
•Repeat Off
Asyoutogglethroughtheoptions,therepeatoptionchanges. Theselected
repeatoptionloopsrepeatedlyuntilyouturnitoff.
K. Playing MP3 Discs
MP3 is a format for storing digital audio.An audio CD-quality song is
compressed into the MP3 format with very little loss of audio quality
while taking up much less disc space. CD-R /RW discs that have
been encoded in MP3 format are compatible with this system.
WhenanMP3discisinserted into the unit, the menu screen appears
automatically. You can use the menu screen to select your desired
folders and songs or the system plays the songs in the order they
were burned onto the disc.
1. Press the or button to choose a folder from the folder list on
the left side of the screen.
2. Press ENTER to select the highlighted folder. The songs avail-
able under the folder will be listed.
3. Use or button to choose a song from the list. Press ENTER
to select and begin playback of the highlighted song.

15
4. Use the ( NEXT ) button to move to the next song. Press the
(PREVIOUS) button to move to the beginning of the previous
song.
USING THE REPEAT FEATURE
The default mode for the Repeat feature is OFF. Pressing REPEAT
consecutively changes the repeat options:
• Repeat One (repeat playback of a song)
• Repeat Folder (repeat playback of a specific folder)
• Repeat Off (normal playback)
As you toggle through the options, the repeat mode changes. The
selected repeat mode loops repeatedly until you turn it off.
NOTICE
“ ”iconinfrontofafilenameindicatesthatthisisafolder,notan
MP3file.
“MP3”iconinfrontofafilenameindicatesthatthisisaMP3file.
Note:
Due to the company’s policy of constant improvement and technical re-
finement, the company reserves the right to change or alter software.

16
L. Playing JPEG file
1) Load the JPEG Disc into tray.
2) Select JPEG file by pressing “UP/DOWN” button.
3) You can preview the JPEG file by pressing “Play” or “ENTER”.
4) Pressing the “Left Key“ will rotate the picture counterclockwise.
Pressing the “Right Key“ will rotate the picture clockwise.
5)Whenbrowsingthe photos, you can reverse the photo horizontally
by pressing “Up” key,or you can reverse the photos vertically by
pressing “Down” key.
6)When you browse the JPEG file, press “display”, there will bediffe-
rent refresh mode below.
a.Press “display” first time, “WIPE TOP” will display on the
screen, the picture will refresh from top to bottom.
b. Press “display” 2nd time, “WIPE BOTTOM” will display on the
screen, the picture will refresh from bottom to top.
c. Press “display ” 3rd time, “WIPE LEFT” will display on the
screen, the picture will refresh from left side to right side.
d. Press “display ” 4th time, “WIPE RIGHT” will display on the
screen, the picture will refresh from right side to left side.
e. Press “display” 5th time, “DIAGONAL WIPE LEFT TOP” will
display on the screen, the picture will refresh from left top to
right bottom.
f. Press “ display ” 6th time, “DIAGONAL WIPE RIGHT TOP” will
display on the screen, the picture will refresh from right top to
left bottom.
g. Press “display ” 7th time, “DIAGONAL WIPE LEFT BOTTOM”
will display on the screen, the picture will refresh from left bot-
tom to right top.
h.Press “display ” 8th time, “DIAGONAL WIPE RIGHT BOTTOM”
will display on the screen, the picture will refresh from right
bottom to left top.

17
M. Connecting to other Electronical Equipment
1. Connecting to a TV or another monitor ( Refer to Figure 4)
a. Position theAV In/Out Switch to “Out” Position.
b.Connect one end oftheaudio/videoadapter cable’s black 1/8” plug
into the unit’s AV jack. Using a standard A/V cable (not supplied),
connect theotherendto theAUDIO/VIDEOInput jacksonyourTV or
Monitor (white = left audio channel, red = right audio channel,
yellow=video).
Figure 4
2. Connecting to a Game or Camcorder (Refer to Figure 4)
a. Position the AV In/Out Switch to “In” Position.
b. Connect one end of the audio/video cable’s black (1/8” plug)
plugintothe unit’s AV jackusingastandardA/Vcable(not supplied),
and connect the other end to the AUDIO/VIDEO output jacks on
your Camcorder or game (white = left audio channel, red = right
audio channel, yellow = video).
Note: Please don’t connect an AV signal source to theAV jack when
the unit is in “AV Out” Mode.
NOT
SUPPLIED

18
3.Headphones
Optionalwiredheadphonesmaybeusedwiththeunit.Simplyplugin
theheadsettoeitherHeadphone1jackorHeadphone2jackonthe
rightsideof theDVD.(Referto Figure 5.)
Figure5
PluggingintoHeadphonejack1disablestheinternalspeakers.
4. SD Card and Thumb Drive/Digital Cameras
With no disc in the unit, insert either an SD card, Thumb Drive, or digital
camerawithJPEG orMP3filesinto theappropriateinput.The D2016 will
automatically select the input in use.
1) Insert an SD Card into the SD Slot on the front of the unit.
2) Insert a Thumb Drive into the USB jack on the left side of the unit.
3) Connect the USB cable (not supplied) from a camera into the USB
port on the left side of the unit.
**

19
N. Setup
1. General Setup Page
1)Withnodiscinsidethe player, press‘SETUP’todisplaytheMainscreen
oftheSetup Menu on the screen and “General Setup Page” appears. At
the same time, “ ” is highlighted. Press ‘SETUP’ again to exit the
SetupMenu.
2)Press the ENTER button, “TV Display” is highlighted.
3) Press the or buttons to select the other menus in general setup
page.
4) Press to enter the sub menu.
5) Press the or button to select the desired option in the sub
menu and press the ENTER to confirm your selection.
6) Repeat steps 3-5 for other menus.
Note: Press to return the previous menu.
a) TV Display
* Normal/PS: When the player outputs signal to a normal TV, a nor-
mal picture is shown on the full screen.
*Normal/LB:Whenthe player outputs signal toanormalTV, a normal
picture is shown on the screen with a black strip at both the top and
bottom of the screen.
* Wide: When the player outputs signal to a wide screen TV, a
wide picture is shown on the full screen.
b) Screen Saver
*On: Enables screen saver
*NOTE: The DVD player will enter the Screen Saver mode after ap-
proximately three minutes if the same image remains on the
screen.*Off: Disables screen saver (off)
c) Last Memory
*On: The unit will return to the last position on the disc.
*Off: The unit will not return to the last position on the disc.
Note: The Last position memory function will only work when the
disc tray is OPEN or the AV In/Out is switched.

20
2.Video Quality Setup
1)In Setup menu, Press the or button to select “Video Quality
Setup” and is highlighted. Press ENTER to enter the video quality
setup page.
2)Press the ENTER button, “Brightness” is highlighted.
3)Press the or button to select the other options in the video
quality setup page.
4) Press to enter the sub menu.
5) Press the or button repeatedly to adjust the selected option
and press ENTER to confirm your selection.
6) Repeat steps 3-5 for other menus.
Note: Press to return the previous menu.
a) Brightness b) Contrast
c) Hue d) Saturation
3. Password
In the Setup menu, Press the or button to select “Password
Setup Page” and is highlighted. Press ENTER to enter the password
page.
Press ENTER twice to enter the Password Change Page. Input the Old
Password or the Default Password, the New Password, and Confirmed
the New Password. Press ENTER to confirm the change.
Note: The default password is 3308.
4. Preference Page
1) In Setup menu, Press the or button to select “Preference
Page”and ishighlighted.PressENTERto enter the preference page.
2) Press the ENTER button, “Audio” is highlighted.
3) Press the or button to select the other options in the preference
page.
