Audiovox D2010 - Widescreen Ultraslim Portable DVD... User manual

Model D2010
PORTABLE DVD PLAYER
WITH 10.2" LCD MONITOR
Owner’s Manual

- -
1
Introduction
Thank you for choosing the D2010 portable DVD Player. The unit applies
the latest state of the art electronics and is designed for use in hotels,
offices, vehicles or your home. The D2010 Player is constructed to
provide years of reliable, trouble-free service, and is compact so that you
can take it with you anywhere and is designed for quick and easy setup.
Please read all documentation prior to using this product. The
documentation will assist you in obtaining the best equipment
performance. Save this manual for later use.
Important Notice
It is unlawful in most jurisdictions for a person to drive a motor vehicle
which is equipped with a television viewer or screen that is located in the
motor vehicle at any point forward of the back of the driver’s seat, or that
is visible, directly or indirectly, to the driver while operating the vehicle.
In the interest of safety, this system should never be installed where it
will be visible, directly or indirectly, by the operator of the motor vehicle.
Safety Precaution
For safety reasons, when changing video media, it is recommended that
the vehicle is not in motion, and that you do not allow children to
unfasten seat-belts to change video media or make any adjustments to
the system.
Enjoy your entertainment system but always remember-safety of all
passengers remains the number one priority.

- 2 -

- -
3
CautionsandWarnings
Important Safety Instructions
Power Supply:
Connect the (supplied) AC to DC adapter in the jack marked “DC 12V IN” on the right side of the
DVD player. Plug the two-prong end of the power cord to an AC110-220V outlet. If you have
difficulty inserting the plug, turn it over and reinsert it. If the unit will not be used for a long time,
disconnect the plug from the outlet.
Note:
Before plugging the power cord into an AC outlet, make sure that of all the other connections have
been made.
Caution:
To reduce the risk of electric shock, do not perform any servicing other than that contained in the
operating instructions. Service should only be performed by qualified service personnel.
Before Using the D2010:
1. Heed All Warnings.
2. Please Read And Follow All Instructions As Written In This Manual
3. Keep These Instructions.
4. Placement
To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not place the
set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. Keep the DVD
Player away from strong magnets, heat sources, direct sunlight, and excessive dust. Do not use
the DVD Player in temperatures higher than 140 degrees Fahrenheit or 40 degrees Celsius. If the
DVD Player is brought directly from a cold location to a warm location, moisture may condense
inside the DVD Player.
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of un-insulated “Dangerous
Voltage” within the product’s enclosure that may be of sufficien
t
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

- 4 -
Cautions and Warnings
When you move it from a cold location to a warm location, wait for about one hour before operating
the DVD Player, or remove the disc and leave the DVD Player turned ON until the moisture
evaporates.
5. Caution
Do not spill or spray liquid of any kind on or in the system (this may result in a fire or electric
shock). Do not place anything heavy on the DVD Player. To ensure proper ventilation and proper
operation, never cover or block the slots and openings with a cloth or other material. Keep the
DVD Player away from an open flame such as fire, candle etc. Only use attachments/accessories
specified by the manufacturer.
6. Warning
To reduce the risk of electric shock, do not perform any servicing other than that contained in the
operating instructions. There are no user-serviceable parts inside. Refer all servicing to qualified
service personnel. Replace the battery only with the same or equivalent type. In order to protect
the environment, please dispose of the battery properly. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus. Unplug this apparatus during lightning storms or when unused for long periods of time.
7. Cleaning DVD Player
When cleaning, make sure the system is unplugged from the power source. Do not use liquid
cleaners or aerosol cleaners. Use a soft cloth lightly dampened with water for cleaning the exterior
of the system only.
8. Disc
Do not use irregularly shaped discs such as heart or star-shaped discs as they may cause the
DVD Player to malfunction. Do not stick paper, tape or glue on the disc. Do not expose the disc to
direct sunlight or heat sources. Do not touch the surface of disc. Handle the disc by its edge. Clean
the disc by wiping the disc from the center out with a cleaning cloth. Remove the disc from the
DVD Player and store it in its case after playing. Software producers may intentionally fix some
playback operations of discs. Since this DVD Player plays discs according to the disc contents the
software producers designed, some playback features may not be available. Also refer to the
instructions supplied with the discs.
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protection
technology must be authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.

- 5 -
Table Of Contents
Introduction----------------------------------------------------------------------------------------------
Cautions and Warnings------------------------------------------------------------------------------
Table of Contents---------------------------------------------------------------------------------------
Main Features--------------------------------------------------------------------------------------------
Screen and System Panel Controls--------------------------------------------------------------
Front Panel Controls------------------------------------------------------------------------------------
System Side Panel Controls------------------------------------------------------------------------
Right Side Panel Controls------------------------------------------------------------------------------
Left Side Panel Controls--------------------------------------------------------------------------------
Remote Control-----------------------------------------------------------------------------------------
System Connections----------------------------------------------------------------------------------
Power Supply Connection-----------------------------------------------------------------------------
Connecting to a TV--------------------------------------------------------------------------------------
Connecting to an Amplifier----------------------------------------------------------------------------
Connecting to a Digital Ready Amplifier------------------------------------------------------------
System Preparations----------------------------------------------------------------------------------
Using of Remote Control-------------------------------------------------------------------------------
Disc Formats Supported By This Player-----------------------------------------------------------
Power Supply--------------------------------------------------------------------------------------------
Rechargeable Battery Pack---------------------------------------------------------------------------
Attaching the Battery Pack----------------------------------------------------------------------------
Charging the Battery Pack----------------------------------------------------------------------------
Detaching the Battery Pack---------------------------------------------------------------------------
Using the DC Adapter----------------------------------------------------------------------------------
Installing The System Onto Vehicle Seat Back ---------------------------------------------
Installing The System Between Vehicle Seats ----------------------------------------------
Using Headphones------------------------------------------------------------------------------------
Using Wired Headphone-------------------------------------------------------------------------------
Using Wireless Headphone---------------------------------------------------------------------------
DVD Player Operation--------------------------------------------------------------------------------
System Setup-------------------------------------------------------------------------------------------
Playback Functions-----------------------------------------------------------------------------------
Troubleshooting---------------------------------------------------------------------------------------
Specifications------------------------------------------------------------------------------------------
1
2
4
5
6
6
7
7
7
8
10
10
10
11
11
12
12
13
14
14
15
15
16
17
18
19
20
20
20
21
22
25
28
29

- 6 -
Main Features
High Quality Audio and Video
LCD (Liquid Crystal Display) Screen
10.2” Color LCD screen.
Special Functions
Supports Multi-angle, Multi-language and
Parental-lock features.
AV Input
An external Audio/Video signal input
can be connected to the AV input
jacks.
Audio Output
Audio output jack for connection to an
external amp or powered speakers.
Video Output
Composite video output for connection to
an external monitor.
Headphone Output
For listening to movies or music in
private.
Wireless IR Headphone Output
For use with optional wireless infrared
headphones
Switching Power Adapter
Automatically adapts to voltage
requirements in the U.S. and other
countries.
Advanced Playing Function
Compatibility
Plays: DVD, DVD-R, CD, CD-R, CD-RW
and JPEG discs are compatible.
ON-Screen Display
ON-screen displays in your choice of
English /Spanish/French.
Search Function
Multi-speed, fast forward, fast reverse,
slow play and repeat playback.
Zoom Function
Allows the viewer to enlarge in the
picture.
Search By Time
Search for a certain time on a disc.
Last Memory Playback
Continues playback from a stopped point
as long as power is applied to the DVD
Player.
Region Code
DVD players and discs are coded by
region. These regional codes must
match. If the codes don’t match, the disc
cannot be played. This player’s code is
region 1.

- 7 -
Screen and System Panel Controls

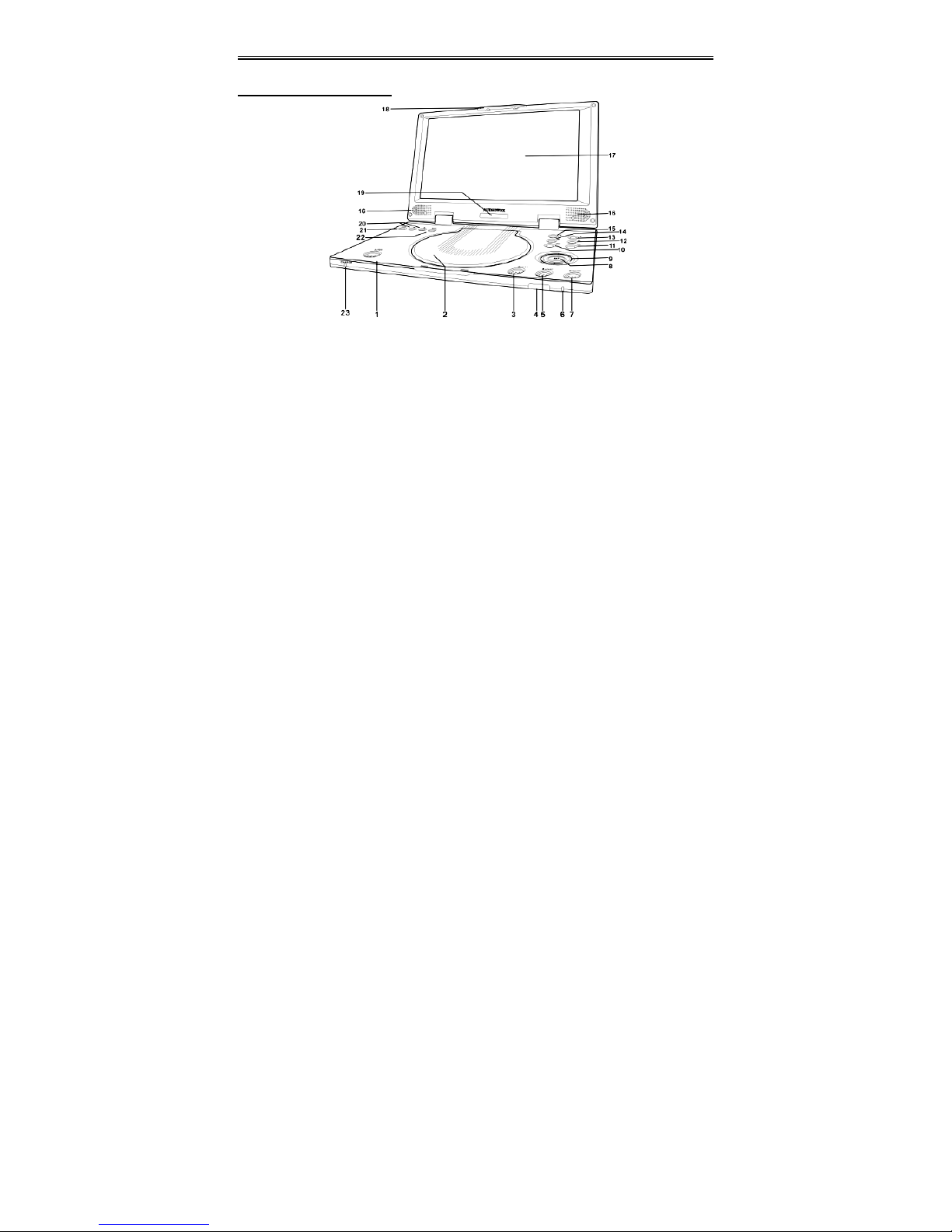

Front Panel Controls
1. OPENbutton
Press to open the disc tray cover.
2. Disc Tray Cover
When the disc is loaded gently
press the cover to close it.
3. PLAY button
Press to begin playback.
4. Remote Sensor
IR receiver for remote control
operation.
5. STOPbutton
Press to stop playback.
6. Power Indicator
Lights green when the player is on.
7. PAUSE button
Press once to pause playback.
Press again to activate step frame
by frame playback.
8. ENT button
Press to confirm selection.
9. Direction buttons
Press to select menu items or
settings.
10. MENU button
Press to display the disc root menu.
11. TITLE button
Press to display titles if present on
the DVD disc.
12. Next button
Press to skip to the next chapter or
track.
13. Forward Scan button
Press to scan forward.
14. Prev button
Press once to skip to the beginning
of the current chapter or track,
press twice to skip to the previous
chapter or track.
15. Reverse Scan button
Press to scan backwards.
16. Speakers
Provide high quality Audio output.
17. LCD Screen
10.2” TFT LCD Panel
18. Latch Hook
Used to lock the LCD panel to the
unit.
19. Infrared audio signal emitter
Used to transmit audio to optional
wireless headphones (IRHSCS)
20. -/+buttons
Use to adjust the brightness, color
and contrast level. Also used to turn
the infrared headphone emitter
power ON or OFF, and selecting the
LCD display ON or OFF.
When the LCD display is turned off,
press either of the PICTURE or +/-
buttons and the LCD display will turn
ON.

- 8 -
System Side Panel Controls
21. PICTURE button
Press to enter the brightness, color
or contrast adjustment mode.
Infrared headphone emitter power
ON or OFF, and selecting the LCD
display ON or OFF.
22. MODE button
Press to change the aspect ratio
from 4:3, 16:9 and zoom modes.
23. Charge Indicator
When charging the battery pack, the
light on the control panel will turn
red. When the battery is fully
charged the light will go OFF
Right Side Panel Controls
1. Volume Control
Used to adjust the headphone and
speaker volume.
2. Headphone Jack
Used to connect wired headphones
for private listening. When
headphones are connected to this
jack the speaker output will turn off
automatically.
3. AV IN/OUT Switch
Switch to IN, to input an external
Audio/Video source. Switch to OUT
when the player is connected to an
external monitor.
4. Audio Input/Output Jack.
Used for connection to an external
amplifier or external audio source.
5. Video Input/Output Jack
Used for connection to an external
monitor or video source
6. 12V DC Input Jack
Used to connect the AC/DC
Adaptor or DC Vehicle Adaptor
Power to the unit.
Left Side Panel Controls
1. Headphone jack
Used to connect wired head-
phones for private listening.
When headphones are connected
to this jack the speaker output will
turn off.
2. Power ON/OFF Switch
Switch the power on or off.

- 9 -
RemoteControl
Remote Control
1. PWR button
Press to turn the unit ON or OFF.
2. INFO button
Press to display detailed playback
information.
Keep pressing the button to display
additional information or to turn the
information display OFF.
3. TITLE button
Press to display titles if present on
the disc.
4. Direction buttons
Press to select menu items.
5. ENTER button
Press to confirm the selected menu
items or settings.
6. SETUP button
Press to access the DVD player’s
setup menu.
7. Number buttons (0-9)
Press to select Password Numbers
or go to a specific Track or Time on
a disc. (GOTO Function)
8. PREV button
Press to go to beginning of current
Track or Chapter. Press twice to go
to beginning of a previous Track or
Chapter.

- 10 -
RemoteControl
9. NEXT button
Press to go to next Track or Chapter.
10. SUBT button
When a DVD with subtitles is
playing, press to select a subtitle
language or to turn subtitles OFF.
11. Angle button
Press to access various camera
angles, if the DVD disc contains
multiple camera angles.
12. A-B Repeat button
Used to play a section of the DVD
from point “A” to point “B”. Press
once to select the starting point (A)
press again to select the end point
(B). Press a third time to cancel the
A-B Repeat.
13. ZOOM button
Press to enter and cycle through
zoom functions, use the direction
buttons (4) to pan around the
screen.
14. REP button
Press to repeat a Track, Chapter,
Title, or the entire disc.
15. MENU button
Press to access the disc root menu.
16. PIC button
Press to enter the brightness, color
or contrast level-adjusting mode.
Infrared headphone emitter power
ON/OFF or selecting the LCD
display ON/OFF.
17. STOP button
Press once to stop playback. Press
the PLAY/PAUSE button to resume
normal playback. Press the button
twice to stop playback completely.
18. PLAY/PAUSE button
Press to start or pause playback.
19. GOTO button
Press to select the desired disc
starting Time, Track or Title.
20. +10 button
Select numbers greater than 9 by
pressing the (+10) button first, and
then additional number buttons as
needed.
21. FWD SCAN button
Press to search forwards at 2x, 4x,
8x, 16x or 32x the normal
playback speed.
22. REV SCAN button
Press to search backwards 2x, 4x,
8x,16x or 32x the normal
playback speed.
23. SLOW button
Press to activate slow forward. Slow
playback at 1/2, 1/4,1/8, 1/16 the
normal playback speed.
24. AUDIO button
Press to access various audio
languages or tracks, when the DVD
disc contains multiple audio
languages or tracks

- 11 -
System Connections
Note: Before plugging the power cord into an AC outlet, make sure that all other
connections have been made as described below.
Power Supply Connection
Connect the supplied adapter to the side of the DVD player in the jack marked “DC
12V IN”. Plug the two-prong end of the power cord to an AC100-240V outlet. If you
have difficulty inserting the plug, turn it over and reinsert it. If the DVD Player will not
be used for a long time, disconnect the plug from the outlet.

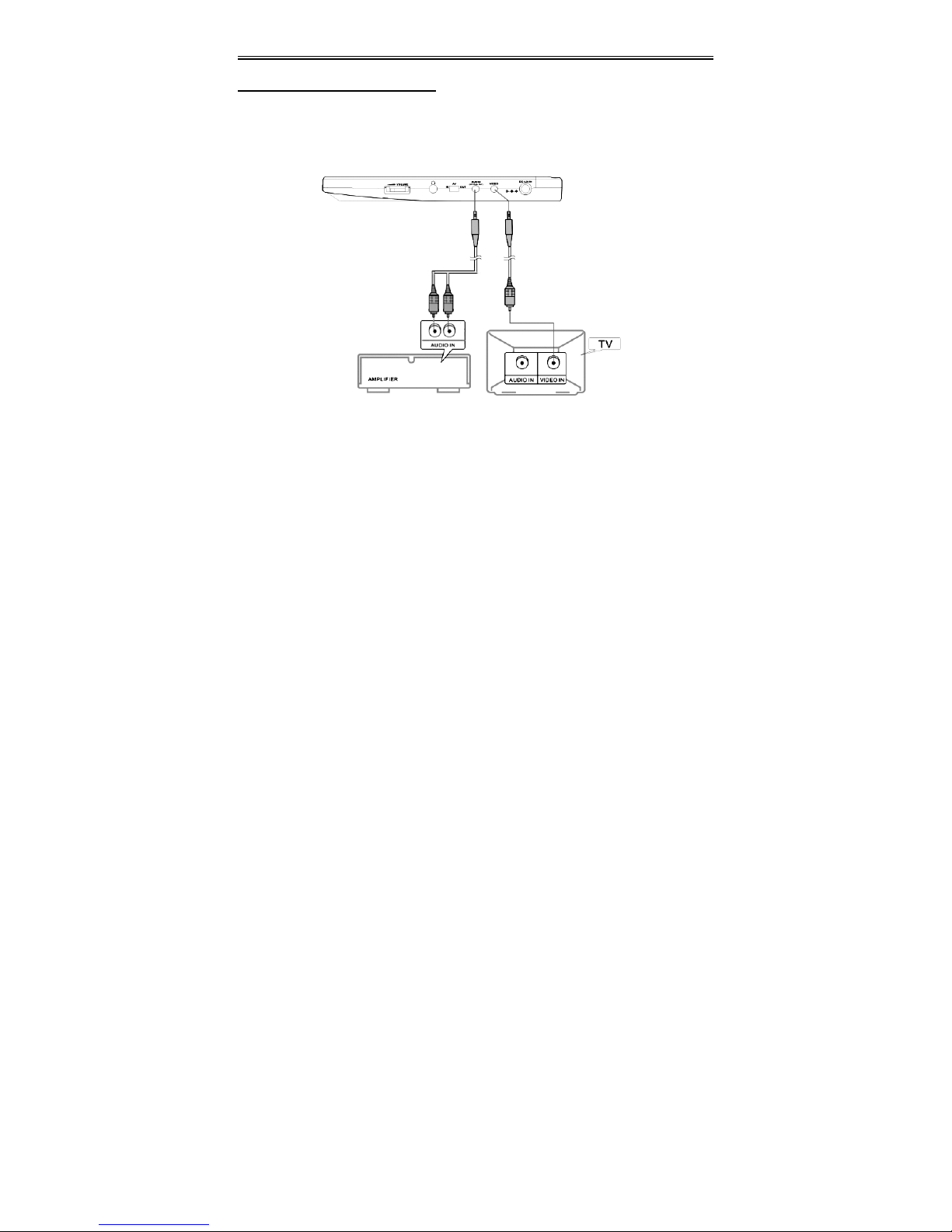

Connecting to a TV
Audio/video connections
Always ensure that the DVD player, TV and any other electrical components are
switched OFF before connecting to the DVD player.
The easiest way to connect the DVD player to a television is via the supplied
Audio/Video cable. Connect the audio/video cable from the DVD player to the
audio/video inputs of the TV. And then switch the AV IN/OUT button to OUT.
Note: Noise may occur in speaker when there is an external audio signal input while
playing a DVD disc. Unplug the audio cord to clear the noise.
This player only outputs NTSC signals. Make sure to use NTSC input type monitor/TV.
If the picture is distorted or colorless, please check the type monitor/TV.
Do not connect an audio/video input while the A/V in/out switch is in the out position.
This may result in unwanted audio or video distortion.

- 12 -
System Connections
Connecting to an Amplifier
The DVD player can be connected to an amplifier. Plug the supplied A/V cable into the
audio jack on the right side of the unit and plug the other end into an audio input on
the amplifier (White= left, Red=Right). Please refer to the equipment’s manual before
connecting.

- 13 -
System Preparations
Using of Remote Control
1. Remove the battery holder. Refer to the figure above.
2. Insert the battery into the battery holder (observe correct polarity) and insert the
battery holder into the remote.
3. For best results, aim the remote directly at the player’s IR receiver window, within
15 feet, and angles not exceeding 60 degrees.
The path between the remote control and remote sensor should be free of
obstructions.
4. Under normal use the battery will last for approximately one year.
5. Remove the battery if the remote is not to be used for a long time.
6. Battery type is a CR2025

- 14 -
System Preparations

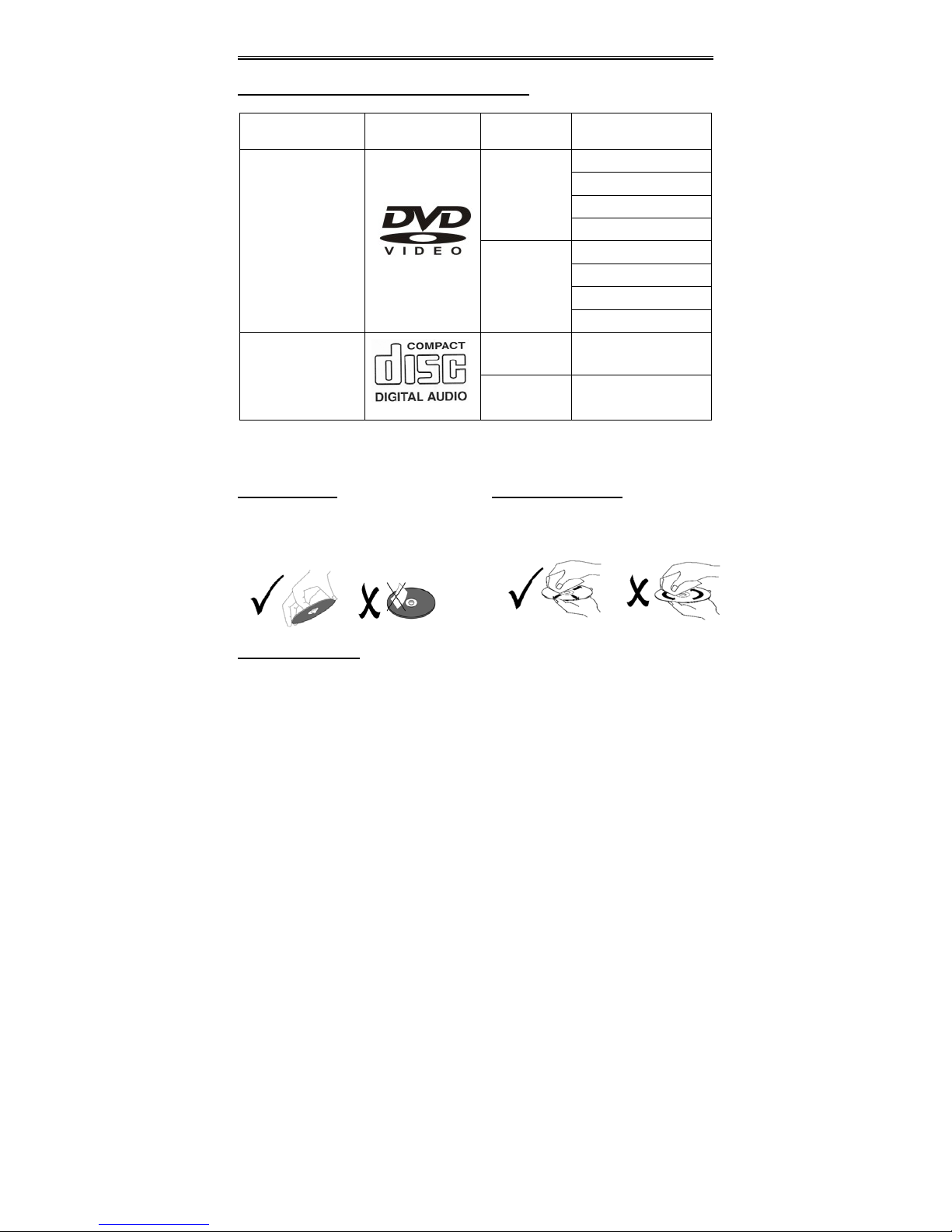

Disc Formats Supported By This Player
DISC LOGO DIAMETER
PLAYBACK TIME/
PLAYABLE SIDES
133 min (SS-SL)
242 min (SS-DL)
266 min (DS-SL)
12cm
484 min (DS-DL)
41 min (SS-SL)
75 min (SS-DL)
82 min (DS-SL)
DVD
DVD-R
8cm
150 min (DS-DL)
12cm 74 min
CD
CD-R
CD-RW
8cm 20 min
The disc maker specifies the operation of some DVD discs. Please refer to the
instruction manual with the disc.
Care of Discs
Do not touch the playing surface of the
disc.
Do not stick paper or labels on the disc.
Storage of Discs
Do not expose discs to direct sunlight or
excessive temperatures.
Cleaning of Discs
If a disc has fingerprints or dust on it,
lightly wipe the disc with soft cloth from
the center of the disc outward.
Never use record cleaning sprays, or
any other solvents to clean your discs.

- 15 -
PowerSupply
Rechargeable Battery Pack
Your portable DVD player comes with a lithium ion rechargeable battery that attaches
to the rear of the DVD player. Charge the battery fully before initial use. Charging time
is normally about 5 hours. A fully charged battery delivers about 2-1/2 to 3 hours of
use, but playing time varies from disc to disc. If the battery will not be used for a long
period of time, fully charge the battery prior to storage.
Working conditions and precautions of the battery
• New batteries must be fully charged before initial use. Regardless of the charge
indicator, allow the battery to charge for 8 hours.
• Battery should only be used and charged when temperatures are between 32 -
100F.
• Never put the battery in fire or water.
• Do not expose the battery to high temperatures or store in hot, sunny places.
• Maintain well-ventilated conditions around the product to avoid overheating. Don’t
put the product on bed, sofa or anything that may block ventilation to the product.
• Do not short the battery terminals.
• Do not open the battery.
• Detach the battery after charging is complete. When charging the battery pack,
the charge light will turn red, when the charging is complete, the light will turn
OFF.
• Detach the battery when not in use.
• When the battery is weak, “Low Power” will appear on the LCD screen and about
one minute later, the player will power OFF automatically.

- 16 -
PowerSupply
Attaching the Battery Pack
Refer to the following steps for attaching the Battery Pack:
1. Place the DVD Player on a soft and smooth surface with the bottom of the unit
facing UP (chassis up see the Fig.1).
2. With one hand on the DVD Player to prevent it from moving, take the battery and
align the four (4) plastic tabs on the battery pack with holes on the player, and
push the battery pack into the DVD Player. (see the Fig.1).
3. Slide the Battery Pack until you hear it click and lock into place (see the Fig.2).
Fig.1 Fig.2

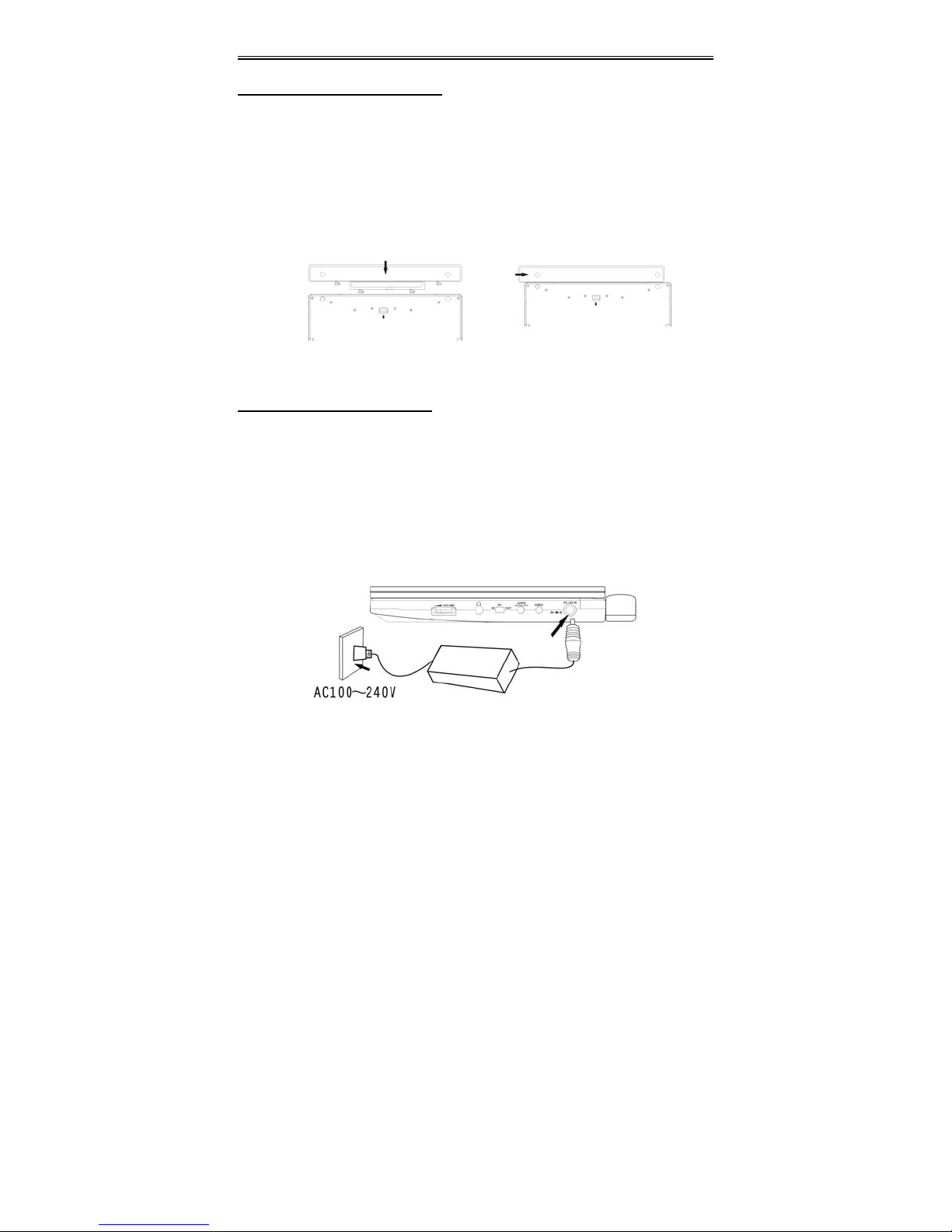

Charging the Battery Pack
The battery pack must be attached to the DVD player to charge it using the supplied
AC Power Adapter.
1. Attach the battery pack to the DVD player
2. Plug the supplied AC Power Adapter into the player’s power jack marked
with ”DC+12V IN”, which is located on right side of the DVD Player.
3. Plug the other end of the AC Power Adapter Cord into a household AC Outlet as
shown below.

- 17 -
PowerSupply
Detaching the Battery Pack
If the DVD Player is not going to be used for long periods of time, the battery pack
should first be fully charged and the Battery Pack should be detached. When the
DVD Player is turned OFF, the DVD Player is still consuming some power in
STANDBY mode. This will eventually discharge the battery.
Make sure the power is turned OFF before detaching the Battery Pack.
1. Place the player on a soft and smooth surface with the bottom of the unit facing
up.
2. Press and hold the Battery Release Tab (1) (located on the bottom) in the
direction of the arrow as shown below.
3. Remove the Battery Pack by gently sliding it towards the side of the unit (2).
4. Carefully remove the Battery Pack from your player.

- 18 -
PowerSupply

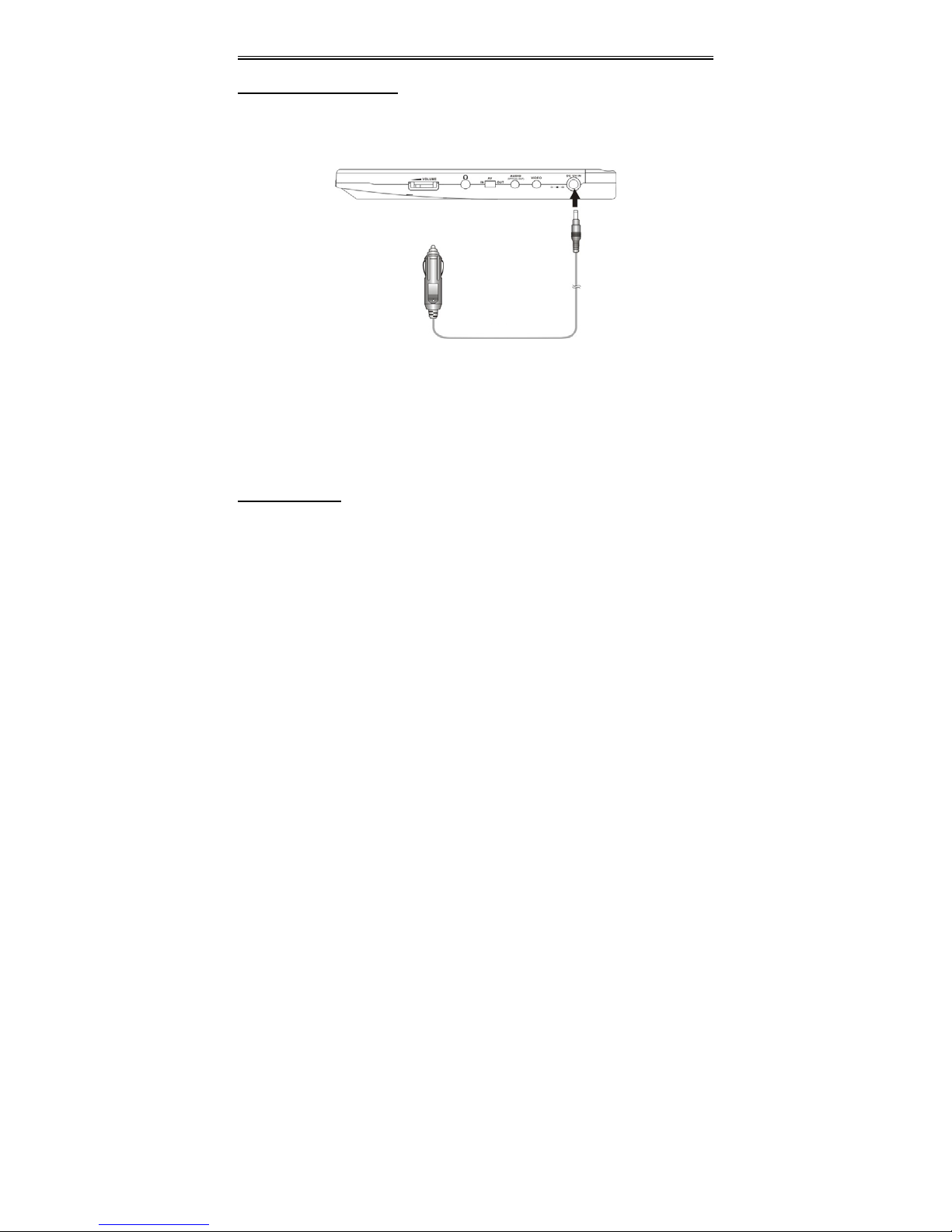

Using the DC Adapter
To use the supplied Vehicle DC Adapter, disconnect the Battery pack and connect the
Vehicle Power Plug Adapter into the DVD Player’s Power Jack and the other end into
the Vehicle DC outlet (Cigarette Lighter Socket) as shown below.
Quick Tips:
• Do not operate the unit while driving a vehicle.
• Place the unit in a secure position for viewing.
• Do not leave battery attached when using car adaptor as power source.
• Do not connect the unit to the car adapter when starting the car.
Pre-Operation
1. Connect DVD Player to power source.
2. Unlock and lift the LCD screen up.
3. Switch the “POWER” to the “ON” position.
4. Press the “OPEN” button to open the disc cover.
5. Put the disc into the tray with the printed side facing up.
6. Close the disc cover.
7. Adjust the volume with the “VOLUME” control (also adjusts headphone volume if
using headphones).
Vehicle
Power
Plug

- 19 -
Installing The System Onto Vehicle Seat Back
1. Take one of the supplied straps from the carrier bag. Connect the latch to one
of the upper metal rings on the mounting bag. Connect the “S” hook to the
other upper metal ring and place the loop over the headrest. Adjust the strap
until the bag is firmly secured.
2. Take another strap from the carrier bag, and connect the latch to the lower
metal ring on the left side of the bag. Attach the “S” hook to the same ring after
looping the strap around the seat rail. Repeat this process for the right side. In
some vehicles, it may be necessary to attach the “S” connector to the rail
directly, as it may not be long enough to reach back to the ring.
3. Adjust the straps tightly so that the bag is secured.
