AURES TeosWide 10D2E User manual

USER MANUAL
VERSION 1.0 November 2013
TeosWide 10D2E 10D2P
TeosWide 1007E 1007P

ii
Copyright 2013
All Rights Reserved
Manual Version 1.0
The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not limited
to, the implied warranties of merchantability and fitness for a particular purpose.
We shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be photocopied, reproduced or translated
to another language without the prior written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
Other trademarks mentioned herein are the property of their respective owners.
Safety
IMPORTANT SAFETY INSTRUCTIONS
To disconnect the machine from the electrical power supply, turn off the power switch1.
and remove the power cord plug from the wall socket. The wall socket must be easily
accessible and in close proximity to the machine.
Read these instructions carefully. Save these instructions for future reference.2.
Follow all warnings and instructions marked on the product.3.
Do not use this product near water.4.
Do not place this product on an unstable cart, stand, or table. The product may fall,5.
causing serious damage to the product.
Slots and openings in the cabinet and the back or bottom are provided for ventilation6.
to ensure reliable operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface. This product should
never be placed near or over a radiator or heat register or in a built-in installation
unless proper ventilation is provided.
This product should be operated from the type of power indicated on the marking label.7.
If you are not sure of the type of power available, consult your dealer or local power
company.
Do not allow anything to rest on the power cord. Do not locate this product where8.
persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots as they may9.
touch dangerous voltage points or short out parts that could result in a re or electric
shock. Never spill liquid of any kind on the product.

iii
CE MARK
This device complies with the requirements of the EEC directive 2004/108/EC with
regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”.
FCC
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
Battery Caution
Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery
according to the local disposal instructions.
Safety Caution
Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S) related
legislation, peripherals shall be 4.7.3.2 “Materials for re enclosure” compliant.
4.7.3.2 Materials for re enclosures
For MOVABLE EQUIPMENT having a total mass not exceeding 18kg.the material of a
FIRE ENCLOSURE, in the thinnest signicant wall thickness used, shall be of V-1 CLASS
MATERIAL or shall pass the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg and for all STATIONARY
EQUIPMENT, the material of a FIRE ENCLOSURE, in the thinnest significant wall
thickness used, shall be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1

iv
LEGISLATION AND WEEE SYMBOL
2012/19/EU Waste Electrical and Electronic Equipment Directive on the treatment,
collection, recycling and disposal of electric and electronic devices and their
components.
The crossed dust bin symbol on the device means that it should not be disposed of
with other household wastes at the end of its working life. Instead, the device should
be taken to the waste collection centers for activation of the treatment, collection,
recycling and disposal procedure.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government ofce, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of
the purchase contract.
This product should not be mixed with other commercial wastes for disposal.

v
Revision History
Changes to the original user manual are listed below:
Revision Description Date
1.0 Initial release•November 2013

vi
Table of Contents
1. Packing List .................................. 1
1-1. Standard Items................................................................1
2. System View.................................. 2
2-1. Front & Side View ............................................................2
2-2. Rear View.........................................................................2
2-3. I/O View ...........................................................................3
2-4. Dimensions.....................................................................4
3. System Assembly ......................... 5
3-1. Open the Chassis Cover..................................................5
3-2. RAM Module Replacement.............................................6
3-3. HDD Replacement ..........................................................7
3-4. Cash Drawer Installation ................................................8
4. Specication................................ 10
5. Conguration............................... 12
5-1. C56 Motherboard...........................................................12
5-1-1. Motherboard Layout........................................................12
5-1-2. Connectors & Functions .................................................13
5-1-3. Jumper Setting ................................................................14
5-2. C76 Motherboard ...........................................................17
5-2-1. Motherboard Layout........................................................ 17
5-2-2. Connectors & Functions .................................................18
5-2-3. Jumper Setting ................................................................19
Appendix: Drivers Installation.......... 22

vii
The page is intentionally left blank.

1
Packing List1.
Standard Items
1-1.
Systema.
Power adapterb.
Power cordc.
RJ45-DB9 cable (x4)d.
USB cable (x2)e.
Power extended cablef.
LAN extender cableg.
Manual CDh.
a. b.
c. d.
e. f.
g. h.
Note: Power cord will be supplied differently according to various region or country.

2
System View2.
Front & Side View
2-1.
Rear View
2-2.
1
3
2
4
5
6
Item No. Description
1 Touch screen
2 Built-in web cam
3 Ventilation
4 MSR cable hole
Item No. Description
5 VESA mounting holes
6 Cable cover
7 Power button
7

3
I/O View
2-3.
Item No. Description
a 2nd power button
b Power button
c DC IN
d VGA)
e COM port 1, 2, 3, 4 (from left to right)
f LAN
g USBx4
h Cash drawer
i USB(x2) (only one USB if capacitive touch panel)
bcdefgh
ai
b c defgh
a
ij
Item No. Description
a 2nd power button
b Power button
c DC IN
dVGA
e COM port 1, 2, 3 (from right to left)
f USB 2.0 (x4) (two optional USB)
g Cash drawer
h USB (x2)
i USB 3.0 (x2)
j LAN
C56 Motherboard
C76 Motherboard

4

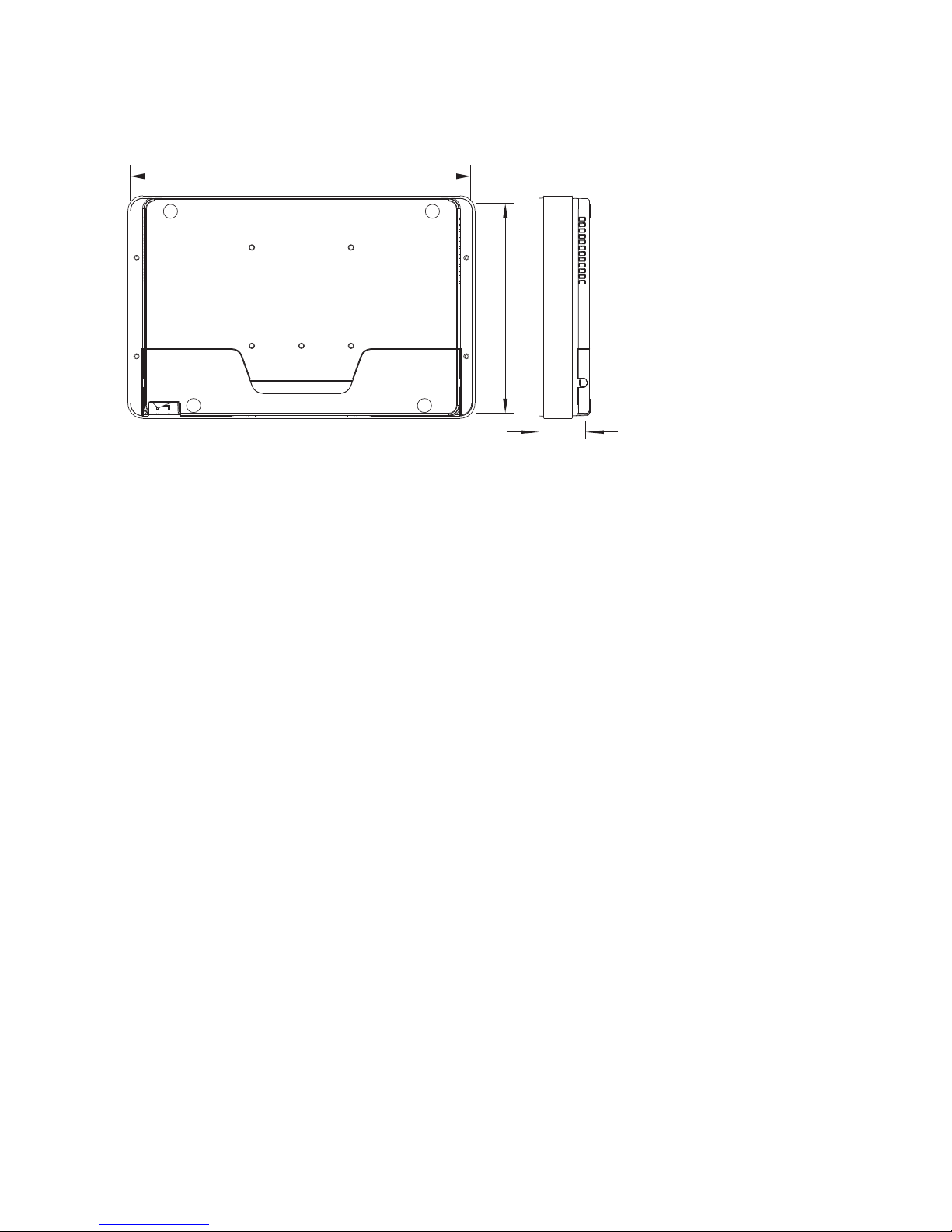

263mm
170mm
38mm
Dimensions
2-4.

5
System Assembly3.

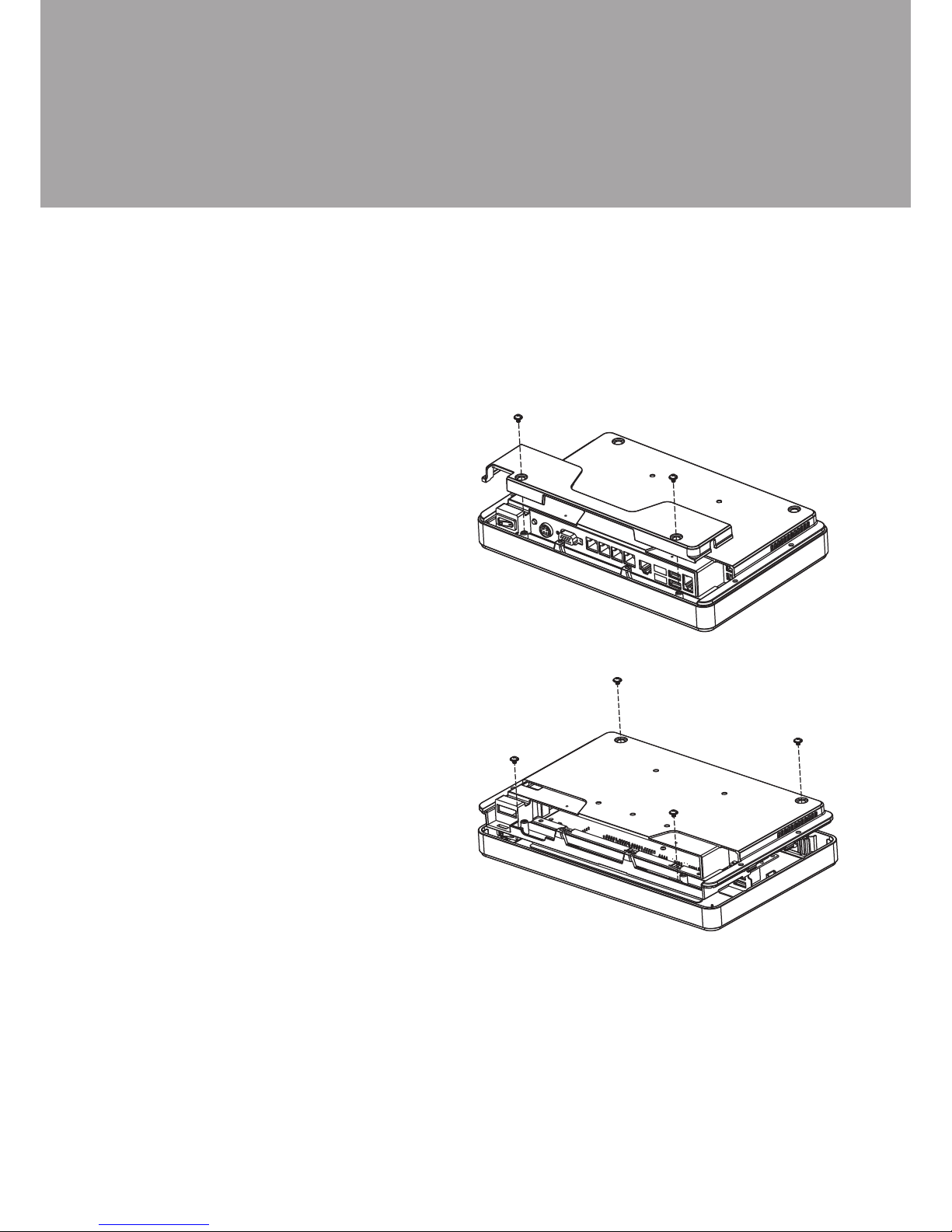

Open the Chassis Cover
3-1.
The motherboard and RAM module can be replaced by opening the chassis
cover, which is located on the back side of the system. Please follow the steps
below to open the chassis cover.
1. Turn to the back side of the sys-
tem and loosen the screws (x2) to
release the cable cover first.
2. Loosen the screws (x4) to open
the back cover of the system.

6

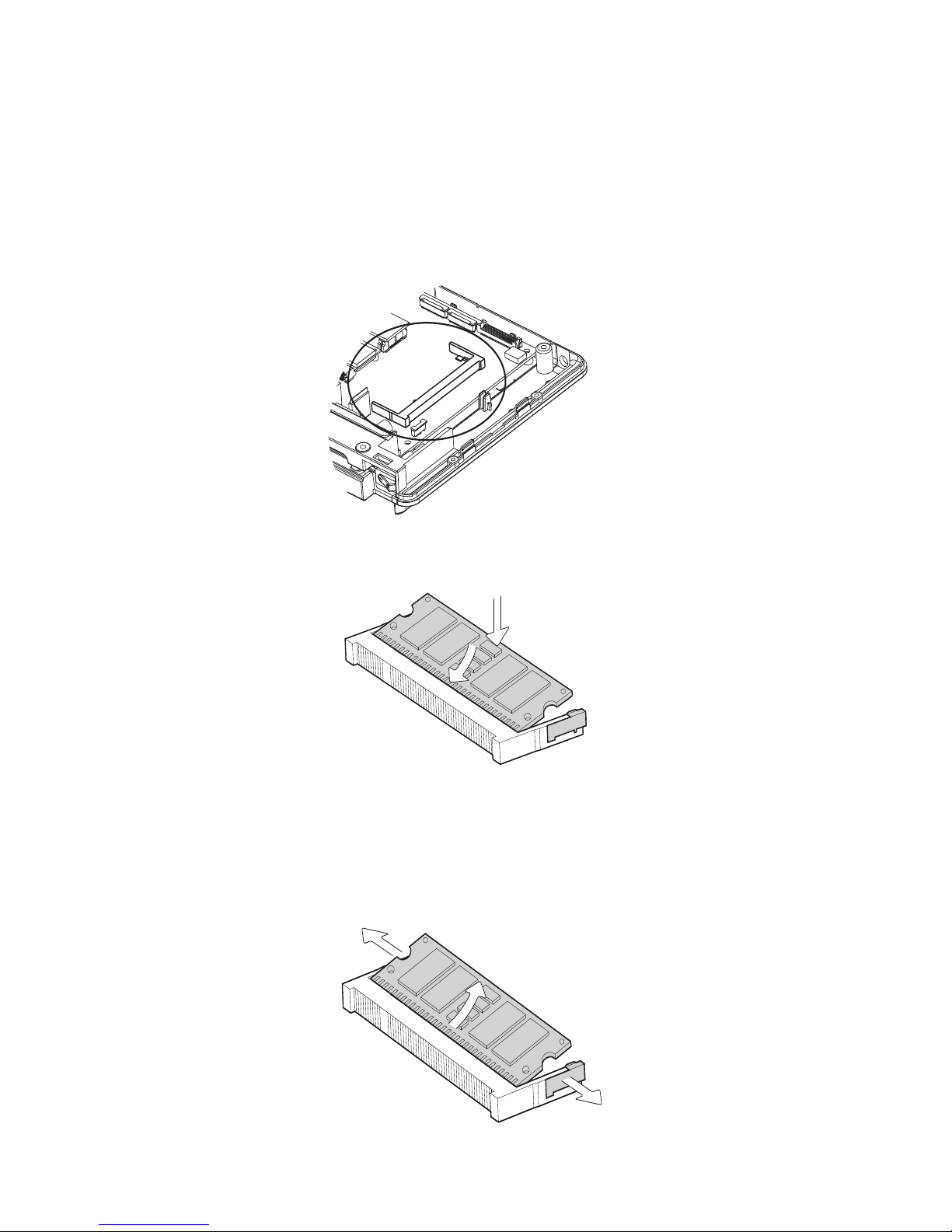

RAM Module Replacement
3-2.
To remove and replace the RAM module, please open the chassis cover firstly
as steps dscribed in chapter 3-1.
Removing a RAM module
1. Find the memory slot at the right side of the motherboard.
2. Flip the ejector clips outwards to remove the memory module from the memory
slot.
Installing a RAM moudle
3. Slide the memory module into the memory slot and press down until the
ejector clips snaps in place.

7
HDD Replacement
3-3.
To remove and replace the HDD, please open the cable cover rstly as stpes dscribed
in chapter 3-1-1.
1. Loosen the screws(x2) to remove
the HDD bracket from the system
2. The HDD is secured by the bracket,
remove the screws(x2) to release
the bracket and replace the HDD.

8
Cash Drawer Installation
3-4.
You can install a cash drawer through the cash drawer port. Please verify the pin
assignment before installation.

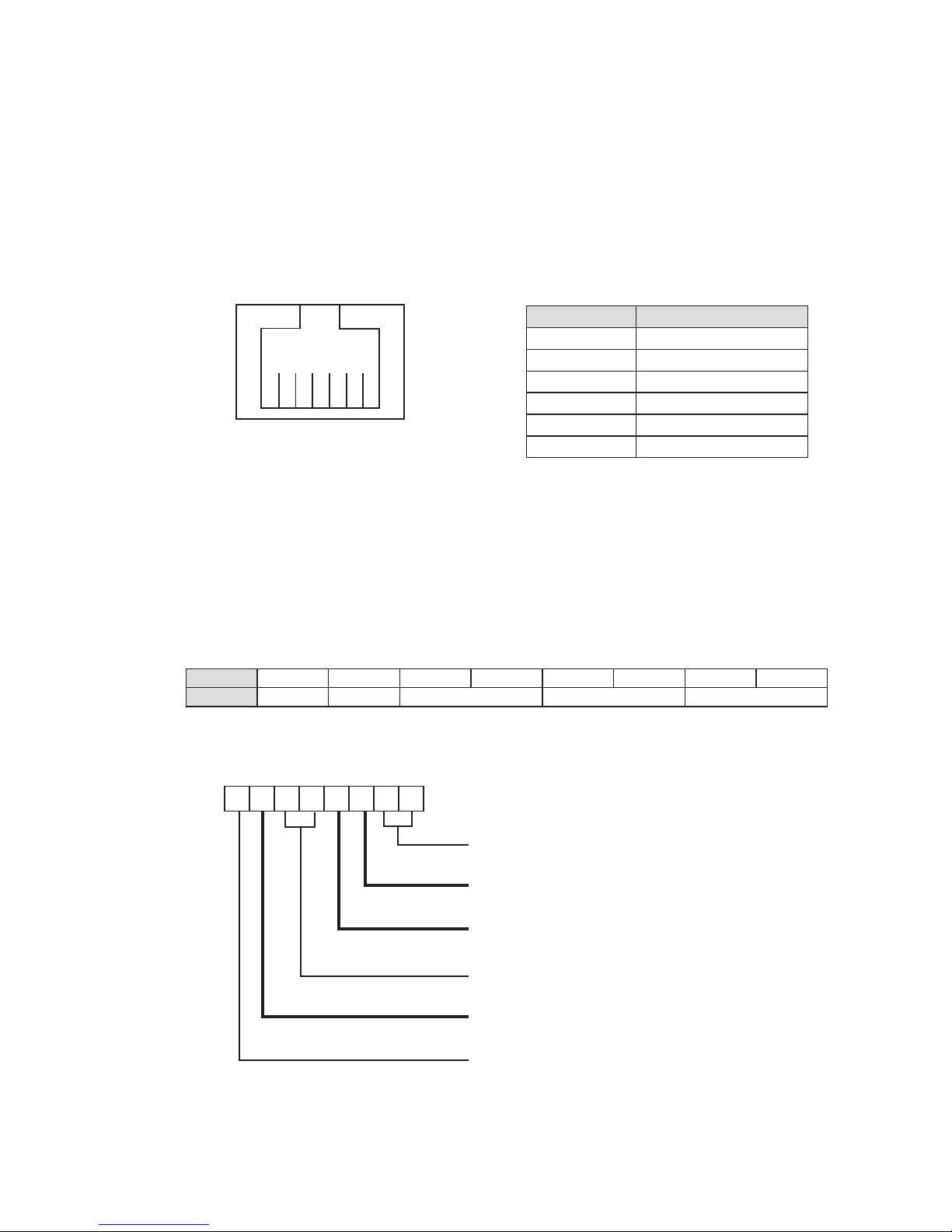

Cash Drawer Pin Assignment
Pin Signal
1 GND
2 DOUT bit0
3 DIN bit0
4 12V / 19V
5 DOUT bit1
6 GND
1
6
Cash Drawer Controller Register
The Cash Drawer Controller use one I/O addresses to control the Cash Drawer.
Register Location: 48Ch
Attribute: Read / Write
Size: 8bit
BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0
Attribute Reserved Read Reserved Write Reserved
76543210
XX X X X
Reserved
Cash Drawer “DOUT bit0” pin output control
Cash Drawer “DOUT bit1” pin output control
Reserved
Cash Drawer “DIN bit0” pin input status
Reserved

9
Bit 7: Reserved
Bit 6: Cash Drawer “DIN bit0” pin input status.
= 1: the Cash Drawer closed or no Cash Drawer
= 0: the Cash Drawer opened
Bit 5: Reserved
Bit 4: Reserved
Bit 3: Cash Drawer “DOUT bit1” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 2: Cash Drawer “DOUT bit0” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
Bit 1: Reserved
Bit 0: Reserved
Note: Please follow the Cash Drawer control signal design to control the Cash Drawer.
Cash Drawer Control Command Example
Use Debug.EXE program under DOS or Windows98
Command Cash Drawer
O 48C 04 Opening
O 48C 00 Allow to close
Set the I/O address 48Ch bit2 =1 for opening Cash Drawer by “DOUT bit0” pin
►
control.
Set the I/O address 48Ch bit2 = 0 for allow close Cash Drawer.
►
Command Cash Drawer
I 48C Check status
The I/O address 48Ch bit6 =1 mean the Cash Drawer is opened or not exist.
►
The I/O address 48Ch bit6 =0 mean the Cash Drawer is closed.
►

10
Specication4.
Model Name TeosWide 10D2E, 10D2P TeosWide 1007E, 1007P
Mainboard C56 C76
CPU Intel CedarView D2550 processor
1.86GHz 1MB Cache
Intel Ivy Bridge CPUCeleron
1037U 1.8G, LLC 2MB, 17W
Chipset Intel NM10 CPU integrated graphic + Intel
HM76 PCH, 4.1W
System Memory 1 x DDR3 SO-DIMM socket up to 4G,
FSB 1066MHz
1 x DDR3 SO-DIMM up to 8GB,
1333/1600MHz
Graphic Memory Intel GMA 3650 (Gfx frequency up to
640MHz), DX9
Intel HD Graphics 4000/2500,
integrated in CPU, DX11
LCD/Touch Panel
LCD Size 10.1" LED LCD
Brightness 200 nits
Maximal Resolution 1366 x 768
Touch Screen Type True at resistive touch / True at projected capacitive touch
Storage
HDD 1 x slim HDD bay (SATA)
Flash Memory SATA SSD Flash memory card 8G/16G/32G/64G (option)
Peripherals
Web Cam (Build-in) 2M Web Cam
WiFi (Optional) 802.11 b/g/n WLAN card
Expansion
Mini PCI-E Socket 1
External I/O Ports
USB 2.0
4 x USB Type A
(2 with special cables. only 3 USB if
capacitive touch panel)
2 x USB 2.0 Type A
2 x USB 3.0/2.0 Type A
2 x USB 2.0 Type A with special
cable (or 2nd LAN, see below)
Serial COM
4 x RJ45 COM ports
(COM1 w/o power, COM2/COM3/COM4
powered COM with power enable /
disable by BIOS setting, COM2 is 0V;
COM3 is 0V/5V, COM4 is 0V/12V,
default BIOS setting 0V)
3 x RJ45 COM ports
(COM1/2/3 powered RS232;
COM1 and COM2 default 5V,
COM3 default 12Vby BIOS
setting)
LAN (10/100/1000) 1 x RJ-45
2nd LAN (10/100/1000) NA 1 (Option, either one solution w/
2x USB 2.0 Type A)
2nd VGA 1 (with optional special cable)
Cash Drawer 1 x RJ-11 (12V or 19V)
DC Jack 1 x 2pin CN
Power Button 1
Thermal Solution
Thermal Solution Fanless

11
Model Name TeosWide 10D2E, 10D2P TeosWide 1007E, 1007P
Mainboard C56 C76
Audio
Speaker 2 x 2W
Power
Power Adapter DC 18.5V / 65W
Environment
EMC & Safety FCC /CE Class A/ LVD
EN 60601-1-2/ UL FCC /CE Class A/ LVD
Operating Temperature 0°C ~ 35°C ( 32°F ~ 95°F )
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Humidity 20% ~ 85% RH non condensing
Dust & Water Proof IP 54 (front panel)
Dimensions (W x D x H) 263 x 170 x 38 mm
Weight (N.W./G.W.) 1.5kg / 2.5kg
Mounting 75mm x 75mm Standard VESA / Panel Mount
OS Support
Windows® XP Professional, POSReady
2009, Windows XP Embedded, Windows
XP Professional for Embedded, Windows
7 (32 bit for C56), Linux
Windows® XP Professional,
POSReady 2009, Windows
XP Embedded,Windows XP
Professional for Embedded,
Windows 7, Windows 8, Linux
* This specication is subject to change without prior notice.

12
+
CN3
CN2
MINI_PCIE1
RJ11_1
USB1
USB2
RJ45_1
RJ45_2
VGA1
PWR1
PWR2
SW1 CN17
CN16
JP7 JP4
JP8
DDR3_A1
JP3
CN5
CN4
SKT1
JP1
CN1
JP9
CN11
CN12
SATA1
SATA4
CN8 SATA2 CN6
CN13
JP5
CN14
CN15
JP6
CN10
CN9
CN18
CN19
Conguration5.
C56 Motherboard
5-1.
Motherboard Layout
5-1-1.

13
Connector Function
CN1 Inverter / LED backlight connector
CN3 LVDS Connector
CN4 Power LED Connector
CN5 SATA LED Connector
CN6 Speaker & MIC Connector
CN8 SATA Power Connector
CN9 COM5(Touch) Connector
CN10 Printer Port Connector
CN11/12 USB Port(Internal)
CN13 LAN LED Connector
CN14 PS2 Keyboard Connector
CN15 Card Reader Connector(COM6)
CN16 +19V DC IN Connector
CN17 Power button(Internal)
PWR2/3 +19V DC JACK
RJ11_1 Cash Drawer Connector
RJ45_1 LAN Connector
RJ45_2 COM1/ COM2/ COM3/ COM4
DDR3_A1 DDR3 SO-DIMM
SATA1/2/4 SATA Connector
SKT1 BIOS Connector
USB1 USB6 USB7
USB2 USB4 USB5
VGA1 VGA Connector
SW1 Power Button
JP1 Inverter Select
JP3 LCD ID Setting
JP5 COM2 Power Setting
JP6 COM3/COM4 Power Setting
JP8 Touch Connector
JP9 Cash Drawer Power Setting
Connectors & Functions
5-1-2.
