3
A
7
8
9
17
19
15
13
11
10
20
16
18
14
12
1 2 3 4 5
22232627 25 24 21
6
85059_aur_DCF-Wetterstation_Content_LB3.indd 3 02.01.13 07:28

4
B
28
30
32
31
29
33
85059_aur_DCF-Wetterstation_Content_LB3.indd 4 02.01.13 07:28

5
C
40
34 35 36 37 38 39
85059_aur_DCF-Wetterstation_Content_LB3.indd 5 02.01.13 07:28

6
D
42
43
44
45
41
85059_aur_DCF-Wetterstation_Content_LB3.indd 6 02.01.13 07:28

7GB/IE
Intended use..........................................................................................Page 9
Parts description ................................................................................Page 9
Technical data.......................................................................................Page 11
Included items......................................................................................Page 12
Safety
General Safety Information.........................................................................Page 13
Safety Instructions for Batteries ...................................................................Page 14
Before use
Setting up the devices..................................................................................Page 15
Preparing to use the outdoor sensor...........................................................Page 16
Preparing the weather station for use.........................................................Page 17
Operation
Receiving the DCF radio time signal...........................................................Page 19
Setting the 12/24 hour mode/°C/°F/hPa/inHg/time
zone/time/date/language manually......................................................Page 20
Setting the alarm time ..................................................................................Page 22
Activating/deactivating the alarm function...............................................Page 23
Switching off the alarm signal.....................................................................Page 23
85059_aur_DCF-Wetterstation_Content_LB3.indd 7 02.01.13 07:28

8 GB/IE
SNOOZE function .......................................................................................Page 23
Preparing to use the weather forecasting function.....................................Page 24
Selecting the location...................................................................................Page 26
Selecting the location manually ..................................................................Page 26
Lunar phases.................................................................................................Page 30
Reading the barometric pressure for the last 12 hours .............................Page 30
Adjusting the air pressure indication...........................................................Page 31
Setting the channel.......................................................................................Page 32
Displaying temperature and temperature trend.........................................Page 33
Displaying the humidity and humidity trend...............................................Page 33
Displaying the maximum/minimum temperature/humidity.....................Page 34
Temperature and frost alarm.......................................................................Page 35
Activating/deactivating the the temperature and frost alarm..................Page 35
Background lighting.....................................................................................Page 36
Battery state display.....................................................................................Page 36
Changing the batteries ................................................................................Page 36
Troubleshooting .................................................................................Page 37
Cleaning and care.............................................................................Page 38
Disposal.....................................................................................................Page 39
Information
Declaration of Conformity...........................................................................Page 40
85059_aur_DCF-Wetterstation_Content_LB3.indd 8 02.01.13 07:28

9GB/IE
Radio-controlled weather station
Intended use
The weather station displays the indoor and outdoor temperatures in Celsius (°C) or
Fahrenheit (°F) and their maximum and minimum values. It also displays the indoor and
outdoor humidity (%RH) as well as their maximum and minimum values. Additional
display values of weather station include the weather forecast, the time in 12/24-hour
clock modes and the date. The weather station displays the sunrise and sunset times
for that day and the lunar phase as well. In addition, the weather station has two
different alarm functions. The device is not intended for commercial use.
Parts description
Weather station:
1Date display
2Month display
3Alarm 1
4SNOOZE display
5Radio tower symbol
6DST display (summer time)
7Time display
85059_aur_DCF-Wetterstation_Content_LB3.indd 9 02.01.13 07:28

10 GB/IE
8Alarm 2
9Day of week display
10 Sunrise/time of sunrise
11 Tide display
12 Location
13 Lunar phase
14 Sundown/time of sundown
15 Temperature trend (indoor)
16 Humidity trend (indoor)
17 Humidity (indoor)
18 Comfort indicator (maximum/minimum)
19 Inside temperature (°C/°F)
20 Battery state display
21 Humidity trend (outdoor)
22 Humidity (outdoor)
23 Temperature and frost alarm (maximum/minimum)
24 Temperature trend (outdoor)
25 Outdoor temperature (°C/°F)
26 Battery state display (outdoor sensor)
27 Selected channel
28 Barometric pressure bar display
29 Barometric pressure display of the last hour
30 Absolute/relative barometric pressure
31 Barometric pressure trend
85059_aur_DCF-Wetterstation_Content_LB3.indd 10 02.01.13 07:28

11GB/IE
32 Weather forecast
33 SNOOZE/LIGHT button
34 MODE button
35 + button
36 – button
37 Channel button (CH)
38 HISTORY ABS/REL button
39 CITY button

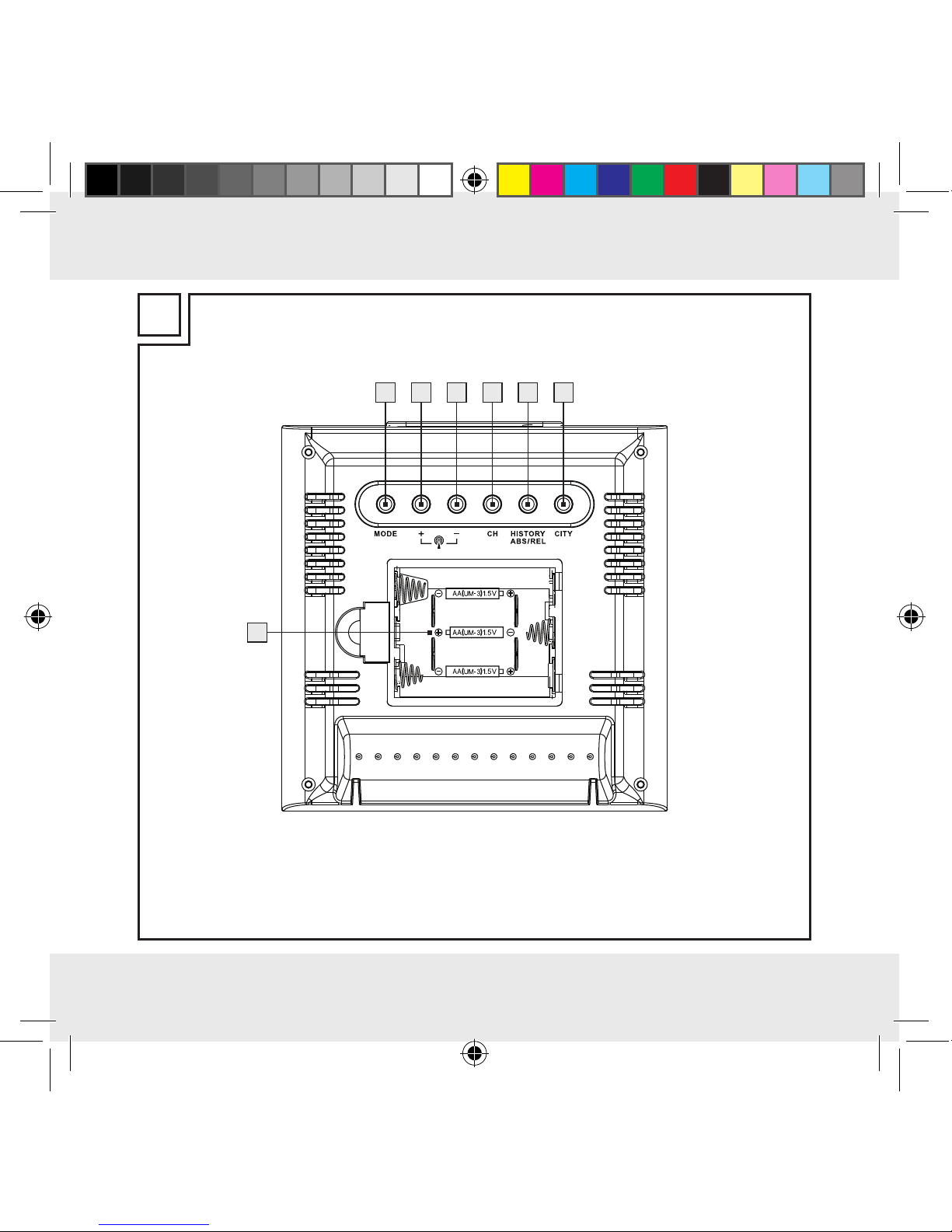

40 Battery compartment
Outdoor sensor:
41 Control LED
42 Mount
43 RESET button
44 Channel selector switch
45 Battery compartment
Technical data
Weather station:
Temperature measurement range: 0 to +50°C
+32 to +122°F
Temperature resolution: 0.1°C
85059_aur_DCF-Wetterstation_Content_LB3.indd 11 02.01.13 07:28

12 GB/IE
Humidity measurement range: 20%–95%
Humidity resolution: 1%
Radio signal: DCF
Batteries: 3x AA, 1.5V
Dimensions: 130 x 130 x 60mm (B x H x D)
Air pressure range: 850 - 1050hPa
Outdoor sensor:
Temperature measurement range: –20 to +65°C
–4 to +149°F
Humidity measurement range: 20%–95%
Humidity resolution: 1%
HF transmission signal: 433MHz
HF transmission range: max. 30 metres (in open area)
Batteries: 2x AA, 1.5V
Dimensions: 46 x 105 x 28mm
Included items
1 Weather station
1 Outdoor sensor
3 Batteries AA, 1.5V
85059_aur_DCF-Wetterstation_Content_LB3.indd 12 02.01.13 07:28

13GB/IE
2 Batteries AA, 1.5V
1 Operating instructions
Safety
Please read all safety information and instructions. Failure to comply with the safety
information and instructions may result in an electric shock, fire and/or severe injuries.
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR
FUTURE REFERENCE!
General Safety Information
Children frequently underestimate the dangers.
Children should be kept away from the product at all times.
Children or other individuals who do not know or have no experience of handling
this device, or whose physical, sensory or mental abilities are restricted, must
not use the device without supervision or instruction by an individual responsible
for their safety. Children must never be allowed to play with the device.
Do not use the device if it is damaged.
85059_aur_DCF-Wetterstation_Content_LB3.indd 13 02.01.13 07:28

14 GB/IE
Safety Instructions for Batteries
DANGER TO LIFE! Batteries can be swallowed, which may represent a danger
to life. If a battery has been swallowed, medical help is required immediately.
Remove the batteries from the device if they have not been used for a long period.
CAUTION! DANGER OF EXPLOSION! The batteries must never be
recharged!
When inserting the battery, ensure the correct polarity! This is shown in the
battery compartments.
If necessary, clean the contacts on the batteries and on the device before
inserting them.
Remove spent batteries from the device immediately. There is an increased
danger of leaks!
Batteries must not be disposed of in the normal domestic waste!
Every consumer is obliged to dispose of batteries properly in accordance with
the regulations!
Keep batteries away from children. Do not throw batteries into a fire. Never
short-circuit them or take them apart.
Always replace all the batteries at the same time.
Use only batteries of the same type.
If the batteries in your device have leaked, remove them immediately to prevent
damage to the device!
85059_aur_DCF-Wetterstation_Content_LB3.indd 14 02.01.13 07:28

15GB/IE
Avoid contact with the skin, eyes and mucous membranes. In the event of contact
with fluid leaking from a battery, thoroughly flush the affected area with water
and/or seek the advice of a doctor!
Before use
Setting up the devices
Put the batteries first into the outdoor sensor.
CAUTION! When choosing where to position the weather station, make sure
that it is not exposed to direct sunlight, vibrations, dust, heat, cold or moisture. Do
not place the devices close to sources of heat, e.g. radiators. Otherwise they may
be damaged.
Do not place the devices on valuable or sensitive surfaces unless these are
appropriately protected. Otherwise they may be damaged.
Please ensure that neighbouring devices are not operated at the same frequency
of 433MHz. Such devices may cause interference to the radio connection.
Do not place the devices next to or on metal plates. Otherwise the quality of
radio wave transmission may be reduced.
85059_aur_DCF-Wetterstation_Content_LB3.indd 15 02.01.13 07:28

16 GB/IE
Do not install the devices in buildings made of reinforced concrete, e.g. airports,
high-rise buildings, factories or cellars. Otherwise the transmission of the radio
waves between the devices may be severely impaired.
Preparing to use the outdoor sensor
Remove the battery compartment cover from the back of the outdoor sensor.
Remove the battery safety strip. The outdoor sensor is now ready for operation
and the control LED 41 lights up briefly.
Note: If you use more than one outdoor sensor (max. 3), you can receive data
at the weather station from all the individual outdoor sensors. Set a different
channel for each of the sensors using the channel selector switch 44.
Close the battery compartment cover.
Installing the Outdoor Sensor:
Note: You will need an electric drill for this step.
Find an appropriate place for the outdoor sensor.
Note: Please ensure that you install the outdoor sensor within a radius of 30m
from the weather station. Check that there are no obstacles between the outdoor
sensor and the weather station. Otherwise there may be interference of the
transmission of data.
85059_aur_DCF-Wetterstation_Content_LB3.indd 16 02.01.13 07:28

17GB/IE
For wall mounting:
Hang the outdoor sensor with the mount 42 on one screw.
Preparing the weather station for use
Removing the battery safety strip:
Open the battery compartment 40 on the back of the weather station.
Pull out the battery safety strip.
Then close the battery compartment.
As soon as the battery safety strip has been removed, the weather station starts to
receive the radio signal.
Note: Do not move the weather station while it is receiving the signal. This may
disrupt reception.
Connecting the weather station with the outdoor sensor and the
DCF radio signal:
After removal of the battery safety strip the weather station attempts to establish a
connection with the outdoor sensor. This process can take a few minutes. On successful
connection with the outdoor sensor, the selected channel symbol 27 appears in the
LC display with the channel of the outdoor sensor (if necessary you can change the
channel of the outdoor sensor as shown in the section “Setting the channel”). If the
85059_aur_DCF-Wetterstation_Content_LB3.indd 17 02.01.13 07:28

18 GB/IE
connection with the outdoor sensor is not established automatically, this can be done
manually by pressing RESET button 43 of the sensor.
As soon as the weather station has established a connection with the outdoor sensor
it automatically begins to receive the DCF radio signal. This process takes several
minutes and is indicated in the LC display by a flashing radio tower symbol 5.
When the DCF radio signal is being successfully received, the radio tower symbol
is shown permanently in the display. If at the time of putting the device into opera-
tion it is not possible to synchronise with the atomic clock, you can also carry out
the clock adjustments manually (“Setting the 12/24 hour mode/°C/°F/hPa/
inHg/time zone/time /date/language manually”).
Radio signal (DCF):
The DCF signal (time signal transmitter) consists of time pulses emitted by one of
the most accurate clocks in the world close to Frankfurt/Main, Germany.
In ideal conditions, your weather station can pick up this signal over a distance of
up to approx. 2000km around Frankfurt /Main. Reception of the radio signal
generally takes approx. 3–10 minutes.
Reception can be considerably impaired by obstacles (e.g. concrete walls) or sources
of interference (e.g. other electrical devices). In the event of reception problems,
change the position of the weather station (e.g. to somewhere near a window).
85059_aur_DCF-Wetterstation_Content_LB3.indd 18 02.01.13 07:28

19GB/IE
Operation
Receiving the DCF radio time signal
After a connection with the outdoor sensor is established or 3 minutes after the battery
safety strip is removed, the weather station automatically begins to search for the
DCF radio signal. The search is shown in the LC display by the radio tower symbol 5
flashing.
Note: In buildings made of reinforced concrete the reception of the radio signal
may be severely impaired (see “Setting up the devices”).
In order to correct any deviations from the exact time, the clock is automatically
synchronised with the DCF radio signal every day at 1:00, 2:00 and 3:00.
Reception of the DCF radio signal can also be started manually on the weather station.
Press the + or – button 35, 36 at the same time. The weather station attempts to
receive the DCF radio signal. This process takes several minutes and is indicated
in the LC display by a flashing radio tower symbol.
If the connection with the DCF radio signal cannot be established, the search is
stopped.
Note: If the clock of the weather station cannot receive the DCF radio signal due
to errors, too great a distance from the transmitter or similar reasons, it is possible
to set the time manually. If reception of the DCF signal is successful, the manual
settings are overwritten.
85059_aur_DCF-Wetterstation_Content_LB3.indd 19 02.01.13 07:28

20 GB/IE
Setting the 12/24 hour mode/°C/°F/hPa/ inHg/
time zone/time/date/language manually
The reception of DCF radio signal where the weather station has been positioned may
become degraded or interrupted. If this happens you can set the device manually.
Follow these steps:
1.
Press and hold down the MODE button
34
for about 3 seconds. “12Hr” or “24Hr”
blinks in the display. Press the + or – button 35, 36 to choose the desired hour
format.
Note: The AM symbol in the time display 7stands for before noon in the
12 hour mode. The PM symbol in the time display stands for after noon in
12 hour mode.
2. Confirm your setting by pressing the MODE button. The temperature unit “°C “
or “°F” flashes in the display. Press the + or – button to choose the desired
temperature unit.
3. Confirm your setting by pressing the MODE button. The barometric pressure’s
unit flashes in the display. Press the + or – button to set the desired unit (hPa/
inHg).
4. Confirm your setting by pressing the MODE button. The time zone indicator
flashes in the display. Press the + or – button to set the desired value (-2 to +2).
Note: The standard setting for the time zone is GMT+1. Set the weather station
to correspond to your time zone.
85059_aur_DCF-Wetterstation_Content_LB3.indd 20 02.01.13 07:28
