Introduction
This manual introduces how to conduct 2008 Audi A4 key learning with Auro OtoSys
IM100 Expert Mode. User can make selections step by step to locate the IMMO part.
Procedures before getting started:
1. Connect the IM100 tablet to the test vehicle via the included main cable.
2. Connect the IM100 tablet to the included UP200 via USB cable.
3. Make sure the user has access to WiFi service.
4. Turn the ignition on, or turn on the hazard lights.
NOTE
Illustrations used in this manual are samples, and the actual testing screens
may vary by vehicle. Observe the menu titles and on-screen instructions to
make correct selections and operations.
Key Learning via Expert Mode
1. Turn on the IM100 tablet, tap OtoSys > IMMO. A vehicle menu displays and a
disclaimer prompts up. Tap Accept to continue.
Figure 1 Sample Main Interface Screen

2
2. Tap Audi on the vehicle menu, then the Function Select screen displays. Select
Expert Mode. Connect the IM100 tablet to WiFi.
NOTE
You can click on the pen icon near the top-right corner to record the operation data.
If you encounter any difficulties, click on the pen icon again to send us the data and
problems, so that our engineers could help.
Figure 2 Sample OtoSys Screen
Figure 3 Sample Vehicle Menu

3
3. Tap Instrument K-Line > Audi A4 BOSCH RB8 CRYPTO 2004+. The Function
Menu displays.
4. Tap Read IMMO data to read the vehicle anti-theft information. Then tap OK to
continue.
Figure 4 Sample Function Select Screen
Figure 5 Sample Function Menu

4
5. Tap Make dealer key in the function menu and follow the instructions to put the
Blank Key in the key slot of the UP200. Tap OK to continue. The screen displays
“Make dealer key success” when it is successfully completed.
NOTE
Only one dealer key can be made at one session. Please repeat the whole Make
dealer key process if more dealer keys are needed.

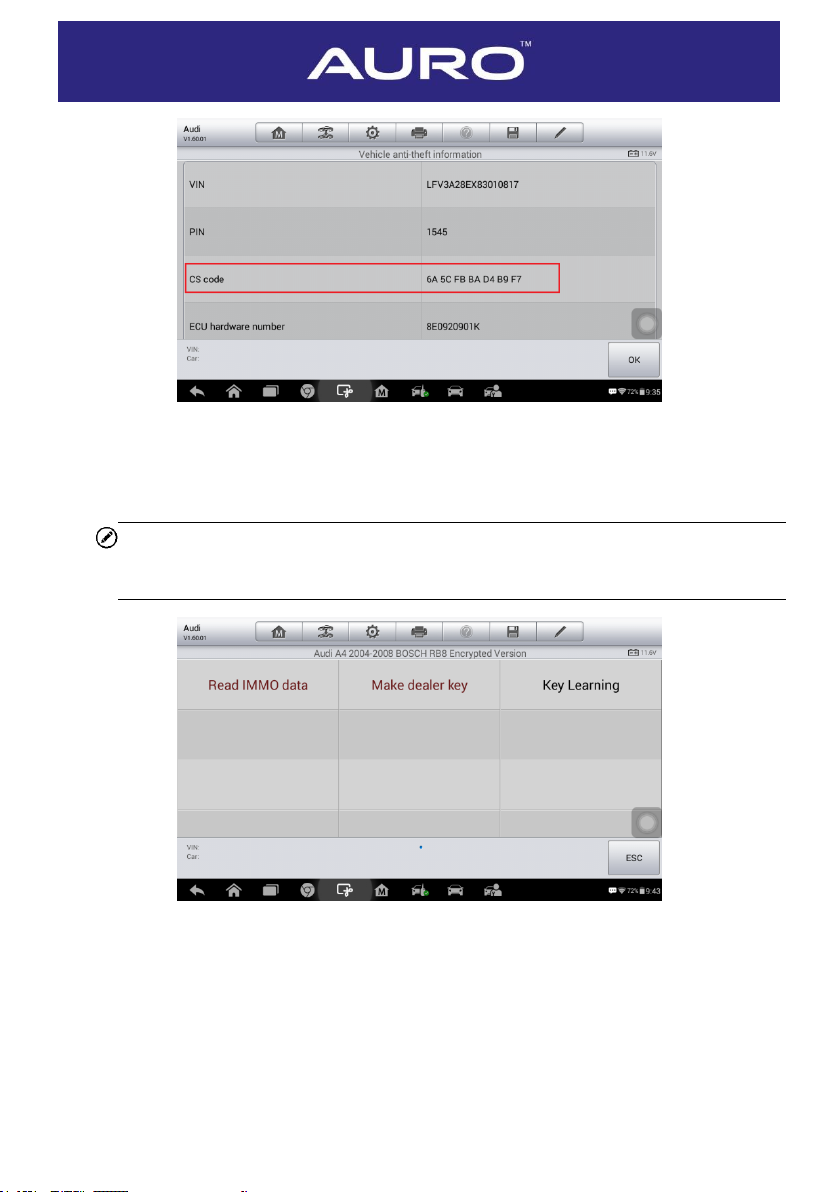

Figure 6 Sample Vehicle Anti-theft Information Screen
Figure 7 Sample Function Menu Screen

5
6. Tap Key Learning on the Function Menu. Input the number of keys that need to be
learned and follow the onscreen instructions to continue.
NOTE
The number should be the sum of existing working keys brought with you and the
new keys you need. For example, you’ve got 1 working key, 1 blank key has been
made dealer key, but both 2 keys need to be learned, select 2 here.
Figure 8 Sample Information Screen
Figure 9 Sample Information Screen

6
Figure 12 Sample Information Screen
Figure 10 Sample Function Menu Screen
Figure 11 Sample Input Key Number Screen

7
7. Turn the ignition off and insert the keys that need to be learned one by one and turn
ignition back on for about 2 seconds. The screen displays “Key learning completed”
in the end, tap OK to complete the process.
NOTE
To check key learning successful or not, please turn ignition off, then back to ON
and start the engine. If the engine cannot be started, please wait for 5 min and then
restart the engine. If fails, please repeat the Key learning with all the keys.
Figure 13 Sample Information Screen
Figure 14 Sample Information Screen
