The Auspex Fire pipe and
fitting system provides a
revolutionary solution to meet
new standard requirements in
the fire industry.

From 2019, legislation now requires all residential buildings
4 stories or more to be sprinkler protected. The National
Construction Code oers significant reliability and cost saving
advantages by referencing the new FPAA101D PEX pipe
sprinkler system, which permits sprinklers to be plumbed o
the already required domestic riser.
The PEX pipe “101D” system is by far the most cost-eective
option for installers and developers of these residential
buildings. This eliminates the need to provide dedicated
sprinkler and hydrant service tappings, fire pumps and alarm
equipment. Utilising drinking water supplied by a WaterMark
approved piping system significantly reduces backflow
hazards to the community and now eectively eliminates the
possibility of sprinkler systems being inadvertently shut o.
The Auspex system was used for tests conducted by
CSIRO for the Fire Authorities at the very beginning of the
development of the new FPAA101D system. Since then,
Auspex has continued to work on developing a suite of
dedicated piping and fixing arrangements specifically for
sprinkler head fit o, in all relevant pipe diameters. This
ensures installers have the easiest and fastest means of
fitting o sprinklers in the wall or ceiling that is compliant
with the relevant Codes and Standards.
Residential sprinkler
Sanitary facility
Network utility operator
town main
Below ground street
isolation valve
Water supply backflow assembly
Main water meter
Pumpset
SOU water meters
Sprinkler / Domestic
floor isolation valve
Backflow prevention
device
Riser
Level 1
SOU 2
SOU 1
Level 2
Auspex Fire Manual | 1
Layout schematic

2| Auspex Fire Manual
Auspex Fire Pipes
Auspex Fire pipe is unique in many ways.
• PEX pipe with integrated red stripes – no need for the
additional expense or work of marking tape
• PN 20 pipe
• Sizing up to 32mm in PEX with the ability to join onto
DuoPEX Water pipe up to 63mm
• Compatible with the existing Auspex fittings and tooling
• Australian manufactured
• Stocked by Reece
• 25+ years of history in the Australian market
• SDR 9 which has a better flow rate than SDR 7.4 pipe

Auspex Fire Manual | 3
Auspex Fire Fittings
• Proven Auspex jointing system with over 25 years in the
Australian plumbing industry
• Using the complete Auspex fitting product range
• Specialised sprinkler connections developed providing
greater options to installers
• Solid brass construction for reliable fixing
• Standard Auspex tooling for dimensions up to 32mm,
hand tools and battery tool options
• DuoPEX Water conversion fittings allows the installation
to be included up to 63mm
• Rigid mounting clip allows versatile flexibility and
confidence of installation

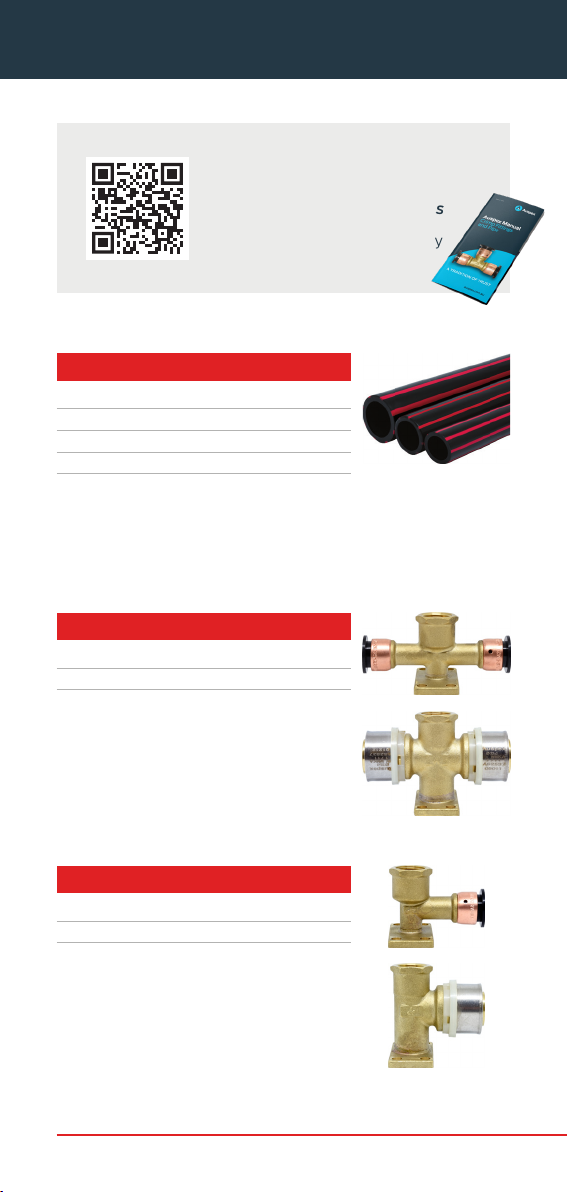

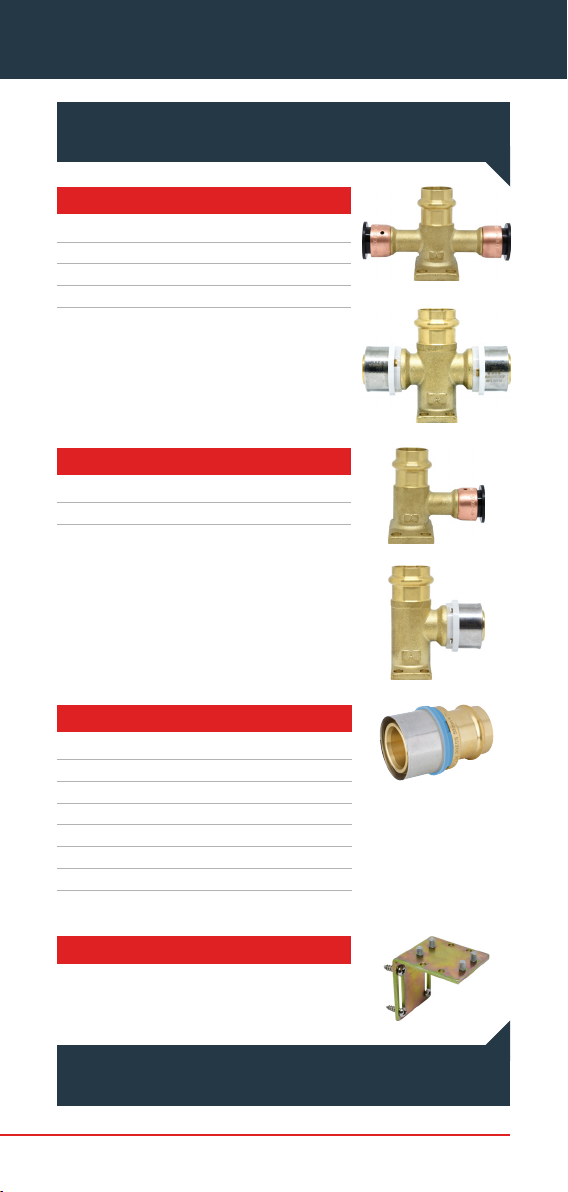

Auspex Fire 25mm x
>B< Press DN25
Elbow Adaptor
APF28052525
Auspex Fire 25mm x
Auspex Fire 25mm x
>B< Press DN25
Tee Adaptor
APF28252525
Auspex Fire 25mm x
Auspex Fire 25mm x
>B< Press DN25
Tee Adaptor
APF28252525
Auspex 25mm x
25mm x 25mm Tee
AP03252525
Auspex Fire PEX100
25mm Straight Pipe
XAP422505RS
Auspex 25mm x
25mm Elbow
AP052525
Side Mount Bracket
APF2890B

4| Auspex Fire Manual
Water Pressure Loss
Calculation of Potable Water – Principals
The following tables show Pressure Loss for Auspex Fire pipe
at a fluid temperature of 10°C.
Pipe
Size 20mm 25mm 32mm
Flow
Velocity
(m/s)
Volumetric
Flow
(L/s)
Pressure
Loss
(kPa)
Volumetric
Flow
(L/s)
Pressure
Loss
(kPa/m)
Volumetric
Flow
(L/s)
Pressure
Loss
(kPa)
0.5 0.09 0.26 0.15 0.20 0.24 0.15
0.6 0.11 0.37 0.18 0.28 0.28 0.21
0.7 0.13 0.50 0.20 0.36 0.33 0.28
0.8 0.14 0.63 0.23 0.47 0.38 0.36
0.9 0.16 0.78 0.26 0.59 0.43 0.45
1.0 0.18 0.96 0.29 0.72 0.47 0.55
1.2 0.21 1.34 0.35 1.00 0.57 0.76
1.4 0.25 1.78 0.41 1.33 0.66 1.01
1.6 0.29 2.28 0.47 1.71 0.76 1.30
1.8 0.32 2.83 0.53 2.12 0.85 1.61
2.0 0.36 3.43 0.59 2.58 0.95 1.96
2.5 0.44 5.20 0.73 3.90 1.18 2.96
3.0 0.53 7.29 0.88 5.45 1.41 4.14
3.5 0.62 9.73 1.00 7.28 1.65 5.51
4.0 0.71 12.43 1.17 9.31 1.89 7.06
4.5 0.80 15.44 1.32 11.58 2.12 8.79
5.0 0.89 18.81 1.46 14.08 2.36 10.68
Size Mean OD Min Wall Max Mean ID
20mm 20.0 2.3 15.7
25mm 25.0 2.8 19.7
32mm 32.0 3.7 24.5
Factor 1.20 1.14 1.10 1.05 1.02 0.98 0.95
Water °C 20 30 40 50 60 80 90

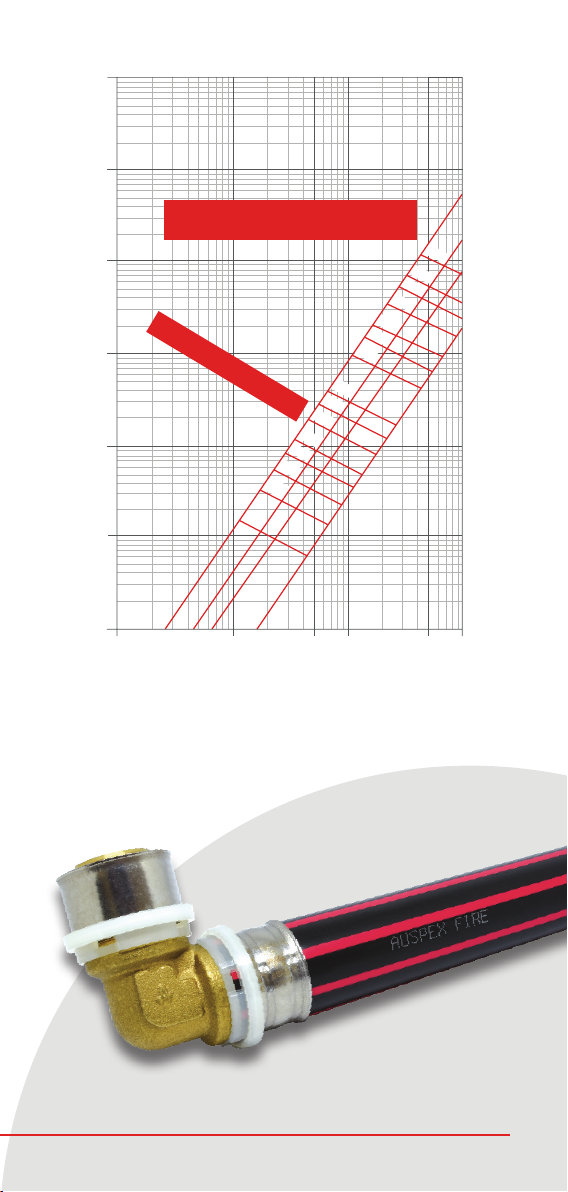

16mm
20mm
25mm
32mm
0.001
0.01
0.1
1
10
100
1000
0.001 0.010.1 1.0
0.50.05
Pressure Loss KPa/metre of Pipe
Flow Litres/Second
Flow velocity Metres/Sec
Water Temperature +70°C
Roughness coecient 0.0005mm
3.0
2.5
2.0
1.0
1.25
0.25
1.50
4.0
0.10
0.20
0.15
0.30
0.40
0.50
0.60
Auspex Fire Manual | 5

6| Auspex Fire Manual
Auspex Fire Fitting Pressure Drop
Pressure losses due to individual resistances can be
calculated based on the loss coecients and based on the
equivalent pipe lengths of the individual resistances.
These value equivalents are then added to the pipe lengths
of the respective pipe sections to then calculate the
total resistance.
Individual Resistance Graphic
Symbol
Fittings Equivalent
Pipe Length (FEPL)
20 25 32
Coupling 0.38 0.55 0.5
Elbow
(90°) 3.8 2.6 3.0
Tee,
Run Flow
Separation
0.41 0.55 0.6
Tee,
Branch
Flow
Separation
4.26 2.8 3.0
Tee,
Transition
Flow
Separation
4.26 2.8 3.0
Reduction
14.0
(32mm)
4.6
(25mm)
2.8 –

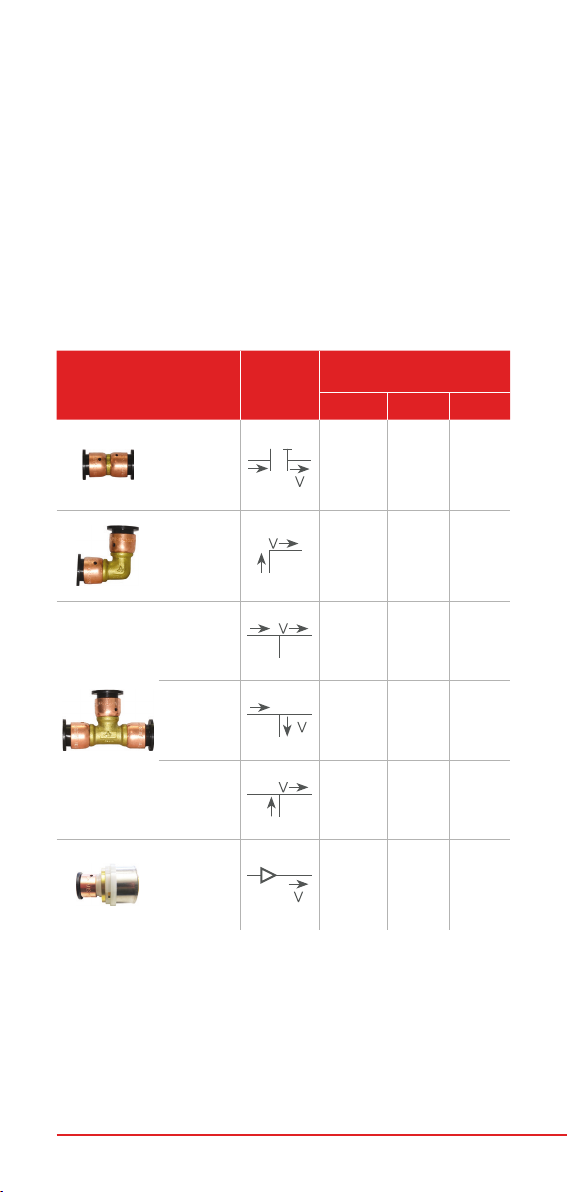

Pressure Losses Due to Individual Resistances
(Standard Auspex Fittings)

Auspex Fire Manual | 7
Pressure Losses Due to Individual Resistances
(Auspex Fire Fittings)
a. The symbol "V" for flow velocity defines the location
of the proper reference velocity in the fitting and
connecting piece
b. For reduced tees, the resistance value of the similar tee
is assumed with the smallest dimension of the reduced
tee for the flow path to be calculated
General: The loss coecient is assigned in each case to
the volumetric flow (partial flow), which is indicated in the
diagram with the symbol "V".
Individual Resistance Graphic
Symbol
Fittings Equivalent
Pipe Length (FEPL)
20 25 32
Threaded
Lugged
Elbow
4.6 4.8 9.2
PEX to Cu
Lugged
Elbow
1.5 1.2 2.0
Threaded
Centre Tee,
Run Flow
Separation
0.6 0.6 0.7
Threaded
Centre Tee,
Branch Flow
Separation
4.5 4.7 10.0
Cu Centre Tee,
Run Flow
Separation
0.9 0.9 0.9
Cu Centre Tee,
Branch Flow
Separation
4.0 3.9 4.1
Cu Centre Tee
(Reducing),
Run Flow
Separation
0.7 0.7 –
Cu Centre Tee
(Reducing),
Branch Flow
Separation
4.7 11.1 –

8| Auspex Fire Manual
Step 1.
Measure the pipe to the
correct length and using a
secateur-type pipe cutter,
cut the pipe squarely and
remove any burrs. The end
of the pipe may need to be
freshly cut to ensure smooth
passage for the fitting.
Do not use a hacksaw.
Step 2.
The pipe is pushed over the
barbed fitting and at the
same time under the crimp
ring. The fit should be firm.
If the joint feels sloppy or
hard to insert, check pipe
and fittings. Do not use
lubricants. Ensure the pipe
is visible in both crimp ring
witness holes.
witness hole
The witness holes should
be completely filled.
Making A Joint
Auspex fittings from 16mm-25mm use a copper crimp ring
connection and can be crimped with an Auspex manual tool
or a Rothenburger battery tool.
It is most important that the tool manual supplied with the
tool is read in its entirety and the user becomes familiar with
the maintenance, calibration and proper use of the tool.
The 32mm Auspex water fitting has a Stainless Steel
crimp ring and can only be crimped with the battery tool
using a DuoPEX jaw (see page 9). The DuoPEX jaws are
universal across all systems shown below.
Auspex 32mm water
fittings are defined by the
clear plastic holding ring
and are for use only with
the single layer Auspex
water pipe and multi-
layer Auspex Gas pipe.
DuoPEX Water
fittings are defined
by the blue plastic
holding ring and are
for use only with the
multi-layer DuoPEX
Water pipe.
DuoPEX Gas
fittings are defined
by the yellow
plastic holding ring
and are for use only
with the multi-layer
DuoPEX Gas pipe.

Auspex Fire Manual | 9
Step 4.
For manual tool use,
regularly check with the
gauge supplied by sliding
the opening of the gauge
over the compressed ring. If
the gauge passes over all
parts of the ring without
interference, then the
joint has been crimped
satisfactorily.
Correctly serviced battery
tool do not require a gauge
check if the joint has
been completed as per
instructions.
If the gauge experiences
any interference, the
joint is under crimped.
The tool should then
be adjusted. (See
adjustment instructions
in this manual).
Do not double crimp.
Step 3.
Make sure the tool jaws are
centralised over the crimp
ring at 90° to the joint.
When using the manual tool,
close the tool completely to
compress the crimp ring.
The tool will click at final
compression.
When using a battery tool, ensure the tool has fully closed
and released indicating a completed joint.
32mm Joints
When crimping Auspex
32mm, use the battery
tool with a 32mm DuoPEX
Jaw. Place the fitting inside
the jaws so that the raised
section of the plastic sight
ring fits into the slot in the
jaws. Release the jaws so
they fit snugly over the
fitting, ensuring that the
raised section of the plastic
sight ring is still located in
the slots in the jaw.
Press the switch mechanism until the joint is completed.
Press the back end of the jaws and remove the
completed joint.

10 | Auspex Fire Manual
Pinched Ring
When crimping Auspex fittings, care should be taking to
ensure the tooling is positioned correctly so to not pinch the
crimp ring. Fittings that are damaged in this manner should
be replaced.
Tool Adjustment
Incorrect adjustment can cause under-crimping and failure of
the joint. It is good practise to check tool adjustment regularly.
1. Ensure all moving parts are always kept well lubricated
2. Open the handles fully
3. Using a flat head
screwdriver, loosen (but
don’t fully unscrew) the
locking bolt
4. Using a screwdriver,
rotate the adjusting
screw a quarter turn
clockwise
Manual tools available for copper crimp ring connections
16, 20 and 25mm. Only Auspex approved tools can be
used.
5. The adjusting screw has 4 flat faces in a square shape
for the locking bolt to fix on. Therefore the adjusting
screw must always be vertical or horizontal in orientation
and never at an angle or the locking bolt will damage it
6. Retighten the locking bolt
7. Crimp a new trial joint as a test away from the working
location and test with the gauge
8. If OK, continue to use the tool
If the gauge fails, repeat adjustment until trial crimped joint is
correct. More detailed instructions are included with the tool.
Design the installation in such a way as to not stress the
system joints, bend supports may be required.
Step 5.
Pressure test the system in accordance with
AS/NZS 3500 and with local requirements.

Auspex Fire Manual | 11
Diameter Horizontal Vertical
20mm 700mm 1400mm
25mm 750mm 1500mm
32mm 850mm 1700mm
Clips
Pipe clips should be installed so that the pipe can move
freely. Plastic system clips are available, however if using a
non-propriety clipping system, they must be non-metallic
where in contact with the pipe. General cable ties are not
recommended. Any damage caused by non-propriety clips
will not be covered by warranty. Neutral Cure silicon is
permitted in AS/NZS 3500 to protect pipes through
penetrations.
Recommended support spacings:
DuoPEX Water System
The DuoPEX Water system is ideal for any large bore piping
required within the 101D project, with 40mm, 50mm and
63mm available. DuoPEX Water oers the versatility and
ease of a WaterMark certified multi-layer pipe system and
can be used in potable water and various other installations.
Advantages of the DuoPEX Water System
1. Form stability during installation, for example in a curve
2. Low thermal conductivity level
3. Light weight during transport and installation
4. Thermal expansion is lower than that of other pipes
5. Lower pressure loss thanks to the smooth inner layer
6. Suitable for Hydronic Heating
DuoPEX Water Fittings
DuoPEX Water fittings are manufactured from dezincification
resistance (DR) brass with a stainless steel crimp ring and
joined to the pipe using a specific precision crimping tool.
DuoPEX Water fittings are available in a full range of
couplings, elbows, tees and conversion fittings.
For the full range of DuoPEX
Water Fittings, pickup a copy
of the DuoPEX Water Manual
in your closest Reece store or
download a digital copy from
www.auspex.com.au

12 | Auspex Fire Manual
Product List Pipe and Fittings
Red Stripe PEX100 Pipe
20mm x 5m Straight XAP412005RS
20mm x 50m Coil XAP412050RS
25mm x 5m Straight XAP422505RS
25mm x 25m Coil XAP422525RS
32mm x 5m Straight XAP433205RS
Threaded Tees (Female)
20mm x 20mm x Rp½" APF04202015F
25mm x 25mm x Rp½" APF04252515F
32mm x 32mm x Rp½" APF04323215F
Threaded Elbows (Female)
20mm x Rp½" APF072015F
25mm x Rp½" APF072515F
32mm x Rp½" APF073215F
Specialised Auspex Fire Fittings
For the full range of Auspex Crimp
Fittings, tooling and installation
instructions, pick up a copy of the
Auspex Manual – Crimp Fittings
and Pipe in your closest Reece
store or download a digital copy
from www.auspex.com.au

Auspex Fire Manual | 13
Product List Fittings
Brackets
Bracket – Side Mounting APF2890B
>B< Press Elbow Adaptors
20mm x DN20 APF28052020
25mm x DN25 APF28052525
32mm x DN25 APF28053225
DuoPEX Water To >B< Press Adaptors
16mm x ½" DPW281615
20mm x ½" DPW282015
20mm x ¾" DPW282020
26mm x ¾" DPW282620
26mm x 1" DPW282625
32mm x 1" DPW283225
40mm x 1 ¼" DPW284032
50mm x 1 ½" DPW285040
>B< Press Tee Adaptors
20mm x 20mm x DN20 APF28202020
25mm x 25mm x DN20 APF28252520
25mm x 25mm x DN25 APF28252525
32mm x 32mm x DN20 APF28323220
32mm x 32mm x DN25 APF28323225
>B< Press fire fittings are designed for applications where extended
adjustable droppers are required, while still providing a solid connection to
the sprinkler outlet.
The side mounting bracket can be used with all the above Auspex Fire
Fittings connecting to the brass base plate, allowing for various side
mounting options. All screws provided.

AS 4176
WMKA 21044
WMKA 21069
Customer Service
Telephone [phone]
Facsimile [phone]
Email sal[email protected]om.au
auspex.com.au
For operating parameters outside those stated in the manual,
please contact Customer Service.
Contents of this brochure are subject to change, please visit our
website for the most up-to-date product information.
Edition 1 | 2021
Reliance Worldwide Corporation (Aust). Pty. Ltd.
ABN 71 004 784 301
27-28 Chapman Place, Eagle Farm, QLD 4009, Australia
