Auto Page RS-622 User manual

1
RS-622
PROFESSIONAL 2-WAY AM/AM REMOTE CAR STARTER
&
KEYLESS ENTRY SYSTEM
OPERATIONS MANUAL
Please register your product at
www.autopageusa.com
THIS
PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY

2
SYSTEM OPERATIONS:
WARNINGS:
As with any product that performs automatic functions, there are certain safety
precautions that you must practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while the vehicle is running on remote
control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or garage.
5. Always apply the parking brake and lock the vehicle as you exit the vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is corrected.
8. The use and operations of this system is the sole responsibility of the operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle running
on public streets.
10.It is not safe to remote start the vehicle if the vehicle is parked on a steep
incline.

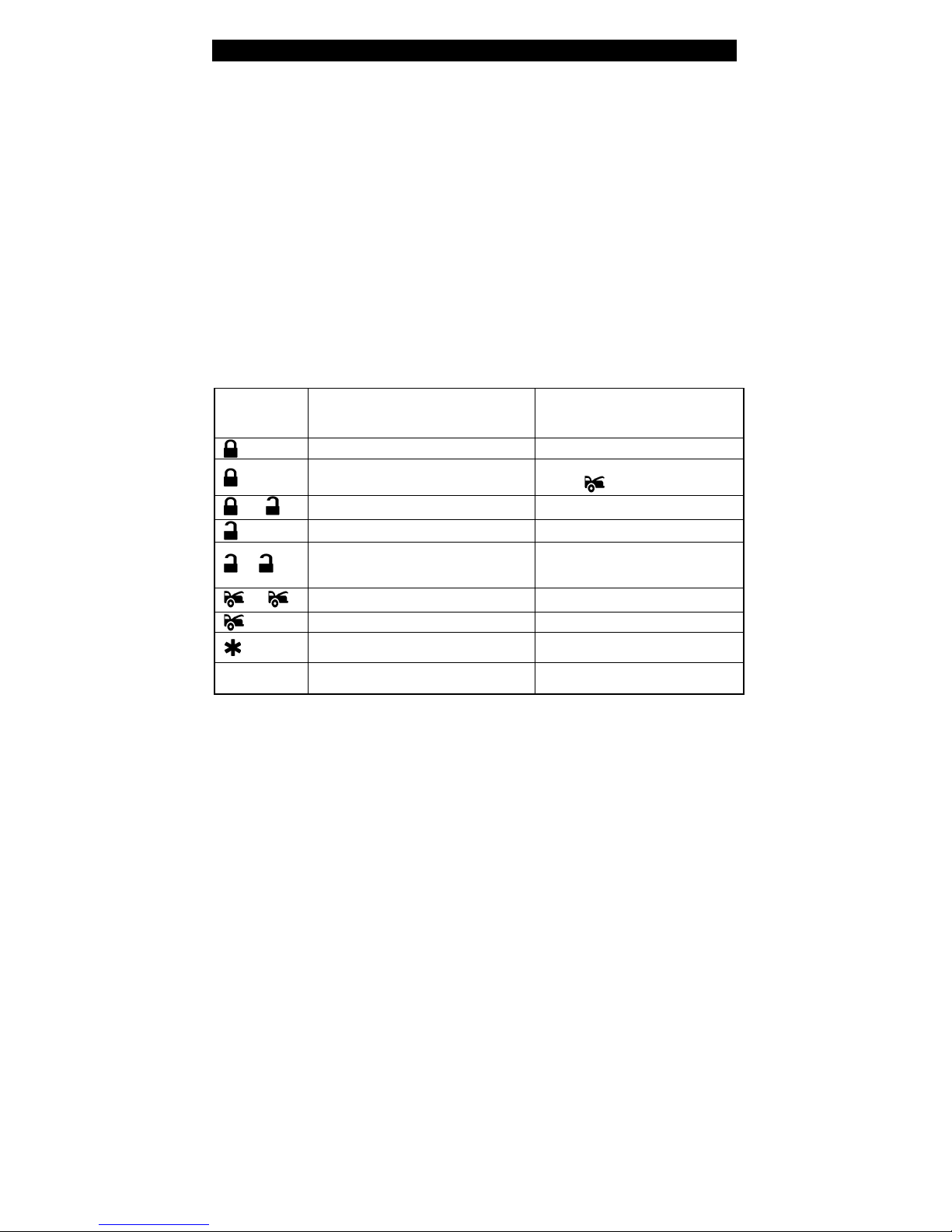

Transmitter
Button System Function Remark
Lock Doors All doors lock
Panic function Press and Hold for 3 seconds.
Press to stop panic.
+ Silent Lock / Unlock Ignition in "off" position.
Unlock Doors
-Two Step Door Unlock (Driver’s door
on the first push; Passenger’s door
on the second push ( optional ) Press twice within 3 seconds.
+Car Locator Push while the system is armed
Trunk Release Press and Hold for 2 seconds
Activate or Turn Off The Remote
Start Push once or twice depending on system settings (Program)
II Switching Code For 2nd Car
Operation.Standard Remote only Push Before Command

3
CHANGING THE B
ATTERY IN YOUR TRANSMITTERS
XT-33: This transmitter uses two (2) 3-volt lithium ion batteries
(#CR2016) that are sandwiched together with the (+) side facing upward.
To replace the battery, you will need to use a small flat blade screwdriver.
Locate the small notch on the lower right side of the transmitter case
next to the key ring. Using the flat blade screwdriver, carefully pry the
top case from the bottom case. It should snap apart after breaking the
seal. Before removing the batteries note the direction of the positive (+)
terminal. Place the new batteries in exactly the same manner, being
careful not to bend or damage the contact terminal. Snap the cases
back together and then test the transmitter to insure it arms and disarms
the alarm.

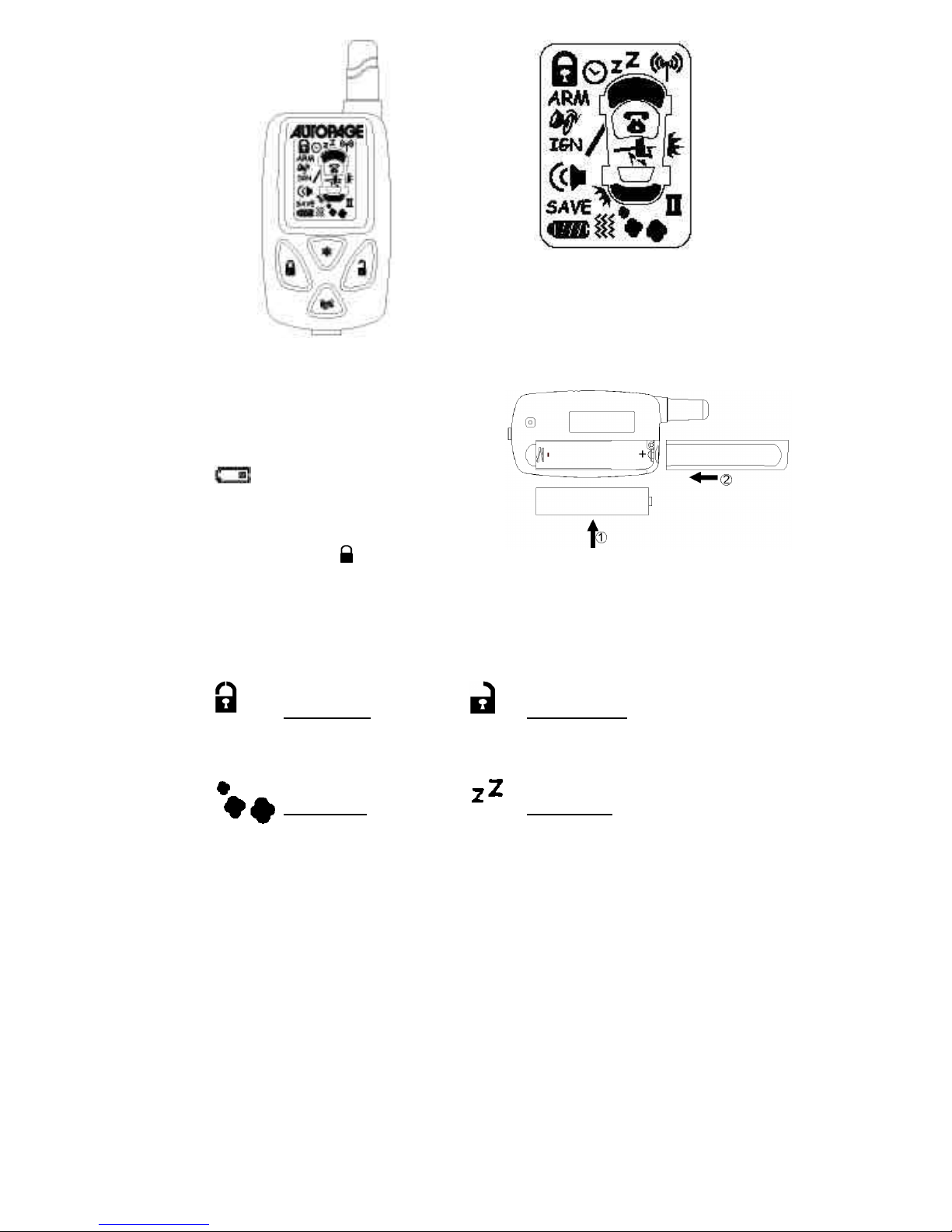

XT-42LCD 2-Way XT-33
Transceiver Standard Remote
(1) AAA Battery
ACTIVE LOCK:
1. Press button on the transmitter.
2. The Siren will chirp once and parking lights will flash once indicating
that the system is now active. The vehicle doors will lock upon
activating only when interfaced with the keyless entry system.
SILENT LOCKING / UNLOCKING: Pressing the + buttons
together on the transmitter will lock or unlock your system, No chirp
sound will be heard. Lock / unlock confirmation will be seen through the
vehicle’s parking lights only.
ACTIVE UNLOCK:
1. Press button on the transmitter.
2. The horn will chirp twice and parking light will flash twice to indicating
that the keyless system is now unlocked. The vehicle doors will
(2) CR2016
3-Volt Batteries

4
unlock and dome lights will turn on for 30 seconds.
PATHWAY ILLUMINATION
This feature turns the parking light “ON” for 30 seconds upon a unlock
signal and for 10 seconds upon the lock signal. (Programmable)
TWO STEPS DOOR UNLOCK: This feature will independently unlock
the driver door only when deactivating the system. Pushing the
button a second time within 3 seconds will unlock the entire vehicle.
(Optional)
LED DISPLAY:
LED Function
Off Unlock
Slow Flash Locked
On (Solid) Valet Mode
CHIRP INDICATOR:
Chirp Function
1 Chirp Lock
2 Chirps Unlock
6 Chirps Car Locator
PARKING LIGHTS:
Parking light Function
1 Flash Lock
2 Flashes Unlock
12 Flashes Car Locator
Constant On Under Remote Start
DEACTIVATING WITHOUT A TRANSMITTER
The Override function may be used if the remote transmitter is lost or
inoperative.
1. Enter the vehicle and turn the ignition switch to ‘ON’ position.
2. Within 10 seconds push and release the valet switch.
You can now start and operate the vehicle normally.
VALET MODE:
The valet switch allows you to temporarily bypass all system function,
eliminating the need to hand your transmitter to parking attendants or
garage mechanics. When the system is in valet mode, and remote start
functions are bypassed, however, the remote panic feature and remote
door locks will remain operational. To use the valet mode, the system
must first be deactivated either by using you remote transmitter, or by
operating the Manual override sequence.

5
Enter Valet Mode:
1. From the Unlock condition, turn the ignition to “ON” position.
2. Push and hold valet switch for 2 seconds until the LED turns on.
The LED will remain on as long as the system is in ‘valet mode’.
Exit Valet Mode:
1. Return to normal operation, turn ignition ‘on’.
2. Push and hold valet switch for 2 seconds, The LED will turn off
indicating the system has exited the valet mode.
PANIC FUNCTION: (IF SIREN or HORN IS INSTALLED)
The transmitter can be used as a remote panic switch to manually
trigger the vehicle’s horn in case of emergency.
1. Press and hold the button for 3 second. The siren will
immediately sound.
2. During panic mode, the normal function of this transmitter button
will be suspended. The and buttons can be used to lock and
unlock the doors (if the option is installed),
3. To stop the panic, press the button on the transmitter again.
4. If no buttons are pressed, the panic function will stop automatically
in 30 seconds.
DOME LIGHT CONVENIENCE DELAY & SUPERVISION
This system has a unique feature, which will turn on your vehicle
dome light as follows: (optional) Additional installation required.
1. Upon unlocking, the interior lights will remain on for 30 seconds.
Note: Turning on the ignition switch or activating the system will turn
off the dome light.
IGNITION CONTROL DOOR LOCKS
If the vehicle’s door locks have been interfaced to the security system,
the system will automatically lock the vehicle’s doors when the ignition
is turned “ON” and /or unlock the vehicle’s doors when the ignition is
turned “OFF”.
TRUNK RELEASE (Additional Installation Required)
Press and hold the button on transmitter for two seconds to remote
control the trunk release or other electric devices.
CAR LOCATOR (ONLY IF SIREN or HORN IS INSTALLED)
Press the button twice when the system is armed to active car
locator function. The horn will chirp 6 times. The parking light will flash
12 times, for you to easily locate your car.

6
REMOTE START OPERATION:
WARNINGS:
As with any product that performs automatic functions, there are certain
safety precautions that you must practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or
garage.
5. Always apply the parking brake and lock the vehicle as you exit the
vehicle.
6. Should the unit malfunction, disconnect the fuse until the problem is
corrected.
7. The use and operations of this system is the sole responsibility of the
operator.
8. Some areas may have local ordinances that prohibit leaving a vehicle
running on public streets.
A. TO REMOTE START THE VEHICLE:
When you want to start your vehicle,
1. Press button once on the transmitter.
2. The parking lights will flash to indicate the remote start received the
signal.
3. The engine will start in approximately 5 seconds.
4. A few seconds after the engine is running, the parking lights will turn
on again and climate controls will activate and adjust the vehicles
interior temperature to your preset setting.
5. The vehicle will run for a 5 to 30 minute cycle and automatically shut
down.
(SAFETY START OPERATION :)
The safety start feature allows you to press the button twice before
the vehicle will remote start or remote shut down. (Programming
Required)
NOTE: The Remote Start Unit will not start the vehicle if any one of the
following conditions exists:
1. The hood is opened.
2. The brake pedal is pressed.
3. The optional remote start enable toggle switch is in the OFF position.
4. The gear selector is in any gear other then “PARK” or “NEUTRAL”
TO TURN OFF THE REMOTE START:
When the engine is running (by remote start), if you want to stop it,
1. Press button once on the transmitter.

7
2.
Move the optional remote start enable toggle switch to OFF position.
(If installed)
3. Press the brake pedal, the vehicle will shut down and turn off the
parking light to indicate engine stopped.
TO OVERRIDE VEHICLE FROM REMOTE START CONTROL:
To operate the vehicle while it is running from the remote start:
1.Insert the ignition key and turn it to “ON” (not the start) position.
2.Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the ON
position, the engine will shut down.
TEMPORARY STOP FEATURE:
This feature allows the vehicle to remain running after the key has been
removed from the ignition. This feature is useful for occasions when you
wish to exit and lock the vehicle for short periods of time, but would like
to leave the engine running and the climate control on.
1.Before turning off the engine, press the button once on the
transmitter. The parking lights will come on and the LED will flash 3
times to confirm Temporary Stop feature ‘ON’
2.Turn the ignition key to OFF position. (The engine will stay running.)
3.The engine will run until the pre-programmed time elapsed or
shutdown input is received.
TIMER START: You must fully understand this feature to operate the
remote start safely. Use caution in using this feature.
This unit can be programmed to start and run the engine every 3 hours.
The engine will run for the programmed run time and then shut down.
IMPORTANT: Timer Start should be used only in open areas, NEVER
start and run the vehicle in on enclosed space such as a garage or
carport.
Three hours timer start: This feature is design for an extreme cold
climate usage. The system will auto start the vehicle every 3 hours, to
prevent engine freezing and hard to start.
A maximum of six cycles can occur.
ENTER:
1. Press the button once to remote start the vehicle. As soon as the
vehicle is running the parking lights will turn ‘ON’.
2. Immediately press the button then press button. The parking
light will flash (3) times. The siren chirps (3) times. The vehicle is now
programmed to start every (3) hours.
3. Press the brake pedal to stop the vehicle running.

8
Exit the timer start:
Timer start can be exited manually as follows:
1. Repeat the Enter Steps from above.
Or
1. Make sure the remote start system is not operating the engine.
2. Turn the ignition on. The LED and parking light will flash (4) times.
The siren chirps (4) times.
SHUTDOWN INPUT FOR REMOTE STARTER:
If any of the following conditions exist while the system is operating, the
engine will not start or will shut down immediately:
1. The hood is opened.
2. The brake pedal is pressed.
3. The optional remote start enable toggle switch is in the OFF position.
4. Engine is over-revved. {“Tachometer checking type” only}
5. The pre-programmed run time (5 /10 / 20 / 30 minutes) has elapsed.
6. Transmitter button is pressed.
7. The vehicle refused to start running after {3} unsuccessful attempts.
DISABLING THE REMOTE START SYSTEM: (If Optional toggle switch
is installed)
This feature allows your system’s remote start unit to be temporarily
disabled to prevent the vehicle from being remote started accidentally.
This feature is useful if the vehicle is being serviced or stored in an
enclosed area. To disable the remote start, move the optional remote
start enable toggle switch to the OFF position. Valet mode can also be
used. XT-42 LCD TRANSMITTER OPERATION:
LCD REMOTE CONTROL TRANSMITTER:

9
BATTERY REPLACEMENT:
A 1.5V type AAA Alkaline battery
powers the Remote Transmitter. When
the power of the battery weakens a
icon shall be displayed on the
LCD screen. When the old battery is
replaced with a new one, there will be
beep sounds indicate the power is up.
Note: Press the button two times
when the battery compartment is
empty, and then insert the new
battery.
THE REMOTE LCD ICONS WITH FUNCTION:
Door Lock
Your vehicle doors are
locked.
Door Unlock Your vehicle
doors are unlocked
Start Mode
Your vehicle is running
Valet Mode
All the function shall be
temporarily on hold.
Note: If the system is interfered by stronger radio
frequency around, sources of high voltage electric
power or such obstacles like tall buildings and so
on, the transmission range may get shorter as the
system uses low output powered frequency.
AAA

10
Remote Transmission
You are transmitting the
signal to control unit
In –Range Indicator
You are within the remote
control range.
Trunk Release Trunk
open. Trunk symbol only.
Low Battery
You have to replace the
battery of remote control.
Vibration Mode
Remote Control vibrates
when the system is
triggered Ignition On
Power Save Mode
Save the battery power
Driver paging
Someone is paging you in
front of your vehicle. **
** Press the valet switch in the vehicle with the Ignition OFF to page
the driver carrying the XT-42 two-way remote control.
PROGRAM MODE FORLCD REMOTE CONTROL TRANSCEIVER:
Press and hold all four remote control buttons simultaneously unit
one long beep is heard. LCD Programming has now been entered.
Transceiver
Button System Function Remark
Program Mode
-Switching code for 2nd /1st Car
Operation Press within 5 seconds
Program Mode
-Melody / Vibration Mode Press within 5
seconds
Program Mode
-Power Save Mode Press within 5
seconds
LCD screen lamp turns on for 5
seconds.
-+Clear the Flash Icon and Melody
Sound Press within 3 seconds
1. Second Vehicle Security Operation: Your remote transmitter can be
utilized to control a second vehicle’s Auto Page security system.To
program the remote control transmitter to a second vehicle, follow the
instructions for Transmitter programming. All programming parameters
are the same except for the following:

11
For
R
egular
R
emote
Control T
ransmitter
:
1. Prior to pushing any button on the transmitter. Press the Select II
button first on the standard transmitter.
2.Once II button is pressed the LED on the transmitter will illuminate for
3.5 seconds.While the LED is illuminated, press the button for the
function you want to operate on the standard remote transmitter to
control a second vehicle security system.
For 2-way LCD Remote Control Transceiver:
2nd Car Operation: While the “II” icon display on the LCD screen, you
can remote control and communicate with a second Autopage AM
frequency security system. It has two short “beep” soundswhile pressing
any button of the LCD screen transceiver
1. Press and hold all four remote control buttons
simultaneously unit one long beep is heard. LCD
Programming has now been entered.
2. Within 5 seconds press and hold button until two
beeping sounds are heard and the “II”
icon will display on
the LCD screen to indicate the second transceiver pin
code
has been initiated.
3. To exit programming mode, take no action for five seconds.
The remote control will generate two long beeps to indicate
programming mode has been exited.
Back to first Car Operation:
This will allow you to control and communicate with the first vehicles
security system.
1. Press and hold all four remote control buttons simultaneously
unit one long beep is heard. Programming has now been
entered.
2. Within 5 seconds press and hold button until one
beep
sound is heard.
3.
To exit programming mode, take no action for five seconds.
The remote control will generate two long beeps to indicate
programming mode has been exited.
Vibration / Melody Mode:
Vibration mode is useful when you are in a noisy place and it is difficult
to hear the beep sound from the remote control. In this mode the unit will
vibrate if your security system is triggered.

12
1. Press and hold all four remote control buttons simultaneously
until
one long beep is heard. Programming has now been
entered.
2. Within 5 seconds, press the
button to select the mode of
vibration or melody, the icon will displayed
on the LCD
screen to show the LCD remote transceiver is in vibration mode.
3. To exit programming mode, take no action for five seconds. The
remote
control will generate two long beeps to indicate
programming mode has been exited.
Power Save Mode:
While in the power save mode, the LCD remote transceiver will “sleep”
until a button is pushed. This will extend the life of battery. When power
save mode is “ON”, the remote control will wake up periodically to check
for messages from the security module.
1. Press and hold all four remote control buttons simultaneously
unit one long beep is heard. Programming has now been
entered.
2. Within 5 seconds, press the button to toggle “On”or “Off”.
The remote will beep once for “On”, twice for “Off”. When power
save mode is “On”, the icon on the LCD screens to
indicate entry the “power save mode”
3. To exit programming mode, take no action for five seconds. The
remote control will generate two long beeps to indicate
programming mode has been exited.
Screen Lamp ON:
Press the button once and the LCD screen lamp will turn on for 5
seconds.
Clear the Flash Icon and Melody Sound:
Cycle the ignition then press the button first, within 3 seconds press
and buttons at the same time.It will clear the flash icon and
melody sound on the LCD screen transceiver.
Stop The Trigger Melody Sound:
While triggering the alarm the LCD screen will alert the user through
melody sound and flashing trigger icon. Press any button on the LCD
remote transmitter to stop the melody sound.

13
LIMITED LIFETIME WARRANTY PROVISIONS
( U.S. ,Continental U.S. and Canada Only)
1. Auto Page, Inc. WARRANTS that this new unit has been thoroughly
inspected and tested at the factory prior to delivery. Your Auto
Page equipment is guaranteed for “life” to the original
purchaser/user of the equipment and the original vehicle in which it
was installed by an authorized installer under the following
conditions: If the product proves defective (according to Auto Page's
testing) within the first year, the defective unit may be exchanged or
repaired free of charge. “Proof of Purchase” (dated sales receipt)
must accompany all warranty returns; otherwise, your return will
be rejected and sent back. After one (1) year, the purchaser should
ship the unit prepaid to Auto Page with a money order in the amount
of $30.00 to cover shipping and handling charges. Note: The
product needs to be registered online at time of installation.
www.autopageusa.com
2. This WARRANTY will be considered void if the equipment has been
misused, neglected, improperly serviced or installed, altered,
dropped or damaged by water, contrary to the Auto Page
OPERATIONS MANUAL. Or, if used with accessories not
approved by Auto Page, which may have contributed to the defect.
See note below regarding product installation**.
3. The purchaser’s remedies under this WARRANTY shall be limited to
the repair or replacement of electronic components only. THE
FOLLOWING IS NOT COVERED: Damages or deterioration to
cases, batteries, covers and cabinets; the cost of repairs,

14
replacement and labor of which shall be borne by the pu
rchaser
even if occurring during the WARRANTY period.
4. Any equipment or parts which are claimed to be defective under this
WARRANTY must be sent to the Auto Page Service center with
“proof of purchase” at the purchaser’s expense prior to such return,
a Return Authorization Number should be obtained. Auto Page will
return the equipment, charges prepaid. Warranty Service can be
provided through the dealer where the equipment is originally
purchased.
5. Any unexpired WARRANTY shall be applicable to equipment and
parts in the possession of the original purchaser only.
6. THIS WARRANTY IS IN LIEU OF ANY AND ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT
LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
7. Auto Page shall not be liable, under the foregoing WARRANTIES or
otherwise, for: Any personal injury of any kind to the purchaser, its
employees or agents or anyone else whomsoever resulting directly
or indirectly from the use or presence of the equipment or parts;
Consequential damages of any kind; any inability of the purchaser to
use the equipment.
**IMPORTANT NOTE: Any damages to the alarm system resulting
from an installation performed by anyone other than a professional
installation technician authorized by a dealer of Auto Page will void
the product’s limited lifetime warranty.
Auto Page Warranty:
You must register your product online at
http://www.autopageusa.com to receive any warranty service.

15
Please go to
the
customer service
tab and select
product
registration.
It is the purchaser’s responsibility to register this product for any
future warranty service.
Warning: Some batteries may contain Perchlorate
What is Perchlorate? Perchlorate is both a naturally occurring and
manmade contaminant increasingly found in groundwater, surface water
and soil. Most perchlorate manufactured in the U.S. is used as an
ingredient in solid fuel for rockets and missiles. In addition,
perchlorate-based chemicals are also used in the construction of
highway safety flares, fireworks, pyrotechnics, explosives, common
batteries, and automobile restraint systems. Perchlorate contamination
has been reported in at least 20 states. Perchlorate greatly impacts
human health by interfering with iodide uptake into the thyroid gland. In
adults, the thyroid gland helps regulate the metabolism by releasing
hormones, while in children; the thyroid helps in proper development.
Perchlorate is becoming a serious threat to human health and water
resources.
“Perchlorate Material –Special handling may apply.”

16
For more information, go to
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

17
960 Knox Street Unit B, Torrance, CA 90502
Tel: [phone] or [phone] www.autopageusa.com
