Automotive Data Solutions BLADE-AL-TL5-EN User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
Automotive Data Solutions Inc.
INSTALL GUIDE
BLADE-AL(DL)-TL5-EN
AvAiLABLE for: ADS-BLADE AL
TL5
The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2012
VERSION FRANÇAISE DISPONIBLE EN LIGNE AU www.BLADEUPTADE.com
PLEASE VISIT www.BLADEUPDATE.com FOR COMPLETE PRODUCT DETAILS
Rev. Date: December 05, 2012
Doc. No.: ##10213##
20121130

INSTALL TYPE SELECTION
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS KEYLESS SYSTEM DURING RS ARM OEM ALARM DISARM OEM ALARM DOOR LOCK DOOR UNLOCK POWER SLIDING DOOR (L) POWER SLIDING DOOR (R) TRUNK/HATCH RELEASE TACHOMETER OUTPUT BRAKE PEDAL STAT OUTPUT E-BRAKE OUTPUT DOOR STAT OUTPUT TRUNK STAT OUTPUT HOOD STAT OUTPUT*
SCION
iQ Regular key (80 bit) 12-13 3 • • • • • • • • • •
tC Regular key (80 bit) 11-13 3 • • • • • • • • • • • •
xB Regular key (80 bit) 11-13 1 • • • • • • • • • • • •
xD Regular key (80 bit) 11-13 9 • • • • • • • • • • •
TOYOTA
4Runner Regular key (80 bit) 10-13 3 • • • • • • • • • • • •
Camry Regular key (80 bit) 10-11 1 • • • • • • • • • • • • •
Camry Regular key (80 bit) 12-13 2 • • • • • • • • • • • •
Corolla Regular key (80 bit) 12-13 1 • • • • • • • • • • • • •
Highlander Regular key (80 bit) 11-13 5 • • • • • • • • • • • •
Highlander Hybrid Regular key (80 bit) 12-13 5 • • • • • • • • • • • •
Matrix Regular key (80 bit) 12-13 1 • • • • • • • • • • • •
Prius C Regular key (80 bit) 12-13 10 • • • • • • • • • •
RAV4 Regular key (80 bit) 11-13 1 • • • • • • • • • • • •
Sequoia Regular key (80 bit) 11-13 8 • • • • • • • • • • • •
Sienna Regular key (80 bit) 11-13 6 • • • • • • • • • • • • • •
Tundra Regular key (80 bit) 11-13 7 • • • • • • • • • • •
Venza Regular key (80 bit) 10-13 4 • • • • • • • • • • • •
Yaris Hatchback Regular key (80 bit) 11 9 • • • • • • • • • • •
Yaris Hatchback Regular key (80 bit) 12-13 3 • • • • • • • • • •
Yaris Sedan Regular key (80 bit) 11-12 9 • • • • • • • • • • •
*Available only if vehicle is equipped with factory hood switch.
Page 2 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

COMPONENT LOCATORCOMPONENT LOCATOR
AB
D
E
F
C
Page 3 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

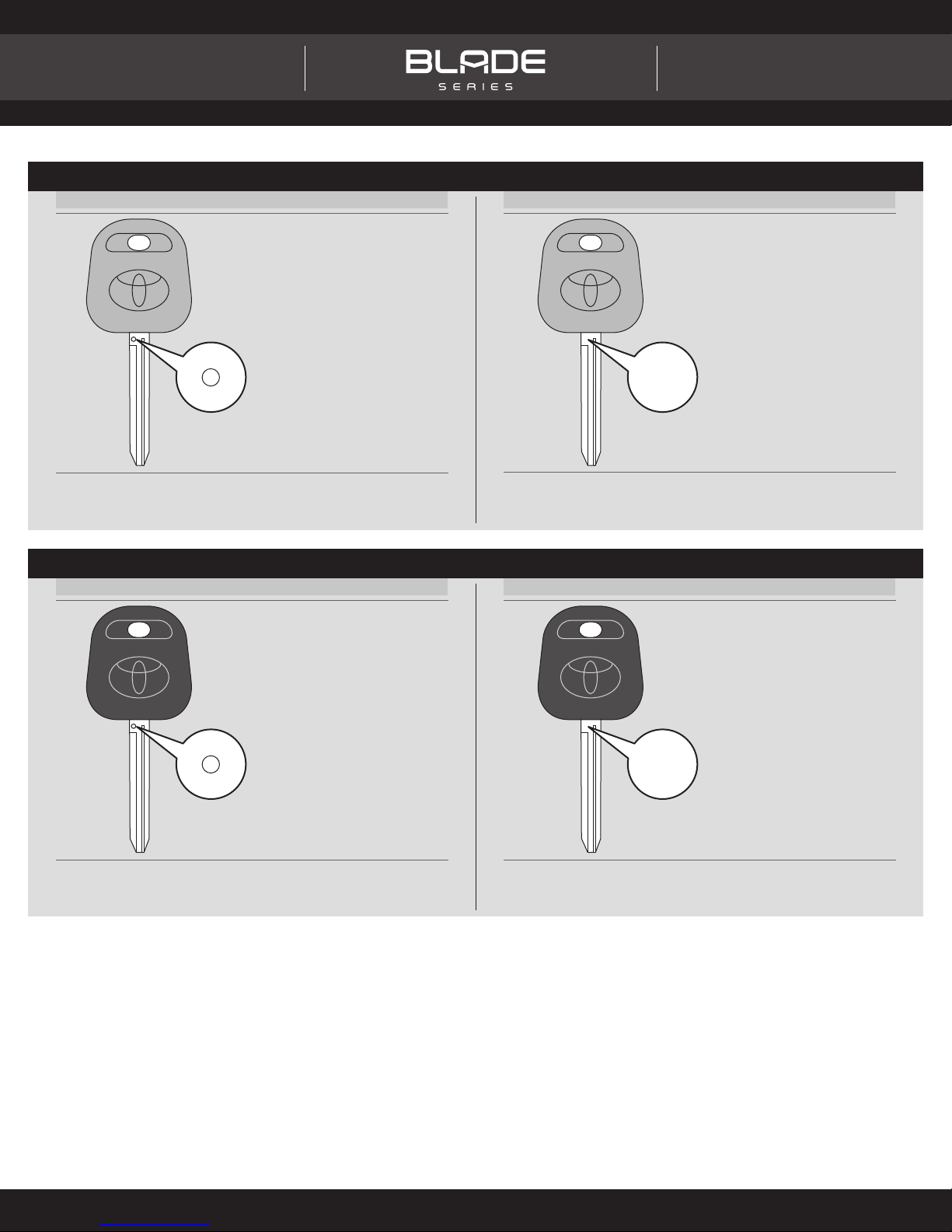

WARNING: VALET KEYS ARE NOT COMPATIBLE
2Use a regular key and a
compatible fi rmware solution.
2Use a regular key and a
compatible fi rmware solution.
40 BIT VALET KEY 80 BIT VALET KEY
1The 40 bit valet key is GRAY and
has a dot or “O” stamped on the
metal part of the key.
This key is NOT compatible with
this fi rmware.
1The 80 bit valet key is GRAY and
has “G” stamped on the metal
part of the key.
This key is NOT compatible with
this fi rmware.
HOLD
G
G
G
G
G
G
HOLD
G
G
G
G
G
G
IDENTIFY REGULAR KEY
2Proceed with installation. 2Use a compatible fi rmware
solution.
40 BIT REGULAR KEY 80 BIT REGULAR KEY
1The 40 bit regular key is BLACK
and has a dot or “O” stamped on
the metal part of the key.
This key is NOT compatible with
this fi rmware.
1The 80 bit regular key is BLACK
and has “G” stamped on the
metal part of the key.
This key is compatible with this
fi rmware.
HOLD
G
G
G
G
G
G
HOLD
G
G
G
G
G
G
Page 4 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 1 - WIRE CROSS REFERENCE CHART - 1 OF 2
MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY LOCATION COMPONENT LOCATOR NAME COLOR TYPE
SCION
xB
Regular key 11-13
CanH OBDII White 16 pin 06 LtGreen (DATA) OBDII F
CanL OBDII White 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII White 16 pin 07 White (DATA) OBDII F
Parking Light C11 White 20 pin 18 White (-) At light switch ~
12V C5 White 08 pin 07 White (+) Ignition connector D
Ignition 1 C5 White 08 pin 04 White (+) Ignition connector D
Ignition 2 C5 White 08 pin 06 Gray (+) Ignition connector D
Accessory C5 White 08 pin 03 Black (+) Ignition connector D
Starter 1 C5 White 08 pin 08 White (+) Ignition connector D
Starter 2 C5 White 08 pin 01 White (+) Ignition connector D
TOYOTA
Camry
Regular key 10-11
CanH OBDII ~ 16 pin 06 Black (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 Gray (DATA) OBDII F
Parking Light E21 White 20 pin 18 Black (-) At parking light switch ~
12V E23 White 08 pin 05 Black (+) Ignition connector D
Ignition 1 E23 White 08 pin 06 Yellow (+) Ignition connector D
Ignition 2 E23 White 08 pin 01 Pink (+) Ignition connector D
Accessory E23 White 08 pin 02 White (+) Ignition connector D
Starter 1 E23 White 08 pin 07 Blue (+) Ignition connector D
Starter 2 E23 White 08 pin 03 Gray (+) Ignition connector D
Corolla
Regular key 12-13
CanH OBDII ~ 16 pin 06 LtGreen (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 White (DATA) OBDII F
Parking Light E8 White 20 pin 18 White or Brown (-) At parking light switch ~
12V E4 White 08 pin 07 Blue (+) Ignition connector D
Ignition 1 E4 White 08 pin 06 Brown (+) Ignition connector D
Ignition 2 E4 White 08 pin 04 Green (+) Ignition connector D
Accessory E4 White 08 pin 03 Gray (+) Ignition connector D
Starter 1 E4 White 08 pin 01 White (+) Ignition connector D
Starter 2* E4 White 08 pin 08 Black (+) Ignition connector D
Matrix
Regular key 12-13
CanH OBDII ~ 16 pin 06 LtGreen (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 White (DATA) OBDII F
Parking Light E8 White 20 pin 18 Brown (-) At parking light switch ~
12V E5 White 08 pin 07 Blue (+) Ignition connector D
Ignition 1 E5 White 08 pin 06 Brown (+) Ignition connector D
Ignition 2 E5 White 08 pin 04 Green (+) Ignition connector D
Accessory E5 White 08 pin 03 Gray (+) Ignition connector D
Starter 1 E5 White 08 pin 01 White (+) Ignition connector D
Starter 2* E5 White 08 pin 08 Black (+) Ignition connector D
* With 2.4L engine only.
Page 5 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 1 - WIRE CROSS REFERENCE CHART - 2 OF 2
MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY LOCATION COMPONENT LOCATOR NAME COLOR TYPE
TOYOTA
RAV4
Regular key 11-13
CanH OBDII ~ 16 pin 06 Black (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 White (DATA) OBDII F
Parking Light E12 White 20 pin 18 White (-) At parking light switch ~
12V E3 White 08 pin 07 Blue (+) Ignition connector D
Ignition 1 E3 White 08 pin 06 White (+) Ignition connector D
Ignition 2 E3 White 08 pin 04 Pink (+) Ignition connector D
Accessory E3 White 08 pin 03 Red (+) Ignition connector D
Starter 1 E3 White 08 pin 01 White (+) Ignition connector D
Starter 2 E3 White 08 pin 08 Yellow (+) Ignition connector D
* With 2.4L engine only.
Page 6 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

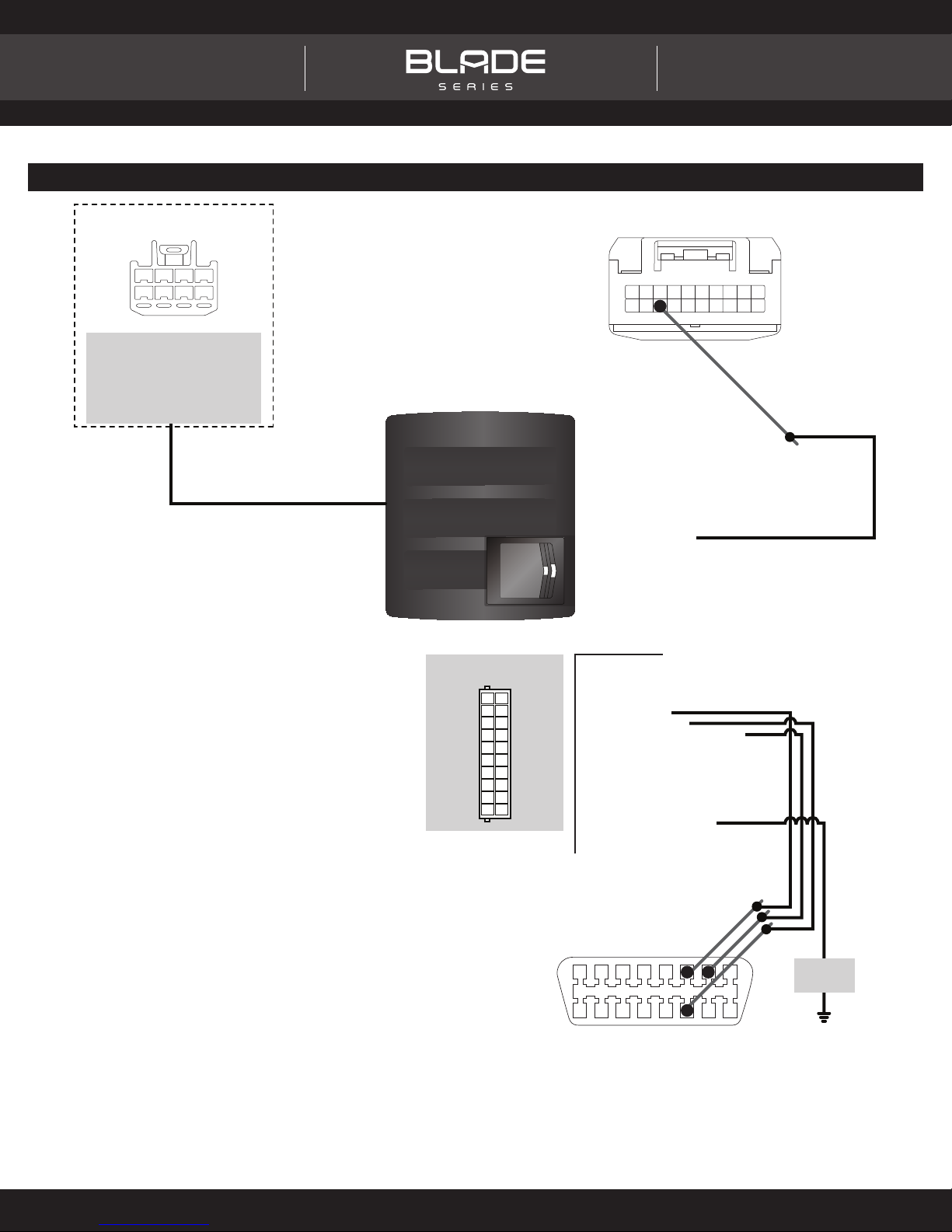

TYPE 1 - WIRING DIAGRAM
161514131211109
87654321 6 7
14
11121314151617181920
12345678910
18
1234
5678
CANL
CANH IMMO DATA
(NC)WHITE/BLACK (NC)
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED (NC)
(NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED - GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
GRAY/YELLOW (NC)GRAY/YELLOW (NC)
WITHOUT
OEM HOOD
STATUS ONLY
YELLOW (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLACK (NC)
BLACK (NC)
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
WHITE CONNECTOR
PARKING LIGHT (-)
IGNITION CONNECTOR
WHITE
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART. REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 7 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 2 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY LOCATION COMPONENT LOCATOR NAME COLOR TYPE
TOYOTA
Camry
Regular key 12-13
CanH OBDII ~ 16 pin 06 Blue (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 Gray (DATA) OBDII F
Doorlock Data i13 White 30 pin 16 Blue (DATA) Main body ECU A
Parking Light i13 White 30 pin 30 White or Black (-) Main body ECU A
12V i36 White 08 pin 05 Green (+) Ignition connector D
Ignition 1 i36 White 08 pin 01 Pink (+) Ignition connector D
Ignition 2 i36 White 08 pin 06 Black (+) Ignition connector D
Accessory i36 White 08 pin 02 White (+) Ignition connector D
Starter 1 i36 White 08 pin 03 LtGreen (+) Ignition connector D
Starter 2 i36 White 08 pin 07 Blue (+) Ignition connector D
Page 8 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

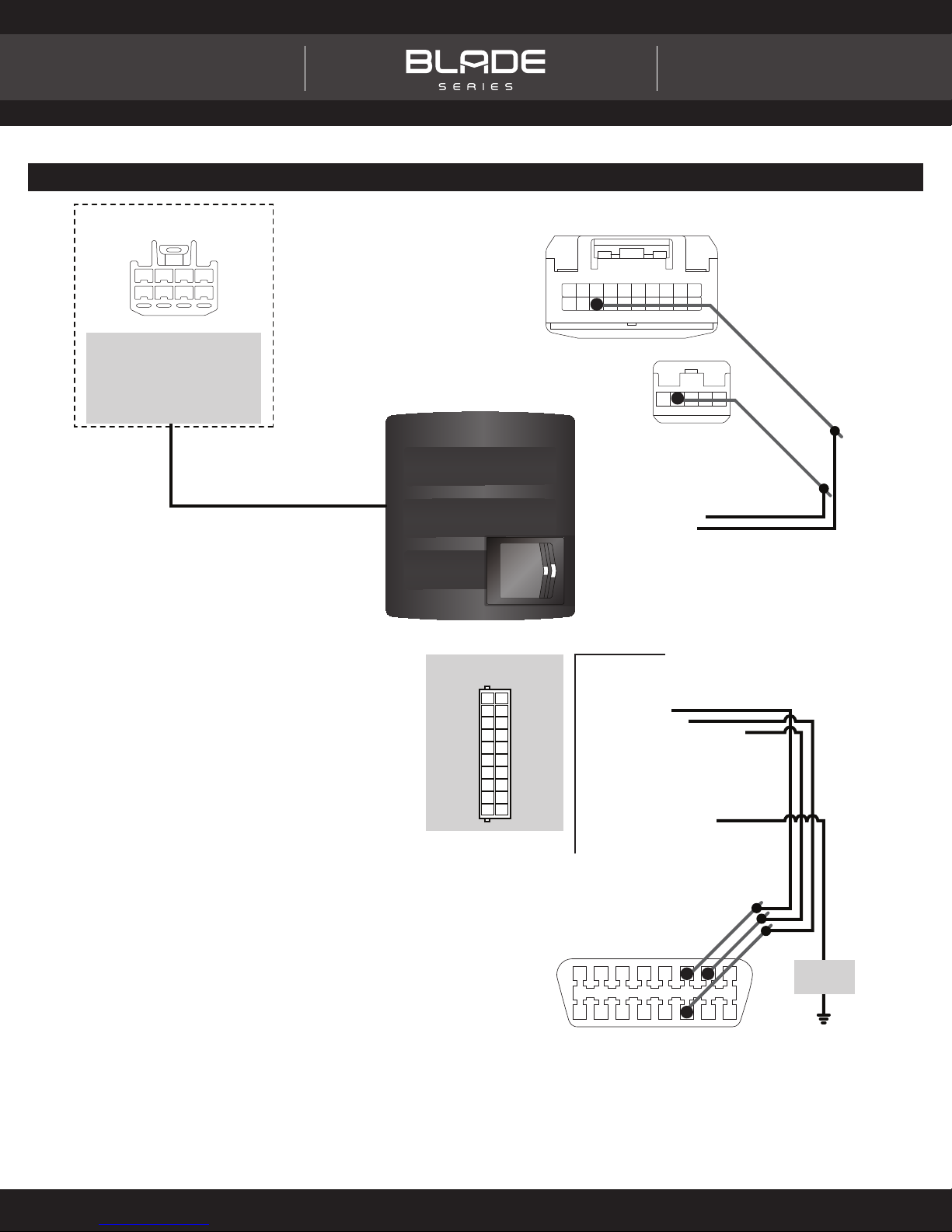

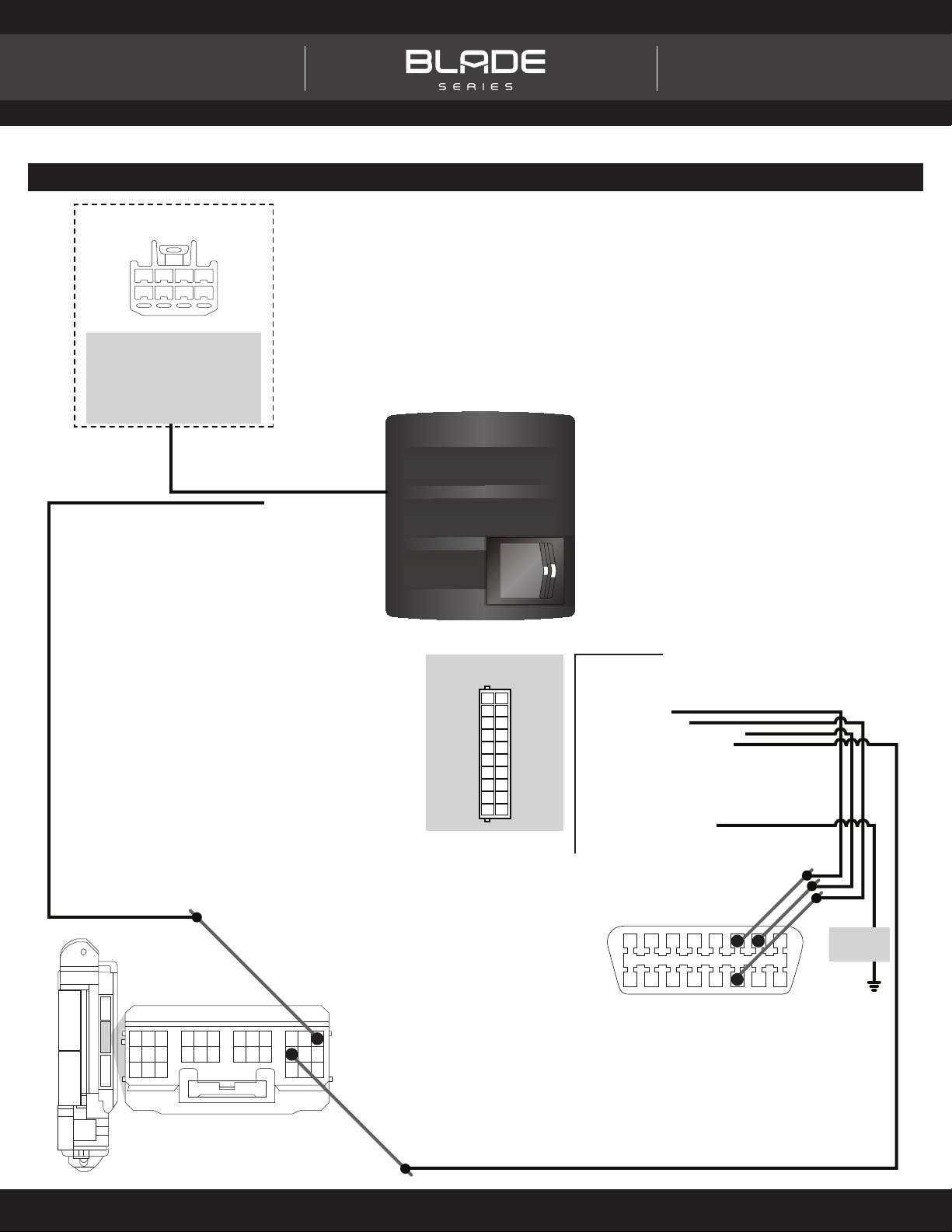

TYPE 2 - WIRING DIAGRAM
161514131211109
87654321 6 7
14
10 11 12 13 14 15 16 17 18
19 20 21 22 23 24 25 26 27 28 29 30
1 2 3 4 5 6
789 16
30
1234
5678
ORANGE/WHITE - DOORLOCK DATAORANGE/WHITE - DOORLOCK DATA
CANL
CANH IMMO DATA
(NC)WHITE/BLACK (NC)
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED (NC)
(NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
BLACK (NC)
BLACK (NC)
GRAY/RED - GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
GRAY/YELLOW (NC)GRAY/YELLOW (NC)
WITHOUT
OEM HOOD
STATUS ONLY
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
MAIN BODY ECU
PARKING LIGHT (-)
DOORLOCK DATA
WHITE CONNECTOR
IGNITION CONNECTOR
WHITE
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART. REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 9 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 3 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY LOCATION COMPONENT LOCATOR NAME COLOR TYPE
SCION
iQ
Regular key 12-13
CanH ODBII White 16 pin 06 Violet (DATA) ODBII F
CanL ODBII White 16 pin 14 White (DATA) ODBII F
Immobilizer ODBII White 16 pin 07 Red (DATA) ODBII F
Doorlock Data D42 White 30 pin 26 Brown (DATA) Main body ECU A
Parking Light D42 White 30 pin 30 Yellow (-) Main body ECU A
12V D28 White 08 pin 07 Blue (+) Ignition connector D
Ignition 1 D28 White 08 pin 04 LtBlue (+) Ignition connector D
Ignition 2 D28 White 08 pin 06 Brown (+) Ignition connector D
Starter 1 D28 White 08 pin 01 LtGreen (+) Ignition connector D
Starter 2 D28 White 08 pin 08 Red (+) Ignition connector D
Accessory D28 White 08 pin 03 Blue (+) Ignition connector D
tC
Regular key 11-13
CanH OBDII White 16 pin 06 LtGreen (DATA) OBDII F
CanL OBDII White 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII White 16 pin 07 White or Purple (DATA) OBDII F
Doorlock Data C56 White 30 pin 26 LtGreen (DATA) Main body ECU A
Parking Light C56 White 30 pin 30 Purple or LtBlue (-) Main body ECU A
12V C5 White 08 pin 07 White (+) Ignition connector D
Ignition 1 C5 White 08 pin 04 Gray (+) Ignition connector D
Ignition 2 C5 White 08 pin 06 Gray (+) Ignition connector D
Starter 1 C5 White 08 pin 01 Tan (+) Ignition connector D
Starter 2 C5 White 08 pin 08 Green (+) Ignition connector D
Accessory C5 White 08 pin 03 Black (+) Ignition connector D
TOYOTA
4Runner
Regular key 10-13
CanH F13 White 16 pin 06 Violet (DATA) OBDII F
CanL F13 White 16 pin 14 White (DATA) OBDII F
Immobilizer F13 White 16 pin 07 Green (DATA) OBDII F
Doorlock Data F9 White 30 pin 26 Pink (DATA) Main body ECU A
Parking Light F9 White 30 pin 30 Red (-) Main body ECU A
12V F15 White 08 pin 07 Green (+) Ignition connector D
Ignition 1 F15 White 08 pin 06 Black (+) Ignition connector D
Ignition 2 F15 White 08 pin 04 Purple (+) Ignition connector D
Starter 1 F15 White 08 pin 08 Red (+) Ignition connector D
Starter 2 F15 White 08 pin 01 Black (+) Ignition connector D
Accessory F15 White 08 pin 03 Red (+) Ignition connector D
Yaris
Hatchback
Regular key
12-13
CanH DLC3 ~ 16 pin 06 Gray (DATA) OBDII F
CanL DLC3 ~ 16 pin 14 White (DATA) OBDII F
Immobilizer DLC3 ~ 16 pin 07 Black (DATA) OBDII F
Doorlock Data D143 White 30 pin 26 Pink (DATA) Main body ECU A
Parking Light D143 White 30 pin 30 LtBlue (-) Main body ECU A
12V D109 White 08 pin 05 White (+) Ignition connector D
Ignition 1 D109 White 08 pin 01 LtBlue (+) Ignition connector D
Ignition 2 D109 White 08 pin 06 Pink (+) Ignition connector D
Starter 1 D109 White 08 pin 07 Green (+) Ignition connector D
Starter 2 ~ ~ ~ ~ ~ ~ ~ ~
Accessory D109 White 08 pin 02 Blue (+) Ignition connector D
Page 10 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 3 - WIRING DIAGRAM
161514131211109
87654321 6 7
14
10 11 12 13 14 15 16 17 18
19 20 21 22 23 24 25 26 27 28 29 30
1 2 3 4 5 6
7 8 9
26 30
1234
5678
ORANGE/WHITE - DOORLOCK DATAORANGE/WHITE - DOORLOCK DATA
CANL
CANH IMMO DATA
BROWN/RED - CANHBROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
GRAY/RED - GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
WITHOUT
OEM HOOD
STATUS ONLY
YELLOW (NC)
(NC)
WHITE/BLACK (NC)
BLUE/RED (NC)
(NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLACK (NC)
BLACK (NC)
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
REMOTE STARTER
DOORLOCK DATA
MAIN BODY ECU
PARKING LIGHT (-)
WHITE CONNECTOR
IGNITION CONNECTOR
WHITE
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 11 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 4 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY LOCATION COMPONENT LOCATOR NAME COLOR TYPE
TOYOTA
Venza
Regular key 10-13
CanH D1 White 16 pin 06 Yellow (DATA) OBDII F
CanL D1 White 16 pin 14 White (DATA) OBDII F
Immobilizer D1 White 16 pin 07 Blue (DATA) OBDII F
Doorlock Data D49 White 28 pin 12 LtGreen (DATA) Main body ECU, back side A
Parking Light D50 White 26 pin 23 Red (-) Main body ECU, back side A
12V D12 White 08 pin 07 Blue (+) Ignition connector D
Ignition 1 D12 White 08 pin 06 Red (+) Ignition connector D
Ignition 2 D12 White 08 pin 04 Green (+) Ignition connector D
Starter 1 D12 White 08 pin 01 Green (+) Ignition connector D
Starter 2 D12 White 08 pin 08 Red (+) Ignition connector D
Accessory D12 White 08 pin 03 Green (+) Ignition connector D
Page 12 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 4 - WIRING DIAGRAM
161514131211109
87654321 6 7
14
10
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28
123456789
10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25 26
123456
789
12
23
1234
5678
ORANGE/WHITE - DOORLOCK DATAORANGE/WHITE - DOORLOCK DATA
CANL
CANH IMMO DATA
BROWN/RED - CANHBROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
GRAY/RED - GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
WITHOUT
OEM HOOD
STATUS ONLY
YELLOW (NC)
(NC)
WHITE/BLACK (NC)
BLUE/RED (NC)
(NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLACK (NC)
BLACK (NC)
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
DOORLOCK DATA
MAIN BODY ECU
BACK SIDE
PARKING LIGHT (-)
D49 - WHITE
D50 - WHITE
IGNITION CONNECTOR
WHITE
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART. REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 13 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 5 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY LOCATION COMPONENT LOCATOR NAME COLOR TYPE
TOYOTA
Highlander
Regular key 11-13
CanH OBDII White 16 pin 06 Blue (DATA) OBDII F
CanL OBDII White 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII White 16 pin 07 Gray (DATA) OBDII F
Parking Light D13 White 20 pin 18 LtBlue (-) At light switch ~
12V (10 amp) D24 White 08 pin 05 White/Black (+) Ignition connector D
Ignition 1 D24 White 08 pin 06 LtBlue (+) Ignition connector D
Ignition 2 D24 White 08 pin 01 Black (+) Ignition connector D
Starter 1 D24 White 08 pin 03 Red (+) Ignition connector D
Starter 2 D24 White 08 pin 07 Yellow (+) Ignition connector D
Accessory D24 White 08 pin 02 Gray (+) Ignition connector D
Power liftgate D42 Blue 05 pin 04 Red (-) At power liftgate switch A
Highlander
Hybrid
Regular key
12-13
CanH OBDII ~ 16 pin 06 Black (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 Gray (DATA) OBDII F
Parking Light D13 Black 20 pin 18 LtBlue (-) At light switch ~
12V (10 amp) D70 White 08 pin 05 Green (+) Ignition connector D
Ignition 1 D70 White 08 pin 06 LtBlue (+) Ignition connector D
Ignition 2 D70 White 08 pin 01 Black (+) Ignition connector D
Starter 1 D70 White 08 pin 07 Yellow (+) Ignition connector D
Starter 2 ~ ~ ~ ~ ~ ~ ~ ~
Accessory D70 White 08 pin 02 Gray (+) Ignition connector D
Power liftgate D42 Black 05 pin 04 Red (-) At power liftgate switch A
Page 14 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 5 - WIRING DIAGRAM
161514131211109
87654321 6 7
14
12345
11121314151617181920
12345678910
18
4
1234
5678
CANL
CANH IMMO DATA
(NC)WHITE/BLACK (NC)
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED (NC)
(NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/RED - GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
GRAY/YELLOW (NC)GRAY/YELLOW (NC)
WITHOUT
OEM HOOD
STATUS ONLY
YELLOW (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLACK (NC)
BLACK (NC)
IGNITION (+) OUTPUT
IGNITION (+) OUTPUTPARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
REMOTE STARTER
12V (+) INPUT12V (+) INPUT
POWER LIFTGATE SWITCH (-)
PARKING LIGHT (-)
WHITE CONNECTOR
BLUE CONNECTOR
TRUNK/LIFTGATE (-) OUTPUT
TRUNK/LIFTGATE (-) OUTPUT
IGNITION CONNECTOR
WHITE
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 15 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 6 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY LOCATION COMPONENT LOCATOR NAME COLOR TYPE
TOYOTA
Sienna
Regular key 11-13
CanH D16 White 16 pin 06 Red (DATA) OBDII F
CanL D16 White 16 pin 14 White (DATA) OBDII F
Immobilizer D16 White 16 pin 07 White (DATA) OBDII F
SIL ~ White 12 pin 10 White (DATA) TPMS module next to driver side fuse box A
Doorlock Data D13 White 30 pin 26 Pink (DATA) Main body ECU A
Parking Light D13 White 30 pin 30 Yellow (-) Main body ECU A
12V D27 White 08 pin 07 Red (+) Ignition connector D
Ignition 1 D27 White 08 pin 06 Black (+) Ignition connector D
Ignition 2 D27 White 08 pin 04 Yellow (+) Ignition connector D
Starter 1 D27 White 08 pin 08 Red (+) Ignition connector D
Starter 2 ~ ~ ~ ~ ~ ~ ~ ~
Accessory D27 White 08 pin 03 Blue (+) Ignition connector D
Page 16 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 6 - WIRING DIAGRAM
161514131211109
87654321 6 7
14
10 11 12 13 14 15 16 17 18
19 20 21 22 23 24 25 26 27 28 29 30
1 2 3 4 5 6
7 8 9
26 30
6 5 4 3 2 1
12 11 10 9 8 7
10
1234
5678
ORANGE/WHITE - DOORLOCK DATAORANGE/WHITE - DOORLOCK DATA
CANL
CANH IMMO DATA
BROWN/RED - CANHBROWN/RED - CANH
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
GRAY/RED - GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
WITHOUT
OEM HOOD
STATUS ONLY
YELLOW (NC)
BLUE/RED (NC)
WHITE (NC)
WHITE (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLACK (NC)
BLACK (NC)
WHITE/BLACK - SIL (DATA) VEHICLE SIDE
WHITE/RED - SIL (DATA) CONNECTOR SIDE
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
DOORLOCK DATA
MAIN BODY ECU
PARKING LIGHT (-)
WHITE CONNECTOR
SIL (DATA)
TPMS CONNECTOR
IGNITION CONNECTOR
WHITE
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART. REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 17 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 7 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY LOCATION COMPONENT LOCATOR NAME COLOR TYPE
TOYOTA
Tundra
Regular key 11-13
CanH OBDII ~ 16 pin 06 Violet (DATA) OBDII F
CanL OBDII ~ 16 pin 14 White (DATA) OBDII F
Immobilizer OBDII ~ 16 pin 07 Beige (DATA) OBDII F
SIL J31 White 12 pin 10 Blue (DATA) TPMS module behind glove box B
Parking Light J10 White 20 pin 18 Gray (-) At light switch ~
12V DA White 01 pin 01 Black (+) Fuse box F
Ignition 1 J9 White 08 pin 06 Black (+) Ignition connector D
Ignition 2 J9 White 08 pin 01 LtGreen (+) Ignition connector D
Accessory J9 White 08 pin 02 Gray (+) Ignition connector D
Starter 1 J9 White 08 pin 07 Green (+) Ignition connector D
Page 18 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 7 - WIRING DIAGRAM
161514131211109
87654321 6 7
14
6 5 4 3 2 1
12 11 10 9 8 7
11121314151617181920
12345678910
18 10
1234
5678
REMOTE STARTER
CANL
CANH IMMO DATA
WHITE/BLACK - SIL (DATA) VEHICLE SIDE
BROWN/RED - CANH
BROWN/RED - CANH
WHITE/RED - SIL (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMOBILIZER DATAORANGE/BLACK - IMMOBILIZER DATA
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
GRAY/RED - GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
WITHOUT
OEM HOOD
STATUS ONLY
YELLOW (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK (NC)
BLACK (NC)
BLACK (NC)
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-) OUTPUT
PARKING LIGHT (-)
SIL (DATA)
J10 - WHITE J31 - WHITE
TPMS CONNECTOR
IGNITION CONNECTOR
WHITE
WARNING
DO NOT CONNECT KEYSENSE.
STANDARD (12V, IGNITION, ACCESSORY,
STARTER) REMOTE STARTER
CONNECTIONS TO VEHICLE
ARE REQUIRED.
REFER TO WIRE CHART.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 19 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##

TYPE 8 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY LOCATION COMPONENT LOCATOR NAME COLOR TYPE
TOYOTA
Sequoia
Regular key 11-13
CanH DLC3 White 16 pin 06 Purple (DATA) OBDII F
CanL DLC3 White 16 pin 14 White (DATA) OBDII F
Immobilizer DLC3 White 16 pin 07 Beige (DATA) OBDII F
SIL H40 White 12 pin 10 Blue (DATA) TPMS module behind glove box B
Parking Light H11 White 20 pin 18 Beige (-) At light switch ~
12V ~ White 01 pin 01 White (+) Fuse box D
Ignition 1 H10 White 08 pin 01 Green (+) Ignition connector D
Ignition 2 H10 White 08 pin 06 Black (+) Ignition connector D
Accessory H10 White 08 pin 02 Gray (+) Ignition connector D
Starter 1 H10 White 08 pin 07 Green (+) Ignition connector D
Liftgate H70 White 08 pin 06 Red (-) At liftgate switch A
Page 20 of 27 BLADE-AL(DL)-TL5-EN 20121130
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2012
ALL IN ONE
Scion/ToyoTa
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10213##
