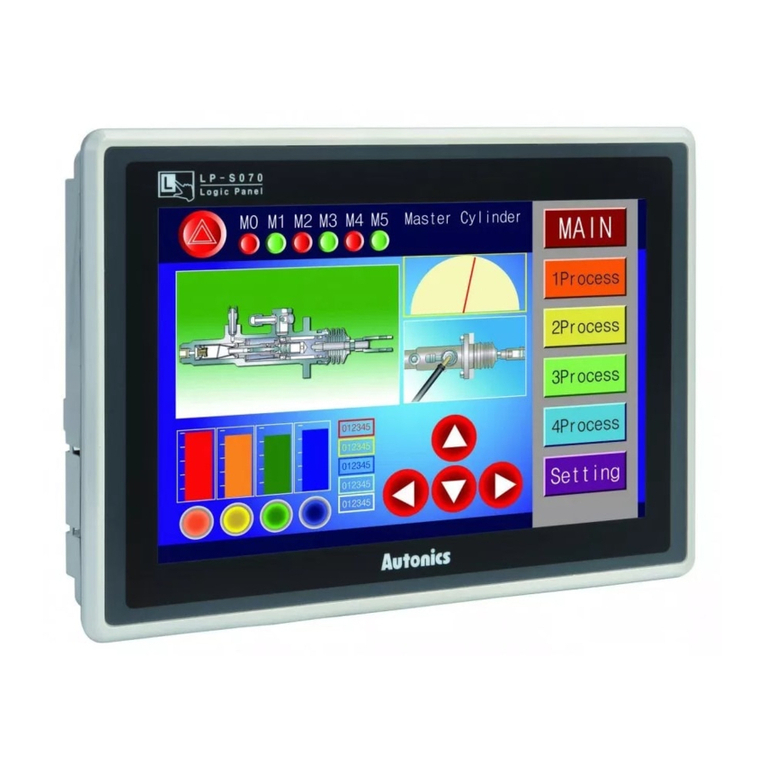

1 System
© Copyright Reserved Autonics Co., Ltd. 11
1System
1.1 Version
Software
Version
Note
GP Editor V4.01 (build 023) —
GP-S070 Firmware V1.20 Release : 2016.01.26
Ms Windows Windows 7 —
GX works2 V1.77F —
1.2 Connections
GP-S070-T9D6 CPU : Q02HCPU, Communication card : QJ71C24N
1.3 Communication cable connection and dimensions
(communication cable model: C3M5P05-D9F0-D9M0)

1 System
12 © Copyright Reserved Autonics Co., Ltd.

2 GP-S070 Communication Setting
© Copyright Reserved Autonics Co., Ltd. 13
2GP-S070 Communication Setting
2.1 GP Editor Setting
1st Select [Project] –[New] on menu.
If you have the saved file, open the project at [Load].
2nd At GP/PLC Type dialog box, set GP/LP Type and CH1/2 Group/Type.
Item
Setting
GP / LP Type
GP-S070 T9D6
CH1 Group / Type
MITSUBISHI Q SERIES /
QhighP_EXT_MC
CH2 Group / Type
No Use

2 GP-S070 Communication Setting
14 © Copyright Reserved Autonics Co., Ltd.
3rd At Project Auxiliary Property dialog box, click ‘OK’and it changes screen to draw.

2 GP-S070 Communication Setting
© Copyright Reserved Autonics Co., Ltd. 15
2.2 GP-S070 Setting
1st Touch top-left of the GP.
2nd Touch ‘Environment’.
3rd Touch ‘Serial Communication’.

2 GP-S070 Communication Setting
16 © Copyright Reserved Autonics Co., Ltd.
4th At serial communication, set as below.
PROTOCOL
PORT
CH1
MITSUBISHI Q SERIES /
QHighP_EXT_MC
RS-232C SET
CH2
No Use
RS-422
SET
5th Touch right ‘SET’ and set as below.
Item
Setting
Note
Baud rate
115200
User setting
Flow control
XON/XOFF
Don’t care
Parity bit
ODD
Fixed
Data bit 8-bit User setting
Stop bit 1-bit User setting

2 GP-S070 Communication Setting
© Copyright Reserved Autonics Co., Ltd. 17
2.3 GX Works2 Setting
1st Run GX Works2 and select [Project] –[New] on menu.
Select project type, PLC series, type, and language.
2nd Select ‘Intelligent Function Module’ and ‘New Module’.

2 GP-S070 Communication Setting
18 © Copyright Reserved Autonics Co., Ltd.
3rd Set items as below.
Item
Setting
Note
Module Type
Serial Communication /
Modem Interface Module
-
Module Name
QJ71C24N
-
Mounted Slot No. 0 Installed slot number
4th Double-click ‘Switch Setting’ and set items as below.

2 GP-S070 Communication Setting
© Copyright Reserved Autonics Co., Ltd. 19
Item
Setting
Note
Operation setting
Independent
Fixed
Data Bit
8
Fixed
Parity Bit
Exist
Fixed
Even/odd parity
Odd
Fixed
Stop bit
1
Fixed
Sum Check code
None
Fixed
Online Change
Enable
Don’t care
Setting modifications Enable Don’t care
Communication rate setting 1152000 bps User setting
Communication protocol setting
MC protocol
(Format1)
Fixed
Station number setting 1 User setting

2 GP-S070 Communication Setting
20 © Copyright Reserved Autonics Co., Ltd.
5th Select ‘Connection Destination’ at Navigation tab and double-click ‘Connection1’.
6th Select connection method. Click ‘Connection Test’ and PLC Type displays Q02/Q02H.
