1 System Organization
© Copyright Reserved Autonics Co., Ltd. 9
1System Organization

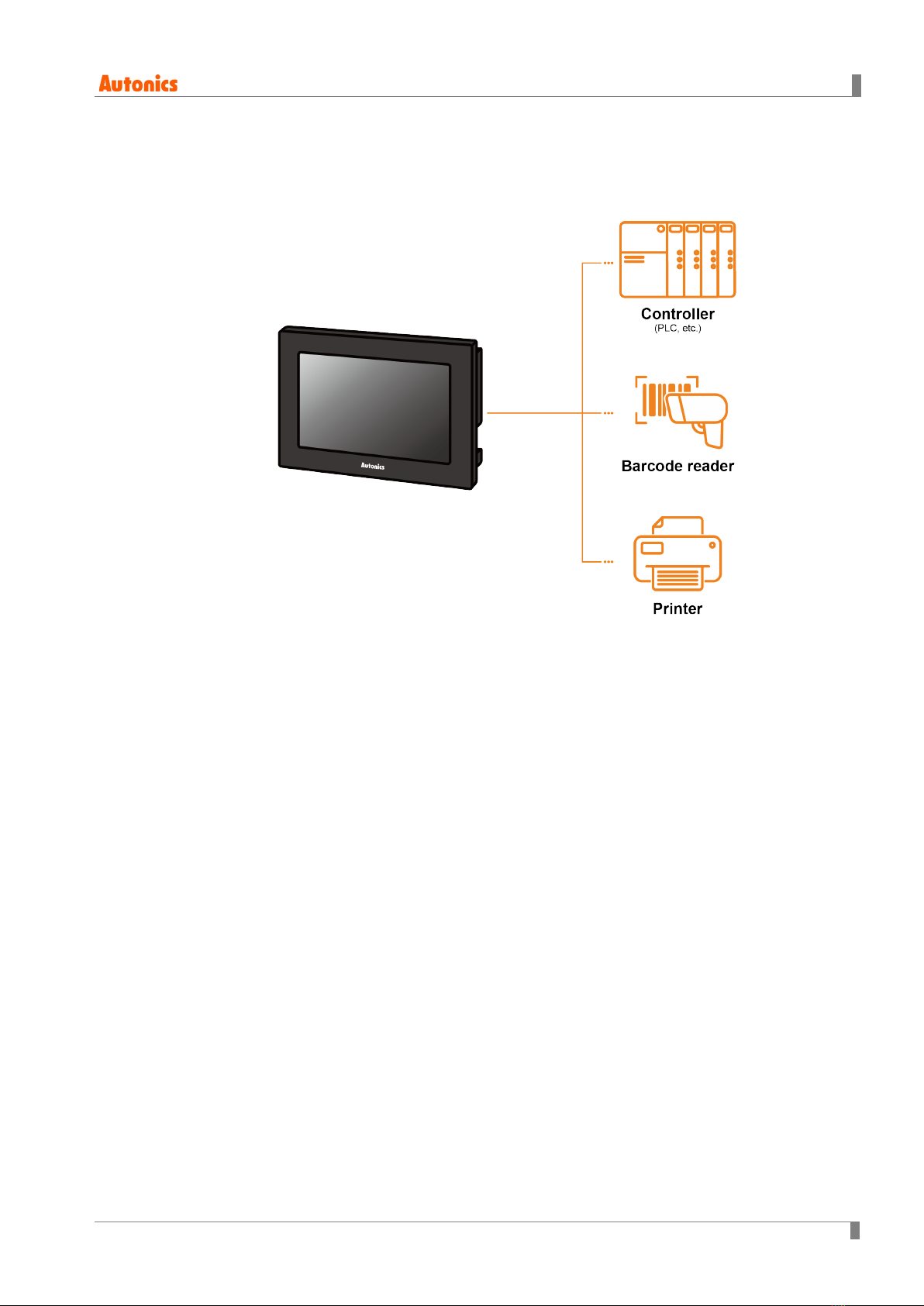

GP/LP can be connected with various controller, barcode reader and printer via RS232C, RS422,
Ethernet, CAN amd USB HOST port.

1 System Organization
10 © Copyright Reserved Autonics Co., Ltd.
1.1 1:1 Communication

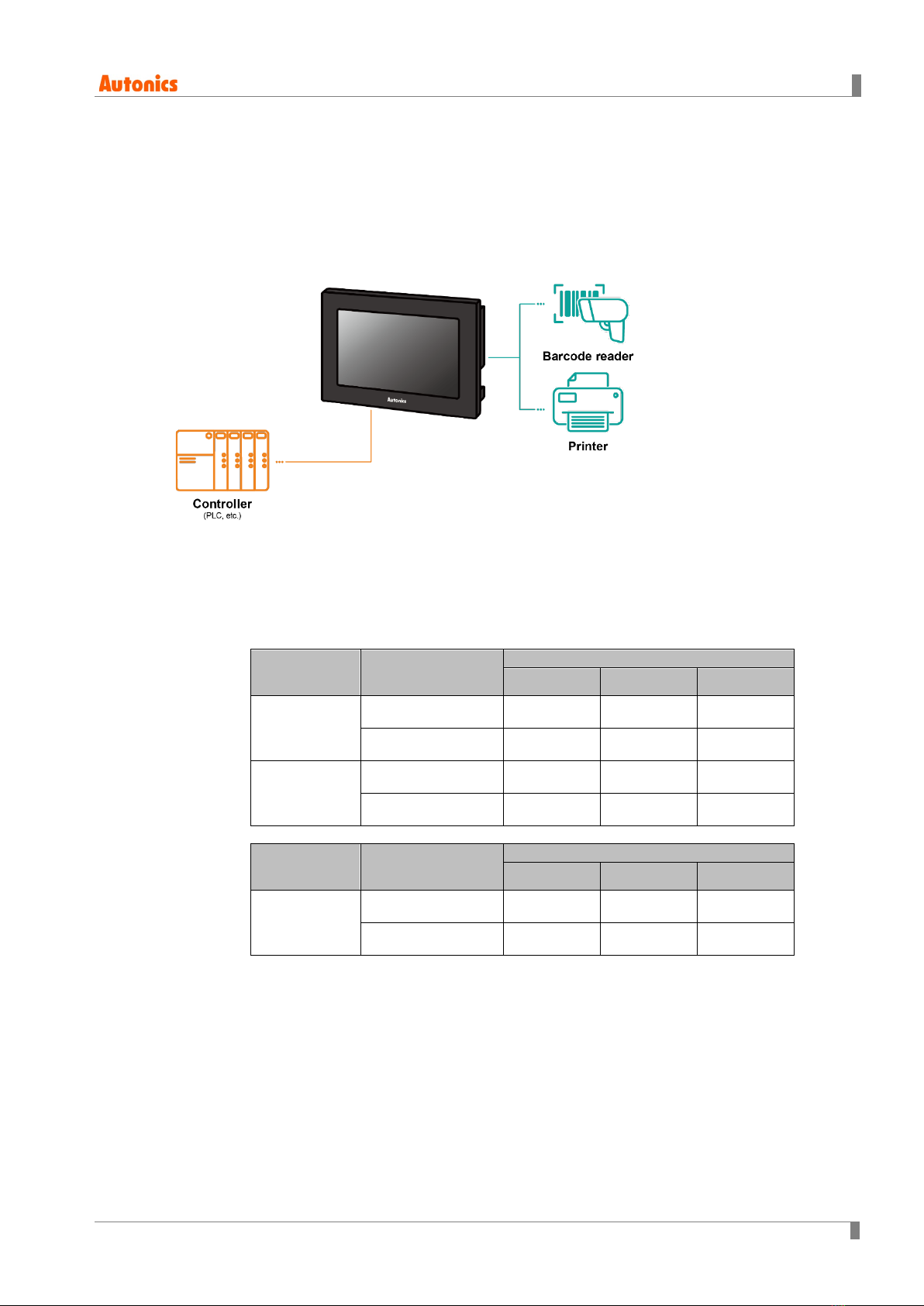

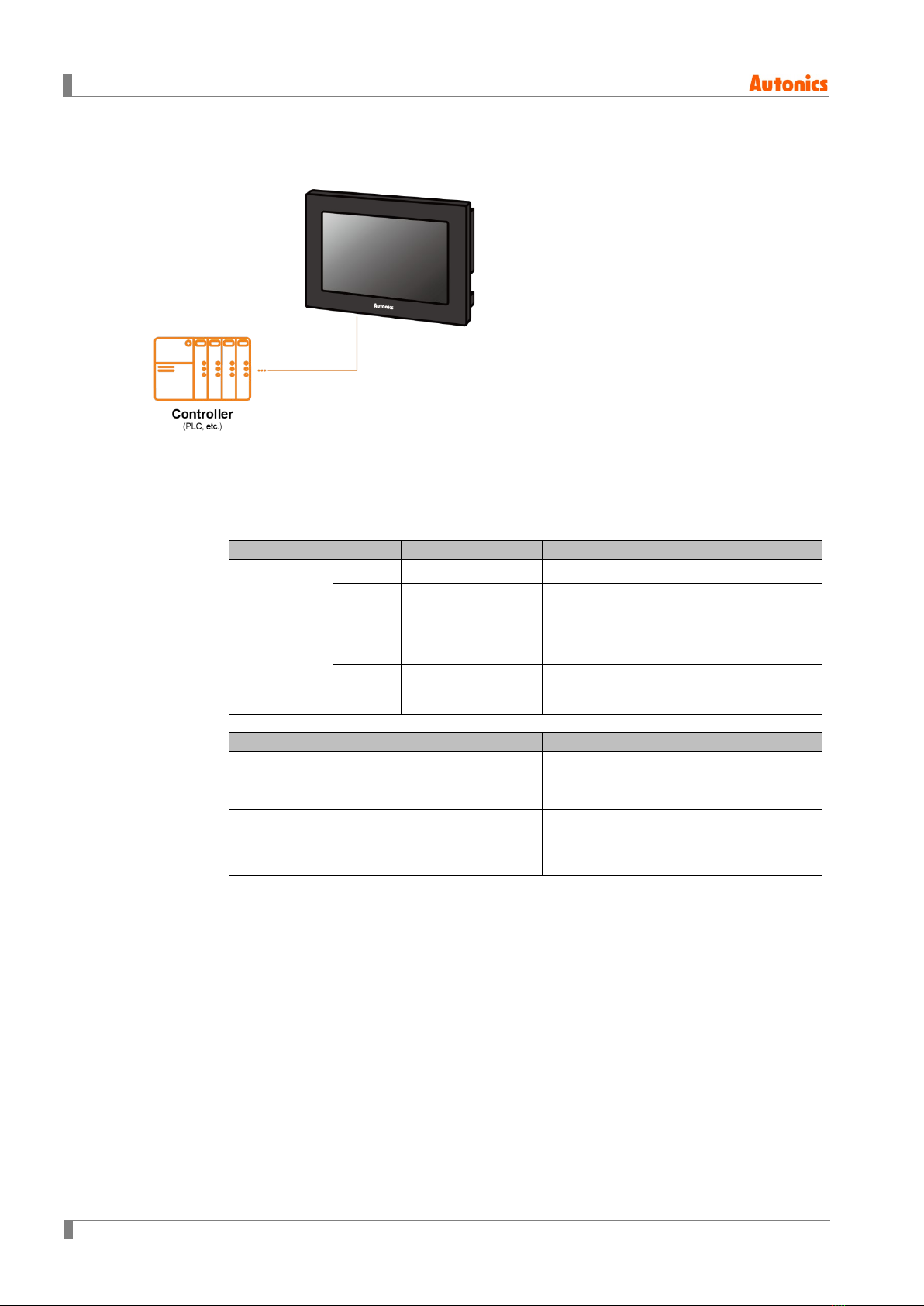

A GP/LP can communicate with a single controller A.
(1) Communication configuration by GP/LP model
The communication configuration by GP/LP model is listed below.
For detailed information about the communication configuration, please refer to ‘GP/LP User
Manual’.
GP/LP-S Series
Series
Chanel
Connecting port
Description
GP/LP-S044,
GP-S057
CH1 RS232C/RS422 Direct communication available
CH2 RS422/RS485 Link device※1communication available
GP/LP-S070
CH1 RS232C/RS422 Direct communication available
Link device※1communication available
CH2 RS422/RS485 Direct communication available
Link device※1communication available
GP/LP-A Series
Series
Connecting port
Description
GP/LP-A070
RS422 or RS232C-A port,
RS232C or RS232C-B port,
Ethernet port
Direct communication available
Link device※1communication available
GP/LP-A104
RS422 or RS232C-A port,
RS232C or RS232C-B port,
Ethernet port, CAN※2 port
Direct communication available
Link device※1communication available
※1: Please refer to ‘GP Editor User Manual’ for Link device instruction.
※2: Only Autonics’ ARD Series can be connected to CAN port.
