Auvon AS8012 User manual

USER MANUAL
Model AS8012
Dual Channel TENS Massager
Relaxation, Anywhere, Anytime
Device Name: TENS and Powered Muscle Stimulator

1
INCLUDED IN THIS STANDARD
PACKAGE
● AUVON®Dual Channel TENS Massager
● SquarePinPads
●RectanglePinPads
●PadsHolder
●Pouch
●SetofLeadWires(½Wire)
●USBCable&USBAdapter
●UserManual
●HappyCard
FEATURES
● 2outputwith20modes
● 20levelintensity
● 20minutesdefaulttimer,canadjustablefrom
10-60minutes
● Rechargeablelithiumbattery
● Batteryindicatortoknowwhenneedto
rechargebattery
● ACadapter110-240V,USBCharger5V
SAFETY PRECAUTIONS AND
WARNINGS
DO NOT USE THIS UNIT UNDER
THESE CONDITIONS

2
Consultwithyourphysicianbeforeusingthisunit.
Theunitmaycauselethalrhythmdisturbances
incertainsusceptibleindividuals.Ifyouhave
hadarecentsurgicalprocedure,thestimulation
maydisruptthehealingprocess.
Beforeusingyourunit,inspectthesethings.
1.Cordisnotbroken.
2.Padgelisnotdamaged.
3.Electrodecordconnectionisnotbroken.
4.Unitisintactandworking.
5.Thereisnobatteryleakage.
DO NOT USE ON THESE INDIVIDUALS
● Pregnantwomen
● Donotuseonchildrenorinfantsbecause
thedevicehasnotbeenevaluatedforpediatric
use
● Keepoutofthereachofyoungchildren
becausetheelectrodecordcouldcause
strangulation
● Personsincapableofexpressingtheir
thoughtsorintentions.
● Personsincapableofoperatingtheunitby
themslelves.
● Usewithcautionifyouhaveatendencyto
bleedinternally,suchasfollowinganinjuryor

3
fracture.
● Ifyouhavesuspectedordiagnosedheart
disease,youshouldfollowprecautions
recommendedbyyourphysician.
● Ifyouhavesuspectedordignosedepilepsy,you
shouldfollowprecautionsrecommendedbyyour
physician
● Usecautionifstimulationisappliedoverthe
menstruatinguterus.
NEVER APPLY THE PADS TO THESE
BODY AREAS:
● Thehead,themouth,oranyareaofthe
face.
● Theneckoranyareaofthethroatbecause
thiscouldcauseseveremusclespasms
resultinginclosureoftheairway,difficultyin
breathing,oradverseeffectsonheartrhythmor
bloodpressure.
● Donotuseneartheheart,orongenitalarea.
● Bothsidesofthethoraxsimultaneously
(lateralorfrontandback),oracrossyourchest
becausetheintroductionofelectricalcurrent
maycauserhythmdisturbanceswhichcouldbe
lethal.
● Onthecalvesofbothlegsatthesametime

4
becausethismaycausecardiacdisturbance.
● Onthebottomofbothfeetatthesametime
becausethismaycausecardiacdisturbance.
Openwoundsorrashesoroverswollen,
red,infectedorinflamedareasorskin
eruptions(suchasvaricoseveins,phlebitis,
thrombophlebitisandthrombosis),orontopof
orclosetocancerouslesions,oroverareasof
skinthatlacknormalsensation.
DO NOT USE THIS UNIT DURING
THESE ACTIVITIES
● Wheninbathorshower;
● Whilesleeping;
● Whiledriving,operatingmachinery,orduring
any activity in which electrical stimulation can
putyouatriskofinjury.
PAIN MANAGEMENT WARNINGS
● Ifyouhavehadmedicalorphysical
treatmentforyourpain,consultwithyour
physicianbeforeusingthisunit.
● Ifyourpaindoesnotimprove,becomes
seriouschronicorsevere,orcontinuesformore
thanfiveyears,stopusingtheunitandconsult
withyourphysician.
● Themereexistenceofpainfunctionsasa

5
veryimportantwarningtellingusthatsomething
iswrong.Therefore,ifyousufferfromany
seriousillness,consultyourphysicianinorder
toconfirmthatitisadvisableforyoutousethis
PowerReliefunit.
PRECAUTIONS REGARDING THE PADS
● Donotmovethepadstoanotherlocation
whiletheunitison.
● Therapywon'tworkwithjustonepad.You
MUSTUSETWOPADSatthesametime.
● Makesurethecomponentsareconnected
wellandthepadsarefixedonthepartofthe
bodyyouwishtotreatorthetherapymaynot
beeffective.
● Padshouldnottouchanymetalobject,such
asbeltbuckle,necklace,orothermetalworn
underclothing.
● Donotoverlappadsorputpadsontopof
eachother.Itmayweakenorstoptherapy,or
theunitmaystopworking.Gelpadsmayalso
sticktogetherandcausegeltoberemoved
whenseparating.
● Donotsharepadswithanotherperson.This
maycauseaskinirritationorinfection.Pads
areintendedforusebyoneperson.

6
● Donotleavepadsattachedtotheskinafter
treatment.
● Donotbendorfoldbecausethegelmayget
damagedanditwon'tstickorfunctionproperly.
● Toavoiddamagetotheadhesivesurface
tothepads,putthepadsonlyontheskinor
ontheplasticpadholderprovidedtoavoid
damagetotheadhesivesurfaceofthepads.
● Alwaysplacecleanpadsinaccordancewith
illustrationsprovided.
● Donotapplyointmentoranysolventto
thepadsortoyourskinbecauseitwilldisrupt
thepadsfromfunctioningproperly.Theself-
adhesivepadswilladheretoyourskin.
HOW DOES IT WORK?
Scientifictheorysuggeststhatelectrical
stimulationtherapymayworkinseveralways:
1. Thegentleelectricalpulsemovethroughthe
skintonearlynervestoblockorshutoutthepain
messagefromthesourceofthepaintoreaching
thebrain.
2. Thegentleelectricalpulseincreasesthe
productionofthebody'snaturalpainkiller,such
asendorphins.
3. Furthermore,itisthoughtthattheelectrical
stimulationimprovesbloodcirculationaswell.

7
Musclescontractandrelaxwiththeflowof
theelectricalstimulation.Withthereplated
contractingandrelaxing,thebloodflowsinand
outandthebloodcirculationimproved.
OPERATING INSTRUCTIONS
HOW TO USE
1.Cleanyourskinbeforeuse.Usethepadson
cleanandflatareas,nosweat,nooil.
2.Attachonepairortwopairsoftheelectrode
padstothemassagerarea,suchasshoulder
andleg.
Note:Addingafewdropsofwateronthepads
anddryingthepadsnaturallywillincreasetheir
longevity.Makesurebothpadsontheskinand
notoverlapping.
3.Connectapairofelectrodepadstoonelead
wirebyplugthemon;theotherendofthewire
isconnectedtotheleftoutputofthedevice.
Similarly,theotherpairofelectrodepadsis
connected to the remaining wire end and the
rightoutputofthedevice.
4.Turnonthedevicebyslidingtheon/off
switchonthetopoftheunit.
5.PresstheAbuttontochooseChannelA.

8
PresstheMbuttontotrydifferentmodeand
press+/-toincreaseordecreaseintensity.
PresstheBbuttontochooseChannelBand
selectyourfavoritemodeandintensity(The
modesonChannelAcanbedifferentwiththat
onChannelB).
Note:Rememberthestrengthwilldefaulttothe
lowestsettingbyeachmodeselection.
6.Recommendedapplicationis10-60
minutes.Increase10minutesbyeachsetting
bypressingtheTonthedevice.Thetime
remaining is automatically counted down until it
turnsoffoncethetimefinishes.
7.Pressandholdthecenterbuttonfor3
secondstolockthescreen,3secondsagainto
unlockthescreen.
AFTER USE
1.Turnoffthedeviceonbyslidingtheon/off
switchonthetopoftheunit.
2.Removeleadwirepinfromelectrode
connectorbygentlytwistingandpullingitout.
3.Liftacorneroftheelectrodeandslowlypeel
itaway.Avoidtouchingthegelasmuchas
possible.
DONOTpeeltheelectrodeoffbythewire.

9

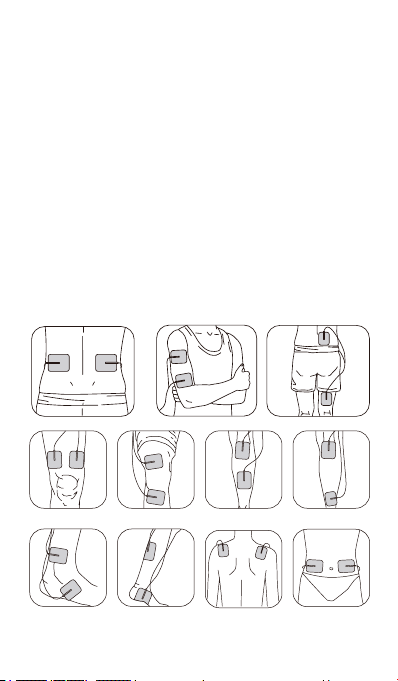

RECOMMEND MASSAGE POINTS
4.Removetheelectrodesbacktothestorage
bagandresealtightlytopreventdry-out.Store
atroomorcooltemperatureandkeepoutof
directsunlight.

10
ILLUSTRATIONS OF THE DEVICE
AND ACCESSORIES

11
Icon & Mode Name Description
1Tuina
Simulating
Tuina is a
hands-onbody
treatment which
openstheflow
ofQithrough
the meridians
2Tuina-
ombination
3Tapping
Simulating
tappingis
intended to
producea
hardthumping
sensation that
massage your
muscles
4Tapping-
ombination
①On/offswitch
②USBport
③Time
④Batteryindicator
⑤AdjustableIntensity(AChannel)
⑥AdjustableIntensity(BChannel)
⑦IntensityDecrease
⑧Channel A
⑨Lock
⑩Mode Selection
⑪IntensityIncrease
⑫ChannelB
⑬Time Selection
⑭Twooutputconnector

12
Icon & Mode Name Description
5Acupuncture Simulating
acupuncture
providesthe
same sensation
without needles
6Acupuncture-
Combination
7Thai
massage
Simulating
Thai massage
to relex your
deeplayersof
muscles
8
Thai
massage-
Combination
9Palm
kneading
Simulating the
feelingofusing
fingersand
palmtoapply
weight to the
body
10
Palm
kneading-
Combination
11 Cupping
Stimulating
cupping,
relatively
constant
stimulation
contracts
muscles
12 Cupping-
Combination

13
Icon & Mode Name Description
13
Lifting
pinching
manipulation Simulating the
thumband
indexfingerlift
theskin
14
Lifting
pinching-
Combination
15 Scrapeing Stimulating the
feelingofscrap
overskinwitha
smooth edged
instrument
16 Scrapeing-
Combination
17
Tapping-
Kneading-
Pushing
Auto
combination
ofTapping-
Kneading-
Pushing
18
Auto-
Combination
1
19
Auto-
Combination
2
Auto
combinationof
several modes
forrelaxation
20
Auto-
Combination
3

14
Problem Possible
Cause Solution
Onepad
feels
stronger
than the
other
This is
normal.
Differentarea
ofyourbody
will react
differently
Nothing needs to
bedone.Make
surethepadsare
moistandmaking
goodcontact.
Theskin
turns red
or the
skinfeels
irritated
The adhesive
thesurface
ofthepadsis
dirty or dry
Washadhesivethe
surfaceofpads
gently with your
fingertipsforabout
3 seconds under
slow running water
Thetherapy
time is too
long or the
intensity is
set too high
Reduce the
applicationtimeor
reduce the intensity
The electrode
padsurfaceis
worn out
Replaceelectrode
pad
TROUBLE SHOOTING
Ifyourdeviceisnotoperatingproperly,please
checkbelowforcommonproblemsand
suggestedsolutions.Iftherecommended
actiondoesnotsolvetheproblem,please
contacttheseller.

15
Problem Possible
Cause Solution
The
intensity
isnotfelt
with a
veryweak
intensity
level
Pads are
not attached
tothebody
firmly
Attachbothpads
firmlytotheskin
The
transparent
filmsarestill
stucktothe
pads
Peelofffilmonthe
adhesivesurface
ofpads
Thepads
stack
together or
overlap
Donotstackpads
togetheroroverlap
pads
The cord is
notproperly
connected to
the unit
Connect cord
correctly into the
jack
The intensity
ofthesetting
is getting
weak
Increasethe
intensity level
Thebattery
capacityis
low
Chargethebattery
Nopower
source;no
displayon
LCD.
Thebattery
capacityis
depleted
Chargethebattery

16
Problem Possible
Cause Solution
Itisdifficult
to attach
thepadto
theskin
Haveyou
remove the
transparent
filmfromthe
pad?
Peelofffilmonthe
adhesivesurface
ofpads
Wasthe
padapplied
immediately
after
washing?
Drythepad
Isthe
adhesive on
thesurface
ofthepad
damaged?
Replacethepad
Power cuts
offduring
use
Thebatteryis
weak Chargethebattery
The cord is
broken Replacethecord
Adhesive
on the
surfaceof
apadsnot
sticky
Pads get
deteriorative
Contact the vendor
forreplacements
Werethe
padsstored
under high
temperature,
high humidity,
or direct
sunshine?
Replacethepad

17
TENS PADS HOLDER
FEATURES
Wide
compatibility
forpatchesin
differentsizes.
Theshapeofsalientpointdesigned
speciallytolessendamagetothe
patches.
Highquality
ABSmaterialto
makesureyour
usesafely.
*TheAUVON®TENSMassageriswith10Massage
Modes,andtotally20Sub-modeChoices.

18
INSTRUCTION
Sticktheelectrodepatcheson
theholdertoavoidgettingdust.
Windthethreadaroundtheholder
foreasyuseasthepictureshown.
Step 1
Step 2
MAINTENANCE AND CARE
l.Whenyouarefinishedusingthedevice,turn
itoffandtakeoffthepads.Storetheunitina
cool,dryplaceuntilnextuse.

19
2.Afterusage,pleasecoverthepadswiththe
protectivefilmandputthembackintheirziplock
bags.Applyingafewdropswaterbeforeandafter
usagewillincreasethelongevityofthepads.
Orsticktheelectrodepatchesontheholderand
windthethreadaroundtheholder.
3.Chargetheunitatleastevery3monthineventit
isnotusedregularly.Youcanalsousetheunitwith
wallchargerordirectlyfromyourcomputerusing
theUSBcable.
Warning：
1.Thestimulatorhasnoanyoutputwhenitis
beingcharged.Youmusttakeofftheelectrode
padsfromyourbodybeforethestimulatorcharged.
2.ChargingonlywiththisACadaptor(Model:
GDP06AV-0500550-UL,manufacturer:Shenzhen
GuandexinTechnologyCo.,Ltd).
Operationenvironmentalforadapter
Normalworkingambient
temperature 5~40℃
Normalworkingambient
humidityandAtmosphere
pressure
≤80%RH;Atmosphere
Pressure:700~1060hPa
Storeandtransport
ambienttemperature -20~55℃
Storeandtransport
ambienthumidityand
Atmospherepressure
≤93%RH;Atmosphere
Pressure:700~1060hPa
