AV Access 4KEX100-KVM User manual

4KEX100-KVM
4K HDBaseT Extender 100m with USB2.0
User Manual

Disclaimers
The information in this manual has been carefully checked and is believed to be
accurate. AV Access Technology Limited assumes no responsibility for any
infringements of patents or other rights of third parties which may result from its
use.
AV Access Technology Limited assumes no responsibility for any inaccuracies that
may be contained in this document. AV Access Technology Limited also makes no
commitment to update or to keep current the information contained in this
document.
AV Access Technology Limited reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright
Copy, Reproduce, Distribute and/or Edit of this document or part of it as well as
utilization of its contents and communication thereof to others without express
authorization are prohibited. Offenders will be held liable for payment of damages.
All rights created by patent grant or registration of a utility model or design patent
are reserved. Copyright ©2016 AV Access Technology Limited All rights reserved.
Trademarks Notice
All products or service names mentioned in this document may be trademarks of
the companies with which they are associated.
Contact Us
Business inquiry: service[email protected]
Technical problems: [e-mail]

Important Safety Instructions
Do not expose this apparatus to rain, moisture, dripping or splashing. No
objects filled with liquids, such as vases, shall be placed on the apparatus.
Do not install or place this unit in a bookcase, built-in cabinet, or in another
confined space. Ensure the unit is well ventilated.
To prevent risk of electric shock or fire hazard due to overheating, do not
obstruct the unit’s ventilation openings with newspapers, tablecloths,
curtains, or similar items.
Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
Do not place sources of naked flames, such as lighted candles, on the unit.
Clean this apparatus only with dry cloth.
Unplug this apparatus during lightning storms or when unused for long
periods of time.
Protect the power cord from being walked on or pinched, particularly at
plugs.
Only use attachments/accessories specified by the manufacturer.
Refer all servicing to qualified service personnel.

www.avaccess.com 1 [e-mail]
Table of Contents
Introduction..........................................................................................................2
Overview .................................................................................................................................. 2
Features .................................................................................................................................... 2
Package Contents.................................................................................................................. 3
Panel .......................................................................................................................................... 4
Transmitter ..................................................................................................................... 4
Receiver........................................................................................................................... 6
Installation and Application.................................................................................8
Installation ............................................................................................................................... 8
Application .............................................................................................................................. 8
EDID Management .............................................................................................10
Specification .......................................................................................................11
Transmitter ................................................................................................................... 11
Receiver......................................................................................................................... 12
Warranty .............................................................................................................14

Introduction
www.avaccess.com 2 [e-mail]
Introduction
Overview
4KEX100-KVM is a 100m 4K HDBaseT 2.0 Extender which offers the distribution of
uncompressed 4K@60Hz UHD video, Analog Stereo, power, RS232 and USB 2.0 up
to 100m/330ft over a single Cat6 or above cable.
With USB 2.0 pass-through and USB Host connector in TX, and USB Device
connectors in RX, it provides remote source PC control with keyboard and mouse,
interactive display operation, data transmission and USB streaming over distances
up to 100m. Additional features include Bi-directional 3.5mm stereo pass through.
With 48V PoH integrated inside, the extender needs only one power supply
connected to TX to power both units. Its 12V power supply is secured with a
screw-on connector to prevent the power from being accidentally disconnected.
It has LED indicators for visual power supply to units and signal status to show
established connection between connected devices.
Features
Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft, 1080P@60Hz up
to 100m/330ft
Via Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz up to
100m/330ft
HDMI 1.4 with 4k@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDBT 2.0
compliance
One-way POH, TX (PSE) with PSU to power both TX and RX (PD)

Introduction
www.avaccess.com 3 [e-mail]
USB 2.0 pass through, USB-Host connector built in TX and 4 x USB-Device
connector built in RX
High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to
100m/330ft
Bi-directional Analog Stereo, and RS232 pass-through over HDBaseT
Independent DIP switch for EDID management
Does not support HDCP
Package Contents
Before you start the installation of the product, please check the package
contents:
Transmitter 4KEX100-KVM x 1
Receiver 4KEX100-KVM x 1
12 VDC 2A Power Supply x 1
Phoenix Male Connector (3.5 mm, 3 pins) x 2
Mounting Brackets (Pair, with Screws) x 2
User Manual x 1

Introduction
www.avaccess.com 4 [e-mail]

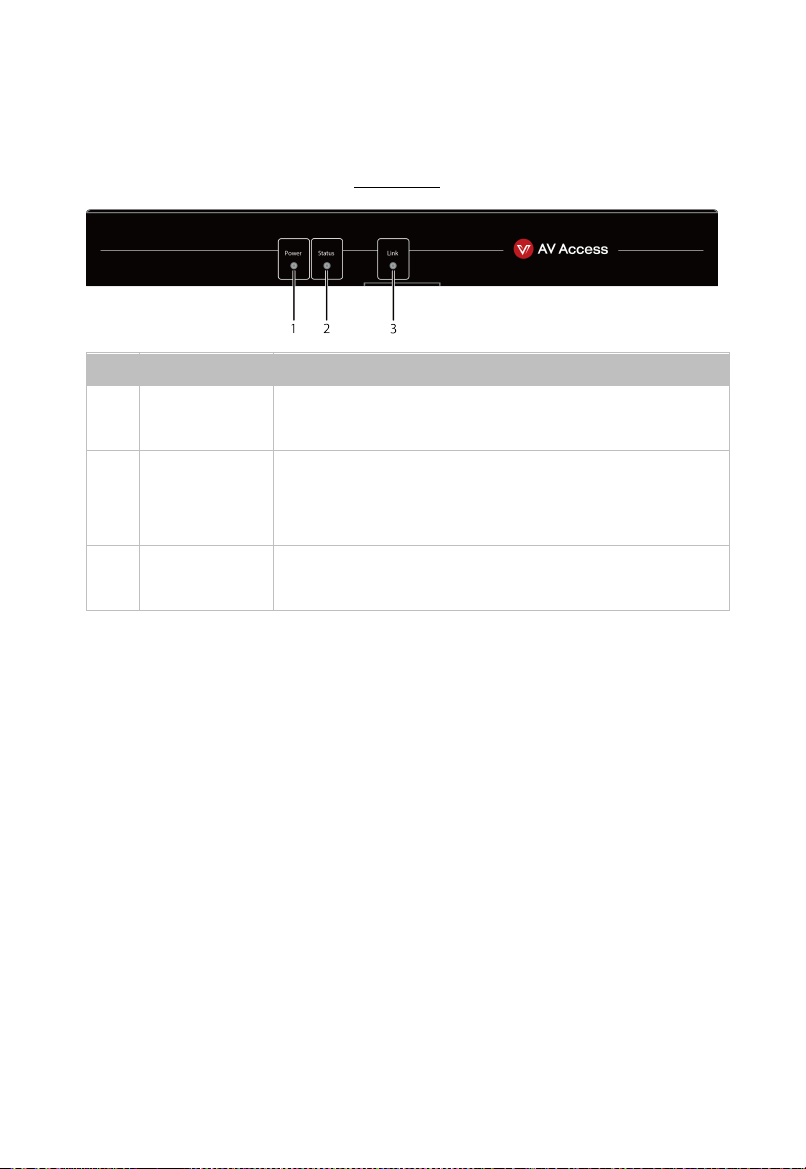

Panel
Transmitter
Front Panel
No. Name Description
1 Power LED ON: The transmitter is powered on.
OFF: The transmitter is powered off.
2 Status LED
Flashing Slowly:
The transmitter is working properly.
OFF: The transmitter is not working properly.
3 Link LED ON: HDBT Link is normal
OFF: No HDBT Link

Introduction
www.avaccess.com 5 [e-mail]
Rear Panel
No. Name Description
1 DC 12V 12V DC power input, threaded port for standard or
locking connection
2 HDBT OUT Connects to HDBT IN port of receiver
3 RS232 RS232 pass through
4 HDMI IN Connects to an HDMI source
5 AUDIO Input:connects to audio devices
Output:connects to audio devices
6 EDID DIP Switch for EDID Management
7 USB HOST Connects to USB-HOST device, such as PC

Introduction
www.avaccess.com 6 [e-mail]
Receiver
Front Panel
No. Name Description
1 Power LED ON:The receiver is powered on.
OFF: The receiver is powered off.
2 Status LED
Flashing Slowly:
The receiver is working properly.
OFF: The receiver is not working properly.
3 Link LED ON: HDBT Link is normal
OFF: No HDBT Link

Introduction
www.avaccess.com 7 [e-mail]
Rear Panel
No. Name Description
1 DC 12V 12V DC power input, threaded port for standard or
locking connection
2 HDBT IN Connects to HDBT OUT port of transmitter
3 RS232 RS232 pass through
4 HDMI OUT Connects to an HDMI Sink
5 AUDIO Input: connects to audio devices
Output:connects to audio devices
6 USB DEVICE Connects to USB device such as keyboard, mouse, USB
camera

Installation and Application
www.avaccess.com 8 [e-mail]
Installation and Application
Installation
Note: Before installation, please ensure the device is disconnected from the power
source.
Steps to install the device in a suitable location:
1. Attach the installation bracket to the enclosure using the screws provided in
the package separately.
2. The bracket is attached to the enclosure as shown.
3. Repeat steps from 1 to 2 for the other side of the unit.
4. Mount the device on a flat and solid surface with the screws (provided by
others).
5. Repeat steps from 1 to 4 to install the receiver.
Application
Note:
Disconnect all power supplies of all devices before installation.
During the installation, connect or disconnect the cables gently.

Installation and Application
www.avaccess.com 9 [e-mail]
Tx Rx G
USB HostEDID
Audio Out
Audio In
HDMI InDC 12V HDBT Out RS232
Tx Rx G
USB Dev ice
1 2
3 4
Audio InHDMI Out
RS232
HDBT I nDC 12V
Audio Out
Displ ay
Headset
USB Camera
Keyboard & Mouse
PC
1
Connect the
HDMI source
2
Connect Audio
Input source
3
Connect USB Host
port to the PC
4
Connect transmitter to receiver via a
Cat 5e/6/7 cable
5
Connect the
HDMI display
7
Connect to
the Headset
6
Connect to
the USB
Devices
Power supply
8
Connect the power
Note: When transmitter
is powered on, receiver
is adapter free.
Note:
The source may be any HDMI source device such as an Apple TV, Blu-ray
player, STB, Xbox, etc.
The display may be any HDMI display device such as a TV, projector,
LED/LCD display, video wall, etc.

EDID Management
www.avaccess.com 10 [e-mail]

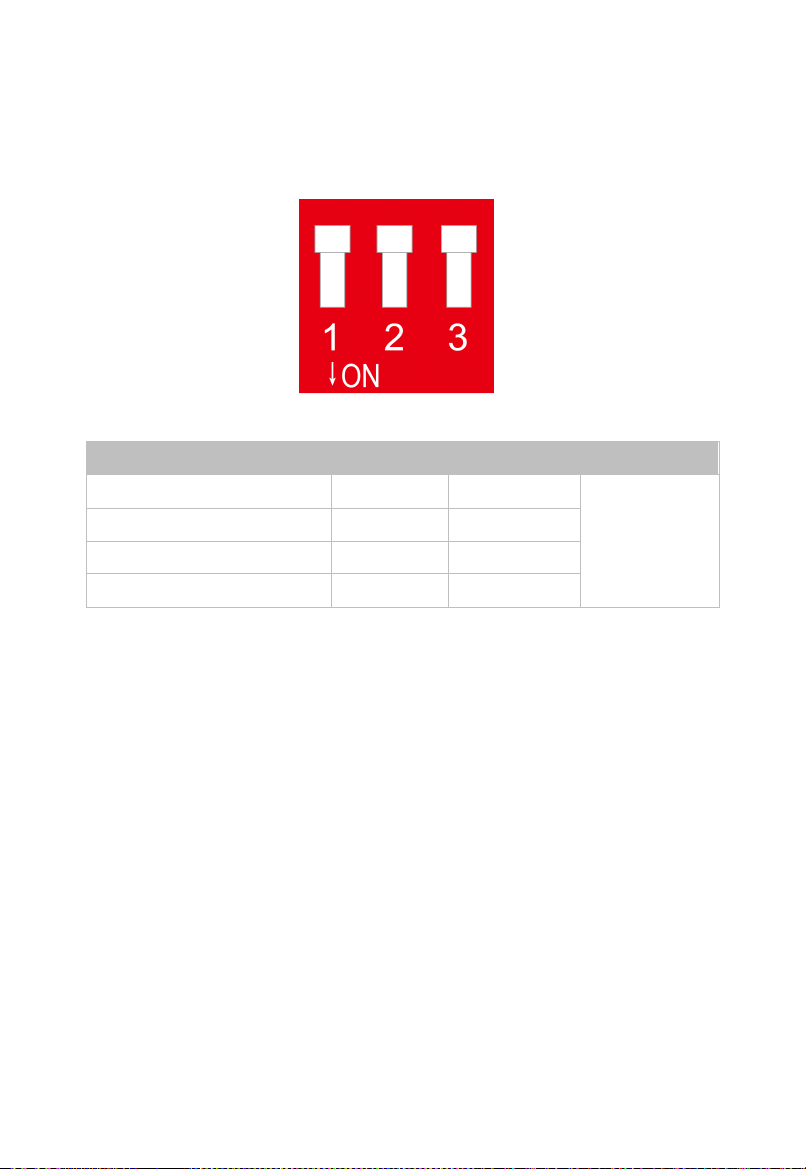

EDID Management
Please use the DIP Switch for EDID management:
DIP Switch Position 1 Position 2 Position 3
EDID Copy (Default) DOWN DOWN
RESERVED
3840 x 2160P@30Hz 2CH DOWN UP
1920 x 1080P@60Hz 2CH UP DOWN
1920 x 1200@60Hz 2CH UP UP
Note: If EDID copy failed, it will use 1080p/2ch as EDID for input.

Specification
www.avaccess.com 11 [e-mail]
Specification
Transmitter
Video
Input Signal Type HDMI 1.4 with 4K
Input Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080P, 1080I, 720P, 576p, 576i, 480p
Maximum Pixel Clock 297MHz
Output Signal Type HDBT 2.0
Output Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080P, 1080I, 720P, 576p, 576i, 480p
Audio
Audio input 3.5mm Mini jack, stereo
Audio output 3.5mm Mini jack, stereo
Control
Control method 1x RS232, 1x USB-Host;
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection
Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Surge Protection
Voltage: ±1 kV
(Ten times respectively for the positive and
negative voltage)
Electrical Fast Transient/Burst Data communication cord: 1 kV

Specification
www.avaccess.com 12 [e-mail]
Power cord: 2 kV
Power Supply DC 12V 2A
Power Consumption
(Maximum) ≤12 W (pair)
Device Dimensions
(W x H x D)
210mm x 25mm x 90.2mm /
8.27’’ x 0.98’’ x 3.55’’
Product Weight 0.44kg/0.97lb
Receiver
Video
Input Signal Type HDBT 2.0
Input Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080P, 1080I, 720P, 576p, 576i, 480p
Maximum Pixel Clock 297MHz
Video
Output Signal Type HDMI 1.4 with 4K
Output Resolution Support
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080P, 1080I, 720P, 576p, 576i, 480p
Audio
Audio input 3.5mm Mini jack, stereo
Audio output 3.5mm Mini jack, stereo
Control
Control method 1x RS232, 4x USB Device
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)

Specification
www.avaccess.com 13 [e-mail]
Humidity 10% to 90%, non-condensing
ESD Protection
Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Surge Protection
Voltage: ±1 kV
(Ten times respectively for the positive and
negative voltage)
Electrical Fast Transient/Burst Data communication cord: 1 kV
Power cord: 2 kV
Power Supply DC 12V 2A
Power Consumption
(Maximum) ≤12 W (pair)
Device Dimensions
(W x H x D)
210mm x 25mm x 90.2mm /
8.27’’ x 0.98’’ x 3.55’’
Product Weight 0.46kg/1.01lb
Transmission Distance
Note: AV Access recommends use of straight-through Category cables wired to
T568B standard.
Cable Type Range Supported Video
Cat 5e 100m/330ft 1080p@60Hz
90m/300ft 1080p@60Hz
1080p@60Hz 3D
4K@30Hz 4:4:4 8bit
4K@60Hz 4:2:0 8bit
Cat 6/6a/7 100m/330ft
HDMI Input/Output: 15m/50ft 1080P@60Hz
Input: 10m/33ft
Output: 15m/50ft
4K@30Hz 4:4:4 8bit
4K@60Hz 4:2:0 8bit

Warranty
www.avaccess.com 14 [e-mail]
Warranty
Products are backed by a limited 3-year parts and labor warranty. For the
following cases AV Access Technology Limited shall charge for the service(s)
claimed for the product if the product is still remediable and the warranty card
becomes unenforceable or inapplicable.
1. The original serial number (specified by AV Access Technology Limited)
labeled on the product has been removed, erased, replaced, defaced or is
illegible.
2. The warranty has expired.
3. The defects are caused by the fact that the product is repaired, dismantled
or altered by anyone that is not from an AV Access Technology Limited
authorized service partner. The defects are caused by the fact that the
product is used or handled improperly, roughly or not as instructed in the
applicable User Guide.
4. The defects are caused by any force majeure including but not limited to
accidents, fire, earthquake, lightning, tsunami and war.
5. The service, configuration and gifts promised by salesman only but not
covered by normal contract.
6. AV Access Technology Limited preserves the right for interpretation of these
cases above and to make changes to them at any time without notice.
Thank you for choosing products from AV Access.

AV Access Technology Limited
V1.0.3
