D30
WIFI SMART DOOR LOCK
User Manual

AVANT GUARD
2
Contents
1. Warning and Safety Instructions ................................................................................. 4
2. Product Layout............................................................................................................. 5
3. Components ................................................................................................................ 6
3.1. Accessories List..................................................................................................... 6
4. Installations................................................................................................................... 7
5. Lock Functions ............................................................................................................. 9
5.1. Unlocking Methods............................................................................................... 9
5.1.1. Fingerprint ...................................................................................................... 9
5.1.2. Password ........................................................................................................ 9
5.1.3. Card.............................................................................................................. 10
5.1.4. Key................................................................................................................ 10
5.1.5. App ............................................................................................................... 11
5.1.6. Temporary Password ................................................................................... 12
5.1.7. One Time Password (Dynamic Password) ................................................. 12
5.2. Locking Methods ................................................................................................ 13
5.2.1. Deadbolt Locking ........................................................................................ 13
5.2.2. Safety knob .................................................................................................. 13
6. Operations.................................................................................................................. 14
6.1. Initial State........................................................................................................... 14
6.2. General Rules of Operations.............................................................................. 14
6.3. Enter Administrator mode .................................................................................. 14
6.4. Administrator Settings......................................................................................... 15
6.4.1. Add Admin................................................................................................... 15
6.4.2. Modify Admin .............................................................................................. 15
6.4.3. Delete Admin............................................................................................... 15
6.5. User Settings ........................................................................................................ 16
6.5.1. Add User....................................................................................................... 16
6.5.2. Modify User .................................................................................................. 16
6.5.3. Delete User ................................................................................................... 16
6.6. Lock Settings ....................................................................................................... 18
6.6.1. Date and Time Setting ................................................................................. 18
6.6.2. Unlock Mode Setting ................................................................................... 18

AVANT GUARD
3
6.6.3. Passage Mode Setting ................................................................................ 18
6.6.4. Alarm Mode Setting..................................................................................... 18
6.6.5. Sound Setting ............................................................................................... 19
6.6.6. Language Setting ........................................................................................ 19
6.6.7. Unlock Records............................................................................................ 19
6.6.8. Storage Query.............................................................................................. 19
6.7. Factory Reset ...................................................................................................... 19
7. App User Manual ....................................................................................................... 20
7.1. App Download.................................................................................................... 20
7.1.1. Apple iOS ..................................................................................................... 20
7.1.2. Android......................................................................................................... 20
7.2. How to connect door lock to App .................................................................... 20
7.3. App Functions ..................................................................................................... 21
7.3.1. Battery Status ............................................................................................... 21
7.3.2. Remote Dynamic Password / One time password ................................... 21
7.3.3. Temporary Password ................................................................................... 22
7.3.4. Remote Unlocking via app ......................................................................... 23
7.3.5. Records ........................................................................................................ 24
8. Specifications............................................................................................................. 26

AVANT GUARD
4
1. Warning and Safety Instructions
i. For best performance of the smart lock, it is highly recommended to engage
a professional smart lock installer for installation.
ii. During installation kindly ensure door is opened until installation is completed.
This is to avoid any unintentional locking happening.
iii. Once the door lock is installed successfully, it is recommended to change the
initial state administrator password immediately.
iv. It is advised not to place the mechanical key inside the room in lock.
Mechanical key should be kept in a safe place in case of emergency.
v. For safety purposes, when 5 continuous entry error detected door lock will
enter self-protection mode and keyboard panel will freeze for 1 minute.
vi. Please read this user manual carefully before first use. Keep this manual for
further guidance in case.

AVANT GUARD
5
2. Product Layout
Smart lock installation requires heavy duty tools handling. Please engage
professionals for proper installation. Our company shall not be liable for any direct or
indirect problems, hazards or losses incurred due to improper installation.

AVANT GUARD
6
3. Components
i. Front and back lock panels
ii. Mortise Lock body
iii. Cylinder lock
iv. IC Card x 2
v. Mechanical keys x 2
vi. AA Batteries x 4

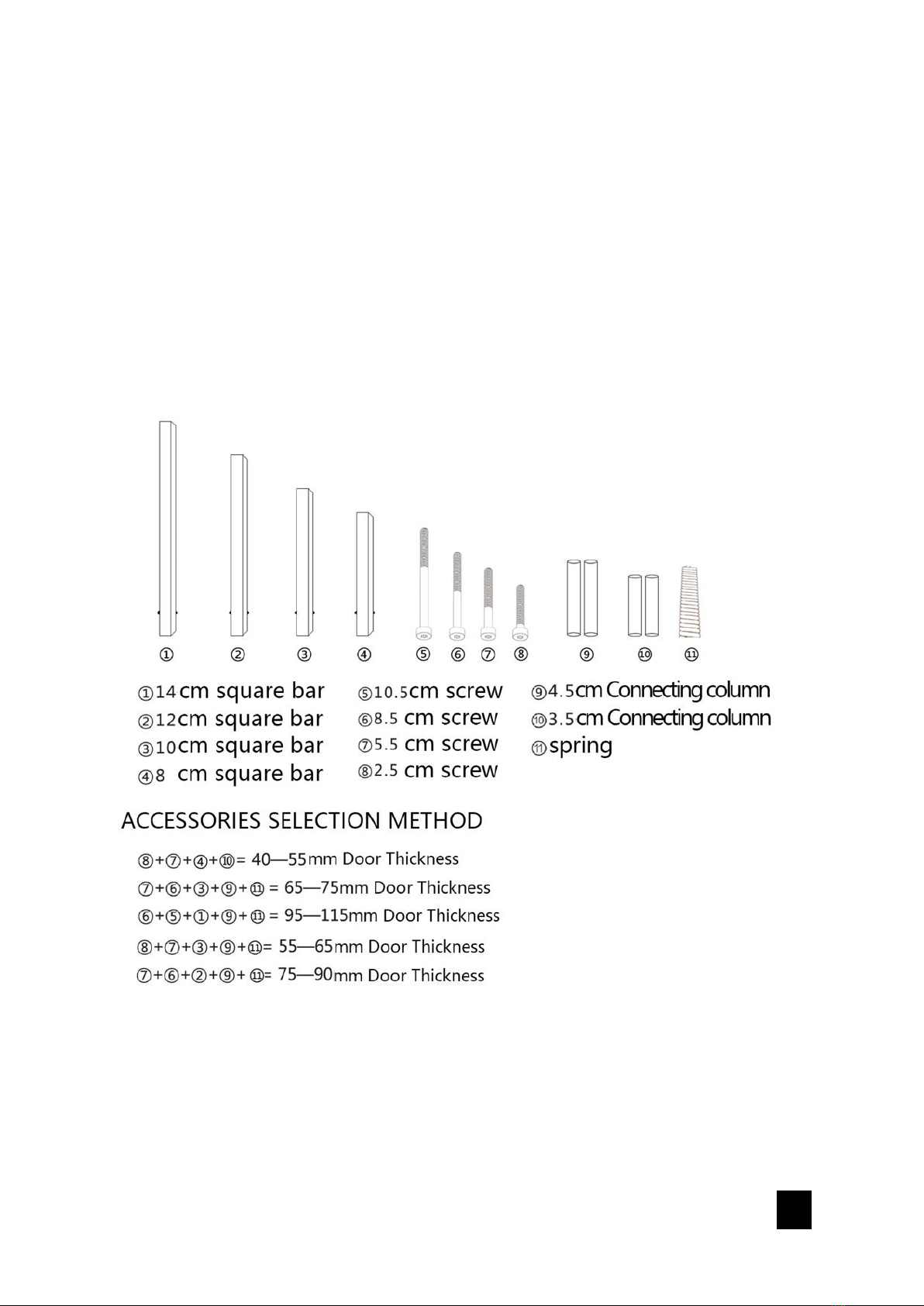

3.1. Accessories List

AVANT GUARD
7
4. Installations

AVANT GUARD
8

AVANT GUARD
9
5. Lock Functions
5.1. Unlocking Methods

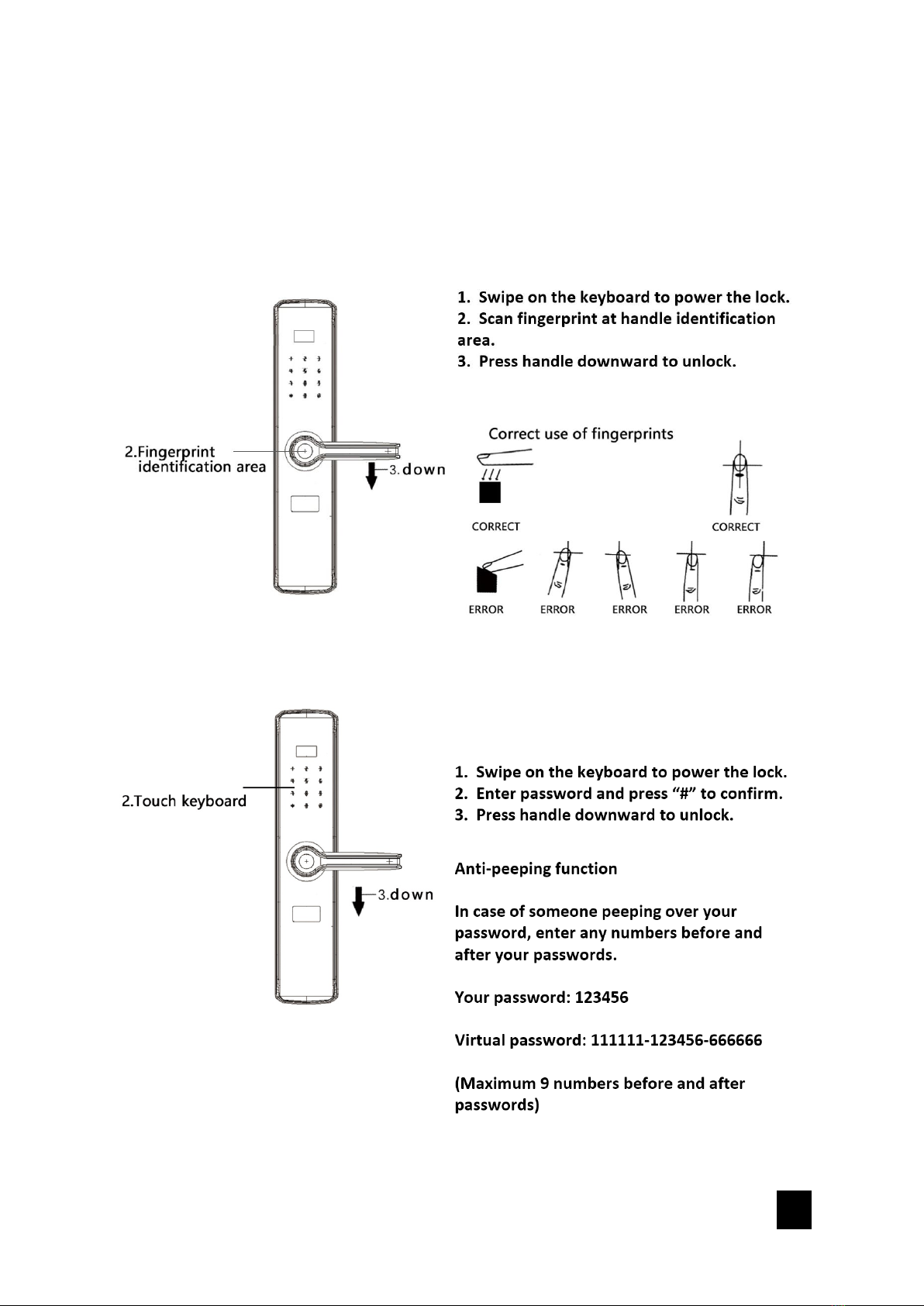

5.1.1. Fingerprint
5.1.2. Password

AVANT GUARD
10
5.1.3. Card
5.1.4. Key

AVANT GUARD
11
5.1.5. App
i. Press “9” + “#” to activate doorbell function
ii. Receive doorbel call notication on app
iii. Open app and select smart lock
iv. Press on “Click open remotely”, then press on “Confirm” to allow remote
opening
v. Door unlocked.

AVANT GUARD
12

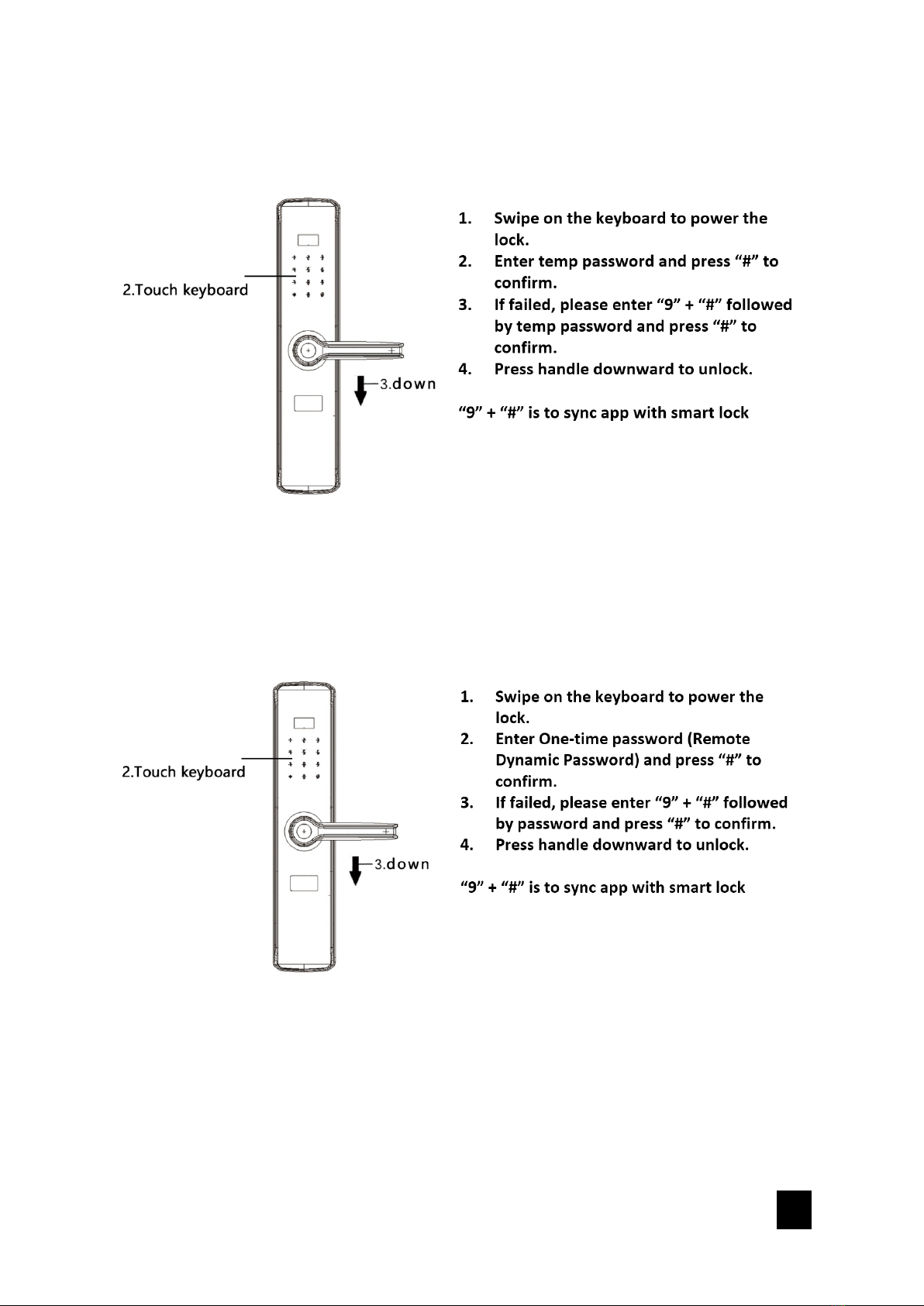

5.1.6. Temporary Password
5.1.7. One Time Password (Dynamic Password)

AVANT GUARD
13

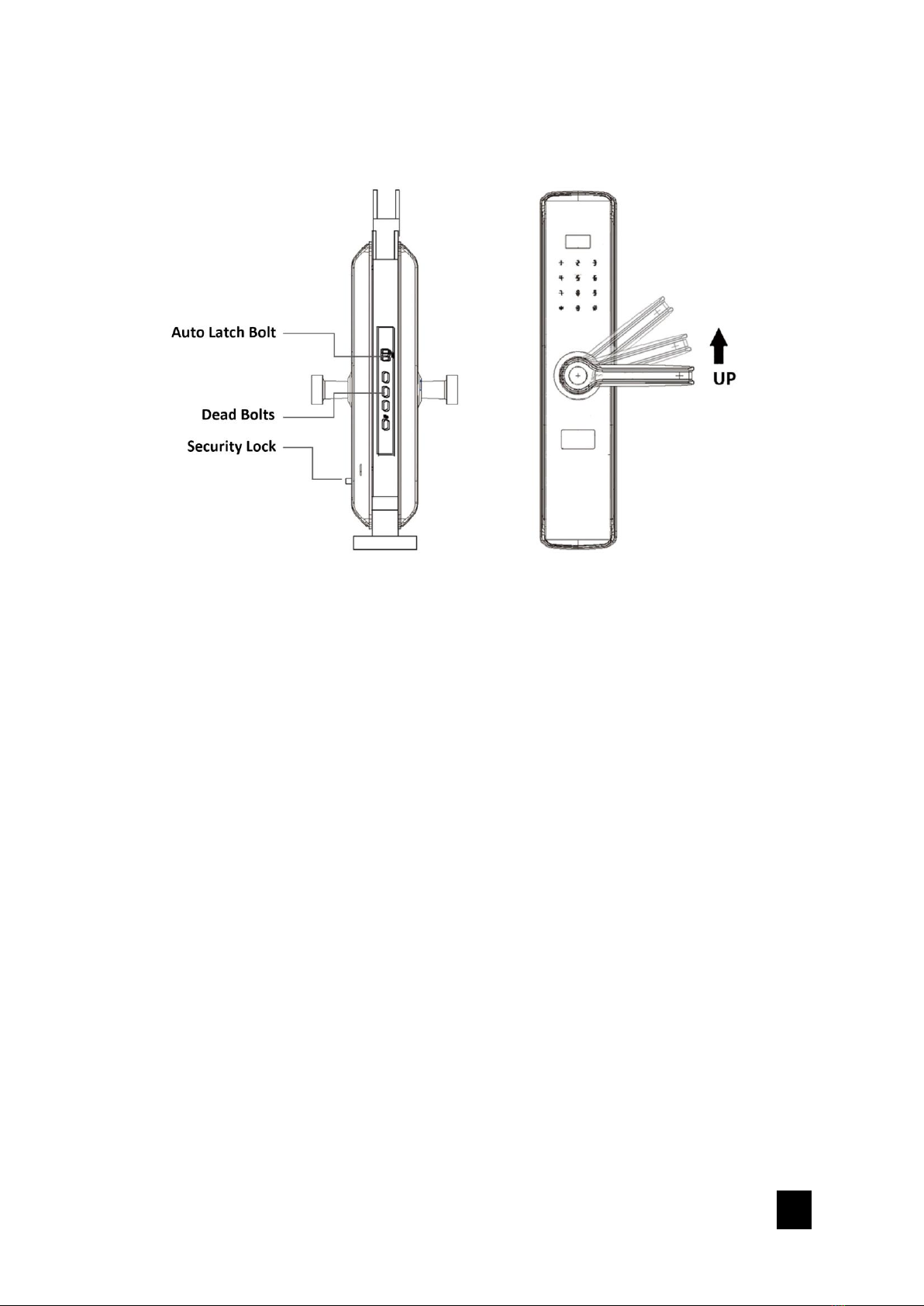

5.2. Locking Methods
5.2.1. Deadbolt Locking
To engage deadbolts locking rotate the internal or external door handle upwards.
5.2.2. Safety knob
Security lock at inside panel for internal locking. Once locked, door opening from
outside is not allowed.

AVANT GUARD
14
6. Operations
6.1. Initial State
i. In factory initial state default password is “123456” to open the door.
ii. In factory initial state any fingerprint can open the door.
iii. After setting administrator information, the initial password “123456” will be
deleted automatically.
6.2. General Rules of Operations
i. Press ‘*” for clear key or back key. When entering password, click to clear
previous input, long press to clear the input.
ii. Press “#”for confirm key or menu function key
iii. Press “9” + “#” for Doorbell key
iv. Swipe panel to activate keypad
6.3. Enter Administrator mode
i. Swipe panel to activate screen
ii. Enter “*” + “#”
iii. Enter Administrator Information (password, fingerprint, or card)
iv. Enter function management

AVANT GUARD
15
6.4. Administrator Settings
6.4.1. Add Admin
6.4.2. Modify Admin
6.4.3. Delete Admin
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 1
1. Add Admin
2. Modify Admin
3. Del Admin
•Press 1
ID: XXX
Enter Info
•Scan Fingerprint
or Enter Password
or Scan Card
•Press "#"
Add OK
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 1
1. Add Admin
2. Modify Admin
3. Del Admin
•Press 2
Enter ID or info to
modify
•Scan Fingerprint
or Enter Password
or Scan Card
•Press "#"
Modify OK
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 1
1. Add Admin
2. Modify Admin
3. Del Admin
•Press 3
Enter ID or info to
delete
•Scan Fingerprint or
Enter Password or
Scan Card
•Press "*" to cancel
•Press "#" to confirm
Delete OK

AVANT GUARD
16
6.5. User Settings
6.5.1. Add User
6.5.2. Modify User
6.5.3. Delete User
6.5.3.1. Delete User by ID
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 2
1. Add User
2. Modify User
3. Del User
•Press 1
ID: XXX
Enter Info
•Scan Fingerprint
or Enter Password
or Scan Card
•Press "#"
Add OK
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 2
1. Add User
2. Modify User
3. Del User
•Press 2
Enter ID or info to
modify
•Scan Fingerprint
or Enter Password
or Scan Card
•Press "#"
Modify OK
1. Admin Setting
2. User Setting
3. System Setting
4. Data &
Records
•Press 2
1. Add User
2. Modify User
3. Del User
•Press 3
1. Delete by ID
2. Delete by Type
3. Delete by All
•Press 1
Enter ID or info
to delete
•Scan
Fingerprint
or Enter
Password or
Scan Card
•Press "*" to
cancel
•Press "#" to
confirm
Delete OK

AVANT GUARD
17
6.5.3.2. Delete User by Type
6.5.3.3. Delete User by All
1. Admin Setting
2. User Setting
3. System Setting
4. Data &
Records
•Press 2
1. Add User
2. Modify User
3. Del User
•Press 3
1. Delete by ID
2. Delete by Type
3. Delete by All
•Press 2
1. Fingerprint
2. Card
3. Password
•1 to delete
fingerprint
users
•2 to delete
card users
•3 to delete
password
users
Confirm
Delete
* #
•Press "*" to
cancel
•Press "#" to
confirm
1. Admin Setting
2. User Setting
3. System Setting
4. Data &
Records
•Press 2
1. Add User
2. Modify User
3. Del User
•Press 3
1. Delete by ID
2. Delete by Type
3. Delete by All
•Press 3
Confirm
Delete
* #
•Press "*" to
cancel
•Press "#" to
confirm
Delete OK

AVANT GUARD
18
6.6. Lock Settings
6.6.1. Date and Time Setting
6.6.2. Unlock Mode Setting
6.6.3. Passage Mode Setting
6.6.4. Alarm Mode Setting
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 3
1. Set Datetime
2. Function Set
3. Language
•Press 1
Time Setting
20__-__-__
__:__
•Enter Date and
Time
Setting OK
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 3
1. Set Datetime
2. Function Set
3. Language
•Press 2
1. Unlock Mode
2. Passage Mode
3. Alarm Mode
4. Sound Mode
•Press 1
1. Single Mode
2. Double Mode
•Press 1 for
single unlock
•Press 2 for
double unlock
Setting OK
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 3
1. Set Datetime
2. Function Set
3. Language
•Press 2
1. Unlock Mode
2. Passage Mode
3. Alarm Mode
4. Sound Mode
•Press 2
1. Enable
2. Disable
•Press 1 to
enable
•Press 2 to
disable
Setting OK
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 3
1. Set Datetime
2. Function Set
3. Language
•Press 2
1. Unlock Mode
2. Passage Mode
3. Alarm Mode
4. Sound Mode
•Press 3
1. Enable
2. Disable
•Press 1 to
enable
•Press 2 to
disable
Setting OK

AVANT GUARD
19
6.6.5. Sound Setting
6.6.6. Language Setting
6.6.7. Unlock Records
6.6.8. Storage Query
6.7. Factory Reset
i. Long press the “Reset” button on the back panel for 5 seconds.
ii. System will enter the state of restored factory settings. All unlock information
and record will be cleared.
iii. Initial password will be “123456” for administrator.
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 3
1. Set Datetime
2. Function Set
3. Language
•Press 2
1. Unlock Mode
2. Passage Mode
3. Alarm Mode
4. Sound Mode
•Press 4
1. Enable
2. Disable
•Press 1 to
enable
•Press 2 to
disable
Setting OK
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 3
1. Set Datetime
2. Function Set
3. Language
•Press 3
1. Chinese
2. English
•Press 1 for Chinese
•Press 2 to English
Setting OK
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 4
1. Unlock records
2. Storage info
•Press 1
1. Quick query
2. Query by time
•Press 1 for all
records
•Press 2 to enter
date
MGT: XXX <FPM>
ADD: XXX <PW>
___________________
UNLK: XXX<FPM>
•"4" for previous
•""6" for next
•"*" to return
1. Admin Setting
2. User Setting
3. System Setting
4. Data & Records
•Press 4
1. Unlock records
2. Storage info
•Press 2
1. Admin's info
2. User's info
•"1" for Admin
•"2" for User
PW: XXX FP: XXX
CARD: XXX
TOTAL: XXX
REMAIN: XXX
•"*" to return

AVANT GUARD
20
7. App User Manual
7.1. App Download
7.1.1. Apple iOS
Download the “Smart Life - Smart Living” app at below link and install.
https://apps.apple.com/us/app/smart-life-smart-living/id1115101477
7.1.2. Android
Download the app “Smart Life - Smart Living” at below link and install.
https://play.google.com/store/apps/details?id=com.tuya.smartlife
7.2. How to connect door lock to App
i. Power on the smart lock by (re)inserting the batteries.
ii. Long press “Reset” button at the back panel to factory reset the smart lock.
iii. Press “*” + “#” and reset Admin information.
iv. In the app tap the “+” button in the upper right corner to add device
v. Go to “Security & Video Surveillance” under “Add Manually”
vi. Tap the “Lock (Wi-Fi)” under “Smart Lock” category.
vii. Select 2.4GHz WiFi network and enter password. If Wi-Fi is 5GHz, please set it to
be 2.4GHz.
viii. Short press on “Reset” button at the smart lock back panel. You may ignore
the password order. Wait for connection.
ix. Connection successful.
