Avantco 177MX40H User manual

User Manual
www.AvantcoEquipment.com
11/2023

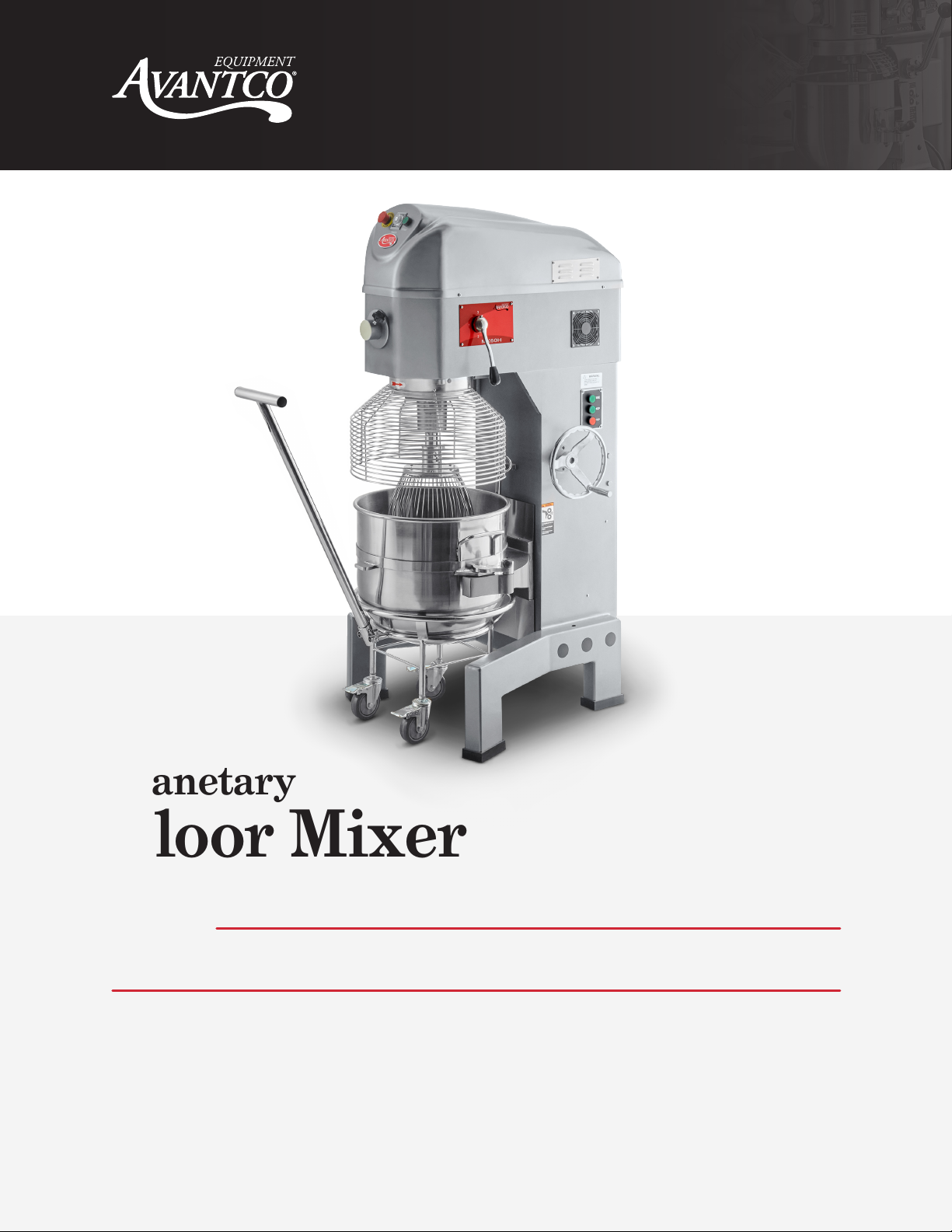

#177MX40H 60 Qt. • 240V • 2 1/2 HP
Models:
Planetary
Floor Mixer
Please read and keep these instructions. Indoor use only.
Note:
Improper installation, adjustment, alteration, service, or
maintenance can cause property damage, injury, or death.
Read the installation, operating, and maintenance instructions
thoroughly before installing or servicing this equipment.
Warning:
Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
For Your Safety:

User Manual
60 Qt. Planetary Floor Mixer
2
www.AvantcoEquipment.com
Table of Contents
Specifications
CONFORMS TO NSF STD. 8
CONFORMS TO UL STD. 763
CONFORMS TO CSA STD. C22.2 NO 195
4009293
HARD
WIRED
4009293
Model 177MX60H
Voltage 240V
Wattage 1750W
Horsepower 2 1/2 HP
Max. Flour Capacity 50 lb.
Mixing
Speed
Whip 550 RPM
Flat Beater 265 RPM
Dough Hook 137 RPM
Hub
Attachment
53/101/210
RPM
Specifications ..............................................................................................................................................2
Safety Precautions .....................................................................................................................................3
Parts Identification .....................................................................................................................................4
Installation ....................................................................................................................................................4
Operation .....................................................................................................................................................5
Mixer Capacity Chart .................................................................................................................................6
Attachment Guide ......................................................................................................................................6
Safety Guard Removal ..............................................................................................................................8
Cleaning & Maintenance..........................................................................................................................9
Troubleshooting..........................................................................................................................................9

User Manual
60 Qt. Planetary Floor Mixer
3
www.AvantcoEquipment.com
WARNING
• Read all instructions carefully and completely.
• For commercial use only.
• Protect against electrical shock by keeping all cords, plugs, and other electrical components away
from water or other liquids.
• Unplug this unit when not in use and before cleaning.
• DO NOT operate this unit or any appliance with a damaged electrical cord or plug.
• DO NOT operate this or any appliance after it has malfunctioned or has been damaged in any way.
• DO NOT use outdoors.
• Disconnect the unit by removing the electrical plug from the wall outlet.
• DO NOT use appliance for any application other than its intended use.
• DO NOT store any item on top of this unit when in operation.
• DO NOT allow this unit to touch or to be covered by flammable material such as curtains, draperies,
walls, etc. when in operation.
• DO NOT clean with metal scouring pads, as pieces can break o and touch electrical components,
heightening the risk of electrical shock.
• Avoid scratching the surface or nicking the edges of this unit.
• Turn o the appliance by removing the plug from wall outlet.
• Note that the use of accessories not recommended by the manufacturer may result in injury.
• Children should be supervised to ensure that they DO NOT play with the unit.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory,
or mental capabilities, or lack of experience and knowledge, unless a person responsible for their
safety has given them supervision or instruction concerning use of the appliance.
Safety Precautions
Save these instructions for future reference.

User Manual
60 Qt. Planetary Floor Mixer
4
www.AvantcoEquipment.com

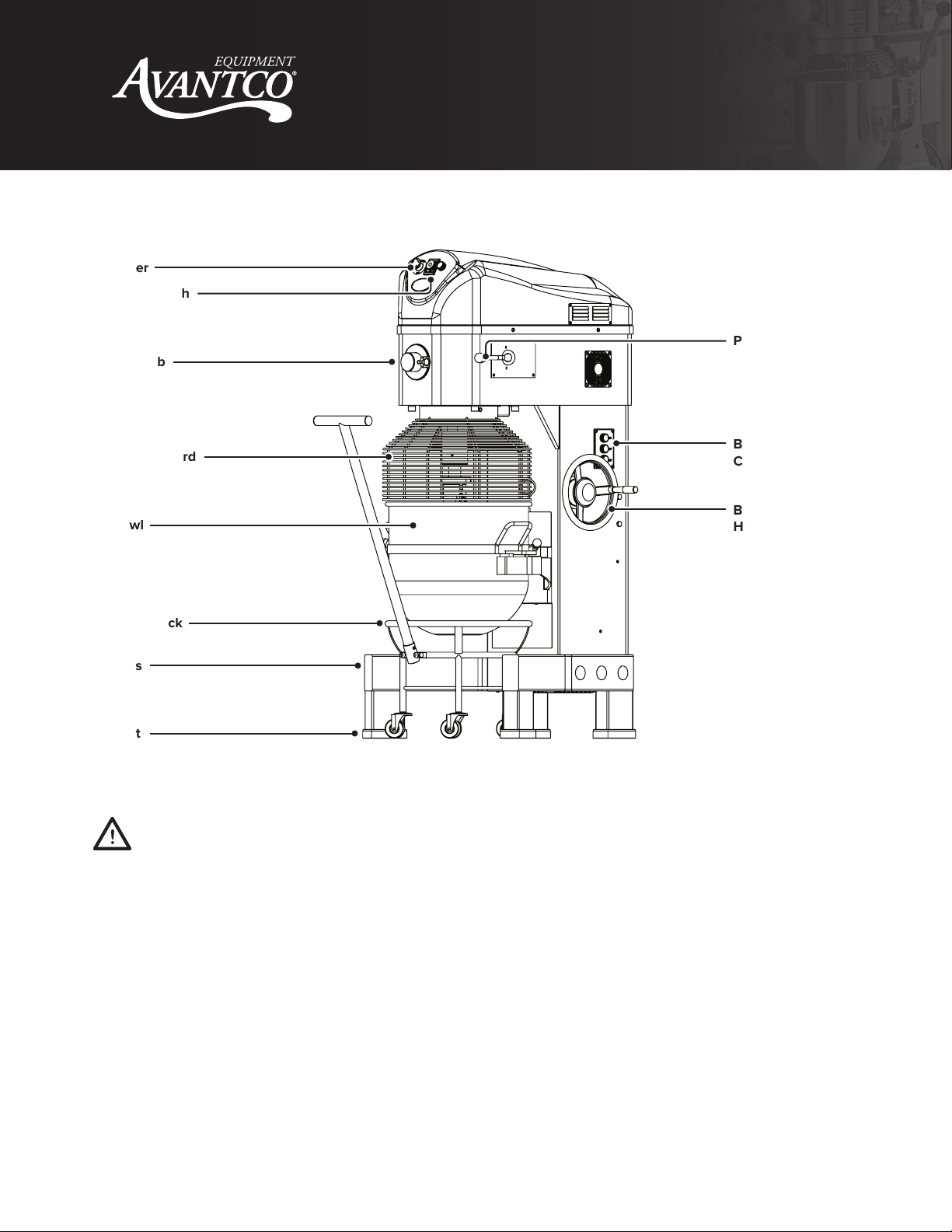

Parts Identification
Installation
1. Prior to installation, the electrical supply to the unit must be checked to ensure it complies to the
electrical rating of the machine as detailed on the serial plate.
2. The unit must be positioned on a sturdy, level surface.
3. The unit must be positioned so that there is sucient space to operate the controls and to raise and
lower the mixing bowl without obstruction.
4. Three phase motors must rotate in the direction of the arrow on the safety guard. In order to check
rotation, press the bowl lift up button and press the stop immediately. Observe if the bowl is traveling
in the up direction. If the bowl travels downwards, swap the L1 and L2 supply cord leads.
• This mixer DOES NOT come with a plug and must be hard wired. Consult a professional electrician
for installation.
• If the phase sequence is incorrect, the motor will rotate in the WRONG DIRECTION, leading to
equipment damage, failure, or even injury.
• Electrical and grounding connections must comply with the applicable portion of the National
Electrical Code and/or other local electrical codes.
#12 Hub
Timer
Start Switch
Power Switch
Bowl Lift
Hand Wheel
Bowl Lift
Control
Safety Guard
Bowl
Legs
Bowl Truck
Feet
WARNING

User Manual
60 Qt. Planetary Floor Mixer
5
www.AvantcoEquipment.com
Operation
1. Open the safety guard and lower the bowl using the bowl lift handle.
2. Ax the appropriate attachment to the agitator by raising it onto the mixing axle and rotating
clockwise on the shaft until it locks into place. To remove, raise the agitator on the shaft until it clears
the lock and then rotate counterclockwise and lower. (See Attachment Guide on Page 6-7.)
3. Load product into the bowl, being careful to not over load. (See Mixer Capacity Chart on Page 6.)
4. Raise the bowl into position using the bowl lift controls.
5. Close the safety guard.
NOTE: The machine will not operate if the guard and bowl are in incorrect/lowered positions.
6. Set the timer to desired operating time between 1-30 minutes.
NOTE: The timer does not require adjustment for every cycle and will default to pre-set time until
changed by the operator.
7. Set the desired mixing speed using the handle suitable for the attachment fitted and product being
processed. (See Mixer Capacity Chart on Page 6.)
• Low Speed: Position 1, knob facing forwards.
• Medium Speed: Position 2, knob facing up.
• High Speed: Position 3, knob facing down.
8. After time and speed have been set, press the ON button. The unit will run for the time period set and
then switch OFF automatically.
9. The red emergency STOP button will shut down the machine at any time during the cycle.
1. Turn the mixer OFF and remove any agitator attachment.
2. Loosen the hub mounting screw and remove the attachment hub cover.
3. Insert and align the attachment shaft into the attachment hub and ensure the attachment is fully inserted.
4. Tighten the hub mounting screw.
5. Operate according to directions above, starting with step 4.
• ALWAYS turn o the machine before changing speeds. Failure to do so may damage the gearbox
and void the warranty.
• ALWAYS make sure the bowl is securely attached and in the fully lifted position and the safety guard
is closed before operation.
• DO NOT run the mixer with hub accessory and agitator at the same time.
• Bowl lift handle is supplied loose and can be used to raise and lower the bowl in the event of a
power failure. THIS HANDLE MUST NOT BE FITTED IN NORMAL OPERATION.
CAUTION
Using the Attachment Hub

User Manual
60 Qt. Planetary Floor Mixer
6
www.AvantcoEquipment.com
Mixer Capacity Chart

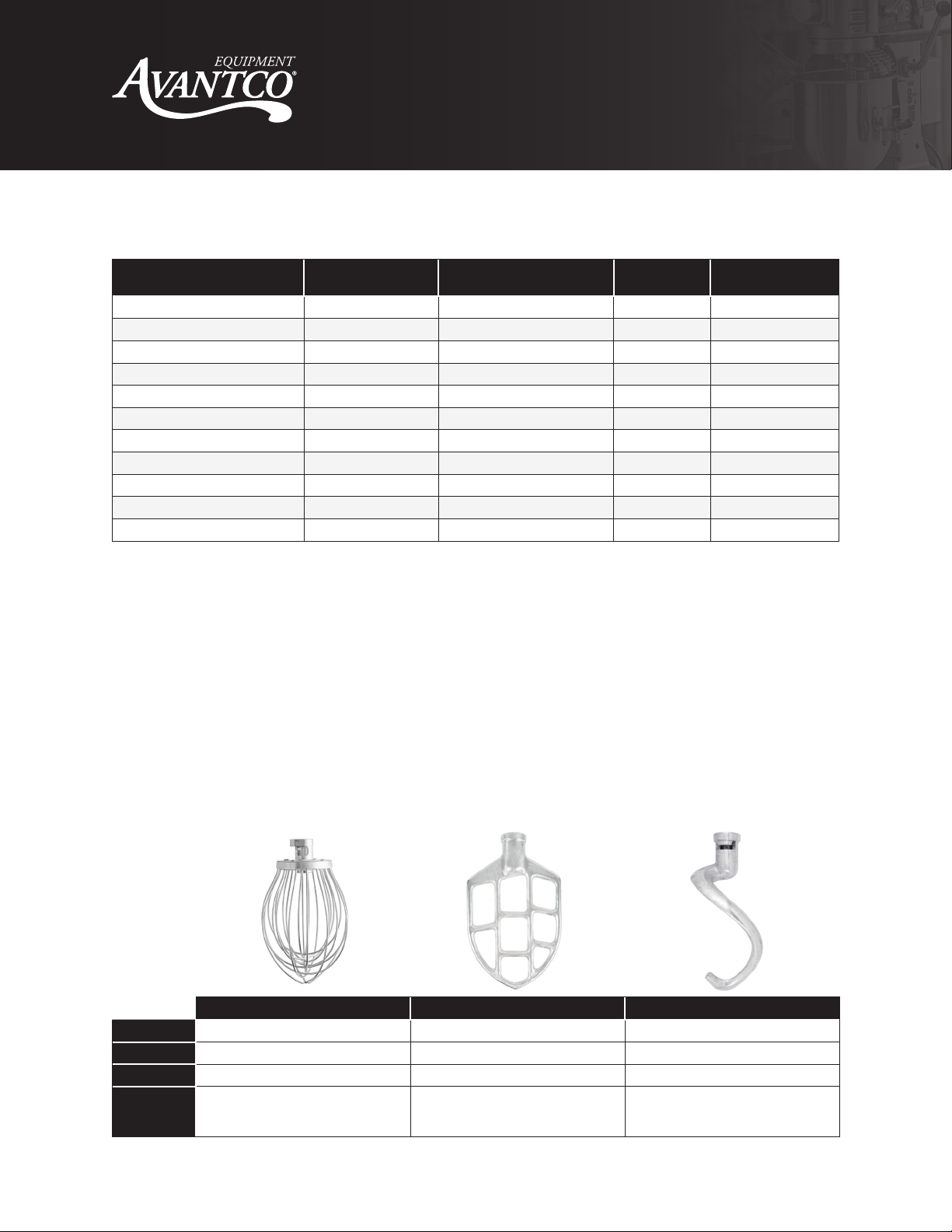

Attachment Guide
Standard Attachments
• Absorption ratio (AR) is found by dividing water weight by flour weight.
EXAMPLE: If a recipe calls for 5 lb. of water and 10 lb. of flour, the AR would be 50% (5 ÷ 10 = 0.50).
• Above capacities are based on 12% flour moisture at 70°F water temperature.
• If high-gluten flour is used, reduce above dough batch size by 10%.
• 2nd and 3rd speeds should NEVER be used on mixtures with less than 50% AR.
• Helpful conversions when calculating which mixer is appropriate for your usage:
• 1 Gallon of Water = 8.3 lb.
• 1 Quart of Water = 2.08 lb.
Product Absorption Ratio Agitator Speed Maximum Bowl
Capacity
Bread & Roll Dough 60% AR Dough Hook 1 50 lb.
Heavy Bread Dough 55% AR Dough Hook 1 40 lb.
Pizza Dough, Thin 40% AR Not Recommended* -25 lb.
Pizza Dough, Medium 50% AR Not Recommended* - 35 lb.
Pizza Dough, Thick 60% AR Not Recommended* - 40 lb.
Raised Donut Dough 65% AR Dough Hook 125 lb.
Mashed Potatoes -Flat Beater 1 / 2 / 3 35 lb.
Wae or Pancake Batter -Flat Beater 1 / 2 / 3 20 qt.
Egg Whites -Wire Whip 1 / 2 / 3 2 qt.
Whipped Cream -Wire Whip 1 / 2 / 3 6 qt.
Cake Batter -Flat Beater 1 / 2 / 3 35 lb.
Whisk Flat Beater Dough Hook
Item # 177MX60WHISK 177MX60BEAT 177MX60HOOK
Usage Liquids and soft ingredients Dry ingredients Dough
Speeds 1 / 2 / 3 1 / 2 ONLY 1 ONLY
Notes DO NOT run more than 15 minutes. DO NOT use in high speed.
DO NOT run more than 15 minutes.
DO NOT use in med/high speed.
DO NOT run more than 20 minutes.
AR must be > 50%.
*The motor of this unit is not designed to handle large batches of pizza dough.

User Manual
60 Qt. Planetary Floor Mixer
7
www.AvantcoEquipment.com

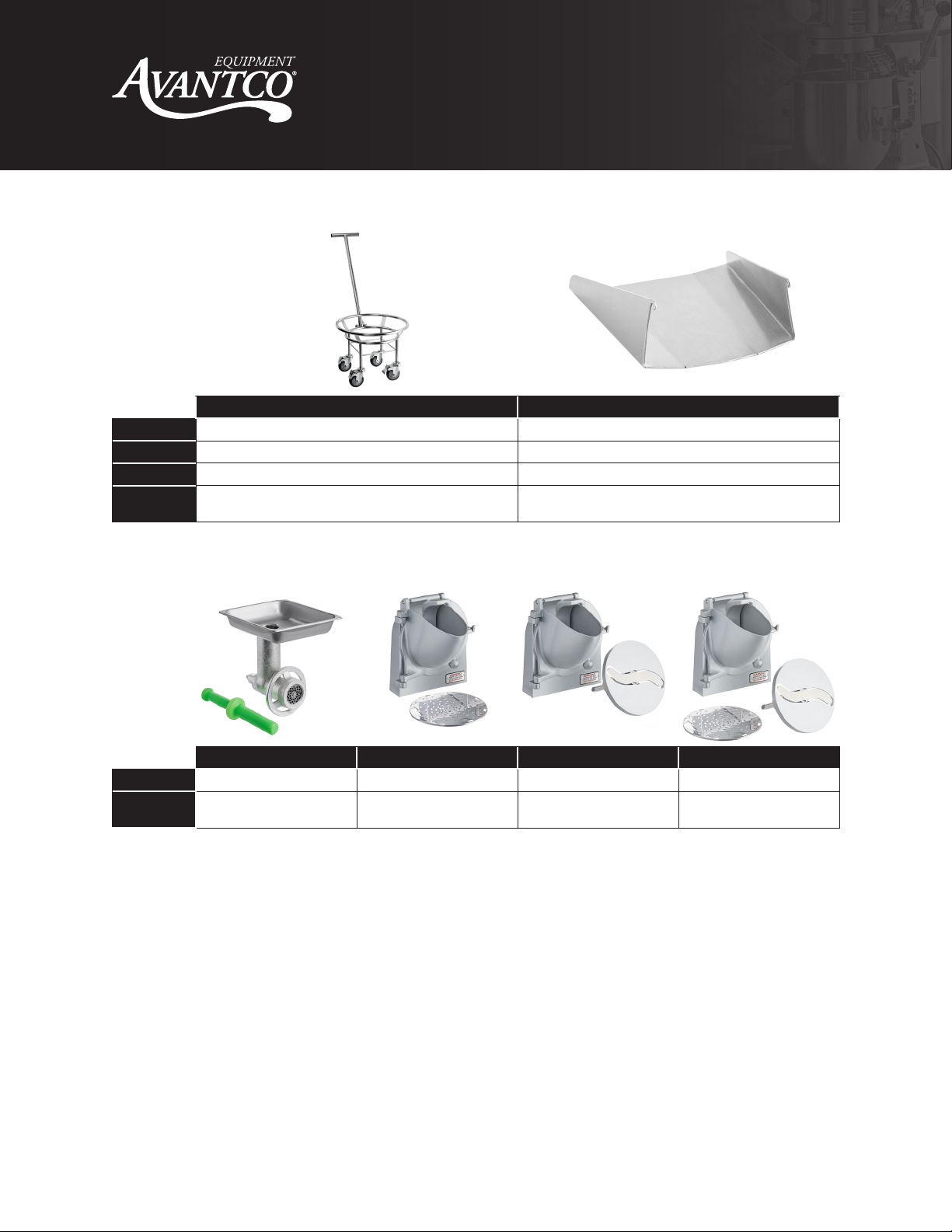

Optional Attachments
#12 Hub Attachments
Meat Grinder Shredder Slicer Shredder/Slicer
Item # 177MX20GRNDR 177MX10HBEAT 177MX20SLICR 177MX20SHSL
Usage Grinding meat Shredding fruits
and vegetables
Slicing fruits
and vegetables
Shredding or slicing fruits
and vegetables
Bowl Truck Ingredient Chute
Item # 177PMX60CART 177MX60CHUTE
Usage Provides easy transportation for your mixer bowl. Adding ingredients while mixer is in use.
Speeds - 1 / 2 / 3
Notes Reduces risk of injury while moving large, heavy bowl. Attaches to the unit's safety guard.
Prevents spills while adding ingredients.

User Manual
60 Qt. Planetary Floor Mixer
8
www.AvantcoEquipment.com
Safety Guard Removal

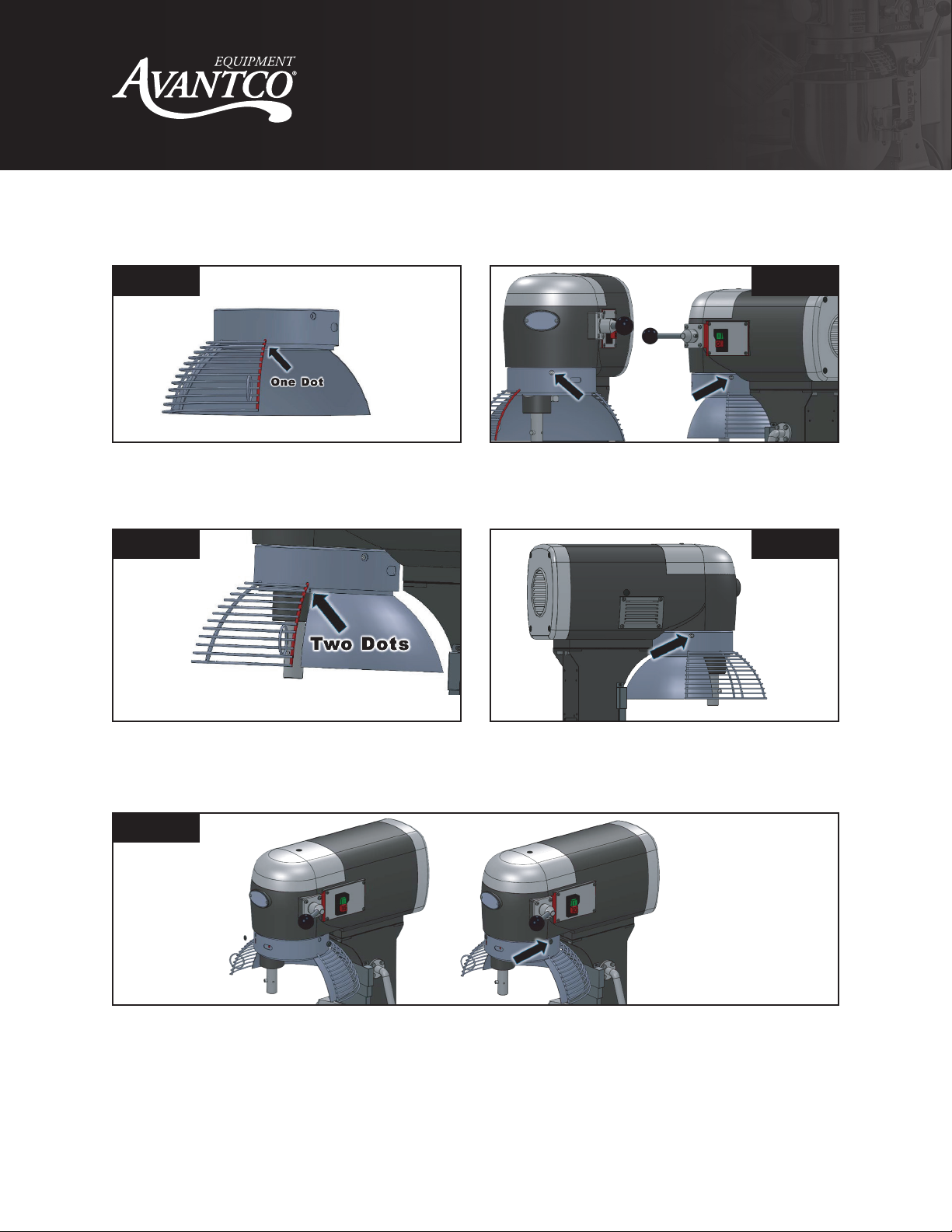

1. To remove the wire guard, adjust the position to
align the edge of the wire guard with the single
indentation marker on the fixed rear guard. (Fig. 1)
2. Remove the rubber closing caps from the
mounting screws at noted locations. Then remove
the screws. (Fig. 2)
3. Turn the wire guard until the edge of the wire
aligns with the two indentation markers on the
fixed rear guard. (Fig. 3)
4. Remove the cap and mounting screw at noted
location. (Fig. 4)
5. Ensure that all rubber caps are fitted properly into
the screw heads. (Fig. 5)
6. To re-install the wire guard after cleaning, reverse
the steps above.
Fig. 1
Fig. 3
Fig. 2
Fig. 4
Fig. 5

User Manual
60 Qt. Planetary Floor Mixer
9
www.AvantcoEquipment.com
Cleaning & Maintenance
Troubleshooting
WARNING
DISCONNECT THE MACHINE FROM THE POWER SOURCE BEFORE CLEANING
• All new mixer bowls and accessories, including whips, beaters, and dough hooks, should be properly
washed before use.
• If the unit has not been used for some time, it is recommended that the procedure above is followed
before mixer use.
• It is important that the rear bowl lift guides are greased every three months to prevent corrosion.
• The bowl guard is easily removable for cleaning. (See Safety Guard Removal on page 8.)
• It is highly recommended this cleaning procedure is followed for bowls and accessories prior to
whipping egg whites or whole eggs.
Problem Possible Cause Solution
Nothing happens when
unit is turned ON.
Unit unplugged. Ensure the plug is securely set in the outlet.
Improper voltage. Check that the outlet matches the units power requirements.
Safety guard, bowl, or bowl lift
handle are out of position.
Ensure all parts are securely placed in position according to
operation instructions before hitting ON switch.
Oil leaking from unit. Sealing washer is damaged. Replace the washer.
Motor overheating
and running slower
than it should.
Insucient voltage. Check that the outlet matches the units power requirements.
Incorrect speed selected. Select a lower speed as the product you are mixing may be too
dense for higher speeds. (See Mixer Capacity Chart on Page 6.)
Unit is noisy and
overheating. Poor lubrication. Add or change lubrication.
Mixer accessory is
touching bowl during
operation.
The mixing accessory or bowl
may be deformed. Repair or replace the deformed piece.
Mixing stops before
timer is up.
The motor is close to
overheating and the thermal
overload switch has been
activated.
Allow unit to cool down for 30-60 minutes, reduce batch size if
problem persists.
1. Clean the bowl and accessories with hot water and mild soap.
2. Rinse with a mild vinegar or soda solution.
3. Rinse with clean water and allow to dry.
4. Clean the outside of the unit with a clean, damp cloth.
Cleaning
