Avantco Chef Series User manual

User Manual
www.AvantcoEquipment.com 1
Models: 177CAG15TG, 177CAG24TG, 177CAG36TG, 177CAG48TG,
177CAG60TG, 177CAG15MG, 177CAG24MG, 177CAG36MG,
177CAG48MG, 177CAG60MG, 177CAG24RC, 177CAG36RC,
177CAG48RC, 177CAGR212, 177CAGR424, 177CAGR636
Commercial Countertop
Griddles, Charbroilers & Ranges
07/2021
Please read and keep these instructions. Indoor use only.
User Manual

User Manual User Manual
2 www.AvantcoEquipment.com www.AvantcoEquipment.com 3
IMPORTANT SAFETY INFORMATION
• Please observe all local and national codes and ordinances.
• Installation must conform with local codes, or in the absence of local codes, the National Fuel
Gas Code, ANSI Z223.1 (latest edition). In Canada, installation should conform to installation
codes for gas burning appliances and equipment standard CAN/CGA-8149.1 or the propane
installation code, CAN/CGA-8149.2, as applicable.
• Installation must be performed according to the manufacturer’s instructions and by qualified and
authorized persons.
• For repairs, contact an authorized service technician only and request original replacement parts;
• Before operating the product and whenever there is any doubt about its operation, the user has
the duty to read and understand this manual in detail.
• Install the equipment in a place where there is sufficient physical space for perfect handling of
the equipment.
• Never use your equipment without first installing it correctly.
• If any abnormalities in operation are observed when using the equipment, discontinue use, close
the manual gas shut-off valve, and call an authorized service technician to correct the problem.
• Any unauthorized alterations and / or tampering is DANGEROUS and will void all warranties.
• Close the gas valve that powers the equipment and check that the knobs are in the closed
position when: not in use, before servicing and cleaning the product.
• Fully assemble all components before turning on the product.
• Use three or more people or a load lifting device to move and install.
• Do not soil, remove, or obstruct the identification labels.
• For proper operation of the appliance, do not obstruct the flow of gas and ventilation.
• When your product is in use, accessible parts can become hot, and children should be kept
away.
• Ensure that children do not play with the equipment.
• Always check that the gas connections are correctly installed, and have no malfunctions and no
gas leaks.
• Carefully keep this manual for future reference.
• Failure to follow the instructions in the consumer manual for product installation conditions will
void your warranty.
• Never use the equipment if it is damaged or not working properly.
• Water or oil may make the floor slippery and dangerous. To avoid accidents, the floor must be dry
and clean.
Index
Important Safety Information.................................3
Installation ............................................... 5
Clearances ............................................... 5
Rating Plate .............................................. 6
Gas Pressure Regulator..................................... 7
Gas Conversion Instructions ................................. 8
Cleaning ................................................. 15
Maintenance .............................................. 16
Technical Specifications.....................................17
Technical Data............................................. 19

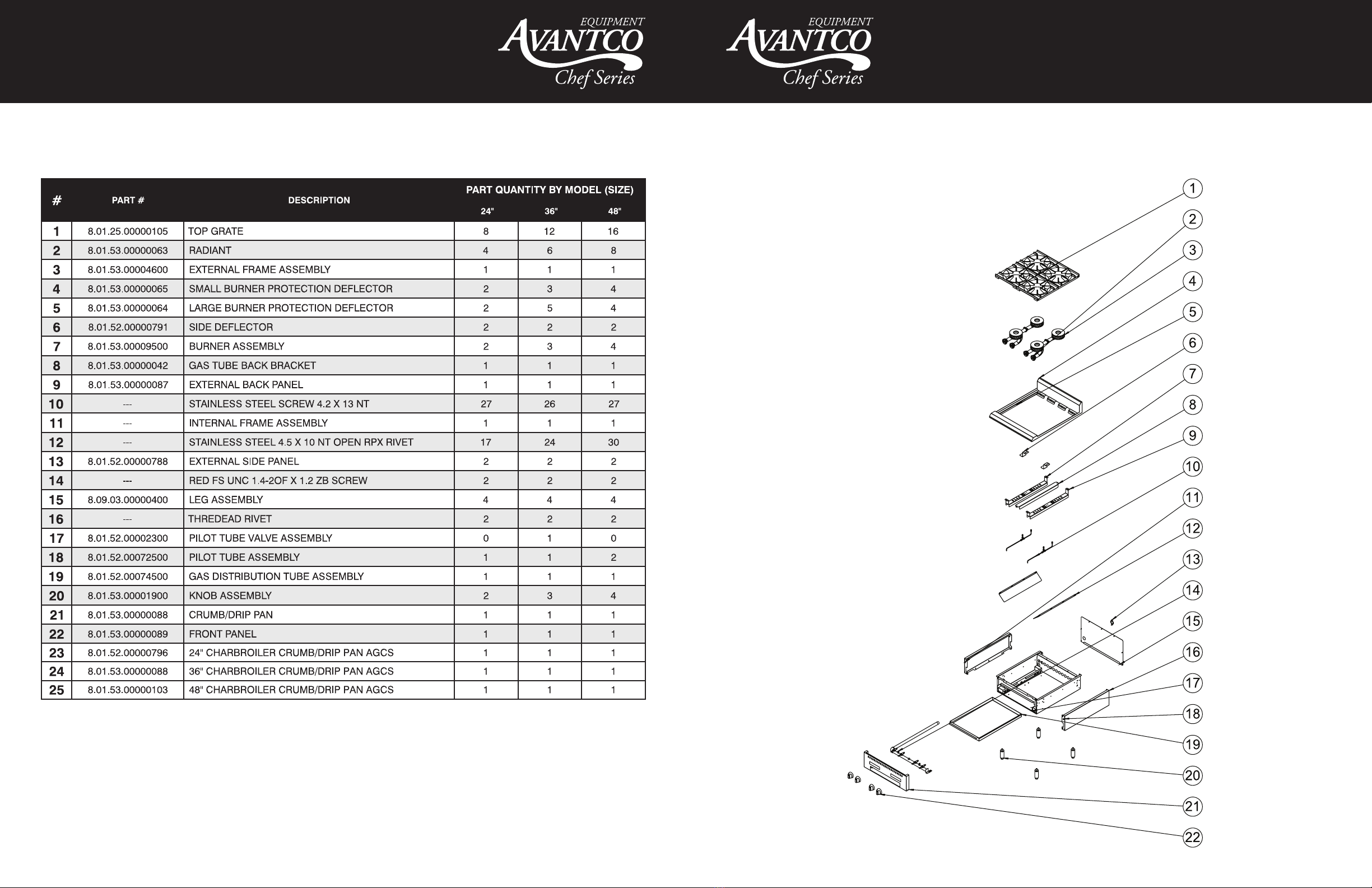

Parts Diagrams............................................ 21
Warranty ................................................. 29
!
!
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
WARNING
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, injury, or death. Read the installation, operating, and maintenance
instructions thoroughly before installing or servicing this equipment.
NOTE: Save these instructions for future reference

User Manual User Manual
4 www.AvantcoEquipment.com www.AvantcoEquipment.com 5
Clearances
The appliance area must be kept free and clear of all combustibles.
MODEL
COMBUSTIBLE NON-COMBUSTIBLE
REAR SIDES REAR SIDES
Countertop Thermostatic Gas Griddles 8" 6” 0” 0”
Countertop Manual Gas Griddles 8" 6” 0” 0”
Countertop Radiant Gas Charbroilers 8" 6” 0” 0”
Countertop Gas Hot Plates 8" 6” 0” 0”
• Do not repair or replace any part of the equipment unless specifically recommended in the
manual.
• Clean the product daily after use using neutral detergent. Use abrasive materials only for work
surface cleaning.
• Do not use the product to heat the environment.
• Do not use loose hanging garments, towels, or large cloths when using near the product as they
may ignite.
• Prevent water, dirt or dust from coming into contact with the equipment’s mechanical and gas
components;
• Use only kitchen utensils suitable for the product.
• Always use certified hoses and pressure regulators.
• The manufacturer reserves the right to modify, at any time and without prior notice, the contents
of this manual.
!
!
!
IMPORTANT
INTENDED FOR INDUSTRIAL/PROFESSIONAL USE ONLY.
WARNING
This device is not intended for use by persons (including children) with reduced
physical, sensory or mental capacities, or people with lack of experience and
knowledge, unless they have received instructions regarding the use of the device or
are under the supervision of a person responsible for their safety.
Periodically check that the hose and gas regulator are within their expiration date; If
you constantly smell gas, turn off the product quickly and check if your product gas
connections are leaking. If the problem persists, contact your nearest authorized
dealer.
IMPORTANT
Conversion, gas line connection, thermostat calibration, burners, manometer gas
pressure adjustment, etc. are all part of the normal installation and will not be covered
under warranty. If a warranty technician is called and the unit is installed incorrectly,
the end user may be charged.
Proper installation of this gas appliance is the sole responsibility of the end user. It
is the buyer’s responsibility to determine if the installer is qualified in the installation
procedures.
Installation
Upon receipt of the equipment, make sure that the product is not defective. For assembly, verify first
if the accessory kit has the following items: a gas pressure regulator, an instruction manual, the gas
conversion, the gas conversion injectors and a lighter (wick).
Position the product carefully and adjust the foot level.
The gas pressure regulator supplied with the equipment must be installed when the appliance is
connected to the gas supply. Installation must comply with local codes or, in the absence of local
codes, with the national combustible gas code.
Gas product supply piping must be at least 3/4" in diameter.
Adequate space must be left in front of the device for proper maintenance and operation. Provisions
should be incorporated into the kitchen design to ensure an adequate supply of fresh air and
adequate clearance for combustion chamber overhead operations, for proper combustion and
ventilation.

User Manual User Manual
6 www.AvantcoEquipment.com www.AvantcoEquipment.com 7
Rating Plate
Information on this plate includes the model, serial number, BTU/hour input of the burners, operating
gas pressure in inches WC, and whether the appliance is orificed for natural or propane gas. When
communicating with factory about a unit or requesting special parts or information, rating plate data
is essential for proper identification.
Recommendations Before Installation
Before installing the gas supply system, observe the pipes and fittings, check the components for
dirt, clean internally with compressed air to eliminate possible particles, and prevent burners and
valves from becoming clogged.
After cleaning, use thread sealant to connect the equipment to the gas network. For correct
application, avoid concentrating the compound on the first two threads of the pipe, otherwise it may
generate particles that will clog the system injectors.
Gas Standards & Codes
Gas Pressure Regulator
The gas pressure regulator (which accompanies the product) is of utmost importance for its
operation and is indispensable. The pressure regulator must be installed in the product supply gas
line (failure to install the pressure regulator will void the equipment warranty).
Regulators are supplied with 3/4” NPT connection ranges. The regulator is factory set by 102mmH2O
(4” WC) water column gas pressure at connector (natural gas) and gas pressure at 254mmH2O (10”
WC) connector for LPG gas operation.
Before connecting the regulator, check the supply line pressure in the product. This may not exceed
the maximum pressure of 3.45kPa (1/2 PSI). If the gas supply line pressure is higher than indicated,
use a pressure reducing regulator.
At the bottom of the regulator body there is a gas direction arrow to minimize installation error. This
arrow should point to the device’s direction of entry into the product.
The blue air vent cap on the top of the regulator is part of the regulator and should not be removed.
Installation of this appliance must be in accordance with local installation codes, including:
1. The appliance and its individual shutoff valve must be disconnected from the gas supply piping
system during any system pressure testing when this teste pressure exceeds 1/2 PSI (3.45 kPa).
2. The appliance shall be isolated from the gas supply piping system by closing the manual shut-off
valve during any pressure test of the gas supply piping system at test pressures equal to or less
than 1/2 PSI (3.45 kPa).
GAS CONNECTION
The gas inlet line size of this appliance is 3/4” NPT. For proper operation, the gas supply line must be
the same size or larger. Gas line size should not be reduced at any point along the supply line.
MANUAL SHUTOFF VALVE
A gas pressure regulator and a shut-off valve supplied by the technician shall be installed in the gas service
line before the appliance - in a physical location where it can be reached quickly in an emergency.
!IMPORTANT
FAILURE TO INSTALL THE PRESSURE REGULATOR WILL VOID YOUR WARRANTY.
!IMPORTANT
Visually check all inlet pipes supplied by the installer and/ or blow them out using
compressed air to clean out any dirt or debris (threads or other foreign matter) before
installing a service line. These particles will clog the gas holes when gas pressure is
applied. Compounds used in appliance pipe threaded joints shall be resistant to the
action of GN and LPG gas and shall provide a gas tight seal to prevent leakage.
When installing the pressure regulator remember that it can support 1/2 PSI (3.45kPa).
When installing LPG, you have high source pressures ranging from 20 PSI (127.89kPa)
to 100 PSI (689.48 kPa). If the LPG tank’s high pressure gas line is directly connected
to a unit without the proper reduction regulator, it will rupture the diaphragm in the
valve, making it useless.
Any adjustment to the regulator should be done only by qualified and licensed
personnel with the appropriate calibrated test equipment.
Connections must be made my a licensed and qualified contractor.

User Manual User Manual
8 www.AvantcoEquipment.com www.AvantcoEquipment.com 9
Gas Conversion Instructions
The products are produced for the use of natural gas (NG). Then check if the gas used in your region
is compatible with the type of gas for which the product was manufactured. Otherwise, the product
must be converted to be used in propane gas (LPG).
After converting the product gas, the pressure
regulator must be converted by inverting the
fitting under the regulator cover. This will require
a reasonable amount of force. Do not remove the
spring. When replacing the cover, make sure the
insert of the socket is facing upwards in the middle
of the spring. As shown in the image on the side.
Then re-attach the pressure regulator to the gas
inlet of the product and apply the “Warning” sticker
for the gas to be used on the front of the unit for
future reference.
!IMPORTANT
TO PERFORM GAS CONVERSION, A LICENSED AND QUALIFIED TECHNICIAN IS
REQUIRED.
COUNTERTOP THERMOSTATIC GAS GRIDDLE
For conversion the following guidelines should be followed:
1. Close the manual gas valve and disconnect the product
from the gas network, making sure that there is no leakage.
Then remove the pressure regulator from the gas inlet on the
product to make work easier.
2. Remove the manual gas griddle assembly (1) with the help of
two or more people. For this, extreme care must be taken, as
physical injuries or serious damage can occur.
3. Carefully pull the wire from the thermostat bulb that is fixed
inside a support welded on the bottom of the plate until it is
loose.
4. Remove the screws that secure the
burners(3) to the rear support and pilot
burner support (6) with the aid of the
double screwdriver. Afterwards, remove
the burners from the product.
5. Remove the burners injectors (4) with
a 1/2" wrench.
COUNTERTOP MANUAL GAS GRIDDLE
For conversion the following guidelines should be followed:
1. Close the manual gas valve and disconnect the product
from the gas network, making sure that there is no leakage.
Then remove the pressure regulator from the gas inlet on the
product to make work easier.
2. Remove the manual gas griddle assembly (1) with the help of
two or more people. For this, extreme care must be taken, as
physical injuries or serious damage can occur.
3. Remove the screws that secure the burners (2) to the rear
support with the aid of the double screwdriver. Afterwards,
remove the burners from the product.
4. Remove the injectors (3) with a 1/2” wrench.
5. In place of the removed gas injectors (3), place the new
injectors that are included with 4 the kit shipped with the
product. But first apply some pipe sealant to the valve thread
and then screw-in the new injectors to the correct gas type.
6. Once the gas injectors (3) are changed, reassemble your
product (4).
6. In place of the removed gas injectors (4), place the new injectors that are included with the kit shipped with
the product. But first apply some pipe sealant to the valve thread and then screw-in the new injectors to the
correct gas type.
7. Remove the pilot burner nut (7) to change the injector orifice that is inside the nut. The orifice for the
exchange is included in the accessory kit.
8. After changing the gas injectors, reassemble your product. Return the burners to their original
configuration, however, now with the new injectors.
9. After repositioning the thermostat bulb inside the welded support at the bottom of the plate, fit the plate
assembly back into the product. Replace the panel and secure it with the screws that were removed earlier.
10. The following image serves to help identify the components mentioned above.

User Manual User Manual
10 www.AvantcoEquipment.com www.AvantcoEquipment.com 11
COUNTERTOP RADIANT GAS CHARBROILER
For conversion the following guidelines should be followed:
1. Close the manual gas valve and disconnect the product from the
gas network, making sure that there is no leakage. Then remove the
pressure regulator from the gas inlet on the product to make work easier.
2. Remove the waste drawer (1), knobs (2) from the product and then
remove the panel (3) by removing the two screws located at the bottom
of the panel with the aid of a double screwdriver and detaching the
upper panel fittings on the product.
3. Remove the removable grilles (9), the deflectors (8) and the welded
structure set (7).For this, extreme care must be taken, as physical
injuries or serious damage can occur.
4. To remove the distributor tube assembly, remove the
screws that secure the distributor tube assembly(4)
to the front support with the aid of a double screwdriver.
5. Remove the injectors (5) with a 1/2” wrench.
6. In place of the removed gas injectors (3), place the
new injectors that are included with the kit shipped
with the product. But first apply some pipe sealant
to the valve thread and then screw-in the new injectors
to the correct gas type.
7. Once the gas injectors are changed, reassemble
your product (6).
COUNTERTOP GAS HOT PLATE
For conversion the following guidelines should be followed:
1. Close the manual gas valve and disconnect the product
from the gas network, making sure that there is no leakage.
Then remove the pressure regulator from the gas inlet on the
product to make work easier.
2. Remove grills (1) and burners (2).
3. Remove the injectors (3) with a 1/2” wrench.
4. In place of the removed gas injectors (3), place the new
injectors that are included with the kit shipped with the
product. But first apply some pipe sealant to the valve thread
and then screw-in the new injectors to the correct gas type.
5. Once the gas injectors (3) are changed, reassemble your
product (4).
LGP Gas Installation at Low Pressure
To use the product with LPG gas at low pressure, it is necessary that the product is checked with
the injector for use of LPG gas, if it is not with the appropriate injector, the gas conversion should be
performed following the steps described in item 2.5 of this manual.
The installation of low pressure LPG gas must be carried out in a gas station distant from the
equipment used.
A first stage (first) regulating valve with an inlet of 7 kgf/cm2 and an outlet pressure of 1.2 kgf/cm2
is installed on site, placing copper or carbon steel piping as a gas conductor to the equipment
seamless. Install at the end, next to the equipment a second 2° (second) stage valve with inlet
pressure of 1.2 kgf /cm2 and outlet pressure of 2.8 kPa or 280mmc.a.H2O.
Using a certified hose, connect the valve directly to the pressure regulator at the gas inlet at the rear
of the product, securing both ends with clamps to both the 2nd stage valve and the equipment.
Note: If in doubt consult the legislation in force in your state/ municipality.
Gas Leak Check
Before lighting the equipment and putting it into operation, check all gaskets on the gas supply line
for leaks. For this, do not use any type of wrench to check for leaks, use a sudsy soap and water
solution.
Follow the steps below for the correct procedure to power on:
1. Turn pilot valves to OFF position by turning adjusting screws clockwise.
2. Turn on the manual gas valve on the inlet side of the gas supply line.
3. Check for gas leaks at the flexible coupling or gas connector connection using a soap solution.
4. In moderation, spray or scrub the solution with soap on gas connections - active bubbling indicates the
location of the gas leak.
5. If a gas leak is detected, turn off the manual gas valve at the inlet side of the gas line. Call your certified
and licensed service technician.
6. If the equipment has no gas leak, continue with the equipment operating instruction.
!IMPORTANT
Keep cylinders always upright (standing) and never horizontal (lying down).

User Manual User Manual
12 www.AvantcoEquipment.com www.AvantcoEquipment.com 13
First-Time Use
Against shock damage or rocking from transportation, the sides and waste tray have a protective
PVC film. Remove any plastics, straps, or protective film from the product before operating the
equipment.
COUNTERTOP GAS GRIDDLE, THERMOSTATIC & MANUAL
To protect the equipment against possible moisture damage between fabrication and installation on
site, the flat-tops are coated with a layer of vegetable shortening and brown paper.
In addition, you should remove grease and brown paper, cleaning should be performed with the aid
of a sponge, mild soap and water in small amount.
After this procedure, turn the burners on and leave them on for about 15 minutes, this will cause all
flat-top grill residue to be burned and eliminated. Only then will the equipment be ready for use.
COUNTERTOP GAS RADIANT CHAR BROILER
To protect the equipment against possible moisture damage between manufacture and installation
on site, the grills and baffle rails are coated with a layer of vegetable oil.
In addition, you should perform a cleaning with the help of a sponge, neutral soap and water in small
amounts. After this procedure, turn the burners on and leave them on for about 15 minutes, this will
cause all gas charbroiler residue to be burned and eliminated.
Only then will the equipment be ready for use.
COUNTERTOP GAS RANGE
You should perform a cleaning with the help of a sponge, neutral soap and water in small amounts.
Only then will the equipment be ready for use.
Product Ignition
If you need to adjust the pilot valves (one pilot valve corresponds to two burners) do the following:
1. Turn the pilot adjusting screw counterclockwise, then light the pilot with the aid of the igniter
(wick) accompanying the product and adjust the flame to a height of approximately 0.5 cm;
2. Turn on the gas valve by turning the knob counterclockwise to light the main burners;
3. To shut down completely, close the gas valves by turning the knob clockwise and turn the pilot
adjusting screw clockwise to close the gas for the pilots.
COUNTERTOP GAS GRIDDLE, THERMOSTATIC
1. Open the manual gas supply valve (which will release gas
into the product);
2. Immerse in alcohol the lighter (wick) that accompanies
the product and light it; Note: Make sure that the container
where the alcohol is located is away from the product and
wick after immersing.
3. Press lightly and rotate the handle to the pilot position.
4. Keep it pressed and take the igniter (wick) passing
between the pilot flame ignition hole in the product panel
until it comes into contact with the pilot and ignites the
flame;
5. Keep the knob pressed for 10 seconds after the pilot
flame is lit and turn the knob counterclockwise until
the wished temperature (use the knob to adjust the
temperature);
6. Make sure the burner is lit. If the burner does not light,
repeat the procedure;
COUNTERTOP GAS GRIDDLE, MANUAL
1. Open the manual gas supply valve (which will release gas
into the product).
2. Immerse in alcohol the lighter (wick) that accompanies
the product and light it; Note: Make sure that the container
where the alcohol is located is away from the product and
wick after immersing;
3. Take the igniter (bypass) past the ignition hole in the
flame of the pilot on the product panel until contact with the
pilot burner and until the flame ignites, repeat this procedure
on all pilots (see following image); Note: The ignition order
does not interfere with the use of the equipment;
4. Turn the knob corresponding to the burner you wish to
operate counterclockwise (adjust the flame through the
knob);
5. Make sure the burner is lit. If the burner does not light,
repeat the procedure;
6. After lighting all burners, you can turn off the burners
and turn them back on simply by turning the corresponding
knobs; Note: The pilot burner flame is factory set
according to the gas for which the product was originally
manufactured. Always check through the hole identified on
the panel as PILOT, if the pilot burner flame is lit. If it is not,
perform the procedures described above again.

User Manual User Manual
14 www.AvantcoEquipment.com www.AvantcoEquipment.com 15
COUNTERTOP RADIANT GAS CHARBROILER
1. Open the manual gas supply valve (which will release gas
into the product);
2. Immerse in alcohol the lighter (wick) that accompanies
the product and light it; Note: Make sure that the container
where the alcohol is located is away from the product and
wick after immersing;
3. Bring the igniter (wick) through the pilot flame ignition
hole in the product panel until contact with the pilot burner
and until the flame ignites, repeat this procedure on all pilots
(seethe following image);
4. Rotate the knob corresponding to the burner you wish to
operate, rotate 90° counterclockwise;
5. Make sure the burner is lit. If the burner does not light,
repeat the procedure;
6. After lighting all burners, you can turn off the burners
and turn them back on simply by turning the corresponding
knobs; Note: The pilot burner flame is factory set
according to the gas for which the product was originally
manufactured. Always check to see if the flame on the pilot
burner can be seen through the panel hole. If it is not lit,
perform the procedures described above again.
COUNTERTOP GAS HOT PLATE
1. Open the manual gas supply valve (which will release gas into the product);
2. Immerse in alcohol the lighter (wick) that accompanies the product and light it; Note: Make sure
that the container where the alcohol is located is away from the product and wick after immersing.
3. Bring the igniter (wick) until contact with the pilot burner until the flame ignites, repeat on all others.
(see image); Note: The ignition order does not interfere with the use of the equipment;
4. Turn the knob (BUTTON) corresponding to the
burner you wish to operate counterclockwise
(adjust the flame through the knob);
5. Make sure the burner is lit. If the burner
does not light, repeat the procedure;
Note: The pilot burner flame is factory set
according to the gas for which the product
was originally manufactured. Always check
that the pilot burner flame is lit. If it is not,
perform the procedures described above
again.
Cleaning
After using the product and with the equipment not working or hot, clean it to remove food residue.
Remove the waste drawer for debris removal and cleaning.
• Use a non-abrasive sponge with mild detergent and water to clean the equipment.
• Never use sharp or abrasive materials (with corrosive elements in the formula) on stainless
steel components, but on range and charbroiler grills it is possible. On the Manual Griddle and
Thermostatic Griddle flat-top it is recommended to use a kitchen spatula to facilitate the cleaning
of residues.
• Keep in mind that constant and correct cleaning is critical to the proper functioning of the
equipment.
• NEVER attempt to move or slide the product when it is hot. ALWAYS let the unit cool down and
empty the waste drawer before attempting to relocate or move the unit.
• DO NOT FLOOD A HOT GRIDDLE WITH COLD WATER. This could cause warping and the
griddle plate to crack.
• After the end of the working day, clean the Gas Range, Charbroiler, and burners and turn them on
to remove moisture. On the Manual Griddle and Thermostatic Griddle clean the equipment and
grease the flat-top with vegetable oil. This practice is recommended between one working day
and another, thus avoiding its oxidation.
Cleaning the Outside of the Product
The product has stainless steel external coating and for its correct cleaning it is necessary to follow
the following guidelines:
• First, let the product cool. Normal daily dirt can be removed with a mild detergent or soap
solution applied with a damp cloth. Wash and dry thoroughly.
• To remove deposited grease, apply a cleanser in the direction of the polished lines on the metal.
NEVER rub in a circular motion.
Cleaning the Inside of the Product
Let the inside of the product cool completely. Use a non-alkaline cleaning agent following the
manufacturer’s recommendations:
• Do not use abrasive products.
• Rinse well with water at room temperature, clean and dry thoroughly.
!IMPORTANT
Do not use toxic or high chemical cleaning materials. See all instructions given by the
cleaning product manufacturer.

User Manual User Manual
16 www.AvantcoEquipment.com www.AvantcoEquipment.com 17
Maintenance
Maintenance is one of the precautions to be taken for a good equipment life. Proper cleaning,
installation, checking and product life all contribute to reduced maintenance. Before any
maintenance, verify that the gas connections, regulators or check valves must be completely closed
and disconnected from the product.
Technical Specifications
!IMPORTANT
The maintenance of the equipment should only be performed by a technician
authorized by the manufacturer.
The operator should be familiar with how to connect and disconnect the restrictions/
removable parts. If the restriction is removed for maintenance or cleaning, it must be
reconnected before using the equipment again.
MODEL # Exterior Product Dimensions & Weight Shipping Crate Dimensions & Weight
WIDTH DEPTH HEIGHT FW WEIGHT WIDTH DEPTH HEIGHT WEIGHT
177CAG15TG 15" 301∕2" 167∕8" 95∕64" 110 lb. 199∕64" 349∕64" 181∕2" 150 lb.
177CAG24TG 24" 301∕2" 167∕8" 183∕32" 165 lb. 281∕16" 349∕64" 181∕2" 212 lb.
177CAG36TG 36" 301∕2" 167∕8" 319∕32" 238 lb. 401∕32" 349∕64" 181∕2" 300 lb.
177CAG48TG 48" 301∕2" 167∕8" 439∕32" 313 lb. 521∕16" 349∕64" 181∕2" 386 lb.
177CAG60TG 60" 301∕2" 167∕8" (x2) 265∕16" 384 lb. 641∕16" 349∕64" 181∕2" 459 lb.
MODEL # Exterior Product Dimensions & Weight Shipping Crate Dimensions & Weight
WIDTH DEPTH HEIGHT FW WEIGHT WIDTH DEPTH HEIGHT WEIGHT
177CAG15MG 15" 301∕2" 167∕8" 95∕64" 110 lb. 199∕64" 349∕64" 181∕2" 148 lb.
177CAG24MG 24" 301∕2" 167∕8" 183∕32" 165 lb. 281∕16" 359∕64" 181∕2" 210 lb.
177CAG36MG 36" 301∕2" 167∕8" 319∕32" 240 lb. 401∕32" 369∕64" 181∕2" 298 lb.
177CAG48MG 48" 301∕2" 167∕8" 439∕32" 315 lb. 521∕16" 379∕64" 181∕2" 381 lb.
177CAG60MG 60" 301∕2" 167∕8" (x2) 265∕16" 390 lb. 641∕16" 389∕64" 181∕2" 452 lb.
COUNTERTOP GAS GRIDDLE, THERMOSTATIC
COUNTERTOP GAS GRIDDLE, MANUAL

User Manual User Manual
18 www.AvantcoEquipment.com www.AvantcoEquipment.com 19
Technical Data
MODEL # Gas Supply Manifold Pressure
BURNERS GAS TYPE NOZZLE BTU/HR KCAL/HR TUBE PRESSURE (in. W.C.)
177CAG15TG 1 NAT. GAS #43 35,000 8,820 4
L.P. GAS #54 35,000 8,820 10
177CAG24TG 2 NAT. GAS #43 70,000 17,640 4
L.P. GAS #54 70,000 17,640 10
177CAG36TG 3 NAT. GAS #43 105,000 26,460 4
L.P. GAS #54 105,000 26,460 10
177CAG48TG 4 NAT. GAS #43 140,000 35,280 4
L.P. GAS #54 140,000 35,280 10
177CAG60TG 5 NAT. GAS #43 175,000 44,100 4
L.P. GAS #54 175,000 44,100 10
MODEL # Gas Supply Manifold Pressure
BURNERS GAS TYPE NOZZLE BTU/HR KCAL/HR TUBE PRESSURE (in. W.C.)
177CAG15MG 1 NAT. GAS #44 30,000 7,560 4
L.P. GAS #54 30,000 7,560 10
177CAG24MG 2 NAT. GAS #44 60,000 15,121 4
L.P. GAS #54 60,000 15,121 10
177CAG36MG 3 NAT. GAS #44 90,000 22,680 4
L.P. GAS #54 90,000 22,680 10
177CAG48MG 4 NAT. GAS #44 120,000 30,240 4
L.P. GAS #54 120,000 30,240 10
177CAG60MG 5 NAT. GAS #44 150,000 37,800 4
L.P. GAS #54 150,000 37,800 10
COUNTERTOP GAS GRIDDLE, THERMOSTATIC
COUNTERTOP GAS GRIDDLE, MANUAL
User Manual
18 www.AvantcoEquipment.com
MODEL # Exterior Product Dimensions & Weight Shipping Crate Dimensions & Weight
WIDTH DEPTH HEIGHT FW WEIGHT WIDTH DEPTH HEIGHT WEIGHT
177CAG24RC 24" 18" 99 lb. 281∕8" 341∕8"
341∕8"
341∕8"
181∕2" 143 lb.
177CAG36RC 36" 31" 172 lb. 401∕8" 181∕2" 220 lb.
177CAG48RC 48" 301∕2"
301∕2"
301∕2"
167∕8"
167∕8"
167∕8"
43 " 245 lb. 521∕8" 181∕2" 286 lb.
MODEL # Exterior Product Dimensions & Weight Shipping Crate Dimensions & Weight
WIDTH DEPTH HEIGHT FW WEIGHT WIDTH DEPTH HEIGHT WEIGHT
177CAGR212 12" 301∕2"
301∕2"
301∕2"
167∕8"
167∕8"
167∕8"
9 " 70 lb. 161∕8" 34"
34"
34"
181∕2" 110 lb.
177CAGR424 24" 18" 121 lb. 281∕8" 181∕2" 167 lb.
177CAGR636 36" 431∕5" 174 lb. 401∕8" 181∕2" 238 lb.
COUNTERTOP RADIANT GAS CHARBROILER
COUNTERTOP GAS HOT PLATE

User Manual User Manual
20 www.AvantcoEquipment.com www.AvantcoEquipment.com 21
Technical Data
MODEL # Gas Supply Manifold Pressure
BURNERS GAS TYPE NOZZLE BTU/HR KCAL/HR TUBE PRESSURE (in. W.C.)
177CAG24RC 2 NAT. GAS #40 60,000 15,129 4
L.P. GAS #52 60,000 15,129 10
177CAG36RC 3 NAT. GAS #40 90,000 22,694 4
L.P. GAS #52 90,000 22,694 10
177CAG48RC 4 NAT. GAS #40 120,000 30,259 4
L.P. GAS #52 120,000 30,259 10
MODEL # Gas Supply Manifold Pressure
BURNERS GAS TYPE NOZZLE BTU/HR KCAL/HR TUBE PRESSURE (in. W.C.)
177CAGR212 2 NAT. GAS #40 50,000 12,600 4
L.P. GAS #53 50,000 12,600 10
177CAGR424 4 NAT. GAS #40 100,000 25,200 4
L.P. GAS #53 100,000 25,200 10
177CAGR636 6 NAT. GAS #40 150,000 50,400 4
L.P. GAS #53 150,000 50,400 10
COUNTERTOP RADIANT GAS CHARBROILER
COUNTERTOP GAS RANGE
QTY PILOT ORIFICE # PO QTY
ORIFICE ITEM NUMBERS
Nozzle Item #
# 40 177CAGORIF40
# 43 177CAGORIF43
# 44 177CAGORIF44
# 52 177CAGORIF52
# 53 177CAGORIF53
# 54 177CAGORIF54
Natural Gas Thermostatic
Griddle Pilot Orifice
17700073371
Liquid Propane Thermostatic
Griddle Pilot Orifice
17700073370
Note: match the nozzle number for your unit (shown above)
and find the corresponding item number here. You will need
one orifice per burner on your unit
User Manual
www.AvantcoEquipment.com 21
PARTS DIAGRAM
COUNTERTOP GAS GRIDDLE, THERMOSTATIC

User Manual User Manual
22 www.AvantcoEquipment.com www.AvantcoEquipment.com 23
User Manual
22 www.AvantcoEquipment.com
PARTS LIST
COUNTERTOP GAS GRIDDLE, THERMOSTATIC
#PART QUANTITY BY MODEL (SIZE)
PART # DESCRIPTION 15" 24" 36" 48" 60"
18.09.03.00000400 LEG ASSEMBLY 4 4 4 4 6
28.01.53.00002000 GAS VALVE ASSEMBLY 1 2 3 4 5
38.01.53.00001900 KNOB ASSEMBLY 1 2 3 4 5
48.01.53.00000060 KNOB BEZEL 1 2 3 4 5
5--- GREASE TRAP 1 1 1 1 2
68.01.53.00000045 FRONT PANEL 1 1 1 1 1
78.01.53.00002300 GAS DISTRIBUTION TUBE ASSEMBLY 1 1 1 1 1
88.20.55.42425362 STAINLESS STEEL FLEX TUBE 3/16" 1 2 3 4 5
9--- THERMOCOUPLE 1 2 3 4 5
10 --- PILOT 1 2 3 4 5
11 8.01.53.00002600 INTERNAL FRAME ASSEMBLY 1 1 1 1 1
12 8.01.52.00000788 EXTERNAL SIDE PANEL 2 2 2 2 2
13 8.01.53.00000046 ORIFICE ASSEMBLY SUPPORT BRACKET 1 2 3 4 5
14 8.01.52.00000785 BURNER DEFLECTOR 1 2 3 4 5
15 8.01.53.00002100 BURNER ASSEMBLY 1 2 3 4 5
16 8.01.53.00002500 GRIDDLE PLATE ASSEMBLY 1 1 1 1 1
17 8.01.52.00000632 GAS TUBE BACK BRACKET 1 1 1 1 1
18 8.01.52.00000786 EXTERNAL BACK PANEL 1 1 1 1 1
19 8.01.52.00000787 INTERNAL BACK PANEL 1 1 1 1 1
GREASE TRAP CODES
Model 15" 8.01.53.00000078
Model 24" 8.01.52.00000781
Model 36" 8.01.53.00000080
Model 48" 8.01.53.00000094
Model 60" 8.01.52.00000781 and 8.01.53.00000080
8.01.53.00000075
User Manual
www.AvantcoEquipment.com 23
PARTS DIAGRAM
COUNTERTOP GAS GRIDDLE, MANUAL

User Manual User Manual
24 www.AvantcoEquipment.com www.AvantcoEquipment.com 25
User Manual
22 www.AvantcoEquipment.com
PARTS LIST
COUNTERTOP GAS GRIDDLE, THERMOSTATIC
#PART QUANTITY BY MODEL (SIZE)
PART # DESCRIPTION 15" 24" 36" 48" 60"
18.09.03.00000400 LEG ASSEMBLY 4 4 4 4 6
28.01.53.00002000 GAS VALVE ASSEMBLY 1 2 3 4 5
38.01.53.00001900 KNOB ASSEMBLY 1 2 3 4 5
48.01.53.00000060 KNOB BEZEL 1 2 3 4 5
5--- GREASE TRAP 1 1 1 1 2
68.01.53.00000045 FRONT PANEL 1 1 1 1 1
78.01.53.00002300 GAS DISTRIBUTION TUBE ASSEMBLY 1 1 1 1 1
88.20.55.42425362 STAINLESS STEEL FLEX TUBE 3/16" 1 2 3 4 5
9--- THERMOCOUPLE 1 2 3 4 5
10 --- PILOT 1 2 3 4 5
11 8.01.53.00002600 INTERNAL FRAME ASSEMBLY 1 1 1 1 1
12 8.01.52.00000788 EXTERNAL SIDE PANEL 2 2 2 2 2
13 8.01.53.00000046 ORIFICE ASSEMBLY SUPPORT BRACKET 1 2 3 4 5
14 8.01.52.00000785 BURNER DEFLECTOR 1 2 3 4 5
15 8.01.53.00002100 BURNER ASSEMBLY 1 2 3 4 5
16 8.01.53.00002500 GRIDDLE PLATE ASSEMBLY 1 1 1 1 1
17 8.01.52.00000632 GAS TUBE BACK BRACKET 1 1 1 1 1
18 8.01.52.00000786 EXTERNAL BACK PANEL 1 1 1 1 1
19 8.01.52.00000787 INTERNAL BACK PANEL 1 1 1 1 1
GREASE TRAP CODES
Model 15" 8.01.53.00000078
Model 24" 8.01.52.00000781
Model 36" 8.01.53.00000080
Model 48" 8.01.53.00000094
Model 60" 8.01.52.00000781 and 8.01.53.00000080
8.01.53.00000075
User Manual
24 www.AvantcoEquipment.com
PARTS LIST
COUNTERTOP GAS GRIDDLE, MANUAL
#PART QUANTITY BY MODEL (SIZE)
PART # DESCRIPTION 15" 24" 36" 48" 60"
18.01.53.00009500 BURNER ASSEMBLY 1 2 3 4 5
28.01.52.00072100 GRIDDLE PLATE ASSEMBLY 1 1 1 1 1
38.01.52.00000785 BURNER DEFLECTOR 1 2 3 4 4
48.01.53.00000042 GAS TUBE BACK BRACKET 1 1 1 1 1
58.01.52.00000786 EXTERNAL BACK PANEL 1 1 1 1 1
68.01.52.00000787 INTERNAL BACK PANEL 1 1 1 1 1
7--- STAINLESS STEEL 4.5 X 10 NT OPEN RPX RIVET 3 7 11 13 10
8--- STAINLESS STEEL SCREW 4.2 X 13 NT 27 32 35 35 45
98.01.52.00000788 EXTERNAL SIDE PANEL 2 2 2 2 2
10 8.09.03.00000400 LEG ASSEMBLY 4 4 4 4 6
11 --- RED FS UNC 1.4-2OF X 1.2 ZB SCREW 2 2 2 2 2
12 --- INTERNAL FRAME ASSEMBLY 1 1 1 1 1
13 8.01.52.00072600 GAS DISTRIBUTION TUBE ASSEMBLY 1 1 1 1 1
14 8.01.52.00000780 FRONT PANEL 1 1 1 1 1
15 8.01.53.00001900 KNOB ASSEMBLY 1 2 3 4 5
16 8.01.52.00000781 GREASE TRAP 1 1 1 1 2
17 8.01.52.00072500 PILOT TUBE ASSEMBLY -- 1 1 2 2
18 --- THREDEAD RIVET 2 2 2 2 2
User Manual
24 www.AvantcoEquipment.com
PARTS LIST
COUNTERTOP GAS GRIDDLE, MANUAL
#PART QUANTITY BY MODEL (SIZE)
PART # DESCRIPTION 15" 24" 36" 48" 60"
18.01.53.00009500 BURNER ASSEMBLY 1 2 3 4 5
28.01.52.00072100 GRIDDLE PLATE ASSEMBLY 1 1 1 1 1
38.01.52.00000785 BURNER DEFLECTOR 1 2 3 4 4
48.01.53.00000042 GAS TUBE BACK BRACKET 1 1 1 1 1
58.01.52.00000786 EXTERNAL BACK PANEL 1 1 1 1 1
68.01.52.00000787 INTERNAL BACK PANEL 1 1 1 1 1
7--- STAINLESS STEEL 4.5 X 10 NT OPEN RPX RIVET 3 7 11 13 10
8--- STAINLESS STEEL SCREW 4.2 X 13 NT 27 32 35 35 45
98.01.52.00000788 EXTERNAL SIDE PANEL 2 2 2 2 2
10 8.09.03.00000400 LEG ASSEMBLY 4 4 4 4 6
11 --- RED FS UNC 1.4-2OF X 1.2 ZB SCREW 2 2 2 2 2
12 --- INTERNAL FRAME ASSEMBLY 1 1 1 1 1
13 8.01.52.00072600 GAS DISTRIBUTION TUBE ASSEMBLY 1 1 1 1 1
14 8.01.52.00000780 FRONT PANEL 1 1 1 1 1
15 8.01.53.00001900 KNOB ASSEMBLY 1 2 3 4 5
16 8.01.52.00000781 GREASE TRAP 1 1 1 1 2
17 8.01.52.00072500 PILOT TUBE ASSEMBLY -- 1 1 2 2
18 --- THREDEAD RIVET 2 2 2 2 2
User Manual
www.AvantcoEquipment.com 25
PARTS DIAGRAM
COUNTERTOP RADIANT GAS CHARBROILER

User Manual User Manual
26 www.AvantcoEquipment.com www.AvantcoEquipment.com 27
PARTS LIST
COUNTERTOP R
ADIANT GAS CHARBROILER
CRUMB/DRIP PAN CODES
Model 24" 8.01.52.00000796
Model 36" 8.01.53.00000088
Model 48" 8.01.53.00000103
User Manual
www.AvantcoEquipment.com 27
PARTS DIAGRAM
COUNTERTOP GAS HOT PLATE

User Manual User Manual
28 www.AvantcoEquipment.com www.AvantcoEquipment.com 29
PARTS LIST
COUNTERTOP GAS HOT PLATE
CRUMB/DRIP PAN CODES
Model 12" 8.01.53.00000014
Model 24" 8.01.53.00000019
Model 36" 8.01.53.00000026
www.AvantcoEquipment.com 04/2019
Equipment Limited Warranty
To Make a Warranty Claim:
For Warranty Inquiries contact the location where you purchased the product:
• WebstaurantStore.com: Contact [e-mail]. Please have your order number ready.
• The Restaurant Store: If you purchased this unit from your local store, please contact your store directly.
• TheRestaurantStore.com: Online purchases, call 717-392-7261. Please have your order number ready.
Failure to contact the designated location prior to obtaining equipment service may void your warranty.
Avantco makes no other warranties, express or implied, statutory or otherwise, and HEREBY DISCLAIMS ALL IMPLIED
WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A
PARTICULAR PURPOSE.
This Limited Warranty does not cover:
• Equipment sold or used outside the Continental United States
• Use of unltered water (if applicable)
• Avantco has the sole discretion on wearable parts not covered under warranty
• Equipment not purchased directly from an authorized dealer
• Equipment used for residential or other non-commercial purposes
• Equipment that has been altered, modied, or repaired by anyone other than an authorized service agency
• Equipment where the serial number plate has been removed or altered.
• Damage or failure due to improper installation, improper utility connection or supply, and issues resulting from
improper ventilation or airow.
• Defects and damage due to improper maintenance, wear and tear, misuse, abuse, vandalism, or Act of God.
Any action for breach of this warranty must be commenced within 1 year of the date on which the breach occurred.
No modication of this warranty, or waiver of its terms, shall be effective unless approved in a writing signed by the
parties. The laws of the Commonwealth of Pennsylvania shall govern this warranty and the parties’ rights and duties under
it. Avantco shall not under any circumstances be liable for incidental or consequential damages of any kind, including but
not limited to loss of prots.
Avantco warrants its equipment to be free from defects in material and workmanship for a period of 1 year. This is the sole
and exclusive warranty made by Avantco covering your Avantco brand equipment. A claim under this warranty must be made
within 1 year from the date of delivery of the equipment. Only the equipment’s original purchaser may make a claim under
this warranty. Avantco reserves the right to approve or deny the repair or replacement of any part or repair request. The
warranty is not transferable. Avantco Equipment installed in/on a food truck or trailer will be limited to a period of 30 days
from the original date of delivery.
