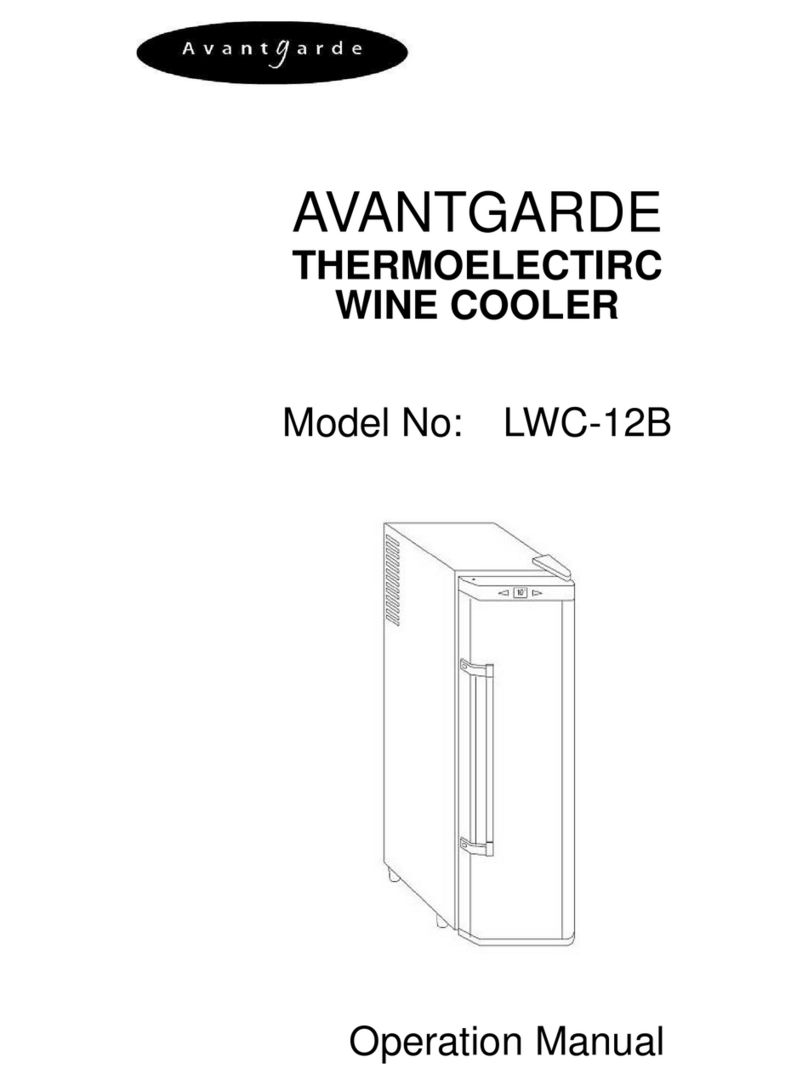

Avantgarde LWC-12B User manual

AVANTGARDE
THERMOELECTIRC
WINE COOLER
Model No: LWC-12B
Operation Manual

1
Index
1. General Safety Precautions…………........................1
2. Technical Data………………………...........................3
3. Illustrated Structure…………………….... ..................4
4. Principle Electric Diagram……………………….….…4
5. Operation …………………………………………….....5
6. Particular Precautions…………………………...….….6
7. Maintenance……………………………………….…....6
8. Troubleshooting………………………………..……..…7

2
1.GENERAL SAFETY PRECAUTIONS
•After removing the wine cooler from the package, make sure it is
in good condition. In case of doubt, do not use it and contact the
dealer or an authorized Service Center.
•Plastic bags, nails, etc. should be kept out of reach of children.
Read the operation manual carefully and check that the rating
data on the rating nameplate corresponds to your power supply.
•This refrigerator can only be used in the use of which it was
designed. The manufacturer will not responsible for any damage
due to improper use or repairs made by unqualified personnel.
•Before cleaning the refrigerator, make sure it is unplugged.
Never clean the unit with an acid preparation, medical, dilution,
gasoline, oil or any other kind of chemical substance that could
damage the refrigerator.
•Repair should only be made by authorized Service Centers.
Caution
A. To reduce the risk of fire, replace only with same type fuse.
B. This unit is designed for a free standing installation only. A
built-in installation will void the warranty.
C. Do not use extension cords.
D. Danger: Risk of child entrapment. Before throwing away your
old refrigerator, you must note: a Take off the door; b Leave
the shelves in place, so that children may not easily climb
inside.

3
2.TECHNICAL DATA
Type LWC-12B
Volume (liter) 35L
Case Iron
Material Door Glass
Unit Dimension
(W×H×D)(mm) 260X650X495
Packaging Dimension
(W×H×D)(mm) 300X660X535
Net Weight (Kg) 12.4
Gross Weight (Kg) 13.4
Power Consumption
(KW·h/24h) 0.8
Fitting ambient temperature
range of working
＜25ºC
Temperature Range 11º-18º C
Rated Voltage AC110V
Rated Frequency 60HZ
Current 0.95A
Input power 65W

4
3.ILLUSTRATED STRUCTURE
1 LIGHT SWITCH 2 LED DISPLAY 3 TEMP KEY
4 KEY LIGHT 5 FAN MASK 6 SHELF
7 FEET 8 REAM COVER 9 UP CLIP BOARD
10 INDICATOR LIGHT 11 GLASS DOOR 12 DOWN CLIP BOARD
4.ELECTRIC PRINCIPLE DIAGRAM

5
5.OPERATION
• T he unit’s temperature can be adjusted between 11º-18ºC .
•When the power is connected, the cooling system starts to
work. The TEMP-ADJ button is set on certain position, which
means that if the temperature in the wine cooler reaches the
point set, Self-control Temperature System stops cooling
system so the temperature in the cabinet rises gradually.
•When the inside temperature rises above the set point,
Cooling Self-control Temperature starts to work again, the
wine cooler enter into cooling circles.
•The TEMP-ADJ button is set on one certain point when the
wine cooler is off the assembling line. To change the
temperature in the cabinet, please push the TEMP-ADJ
button according to the indicator “ + ” or “ – ”.
•When push the right TEMP-ADJ button, the temperature in
cabinet will rise. On the contrary, push the left TEMP-ADJ
button “ – ”, it will go down.
NOTE:
Once you have set the temperature, the LED display will return to
show the actual temperature in the cooler, and it will turn to the
point that you have set gradually.

6
6. PARTICULAR PRECAUTIONS
•In order to function at its potential, this wine cooler
needs to be placed on a level floor, with 2 cm spaces
at each side and 10 cm at the back.
•Avoid storing the unit in a room with direct sunlight or
nay other source.
•Do not place heavy articles on the top of the unit.
7. MAINTENANCE
•Shut off power supply before cleaning cabinet.
•Take out wine bottles and shelves, and then clean the cabinet
with mild soap and water.
•Do not use harsh chemicals or detergent to clean the cabinet.
•Clean the unit regularly.

7
8. TROUBLESHOOTING
Symptoms Possible cause Solutions
No cooling
•Not plugged in
•Low voltage
•Fuse broken
•Plug the unit
•Ensure normal voltage
•Change fuse
Not cold
enough
temperature
inside
•The refrigerator
is placed too
near a heat
source;
•Bad ventilation;
•Fans don’t work;
•The door is not
closed tightly or
opened too
frequently or for
long periods of
time;
•Keep the refrigerator away from
sunshine or other heat source;
•Place the refrigerator in an area with
good ventilation and keep things
away from the fans;
•Check whether the plug is
connected or change the fan;
•Close the door tightly and don’t
open the door too frequently or for
long periods of time.
Peculiar smell
inside
refrigerator
•Check whether
there is any
spoilage inside
•Wrap the source or remove it.
Inside light
flash
•Set temperature
higher than inner
temperature;
•The automatic
defrost function
starts to work
•Adjust the thermostat
•Normal function. No repair needed
Frost on the
cold sink
•Too much
humidity or too
low temperature
inside the case
•Unplug the unit, stop the power, and
defrost by hand, Connect power again
when the ice thaws
For service please contact:
A.G. I SERVICE
Tel: [phone].651.2534
