Avanti WC331DZD User manual

DUAL ZONE WINE CHILLER / VINERA CON 2 ZONAS
INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES
Model Number/ No. deModelo: WC331DZD
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página17.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
withoutnotice.
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604-Miami, Florida 33152
www.avantiproducts.com

2
APPLIANCESAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and onyour appliance. Always
read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the wards”DANGER”, “WARNING”or“CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personalinjury, or property or
equipment damage.
Allsafetymessageswill alert you do what the potential hazard is, tell you how to reduce the chance of
injury, and let you know what can happen if the instructions are not followed.

3
IMPORTANT SAFEGUIDES
Before theappliance is used, it must be properly positioned and installed as
describedinthis manual,so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
?Plug into a grounded 3 -prong outlet, do not remove groundingprong, do not use an adapter, and
do not use an extension cord.
?Replace all panels before operating.
?It is recommended that a separate circuit, serving only yourappliance be provided. Use
receptacles that cannotbe turned off by a switch or pull chain.
?Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
?Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
?Do not connect or disconnect the electric plug when your hands are wet.
?Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result
inelectricalshockordeath.
?Do not attempt to repair or replace any part of your applianceunless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
?Use two ormore people to move and installappliance. Failure to do so can result in back or other
injury.
?To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 550F (130C) and below
900F (320C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.
?The applianceshould not be located next to ovens, grills or other sources of high heat.
?The appliancemust be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances is required.
?Do not kink or pinch the power supply cord ofappliance.
?The fuse (or circuit breaker) size should be 15 amperes.
?It is important for the appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
?All installation must be in accordance with local plumbing code requirements.
?Make certain that the pipes are not pinched or kinked or damaged duringinstallations.
?Check for leaks after connection.
?Never allow children to operate, play with or crawl inside therefrigerator.
?If you use thedrainage container, you MUST set the Drain Select switch to OFF or the water can
overflow from the drainage container
?Although the unit has been tested at the factory, due to long-term transit and storage, the first
batch of cubes must be discarded.
?Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolor the interior.
?Do not use this apparatus for other than its intended purpose.

4
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100
days of purchase and receive these important benefits to the following address:
Avanti Products, A Division of The Mackle Co., Inc.
P.O.Box 520604–Miami, Florida 33152
?Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to
help you refer to this information in the event of an insurance claim such as fire or theft.
?Promote better products:
We value your input. Your responses will help us develop products designed to best meet
your future needs.
-------------------------------------------------(detachhere)----------------------------------------------------------
Avanti Registration Card
__________________________________ _____________________________________
Name Model # Serial #
__________________________________ _____________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number ?Own ?Rent
Did You Purchase An Additional Warranty: Your Age:
?Extended ?Food Loss ?None ?under 18 ?18-25 ?26-30
Reason For Choosing This Avanti Product: ?31-35 ?36-50 ?over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase ?Married ?Single
this product. Is This Product Used In The:
?Price ?Home ?Business
?Product Features How Did You Learn About This Product:
?Avanti Reputation ?Advertising
?Product Quality ?In Store Demo ?Personal Demo
?Salesperson Recommendation ?Other______________________________
?Friend/Relative Recommendation Comments____________________________
?Warranty _____________________________________
?Other_______________________ _____________________________________

5

6
HELP US HELP YOU...
Read this guide carefully.
It is intended tohelp you operate and maintain
your newappliance properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the appliance.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
SerialNumber
Use these numbers in any correspondence or
service calls concerning your appliance.
If you received a damaged appliance,
immediately contact the dealer (or builder) that
sold you theappliance.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for assistance.
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased. In
most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
CAUTION
:
THIS APPLIANCE IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICALPRODUCTS.

7

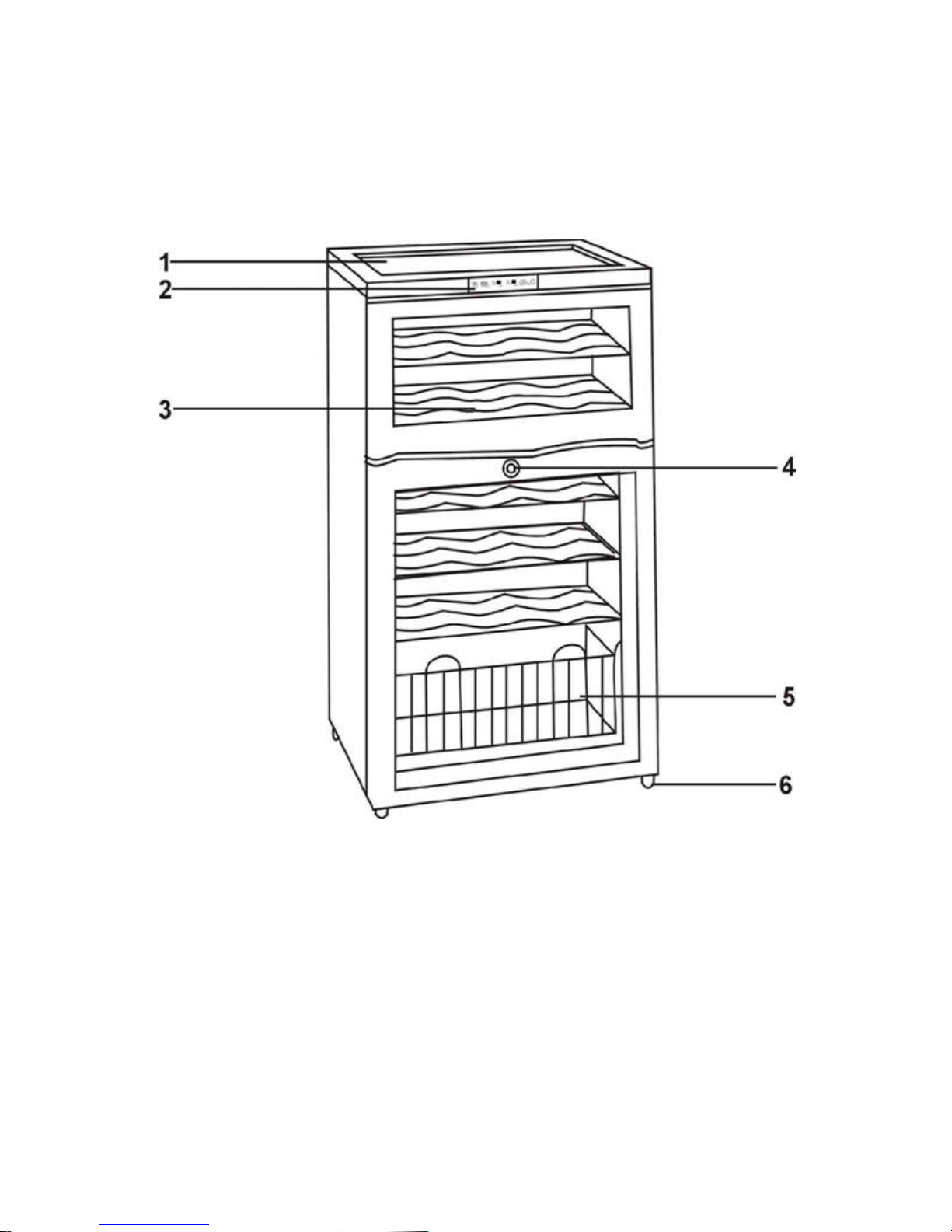

PARTS & FEATURES
1. Serving Tray
2. Digital Readout
3. Chrome Shelves
4. Security Lock
5. Wine Rack
6. Leveling Leg

8
TABLE OF CONTENTS
APPLIANCE SAFETY _________________ _________________________________________2
IMPORTANT SAFEGUIDES_________________________________________________________3
REGISTRATION INFORMATION_____________________________________________________4
HELP US HELP YOU … ___________________________________________________________ 6
PARTS AND FEATURES __________________________________________________________ 7
IMPORTANT SAFETY INSTRUCTIONS_______________________________________________ 9
INSTALLATION INSTRUCTIONS____________________________________________________ 9
BEFORE USING YOUR APPLIANCE _______________________ ______________________ 9
INSTALLING YOUR APPLIANCE _________________ ________________________________9
ELECTRICAL CONNECTION ______________________________________________________10
EXTENSION CORD _____________________________________________________________ 10
REVERSING THE DOOR SWING OF YOUR APPLIANCE ____________________________ 10
OPERATING YOUR APPLIANCE _____________________ ___________________________ 10
SETTING THE TEMPERATURE CONTROL __________________________________________ 10
INTERIOR LIGHT ________________________________________________________________11
DOOR LOCK ___________________________________________________________________ 11
CARE AND MAINTENANCE ______________________________________________________ 11
REPLACING YOUR LIGHT BULB___________________________________________________11
CLEANING YOUR APPLIANCE _________________________________________________ 12
POWER FAILURE_______________________________________________________________ 12
VACATION TIME ________________________________________________________________12
MOVING YOUR APPLIANCE ____________________________________________________ 12
ENERGY SAVING TIPS ___________________________________________________________12
TROUBLESHOOTING GUIDE ______________________________________________________13
SERVICE FOR YOUR APPLIANCE ______________________________________________ 14
YOUR AVANTI PRODUCTS WARRANTY ____________________________________________ 15
WIRING DIAGRAM ______________________________________________________________ 16
INSTRUCCIONES EN ESPAÑOL ________________________________________________17-19

9
IMPORTANT SAFETY INSTRUCTIONS
?WARNING? To reduce the risk of fire, electrical shock,
or injury when using your appliance, follow
these basic precautions:
?Read all instructions before using the appliance.
?DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or
abandoned appliances are still dangerous. . . even if they will “just sit in the
garage a few days.”
?Before you throw away your old appliance:Take off the doors. Leave the
shelves in place so that children may not easily climb inside.
?Never allow children to operate, play with, or crawl inside the appliance.
?Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
?Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
BEFORE USING YOUR APPLIANCE
?Remove the exterior and interior packing.
?Check to be sure you have all of the following parts:
?5Shelves
?2 Keys
?1 Wine Rack
?1 Instruction Manual
?Before connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
?Clean the interior surface with lukewarm water using a soft cloth.
INSTALLING YOUR APPLIANCE
?This appliance is designed to be free standing only, and should not be recessed or built-in.
?Place your appliance on a floor that is strong enough to support the appliance when it is fully
loaded. To level your appliance, adjust the front leveling leg at the bottom of theappliance.
?Allow 5 inches of space between the back and sides of theappliance, which allows the proper
air circulation to cool the compressor.
?Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the appliance not to
perform properly.
?Avoid locating theappliance in moist areas.
?Plug the appliance into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.

10
ELECTRICAL CONNECTION
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical outlet with three-prong ground.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving theappliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
REVERSING THE DOOR SWING OF YOUR APPLIANCE
This appliance has the capability of the door opening from either the left or right side. The unit is
delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call customer service for reversal instructions.
OPERATING YOUR APPLIANCE
SETTING THE TEMPERATURE CONTROL FOR EACH ZONE
You can press SET button to control the internal temperature for each zone.
The degrees indicator will appear in the display marked upper (top zone) and lower (bottom zone).
?Press the SET button once.
?
Warning
?
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.
NOTE:
T
he preset temperature at the factory
i
s 50ºF
and it will show on the display when you
press theUP andDOWN buttons for the first time.

11
The LED indicator on the upper display will flash. Then press theUP or DOWN buttons to get the
desired temperature.
?When you press the SET button again, the LED indicator on the lower display will flash. Then
proceed to press the UP or DOWN buttons to get the desired temperature in the lower section.
?The temperature that you desire to set will increase 1ºF or 1ºC if you push the UP button once, on
the contrary the temperature will decrease 1ºF or 1ºC if you push the DOWN button once.
?When you store mostly red wines, the temperature which you control by pushing the above two
buttons need to be set at between 60 to 65?F and the LED lamp near “RED” will be lit.
?When you store mostly white wines, the temperature needs to be set at between 50 to 59?F and
the LED lampnear “WHITE” will be lit.
?When you store mostly sparkling wines, the temperature needs to be set at between 45 to 49?F
and the LED lamp near“SPARKL” will be lit.
?You can select temperature display setting from Fahrenheit to Celsius degree by pushing the ?C
button.
?You can select temperature display setting from Celsius to Fahrenheit degree by pushing the ?F
button.
?Fahrenheit and Celsius degrees indicator will appear on either the upper or lower displays.
RED: RED WINES 60–65?F
WHITE: WHITE WINES/DRY 50-59?F
SPARKL: SPARKLING WINES/ROSE WINES 45-49?F
ROSE:ROSE WINES 49 -51?F
STORAGE
Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able
to store may vary.
NOTE: You can place 10 standard bottles in the upper zone and 18 standard bottles in the lower
zone.
INTERIOR LIGHT
?Interior light is only available in the lowerzone.
?You can turn the interior light onby pushing the LIGHT ON/OFF button.
?The light will turn offautomatically if it remains ON for 10 minutes or more.
DOOR LOCK
The keys are located inside the plastic bag that contains the User’s Guide. Insert thekey into the lock
and turn it counterclockwise to unlock the door. To lock the door do the reverse operation marking
sure metal pin is engaged completely. Removethekey and place it in a secure place for safekeeping.
CARE AND MAINTENANCE
REPLACING YOUR LIGHT BULB
NOTE:

12
All parts removed must be saved to do the replacement of the light bulb.
Before removing the light bulb, either unplug the appliance or disconnect the electricity leading
into the appliance at the main power supply. Failure to do so could result in electrical shock or
personal injury.
?Press the light switch to the “OFF” position.
?Remove the screw “5”.
?Remove the light bulb cover “4” by pulling the bottom end of the light bulb cover gently.
?Unscrew the bulb “2”.
?Replace with a 10-watt bulb that is the same shape and size.
?Replace the light bulb cover “4” and tighten screw “5”.
1–Bulb Holder 4–Bulb Cover
2–Bulb 5 –Screw
3–Bulb Holder Case
CLEANING YOUR APPLIANCE
?Unplug the appliance, and remove shelves.
?Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
?Wash the shelves with a mild detergent solution.
?The outside of the appliance should be cleaned with mild detergent and warm water.
?Wring excess water out of the sponge or cloth before cleaning the area of the controls, or any
electrical parts.
?Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
CAUTION:
Failure to unplug the appliancecould result in electrical shock or personal injury.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect your food.
NOTE:
?If the unit is unplugged, has lost power, or is turned off; you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the appliance will not start.
VACATION TIME
?Short vacations: Leave theapplianceoperating during vacations of less than three weeks.
?Long vacations: If the appliance will not be used for several months, remove all items and
unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the door open slightly: blocking it open if necessary.

13
MOVING YOUR APPLIANCE
?Securely tape down all loose items inside your appliance.
?Turn the leveling screw up to the base to avoid damage.
?Tape the doorsshut.
?Be sure the appliance stays secure in the upright position during transportation. Also protect
the outside ofappliancewith a blanket, or similar item.
ENERGY SAVING TIPS
?The appliance should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
PROBLEMS WITH YOUR APPLIANCE
You can solve many common appliance problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Appliancedoes not operate. Not plugged in.
The circuit breaker tripped or a blown fuse.
Applianceis not cold enough. Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently. The room temperature is hotter than normal.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work. Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The switch is in the “OFF” position.
Vibrations. Check to assure that the appliance islevel.
The appliance seems to make too much noise. The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
appliance.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The appliance is not level.
The door will not close properly. The appliance is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

14
SERVICE FOR YOUR APPLIANCE
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti refrigerators. With the purchase of your Avanti
appliance, you can be confident that if you ever need additional information or assistance, the Avanti
Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029 Whatever your questions are about our products, help is available.
Part Orders
800-220-5570 You may order parts and accessories that will be delivered directly to your home, by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your refrigerator inside and out.

15
YOUR Avanti Products WARRANTY Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of
purchase by the original owner, Avanti
Products will, at its option, repair or
replace any part of the
appliance, which proves to be
defective in material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary
to correct such defects free of charge,
so long as the appliance has been
installed and operated in accordance
with the written
instructions in this manual. In rental or
commercial use, the warranty period is
90 days. All Avanti appliances of 3.5
cubic feet capacity or less must be
brought/sent to the appliance service
shop for repair.
?Content losses of food due to spoilage.
?Incidental or consequential damages.
?Parts and labor costs for the following will
not be considered as warranty:
?Evaporator doors, door springs, and/or
frames.
?Inner door panels, door shelves, door
rails, and/or doorsupports.
?Chest refrigerator lid liners.
?Vegetable crispers.
?Light bulbs and/or plastic housing.
?Plastic cabinet liners.
?Punctured evaporator that voids the
warranty on the complete sealed system.
LIMITED SECOND THROUGH
FIFTH YEAR WARRANTY
For the second through the fifth year from date
of original purchase, Avanti Products will
provide a replacement compressor free of
charge due to a failure. You are responsible
for the service labor and freight charges. In
rental or commercial use, the limited
compressor warranty is one year and nine
months. Cost to move the appliance to the
servicers’ shop and back to the user's home,
as may be required, are the user's
responsibility.
?Repairs performed by unauthorized
servicers.
?Service calls that do not involve defects in
material or workmanship such as
customer education, door reversal, or
proper installation.
?Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents,
fire, floods, or acts of God.
?Replacement of house fuses or resetting
circuit breakers.
?Failure of the product if it is used for other
than its intended purpose.
?This warranty does not apply outside the
Continental USA.
WHAT IS NO
TCOVERED

16
WIRING DIAGRAM

17
INSTRUCCIONES EN ESPAÑOL
INSTALACION
Retire los accesorios de empaque (plásticos protectores, cartón y tiras engomadas). Limpie el
exterior con un trapo suave y seco, y el interior con un trapo húmedo y tibio.
UBICACION
1. Seleccione un lugar con un piso firme y nivelado.
2. Su vinera requiere ventilación. Deje un espacio mínimo de 5” hacia arriba y espacio suficiente en
el respaldo para permitir la circulación de aire.
3. Evite luz directa del sol o calor. La luz directa del sol puede afectar la capa de pintura. Las
fuentes de calor en su proximidad causarán un consumo mayor de electricidad.
4. Para un mejor desempeño, nivelela vinera utilizando las patas ajustables o tornillos niveladores.
Para verificar el nivel, abra la puerta hasta la mitad, debe regresar sola.
INSTRUCCIONES PARA LA CONEXION ATIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable de escape para la
corriente eléctrica. Este aparato viene equipado con un cordón que posee un cable a tierra con un
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA
El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de choque eléctrico.
Consulte con un electricista si no comprende bien las instrucciones de conexión a tierra o si existe
alguna duda sobre si el aparato está conectado a tierra correctamente.
NO USE UN CORDON DE EXTENSION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su vinera a cordones de prolongación
eléctrica o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Un electrodoméstico vacío es una atracción muy peligrosa para los niños. Quite los sellos
magnéticos, puertas o cerraduras de todo electrodoméstico que no esté en uso, es tambien
aconsejable remover o quitar ambas puertas al momento de desechar suvinera.
OPERACION
?Como programar el control de temperatura para cada zona.
?Oprima elbotón marcado SET una vez,el indicador en la pantalla marcada UPPER (zona
superior)se alumbrará de forma intermitente.
?Oprima los botones ? (abajo) y ? (arriba) para obtener la temperatura deseada.
?Cuando Ud oprimeel botón marcado SET de nuevo, el indicador en la pantalla marcadoLOWER
(zona inferior)se alumbrará de formaintermitente.
?Si en su mayoría Usted solamente guarda vinos blancos, presione el botón designado “white” o
blanco y la vinera mantendrá una temperatura entre 10º y 11º C. La pantalla digital se alumbra en
color verde.
?Al presionar el botón marcado “red” o rojo, la vinera mantendrá una temperatura entre 14º y 16º
C. La pantalla digital se alumbrará en color rojo.
?Presioneelbotónmarcado“sparkling”oespumante y la vinera mantendrá una temperatura entre
7º y 9º C. El indicador (pantalla digital) se alumbrará en color amarillo.
?Al conectar su vinera por primera vez, puede haber una variante de varios grados entre la
temperatura seleccionada y la indicada en la pantalla digital. Esto es normal y es debido al
largo periodo de activación y desactivación. Si usted ha programadola vinera a 15º por
NOTA: La vinera de fábrica y enseñará50ºF (10ºC) en la pantalla cuando usted oprimalos botones
marcados ? o?por primera vez.

18
ejemplo, podría aumentarlo oprimiendo el botón marcado?sucesivamente o podría bajarlo
oprimiendo el botón marcado ?.
?También puede cambiar de grados centígrados a Fahrenheit, oprimiendo el botón marcado C/Fº.
Fº aparecerá en la pantalla de color rojo, Cº aparecerá en la pantalla de color amarillo.
TEMPERATURA RECOMENDADA PARA ENFRIAR EL VINO
Vino tinto: 59-76ºF
Vino blanco/seco 49-56ºF
Vino blanco/espumante 45-49ºF
Vino rosé/ Zinfandel 49-51ºF
Estas temperaturas pueden fluctuar dependiendo si la luz interna está encendida.
ALMACENAJE
Muchas botellas se diferencian en tamaño y diámetro. Como tal el número de botellas que usted
puede almacenar puede variar.
LUZ INTERNA
La luz interna estásolo disponible en la zona inferior.
Usted puede automáticamente controlar la operación de iluminación oprimiendo el botón marcado
LIGHT ON/OFF. La luz se apagaráautomáticamente después de 10 minutos.
CERRADURA DE LA PUERTA
Su unidad viene equipada con una combinación de cerradura y llave.
Las llaves están dentro de la bolsa plástica junto al manual de instrucciones.
Introduzca la llave en la cerradura y gírela hacia la izquierda para abrir la puerta.
Para cerrarla, girela llave hacia la derecha.
Quite la llave y colóquela en un lugar seguro para evitar que se pierda.
CUIDADOS EN LOS PERIODOS DE AUSENCIA
?Para cortos períodos de ausencia (menos de 21 días) el congelador podrá quedar funcionando.
Coloque el botón de control de temperaturas en la posición mínima.
?En períodos de ausencia más largos, se aconseja dejar la vineralimpiay desconectada.
?Saque todo lo que tenga adentro de lavinera y haga el deshielo y la limpieza general.
?Deje la puerta entreabierta para que penetre el aire y así evitar la formación de olores.
ECONOMIA DE ENERGIA
?Evite dejar por mucho tiempolaspuertasabierta.
?Evite aperturas frecuentes delaspuertas.
?Nunca coloque alimentos calientes dentro del refrigerador. Espere que estén a una
temperatura ambiental.
?Coloque el botón de control de temperaturas en la posiciónadecuada.
SI USTED SE VA DE VACACIONES POR UN PERIODO DE 30 DIAS O MAS
?Saque todos los artículos de la vinera.
?Desconecte la vineradel tomacorriente y limpie la vinera bien.
?Deje laspuertasabierta para evitar la formación de olores, condensacióno moho.
SI USTED SE MUDA
?Desconecte la vineradel tomacorriente y limpie la vinera bien.
?Saque todas las partes movibles y empaquételas para que no se muevan durante la
transportación.
?Cierre la puerta del refrigerador y séllela con cinta adhesiva.
?Asegúrese que el refrigerador va parado durante el viaje y cúbralo con una frazada.

19
PRINTED IN CHINA
