AVARRO NX-FMM3763 User manual

Full Motion Medium TV Mount 37-63"/70lb
NX-FMM3763
P 1
V3

P2
ENGLISH
1. Limited Warranty
a. General
Subject to the terms and conditions of this Limited Warranty, from the date of sale through the period of time for
product categories specified in Section 1(a), ADI warrants ADI branded products to be free from defects in materials
and workmanship under normal use and service, normal wear and tear excepted. Except as required by law, this
Limited Warranty is only made to Buyer and may not be transferred to any third party.
ADI shall have no obligation under this Limited Warranty or otherwise if:
(i) The product is improperly installed, applied or maintained;
(ii) The product is installed outside of stated operating parameters, altered, or improperly services or repaired;
(iii) Damage is caused by outside natural occurrences, such as lightning, power surges, fire, floods, acts of nature, or
the like.
(iv) Defects resulting from unauthorized modification, misuse, vandalism, or other causes
unrelated to defective materials or workmanship, or failures related to batteries of any type used in connection with
the products sold hereunder.
ADI only warrants those products branded for ADI and sold by ADI. Any other products branded by third parties are
warranted by the third party manufacturer for a period as defined by the third party manufacturer, and ADI assigns to
Buyer those warranties and only those warranties extended by such third party manufacturers or vendors for non-ADI
branded products. ADI does not itself warrant any non-ADI branded product and sells only on an as is basis in
accordance with ADI’s terms and conditions of sale.
a. Specific Warranties for product categories are as follows :
Product Categories Warranty Period
Intrusion Wireless Communication Accessories 12 months
Keystones, Wall plates, Accessories 24 months
CCTV Power Supplies 24 months
In Ceiling Speakers 24 months
Magnetic Locks 24 months
Surge Protection 24 months
UPS (uninterruptible power supplies) 24 months
HDMI Distribution 24 months
6 Outlet Surge Protection 24 Months
Intrusion Audio Devices 30 months
Video Surveillance Monitors 30 months
Power and Relays 30 months
Hold-up Buttons 30 months
Video Surveillance Baluns 30 months
Smoke Detectors 36 months
DVR's, NVR's 60 Months excluding HDD; 36 Months
HDD (included in recorder)
HD Analog Cameras 60 Months
IP Cameras 60 Months
PIR’s 60 months
Analog Cables Limited Lifetime

P3
a. Specific Warranties for product categories are as follows :
B Connectors Limited Lifetime
Bus Terminals Limited Lifetime
Extension Cords Limited Lifetime
HDMI Cables Limited Lifetime
Jacks, Cords and Intrusion Communication Accessories Limited Lifetime
Patch Cables Limited Lifetime
Patch Panels & Brackets Limited Lifetime
Raceway Conduit Limited Lifetime
Wire Ties Limited Lifetime
Magnetic Contacts Limited Lifetime
Network Switches/PoE Switches Limited Lifetime
2. EXCLUSION OF WARRANTIES, LIMITATION OF LIABILITY
THERE ARE NO WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, OF MERCHANTABILITY, OR
FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF. TO THE FULLEST EXTENT PERMITTED BY LAW, IN NO CASE SHALL ADI BE
LIABLE TO ANYONE FOR ANY (I) CONSEQUENTIAL, INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE
DAMAGES ARISING OUT OF OR RELATING IN ANY WAY TO THE PRODUCT AND.OR FOR BREACH OF
THIS OR ANY OTHER WARRANTY OR CONDITION, EXPRESS OR IMPLIED, OR UPON ANY OTHER BASIS
OF LIABILITY WHATSOEVER, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY ADI’S OWN NEGLIGENCE
OR FAULT AND EVEN IF ADI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES OR DAMAGES.
Any product description (whether in writing or made orally by ADI or ADI’s agents), specifications, samples,
models, bulletin, drawings, diagrams, engineering sheets, or similar materials used in connection with the Buyer’s
order are for the sole purpose of identifying ADI’s products and shall not be construed as an express warranty or
condition. Any suggestions by ADI or ADI’s agents regarding use, applications or suitability of the products shall
not be construed as an express warranty or condition unless confirmed to be such in writing by ADI. ADI does not
represent that the products it sells may not be compromised or circumvented; that the products will prevent any
personal injury or property loss by burglary, robbery, fire or otherwise, or that the products will in all cases provide
adequate warning or protection. Buyer understands and will cause its customer to understand that a properly
installed and maintained product is not insurance or guarantee that such will not cause or lead to personal injury
or property loss. CONSEQUENTLY ADI SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPER-
TY DAMAGE OR OTHER LOSS BASED ON ANY CLAIM AT ALL INCLUDING A CLAIM THAT THE PRODUCT
FAILED TO GIVE WARNING. However, if ADI is held liable whether directly or indirectly for any loss or damage
with respect to the products it sells, regardless of cause or origin, its maximum liability shall not in any case
exceed the purchase price of the product, which shall be fixed as liquidated damages and not as a penalty and
shall be the complete and exclusive remedy against ADI.
3. Limitation on Liability to Buyer’s Customers.
Buyer agrees to limit liability to its customers to the fullest extent permitted by law. Buyer acknowledges that ADI
shall only be deemed to give consumers of its products such statutory warranties as may be required by law and
at no time shall Buyer represent to its customers and/or users of ADI products that ADI provides any additional
warranties. By accepting the products, to the fullest extent permitted by law, Buyer assumes all liability for, and
agrees to indemnity and hold ADI harmless against and defend ADI from, any and all suits, claims, demands,
causes of action and judgments relating to damages, whether for personal injury or to personal property, suffered
by any person, firm, corporation or business association, including but not limited to, Buyer’s customers and/or
users of the products because of any failure of the products to detect and/or warn of the danger for which the
goods were designed or any other failure of the products whether or not such damages are caused or contributed
to by the sold or joint concurring negligence or fault of ADI.

TOOLS NEEDED
SYMBOLS
7/32”
5.5 mm
3/8”
10 mm
P4
4. Returns
Subject to the terms and conditions listed below, during the applicable warranty period, ADI will replace Product or
provide a credit at purchase at its sole option free of charge any defective products returned prepaid. Any obliga-
tions of ADI to replace Limited Lifetime warranty products pursuant to this warranty which result from defect are
limited to the availability of replacement product. ADI reserves the right to replace any such products with the then
currently available products, or provide a credit in its sole discretion. In the event Buyer has a problem with any
ADI product, please call your local ADI branch for return instructions:
For US call 1-800-233-6261
For Canada call 877-234-7378
For Puerto Rico call 787-793-8830
Be sure to have the model number and the nature of the problem available. In the event of replacement, the return
product will be credited to Buyer’s account and a new invoice issued for the replacement item. ADI reserves the
right to issue a credit only in lieu of replacement.
If any ADI branded products are found to be in good working order or such product’s inability to function properly is
a result of user damage or abuse, the product will be returned to Buyer in the same condition as received and
Buyer shall be responsible for any return freight changes.
5. Governing Law
The laws of State of New York apply to this Limited Warranty.
6. Miscellaneous
Where any term of this Limited Warranty is prohibited by such laws, it shall be null and void, but the remainder of
the Limited Warranty shall remain in full force and effect.
150lbs
MW150F64
Level Caution
Precaución
Attention
Pencil Mark
Marque con lápiz
Marque de crayon
Screwdriver
Tighten
Ajustar
Serrer
Socket Wrench
Llave española
Clé ouverte
Heavy!
Agujerear
Percer
Nivel
Niveau
Tres Lourd
! Pesado
Destornillador
Tournevis
Drill

MONITOR PLATE AND ADAPTERS
HARDWARE PART NUMBERS
Product Components
Contents Qty Description
A 1 Wall Plate
D 2 Wall Plate Covers
B 1 Monitor Plate
2 Monitor Adapters A
PRODUCT COMPONENT PARTS
Use diagrams to determine which mounting configuration is needed to attach monitor
plate (with or without adapters) to the back of TV. Please check TV wall mounting
compatibility before proceeding with installation.
Please ensure A and B adapters are positioned as shown
in the below diagrams.
All measurements above: millimeters
CA
2 Monitor Adapters B
CB
!
14
CARRIAGE
BOLTS
X 8
15
NUTS
X 8
16
WRENCH
X 1
9
5mm
SPACER
X 4 X 4
12
4 5
12
M6 x 15
X 4
M8 x 15
X 4
M6 x 30
X 4
M8 x 30
X 4
36
M4 x 12
X 4
M4 x 30
X 4
M8 x 50
X 4
7
6mm STEEL
WASHER
8
8mm STEEL
WASHER
X 8
11
10mm
SPACER
X 4
10
LAG BOLT
8mm x 65mm
X2
13
WALL
ANCHOR
X 2
400
300
300
400
400
300
400
200
300
200
200
10 0
75
75
10 0
A
B
B
A
B
A
B
A
A
B
B
A
D
CA CB
P5

P6

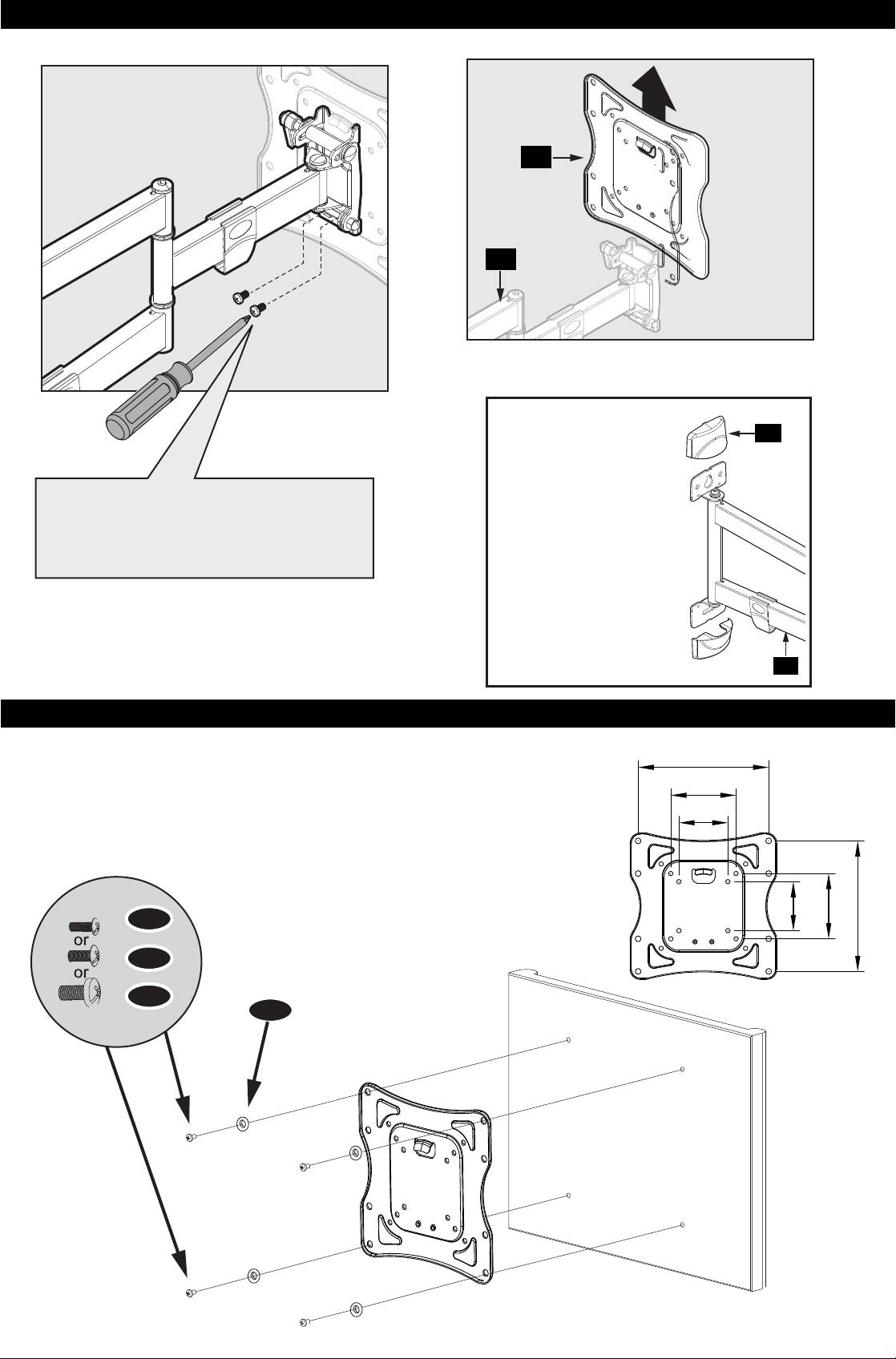

STEP 2A- MONITOR PLATE ATTACHMENT
STEP 1- REMOVE MONITOR PLATE FROM MOUNT AND REMOVE COVERS FROM WALL PLATE
8
Connect monitor plate to TV
Remove covers
A
B
Remove monitor plate from wall plate
A
D
Conecte el adaptador al monitor
Connectez l'adaptateur au moniteur
200
200
10 0
75
75
10 0
Loosen
Remove and save Phillips head
screws and washers. Screws and
washers will be used to reattach
monitor plate in step 4.
Note: Steel washer
only for M4
and M6 screws.
1
2
3

P7
STEP 2C- IF MORE CLEARANCE IS NEEDED (MONITOR PLATE)
X8

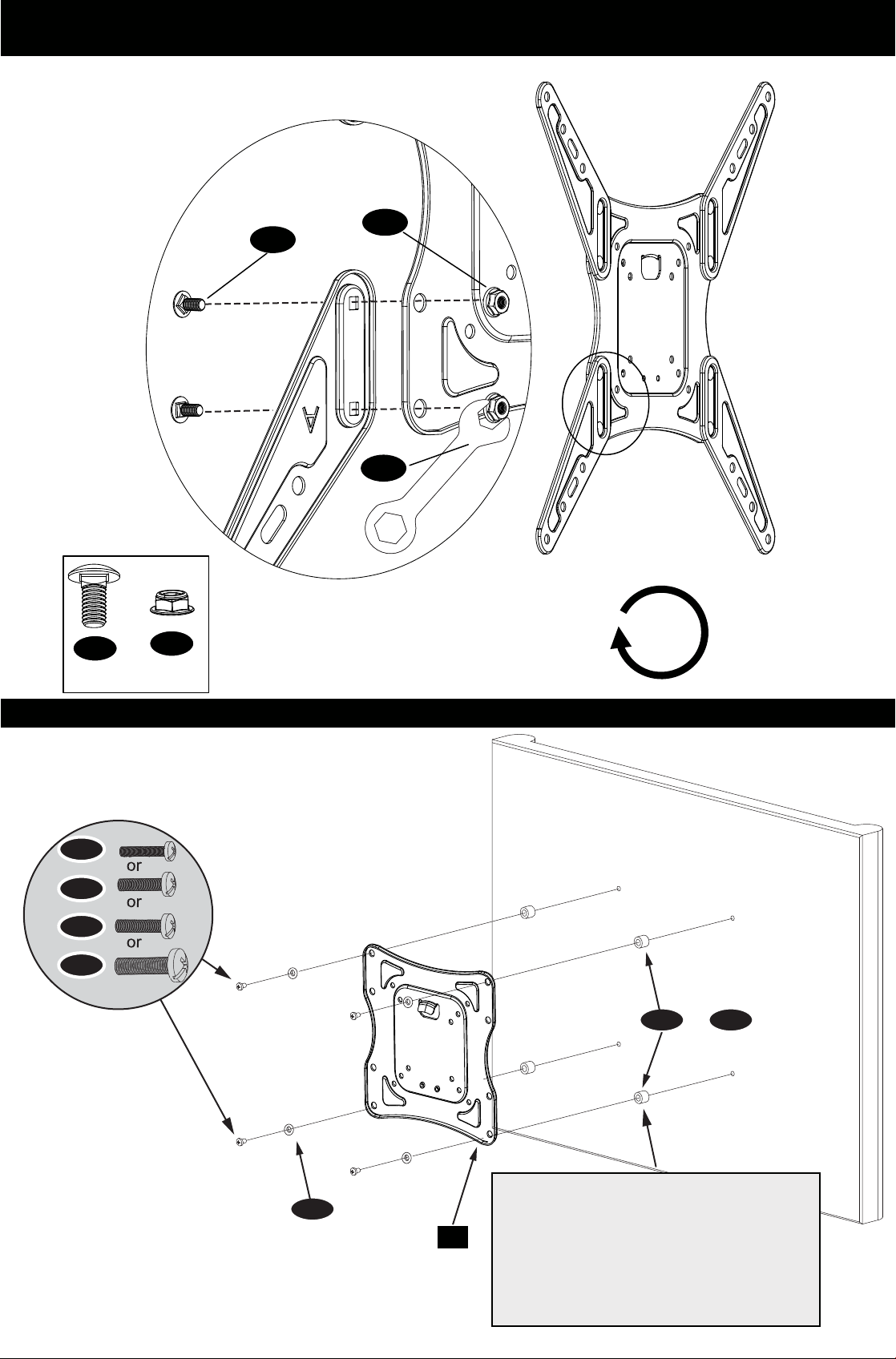

STEP 2B- IF NEEDED, ATTACH MONITOR ADAPTERS TO MONITOR PLATE
(See page 3 for options)
Connect monitor plate with adapters to TV
10 9
8
Spacers can to be used when
more clearance is required.
Spacers can be stacked 10mm +
5mm between TV and monitor
plate to allow for maximum of
15mm clearance.
B
Connect monitor plate to TV
or
15
14
14
15
X 8 X 8
16
Note: Steel washer
only for M4
and M6 screws.
Conecte el adaptador al monitor
Connectez l'adaptateur au moniteur
4
5
6
7

P8
STEP 2D- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE HARDWARE
KIT ARE TOO LONG
B or C
B or C
B or C
11
11
11
9 10
Diagrams show three possible options for using additional washers if hardware screws are too long to
properly tighten into the back of the TV.
A
OPTION
B
OPTION
C
OPTION

P9
P 1
Mount wall plate
X3
STEP 3A- DRILL PILOT HOLES AND MOUNT WALL PLATE
Attach wall plate covers after
wall plate is mounted to wall
UP
STEP 3A- WOOD STUD (CONCRETE INSTALLATION SKIP TO 3B)
Find stud and mark edge and center locations
DRILL BIT
NOT INCLUDED
D
12
A
D
Ubique el panel y marque las ubicaciones de los bordes y el centro
Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre
Coloque la placa de pared
Montez la plaque murale

P10
Attach wall plate covers after
wall plate is mounted to wall.
D
A
D
STEP 3B– SOLID CONCRETE
DRILL BIT
NOT INCLUDED
STEP 3B – DRILL PILOT HOLE AND MOUNT WALL PLATE
3/8”
12
13
Level Solid concrete
Drill pilot hole
Drill bit

P11

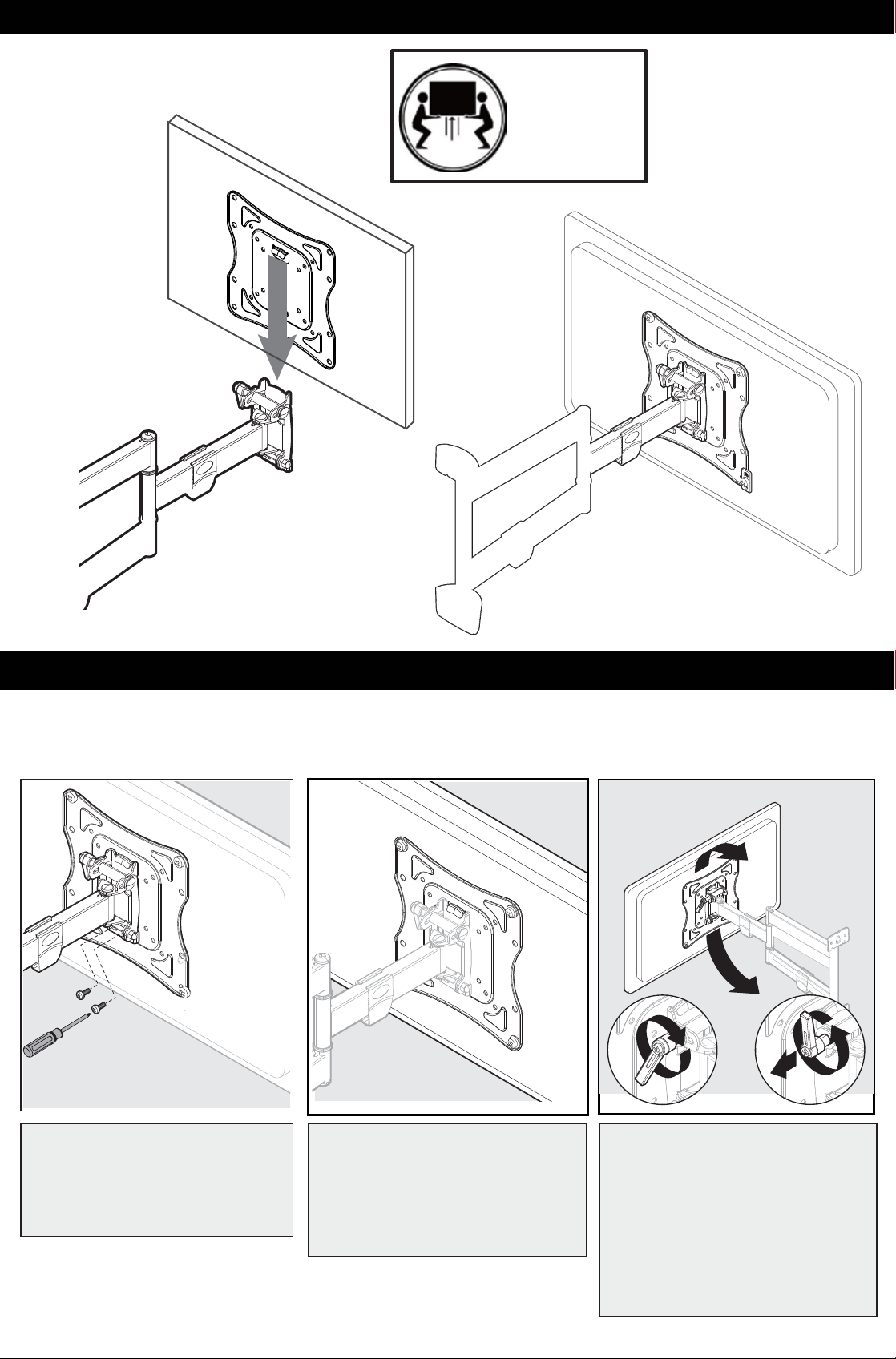

STEP 4- ATTACH PANEL TO MOUNT
Hang with TV attached
STEP 4- ADJUST TILT TENSION/ POST INSTALLATION LEVEL
ARM ASSEMBLY, LEVEL, AND TILT
TV can be leveled +/-3
degrees as needed. If
security screws are too
tight it will be difficult to
adjust leveling.
Secured Monitor Plate to
Arm using 2 Phillips head
screws. Tighten only to
snug tension.
a) Rotate handle clockwise
as far as possible.
b) Pull handle to side lateral-
ly (against spring tension)
and rotate counter- clock-
wise as far as possible.
c) Repeat steps a) and b)
until TV holds desired tilt.
Heavy, Assistance
Required
TRES LOURD ! Cette etape
requiert deux personnes
!PESADO! Necesitara ayuda
para realizar esta operacion
E
± 3°
1
1
4
3
2

P12
CAUTION: DO NOT EXCEED MAXIMUM
WEIGHT CAPACITY. SERIOUS INJURY
OR PROPERTY DAMAGE MAY
OCCUR!
Max Loading Weight: 70 lbs
PN: NX-FMM3763
NX-FMM3763
840049 30315 7
