AVE HEX-FLAT18 User manual

HEX-FLAT18
User Manual

Table of Contents
Safety .......................................................................................2
Important Safety Instructions...........................................................3
Precautions......................................................................................4
Suspension......................................................................................4
Description................................................................................5
Features ............................................................................ 5
Setup ........................................................................................6
Power Linking ..................................................................... 6
Mounting ............................................................................ 6
Operation ........................................................................... 7
Menu Map .......................................................................... 7
DMX Channel...................................................................... 8
Specifications............................................................................8

Safety
Important Safety Information
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE
TO RAIN OR MOISTURE.
WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING
CONNECTION.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR
ATTEMPT TO OPEN THE LIGHTING FIXTURE. THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER
ALL SERVICING TO QUALIFIED PERSONNEL.
1. Read this manual carefully.
2. Keep this manual safe for future reference.
3. Follow all warnings and recommendations.
4. Do not operate or store near water.
5. Do not expose the fixture to dripping or splashing liquid, and ensure that no objects
containing liquid are placed on this fixture.
6. Clean only with a dry cloth.
7. Do not install or operate near any heat sources such as radiators, gas heaters, stoves, or
other heating apparatus.
8. Only use attachments and accessories specified by the manufacturer.
9. Do not block any ventilation openings, including sound ports.
10. Install in accordance with the manufacturer’s instructions.
11. Do not obstruct or remove the ground plug from the fixture, doing so may cause electric
shock resulting in serious injury or death.
12. Protect the power cord from being walked on, pinched, or rolled over.
13. Unplug the fixture during electrical storms and power outages.
14. Refer all servicing to a qualified service technician. Servicing is required when the fixture no
longer operates, fails to power on, or emits an electrical smell or sound.
15. To completely disconnect AC power from this fixture, the power supply cord must be
unplugged.

Precautions
If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is
well ventilated to help prevent overheating.
Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C.
Suspension
Suspending any object is potentially dangerous and should only be attempted by qualified
individuals with thorough knowledge of the techniques and regulations for suspending objects. It is
the responsibility of the installer to ensure all fixtures and effects are installed correctly. AVE
strongly recommends inspecting installed systems every 6 months for signs of weakness or damage.
If any damage or weakness is detected then remedial action should be taken immediately. The user
is responsible for making sure the wall, ceiling, or structure is capable of supporting all objects
suspended overhead. Any hardware used to suspend the fixture not associated with AVE is the
responsibility of others.

Description

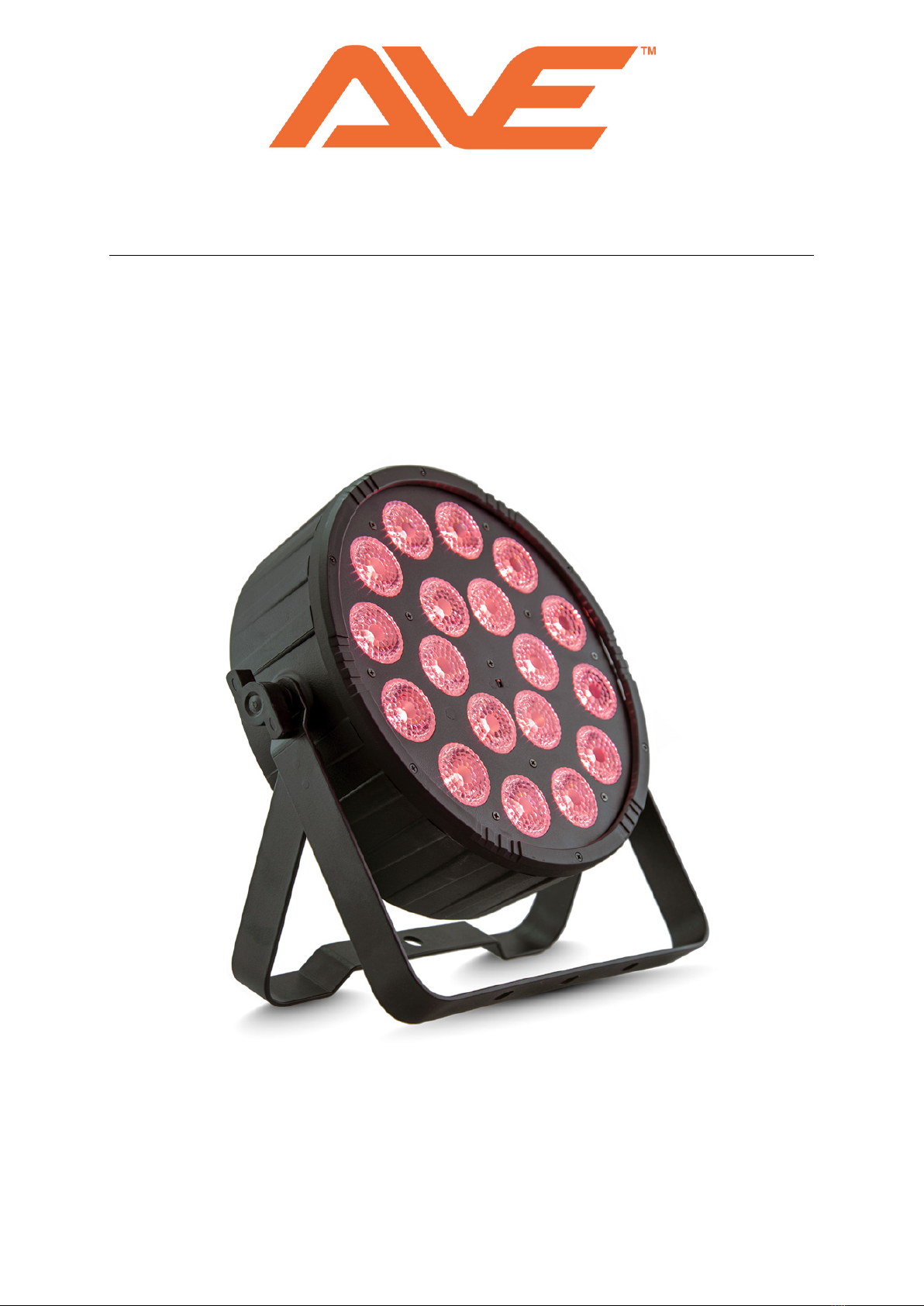

The AVE Hex-Flat 18 is a high-powered LED par can that is designed to wash even the largest of
stages. Fitted with 18x 12W Osram LED diodes, each with Hex-colour technology (RGBAW+UV)
allowing you to mix any colour in the spectrum. The par is built into a solid ABS plastic housing with
thermal fan to keep the fixture cool. A dual yoke is also included for safely hanging the fixture from
stands or lighting truss, and can be split for mounting on the floor.
The Hex-Flat 18 used a digital LCD menu display that is easy to read (even in low light environments)
and includes ‘Auto’ programs such as ‘Fade’ and ‘Sound active’ modes as standard. Easy to use right
out of the box with manual colour mixing from the menu without any additional hardware needed.
The Hex-Flat 18 can also be controlled via DMX for integration into larger lighting shows and setups
with the 3-pin XLR connectors and the 8CH or 11CH personalities.
The Hex-Flat also has the ability (when used in DMX) to default to an auto setting when the DMX
signal is no longer detected. When the DMX resumes the fixture returns to the DMX setting. This is
useful for dance floors, and event venues that want to avoid unexpected blackouts due to signal loss
or controller issues.
The Hex-Flat 18 is the perfect fixture for venues, concerts, production companies and anyone
needing a powerful and versatile colour wash.
Features
•High-output 18x 12W LEDs
•Hex Colour diodes (RGBAW+UV) for great colour spectrum mixing
•Strong ABS housing with integrated cooling fan
•Digital LCD display with high contrast
•3-Pin XLR connections for DMX control
•Built-in Auto programs; Fade / Auto / Sound
•Static colours directly from the menu
•Master / Slave operation
•Fitted with a Dual Yoke

Setup
To set up your AVE Hex-Flat 18 follow the below steps;
1. Mount the item on your lighting stand or on the floor
2. Connect the AC power cord from a grounded mains 240v power source.
3. Power the fixture/s on from the mains socket
4. Select the desired operation mode and press enter, select the mode again and wait apporx
1min for the setting to save.
Power Linking
The Hex-Flat is fitted with a Mains IEC input and output that allows you to power multiple fixtures
from one (1) mains power connection.
To power link your fixtures;
1. Ensure the mains power is off and unplugged from the wall
2. Connect your IEC extension cable to the output connector from the first fixture and connect
to the power input of the second unit ensuring that the connector are firmly in place
3. Repeat step 2 for each additional fixture up to 7 fixtures
Mounting
The Hex-Flat 18 is fitted with a Dual yoke that can be separated and used as a floor stand for use on
flat & sturdy surfaces.
For hanging the fixture to a lighting stand or trussing, simply attach a lighting clamp to the outer
yoke, ensuring that the clamp is tightened to prevent unwanted movement.

Operation
To access the menus and functions of the Hex-Flat 18, use the four (4) buttons located under the
main control screen.
Button Label
Function
Menu
Press to access main menu, or change function once the fixture is on
Up
Cycles upwards through the menu and options
Down
Cycles downwards through the menu and options
Enter
Press to select a menu option or save a setting
Menu Map
Main Level
Program Level
Description
DMX Address
1 – 512
DMX Address Value
Channl Mode
8 CH
8 Channel DMX Mode
11 CH
11 Channel DMX Mode
Slave Mode
Master
Master
Slave
Slave Mode
Show Mode
Sound
Sound Active Mode
Auto
Auto Mode
Sound Sense
0 - 100
Sound Mode Mic Sensitivity
Fade Speed
1 – 10
Colour Fade Speed (fast > slow)
Color Select
1 - 33
Select preset colours
Manul Color
Red
Red Colour 0 - 255
Green
Green Colour 0 - 255
Blue
Blue Colour 0 - 255
White
White Colour 0 - 255
Y
Amber Colour 0 - 255
P
UV Colour 0 - 255
Strobe Show
0 – 131
Manual Strobe (slow > fast)
132 – 139
No Function
140 - 181
Strobe Effect 1 (fast > slow)
182 - 231
Strobe Effect 2 (fast > slow)
232 – 255
Random Strobe Pulse
Back Light
On / Off
Turns screen on/off
Display Invert
No / Yes
Inverts the Ddisplay
Balance Setup
Red
Red Balance 0 - 255
Green
Green Balance 0 - 255
Blue
Blue Balance 0 - 255
Language Setup
English / Chinese
Temperature
-
Displays the fixture temperature
Auto Test
-
Tests all functions and colours

DMX Channels
8 CH Control
1 CH
0 – 255
Dimmer
2 CH
0 - 255
Strobe
3 CH
0 - 255
Red
4 CH
0 - 255
Green
5 CH
0 - 255
Blue
6 CH
0 - 255
White
7 CH
0 - 255
Amber
8CH
0 - 255
UV
11 CH Control
1 CH
0 – 255
Dimmer
2 CH
0 - 255
Red
3 CH
0 - 255
Green
4 CH
0 - 255
Blue
5 CH
0 - 255
White
6 CH
0 - 255
Amber
7 CH
0 - 255
UV
8 CH
0 –255
Colour
9 CH
0 – 7
8 – 99
100 - 149
150 - 199
200 – 245
246 – 255
No Function
Strobe (slow > fast)
Strobe (fast > slow)
Strobe Effect 1
Strobe Effect 2
Strobe (max speed)
10 CH
0 –255
8 – 255
No Function
Stepping Colour
11 CH
0 - 7
No Function
8 – 199
Stepping Colour Speed
200 - 255
Sound Active
Specifications
Light Source:
18 x 12W Hex-Colour LED Diodes
Diode Colour:
Red, Green, Blue, White, Amber, UV
Beam Angle:
36°
DMX Channels:
8CH / 11CH
DMX Connectors:
3-Pin XLR
Enclosure:
ABS Plastic
Power Consumption:
220W
Power Supply:
240V AC / 50Hz
Power Connectors:
IEC Mains
Dimensions:
325 x 330 x 100 mm
Weight:
2.50 kg
