Avedro KXL System User manual

Avedro, Inc.
KXL System
Operator’s Manual
ML-00002 Revision R
Copyright 2018 All Rights Reserved
Printed in U.S.A.

Patents, Trademarks, Copyrights
The KXL System may be covered by one or more patent applications issued or
pending in the United States and worldwide.
“KXL” and the Avedro logo design are registered trademarks or trademarks of
Avedro, Inc. All software and documentation is subject to Avedro, Inc. copyrights.
All rights reserved 2018.
Microsoft and Windows are registered trademarks and trademarks, respectively,
of Microsoft Corporation. Any other trademarks or service marks contained
within this manual are the property of their respective owners.
For more information, contact: Your Local Avedro-authorized distributor
Avedro, Inc.
201 Jones Road
Waltham, MA 02451
Authorized Representative
EMERGO EUROPE
Prinsessegracht 20
2514 AP, The Hague
The Netherlands
Phone: [phone]
Fax: [phone]
0086

KXL System Operator’s Manual,
Rev R
iii
Table of Contents
Chapter:
1Foreword....................................................................................................1-3
1.1 Intended Use of Manual.................................................................................1-3
1.2 Intended Use / Indications for Use.................................................................1-3
1.3 Design Change Disclaimer ............................................................................ 1-3
1.4 Reproduction Disclaimer ...............................................................................1-3
1.5 User Operation Assistance Statement............................................................1-3
1.6 Contraindications, Warnings and Cautions....................................................1-4
1.6.1 Contraindications ...............................................................................1-4
1.6.2 Warnings ............................................................................................1-4
1.6.3 Electrical Safety Warnings................................................................. 1-4
1.7 Patient Safety.................................................................................................1-5
1.8 Additional Safety Considerations..................................................................1-6
1.9 FCC Compliance Notice................................................................................1-6
2Introduction...............................................................................................2-1
2.1 System Overview...........................................................................................2-1
2.1.1 Major Components.............................................................................2-2
3System Operation......................................................................................3-1
3.1 Charging the KXL Battery............................................................................. 3-1

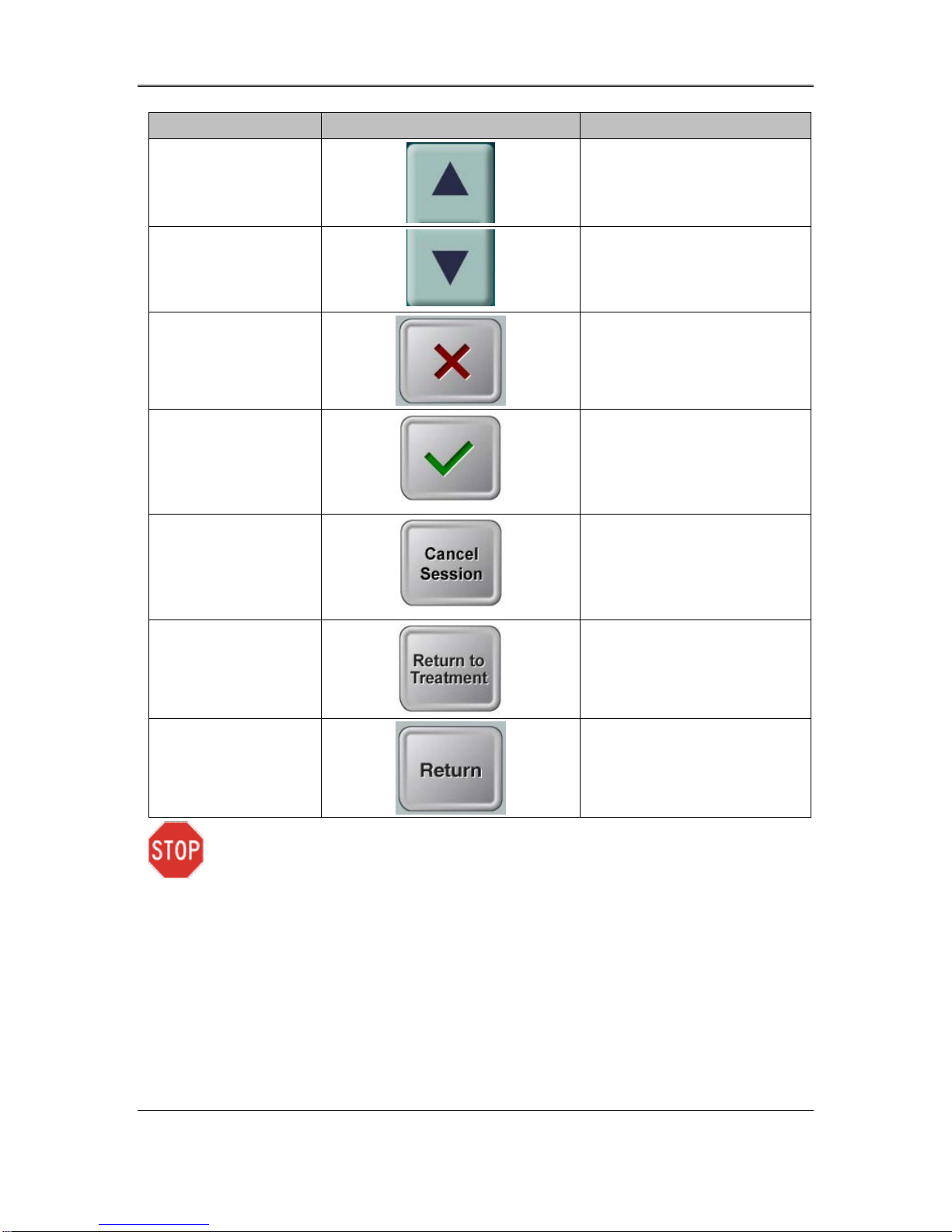

3.2 Touchpad/Keyboard Use ............................................................................... 3-1
3.3 UV Energy (Dose) .........................................................................................3-3
3.4 Preparing the System .....................................................................................3-3
3.5 Important Steps before Turning on the System .............................................3-3
3.6 Powering Up the System................................................................................3-4
3.7 Set Riboflavin Induction Period.....................................................................3-5
3.8 Select Treatment Mode.................................................................................. 3-5
3.8.1 Continuous UV Treatment Mode....................................................... 3-5
3.8.2 Pulsed UV Exposure ..........................................................................3-7
3.9 Starting Treatment .........................................................................................3-9
3.9.1 Single-use disposables......................................................................3-10
3.9.2 Multi-use disposables....................................................................... 3-11
3.9.3 RFID card controlled limits..............................................................3-12
3.9.4 Sync Alignment Remote ..................................................................3-13
3.10 Preparing the Patient....................................................................................3-15
3.11 Initiating Treatment .....................................................................................3-17
3.12 Monitoring Treatment..................................................................................3-18
3.13 Stopping a Treatment...................................................................................3-18
3.14 Treatment Complete.....................................................................................3-19
3.15 Pausing or Canceling a Treatment...............................................................3-20
3.16 Powering Down the System.........................................................................3-22

KXL System Operator’s Manual,
Rev R
iv
3.17 Using the Device Settings Menu..................................................................3-23
3.17.1 Advanced Settings..........................................................................3-23
3.17.2 Editing System Language...............................................................3-24
3.17.3 Editing Alignment Crosshairs Intensity.........................................3-24
3.17.4 Editing System Volume .................................................................3-24
3.17.5 Copying Treatment Data to USB...................................................3-25
3.17.6 Editing Default Treatment Parameters Screen............................... 3-26
4Maintenance / Service...............................................................................4-1
4.1 Installation Policy ..........................................................................................4-1
4.2 Customer Maintenance ..................................................................................4-1
4.3 Warranty Information .................................................................................... 4-1
4.4 Service Contract Information.........................................................................4-1
4.5 Per Patient Disposables..................................................................................4-1
4.6 Trouble Shooting ...........................................................................................4-2
4.7 Directions for Sterilization or Disinfection....................................................4-3
4.8 Cleaning the System ......................................................................................4-3
4.9 Cleaning the Aperture.................................................................................... 4-3
4.10 Articulating Arm Adjustment........................................................................ 4-3
4.11 Moving the System........................................................................................4-3
4.12 Storing the System.........................................................................................4-4
4.13 Software......................................................................................................... 4-4
4.14 Identifying Risks Associated with Disposing of Waste Products.................. 4-4
4.15 Performing a Visible Check........................................................................... 4-4
5Equipment Classification .........................................................................5-1
6Symbol Library.........................................................................................6-1
7Specifications.............................................................................................7-1

KXL System Operator’s Manual,
Rev R
1-1
Table of Figures

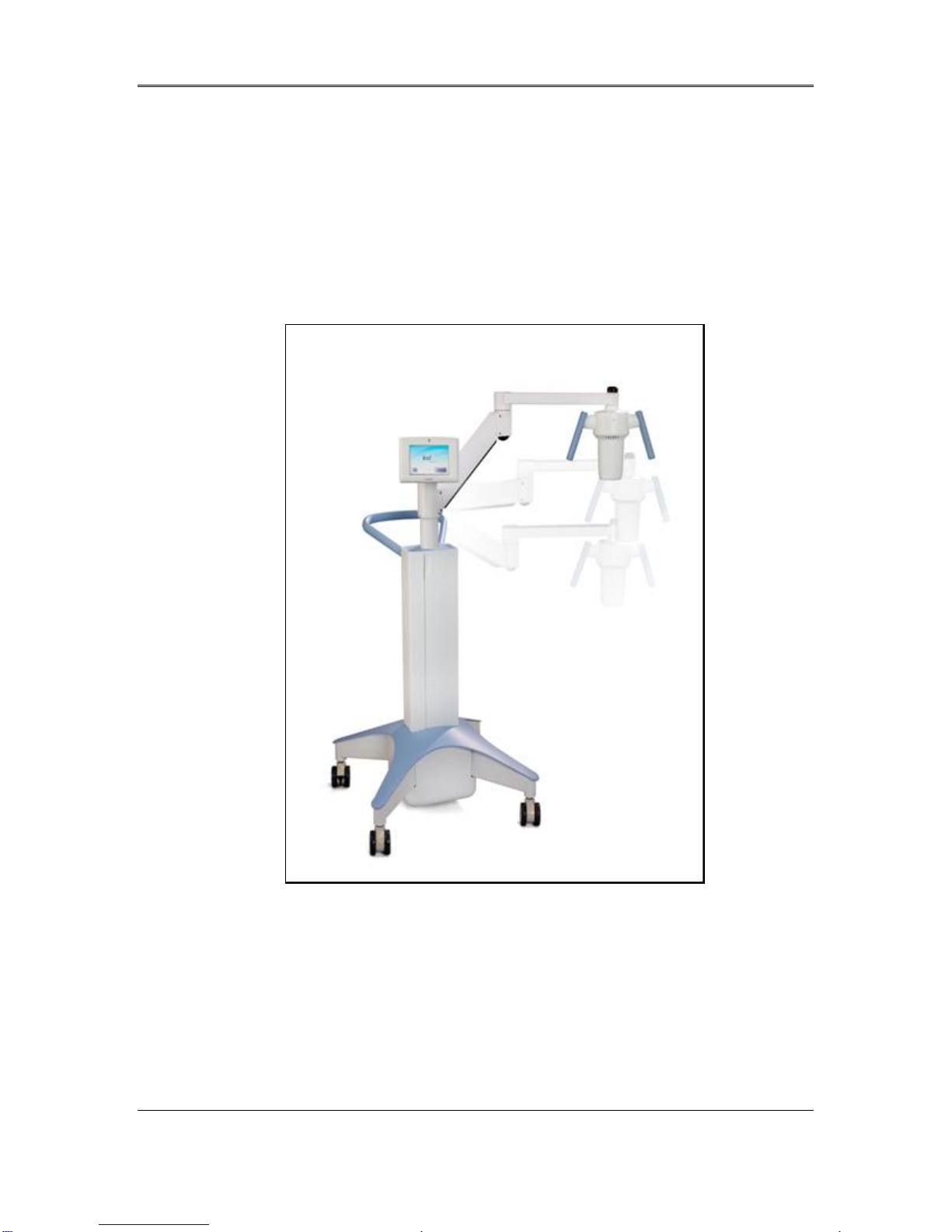

Figure 2-1. Overview Illustration of System ..................................................................................................

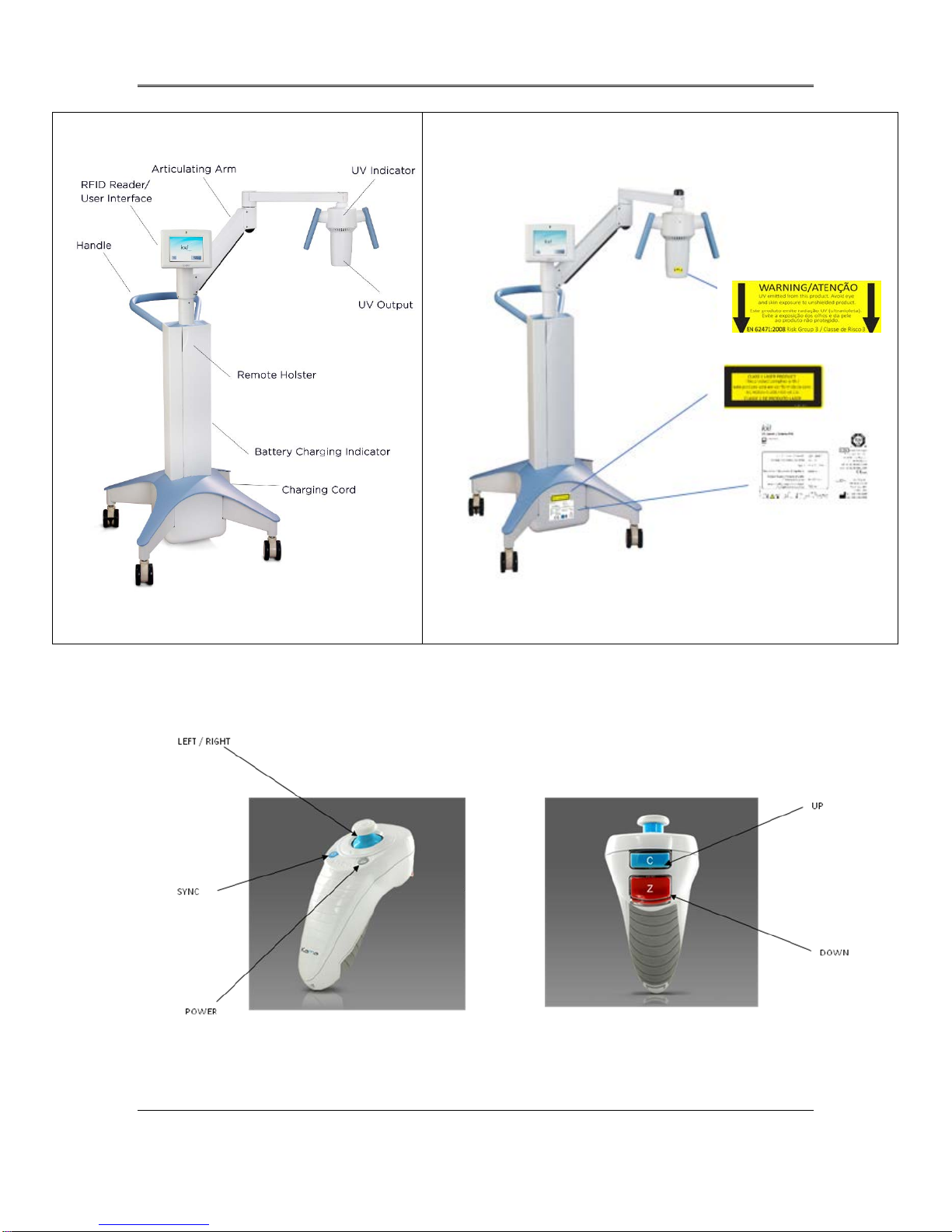

Figure 2-2. System Illustrations with Callouts .......................................................................................... 2-3
Figure 2-3. Wireless Remote .................................................................................................................... 2-3

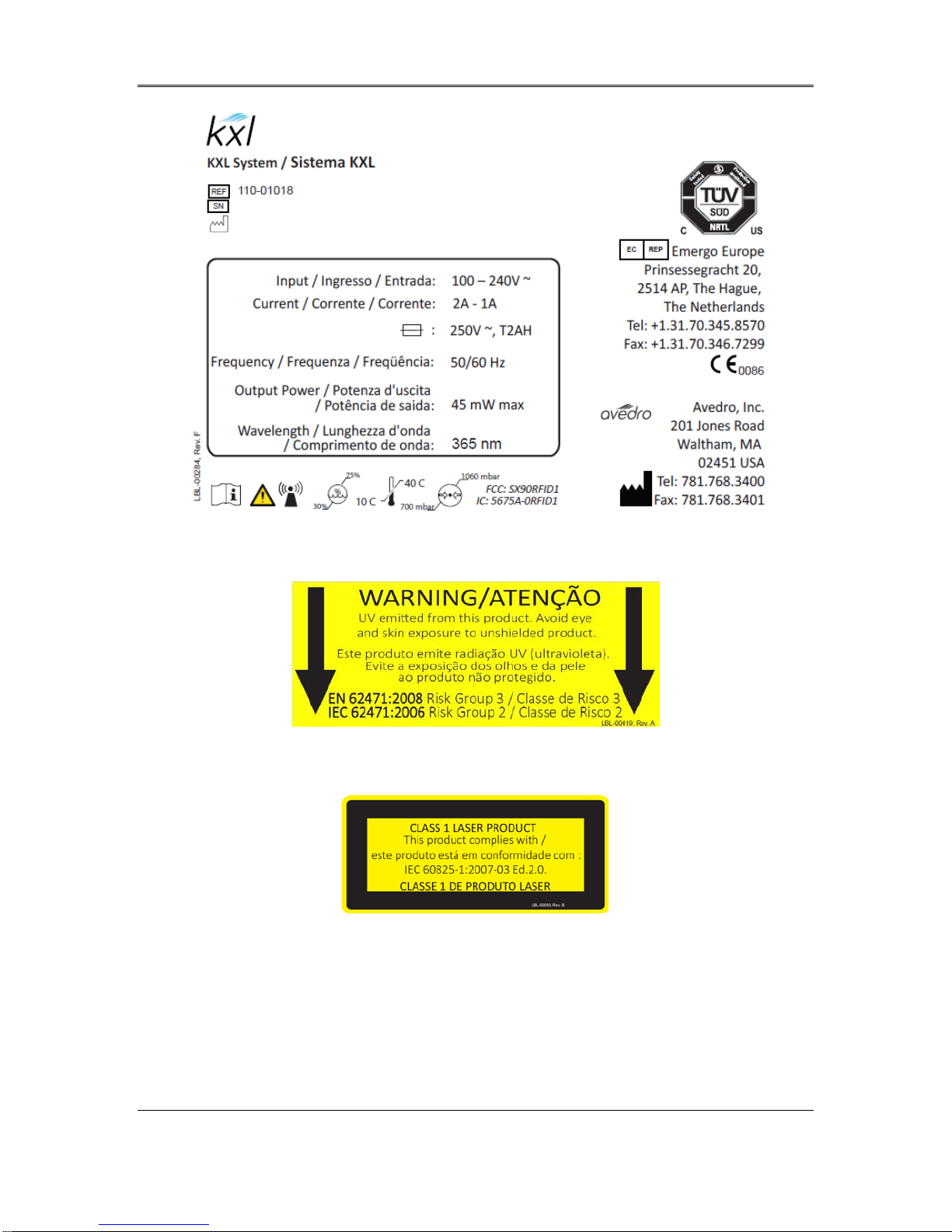

Figure 2-4. KXL Label ................................................................................................................................ 2-4
Figure 2-5. UV emitting Label................................................................................................................... 2-4
Figure 2-6. Laser Classification Label ........................................................................................................ 2-4

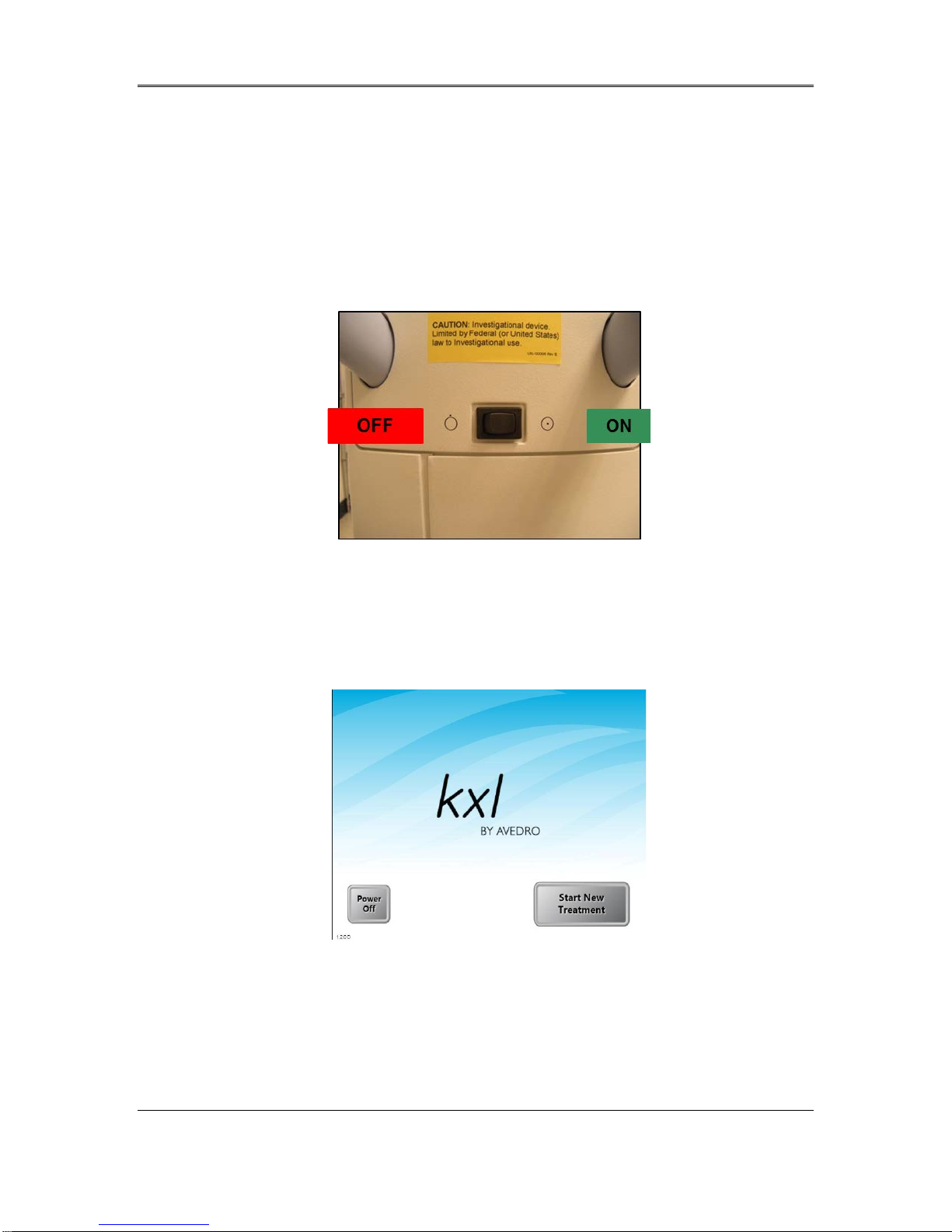

Figure 3-1. Power Switch ......................................................................................................................... 3-4
Figure 3-2. Startup Screen........................................................................................................................ 3-4

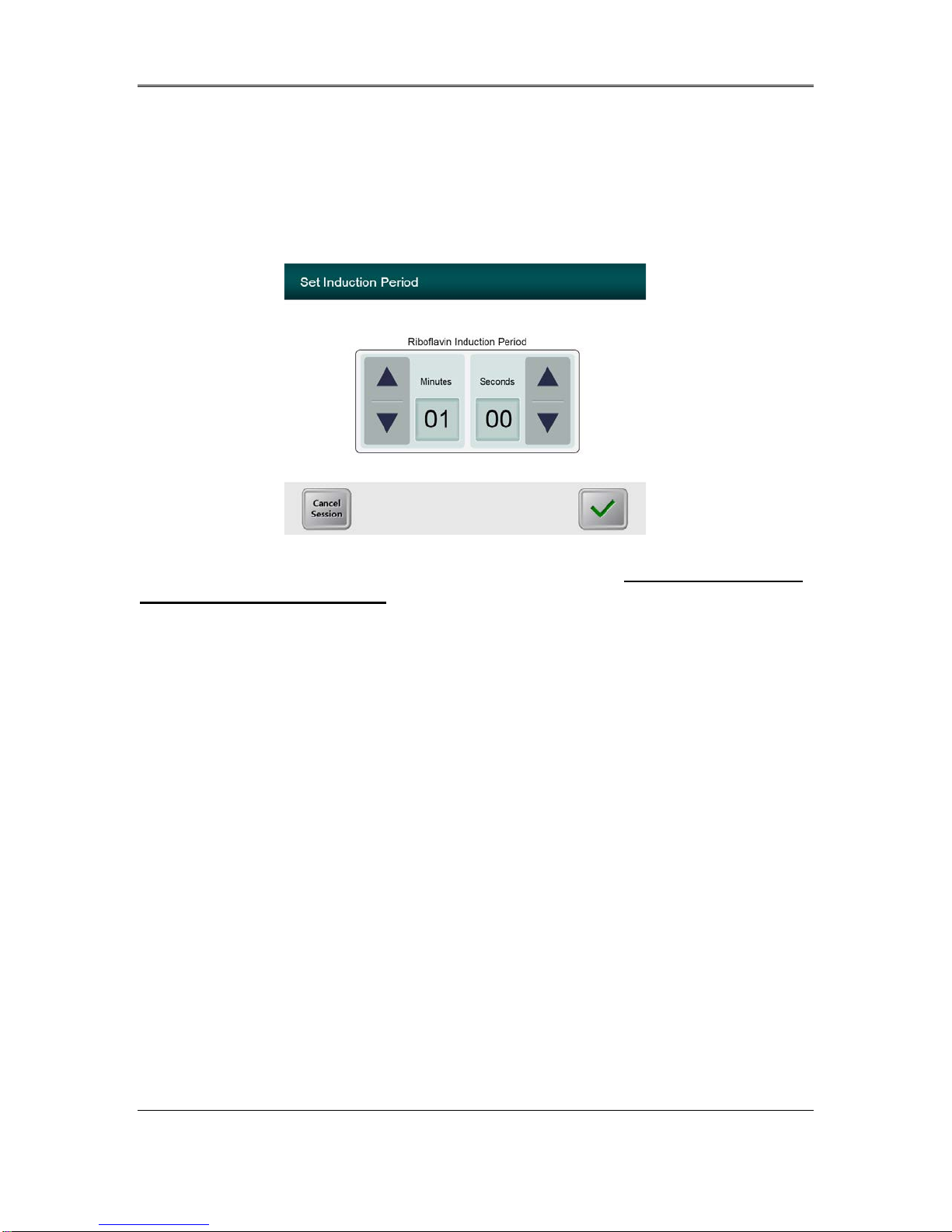

Figure 3-3. Induction Period Screen ......................................................................................................... 3-5
Figure 3-4. Select Continuous Treatment Mode Screen............................................................................ 3-6
Figure 3-5. Continuous Treatment Parameters Screen ............................................................................. 3-6
Figure 3-6. Confirm Continuous Treatment Parameters Screen................................................................ 3-7
Figure 3-7. Select Pulsed Treatment Mode Screen ................................................................................... 3-7
Figure 3-8. Pulsed Treatment Parameters Screen..................................................................................... 3-8
Figure 3-9. Set UV Pulse Cycle Times Screen ............................................................................................ 3-8
Figure 3-10. Confirm Pulsed Treatment Parameters Screen ..................................................................... 3-9
Figure 3-11. Reading Disposables............................................................................................................3-10
Figure 3-12. Reading Tag Screen .............................................................................................................3-10
Figure 3-13. Treatments Remaining ........................................................................................................3-11
Figure 3-14. Final Treatment ...................................................................................................................3-11
Figure 3-15. No Treatments Remaining ...................................................................................................3-12
Figure 3-16. Invalid Treatment Parameters.............................................................................................3-12
Figure 3-17. System Setup Status ............................................................................................................3-13
Figure 3-18. Prepare Patient Screen ........................................................................................................3-15
Figure 3-19. Align Crosshairs during induction ........................................................................................3-15
Figure 3-20. Remote Functions................................................................................................................3-16
Figure 3-21. Red Crosshairs X & Y Axes, Green Dot Z Axis Alignment ......................................................3-16
Figure 3-22. Red Crosshairs X & Y Axes, Red Crosshairs Z Axis Alignment ...............................................3-17
Figure 3-23. Induction Complete .............................................................................................................3-17
Figure 3-24. Treatment Screen ................................................................................................................3-18
Figure 3-25. Treatment Paused Screen....................................................................................................3-18
Figure 3-26. Treatment Complete Screen................................................................................................3-19
Figure 3-27. Initial Confirm Cancel Session Screen ..................................................................................3-20
Figure 3-29. Cancel Treatment ................................................................................................................3-21
Figure 3-30. Partial Treatment Information.............................................................................................3-21
Figure 3-32. Power Off Position ..............................................................................................................3-22
Figure 3-33. KXL System Plug ..................................................................................................................3-23
Figure 3-34. Device Settings Menu ..........................................................................................................3-23
Figure 3-35. Edit System Language ..........................................................................................................3-24
Figure 3-36. Edit Alignment Crosshairs Intensity .....................................................................................3-24
Figure 3-37. Edit Volume.........................................................................................................................3-25
Figure 3-38. Device Settings Transfer to USB...........................................................................................3-25
Figure 3-39. Select Default Treatment Mode ..........................................................................................3-26
Figure 3-40. Edit Default Treatment Parameters (Continuous & Pulsed).................................................3-27
Figure 3-41. Edit Default UV Pulse Parameters (Pulsed Only)..................................................................3-27
Figure 4-1 Alignment Remote Sync Lost ................................................................................................... 4-2

Chapter 1: Foreword
KXL System Operator’s Manual,
Rev R
1-2
Figure 4-2 Moving System Configuration ................................................................................................. 4-4

Chapter 1: Foreword
KXL System Operator’s Manual,
Rev R
1-3
1Foreword
1.1 Intended Use of Manual
This manual is designed to serve the operators of the Avedro, Inc. KXL System. All operating
instructions, product illustrations, screen graphics, troubleshooting/error messages, and other
relevant information are contained in this manual. It is the operator’s responsibility to ensure that
all safety instructions in this manual are applied strictly.
1.2 Intended Use / Indications for Use
The KXL System delivers a uniform, metered dose of UVA light to a targeted treatment area for the
intended use of illuminating the cornea during corneal cross-linking procedures stabilizing cornea
which have been weakened by disease or by refractive surgery.
1.3 Design Change Disclaimer
•Due to design changes and product improvements, information in this manual is subject to
change without notice. Avedro, Inc. (hereafter called “Avedro”) reserves the right to
change product design at any time without notice, which may subsequently affect the
contents of this manual.
•Avedro assumes no responsibility for any errors that may appear in this manual. Avedro
will make every reasonable effort to ensure that this manual is up to date and corresponds
with the shipped KXL System.
•The computer display screens depicted in this manual are representative only. Depending
on the software version of the system, minor differences may appear between the actual
computer displays and those shown in this manual.
•All patient data appearing in this document, including the sample screen graphics, are
fictitious and representative only. No patient’s confidentiality has been violated, with or
without permission.
1.4 Reproduction Disclaimer
Neither this manual nor any part of it may be reproduced, photocopied, or electronically transmitted
in any way without the advanced written permission of Avedro, Inc.
1.5 User Operation Assistance Statement
Should you experience any difficulty in running your KXL System, please contact your local
Avedro authorized representative.

Chapter 1: Foreword
KXL System Operator’s Manual,
Rev R
1-4
1.6 Contraindications, Warnings and Cautions
1.6.1 Contraindications
This section describes situations in which the device should not be used because the risk of use
clearly outweighs any possible benefit. Conditions that may contraindicate the use of the device
include:
•Corneal thickness, with epithelium, of less than < 375 microns.
•Corneal melting disorders
•Aphakic patients
•Pseudophakic patients without UV blocking lens implanted
•Pregnant and nursing women
•Children
1.6.2 Warnings
Physicians should evaluate the potential benefits in patients with the following conditions:
•Herpes simplex, herpes zoster keratitis, recurrent corneal erosion, corneal dystrophy
•Epithelial healing disorders
1.6.3 Electrical Safety Warnings
For Equipment Classifications please refer to chapter 5.0 Equipment Classifications
WARNING: To avoid the risk of shock this equipment must only be
connected to a supply mains with protective earth.
Even with the power cord removed, there is the potential for an electrical
shock from the 12VDC internal power source.
The system is designed for continuous operation using the external
connector or its internal rechargeable battery.
WARNING: This equipment is operated with hazardous voltages that can
shock, burn, or cause death. To reduce the possibility of electrical shock,
and inadvertent UVA exposure do not remove any fixed panels. Ensure
that all service to the system, beyond what is described in this manual,
including to the rechargeable battery, is performed only by qualified
Avedro service personnel.
WARNING: Remove the wall plug and turn off the power switch before
servicing or cleaning (disinfecting) the equipment.

Chapter 1: Foreword
KXL System Operator’s Manual,
Rev R
1-5
Never pull cords to remove the power cord from the outlet. Grasp the
power cord plug and pull it from the outlet to disconnect.
WARNING: Do not operate the equipment with a damaged power cord.
WARNING: Position the power cord so that it cannot be tripped over,
walked on, rolled over, crimped, bent, pinched, or accidentally pulled from
the wall outlet.
WARNING: Do not use the instrument near water and be careful not to
spill liquids on any part of it.
WARNING: The USB port can only be used when the system is not in
treatment mode, do not connect to the USB during treatment.
WARNING: Do not operate the KXL System in the presence of flammable
mixtures or anesthetics.
WARNING: Never look directly into the UV light beam. Never direct the
beam towards a person except for therapeutic purposes.
WARNING: The remote contains replaceable batteries; if system is not
going to be used for an extended period of time remove the batteries.
WARNING: No modification of this equipment is allowed.
1.7 Patient Safety
•The treatment should take place in a quiet and relaxed atmosphere in order not to distract
the attention of the patient. The patient should lie on a table or patient's chair. The patient’s
head should rest comfortably in a headrest. It is imperative that the table or patient’s chair
or the system not be moved during the treatment procedure.
CAUTION: The KXL System is a medical device. It may be operated, therefore, only in
health care facilities or medical areas under the supervision of medically trained personnel.

Chapter 1: Foreword
KXL System Operator’s Manual,
Rev R
1-6
1.8 Additional Safety Considerations
•Any modification of the system's external light beam by means of optical elements is
strictly prohibited.
•Plastic instrumentation such as speculums or eye shields may be damaged when impacted
by the UV beam, possibly resulting in product degradation. Therefore, only Avedro
recommended accessories or stainless steel surgical instruments should be used.
•Smooth metallic surfaces can reflect despite the effort to blank them. Therefore, only laser
grade instruments should be used.
1.9 FCC Compliance Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an electrical outlet on a circuit different from that to which the
receiver is connected.
•Consult Avedro Customer Service for help.
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission
limits. Proper cables and connectors are available from Avedro. Avedro is not responsible for any
radio or television interference caused by unauthorized changes or modifications to this equipment.
Unauthorized changes or modifications could void the user's authority to operate the equipment.

KXL System Operator’s Manual,
Rev R
2-1
2Introduction
2.1 System Overview
The KXL System is an electronic medical device which delivers ultraviolet light (365 nm
wavelength) in a circular pattern onto the cornea after a solution of Riboflavin has been applied.
Irradiating the Riboflavin creates singlet oxygen, which forms intermolecular bonds in corneal
collagen, stiffening the cornea through cross-linking. UV flux and irradiation time (that is,
fluence) at the cornea are controlled by an onboard computer system.
The Optics Head houses the UVA irradiation mechanism. The LED is preset by the manufacturer
to emit UVA radiation at a wavelength of 365 nm at an intensity of 3 mW/cm2to 45 mW/cm2.
A fixed aperture mounted in the UVA irradiation beam path is used to produce a uniform circular
area of irradiation at the treatment plane with an approximate diameter of 9 mm. Alignment lasers
are used to aid the user in focusing the beam on the patient’s cornea. Fine alignment of the UV
beam through observation of the alignment lasers is controlled through a wireless remote and an
internal drive system. Treatment power is selectable by the user from 3 mW/cm2 to 45 mW/cm2
in 1 mW/cm2 increments. Total Energy is selectable in 0.1 J/cm2increments on the user interface.
However, actual limits to power and energy are controlled by the RFID treatment card.
The KXL is a portable system with an articulating arm to allow movement of the system for
alignment of the UV Beam to the patient’s cornea. An internal battery powers the system; the
battery is recharged by a system internal charger from any standard AC outlet. The treatment
parameters (Riboflavin Induction Period, Total UV Energy, UV Power and UV Pulse Cycle
Times) are selected through the user interface touch screen computer.
The KXL System is used in conjunction with a Riboflavin solution and an RFID card.

Chapter 2: Introduction
KXL System Operator’s Manual,
Rev R
2-2
2.1.1 Major Components
The major components of the KXL System include the following:
•Optics Head with UV source
•KXL console with user interface
•Wireless remote control (with replaceable batteries)
•KXL Accelerated Crosslinking Treatment Kit (disposable supplied separately)
Figure 2-1. Overview Illustration of
System

Chapter 2: Introduction
KXL System Operator’s Manual,
Rev R
2-3
Figure 2-2. System Illustrations with Callouts
Figure 2-3. Wireless Remote

Chapter 2: Introduction
KXL System Operator’s Manual,
Rev R
2-4
Figure 2-4. KXL Label
Figure 2-5. UV emitting Label
Figure 2-6. Laser Classification Label

KXL System Operator’s Manual,
Rev R
3-1
3System Operation
3.1 Charging the KXL Battery
NOTE: Prior to initial use, the internal battery pack of the KXL must be charged
overnight.
•In order to maintain battery charge, it is recommended that the KXL be connected to a
grounded supply mains at the end of each business day or when not in use.
•The charging status of the battery is identified by the color of the light located on the
column of the KXL.
oOrange – low, charging
oYellow – charging
oGreen – fully charged
NOTE: if the battery does not appear to be charging or retaining its charge,
please contact your local Avedro Service Representative.
NOTE: the KXL battery should last for 16 hours during normal operation. The system
software will notify the user when the battery needs to be charged. The KXL system
prohibits a treatment if there is insufficient battery power to perform a treatment. (See
chapter 4 Maintenance for more information on troubleshooting battery problems.)

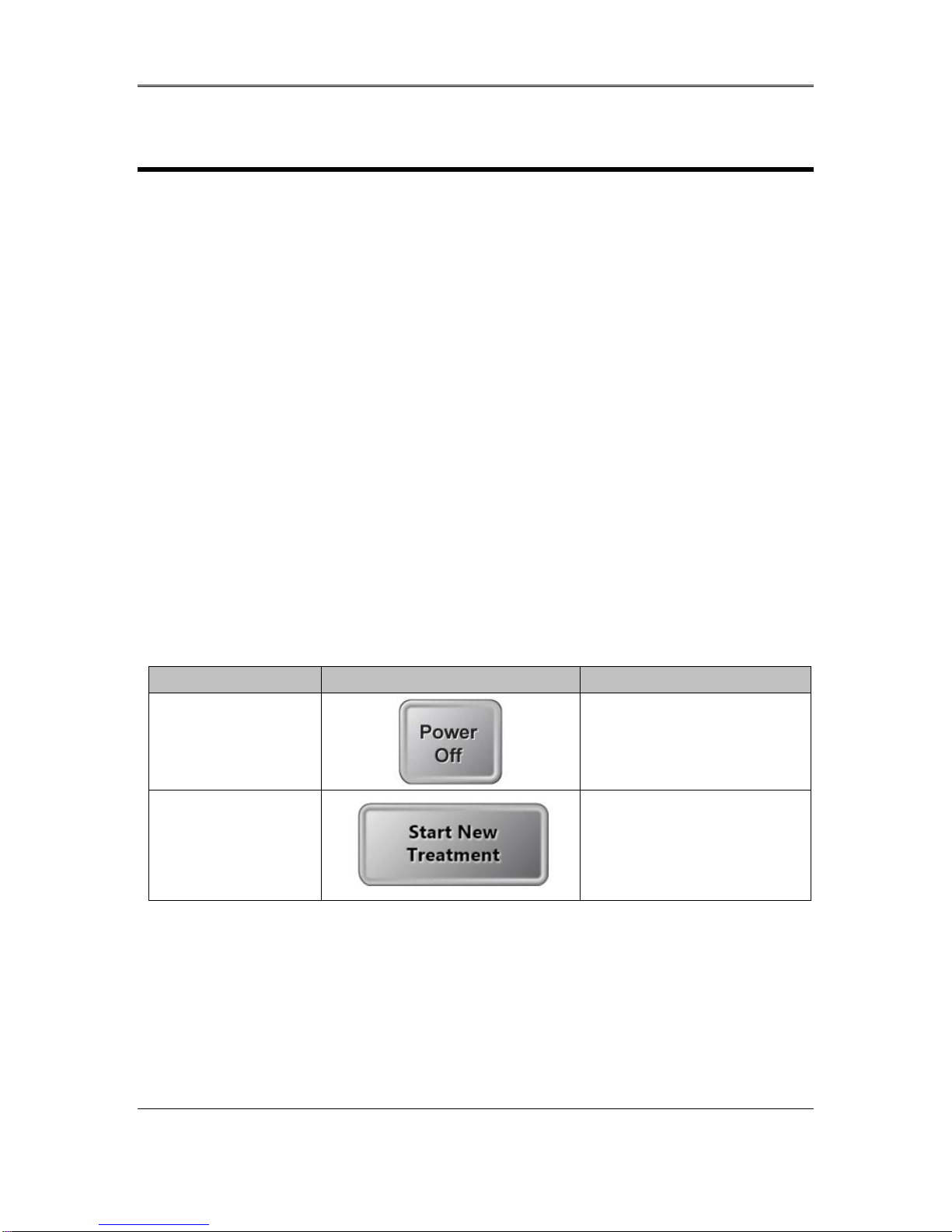

3.2 Touchpad/Keyboard Use
The table below identifies and describes important touchpad keys and icons unique to KXL
System operation. Chapter 2 identifies and describes the system’s major components.
Touchpad Key
Icon
Description/Function
Power Off button
(Initial screen)
Turns OFF electric power to
the personal computer.
Start New
Treatment button
(Initial screen)
Starts a clinical treatment
protocol so the physician
can treat patients.

Chapter 3: System Operation
KXL System Operator’s Manual,
Rev R
3-2
Touchpad Key Icon Description/Function
UP arrow
(various Clinical
Protocol screens)
Increases the value of the
current field.
DOWN arrow
(various Clinical
Protocol screens)
Decreases the value of the
current field.
X button
(various Device
Settings screens)
Cancels all the entries on a
particular screen and
returns to the previous
screen.
Checkmark button
(various Clinical
Protocol screens
and Device Settings
screen)
Directs the system to
accept the current screen
entries and to proceed to
the next step.
Cancel Session
button
(various Clinical
Protocol screens)
Cancels a treatment
session for a particular
patient. A prompt is then
displayed to confirm your
decision.
Return to Treatment
button
(Confirm Cancel
Session screen)
Cancels the Cancel
Session command and
returns to the Treatment
screen.
Return button
(various Device
Settings screen)
Returns to the Device
Settings menu.
CAUTION: Only qualified and experienced personnel shall operate the KXL System.

Chapter 3: System Operation
KXL System Operator’s Manual,
Rev R
3-3
3.3 UV Energy (Dose)
•The UV Energy (Dose) is the product of the UV Power (Intensity) and the UV Irradiation
Time. The UV Energy and UV Power are adjustable and the calculated UV Irradiation
Time is displayed.
•The system tracks UV Energy, UV Power, UV Irradiation Time and Total Treatment
Time during the treatment.
•There are two UV treatment modes available, Continuous and Pulsed.
•Continuous Mode: UV output is constant for the duration of the UV treatment.
Continuous Mode Parameters:
Induction Period: 1 second – 30 minutes
UV Energy*: 1 – 10.7 J/cm2
UV Power: 3 – 45 mW/cm2
* The user may select UV Energy in 0.1 J/cm2increments. The energy range is
controlled by the RFID card.
•Pulsed Mode: UV output turns ON and OFF at user selected intervals.
Pulsed Mode Parameters:
Induction Period: 1 second – 30 minutes
UV Energy*: 1 – 10.7 J/cm2
UV Power: 15 – 45 mW/cm2
UV ON Time: 1.0 – 4.0 Seconds
UV OFF Time: 1.0 – 4.0 Seconds
* The user may select UV Energy in 0.1 J/cm2increments. The energy range is
controlled by the RFID card.
Please reference Riboflavin Instructions for Use (IFU) for formulation information.
3.4 Preparing the System
•Position the KXL System adjacent to the treatment table or chair. Lock the casters to
secure the device’s position.
•Make sure the system is turned ON.
•Check glass window of beam aperture for dust and dirt. See sections 4.8 and 4.9 for
cleaning instructions.
3.5 Important Steps before Turning on the
System
•The user is responsible for assuring that the KXL System is functioning properly and is in
good-working condition before starting a treatment.

Chapter 3: System Operation
KXL System Operator’s Manual,
Rev R
3-4
•To ensure the system is functioning properly, consider the following mandatory points:
oInspect the device, accessories, and connecting cables for visible damage.
oTake local regulations for use of portable electro-optical medical devices into
consideration.
3.6 Powering Up the System
•Turn ON the single power switch on the front of the KXL console. This switch turns on
all the system components.
Figure 3-1. Power Switch
•The KXL System begins a power-up sequence, loading the operating system and all
configuration and reference files.
Figure 3-2. Startup Screen
•To begin patient treatment, press the Start New Treatment button.
•Please see section 3.16 for Power Down sequence instructions.
NOTE: If there is a Start-up error, please note any error messages and contact your
distributor or Customer Service immediately.

Chapter 3: System Operation
KXL System Operator’s Manual,
Rev R
3-5
3.7 Set Riboflavin Induction Period
•Specify the desired Riboflavin Induction Period (1 sec – 30 min).
•When finished entering parameters, press the Checkmark button.
Figure 3-3. Induction Period Screen
NOTE: Default treatment parameters will auto-populate user selectable fields but
are adjustable. Defaults settings can be changed (see section 3.16.5, Editing Default
Treatment Parameters Screen).
3.8 Select Treatment Mode
There are two UV treatment modes available, Continuous and Pulsed.
•Continuous Mode: The UV output is constant for the duration of the UV treatment.
•Pulsed Mode: The UV output turns ON and OFF at user selected intervals.
3.8.1 Continuous UV Treatment Mode
•Select Continuous treatment mode.
•When finished entering parameters, press the Checkmark button.

Chapter 3: System Operation
KXL System Operator’s Manual,
Rev R
3-6
Figure 3-4. Select Continuous Treatment Mode Screen
•Enter the desired UV treatment parameters:
oTotal Energy*
oUV Power (3 – 45 mW/cm2)
NOTE: UV irradiation time is automatically calculated and displayed in the orange box.
* The user may select UV Energy in 0.1 J/cm2increments. The energy range is
controlled by the RFID card.
•When finished entering treatment parameters, press the Checkmark button.
Figure 3-5. Continuous Treatment Parameters Screen
•Confirm the specified treatment parameters by pressing the Checkmark; if the treatment
parameters are not correct press the X and then re-enter the desired treatment parameters.
