Avenger FBDTP360 User manual

INFRA-RED TANK TOP HEATER
OWNER’S MANUAL
360 DEGREE BURNER MODEL FBDTP360
42,000 (HIGH)-35,000 (LOW) BTU
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to appliance.
DANGER CARBON MONOXIDE HAZARD -
oxide which has no odor.
Using it in an enclosed space can kill you.
space such as a camper, tent, car, or home.
ANS Z83.7-2017
CSA2.14-2017
GAS FIRED
CONSTRUCTION
HEATERS
IMPORTANT: Read and unde -
cing heater. Improper use of heater
can cause serious injury. Keep this manual for future refer-
ence.
Questions, problems, missing parts? Before returning to your retailer, call
Monday through Friday or email [e-mail]

www.factorybuysdirect.com 160946-03A2
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND
INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN
RESULT IN DEATH, SERIOUS BODILY INJURY AND
PROPERTY LOSS OR DAMAGE FROM HAZARDS OF
FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON
MONOXIDEPOISONING,AND/ORELECTRICALSHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOL-
LOW THE INSTRUCTIONS SHOULD USE OR SERVICE
THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION
SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC.
CONTACT THE MANUFACTURER.
WARNING: FIRE, BURN, INHALATION, AND EXPLO-
SION HAZARD. KEEP SOLID COMBUSTIBLES, SUCH
AS BUILDING MATERIALS, PAPER OR CARDBOARD,
A SAFE DISTANCE AWAY FROM THE HEATER AS
RECOMMENDED BY THE INSTRUCTIONS. NEVER USE
THE HEATER IN SPACES WHICH DO OR MAY CONTAIN
VOLATILE OR AIRBORNE COMBUSTIBLES, OR PROD-
UCTS SUCH AS GASOLINE, SOLVENTS, PAINT THIN-
NER, DUST PARTICLES OR UNKNOWN CHEMICALS.
WARNING: NOT FOR HOME OR RECREATIONAL
VEHICLE USE
HIGH LOW
Rating 42,000 Btu/hr
(12.3 kW)
35,000 Btu/hr
(10.26 kW)
Type of Gas Propane Vapor Only
Ignition Match Light
Gas Supply Pressure
to regulator
Max - Tank Pressure
Min - 25 psi (1.72 bar)
Manifold Pressure 17 psi (0.62 bar - 1.17 bar)
Minimum Ambient Temperature Rating -20° F (-17.8° C)
Fuel Consumption per 20 lb. Cylinder 10.8 Hours
TABLE OF CONTENTS
............................................ 2
Safety ........................................................ 3
Assembly................................................... 6
Operation................................................... 6
Maintenance and Storage ......................... 8
Servicing.................................................... 8
Replacement Parts.................................... 8
Parts .......................................................... 9
Technical Service..................................... 10
Warranty ...................................................11
FBDTP360 SPECIFICATIONS

www.factorybuysdirect.com 3160946-03A
SAFETY
contact Factory Buys Direct to deter-
-
ments of the heater.
-
serious injury or death. Symptom of
1. Keep children and animals away from
heater.
2. Never operate heater while sleeping or
unattended.
3. Check the heater thoroughly for damage.
Do not operate a damaged heater.
4. Do not modify the heater or operate a
original condition.
5. Use only propane gas.
6. Use only vapor withdrawal propane sup-
ply. If there is any question about vapor
withdrawal, ask your propane dealer.
7. For either ndoor or outdoor use use.
Adequate ventilation must be provided.
Provide minimum openings of 1 sq ft
(0.093 m²) near the ceiling. Do not use
inside house, camper, tent, vehicle, or
any type of unvented or enclosed area.
8. Do not use heater in basement or below
ground level.
WARNING: This product can
exposeyou tochemicals includ-
ing lead and lead compounds,
which are known to the State of
California to cause cancer and
-
The heater is designed and approved for use
as a construction heater in accordance with
StandardANSI Z83.7 • CSA2.14. Check with
questions about applications.
Other standards govern the use of fuel gases
-
plications. Your local authority can advise you
about these.
The intended use of this heater is the tempo-
rary heating of buildings or structures under
construction, alteration or repair.
ASPHYXIATION HAZARD
• Do not use this heater for heating human
-
heater’s manual, heater data plate, or
SPECIFICATIONS

www.factorybuysdirect.com 160946-03A4
9. Before connecting heater to the propane
tank, make sure the heater regulator knob
is in the OFF position. Always connect and
10. Mount the propane cylinders vertically
(shutoff valve up). Secure them from fall-
ing or being knocked over and protect
them from damage.
11. IMPORTANT: Use only hose and regula-
tor assembly provided with the tank top
heater. Inspect hose assembly before
each use. If there is excessive abrasion
or wear, or hose is cut, replace with hose
assembly listed on parts list before us-
ing heater. Hose and regulator must be
protected from damage.
12. The heater burner must be at least 2 ft.
propane tank in an upright position. Never
operate a heater on its side or attach to
propane tank in a horizontal position.
cylinders within 20 ft (6 m).
13. Maintain minimum clearance from nor-
mal combustible materials (like paper)
as follows:
Sides 3 ft. (0.91 m)
Top 4 ft. (1.3 m)
Floor to Bottom of tank 0"
Floor to Bottom of burner 2 ft. (0.6 m)
Locate 10 ft. (3 m) from canvas or plastic
tarpaulins or similar coverings and secure
to wind action.
14. The appliance area be kept clear and free
from combustible materials, gasoline and
SAFETY
15. If at any time gas odor is detected, IM-
MEDIATELY DISCONTINUE operation
until the source of gas has been located
and corrected.
16. Install the heater such that it is not directly
exposed to water spray, rain, dripping
water and/or wind.
17. Position heater properly before use. Oper-
ate only on a stable, level surface.
18. Due to the high surface and exhaust
temperatures, adults and children must
observe clearances to avoid burns or
clothing ignition.
19. Do not move, handle or service while hot
or burning. Do not attach or remove a hot
or operating heater from the propane tank.
20. Before each use, check heater for leaks.
leaks. Apply a mixture of liquid soap and
water to all joints. Bubbles forming show
a leak. Correct all leaks.
Make sure propane tank valve is clean.
Check "O" ring on heater inlet fuel valve
connector for damage before each use.
Replace if worn or damaged.
22. Use only in accordance with local codes
or, in the absence of local codes, with the
Standard for the Storage and Handling of
58 and
.
This appliance is not for use at

www.factorybuysdirect.com 5160946-03A
WARNING: Air Quality Hazard
• Do not use this heater for heating human living quarters.
of CO, CO2, and NO2 considered to be hazardous to health and potentially life threatening.
• Do not use in unventilated areas
• Know the signs of CO and CO2 poisoning
o Headaches, stinging eyes
o Dizziness, disorientation
• Proper ventilation air exchange (OSHA29 CFR 1926.57) to support combustion and maintain
acceptable air quality shall be provided in accordance with OSHA 29 CFR Part 1926.154,
ANSI A10.10 Safety Requirements for Temporary and Portable Space Heating Devices and
Equipment used in the Construction Industry or the Natural Gas and Propane Installation
Codes CSA B149.1.
o Periodically monitor levels of CO, CO2 and NO2 existing at the construction
site – at the minimum at the start of the shift and after 4 hours.
o Provide ventilation air exchange, either natural or mechanical, as required
to maintain acceptable indoor air quality
USA 8-Hr Time weighted average
(OSHA 29 CFR 1926.55 App A)
Canada 8-hr time weighted average
WorkSafe BC OHS Guidelines Part 5.1
and Ontario Workplaces Reg 833
CO 50 ppm 25 ppm
CO2 5000 ppm 5000 ppm
NO2 3 ppm (Reg 833)
USA – Ceiling Limit
(Short Term Exposure Limit = 15 minutes)
Canada STEL (15 minutes Reg 833/1
hour WSBC) WorkSafe BC OHS
Guidelines Part 5.1 and Ontario
Workplaces Reg 833
CO 100 ppm
CO2 15000 ppm (WSBC) 30000 ppm (Reg
833)
NO2 5 ppm 1.0 ppm (WorkSafeBC)
5.0 ppm (Reg 833)
•As the building ‘tightens up’ during the construction phases ventilation may need to be increased.
VENTILATION

www.factorybuysdirect.com 160946-03A6
Figure 1 - Attaching Burner Assembly to
Tank Bracket
ASSEMBLY
3. Read and follow all of the safety and
operating precautions.
4. Check the "O" ring on the POL before
each use. Replace "O" ring if there is any
sign of wear or damage.
5. Make sure heater regulator knob is in
the OFF position. If not, turn the heater
Control Knob counterclockwise to the OFF
position.
6. Attach the heater to the guard on the
propane cylinder as shown in Figure 1.
Tighten knob on tank bracket to secure
heater.
7. Insert regulator's connector into the
tank valve connection and turn counter-
clockwise until tight.
Machine Screw
Tank Collar Bracket
Mounting Bolt Knob
Thermocouple
Tip Switch
Hand Nut
Control Knob
Mounting Plate
Check for the following items:
Burner Head/Element
Tank Collar Bracket
Check all heater parts for damage. If
any heater part is damaged, promptly
inform dealer where you bought
heater.
the propane tank
1. Align bolt holes in tank collar
bracket with bolt holes in mount-
ing plate on heater.
2. Drive-in two machine screws
(supplied) into the bolt holes
attaching tank collar bracket to
mounting plate
8. Securely tighten all gas connections.
9. Open the cylinder's gas valve and
check all connections for leaks. Apply
gas joints. Bubbles forming show a leak
that must be corrected. DO NOT USE A
FLAME.

www.factorybuysdirect.com 7160946-03A
WARNING: Attach heater in
heater in a horizontal position.
This could lead to dangerous
TO START HEATER
WARNING:When lightingthe
side of theheater duringignition.
WARNING: MAKE SURE
THERE IS NO OPEN FLAME IN
on the propane cylinder.
Read all lighting instructions before attempting
to ignite heater.
1. Turn the heater regulator knob counter-
clockwise to the OFF position.
2. Place a lit match near the face of the heat-
ing element (mesh screen) of the burner
you are lighting, Locate the ignition hole
located on the bottomof the burnerr. (see
Figure 2.)
CAUTION: Do not light at the
3. Press button on safety valve admitting gas
to burner (see Figure 2).
4. When the gas on the face of mesh screen
lights, continue to hold valve button
pressed for 30 seconds, then release.
repeat lighting procedure.
6. If heater will not light after repeated tries,
do not attempt to repair heater. Call Cus-
tomer Service toll free at
WARNING: DO NOT LEAVE
HEATER UNATTENDED WHILE
OPERATING
OPERATION
Figure 2 - Lighting Heater With a Match
7. Choose either HIGH or LOW setting for
operation depending on the heating
requirements.
LIGHTING UNDER WINDY
CONDITIONS
When lighting this heater outdoors on a
windy day, it will be necessary to use a long
match or long stem butane lighter to ignite
o
keep the match lit long enough under windy
conditions. Follow the “Lighting instructions”
procedure after doing the following:
1. Position the heater and tank such that
the Thermocouple faces away from the
wind.
2. Position your body behind the heater
such that your body blocks the wind
while you are following the instructions
for lighting.

www.factorybuysdirect.com 160946-03A8
SERVICING
MAINTENANCE AND STORAGE
A hazardous condition may result if a heater
-
tioning properly. When the heater is working
properly:
• Emitter screen is glowing bright orange-red.
• Flame is burning on surface of screen and
• There is no strong disagreeable odor, eye
burning or other physical discomfort.
• There is no smoke or soot internal or ex-
ternal to heater.
• There are no unplanned or unexplained
shut downs of heater.
The parts lists and exploded view show
heater as it was constructed. Do not use a
heater which is different from that shown. In
this regard, use only the hose, regulator and
supplied with heater.
IMPORTANT: For this heater, regulator must
be set as shown in , page 3. If
there is any uncertainty about regulator set-
ting, have it checked.
1. Inspect heater before each use. Check
connections for leaks. Apply a noncor-
Bubbles forming show a leak that must be
corrected. Correct all leaks at once. Have
heater inspected at least annually by a
2. Before each use, check the soft "O" ring
"O" ring is cut, scuffed, or otherwise dam-
aged, replace it.
3. Inspect hose/regulator assembly before
each use. If hose is highly worn or cut,
replace. Use only a replacement hose
4. Turn off gas at propane gas supply cylin-
der when heater is not in use.
5. When heater is to be stored, connection
between propane gas supply cylinder
and heater must be disconnected and
cylinder removed from heater and stored
out of doors and in accordance with
Chapter 5 of the standard for Storage and
.
6. Use compressed air to gently blow out
any dirt or debris from burner tube.
TO STOP HEATER
1. Securely close valve on propane cylinder.
2. esiwkcolcbonkrotalugerretaehnruT
to the OFF position. Wait 15
minutes for heater to cool down before
handling heater.
3. Always remove heater from propane tank
after each use. Do not store heater while
attached to propane tank. Remove heater
from propane tank by turning fuel connec-
tor nut clockwise. Always store propane
tank outdoors. Never store propane tank
in an enclosed area.
TO RESTART HEATER
1.
Securely close valve on propane cylinder.
2. Wait 5 minutes.
3. Restart following To Start Heater proce-
dure.
OPERATION

www.factorybuysdirect.com 9160946-03A
REPLACEMENT PARTS
• Your name
• Your address
• Model and serial number of your heater
• Type of gas supply and Propane tank size
• Purchase date
Usually, we will ask you to return the defective
part to the factory
PARTS UNDER WARRANTY
Contact authorized dealers of this product.
If they can’t supply original replacement
parts, call Customer Service toll free at
1-855-607-6557 for referral information.
When calling Customer Service or your
dealer, have ready:
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If
they can’t supply original replacement part(s)
call Customer Service toll free at 1-855-607-
6557 for referral information.
When calling Customer Service have ready:
• Model number of your heater
• The replacement part number
TECHNICAL SERVICE
You may have further questions about installation, operation, or troubleshooting. If so, contact
Factory Buys Direct. at 1-855-607-6557.
When calling, please have your model and serial numbers of your heater ready.
PROBLEM POSSIBLE CAUSE CORRETIVE ACTION
1. Will not light 1. valve on propane tank not
opened
2. Propane cylinder empty
3. Regulator not set in low
position
-
gered (propane cylinder)
5. Defective Regulator
1. Open gas cylinder valve by
turning valve counterclockwise
3. Turn regulator to LOW posi-
tion
4. Close cylinder valve, wait 5
minutes and slowly reopen
5. Replace regulator assembly
2. Burner will not stay lit
when gas valve plunger is
released
1. Tip switch activated/open
2. Bad connection of thermo-
couple
3. Defective thermocouple
4. Defective tip switch
5. Defective gas valve
1. Correct alignment of heater to
ensure it is vertical
2. Verify wiring connections
3. replace thermocouple
4. replace tip switch
5. Replace gas valve assembly
from burner/burner not
glowing red
1. Debris or spider webs... in
mixing tube
1. Clean burner mixing tupe with
bottle brush or compressed air
-
pening with compressed air
4. Piezo will not spark
(piezo equipped models)
1. Piezo wire loose, frayed or
damaged
2. Igniter misaligned with
burner mesh
3. Defective piezo
1. Reconnect or replace igniter
wire
2. Properly align igniter with
mesh with a 0.15" (4mm) spark
gap
3. Replace piezo
inside the mixing tube
1. Debris or spider webs... in
mixing tube
1. Clean burner mixing tupe with
bottle brush or compressed air
-
pening with compressed air
TROUBLESHOOTING

www.factorybuysdirect.com 160946-03A10
This list contains replaceable parts used in your heater. When ordering parts, follow the
instructions listed under on page 9 of this manual.
ITEM DESCRIPTION QTY
1 TYQ-14A Regulator Assembly 1
2 QG-008C Gas Hose 1
3 TT360-18 Valve Cable 1
4 TT15-29 Tip Switch 1
5 TT15-03 Thermocouple Bracket 1
6 TT360-04 Thermocouple Shield 1
7 TT15-OYDL Thermocouple 1
8 TT360-05 Burner Head Assembly 1
9 TT360-01 Guard Assembly 1
10 TT360-02 1
11 TT360-07 1
12 GS01 Nozzle 1
13 TT15-02 Safety Shut-off Valve 1
14 TT30-03 Mounting Plate 1
15 TT30-09 Tank Collar Bracket 1
16 TT30-1 Mounting Bolt Knob 1
PARTS
MODELFBDTP360

www.factorybuysdirect.com 11160946-03A
160946-03
Rev. A
04/21
Model _______________________________
Serial No. ____________________________
Date Purchased _______________________
REGISTER YOUR PRODUCT AT WWW.FACTORYBUYSDIRECT.COM
FACTORY BUYS DIRECT LIMITED WARRANTIES
New Products – Outdoor Heating
Standard Warranty: Factory Buys Direct warrants this new product and any parts thereof to be free from
authorized dealer provided the product has been installed, maintained and operated in accordance with
Factory Buys Direct’s warnings and instructions.
For products purchased for commercial, industrial or rental usage, this warranty is limited to 90 days from
Factory Reconditioned Products
Limited Warranty: Factory Buys Direct warrants factory reconditioned products and any parts thereof to be
authorized dealer provided the product has been installed, maintained and operated in accordance with Factory
Buys Direct’s warnings and instructions. No return will be authorized. Parts will be provided to repair the product.
Terms Common to All Warranties
The following terms apply to all of the above warranties:
Always specify model number and serial number when contacting the manufacturer. To make a claim under
this warranty, the bill of sale or other proof of purchase must be presented.
This warranty is extended only to the original retail purchaser when purchased from an authorized dealer,
with this product.
This warranty covers the cost of part(s) required to restore this product to proper operating condition and
an allowance for labor when provided by a Factory Buys Direct Authorized Service Center or a provider ap-
proved by Factory Buys Direct. Warranty parts must be obtained through authorized dealers of this product
and/or Factory Buys Direct who will provide original factory replacement parts. Failure to use original factory
replacement parts will void this warranty.
Traveling, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty
repairs, unless expressly covered by this warranty, are not reimbursable under this warranty and are the
responsibility of the owner.
Excluded from this warranty are products or parts that fail or become damaged due to misuse, accidents,
improper installation, lack of proper maintenance, tampering or alteration(s).
This is Factory Buys Direct’s exclusive warranty, and to the full extent allowed by law; this express warranty
excludes any and all other warranties, express or implied, written or verbal and limits the duration of any
Factory Buys Direct makes no other warranties regarding this product.
Factory Buys Direct’s liability is limited to the purchase price of the product and Factory Buys Direct shall not
be liable for any other damages whatsoever under any circumstances including direct, indirect, incidental,
or consequential damages.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Factory Buys Direct
Bowling Green, KY 42101
1-855-607-6557
WARRANTY
KEEP THIS WARRANTY

PELIGRO DE MONÓXIDO DE CARBONO
Este aparato puede producir monóxido de
carbono que no tiene olor.
Su uso en un espacio cerrado puede matarlo.
Nunca utilice este aparato en un espacio cerra-
do tal como una casa rodante, una tienda de
campaña, un automóvil o una casa.
PARA SU SEGURIDAD
Si percibe olor a gas:
1. Cierre el suministro de gas al aparato.
2. Extinga las llamas al descubierto.
No guarde ni utilice gasolina u otros vapores y líquidos
PELIGRO
CALENTADOR INFRARROJO MONTABLE EN
TANQUE MANUAL DEL PROPIETARIO
QUEMADOR 360 GRADOS MODELO FBDTP360
42,000 (ALTO) -35,000 (BAJO) BTU
IMPORTANTE: Lea y comprenda este manual antes de
ensamblar, encender o dar servicio al calentador. El
uso inadecuado del calentador puede causar lesiones
graves. Conserve este manual para referencias futuras.
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-855-607-6557, 8:00 am - 4:30 pm EST,
Monday through Friday or email [e-mail]
ANS Z83.7-2017
CSA2.14-2017
GAS FIRED
CONSTRUCTION
HEATERS

ADVERTENCIA GENERAL DE PELIGRO:
NO CUMPLIR CON LAS PRECAUCIONES E INSTRUC-
CIONES PROPORCIONADAS CON ESTE CALENTADOR
PUEDECAUSAR LAMUERTE,LESIONESFÍSICAS GRA-
VES Y PÉRDIDAS O DAÑOS A LA PROPIEDAD DEBIDO
AL PELIGRO DE INCENDIO, EXPLOSIÓN, QUEMADU-
RAS, ASFIXIA, INTOXICACIÓN CON MONÓXIDO DE
CARBONO Y/O CHOQUES ELÉCTRICOS.
ÚNICAMENTE LAS PERSONAS QUE PUEDAN ENTEN-
DER Y SEGUIR LAS INSTRUCCIONES DEBERÁN USAR
O DAR SERVICIO A ESTE CALENTADOR.
SI NECESITA AYUDA O INFORMACIÓN SOBRE EL CA-
LENTADOR, COMO MANUALES DE INSTRUCCIONES,
ETIQUETAS, ETC., COMUNÍQUESE CON EL FABRICAN-
TE.
ADVERTENCIA: PELIGRO DE INCENDIO, QUEMA-
DURAS, INHALACIÓN Y EXPLOSIÓN. MANTENGA LOS
COMBUSTIBLES SÓLIDOS, COMO MATERIALES DE
CONSTRUCCIÓN, PAPEL O CARTÓNAUNA DISTANCIA
SEGURA DEL CALENTADOR SEGÚN SE RECOMIENDA
EN LAS INSTRUCCIONES. NUNCA USE EL CALENTA-
DOR EN ESPACIOS QUE CONTENGAN O PODRÍAN
CONTENER COMBUSTIBLES VOLÁTILES O TRANS-
PORTADOS POR AIRE O PRODUCTOS COMO GASOLI-
NA, SOLVENTES, DILUYENTE DE PINTURA, PARTÍCU-
LAS DE POLVO O QUÍMICOS DESCONOCIDOS.
ADVERTENCIA: No usar en residencias ni en vehí-
culos recreativos.
TABLA DE CONTENIDOS
...................................... 14
................................................ 14
.............................................. 17
....................................... 18
........... 20
.......................................... 20
...................................................... 21
.................................. 22
....................................... 22
................................................... 23

www.factorybuysdirect.com 160946-03A14
-

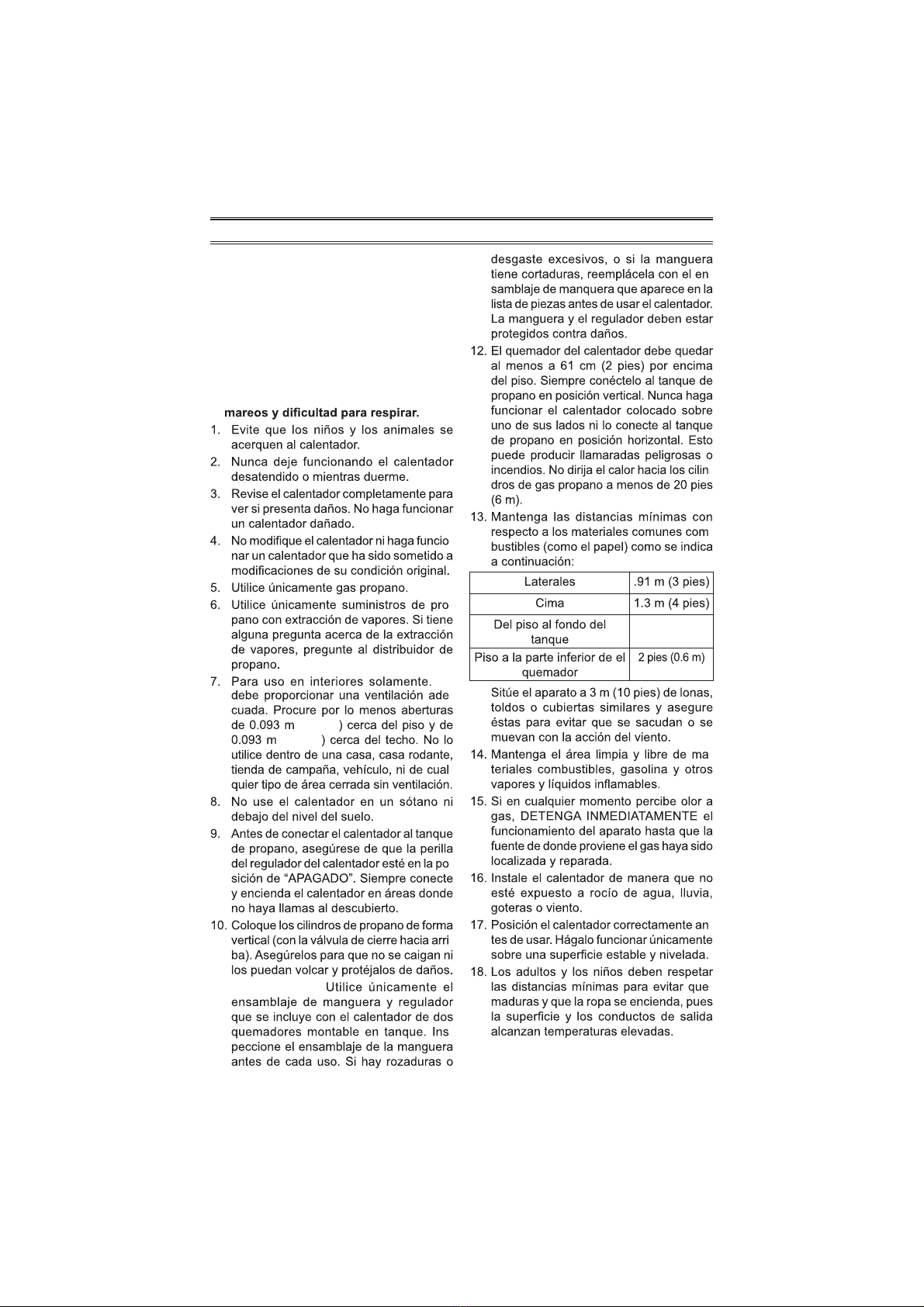

PELIGRO DE ASFIXIA
• No utilice este calentador para la ca-
lefacción de lugares de alojamiento
humano.
• No lo utilice en áreas sin ventilación.
combustión y ventilación.
• Se debe procurar el aire necesario para
requisitos de aire para combustión del
calentador que se está usando.
del manual del calentador, la placa de
datos del mismo o comuníquese con
ProCom Heating, Inc. para determinar
ADVERTENCIA:Este produc-
to contiene y/o genera químicos
que el Estado de California
reconoce que causan cáncer,
defectos de nacimiento u otros
daños relacionados con la re-
producción.
Norma ANSI Z83.7 • CSA
2.14 -
-
SEGURIDAD
HIGH LOW
(12.3 kW) (10.26 kW)
-20° F (-17.8° C)
FBDTP360 SPECIFICATIONS

www.factorybuysdirect.com 15160946-03A
-
-
-
0"
-
-
-

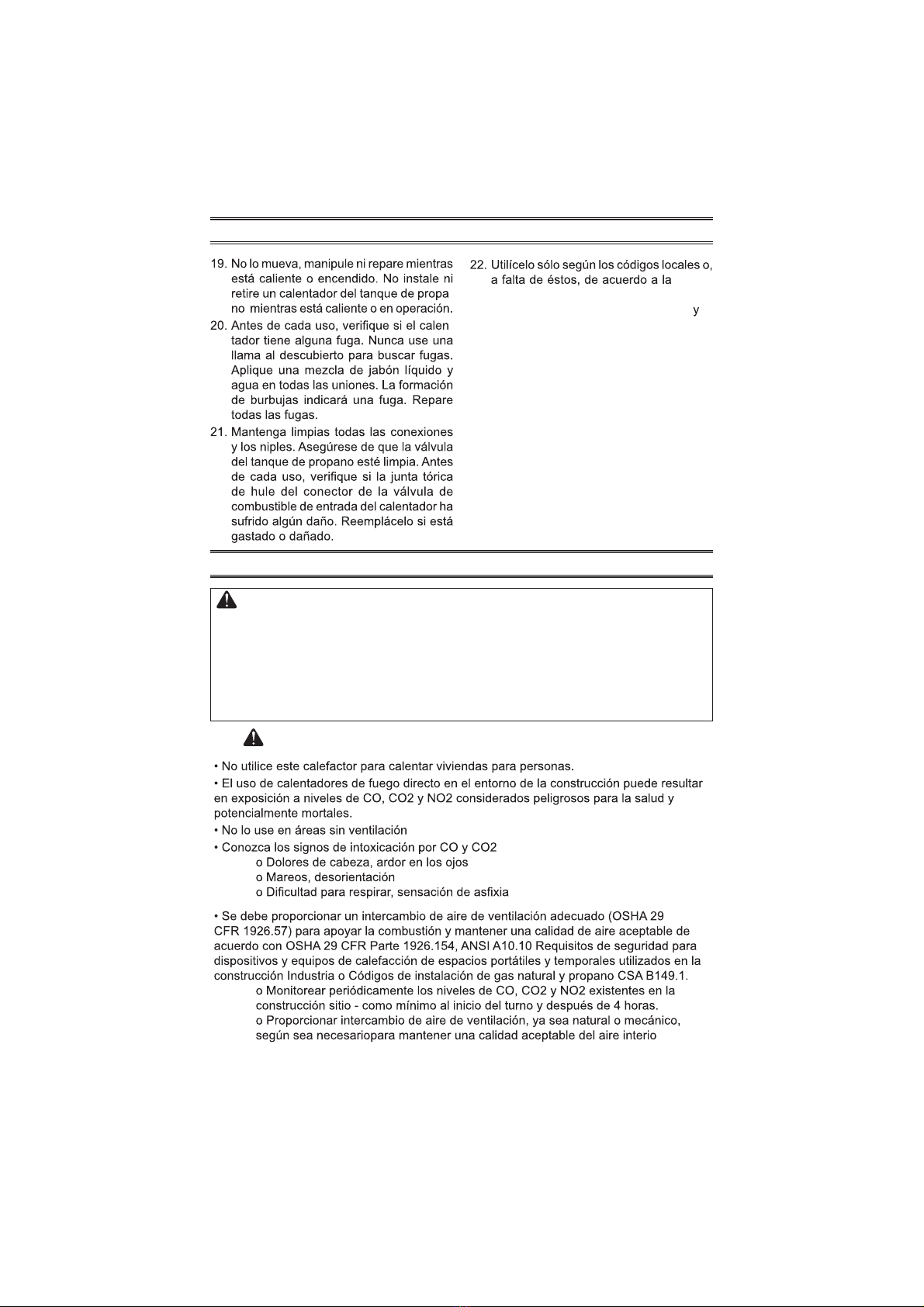

SEGURIDAD
los requisitos de ventilación de aire para
combustión del calentador.
•
La falta de aire para una ventilación adecua-
da producirá una combustión incorrecta.
• La combustión incorrecta puede gene-
rar intoxicaciones por monóxido de car-
bono que pueden resultar en lesiones
graves o en la muerte. Los síntomas de
la intoxicación con monóxido de car-
bono pueden incluir dolores de cabeza,
-
-
Se
-
2(1 pie2
2(1 pie2
-
-
-
11. IMPORTANTE:
-

www.factorybuysdirect.com 160946-03A16
Norma
para almacenamiento y manejo de gases
licuados de petróleo ANSI/NFPA 58 la
norma CSA B149.1, Código de instalación
de gas natural y propano.
-
-
ADVERTENCIA: Proporcione al menos una abertura de 0,23
m2 (2,5 pies2) de aire exterior fresco mientras el calentador
esté encendido. Si no se proporciona una ventilación
adecuada de aire fresco del exterior, se puede producir
una intoxicación por monóxido de carbono. Proporcione
una ventilación de aire exterior adecuada antes de poner
en funcionamiento el calentador
ADVERTENCIA: PELIGRO DE CALIDAD DEL AIRE
SEGURIDAD
VENTILACIÓN

www.factorybuysdirect.com 17160946-03A
CO
CO2
2
CO
CO2
833)
2
Reg 833
VENTILACIÓN

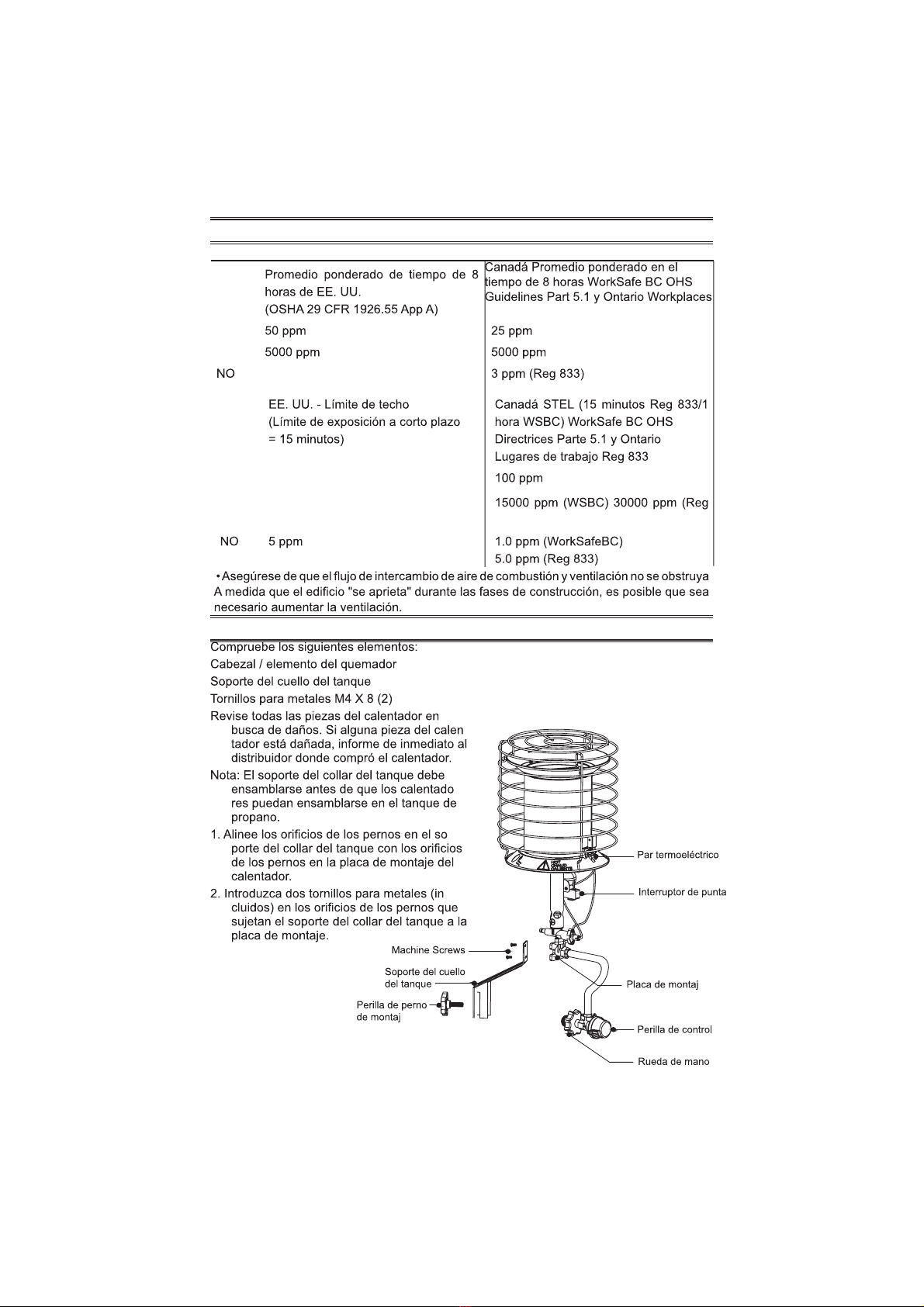

Figure 1 - Attaching Burner Assembly to
Tank Bracket
ENSAMBLAJE
-
-
-
-
e
e

www.factorybuysdirect.com 160946-03A18
ENSAMBLAJE
-
-
2.)
PRECAUCIÓN: No lo en-
2).
ADVERTENCIA: No oprima
el botón de la válvula antes de
introducir un fósforo.
-
1-866-573-0674
Este aparato de calenta-
miento no debe usarse en
altitudes superiores a 2000
pies
3. Lea y siga todas las precauciones de
seguridad y funcionamiento.
-
ADVERTENCIA: Instale el
calentador en posición vertical.
Nunca instale el calentador en
posición horizontal. Esto puede
producir llamaradas peligrosas
o incendios.
PARA ENCENDER EL
CALENTADOR
ADVERTENCIA: Cuando
encienda el calentador NO lo
vea desde la parte superior del
a un lado del calentador durante
el encendido. No se coloque
ni ponga ninguna parte de su
cuerpo frente al calentador.
ADVERTENCIA: ASEGÚRE-
SE DE QUE NO HAYA LLAMAS
ALDESCUBIERTOEN ELÁREA.
Abra completamente la válvula
del cilindro de propano.
FUNCIONAMIENTO

www.factorybuysdirect.com 19160946-03A
FUNCIONAMIENTO
ADVERTENCIA: NO
DEJE CALEFACTOR
DESATENDIDO
MIENTRAS ESTÁ EN
FUNCIONAMIENTO
ILUMINACIÓN EN CONDICIO-
NES DE VIENTO
-
-
-
-
-
Figura 2 - Calentador de encendido con
un fósforo
PARA DETENER EL CALENTA-
DOR
-
-
-
-
-
-
PARA REINICIAR EL CALEN-
TADOR
e
Te

www.factorybuysdirect.com 160946-03A20
IMPORTANTE:
-
MANTENIMIENTO Y ALMACENAMIENTO
-
-
-
REPARACIONES
PIEZAS DE REPUESTO
Nota: use sólo piezas de repuesto originales. Esto protegerá la cobertura de su garantía para
partes remplazadas bajo la garantía.
PIEZAS CON GARANTÍA
-
-
1-855-607-6557 -
