E32c+
User Manual


WARNING
AVERTISSEMENT
ALWAYS FOLLOW SAFETY PRECAUTIONS
RESPECTEZ TOUJOURS LES CONSIGNES DE SÉCURITÉ

Death or serious injury may occur when children climb on audio and/or
video equipment furniture. A remote control or toys placed on the
furnishing may encourage a child to climb on the furnishing and as a result
the furnishing may tip over on to the child.
Relocating audio and/or video equipment to furniture not specifically
designed to support audio and/or video equipment may result in death or
serious injury due to the furnishing collapsing or over turning onto a child.
Il y a un danger de blessures graves ou même de mort si un enfant grimpe
sur un meuble pour matériels audio ou vidéo. Une télécommande ou un
jouet laissés sur le meuble peuvent inciter l'enfant à y grimper, ce qui peut
provoquer le basculement du meuble sur l'enfant.
Le repositionnement de matériels audio ou vidéo sur un meuble non
spécialement conçu pour cela peut causer la mort ou des blessures
graves par effondrement ou renversement du meuble sur un enfant.




Pour réduire le risque de
décharge électrique, n’utilisez
le chariot QU’À L’INTÉRIEUR.
Only use the cart INDOORS
to reduce risk of electric shock.

ONLY ADULTS should
move the cart.
Le chariot ne doit être déplacé
QUE PAR DES ADULTES.

NEVER climb, sit
or stand on the cart.
Personne ne doit s'asseoir,
se tenir ou grimper sur
le chariot.





CAUTION
DO NOT allow anyone to sit, stand or climb on the cart.
DO NOT lift the cart.
DO NOT block the ventilation holes used for air circulation.
DO NOT overload objects on the cart shelves. (work platform maximum
loading = 20kg / 44.09lbs; each shelf maximum loading = 15kg / 30.07lbs).
DO NOT put any devices over the maximum loading weight on top of the
cart.
When moving the cart, DO NOT put any devices (ex: TV, Monitor,
Documents camera…etc.) on top of cart.
DO NOT use a TV/monitor on top of the cart.
Disconnect the power from the outlet before moving the cart.
While moving the cart, make sure the power cord is secured and tightly
wrapped.
When moving carts over uneven flooring, please try to slightly lift and
stabilize the cart to avoid damage.
ATTENTION !
PERSONNE ne doit s'asseoir, se tenir ou grimper sur le chariot.
IL NE FAUT PAS soulever le chariot.
IL NE FAUT PAS obstruer les orifices de ventilation qui permettent à l'air de
circuler.
IL NE FAUT PAS surcharger d'objets les étagères du chariot (charge
maximale de la plateforme de travail : 20 kg / 44,09lbs ; charge maximale
de chaque étagère : 15 kg / 30,07lbs).
IL NE FAUT PAS poser sur le haut du chariot des appareils dont le poids
dépasse la charge maximale.
Pour déplacer le chariot, IL NE FAUT poser aucun appareil (poste de TV,
moniteur, caméra pour documents, etc.) sur le haut dudit chariot.
N'utilisez aucun téléviseur ni moniteur sur le haut du chariot.
Avant de déplacer le chariot, débranchez la prise secteur.
Pendant le déplacement du chariot, veillez à ce que le cordon
d'alimentation soit correctement replié et fixé.
Lorsque vous déplacez des chariots sur un sol inégal, merci d'essayer de le
soulever légèrement et de le stabiliser pour éviter les dégâts.

European Community Compliance Statement (Class A)
This product is herewith confirmed to comply with the requirements set
out in the Council Directives on the Approximation of the laws of the
Member States relating to Electromagnetic Compatibility Directive
2014/30/EU.
Warning: This is a class A product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take adequate
measures.
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect to
the contents of this documentation, its quality, performance, merchantability, or
fitness for a particular purpose. Information presented in this documentation has
been carefully checked for reliability; however, no responsibility is assumed for
inaccuracies. The information contained in this documentation is subject to change
without notice.
In no event will AVer Information Inc. be liable for direct, indirect, special, incidental,
or consequential damages arising out of the use or inability to use this product or
documentation, even if advised of the possibility of such damages.
TRADEMARKS
“AVer” is a trademark owned by AVer Information Inc. Other trademarks used
herein for description purpose only belong to each of their companies.
COPYRIGHT
©2021 AVer Information Inc. All rights reserved.
All rights of this object belong to AVer Information Inc. Reproduced or transmitted
in any form or by any means without the prior written permission of AVer
Information Inc. is prohibited. All information or specifications are subject to
change without prior notice.
The mark of Crossed-out wheeled bin indicates that this product must
not be disposed of with your other household waste. Instead, you need
to dispose of the waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and electronic
equipment. For more information about where to drop off your waste
equipment for recycling, please contact your household waste disposal
service or the shop where you purchased the product.

Help
Global
Download Center: https://www.aver.com/download-center
Technical Support: https://www.aver.com/technical-support
Europe
Download Center: https://www.avereurope.com/download-center
Technical Support: https://www.avereurope.com/technical-support
Contact Information
Global
AVer Information Inc.
https://www.aver.com
8F, No.157, Da-An Rd., Tucheng Dist., New Taipei City 23673, Taiwan
Tel: [phone]
European Headquarters
AVer Information Europe B.V.
https://www.avereurope.com
Westblaak 134, 3012 KM, Rotterdam, The Netherlands
Tel: [phone]
Technical support: [email protected]





Contents

Package Contents ..........................................................................1
Dimensions.....................................................................................1
Diagram ..........................................................................................2
Door Lock .......................................................................................3
Installation.......................................................................................4
Adapter Installation ....................................................................4
Cable Management ...................................................................5
Charging Cart .................................................................................6
Troubleshooting ..............................................................................7
Specifications..................................................................................8
Service and Warranty .....................................................................9
Appendix – Earthing .....................................................................10

1

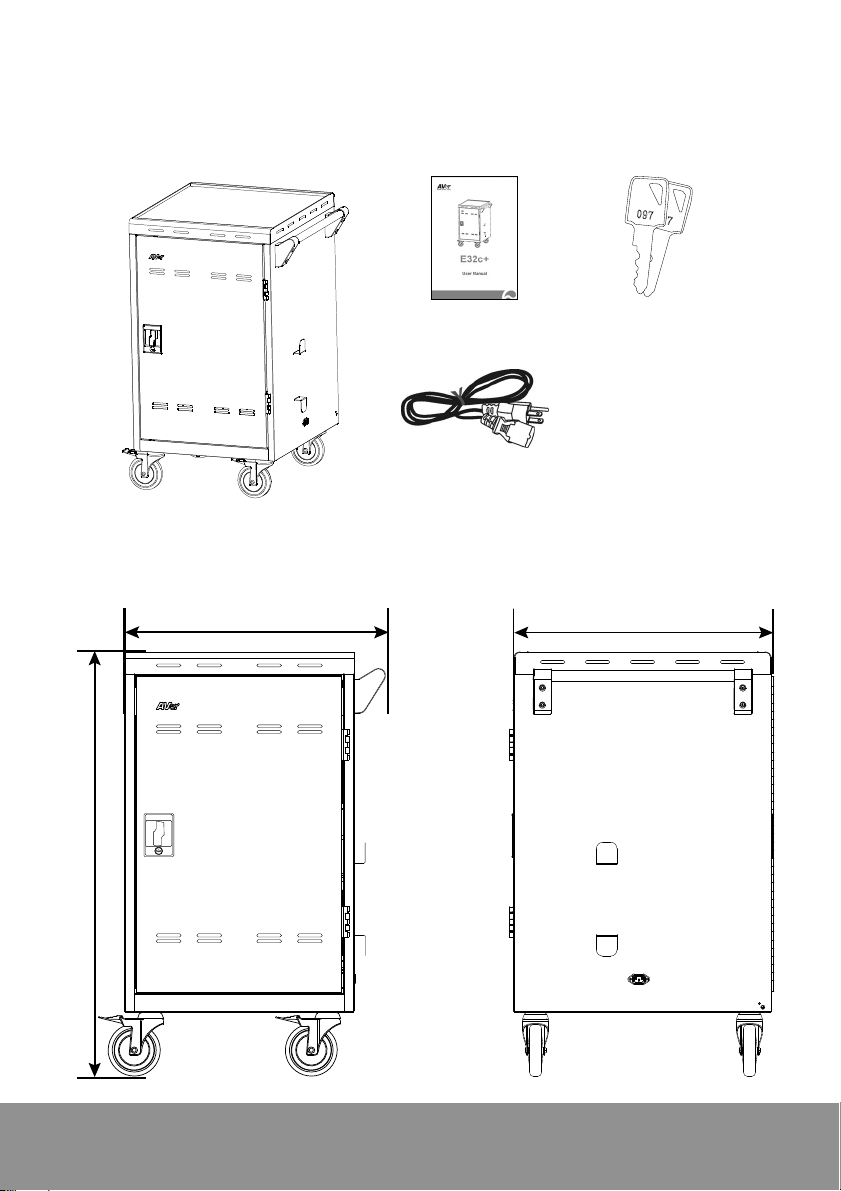

Package Contents
The following items are included in the package. Please check if each item is
available before using.
User Manual Door key x4
Power Cord*
E32c+ Cart *The power cord type may vary as they are
country dependent.
Dimensions
639.6mm(25.18”)
1039mm(40.91”)
632mm(24.88”)

2
Diagram
2
4
3
11
5
7
10
11
6
8
9
Front Side Back
1. Work platform
2. Ventilation holes
3. Door lock
4. Handle
5. Power cable wrap
brackets
6. 5" directional lock
caster(Keep the cart
rolling in the fixed
direction)
7. 5" locking caster
8. Power inlet
9. Earthing screw
10. Ventilation holes
11. Door lock

3

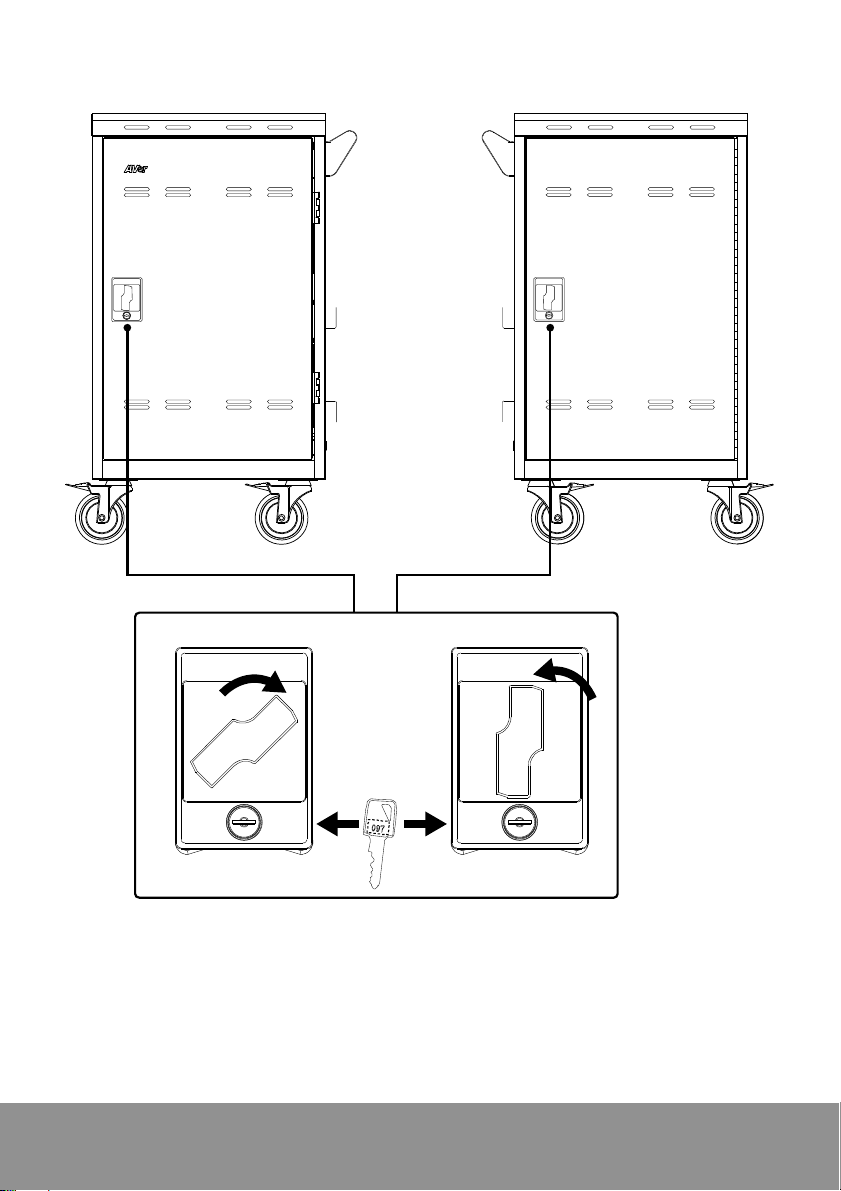

Door Lock
Door open Door close


4
Installation
[Note]
1. It is recommended to use cable ties (optional) to secure and manage cables.
2. It is recommended to allocate 2 persons for efficient device cabling.
Adapter Installation
1. Open the rear door.
2. Place the power adapter into the individual adapter compartment.
3. Pass the DC-end of the adapter cable to the front of the cart through the space
provided.
4. Plug-in the AC-end power cord to the corresponding power AC socket.
5. Bundle the cable and secure it with a cable tie or zip-tie (not supplied).

5

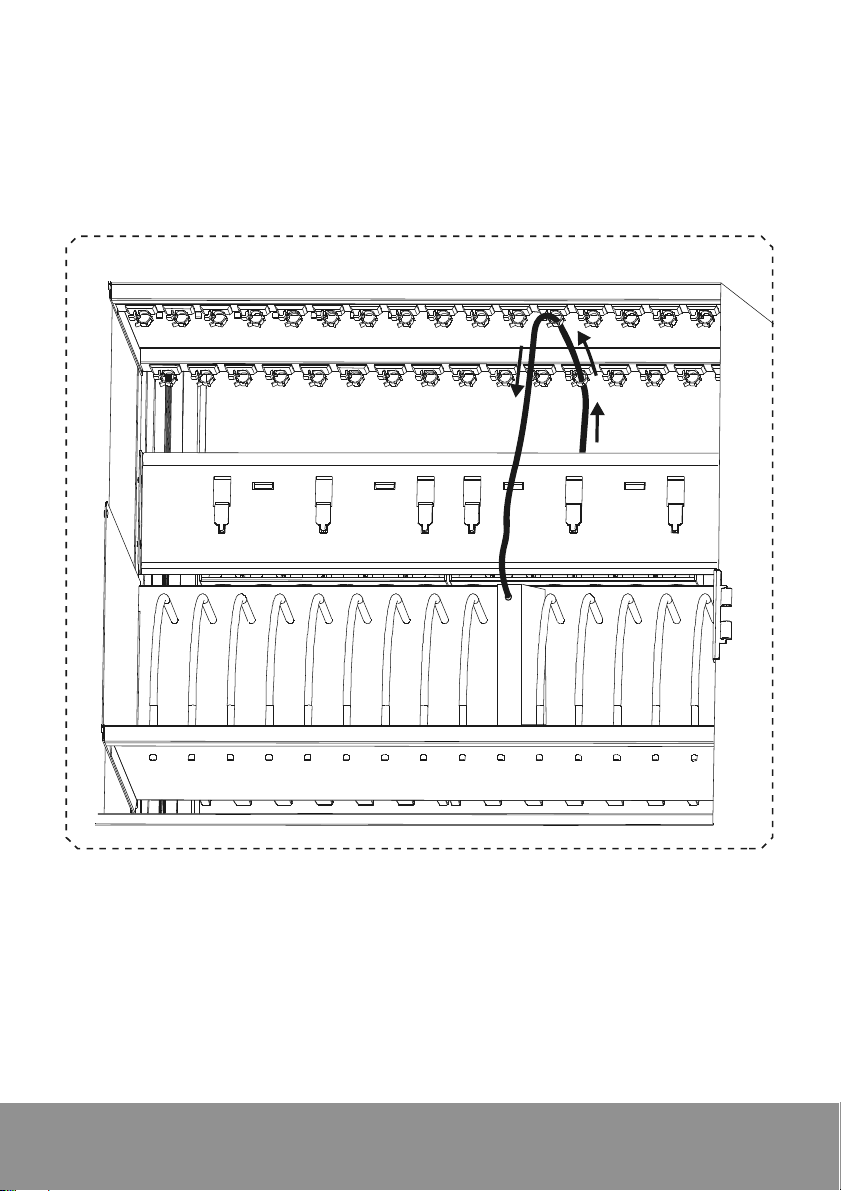

Cable Management
1. Open front door.
2. Route the cable through the cable hook as figure shown.
3. Place the mobile device into the bay.
4. Plug in the DC-connector to the mobile device.


6
Charging Cart
Wall outlet
Connect power cord to
the cart and wall outlet

[Note] The power inlet and power cord type may vary as they are country
dependent.

7
Troubleshooting
Q: Why are all of my devices plugged in but not charging?
A: 1. Make sure power cords are undamaged.
2. Make sure power cords are firmly inserted into the available socket with the
stable current.
3. Make sure the power plug and current consumption are compliant with your
country specification standards.
Q: My cart's main power cord or cart components are damaged. Are they
covered under warranty?
A: We provide a 10 year warranty on the cart and tray, and 5 years warranty on the
electrical components.
Q: How do I know if my devices will exceed more than the allotted current?
A: Have a qualified electrician verify the current consumption of your devices.
Perform the test with devices installed and batteries discharged.
Q: When I plug in the device it trips the circuit breaker. What is wrong?
A: You may have other equipment or appliances sharing the same circuit that is
causing a circuit overload. Have a qualified electrician check that adequate
power is available in the circuit.

8
Specifications
Model E32c+
Capacity 32 (two shelves, 16 bays per shelf)
Supported Devices Mobile devices up to 15.6"
Charging Type Smart Cycling Charge
Power Specification AC IN: 220~240V, 50/60Hz, 8A
Power Strip: 220~240V, 50/60Hz, 8A
Security Front Doors: 2-point steel locking mechanism
Rear Doors: 2-point steel locking mechanism
Casters Four 5” casters: two are lockable and two
directional lock
Door Hinge 180°
Work Platform Loading 20kg (44.09lbs)
Shelf Loading(ea.) 43.54kg (95.98lbs)
Adapter Shelves
Loading(ea.) 3kg(6.6lbs)
Working Temperature 0o~30oC
Working RH% 10%~90%
Storage Temperature -40oC~60oC
Storage RH% 5%~95%
Warranty 10 years cart and tray
5 years electrical components
Cart Dimensions
(W x D x H)
639.6 (W) x 632 (D) x 1039 (H)mm
25.18”(W) x 24.88”(D) x 40.91”(H)
Slot Dimensions
(W x D x H)
Upper side drawer :
26(W) x 395(D) x 300.8(H)mm
1.02”(W) x 15.55”(D) x 11.84”(H)
Lower side drawer:
26(W) x 395 (D) x 341.5(H)mm
1.02”(W) x 15.55”(D) x 13.44”(H)
Weight without Devices 52 Kg (114.64lbs)

9
[Note 1] Specifications are subject to change without prior notice.
[Note 2] Supported Devices: please check actual device size, including power
cable for compatibility with device compartment size. If in doubt please contact
AVer for confirmation.
Service and Warranty
All of our products come with a quality and safety assurance.
For customers located outside North America, please visit AVer Global support site:
https://www.aver.com/technical-support
For customers located in Europe, please visit the AVer support site for
comprehensive RMA, Warranty, and Service information:
https://presentation.avereurope.com/warranty

10
Appendix – Earthing
[Caution]
High touch current, Connect to earth before connecting to supply.
(Yellow/Green wire min. 14AWG)
[Note]
Installation of the protective earthing connection of the socket-outlet by a skilled
person.
[Attention]
Contact à courant élevé,
Reliez l’appareil à la terre avant de la connexion à l’alimentation en courant.
(Câble jaune/vert min. 14AWG)
[Remarque]
L’installation du branchement de mise à la terre sécurisée d’une prise de courant
par un professionnel qualifié.


V1
